x-sense XS01-WT User manual

X-Sense Innovations Co ltd.
Email: support@X-sense.
co m
Conforms to EN 14604:2005+AC:2008
_.,
U!m
E5i
X-SENSE
User Manual
Wi-Fi Smoke Alarm mlll'm®

English
This user manual contains important information regarding the operation
of your X-Sense smoke alarm. Ensure you read this user manual fully before
installing and operating the alarm. If you are installing this smoke alarm for
use by others, you must leave this manual (or a copy of it) with the end user.
Package Contents
1 x Alarm Unit
1 x Mounting Bracket
2x5crews
Safety Information
Ltl.lMPORTANT
2 x Anchor Plugs
1 xPin
1 x User Manual
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT
OPERAllNG INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS.
PAY SPECIAL ATTENllON TO THESE SITUAllONS.
2. THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS.
THE USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE'S ABILITYTO
HEAR THE SMOKE ALARM.
3. FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND CLOSED
DOORS MIGHT NOT BE DETECllED.
01

4. THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR
OTHER HAZARDOUS GASES .
.1l.WARNING
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL
PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY
OR DEATH.
3. TESTTHIS SMOKE ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO
TEST CORRECTLY, REPLACE IT IMMEDIATELY! IFTHE ALARM CANNOT WORK
PROPERLY, ITWILL NOT ALERT
YOU TO A PROBLEM.
Set Up and Connect Smoke Alarms to WI-Fi
Before connecting smoke alarms:
1. Make sure you know your Wi-Fi network name and password.
2. Make sure you are connecting smoke alarms to a 2.4 GHz Wi-Fi network
(incompatible with 5 GHz Wi-Fi network).
NOTES
1. The following user interface is taken from an iOS device. If you are using a
different operating system, some images may look a little different, but the basic
02
functions
are
still the same. If you have problems connecting your device, you are
always welcome to contact our customer
service.
2. Some contents shown in the App user interface might slightly differ from those in
the user manual due to later software upgrades.
How to connect via EZ mode (Default mode)
1. Before installing the alarm to a wall or ceiling, download the TuyaSmart/
Smart Life app and connect the alarm to your Wi-Fi via the app. Search for
TuyaSmart/Smart Life in the App Store or Google Play, or simply scan the
included QR code to install the TuyaSmart/Smart Life app. You will also
need to register an account.
TuyaSmart App Smart Life App
2. Remove the insulating film from the battery compartment to turn on the
alarm. The LED indicator will flash red and then continuously flash blue,
indicating that the smoke alarm has been activated.
03

Red
(QlJ
Blue
3. Open the TuyaSmart/Smart Life app, tap the"+"icon in the top right corner
of the "Home" page, or directly tap "Add Device"to add your first device.
4. Go to"Sensors"- > Sensor/Alarm - > Sensor/Alarm (Wi-Fi) on the
"Add Manually" page to enter the Wi-Fi connecting page.
04
:o: Welcome Home
"'11\' S.lvo,.,rho""lo<;,t,ontormo,,..,10rmi,_
All Devices Living Room Master Bedr
EFHii&
05
AddM nualy AutoScan
.-,
CJ
"' "'
lligl>MJ
"' "'
,-n
-
G]
lz;;l>MJ

5. Enter the Wi-Fi password.
NOTE: If your home Wi-Fi router is
a 2.4 and 5 GHz dual-band that
works with a single S510 name,
please refer to your Wi-Fi rotuer
manual to create separate 55/Ds
for the 2.4 and 5 GHzchannels.
You can also select "Common
router setting method" on the
TuyaSmart/Smart Life App in
the network configuration
process to learn about the
corresponding setting method.
06
Select 2.4 GHz Wi-Fi Network and
enter password.
ttyo rw 1,sr,o111,plo:,so..,, <0b,;,2. Glll-
C<,mMMtouh>t"""•"lln-.t"""
9 )00()()00()(
8=
6. To enable the smoke alarm to enter the Wi-Fi connection mode, hold
down the tesVsilence button for 3 seconds. The smoke alarm will beep
once, and the LED indicator will rapidly flash blue.
7. SelectTonfirm the indicator is �--------�
blinking rapidly" in the app, and
wait for it to connect successfully.
Reset the device first.
07

8. After a successful connection, the LED indicator will stop flashing blue.
Select"Done." The added device will now be displayed on the Home page
in the app.
Adding device ...
EnsurethattheWi-Fi1ion-lisi,ood
•
ll!!l
08
/•X-SenseWi-FiSmokeAlarmL_
\._' --IUCOISSUy
X-Sense..,
a Welcome Home
It\ S.tyour,.,.,,_IO<.,...,!o,,,_oi,,Ta,mo_}
All Devices Living Room Milster Bedrooi •
NOTES
1. The LED indicator will flash blue rapidly for up to 2 minutes during configuration.
If connection is unsuccessful, the smoke alarm will need to be reconnected.
Remove the battery for a short period and start again from step 2.
2. Unsuccessful connection may be because your router, mobile phone, and alarm
are not as close to each other as possible, or that you have incorrectly entered
your Wi-Fi password.
9. After the installation is complete, you will see the start screen (Image 9) for
the app displayed for
a short time. Then, the app will move to the device's
home screen (Image 1 0). Here you can see the battery level and status of
the device (
N
No smoke alarm
w
is shown in the Image 10).
10. Once you have successfully connected your device to the app, you can
continue to the asettings� section to set up push notifications and change
various settings for the app and device. However, if the device still cannot
connect to the app, you can try to set up the device using the following
AP mode.
09

MyHomev
,g, 0
o: Welcome Home
11\ S.t)'OUl'homolocationfo,morein1onna
AIIDevices LiviogRoom MasterBedroo, •
\.
• X-Sense Wi-Fi Smoke Alarm
No smoke alarm
@)
10
How to connect via AP mode
Some mobile phones and devices are not compatible with the EZ mode, so
you will need to switch to the AP mode.
1. Tap the "EZ Mode" in the top right
corner of the network configuration
page to switch to the "AP Mode'. then
insert a pin into the device pinhole on
the back of the alarm and press down
the inside button. The alarm will beep
IQ])
once and the LED indicator will fiash
blue slowly, indicating that the alarm
has entered the AP mode.
11

2. Select 'Confirm the indicator is blinking slowly'in the app and tap 'Next'.
Tap"Go to Connect'to jump to the Wi-Fi setup page in the phone, and
then select the device's hotspot with the default name 'Smartlife-XXXX
or 'SL-XXXX'. After successfully connecting to the Wi-Fi, return to the app
and start network configuration.
-..,,,_. .. ,u..-.. .i'""" ... � .. � ..
i-aic,tcfls�_,,._
__ ,,,,,_,..,.....,..,. ... _,..,..,,
,_,, ____ ......,.
@)
12
Connectyourmobilephonetothe
device'shotsl)Ot
�"'."p/l<M',tt<>IMMupot
-
;,,,Gc.::::'thel!>l)llldcumr•ieto
..
l:- = :.:
b e
D AirplaneMode
iciil WLAN
II Bluetoolh
IDlcellular
Settings
II PersonalHotspot
II VPN
Ii Notifications
CISounds&Haptics
'9 DoNotDisturb
fil ScreeoTirne
fnGeneral
m ControlCenter
11 Oisplay&Brightness
■Horn e Screen
raJAccessibility
CJ Wallpaper
claybox
(Settings
ChinaNet-F39f
ChinaNet-wwhp
DelingTestAS
DelingTestAS_5G
DelingTestNG
DelingTestNG-5G
DelingTestTPSP
DelingTestTPSP_5G
iKang-intemal
I SrnartLije-XXXX
Yuo)'000-5G
13
a 9 CD
a 9 G)
a� CD
a "'CD
a 9 CD
a ;;, CD

3. After successful connection, the LED indicator will stop flashing blue and
the added device will be displayed on the"Home· page in the app.
X•Sensev .g, 0
Adding device ...
;Q Welcome Home
'1 S.,Yf/',#homtloc•..,.,10,,,
...
,1m,,,,,.,_
Ensureth111heWi-Fis111nalisgood.
All Oevioes Living Room Masll!f Eleaoo, ••
\_. X-SenseWI-FiSm ... •
i!•:
•
14
App Settings
Notifications Settings
Under Settings (the gear wheel on the unit's home screen) you can adjust
the type of notifications you want the smoke alarm to send. This can apply to
both what is displayed on the screen and what is stored in the log.
One thing to keep in mind is that if you turn on many notifications, it may
seem as if the device
a
alerts" about something constantly. For example, if you
turn on MDevice Self-Check Notification: you will receive a notification every
time the unit performs a test after the test/silence button is pressed. The
more information you activate, the more power the device will consume, as it
creates more need for the device to transmit information, which means that
the intervals for battery replacement will become shorter than the advertised
one year.
Historical Data (log)
To access historical data or the log, click the"Click for more"button located at
the bottom of the Home screen for the unit.
15

Ollllne Notification
Stao<l,yt.lodeNottfication C)
C)
Oe,lc�Setr-Che<<Not�lcatk>rt
O
-Warning C)
C)
Balle')'- Notifocalion 0
If you have an unstable network, it may be good to know how often the
alarm loses connection and to perhaps improve the placement of your Wi-Fi
router or change Internet provider. Alternatively, you may wonder why the
XS01-WT loses contact with the Wi-Fi router or cloud server and flashes
blue from time to time. Therefore, it is recommended to turn on the "Offiine
Notifications
w
so that you will receive a push notification if your device cannot
connect to the app.
16
Turn on
#
Offl ine Notification
#
and a text will appear describing that if the
device is battery powered, updates are made every 8 hours. This information
will then be sent from the cloud server due to the device not having made
contact within a specified time span. This does not mean that the device or
your Wi-Fi router does not work properly, but for some reason the smoke
alarm cannot reach the cloud server at regular intervals and then the warning
is sent out.
NOTE: XS01-WT is a low-pawerdevice.
X.....WMI._..N...
r,.,o.,,-,.,- .--,
... , .. __
,.,._.,,,,,.,..
...
""":lll.....,,.,.1e"""'"''""'·-.,
17

Alarm Test
1. Always make sure to test your smoke alarm when it is turned on for the
first time, or whenever you change the battery or reconfigure the device.
You should also test the device weekly, or whenever you have been away
from home for a long time.
2. Briefly press the test/silence button.
NOTE: if you hold dawn the button for mare than three seconds, the smoke
alarm will enter a connection mode in the app and the previous settings will be
cleared.
3. The unit beeps 3 times.
4. If your device has successfully connected to router, the LED indicator will
flash red and then flash blue rapidly for several seconds, indicating it has
been connected.
5. When the test is finished, the alarm will automatically enter standby mode.
NOTES
1. The test function accurately tests the a/arm's smoke sensing circuit without the
need of test smoke. If your smoke alarm fails to deliver an audible test signal
immediately refer to the troubleshooting guide at the end of this manual. Never
use an open flame to test this device.
2. If the LED indicator flashes blue for 2 minutes during the test, then the connection
was not successful and the alarm needs to be reconnected (repeat the steps in the
section "Set Up and Connect Smoke Alarms ta Wi-Fi").
18

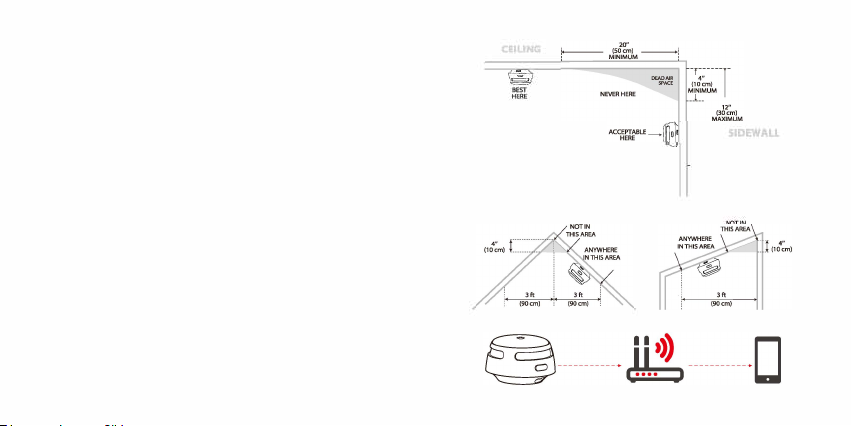

Installation Positioning
Garage living Room
®
® ®
Basement
@SmokeAlarm
@ Carbon Monoxide Alarms
Kitchen
®
00
@ Smoke & Carbon Monoxide Alarms
@ Fire Extinguishers
NOTE: If a smoke alarm is installed in a kitchen, ensure it has an easily accessible
silence button and install the alarm as far away from the stove and sink as possible
to avoid false alarms.
19

1. Prioritize the installation of an alarm in the bedroom and walkways, and
make sure you can hear the alarm from all sleeping areas. In a home with
several bedrooms, install an alarm in every bedroom. If you install only one
smoke alarm in your home, install the alarm near to all bedrooms where
possible, and not in a basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure that the alarm is installed at the minimum distance away from
corner.
4. If an alarm cannot be installed in the middle of a ceiling, install it at a
distance of 20 inches (SO cm) away from the corners of the room.
5. If an alarm is installed onto a wall, a distance of 4-12 inches (10-30 cm)
should be kept below the ceiling.
6. If the length of
a room or hallway is greater than 30 feet (900 cm), several
alarms should be installed in the same room.
7. When the wall or ceiling is angled, the alarm needs to be installed within 3
feet (90 cm) of the highest wall or ceiling point (measured horizontally) in
the room.
8. To maintain a secure and stable Wi-Fi connection, please be sure to install
the alarm within the router's coverage area and make sure that there are as
few obstacles as possible between them.
20
______ J
21

NOTE: Before installation, we recommend you test the Wi-Fi smoke alarms in the
rooms you wish to install them in to ensure they are within range of the Wi-Fi router
that they nothing is interfering with their communication.
&. WARNING
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER
INSTALLAllON, USE AND MAINllENANCE OF FUEL BURNING APPLIANCES
INCLUDING APPROPRIAllEVENllLAllON AND EXHAUST SYSTEMS.

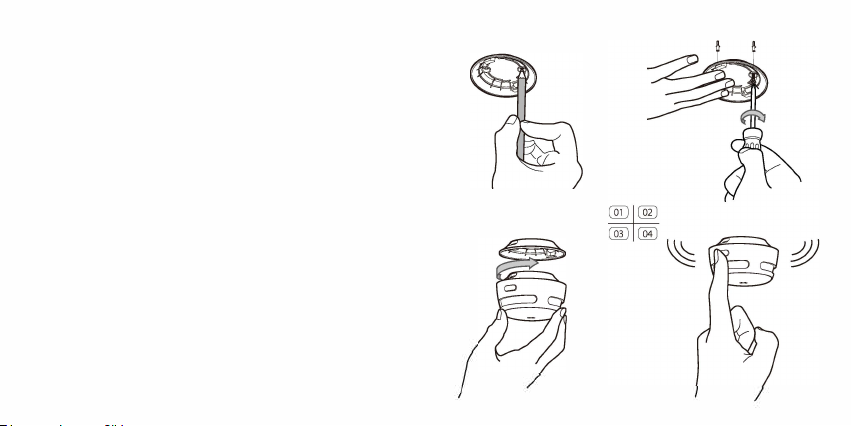

Installation Method
1. Use the mounting bracket to mark the screw holes on the ceiling or the
wall.
2. Drill holes at the two marks using an appropriately-sized drill bit. Insert the
anchor plugs and screw the mounting bracket using the screws provided.
3. Attach the alarm to the mounting bracket and turn clockwise to lock the
alarm.
4. Test the smoke alarm according to the steps in the section "Alarm Test�
22 23

Silence Mode
When non-hazardous smoke (e.g. steam) causes a false alarm, you can silence
your device in one of
the 2 following ways:
1. Silence the unit via the "App" under"Setting" (gear wheel) and the "Silence·
button at the last row.
StalldbyModeNolification C)
0
DeviceSelf-CheckNo! ication C)
Fault Warning C)
0
Low Battery Warning C)
BatteryPowerRecoveryNolificatK>nC)
(ID)
StandbyModeNoti!icalion C)
0
Device Seil-Check Notification C)
FauttWarning
C)
0
Low Battery Warning C)
Ba1t<lf)ll'owerflecov&ryNotmcation
C)
0
24
NOTE: In normal standby mode, your device will not respond if you turn on the
silence button.
2. Press the test/silence button on the alarm.
If you turn on the silence button and press the test/silence button on the
alarm, you will receive a push notification on your smartphone app telling
you that your device is in silence mode. The red LED will flash every 5 seconds
to remind you that the alarm has been silenced. The alarm will automatically
exit silence mode after 9 minutes.
Battery Replacement
1. To replace the battery, detach
the smoke alarm from the mounting
bracket by twisting counterclockwise.
2. Pull the battery removal tab to
remove the battery, and then install
a new battery, matching the correct
polarity markings.
3. Test the alarm, and then mount the
alarm onto the mounting bracket by
twisting clockwise to lock the alarm.
25

LED Indicators and Audible Alarm
Silence The LED indicator None
I
Mode flashes red once every
Status LED indicator Audible alarm Note
5 seconds.
Normal The LED None
I
low Battery The LED indicator 1 beep every The app will send
indicator flashes red
flashes red once every 60 seconds a low battery
once every 60 seconds.
60 seconds. notification.
Wi-Fi
The LED indicator 1
beep EZmode
Connecting flashes blue 4 times
every second.
Malfunction
The LED indicator 2 beeps every
I
flashes red twice every 40 seconds
40 seconds.
The LED indicator 1 beep AP mode
flashes blue once every
second.
Technical Specifications
Test The LED indicator 3 short quick
I
flashes red 3 times beeps (1 beep
per second and then per second)
rapidly flashes blue 4
Power Supply Replaceable 3V CRl 23A lithium Battery
Ooeratina Life 10vears
Batterv life 1 vear
times every second.
Sensor Type Photoelectric
Alarm The LED indicator Short quick Theappwill Safetv Standard EN 14604:2005+AC:2008
flashes red once every beeps immediately notify yoc Standby Current < 6 µA (avg.)
second. of dangerous smoke
Alarm Current < 130 mA {ava.l
near the smoke alarm.
Wireless Transmission Current < 120 mA (ava.)
Coveraae Area 2Q-40m'
Best Operating Ambient 4.4-37.8 °C
Temperature
26 27

Operating Relative Humidity 5 85% RH (non-condensing)
Alarm Loudness �
85 dB at 3 m@ 3.2 + 0.3 kHz oulsino alarm
Silence Duration About 9 minutes
App TuyaSmart/Smart Life app (Android and iOS
suooortedl
Wireless Frequency 2.4 GHz (Incompatible with 5 GHz Wi-Fi
Network)
Wireless Protocol IEEE 802.11 b/g/n
NOTES
1. Battery life is calculated on the current ratings in the weekly test mode and
standby mode. If its operation mode changes to an alarming condition, the
battery life will be decreased accordingly.
2. This smoke alarm functions between 44.4 and 37.8 "C. Prolonged exposure
to lower or higher temperatures con reduce battery life and affect device
performance. We do not recommend operating the device beyond its temperature
range.
Maintenance
To keep your smoke alarm in good working order, follow these simple steps:
1. Verify the unit's alarm sound and indicator are working properly by testing
the unit once a week.
28
2. As a minimum your smoke alarm should be cleaned once every 3 months:
Remove the unit from the ceiling and clean the alarm cover and vents with
your vacuum cleaner fitted with the soft brush attachment to remove dust
and dirt.
3. Never use detergents or other solvents to clean the unit
4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.
5. Do not paint the unit. Paint will seal the vents and interfere with the
sensor's ability to detect fire.
6. Never attempt to disassemble the unit or clean inside. Doing so will void
your warranty.
7. When removed, place the smoke alarm back in its proper location as soon
as possible, to assure continuous protection from fire.
8. When household cleaning supplies or similar contaminants are used, the
area should be ventilated.
Troubleshooting
Problem Solution
Your smoke alarm does • Please check whether the alarm is properly
not sound during testing. attached to the mounting bracket.
• Make sure you push the test button firmly.
29

False alarms triggered
intermittently or when
residents are cooking,
taking showers, etc.
The LED indicator flashes
red and the alarm sounds
one beep every 60
seconds.
The LED indicator flashes
red and the alarm sounds
two beeps every 40
seconds.
The LED indicator flashes
blue continuously during a
test/the app displays that
the alarm is disconnected.
The network configuration
failed in EZ Mode.
• Check the location of your smoke alarm (see
·installation Positioning}.
• Clean the smoke alarm (see "Maintenance").
The battery is low. Replace the battery
immediately.
The alarm is malfunctioning. Please clean your
smoke alarm and see if it functions normally. If
not, replace the device immediately.
The alarm is disconnected from the router. Please
make sure that the alarm has been installed
within the router's coverage area (see the •How
to connect via EZ mode (Default mode)" section).
Your mobile phone may be incompatible with
the EZ mode. Remove the battery for a short
period and connect again or switch to AP mode
(see the ·How to connect via AP mode
R
section).
30
Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with Local Authority or retailer for recycling advice.
Manufacturer and Service Information
X-Sense Innovations Co., Ltd.
-
Address: B4-503-D, Tower B, Kexing Science Park, No. 15 Keyuan
Road, Technology Park Community, Yuehai Avenue, Nanshan District,
Shenzhen, 518057, CHINA
Email: [email protected]
31
