Yaasa Desk Light User manual

Yaasa
Desk Basic
Operating Instructions
Extended

2
ENGLISH
SAFETY AND
DANGER NOTICES
YAASA DESK BASIC
The Yaasa Desk Basic is an electronically-adjustable sit-stand table (table) for home and
office use.
Yaasa Living AG accepts no liability for damages or injuries that may ensue from incorrect
assembly or use of this table.
ATTENTION
SAFETY NOTICE: Read all notices and instructions before the first use of
the product. Pay attention to risks relating to burns, fires, electrical shock or
other damages to people and property in order to minimize them. Save these
instructions for quick access, if required. Give these notices on to subsequent
users of the table. All persons who use the product or who are responsible for
installation, service, or repair work, must follow these instructions carefully.
ATTENTION: The use of electronic equipment should always be performed
according to basic safety guidelines. INAPPROPRIATE USE OR THE NEGLECT
OF THESE INSTRUCTIONS AND NOTICES WHEN USING THE TABLE CAN
LEAD TO SERIOUS INJURY OR PROPERTY DAMAGE.
The Yaasa Desk Basic features a collision detection system (Intelligent System
Protection, ISP). The ISP function aims at minimizing the risk of system damage
or injuries. The responsibility for the appropriate use of the product remains
with the user.
The table may only be used as an adjustable desk for changes between sitting and standing
positions. The table may only be used indoors and in dry areas (offices or similar). Any other use
of this product is not recommended and is performed at the user’s own risk.
APROPRIATE USE

3
EN
This appliance can be used by children from 8 years and above and
people with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision
or instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Children under the age of 8 or
people with reduced physical, sensory or mental capabilities or lack of
experience must maintain a safe distance from the table, the control unit, and the
buttons of the operational control.
The table may only be used for the purposes described in this manual.
Unauthorized access must be avoided!
The table may not be loaded with more than 80 kg. The system may only be used
continuously for a maximum of 2 minutes. After, the table must “rest” for 18 minutes
before it can be operated again.
2 people are required to complete assembly of the table. Special caution must
be taken during the movement of heavy parts and in proximity to any pinch or
shearing point.
The instructions must be followed during assembly of the table. The height-
adjustment function may only be used after complete and appropriate assembly of
the table. The table must never be used as a lifting aid.
Screw connections on the table must be secure and checked in regular intervals.
The power cord represents a trip hazard. Ensure that the cable routing
accomodates the table’s entire range of movement and is not obstructed. The
cable must be kept away from heated surfaces. Ensure suitable cable routing for
devices that are placed on the table itself.
The table and its components may not be enhanced, changed, or rebuilt in any
way. Do not use parts that are not recommended by the manufacturer. Never open
electronic components, housings or covers. This entails the risk of electric shock.
Maintenance and repairs may only be performed by qualified technical personnel.
Disconnect all cables from the power outlet before cleaning and maintenance
procedures.

4
EN
While the table is being used, no one may stand or sit on the table, nor may
they climb or lie underneath it. During reset processes there is a risk of crushing
between the table legs and feet.
When the table moves upwards or downwards, you must maintain a safe distance
in order to avoid collisions or crushing between the table and its surround
objects or persons. The user requires an unobstructed view of the table and its
surroundings in order to observe the movement of the table and to avoid collisions,
injuries or damages while the table is in movement. Do not store objects under
the desk that are taller than 60 cm. While operating the table, pay close attention
to other people, as well as window frames, radiators, chairs, cabinets and other
furniture.
The table may only be placed in dry indoor areas without excessive condensation
or humidity. Ensure that liquids are kept away from the table’s electronic
components.
Do not use the table if:
• Cables or plugs are damaged.
• The table is not working as described in the instructions.
• The table has fallen over or if it is damaged in another way, or
• If it has become wet.

5
TECHNICAL PROPERTIES &
PRODUCT DETAILS
EN
Table Size
135 cm x 69,4 cm
Weight
32 kg
B
69,4
A
135
C
70,5
D
3
E
67
F
9
G
65,5-
114
H
6,6
I
58
J
104
B
A
C
D
E
F
GH
I
J

6
EN
Frame: Powder-coated steel with aluminum feet and 4 levelers
with a 10 mm thread.
Adjustment interval: 71.5 - 119.8 cm
Adjustment Speed: 38 mm/s
Column Type: 2 Stage
Max. Load: 80 kg
Sound level: Lw,A,max = 63dB(A)
Weight (Complete Product): 33 kg
Table Frame and Packaging: 22 kg
Table top with packaging: 16 kg
Input: 230V/50Hz/2A
Switching Cycles: 2 Minutes On
18 Minutes Off
Additional Function: Collision Detection (ISP)
Plug type: Euro
Table top: 1350 x 694 mm laminated chipboard (18 mm thick) with
plastic edging.
Operational control: Up and Down

7
SCOPE OF DELIVERY
EN
Package 1 of 2
A 1 x Table Frame
B 2 x Table Leg
C 2 x Table Foot with Leveler
D 2 x Siderail
E 4 x Plastic Cover for Siderail
F 1 x Operational Control (“Handset”)
G 1 x Mains Adapter
H 1 x Power Cable
I 1 x Screw kit with attachment clips and relevant tools
J 1 x Cable clip
K 1 x Instruction Manual (“Manual”)
L 1 x Quick Start Guide (“Assembly Guide”)
Package 2 of 2
M 1 x Table top
A
B
C
L
K
F
E
I
G
HJ
8x
4x
1x1x 4x
4x11x
1x 1x
D
M

8
ASSEMBLY INSTRUCTIONS
EN

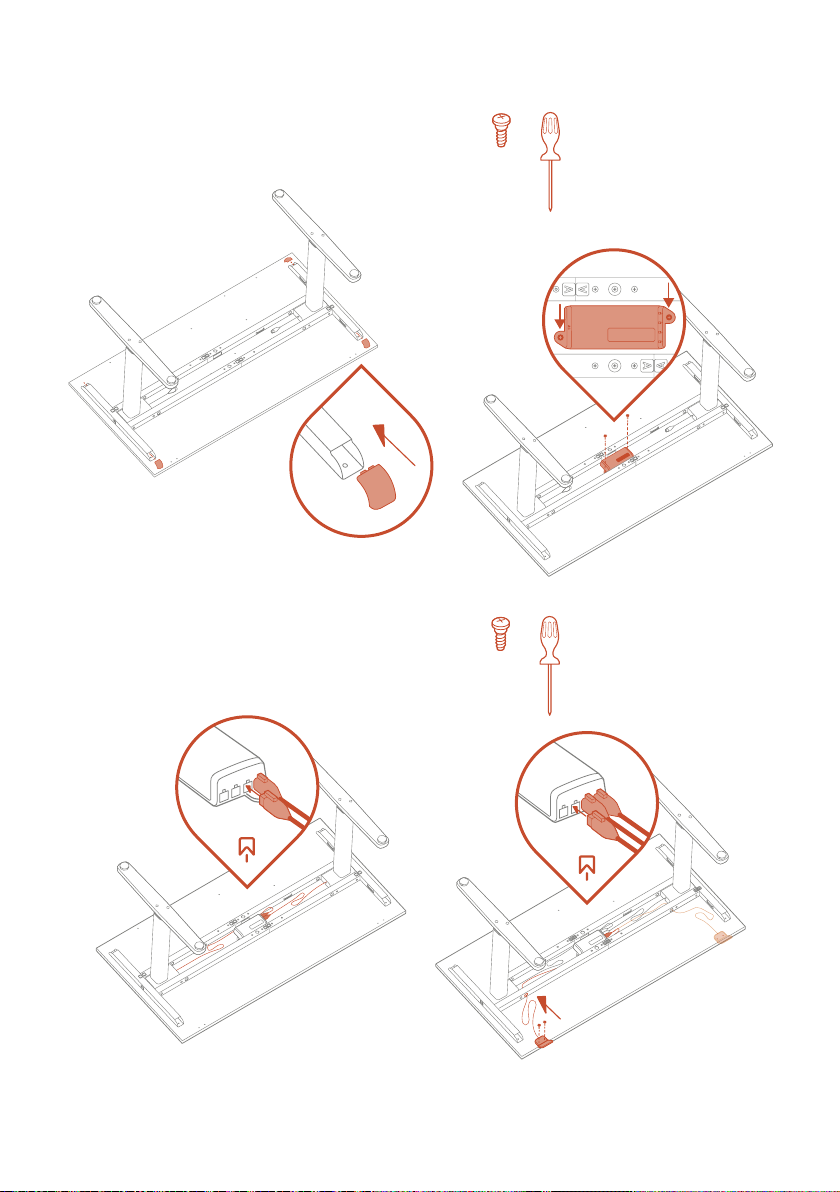

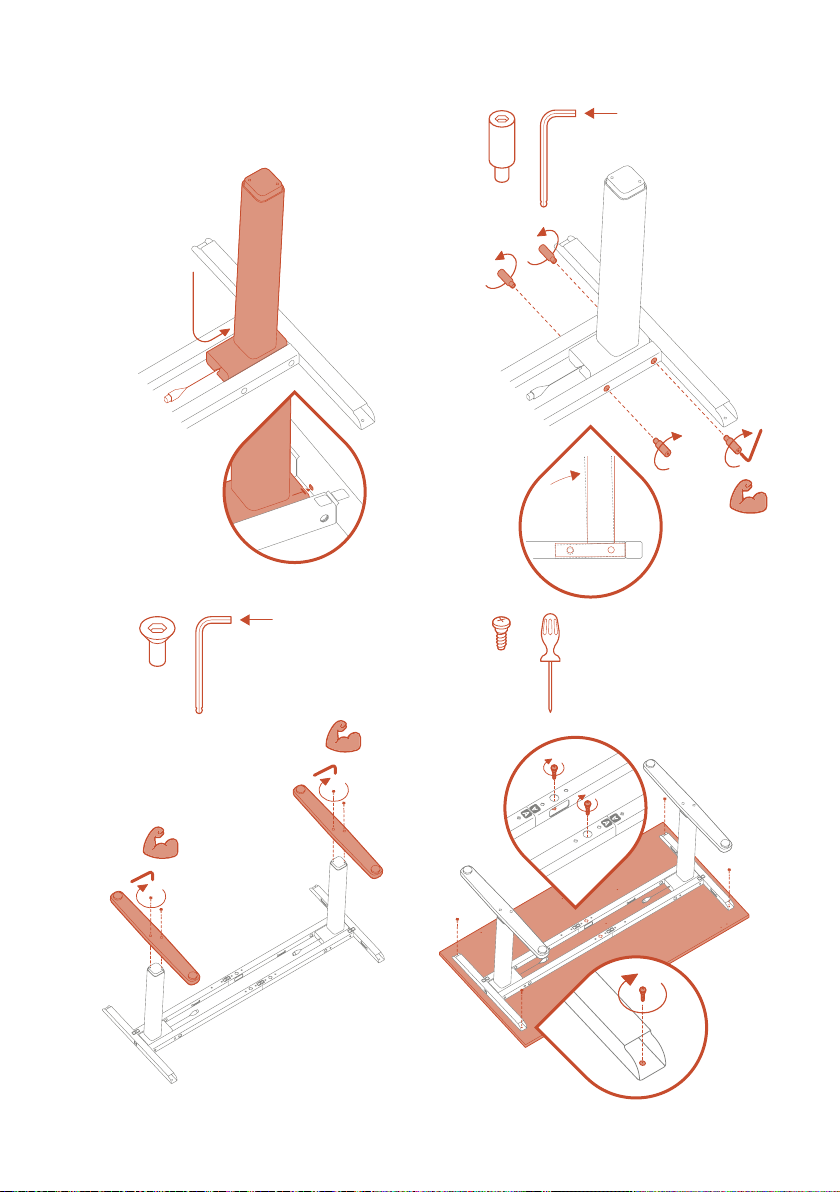

The table must only be assembled according to the assembly instructions. The
Assembly instructions are contained on a separate sheet (package 1 of 2).



4x


9
EN



!
4x
1
2
3
4
!
4x
6x
1
2

10
EN




4x
2x
2x
Pos. A
Pos. B

11
EN



!
!
!
!
1x 1x
Pos. B
!
Pos. A
5 sec.

12
EN
2
STARTUP AND
USE OF THE TABLE

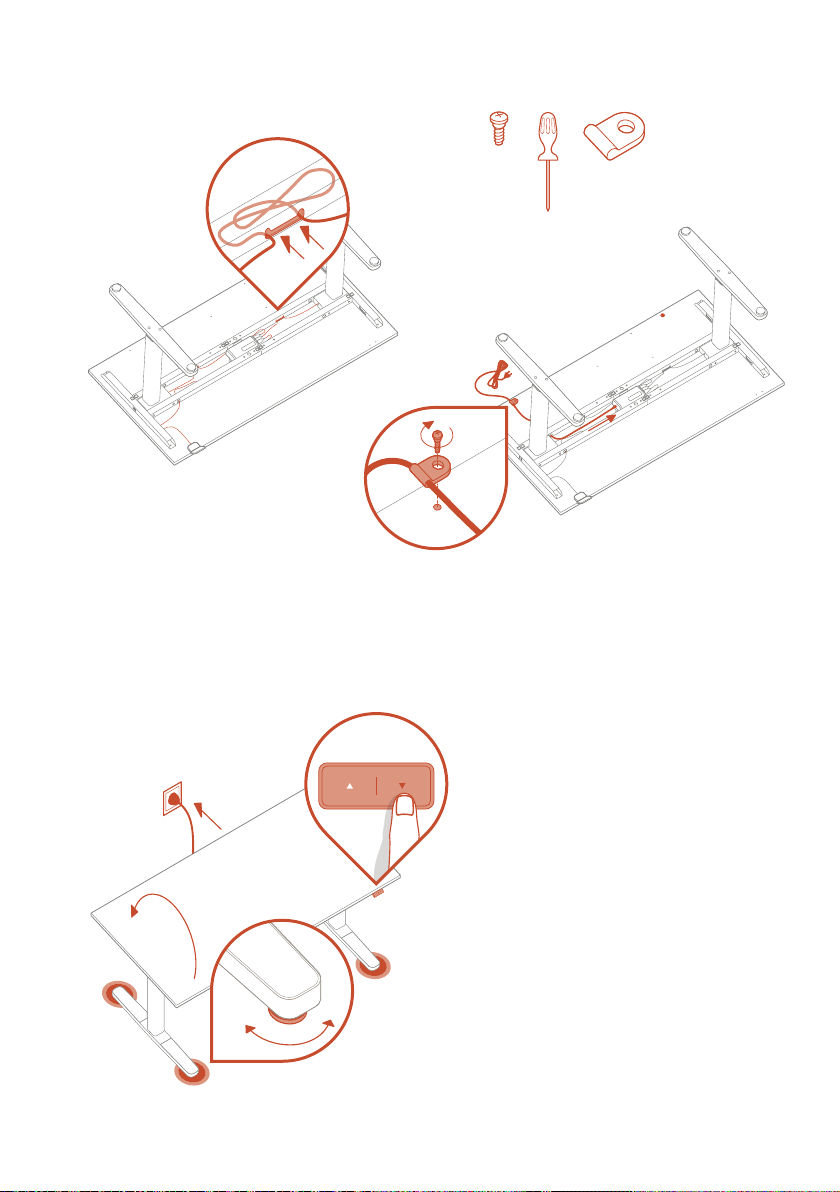

After assembly, the levelers on the feet must be adjusted so that the table stands evenly
and is stable.
Position the table in the vicinity of a power outlet and insert the plug. The table is now
ready for use.
The following cable routing is
recommended:
1
!
!
!
!

13
FUNCTIONS
Adjusting the table height
Press the arrow buttons on the handset in order to move the table upwards or downwards.
Duty cycle
The table may not be operated continuously for more than 2 minutes. If this limit is exceeded,
an 18-minute rest period will be triggered. After this pause, the table can be operated normally.
Excessive use may lead to permanent damage to the electronic components and the voiding of
the warranty.
Complete Retraction
When the table is 3 cm before the lowest position, it will stop automatically. Pressing the “table
down” button will prompt the table to move to its lowest position at a reduced speed.
The table will move as long as the button is pressed or until the minimum or
maximum height has been reached.
FAQs AND TROUBLESHOOTING
Complete troubleshooting instructions and FAQs are available on www.yaasa.eu.
EN

14
EN
Manual Reset
When the displayed table height no longer corresponds to the actual height of the table, a
manual reset may be required in order to realign the system.
Press the “table down” button.
Hold the “table down” button until the legs have retracted completely. 3 cm before this
point, the table will stop and go into “Complete Retraction” mode (above). Press and
hold the “table down” button again, until the legs have retracted completely and the
table stops.
Press and hold the “table down” button. After about 5 seconds, the table will move
further downwards until the lowest reset position has been reached. Release the “table
down” button. The adjustable table can now be used as normal
Collision Detection System (Intelligent System Protection, ISP)
Intelligent System Protection (ISP) is the collision detection system of the installed drive
system. It aims to reduce the risk of system damage. When an obstruction is in the table’s
range of movement and the table collides with it, the load change is recognized by the table
system’s components. When a load change is detected by the system, the mechanisms will
stop and move temporarily in the reverse direction.
Factory Reset
To restore the Yaasa Desk Basic to its factory settings:
Press the “table up” and “table down” buttons simultaneously,
then release.
Hold the “table up” and “table down” buttons for 10 seconds.
The LED lights up in red.
When the LED flashes, release the “desk up” and “desk down” buttons.
The table has now been restored to its factory settings.
The table can now be used as normal

15
EN
Do not use the following substances to clean the table:
• Scouring and abrasive agents, such as cleaning powders, scouring pads or steel wool
• Polish, powder detergent, furniture cleaner, bleach
• Cleaning agents with strong acids or acid salts
• Steam cleaning devices
MAINTENANCE
After about a week of use, check once again if all screws are still securely tightened,
and, if necessary, tighten again with the appropriate tools.
CLEANING
The power cable must be disconnected before cleaning or servicing. Normal and
moderate soiling of the table top can be cleaned with a dry paper towel, a clean cloth
(dry or slightly damp) or with a non-abrasive sponge. Use regular household cleaning
agents for this purpose. Stains can be avoided by cleaning the table with a small
amount of warm water, then wiping with a paper or microfiber towel.

16
DISPOSAL
RETURN AND
GUARANTEE
CONTACT
Right of exchange or return for up to 14 days after receipt of goods.
Warranty of 2 years (in cases of normal use).
For any problems or questions regarding the product, please contact the online shop
from which you bought the product by phone or email.
For all other information, recurring problems, or for further questions, please contact:
Yaasa Living AG
St. Leonhardstrasse 45
9001 St. Gallen, Switzerland
www.yaasa.eu
[e-mail]
© Yaasa Living AG 2021
The product must be disposed of according to local regulations
for recycling. The separation of product waste contributes to the
reduction of incineration and landfill disposal and reduces potentially
harmful effects on human health and the environment.
EN

17
EN
EC/EU DECLARATION OF
CONFORMITY
Manufacturer: Yaasa Living AG
St. Leonhardstrasse 45
9001 St. Gallen, Switzerland
Person authorized to compile Stephan Egger
the technical documents: Yaasa Living AG, President of the Board of Directors
St. Leonhardstrasse 45
9001 St. Gallen, Switzerland
The manufacturer hereby declares, on its sole responsibility, that the following product:
Product name: Yaasa Desk Basic
Product description: Electrically height-adjustable sit-stand desk
for office and home use
Type designation: Yaasa Desk Basic
Serial number: see type plate
Year of construction: 2021
fulfills all of the relevant provisions of the following directives:
• Directive (2006/42/EC) on machinery (Machinery Directive); as per Annex I Section 1.5.1 of
the Machinery Directive, the safety goals of Directive (2014/35/EU) regarding electrical
equipment for use within certain voltage limits (Low-Voltage Directive) are also covered
• Directive (2014/30/EU) on electromagnetic compatibility
(Electromagnetic Compatibility Directive)
In particular, the following harmonized standards and/or technical specifications were
applied:
• EN ISO 12100:2010 • EN 61000-6-1:2007
• EN 60335-1:2012 + A11:2014 + A13:2017 • EN 61000-6-3:2007 + A1:2011
• EN 62233:2008 • EN 61000-6-2:2005
• EN 50663:2017 • EN 61000-3-2:2014
• EN 50581:2012 • EN 61000-3-3:2013
• EN 62479:2010
Complete technical documentation is available. Operating instructions for the machines
have been provided in the original version.
It is hereby confirmed that the abovementioned products correspond to the stated EC/EU
directives. This declaration shall become invalid if the products are reworked or modified
without our permission.
© Yaasa Living AG 2021

18
Yaasa Living AG
St. Leonhardstrasse 45
CH-9000 St.Gallen
www.yaasa.de
www.yaasa.eu
02/2021
