Yamaha CYGNUS RS XC125E User manual

4P7-F8199-E0
XC125E
OWNER’S MANUAL

Thanks for your kind selection of our YAMAHA motorcycle series.
With the most up-to-date design of YAMAHA-motor (Japan) Co., Ltd., the YAMAHA motorcycle series we produced are
the most modern vehicles which represent the most advanced technology in the new century.
With the advanced one-cylinder four-stroke air-cooled engine, you will be satisfied with the novel design of our motor-
cycle series. The installation of every parts and components can meet the requirement of easy riding and comfortable
seating; also our products integrate the excellent durability with reliability perfectly. The motorcycles we produced are
powerful and fascinating vehicles as you wish.
This operation manual will show you the correct operation, the basic inspection, repair and installation messages. This
booklet illustrates the various functions of our YAMAHA motorcycles thoroughly, we are pretty sure that ride our
motorcycle series can make you feel comfortable and joyful.
If you have any questions about the operation, repair and installation, please feel free to contact with the technicians in
our specified maintenance stations which locate in different cities. Our tenet is "Best quality, Best reputation and
Consumer first", we can satisfy your various requirements.
Please keep this operation manual as a basic part of your YAMAHA motorcycle, and take it with the motorcycle at any
time. If you wish to resell your motorcycle, take this manual also.
Preface

NOTE:
The operation manual is one of the permanent parts of the motorcycle, even in situations of reselling.
NOTE:
We enhance the design and quality of our YAMAHA motorcycles continually, the manual contains the latest informa-
tion till printing, and there maybe have differences with 09 manual.
If you have any questions about this manual, please feel free to contact with your agency.
You will see different symbols for the particularly important information in this booklet as below:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the motorcycle
operator, a bystander or a person inspecting or repairing the motorcycle.
A CAUTION indicates special precautions that must be taken to avoid damage to the motorcycle.
A NOTE provides key information to make procedures easier or clearer.
!
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY
BEFORE OPERATING THE MOTORCYCLE.
NOTE:
WARNING
CAUTION:
WARNING

1 SAFE-RIDING AND SAFETY POINTS 1
2 MOTORCYCLE INFORMATION 2

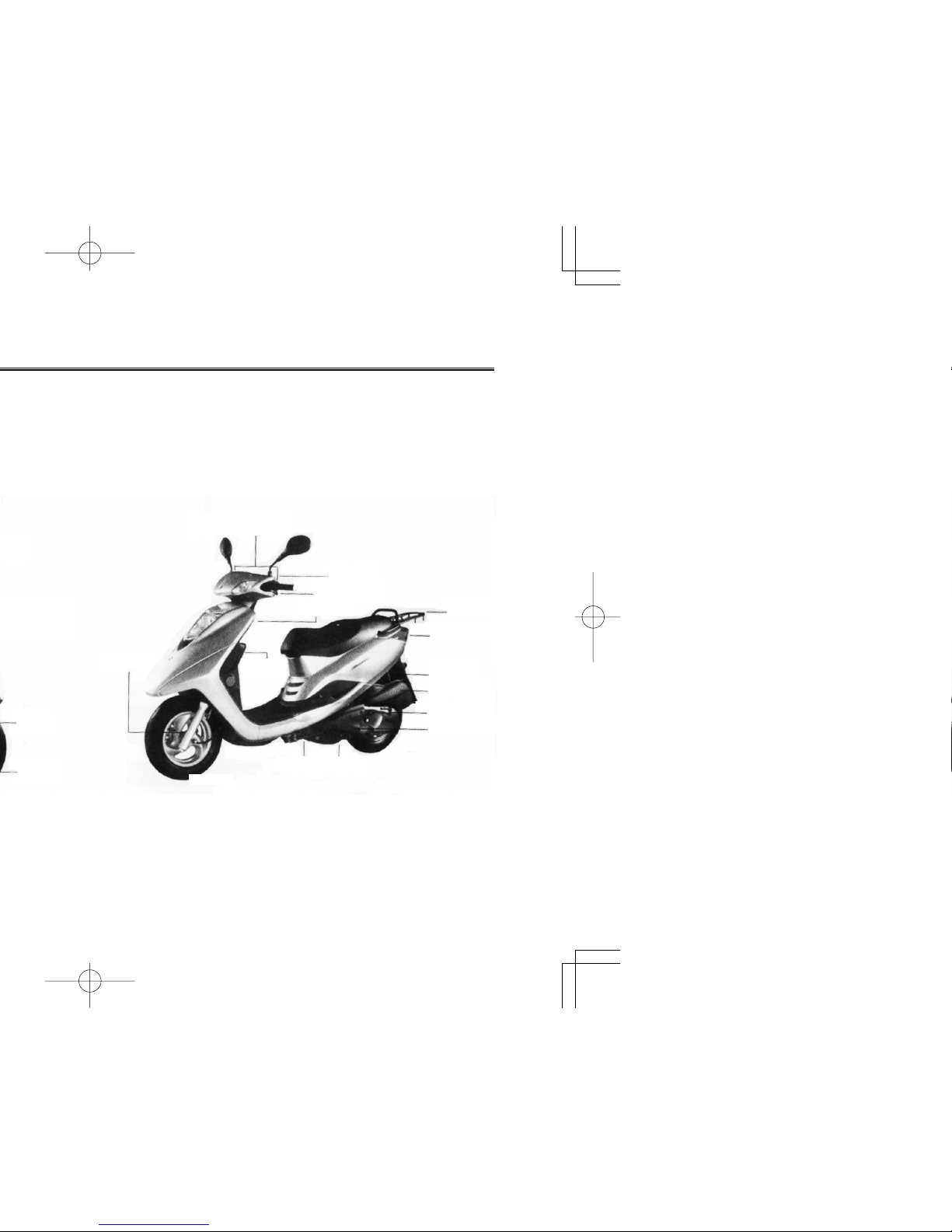

3 PARTS LIST AND OPERATION 3
4 PARTS CONTROL 4
5 RUNNING AND OPERATION 5
6 PRE-OPERATION CHECKS 6
7 MAINTENANCE 7
8 TROUBLE SHOOTING 8
9 SPECIFICATIONS 9
CONTENTS

SAFE-RIDING AND SAFETY POINTS
1 Safe-riding 1-1
2 Safety points 1-2

SAFE-RIDING AND SAFETY POINTS
Motorcycles are convenient vehicles; you should always keep the motorcycle in the perfect conditions to make sure
that you can ride it safely. What's more, the rider must always be at their best mental and physical status. Riding under
the influence of medication, drugs and alcohol is, of course, prohibited. (Under the influence of even a small amount of
alcohol, the rider is more likely to put him/herself in extremely dangerous conditions.)
Protective clothing is as essential to the motorcycle riders as seat belts to car drivers and passengers. Always wearing
a proper motorcycle suit, gloves and helmet will protect rider from being hurt. Note: Some riders with protective clothing
may have illusions of total safety and protection, and they will run the risk of going too fast and are apt to take chances,
facing even greater dangers in wet weather. Good motorcyclists will always have his/her wits about this situation
besides the traffic rules.
Enjoy your ride!
1-1

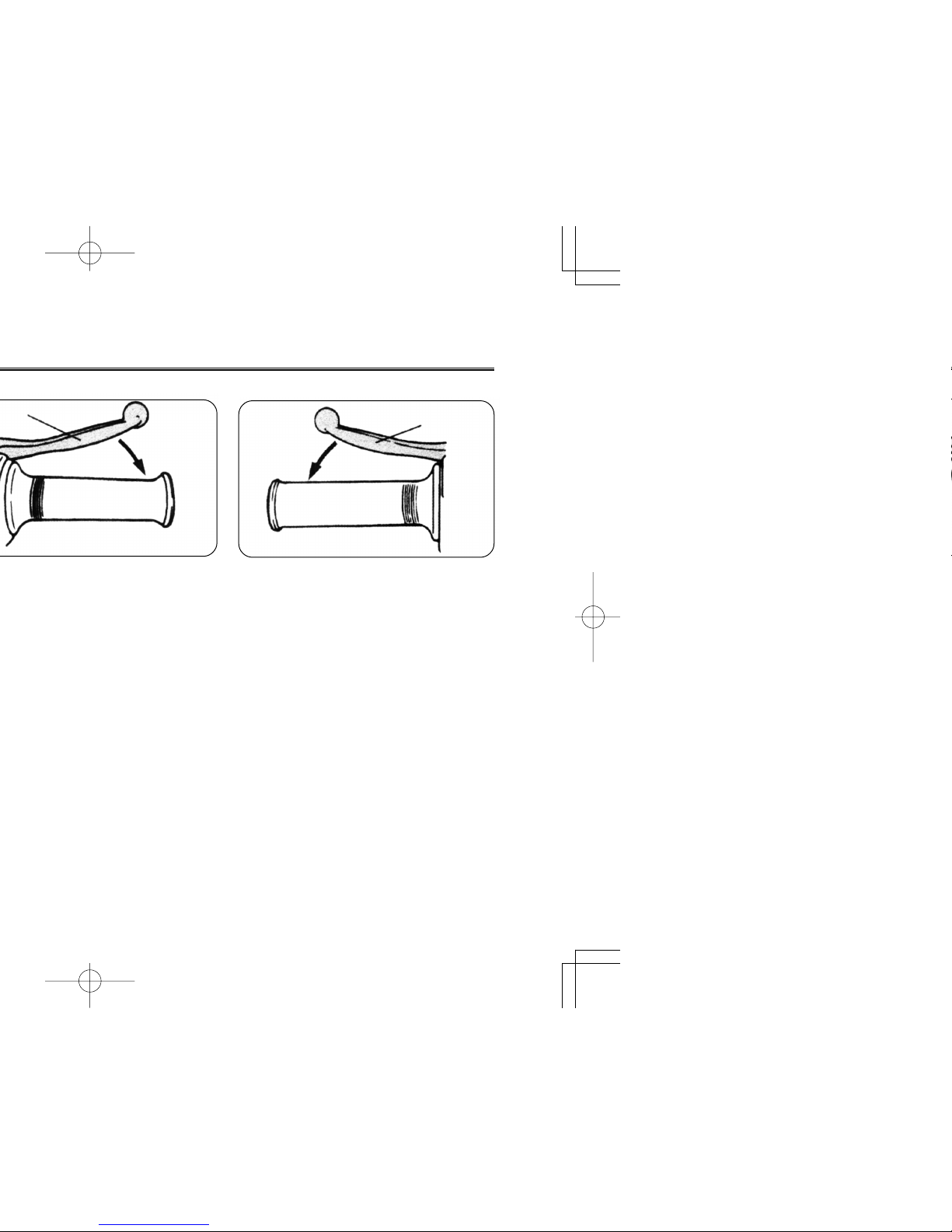

Turn right
1.Be sure to signal clearly in the fol-
lowing situations:
2.Braking can be extremely difficult on
a wet road. Avoid hard braking, since
the motorcycle may slide. Apply the
brakes slowly when stopping on a wet
surface.
3.Slow down when approaching a cor-
ner or turn, and accelerate slowly once
the turn has been completed.
4.Be careful when passing parked cars.
The driver might have not seen you and
open the door in a sudden.
5.Railroad crossings, streetcar rails, iron
plates on road construction sites, and
manhole covers will become extremely
slippery when wet. Slow down and cross
them with caution. Keep the motorcycle
upright, otherwise you may fall from the
motorcycle.
6.The brake pads could get wet when
you wash the motorcycle. After wash-
ing the motorcycle, check the brakes
before riding.
7.Always wear a helmet, gloves, trou-
sers (tapered around the cuff and ankle
so they would not flap), and a bright
color jacket.
8.Do not carry too much luggage on
the motorcycle. Overloaded motor-
cycles are unstable. Please secure the
luggage to the rear rack with a firm
rope. Unfastened luggage will affect
the stability of the motorcycle and di-
vert your attention from the road
condition.
9.When riding the motorcycle in the
littoral, since the salinity in the air is
higher, this will speedup the corrosion
of the iron parts, you should wash the
motorcycle more frequently.
Turn left
SAFE-RIDING AND SAFETY POINTS
1-2

MOTORCYCLE INFORMATION
1 Engine models and serial number 2-1
2 Identification code 2-1
3 Name plate 2-1
4 Engine running-in 2-2

MOTORCYCLE INFORMATION
■■
■■
■Engine models and serial
number
The model and serial number will be
engraved in the left part of the gear
box.
NOTE:
Always remember the engine model
and serial number of your motorcycle,
so that, when ordering parts from our
specified maintenance stations, you
will get your parts sooner.
Engine models and serial number Name plate
■■
■■
■Identification code
The identification code will be stamped
in the lower place of the front storage
compartment.
Identification code
The name plate will be stuck to the
right side of frame under the foot board
by rivet.
■■
■■
■Name plate
2-1

MOTORCYCLE INFORMATIONS
■■
■■
■Engine running-in
The distance between 0 and 1,000 km
is most important to your engine.
Keeping this fact in mind, please read
the following material carefully and
carry out as per instructions.
Since the engine is brand new, vari-
ous parts of the engine will wear and
polish themselves to the proper oper-
ating clearances. At the same time,
overloading the throttle or any other
conditions that might result in engine
overheating must be avoided in 0 -
1,000 km.
1. 0 - 150 km
Avoid prolonged operation above 1/3
throttle. After operating for an hour,
stop the engine and let it cool for five
to ten minutes. Vary the engine speed
from time to time and do no operate
the engine at full throttle.
2. 150 - 500 km
Avoid prolonged operation above 1/2
throttle.
3. 500 - 1,000 km
Avoid prolonged operation above 3/4
throttle.
CAUTION:
After 500 km of operation, replace
the engine oil and gear oil, and clean
the oil filter (bottom part). Replace
the engine oil every 1,500 km.
4. 1,000 km and beyond
Avoid prolonged full-throttle operation.
Vary the engine speed from time to
time.
2-2
