YP002000 HOW TO USE THIS MANUAL
MANUAL ORGANIZATION
This manual consists of chapters for the main categories of subjects. (See “Illustrated symbols”)
1st title 1: This is the title of the chapter with its symbol on the upper right corner of each page.
2nd title 2: This title indicates the section of the chapter and only appears on the first page of each
section. It is located in the upper left corner of the page.
3rd title 3: This title indicates a sub-section that is followed by step-by-step procedures accompa-
nied by corresponding illustrations.
EXPLODED DIAGRAMS
Tohepsidentifypartsandclarifyproceduresteps,thereareexplodeddiagramsatstartofeachremov-
al and disassembly section.
1. An easy-to-see exploded diagram 4is provided for disassembly and assembly jobs.
2. Numbers 5aregivenin theorderofjobsintheexplodeddiagram.Anumberthatisenclosedbya
circle indicates a disassembly step.
3. An explanation of jobs and notes is presented in an easy-to-read way by the use of symbol marks
6. The meanings of the symbol marks are given on the next page.
4. A job instruction chart 7accompanies the exploded diagram, providing the order of jobs, names
of parts, notes in jobs, etc.
5. Forjobsrequiringmoreinformation,thestep-by-stepformat supplements 8are giveninaddition
to the exploded diagram and the job instruction chart.

1
3
5
7
9
11
13
15
18
2
4
8
10
12
14
16
6
21
24 25
17
19 20
22 23
EB003000
ILLUSTRATED SYMBOLS
Illustrated symbols 1to 9are designed as
thumb tabs to indicate the chapter’s number
and content.
1General information
2Specifications
3Periodic inspection and adjustment
4Engine
5Cooling system
6Carburetion
7Chassis
8Electrical
9Troubleshooting
Illustrated symbols 10 to 17 are used to identify
the specifications appearing in the text.
10 Possible to maintain with engine mounted
11 Filling fluid
12 Lubricant
13 Special tool
14 Tightening
15 Wear limit, clearance
16 Engine speed
17 Ω, V, A
Illustratedsymbols 18 to 23 inthe explodeddia-
grams indicate the types of lubricants and lu-
brication points.
18 Apply engine oil
19 Apply gear oil
20 Apply molybdenum disulfide oil
21 Apply wheel bearing grease
22 Apply lightweight lithium-soap base grease
23 Apply molybdenum disulfide grease
Illustratedsymbols 24 to 25 inthe explodeddia-
gramsindicatethewheretoapplylockingagent
24 and when to install new parts 25 .
24 Apply locking agent (LOCTITE)
25 Use new one

GENERAL INFORMATION
SPECIFICATIONS
PERIODIC INSPECTION AND
ADJUSTMENT
ENGINE OVERHAUL
COOLING SYSTEM
CARBURETION
CHASSIS
ELECTRICAL
TROUBLESHOOTING
GEN
INFO 1
SPEC 2
INSP
ADJ 3
ENG 4
COOL 5
CARB 6
CHAS 7
ELEC 8
TRBL
SHTG 9
INDEX

CHAPTER 1
GENERAL INFORMATION
SCOOTER IDENTIFICATION 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VEHICLE IDENTIFICATION NUMBER (for E) 1-1. . . . . . . . . . . . . . . . . . .
FRAME SERIAL NUMBER 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGINE SERIAL NUMBER 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL LABEL 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FEATURES 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OIL INDICATOR LIGHT 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUTO CHOKE SYSTEM 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IGNITION CIRCUIT CUT-OFF SYSTEM 1-3. . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT INFORMATION 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARATION FOR REMOVAL PROCEDURES 1-4. . . . . . . . . . . . . . .
REPLACEMENT PARTS 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GASKETS, OIL SEALS, AND O-RINGS 1-4. . . . . . . . . . . . . . . . . . . . . . . .
LOCK WASHERS/PLATES AND COTTER PINS 1-5. . . . . . . . . . . . . . . .
BEARINGS AND OIL SEALS 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCLIPS 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING OF CONNECTIONS 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HOW TO USE THE CONVERSION TABLE 1-7. . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOLS 1-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1
SCOOTER IDENTIFICATION GEN
INFO
NOTE:
NOTE:
YP100000
GENERAL INFORMATION
SCOOTER IDENTIFICATION
YP100010
VEHICLE IDENTIFICATION NUMBER (for E)

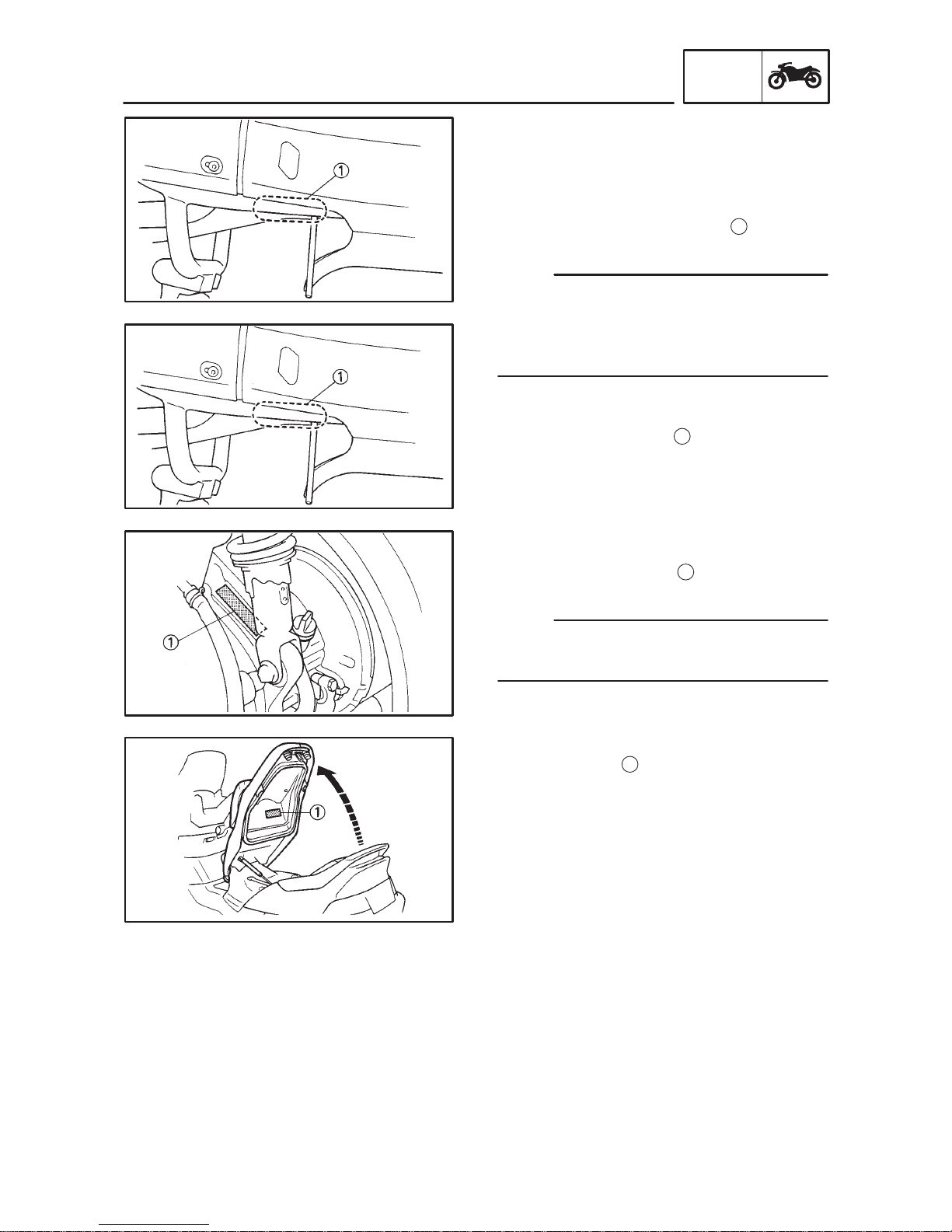

Thevehicleidentificationnumber 1isstamped
into the right side of the frame.
The vehicle identification number is used to
identify your scooter and may be used to regis-
ter your scooter with the licensing authority in
your country.
YP100020
FRAME SERIAL NUMBER (except for E)
The frame serial number 1is stamped into the
right side of the frame.
EB100030
ENGINE SERIAL NUMBER
Theengineserialnumber 1isstampedintothe
crankcase.
Designs and specifications are subject to
change without notice.
MODEL LABEL
The model label 1is affixed under the seat.
This information will be needed to order spare
parts.

1-2
FEATURES GEN
INFO
Engine stop
switch
Main
switch
Oil indicator light
Fuse
Battery Meter
Reset button
Ignitor unit
C.P.U Oil indicator light Reset button
NOTE:
FEATURES
OIL INDICATOR LIGHT
Function

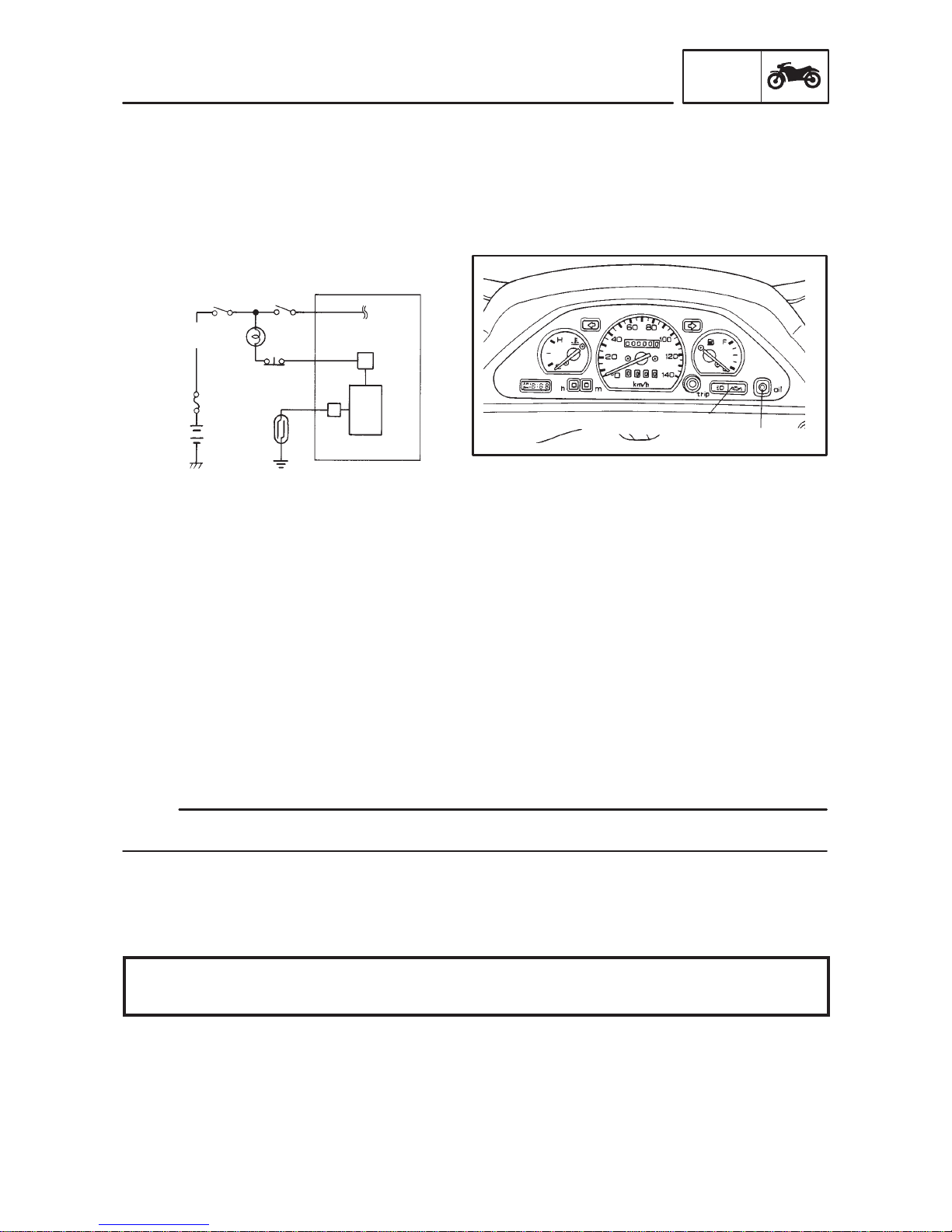

Pulses(traveldistancesignals)fromthespeedometerarecountedandcause theoilindicator lightto
comeonat1,000kmforthefirsttimeandthereafterevery3,000km.Inthisway,thislightindicatesthe
time for oil change.
Circuit diagram
Resetting procedure
Travel distance can be reset if the reset button is held down for 2 to 5 seconds with the main switch
“ON”.
1) Ifthe“resetting”isdonewhiletheoillightison, the oil indicator light goes offforresettingcon-
firmation.
2) Ifthe“resetting”isdone while theoillightisoff,theoilindicator light comes onfor1.4seconds
for resetting confirmation.
Failure diagnosis
1) Checking oil indicator light for breakage
This oil indicator light is kept on for 1.4 seconds immediately after the main switch is turned on,
thereby checking the bulb for breakage.
2) In case of meter pulse failure
Iftraveldistance signals are not detected during running, the oilindicatorlight flashes and gives a
warning of meter signal failure.
This circuit may be activated if the engine is accelerated without load with the mainestand put up.
Battery tending to discharge.
Ifthestartingmotorisrunwiththebatterytendingtodischarge,theoilindicatorlightmaycomeon(for
1.4 seconds), but this is noting abnormal.
In this case recharge or replace battery.
This light comes on if battery charging becomes poor, thereby causing the engine to run
as low as about 200 rpm against 600 rpm or so,

1-3
FEATURES GEN
INFO
Main switch
Fuse
Battery
Thermo
switch
Auto-choke
Igniter unit
C.P.U Ignition
Main switch Engine stop switch
Brake
switch
Fuse
Starter relay Relay
Ignitor unit
Battery Starter
motor
Start
switch Brake light Sidestand
switch
AUTO-CHOKE SYSTEM
Thissystemistheparallelconnectionoftheignitorunitcircuitandthethermoswitchasshown,detect-
ing the engine temperature, and facilitates the restarting with the warm engine.
Circuit diagram
Auto-choke operation
Engine condition Start with the
cold engine Crank with the cold engine Crank with the warm engine Restart with the warm engine
Thermo switch OFF OFF ON ON
Ignitor unit circuit OFF ON ON OFF
Auto-choke Activates Activates Not activate Not activate
IGNITION CIRCUIT CUT-OFF SYSTEM
Asidestandcircuitisaddedtotheexistingelectricstartingcircuit,therebycontrollingthestartermotor
operation and the ignition system of the igniter unit.
Circuit diagram
Operating mode
Sidestand switch Operation of brake
light Operation of starter motor Operation of igniter unit control
OFF ON Not operated Misfire
(Sidestand in use) OFF Not operated Misfire
ON ON Operated Ignited
(Sidestand folded in) OFF Not operated Ignited (ridden)

1-4
IMPORTANT INFORMATION GEN
INFO
EB101000
IMPORTANT INFORMATION
PREPARATION FOR REMOVAL PROCE-
DURES
1. Remove all dirt, mud, dust and foreign ma-
terial before removal and disassembly.
2. Use proper tools and cleaning equipment.
3. Refer to the “SPECIAL TOOLS” section.
4. When disassembling the machine, always
keep mated parts together. This includes
gears, cylinders, pistons and other parts
that have been “mated” through normal
wear. Mated parts must always be reused
or replaced as an assembly.
5. During machine disassembly, clean all
partsandplace them in trays in the order of
disassembly. This will speed up assembly
and allow for the correct installation of all
parts.
6. Keepallpartsaway from any source of fire.
EB101010
REPLACEMENT PARTS
1. Use only genuine Yamaha parts for all re-
placements. Use oil and grease recom-
mended by Yamaha for all lubrication jobs.
Otherbrandsmaybesimilarinfunctionand
appearance, but inferior in quality.
EB101020
GASKETS, OIL SEALS AND O-RINGS
1. Replace all gaskets, seals and O-rings
when overhauling the engine. All gasket
surfaces, oil seal lips and O-rings must be
cleaned.
2. Properly oil all mating parts and bearings
during reassembly. Apply grease to the oil
seal lips.

1-5
IMPORTANT INFORMATION GEN
INFO
OR
CAUTION:
EB101030
LOCK WASHERS/PLATES AND COTTER
PINS
1. Replace all lock washers/plates and cotter
pinsafterremoval.Bendlocktabsalongthe
boltornutflatsaftertheboltornuthasbeen
tightened to specification.
EB101040
BEARINGS AND OIL SEALS
Install bearings and oil seals so that the
manufacturer’s marks or numbers are visible.
Wheninstallingoilseals,applyalightcoatingof
lightweight lithium base grease to the seal lips.
Oilbearingsliberallywheninstalling,ifappropri-
ate.
1Oil seal
Do not use compressed air to spin the bearings
dry. This will damage the bearing surfaces.
1Bearing
EB101050
CIRCLIPS
1. Check all circlips carefully before reas-
sembly. Always replace piston pin clips af-
ter one use. Replace distorted circlips.
When installing a circlip 1, make sure that
thesharp-edgedcorner 2ispositionedop-
positethethrust 3itreceives.Seesection-
al view.
4Shaft

1-6
IMPORTANT INFORMATION GEN
INFO
NOTE:
NOTE:
EB801000
CHECKING OF CONNECTIONS

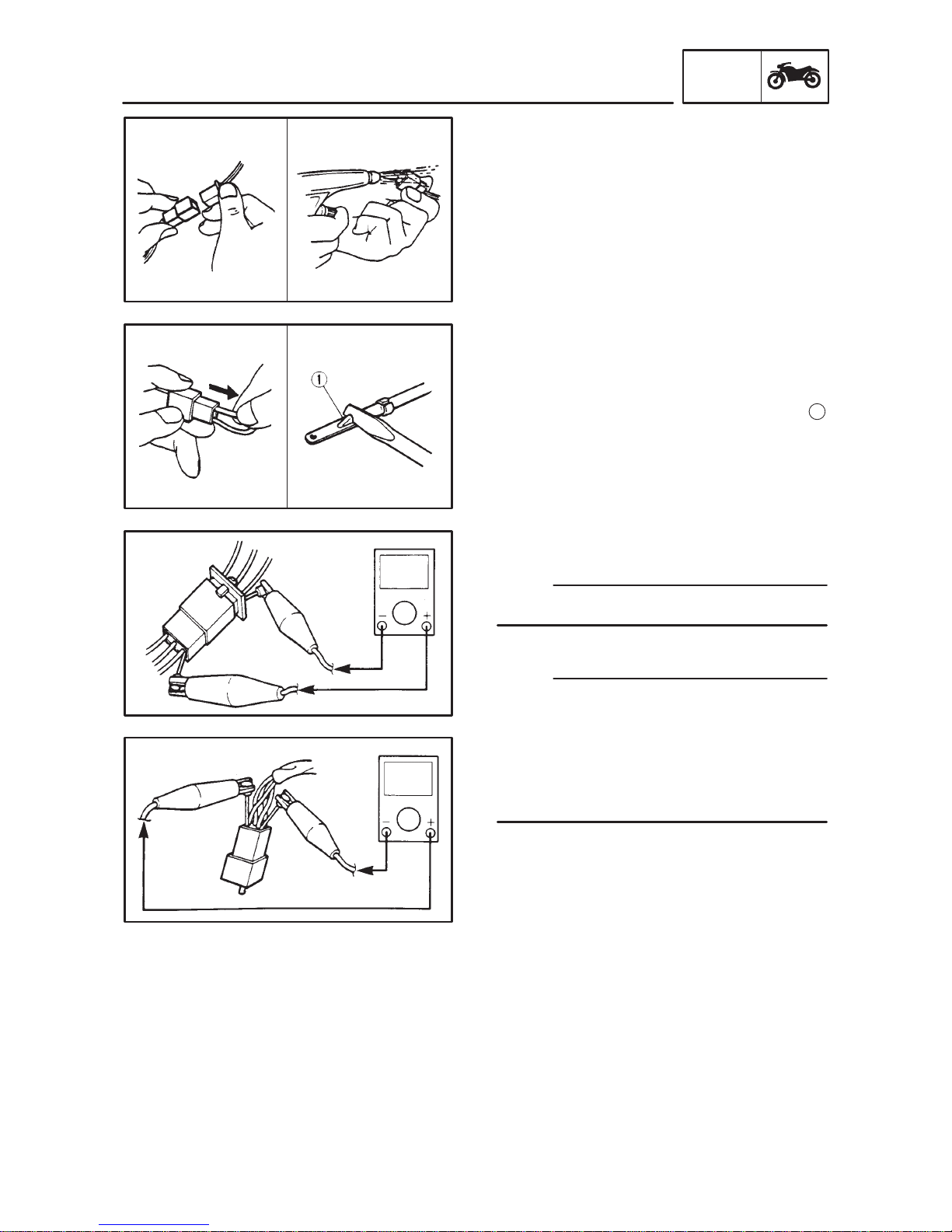

Dealing with stains, rust, moisture, etc. on the
connector.
1. Disconnect:
SConnector
2. Dry each terminal with an air blower.
3. Connect and disconnect the connector two
or three.
4. Pull the lead to check that it will not come
off.
5. Iftheterminalcomesoff,bendupthepin 1
andreinserttheterminalintotheconnector.
6. Connect:
SConnector
The two connectors “click” together.
7. Check for continuity with a tester.
DIf there is no continuity, clean the terminals.
DBe sure to perform the steps 1 to 7 listed
above when checking the wireharness.
DFor a field remedy, use a contact revitalizer
available on the market.
DUse the tester on the connector as shown.

1-7
HOW TO USE THE CONVERSION TABLE GEN
INFO
EB201000
HOW TO USE THE CONVERSION TABLE
All specification data in this manual are listed in SI and METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL unit data.
Ex.METRIC MULTIPLIER IMP
**mm 0.03937 = ** in
2 mm 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMP
Known Multiplier Result
Torque
mSkg
mSkg
cmSkg
cmSkg
7.233
86.794
0.0723
0.8679
ftSlb
inSlb
ftSlb
inSlb
Weight kg
g2.205 0.03527 lb oz
Distance
km/hr
km
m
m
cm
mm
0.6214
0.6214
3.281
1.094
0.3937
0.03937
mph
mi
ft
yd
in
in
Volume/
Capacity
cc (cm3)
cc (cm3)
lit (liter)
lit (liter)
0.03527
0.06102
0.8799
0.2199
oz (IMP liq.)
cuSin
qt (IMP liq.)
gal (IMP liq.)
Miscella-
neous
kg/mm
kg/cm2
Centigrade
55.997
14.2234
9/5(_C) + 32
lb/in
psi (lb/in2)
Fahrenheit (_F)

1-8
SPECIAL TOOLS GEN
INFO
EB102000
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly.
Use only the appropriate special tools; this will help prevent damage caused by the use of inappropri-
ate tools or improvised techniques.
When placing an order, refer to the list provided below to avoid any mistakes.

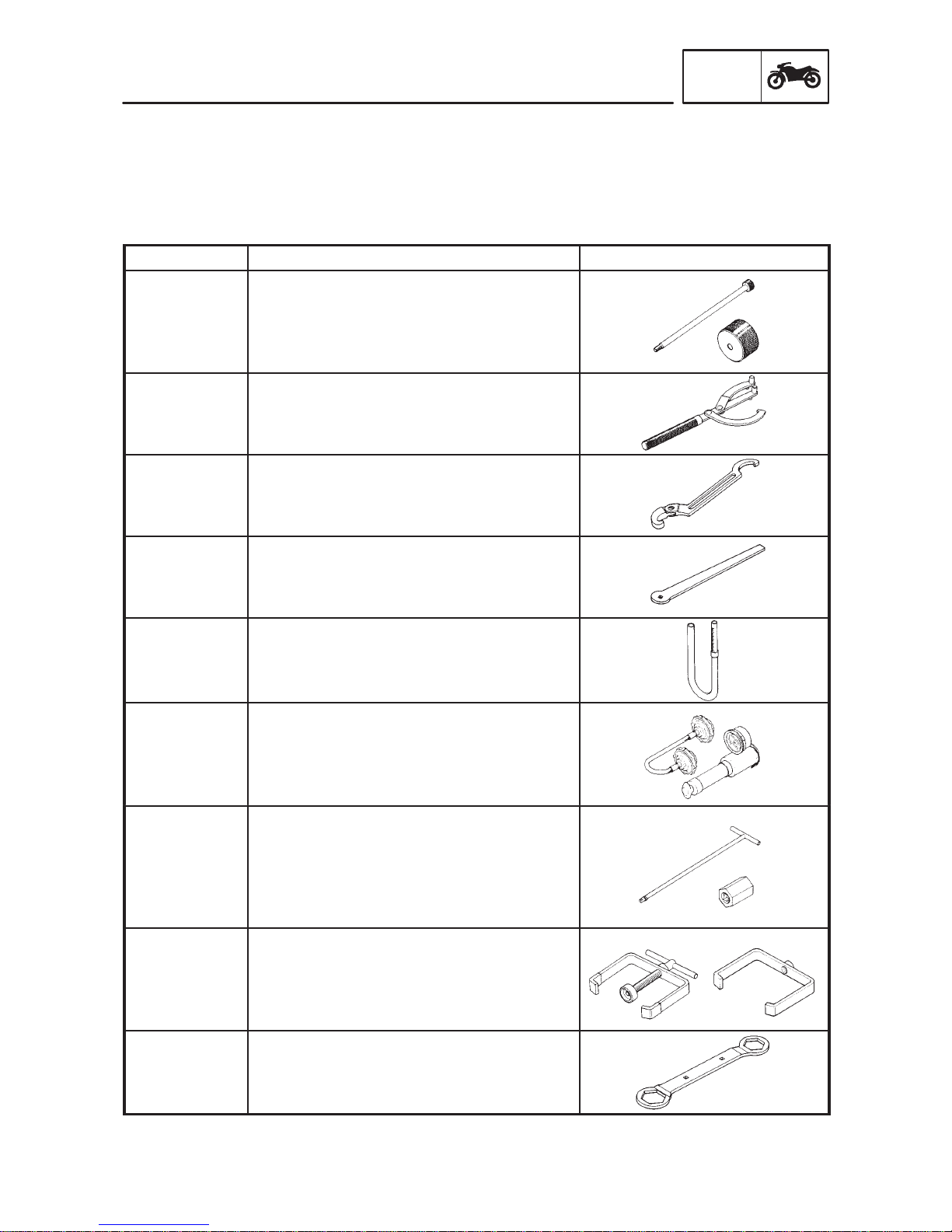

Tool No. Tool name/Usage Illustration
90890-01084
-01085 Weight Rocker arm shaft puller bolt
These tools are used when removing
or installing the rocker arm shafts.
90890-01235 Rotor holding tool
This tool is used to remove the
flywheel magneto.
90890-01268 Ringnut wrench
This tool is used to loosen and tighten
the exhaust and steering ringnut.
90890-01311 Valve adjusting tool
This tool is necessary for adjusting
valve clearance.
90890-01312 Fuel level gauge
This gauge is used to measure the fuel
level in the float chamber.
90890-01325
-01352 Radiator cap tester Adaptor
These tools are used for checking the
cooling system.
90890-01326
-04084 T-handle Damper rod holder
These tool are used for holding the
damper rod holder when removing or
installing the damper rod holder.
90890-01337
-01464 Clutch spring compressor Clutch spring holder arm
These tools are used for removing the
nut with holding the compression spring.
90890-01348 Locknut wrench
This tool is used when removing or
installing the secondary sheave nut.

1-9
SPECIAL TOOLS GEN
INFO
Tool No. Tool name/Usage Illustration
90890-01362 Flywheel puller
This tool is used for removing the
rotor.
90890-01367
-01368 Fork seal driver weight Fork seal driver attachment (ø33)
This tool is used when installing the
fork seal.
90890-01384 Oil seal guide
This tool is used for protecting the oil
seal lip when installing the secondary
sliding sheave.
90890-01403 Ring nut wrench
This tool is used to loosen and tighten
the steering ring nut.

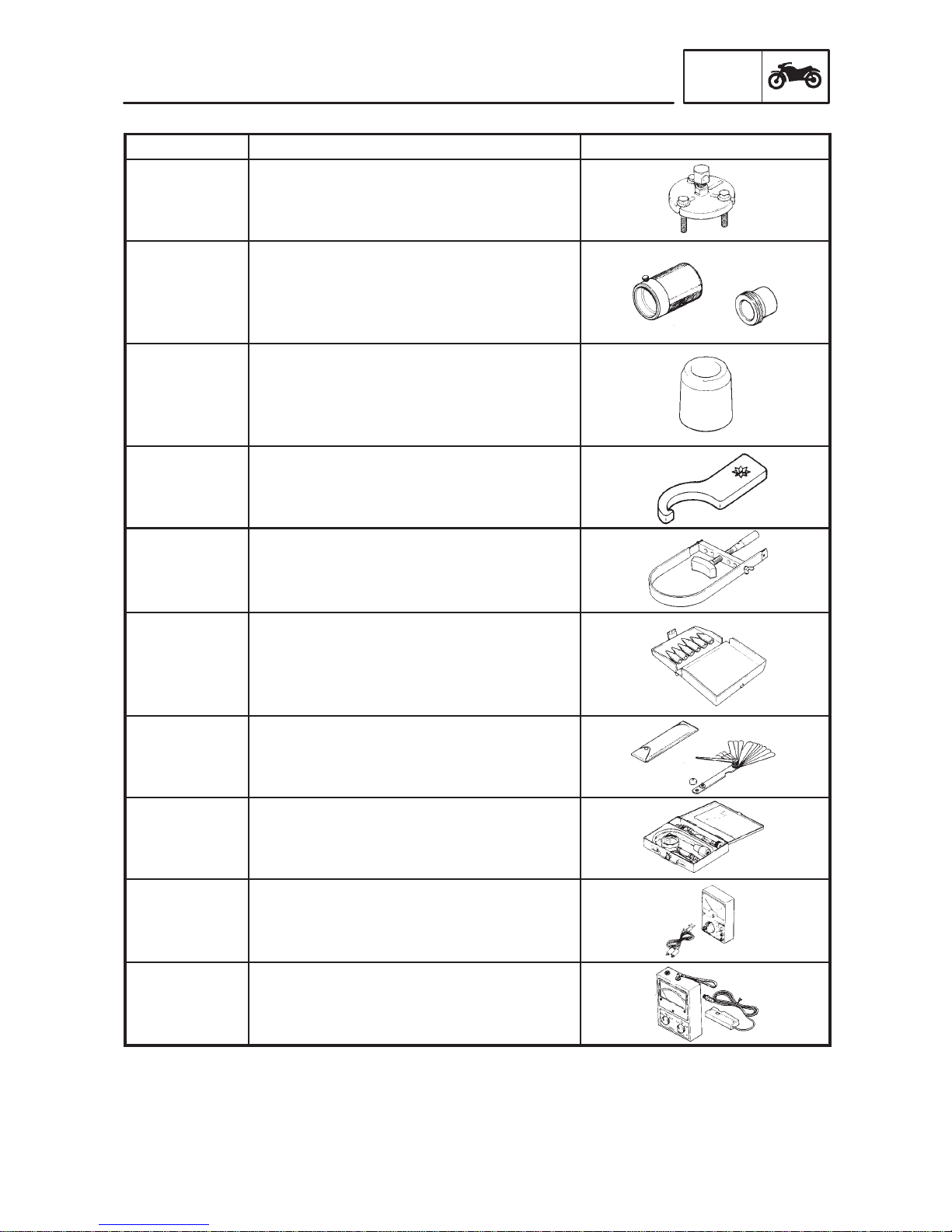

90890-01701 Sheave holder
This tool is used for holding the
secondary sheave.
90890-01996 Cylinder cup installer set
This tool is used for installing the
cylinder cup to the master cylinder
piston.
90890-03079 Thickness gauge
This tool is used to measure the valve
clearance.
90890-03081 Compression gauge
These tools are used to measure the
engine compression.
90890-03112 Pocket tester
These instruments are invaluable for
checking the electrical system.
90890-03113 Engine tachometer
This tool is needed for detecting
engine rpm.

1-10
SPECIAL TOOLS GEN
INFO
Tool No. Tool name/Usage Illustration
90890-03141 Timing light
This tool is needed for detecting
ignition timing.
90890-04101 Valve lapper
This tool is used for removing and
installing the lifter and for lapping the
valve.
90890-04019
-04108 Valve spring compressor Attachment
These tools are used when removing
or installing the valve and the valve
spring.
90890-04058
-04078 Middle shaft bearing driver Mechanical seal installer
These tools are used for installing
mechanical seal.
90890-06754 Ignition checker
This instrument is necessary for checking
the ignition system components.
90890-85505 Yamaha bond No. 1215
This sealant (bond) is used for crankcase
mating surface, etc.
