Yarvik TAB450 User manual

2
Thank you for choosing the TAB450.
The TAB450 is fully equipped to offer you the complete browsing and multimedia experience.
• 10” capacitive touch screen with 1024 x 600 resolution
• Built-in web cam with still image and video recording
• 3D Motion Sensor for automatic orientation
• MicroSD and USB for added connectivity
• HD video playback
IMPORTANT
1. Please charge the TAB450 continuously for 4 hours before use. For further details on charging
the device, please see section 2.3.
2. For information on inserting/removing the MicroSD card, please refer to section 4 – Using
MicroSD card. Failure to do so may result in damage to the memory card.
3. Some applications run in a full screen mode. The icons on the toolbar will not be displayed.
Please use the back button on the tablet to display the menu options.
English
TAB450_manual_eng.indd 2 25-11-11 09:43

Menu
Mini USB
Mini USB
Mini HDMI out
3
1. Accessories
Inside the TAB450 packaging,
you will nd:
• 10” Tablet
• Power adapter
• USB host cable
• User manual
• Quick installation guide
2. Getting started

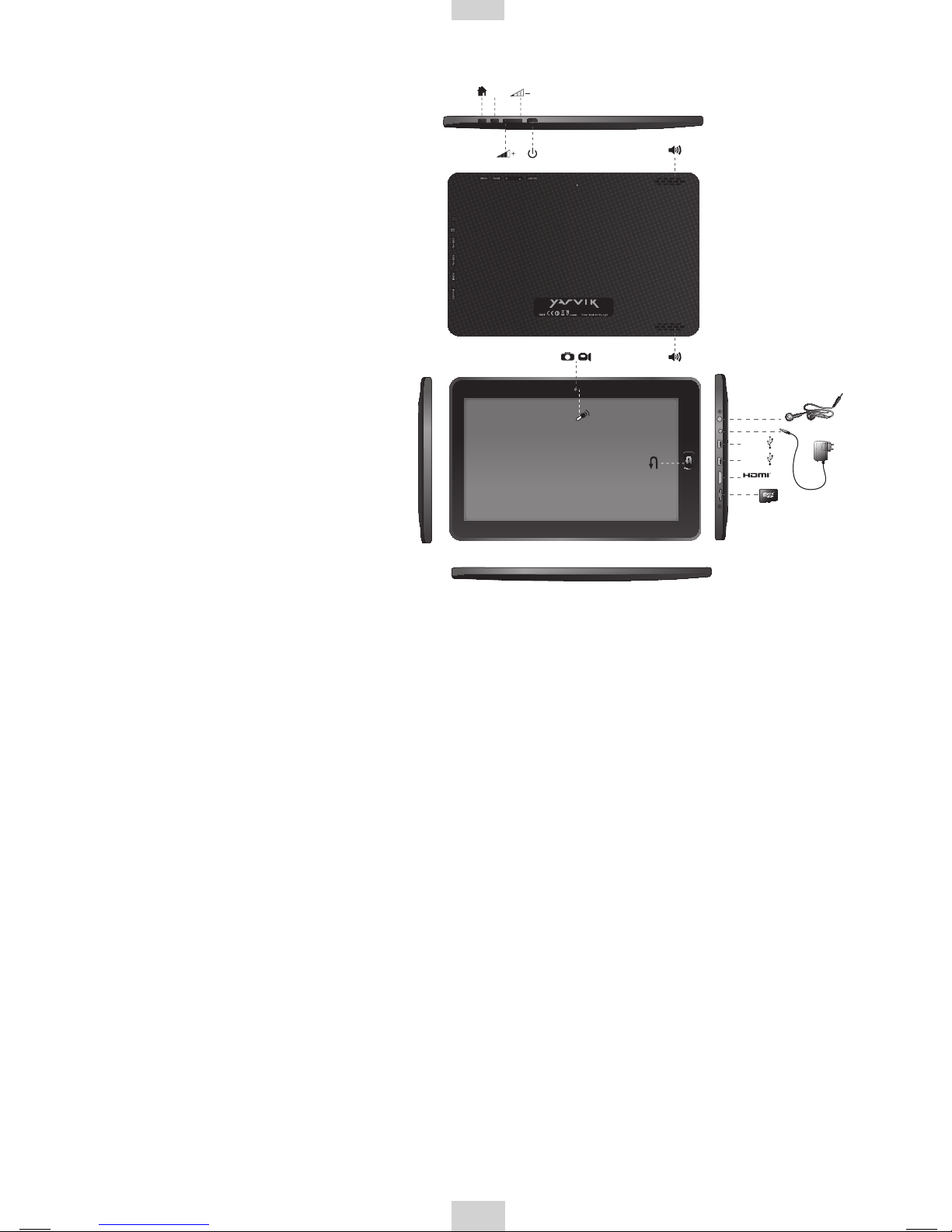

2.1 Appearance
Button descriptions
Power
On/Off When the tablet is switched off, press and hold this button to turn it
on.
To power off the tablet, press and hold this button to activate the
shut-down window.
VOL + Increase the volume.
VOL - Decrease the volume.
Menu Several options are listed in this Menu. Press this button to display
the menu bar.
Home Returns user to desktop
Back Returns user to previous screen
2.2 Using the tablet
• Press and hold the Power button for 2 seconds in order to turn on the device.
• When the tablet is turned on for the rst time, you will need to calibrate the touch screen.
Please follow the procedures on the screen to complete this process. It is best to use to
included stylus to perform the screen calibration.
• To use the pre-installed apps, simply touch the relevant icon.
• Pressing the Power button will activate/deactivate sleep mode when the device is turned on.
• Press and hold the Power button to initiate a complete power-off of the tablet.
2.3 Charging the tablet
Plug the adapter to the mains and the DC connector into the DC-in jack as shown in gure 2.1.
A full charge takes up to 4 hours. When charging the tablet, the LED indicator will be red.
English
TAB450_manual_eng.indd 3 25-11-11 09:43

4
2.4 Toolbar
Home Touch the Home icon to return to the desktop. This action will not
close the applications that are open.
SD card indicator Displays the status of the MicroSD card upon insertion or removal.
Please refer to details in section 4.
Wi-Fi indicator Displays the connection status of the Wi-Fi.
Battery indicator Shows the charge status of the battery
Time Shows current time.
Vol. - Decreases volume.
Vol. + Increases volume.
Menu Shows application options on the bottom of the screen.
Back Returns to previously viewed screen
Your Settings and Data will remain untouched.
2.5 Manage your desktop
Press the Home icon on the top left of your toolbar to return to the main desktop.
In order to delete an icon or widget from the desktop, touch and hold the icon / widget until the
dustbin icon appears on the right side of the screen. Drag the icon / widget onto the dustbin
until the icon / widget turns red. Release the icon / widget to delete.
Note: The items being deleted are shortcuts only and are not actual applications.
These applications can be accessed again by creating a new shortcut.
To reinsert a new or previously deleted icon / widget onto the current desktop, click Menu and
choose Add Application/Widget.
English
TAB450_manual_eng.indd 4 25-11-11 09:43

5
2.6 Using basic applications
OI File Manager is a user friendly application that provides basic le directory operations.
English
TAB450_manual_eng.indd 5 25-11-11 09:43

6
E-Mail
The system will try to automatically setup the Google Gmail account servers for the chosen
Gmail logins. It is also possible to setup a mail account manually. Please refer to your email
provider for details on how to setup up your account manually.
Gallery
The gallery allows you to view media les stored on the device as well as external memory
devices connected to the tablet.
Music
The Music application allows you to view and playback your music collection. Please note that
music will be played in the background even if the back button is pressed. This allows the user
to listen to music while reading an e-Book for example.
Sound Recorder
The sound recorder can be used as a Dictaphone and recordings are saved to the MicroSD card.
Camera
There are two camera modes; Snapshot mode, giving still images and video recording mode.
The images and video les are saved to the MicroSD card.
English
TAB450_manual_eng.indd 6 25-11-11 09:43

7

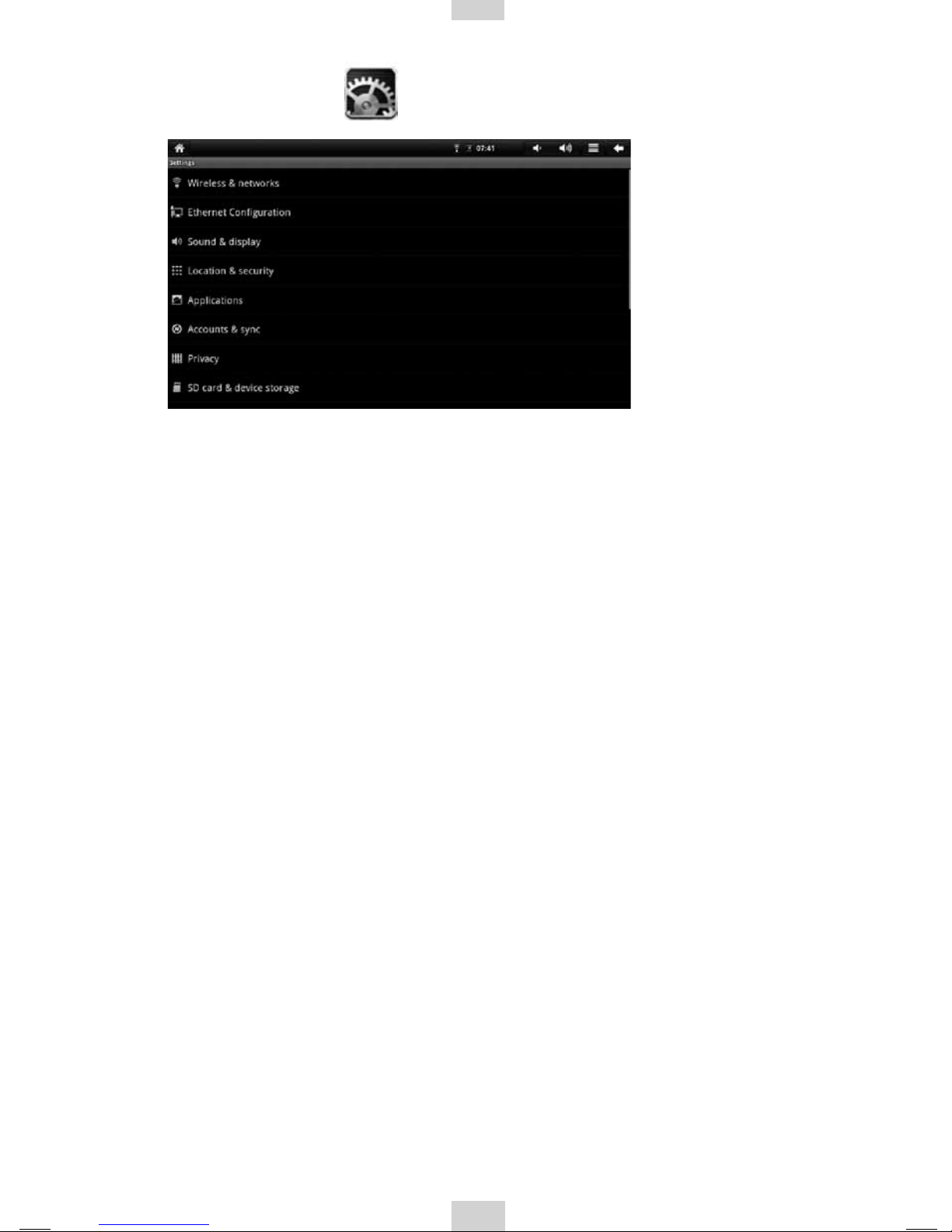

3. Settings
Touch the Settings icon to enter this menu.
3.1 Wireless & networks
Wi-Fi Turn Wi-Fi function On/Off
Wi-Fi settings By enabling Network notication, a list of all available connections
will be shown. Choose Menu to enter advanced options.
IMPORTANT
• Upon exiting the Advanced page, press Menu ➔ Save to save all changes.
• If a network requires a password /wireless key, the tablet will automatically detect the
encryption details and will request that you enter the key.
3.2 Sound & display
Silent mode Turn mute option On/Off
Media volume Adjusts the volume for music and videos
Audible selection Play sound for screen selection.
Haptic feedback Turn On/Off Vibrate feature. Disable this function to save battery
life.
SD card notications Play sound for MicroSD card notications. This function is
application dependent.
Orientation Enable/disable automatic orientation mode. If disabled, the manual
orientation icon will appear on top left beside the Home icon.
Animation Selects page change effects; fade, etc.
Brightness Adjusts the brightness of the screen.
Screen timeout Adjusts the delay before the screen goes into standby.
3.3 Location & security
Using wireless networks Please be aware of applications (such as Maps) which access the
wireless network. If you wish to use these applications, please
accept the onscreen agreement.
English
TAB450_manual_eng.indd 7 25-11-11 09:43

8
Visible passwords Password characters will be shown when you are typing. Only the
last character will be visible, others will be masked.
3.4 Applications
Unknown sources When enabled, allows installation of third party (APK le)
applications.
Manage applications Manage and remove installed applications. Please note that some
applications may cause the system to freeze during installation or
removal. This is due to a memory handling issue of the application
and the device. It is suggested to clear the cache before removing
the application. The “Clear Cache” option is located in the ‘Remove
application’ page.
Running services View and control applications which are currently running.
3.5 Accounts & sync
Add account You may add your Gmail account and synchronize the account in
the Google server. For Google server details please use m.google.
com.
3.6 Privacy
Use My Location This will enable the Google main search page to be set to your
current location (country).
Factory data reset This erases all data to factory default. Powering on the tab- let will
take longer after a reset. All applications installed and personal
settings will be erased. Please acknowledge all warnings when
resetting.
3.7 SD card & device storage
Available space Shows available space of MicroSD card / tablet.
Unmount SD card This option is used for safe removal of the MicroSD card. Please
see Section 4 – ‘Using MicroSD card’ for further information.
3.8 Search
Google search settings Shows suggestions from Google as you type.
Searchable items Choose what to search on the device.
Clear search shortcuts Clear history of recently chosen search results.
3.9 Language & keyboard
Select locale Select language and region.
Android keyboard Onscreen keyboard settings.
User dictionary Add and remove words from user dictionary. You can add words by
pressing the “Menu” icon.
3.10 Date & time
Automatic Automatically synchronize the date time with your AP.
English
TAB450_manual_eng.indd 8 25-11-11 09:43

9
Set date Set date on device.
Select time zone Select time zone on device
Set time Set time on device.
Use 24-hour format Use 24-hour format or am / pm mode.
Select date format Select date display options
3.11 G-sensor calibration
Performs calibration on G-Sensor functionality.
3.12 About Device
Displays device information.
4. Using MicroSD card
In order to safely remove the storage card from the device go to Settings ➔ SD card & device
storage. Choose ‘Unmount MicroSD card’ for safe removal of the card.
The toolbar will display MicroSD card safe to remove when this option is chosen. Please wait 3
seconds before removing the card.
When the MicroSD card is removed, the toolbar will display Removed MicroSD card.
Re-inserting the MicroSD card will show Preparing MicroSD card on the toolbar status.
Removing MicroSD card without rst unmounting will give the following message MicroSD
card unexpectedly removed on the toolbar.
IMPORTANT
Any unexpected removal may cause the MicroSD card to fail. You will have to reboot the
device in order for the MicroSD card slot to work again. Removing the MicroSD card without
unmounting may damage the card.
Please also refer to 3.8 MicroSD card & device storage.
5. Using HDMI
The HDMI output can be used when playing videos. A HDMI cable can be connected between
the Tablet and a HD TV for full-screen viewing.
6. Recycling
This crossed bin symbol on the appliance indicates that the product, at the end of
its life, must be disposed of separately from domestic waste, either by taking it to a
separate waste disposal site for electric and electronic appliance or by returning it
to your dealer when you buy another similar appliance. The user is responsible for
taking the appliance to a special waste disposal site at the end of its life. If the disused
appliance is collected correctly as separate waste, it can be recycled, treated and disposed of
ecologically; this avoids a negative impact on both the environment and health, and contributes
towards the recycling of the product’s materials. For further information regarding the waste
disposal service available, contact your local waste disposal agency or the place of purchase.
English
TAB450_manual_eng.indd 9 25-11-11 09:43

10
7. Troubleshooting
7.1 I cannot connect to the Internet using Manual Setup.
Ans: Ensure you have used Menu ➔ Save when exiting the advanced settings page.
7.2 I can see my access point name, but I cannot connect to the Internet.
Ans: If your access point (AP) supports multiple access points at a time, you may have to
connect the device using WPA encryption and not WEP. Please refer to your AP device
manual for setup details.
7.3 My MicroSD card is not being detected and/or shows damaged SD card.
Ans: Please re-insert the MicroSD card and try again. If this does not work, please restart
the device again with MicroSD card inserted. Please ensure that you have removed the
MicroSD card using the correct procedure as described in section 4.
7.4 My system freezes when installing / removing applications.
Ans: This may be caused by a memory handling error. Use Clear Cache option (See section
3.5) and Force Close icon in application manager before removing the software.
7.5 My device freezes while powering-on.
Ans: This may be caused by a failure in reading the MicroSD card. Also, please ensure that
the card is fully inserted. Alternatively, please try to start the device with the MicroSD card
removed.
7.6 Can I manually change the screen orientation?
Ans: Yes. Please check in “Sound & Display” in “Settings”. Un-check the “Orientation” option,
which will enable the manual orientation button on the tool bar.
7.7 The device showed an error message and the application closed: “android.process.
acore” fault.
Ans: This happens when the system has too many applications running at once. Please check
your open applications as noted in section 3.
7.8 What is the life of the battery?
Ans: A complete charge will give 4 hours battery life with wireless functionality turned on.
7.9 Can I amend the Operating System or code on the device myself?
Ans: No. Any misuse of the tablet in this way will void the warranty.
7.10 Hardware Factory reset
If you want to restore the factory defaults and delete all other data, please press Menu/System
Settings/Privacy/Defaults
Warning:
Once you select Reset, the data and settings of the system and application and the
downloaded applications will be deleted. Thus, be careful when using this function.
English
TAB450_manual_eng.indd 10 25-11-11 09:43

11
English
Hold for 3 seconds
Factory Reset
Step 2
Step 1
Step 3
Step 4
Step 5
Press the required keys
if you want
to apply a factory reset
System will boot normally
in 5 seconds
Press the required keys
if you want
to apply a factory reset
System will boot normally
in 5..4..3..2..1 seconds
Getting recovery image ...
Extracting recovering data
Burning file system
Recovery OK!
System will start in 3 seconds
Step 6
Turn Tablet OFF
before starting
Factory Reset
TAB450_manual_eng.indd 11 25-11-11 09:43

12
Get the most out of your Yarvik Tablet
We’ve included some useful apps on the Yarvik Tablet:
- Alarm clock
- Audio player
- Browser
- Calendar
- Calculator
- Camera
- Email
- File explorer
- Photo gallery
- Sound recorder
- Video player
- GetJar
You can also nd many more Android apps on the internet. To help you get started, we recommend
you check out some of the websites listed below. These provide access to a wide range of fun and
useful freeware apps.
www.androidpit.com
www.slideme.org
www.androidgear.com
www.getjar.com
All downloaded apps are used at your own risk.
Please note:
Due to licencing restrictions applicable to Android-based mobile devices, the Yarvik Tablet is able to
access the ofcial Android Marketplace, but you will not be able to download apps.
Pictures are provided for reference only, product appearance and functionality may differ from that
shown. Product operation and design are subject to change without prior notice.
English
TAB450_manual_eng.indd 12 25-11-11 09:43

13
English
LICENSING INFORMATION
This product contains third-party software under the terms of the GNU
General Public License.
Please see The GNU General Public License below for the exact terms and
conditions of this license.
You can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of the
License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
Availability of source code
Sweex Europe BV made the full source code of the GPL licensed software
of this product available on our website: www.yarvik.com under section
Drivers & Firmware.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom
to share and change it. By contrast, the GNU General Public License is
intended to guarantee your freedom to share and change free software-
-to make sure the software is free for all its users. This General Public
License applies to most of the Free Software Foundation’s software and
to any other program whose authors commit to using it. (Some other Free
Software Foundation software is covered by the GNU Lesser General
Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price.
Our General Public Licenses are designed to make sure that you have the
freedom to distribute copies of free software (and charge for this service if
you wish), that you receive source code or can get it if you want it, that you
can change the software or use pieces of it in new free programs; and that
you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone
to deny you these rights or to ask you to surrender the rights. These
restrictions translate to certain responsibilities for you if you distribute
copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or
for a fee, you must give the recipients all the rights that you have. You must
make sure that they, too, receive or can get the source code. And you must
show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2)
offer you this license which gives you legal permission to copy, distribute
and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that
everyone understands that there is no warranty for this free software. If the
software is modified by someone else and passed on, we want its recipients
to know that what they have is not the original, so that any problems
introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will
individually obtain patent licenses, in effect making the program proprietary.
To prevent this, we have made it clear that any patent must be licensed for
everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification
follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION
0. This License applies to any program or other work which contains a
notice placed by the copyright holder saying it may be distributed under
the terms of this General Public License. The “Program”, below, refers to
any such program or work, and a “work based on the Program” means
either the Program or any derivative work under copyright law: that is to
say, a work containing the Program or a portion of it, either verbatim or
with modifications and/or translated into another language. (Hereinafter,
translation is included without limitation in the term “modification”.) Each
licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered
by this License; they are outside its scope. The act of running the Program
is not restricted, and the output from the Program is covered only if its
contents constitute a work based on the Program (independent of having
been made by running the Program). Whether that is true depends on what
the Program does.
1. You may copy and distribute verbatim copies of the Program’s source
code as you receive it, in any medium, provided that you conspicuously
and appropriately publish on each copy an appropriate copyright
notice and disclaimer of warranty; keep intact all the notices that refer
to this License and to the absence of any warranty; and give any other
recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you
may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it,
thus forming a work based on the Program, and copy and distribute such
modifications or work under the terms of Section 1 above, provided that
you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that
you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or
in part contains or is derived from the Program or any part thereof, to
be licensed as a whole at no charge to all third parties under the terms
of this License.
c) If the modified program normally reads commands interactively when
run, you must cause it, when started running for such interactive use in
the most ordinary way, to print or display an announcement including an
appropriate copyright notice and a notice that there is no warranty (or
else, saying that you provide a warranty) and that users may redistribute
the program under these conditions, and telling the user how to view a
copy of this License. (Exception: if the Program itself is interactive but
does not normally print such an announcement, your work based on the
Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable
sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves,
then this License, and its terms, do not apply to those sections when
you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Program, the
distribution of the whole must be on the terms of this License, whose
permissions for other licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights
to work written entirely by you; rather, the intent is to exercise the right
to control the distribution of derivative or collective works based on the
Program.
In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of a
TAB450_manual_eng.indd 13 25-11-11 09:43

14
storage or distribution medium does not bring the other work under the
scope of this License.
3. You may copy and distribute the Program (or a work based on it, under
Section 2) in object code or executable form under the terms of Sections
1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1
and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to
give any third party, for a charge no more than your cost of physically
performing source distribution, a complete machine-readable copy of
the corresponding source code, to be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software
interchange; or,
c) Accompany it with the information you received as to the offer to
distribute corresponding source code. (This alternative is allowed only
for noncommercial distribution and only if you received the program
in object code or executable form with such an offer, in accord with
Subsection b above.)
The source code for a work means the preferred form of the work for
making modifications to it. For an executable work, complete source code
means all the source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation and
installation of the executable. However, as a special exception, the source
code distributed need not include anything that is normally distributed (in
either source or binary form) with the major components (compiler, kernel,
and so on) of the operating system on which the executable runs, unless
that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to
copy from a designated place, then offering equivalent access to copy the
source code from the same place counts as distribution of the source code,
even though third parties are not compelled to copy the source along with
the object code.
4. You may not copy, modify, sublicense, or distribute the Program except
as expressly provided under this License. Any attempt otherwise to
copy, modify, sublicense or distribute the Program is void, and will
automatically terminate your rights under this License. However, parties
who have received copies, or rights, from you under this License will
not have their licenses terminated so long as such parties remain in full
compliance.
5. You are not required to accept this License, since you have not signed
it. However, nothing else grants you permission to modify or distribute
the Program or its derivative works. These actions are prohibited by law
if you do not accept this License. Therefore, by modifying or distributing
the Program (or any work based on the Program), you indicate your
acceptance of this License to do so, and all its terms and conditions
for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the
Program), the recipient automatically receives a license from the original
licensor to copy, distribute or modify the Program subject to these terms
and conditions. You may not impose any further restrictions on the
recipients’ exercise of the rights granted herein. You are not responsible
for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not excuse
you from the conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and any other
pertinent obligations, then as a consequence you may not distribute the
Program at all. For example, if a patent license would not permit royalty-free
redistribution of the Program by all those who receive copies directly or
indirectly through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply and
the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents
or other property right claims or to contest validity of any such claims;
this section has the sole purpose of protecting the integrity of the free
software distribution system, which is implemented by public license
practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent
application of that system; it is up to the author/donor to decide if he or she
is willing to distribute software through any other system and a licensee
cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain
countries either by patents or by copyrighted interfaces, the original
copyright holder who places the Program under this License may add an
explicit geographical distribution limitation excluding those countries, so
that distribution is permitted only in or among countries not thus excluded.
In such case, this License incorporates the limitation as if written in the
body of this License.
9. The Free Software Foundation may publish revised and/or new versions
of the General Public License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in detail to address
new problems or concerns.
Each version is given a distinguishing version number. If the Program
specifies a version number of this License which applies to it and “any
later version”, you have the option of following the terms and conditions
either of that version or of any later version published by the Free Software
Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software
Foundation.
10. If you wish to incorporate parts of the Program into other free programs
whose distribution conditions are different, write to the author to ask
for permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we sometimes
make exceptions for this. Our decision will be guided by the two goals
of preserving the free status of all derivatives of our free software and of
promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR
ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE
THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE
OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD
PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER
PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
English
TAB450_manual_eng.indd 14 25-11-11 09:43
