AURA®handheld NIR
User Manual

2AURA handheld NIR - 2227-503 | User Manual
AURA handheld NIR
Users must be familiar with this manual to operate the device. Therefore,
please familiarize yourself with the contents. In particular, make sure to
follow the instructions explaining how to handle the device safely. The
device has a built-in WiFi adapter and therefore it is a Radio Equipment/
Combined Equipment according to the Radio Equipment Directive
2014/53/EU.
© Forwarding and reproduction of this document and the use and
communication of its contents are prohibited, unless explicit permission
has been granted. Violations of this copyright notice will result in claims
for damages. All rights are reserved in case a patent is granted or a sample
is registered.
Carl Zeiss Spectroscopy GmbH
Carl-Zeiss-Promenade 10
07745 Jena, Germany
Service + 49 3641 64-3200
E-Mail [email protected]
Info + 49 3641 64-2838
Fax + 49 3641 64-2485
Internet www.zeiss.com/spectroscopy
Publication number: UM AURA®handheld NIR - 2227-503 / E | 2018-06
1st edition June 2018 Subject to technical changes

3
AURA handheld NIR - 2227-503 | User Manual
AURA handheld NIR
Content
1 Safety instructions������������������������������������������������������������������5
1.1 Used symbols and signal words 6
1.2 General safety instructions 7
1.3 Environmental management 8
1.4 Storage and transport 9
1.5 WiFi 10
2 Basic information������������������������������������������������������������������11
2.1 General information 11
2.2 Intended use 12
2.3 Warranty and liability 13
2.4 Connection and environmental parameters 14
3 System overview�������������������������������������������������������������������15
3.1 Package check list 15
3.2 Functional elements 15
3.3 Controls and indicators 16
3.4 Interfaces 17
3.5 Dimensions 18
4 Technical description ������������������������������������������������������������19
4.1 Function description 19
4.2 Specifications 20
4.3 ZEISS InProcess software 22
5 Operation �����������������������������������������������������������������������������23
5.1 Getting started 23
5.2 Start measurement 24
5.3 Export data 25
5.4 Shutting down 25
5.5 Exchanging battery packs 26
5.6 Charging the battery pack 28

4AURA handheld NIR - 2227-503 | User Manual
AURA handheld NIR
List of figures

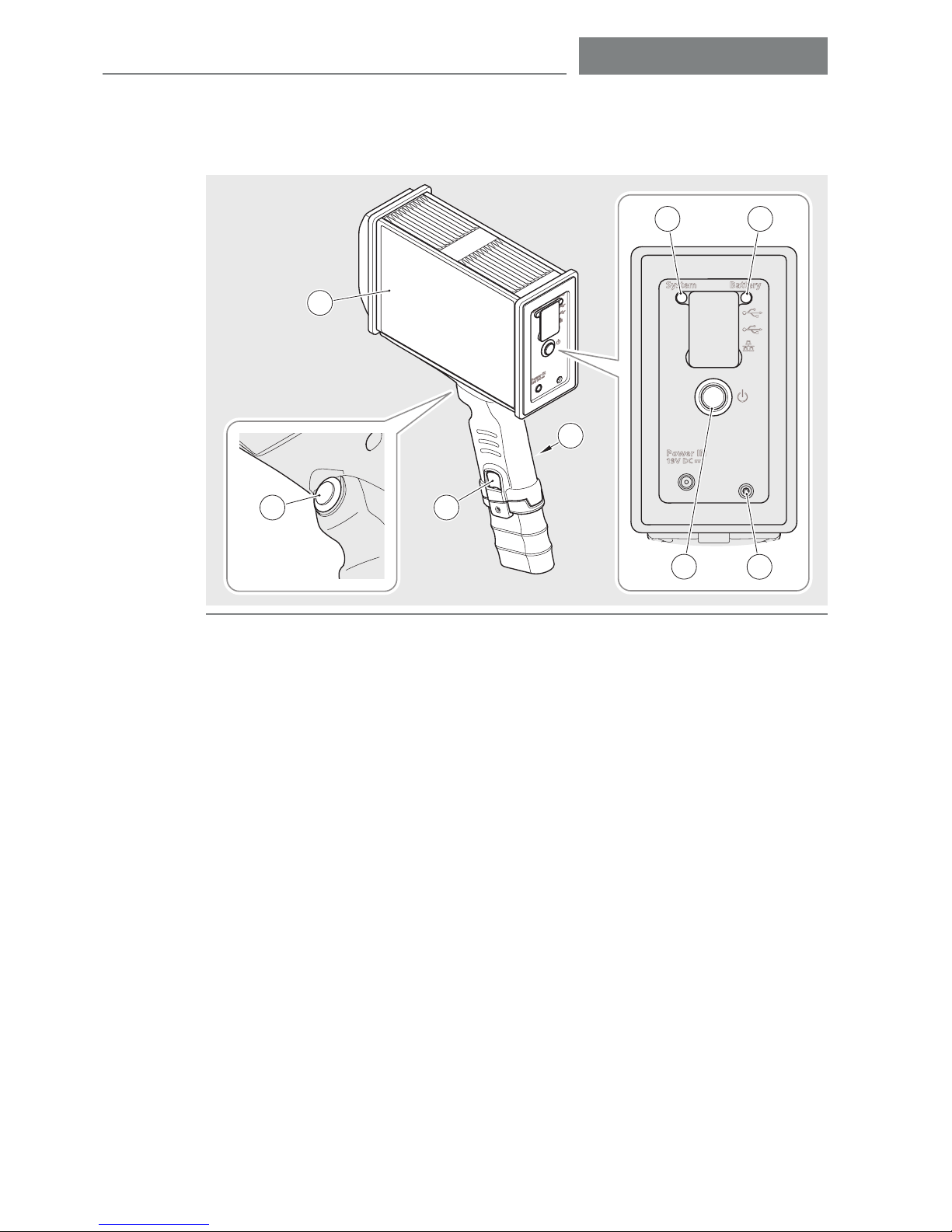

Fig. 1 Functional elements ............................................................15
Fig. 2 Controls and indicators .......................................................16
Fig. 3 Interfaces ............................................................................17
Fig. 4 Dimensions .........................................................................18
Fig. 5 InProcess software – welcome screen..................................22
Fig. 6 Exchanging the battery pack ...............................................27
List of tables
Tab. 1 Connection and environmental parameters ........................14
Tab. 2 AURA handheld NIR specifications......................................21
Tab. 3 Spare parts.........................................................................29
6 Maintenance and spare parts �����������������������������������������������29
6.1 Maintenance and cleaning 29
6.2 Spare parts 29
7 Appendix������������������������������������������������������������������������������30

5
AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1 Safety instructions
The AURA handheld NIR has been designed and tested in compliance
with the Radio Equipment Directive (RED) 2014/53/EU due to the built-in
WiFi adapter and left the factory in a faultless state. The RED-Directive
includes the general requirements according to Safety and Electromagnetic
Compatibility EMC.
The safety requirements according to the Low Voltage Directive (LVD)
2014/35/EU are tested in compliance with DIN EN 61010-1 for the device
and with DIN EN 60950-1 for built-in components and accessories from
other manufactures.
The electromagnetic compatibility requirements according to EMC-
Directive 2014/30/EU are tested in compliance with DIN EN 61326-1 and
ETSI EN 301 489-1.
To maintain the faultless state and ensure safe operation, all instructions
and warning notes in this manual must be followed.
The AURA handheld NIR meets the degree of protection IP 54 (front side
only) and protection class III.
The instruments carries the marking.

6AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1.1 Used symbols and signal words
The symbols below are used in this user manual to indicate safety relevant
or helpful information:
Attention
Warning of possible property damage
Note
Read the User Manual
Note
Important general note
Note
Important note about environmental protection

7
AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1.2 General safety instructions
The AURA handheld NIR including the original accessories must only be
used for the applications described in this user manual. The manufacturer
cannot be held liable for any other use.
Only our service staff or authorized personnel is allowed to carry out repair
work on this device. The device manufacturer does not assume any liability
for damages caused by unauthorized actions with the device. Furthermore,
such actions result in the forfeiture of all warranty and guarantee claims.
The devices may only be operated by instructed personnel. Such personnel
must be instructed on the possible risks associated with working with the
device and the respective area of application. The AURA handheld NIR is a
precision instrument, the functions of which may be adversely affected or
irreparably damaged in case of improper use.
Warning and note signs must not be removed and must always be in a
legible condition.
Please note:
• The AURA handheld NIR must not be started if it is damaged or in a
wet condition.
• Do not open the system.
• Never look directly into the measuring beam. The bright light of the
halogen lamp can cause dazzling.
• Beware of hot surfaces.
• The system contains a battery with a transport temperature range
from – 20 to + 60 °C. Never expose the system to the open sun for an
extended time span. If so, the system can get damaged seriously.
• Never leave samples unobserved in front of the measurement window.
The radiation from the halogen lamp can cause fire.

8AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1.3 Environmental management
Our company has implemented a certified environmental management system
that complies with ISO 14001.
This product has been developed, tested and manufactured in accordance
with the applicable environmental provisions and directives of the European
Union.
The product and its accessories comply with EU directives 2011/65/EU (RoHS),
2012/19/EU (WEEE), 2006/66/EU + amendment 2013/56/EU (for batteries)
and EMC-2014/30/EU + LVD-2014/35/EU (for accessories) to the extent
applicable to this product.
The device carries the marking.
We have installed a take-back and recycling process that ensures proper
recycling in accordance with the above-mentioned EU directives.
For details concerning disposal and recycling, please contact your local sales
or service organization.
The product must not get into domestic waste nor be disposed of via
municipal waste disposal facilities. On resale of the product, the seller
is obligated to inform the buyer that the product must be disposed of
properly.
The device contains two batteries, which must be removed before
recycling the device. Inside the device is one Li-Cell CR2032 for the
backup-functionality of the built-in embedded computer module and one
single Cell-Li-Ion Battery to support the hot-plugging functionality of the
main battery pack.

9
AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1.4 Storage and transport
The system is not provided with any special transportation mountings
or safety devices. We recommend using the original packaging for
transportation or to use the optionally available carrying case. You should
also use the original packaging when returning the device.
When storing or using the system, please note the specified environmental
parameters.
Attention
For air transport, follow the latest internationally applicable
regulations for the transport of Li-ion batteries�
The AURA handheld NIR works with the Standard Li-ion Smart
Battery Pack RRC 2040-2 by RRC power solutions�
Before use, read the latest Safety Data Sheet (SDS) and the
manual provided by the battery manufacturer� These documents
can be downloaded here: http://www�rrc-ps�com/en/products/
battery-packs/standard-smart-battery-packs/rrc2040-2/details�
html�
Both documents can also be found in the Appendix of this User
Manual�
Attention
Check the battery-status-LED bar before you store the device�
In case the charging status is below 25 %, please charge the
battery pack, otherwise the battery-pack could be damaged or
the lifetime is reduced�

10 AURA handheld NIR - 2227-503 | User Manual
Safety instructions
AURA handheld NIR
1.5 WiFi
The devices comes with a built-in WiFi adapeter type LM808. The wifi
functionality shall only be used when a national certificate exists for your
country.
The following national certificates exist as of today:
EU – all member countries – EU declaration of conformity (RED)
USA – FCC FCC-ID: VVX808-04XX
Canada Radio Cert. No.: IC: 10531A-80804XX
China CMIIT ID 2017AJ5291
Japan Telec
Russia, Belorussia, Kazakhstan EAC
South Africa ICASA
South Korea KCC
Australia and New Zealand RCM
Taiwan NCC
Singapore IMDA
Israel MOC
For USA and Canada only:
This device complies with Part 15B, 15C, 15E of the FCC Rules and with RSS-
247 and RSS-102 of Industry Canada. Operation is subject to the following
conditions. (1) this device may not cause harmfull interference, and (2) this
device must accept any interference that may cause undesired operation.
Note
There is no guarantee for the operating range of the built-in
WiFi adapter� The safe range of operation depends on a free line
of sight and the environmental conditions� The manufacturer
assumes a safe range of operation of up to 5 m distance�

11
AURA handheld NIR - 2227-503 | User Manual
Basic information
AURA handheld NIR
2 Basic information
2.1 General information
This manual helps users to familiarize themselves with how the
AURAhandheldNIR is set up and operated.
The following point must be checked before the system is started:
• The user manual must be read carefully before the system is used.
The manual has to be always available at the system.
• The AURA handheld NIR must not be wet or damaged.
The user manual contains a description of the hardware and how to
operate the AURA handheld NIR.
Technical specifications, dimensions and weights are applicable for the day
on which this user manual was printed. The details of these specifications
may deviate from the respective system design without fundamentally
changing the functional information.
The system is only designed for the intended use listed in the user manual.
The manufacturer cannot accept claims that arise from incorrect operation
and insufficient maintenance. Damages arising from incorrect operation
result in the loss of the warranty claim.
To ensure optimal settings and a trouble-free function of your system
over an extended period, we recommend that you enter into a service/
maintenance agreement with ZEISS. Please get in touch with your local
ZEISS representative when service is required.

12 AURA handheld NIR - 2227-503 | User Manual
Basic information
AURA handheld NIR
2.2 Intended use
The AURA handheld NIR is a battery operated, hand-held, diffuse
reflection NIR spectrometer for measuring constituents of samples in direct
contact. It is also used for displaying and storing results and related data.
The AURA handheld NIR may only be used for its intended purpose as
described.
Any other use is contrary to regulations. The operator will assume liability for
any resulting damage. In this case, the warranty claim would not be valid.

13
AURA handheld NIR - 2227-503 | User Manual
Basic information
AURA handheld NIR
2.3 Warranty and liability
The manufacturer guarantees that the instrument is free of material or
manufacturing defects at the point of delivery. Possible defects must be
reported immediately and steps must be taken to minimize damage. The
manufacturer is obligated to rectify any objected damage at his discretion,
either by repairing the instrument or by delivering an intact replacement.
No guarantee is provided for defects caused by natural wear (wearing
parts in particular) and improper use.
The instrument manufacturer shall not be liable for damage caused by
faulty operation, negligence or any other tampering with the instrument,
particularly the removal or replacement of instrument components or the
use of accessories of other manufacturers. Any such action shall lead to a
forfeit of all warranty claims.
With the exception of the work specified in section “6 Maintenance and
spare parts” on page 29 in this manual, no maintenance or repair of
the instrument may be undertaken. Repairs may only be carried out by
ZEISS service staff or persons explicitly authorized by ZEISS. In case of any
malfunction of the device, contact the customer service department at
Carl Zeiss Spectroscopy GmbH ([email protected]).
Note
You can find more detailed information on warranty claims in the
General Terms and Conditions of Sale of Carl Zeiss Spectroscopy
GmbH� Please find them in the Internet: http://www�zeiss�com/
corporate/en_de/legal-information/company-information�html

14 AURA handheld NIR - 2227-503 | User Manual
Basic information
AURA handheld NIR
2.4 Connection and environmental parameters
Supply voltage (battery) 11.25 V DC, 6400 mAh, 70 Wh
External supply voltage 19 V DC from Power supply charger
Storage temperatures – 20 … + 60 °C
Operation temperatures +5 … + 40°C
Max. of humidity 95% not condensing (at 25 °C)
Altitude of use up to 2000 m
Tab. 1 Connection and environmental parameters

15
AURA handheld NIR - 2227-503 | User Manual
System overview
AURA handheld NIR
3 System overview
3.1 Package check list
The system is delivered with the following parts:
• AURA handheld NIR with InProcess software preinstalled
• 1x Smart Battery Pack RRC 2040-2 (deactivated)
• Hand strap
• User Manual
Note
Accessories like charger, spare battery packs or a carrying case
can be found in the section “Maintenance and spare parts”�
3.2 Functional elements
1
3
4
2
5
Fig. 1 Functional elements
1 Battery pack
2 Handle (with “Start measurement button”)
3 Measurement window
4 Touchscreen
5 Hand strap

16 AURA handheld NIR - 2227-503 | User Manual
System overview
AURA handheld NIR
3.3 Controls and indicators
2
7
7
1
6
43
5
Fig. 2 Controls and indicators
1 Start measurement button
2 Touchscreen, including display of the battery status in %
3 Status LED – system
• white: system is booting
• green, constant: system is ready
• yellow: preparing / referencing
• green, blinking: measurement in progress
• red: an error occurred
4 Status LED – battery pack
• green: full capacity
• cyan: almost full capacity
• blue: half capacity
• yellow: battery almost empty
• red: critical battery status – nearly empty ⇒
exchange battery pack and reload

17
AURA handheld NIR - 2227-503 | User Manual
System overview
AURA handheld NIR
5 Reset button
6 Power ON button
7 Release buttons for exchanging the battery pack
3.4 Interfaces
1
2
3
4
Fig. 3 Interfaces
1 USB 2.0
2 USB 2.0
3 Ethernet
4 19 V DC in (from Battery charger RRC-SMB-UBC)

18 AURA handheld NIR - 2227-503 | User Manual
System overview
AURA handheld NIR
3.5 Dimensions
235
138
351
125
182
281
80
44
80
ø40
1 32
Fig. 4 Dimensions
1 Display side
2 Front
3 Rear

19
AURA handheld NIR - 2227-503 | User Manual
Technical description
AURA handheld NIR
4 Technical description
4.1 Function description
The AURA handheld NIR has been developed for the most diverse optical
measuring applications and consists of a polychromator with a measuring
head for diffuse reflection. The front panel includes a sapphire window.
The spectrometer features fiber free, high energy illumination and internal
referencing.
The unit operates on 11.25 V DC SELV and only the specified battery
pack (RRC2040-2) shall be used.
The AURA handheld NIR has one Ethernet and two USB interfaces.
The device has a built-in Embedded Computer Module, the used operating
system is Windows IoT, the license label is inside the device.
The device comes with an internal disk space of 32GByte with
approximately 20GByte free disk space.
The application software InProcess is preinstalled on the system
(see “4.3 ZEISS InProcess software” on page 22).
The instrument works with InProcess 2.7.9 (and higher versions) and
Firmware FW116 (and higher versions).

20 AURA handheld NIR - 2227-503 | User Manual
Technical description
AURA handheld NIR
4.2 Specifications
Designation Description
Mechanical specifications
Dimension (W x H x D) 235 x 351 x 80 mm
Weight 2.56 kg (incl. battery pack)
Environmental parameters
Range of operating
temperatures
+5 °C ... + 40 °C
Storage/ transport temperature –20 °C ... + 60 °C
Ingress protection (IP) IP 54, front side
Electrical connection parameters
Power supply
(battery pack RRC 2040-2)
11.25 V DC, 6400 mAh, 70 Wh
Power supply (external) 19.0 V DC
Power consumption 24 W
Interfaces
Communication Ethernet 100 MBit/s, 2x USB
Optical specification
Spectrometer Free beam optics with internal
black/ white reference
Polychromator 1 x PGS
Sensor arrays Multiplexed InGaAs
Numbers of diodes per sensor
array
256
Spectral range 950 ... 1650 nm
Mean spectral pixel pitch 3 nm
