ZENEC ZE-NC5011D User manual

USER MANUAL
ENGLISH/ GERMAN
USER MANUAL
BEDIENUNGSANLEITUNG
ZE-N C 5 0 11D
CAR SPECIFIC NAVICEIVER FOR
OPEL VEHICLES

2
ABOUT THIS INSTRUCTION MANUAL
The instruction manual contains important information and warnings about the
operation of this unit. Please store it inside your vehicle to have access to it any time.
The contents of this document are provided "as is", as required by applicable law. No
warranties of any kind, either expressed or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy, reliability or contents of this document. ZENEC reserves
the right to revise this document or withdraw it at any time without prior notice.
CONTENTS
SAFETY INSTRUCTIONS ..................................................................................... 3
FRONT PANEL BUTTONS.................................................................................4-5
BASIC OPERATION ...........................................................................................6-7
RADIO MODE ................................................................................................... 8-11
PLAYBACK/PLAYLIST AUDIO/VIDEO ..........................................................12-17
BLUETOOTH MODE ......................................................................................18-25
NAVIGATION MODE.......................................................................................26-27
SETUP.............................................................................................................28-37
REMOTE CONTROL MAIN ............................................................................38-39
REMOTE CONTROL M-ZONE .......................................................................40-41
EXTERNAL PLAYBACK SOURCES..............................................................42-43
GLOSSAR............................................................................................................ 44
TROUBLESHOOTING....................................................................................45-46
SPECIFICATIONS................................................................................................ 47
WARRANTY....................................................................................................94-95
 Navigation manual is separate.

3
ZE-N C 5 0 11D
SAFETY INSTRUCTIONS
1. Read these instructions entirely.
2. Keep these instructions. Whoever uses the unit should have access to this manual.
3. Heed all warnings. Follow all instructions.
4. This unit is designed to be used in a vehicle with 12V DC battery and negative ground.
5. Do not operate the unit in any other way than described in this manual. Failure to follow the
instructions within this manual may void your warranty.
6. Do not disassemble or alter the unit in any way, because it will void your warranty. Do not attempt to
repair or to service the unit yourself, but contact an authorized ZENEC dealer instead.
7. Use only original accessories which are designed and manufactured for the unit, otherwise you
will risk damage. Install the unit according to the mounting manual by using the supplied mounting
accessories. The forces of acceleration for accidents are sometimes huge. Incorrect mounted units
are a big risk for the driver and the car passengers, during an accident.
8. Protect the unit from water and other liquids, which can enter the casing. A short circuit or even fire
could be the result.
9. To prevent a short circuit, never insert or stick any metallic objects (such as coins or metal tools) into
the unit.
10. Before you replace a defective fuse, try to find the cause for the short circuit. Please pay attention
to the cables of the power supply! If the short circuit doesn't result from a failure of the power supply
or wiring, you can replace the defective fuse with a new one (same values). If the short-circuit is still
existing, please contact an authorized ZENEC dealer.
11. When connecting to any other device, read its user's guide for detailed safety instructions. Do not
connect incompatible products.
12. Be careful not to drain the car battery while using the unit when the car engine is turned off. Because
the unit uses a considerable amount of energy and the battery will be charged only while the engine
is running, it might happen that the battery will discharge to a point where it's not longer possible to
start the engine.
13. According to the law in different European countries, driving with monitors which are showing
movies in the viewing range of the driver is not allowed, because the driver might be distracted from
the traffic. Please respect the traffic regulations of your country, or you might face penalties in case
of an accident or even loose your insurance coverage. Please pay attention to the volume inside
your vehicle, because you are obliged to notice exterior sounds like police sirens etc.
14. Don't expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could be the
result.
15. Should any problems or questions occur during installation, please consult your ZENEC dealer/
importer.
16. This unit utilizes a laser class 1. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous exposure to coherent light. Do not open covers
and do not repair yourself. Refer servicing to qualified personnel.

4

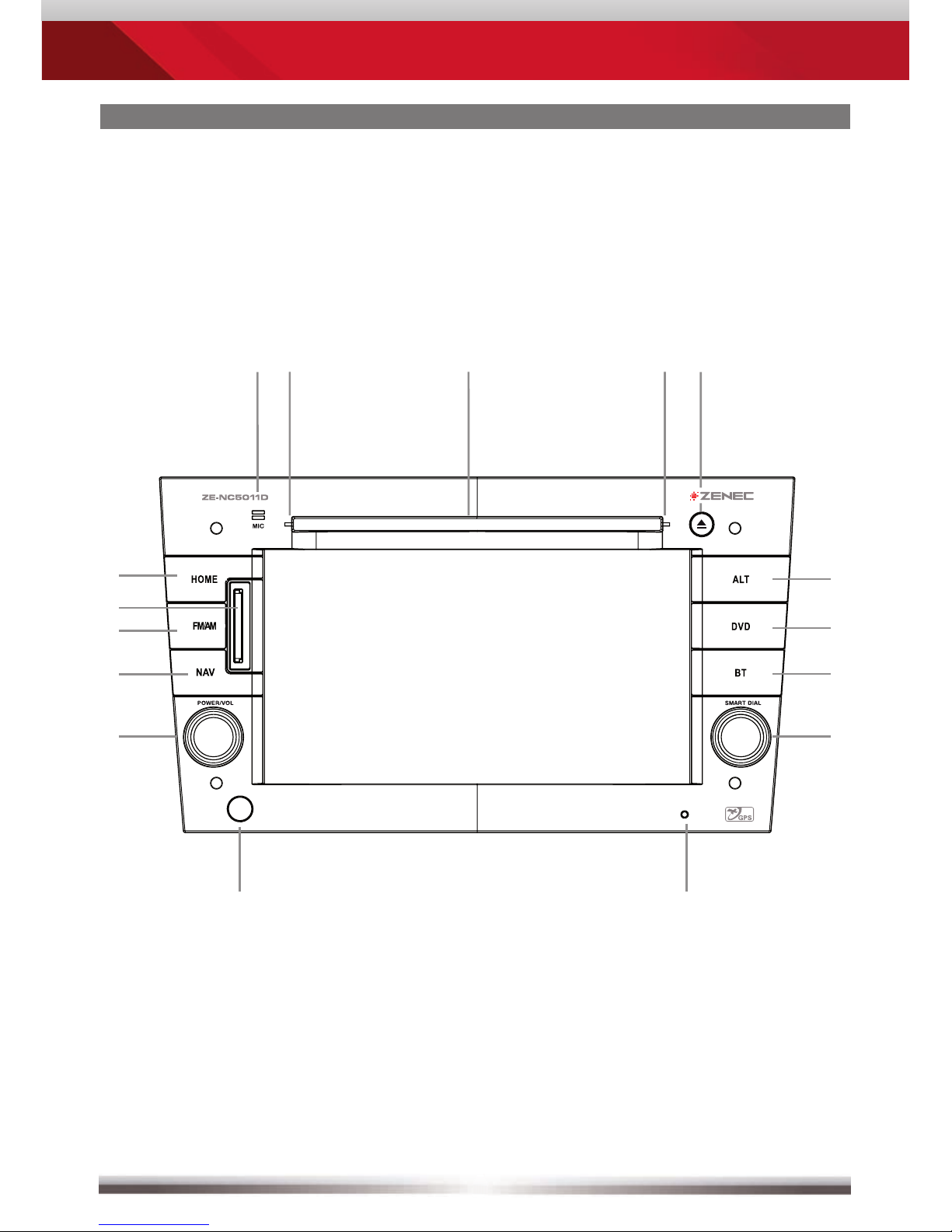

FRONT PANEL BUTTONS
Front Panel





 





 


5
ZE-N C 5 0 11D
1. INTERNAL MICROPHONE
2. DISC INDICATOR
3. DISC SLOT
4. EJECT
Eject disc
5. HOME
Press to open Main Menu,
hold to open EQ page
6. SD CARD SLOT
7. FM/AM
Press to switch to FM/AM source
Press and hold to de- and activate
TA funktion
8. NAV
Press to switch between Navigation
and playback page
Press and hold to fade in/out the
infobars manually
9. PWR/VOL
Rotate to increase/decrease volume,
press and hold to switch device
ON/OFF
10. IR RECEIVER
11. RESET
Press to initiate a hardware reset
12. SMART DIAL
Rotate to move a cursor up and
down
Press to confirm a selection
13. BT
Press to switch to BT source
14. DVD
Press to switch to DVD source
15. ALT
Funktion can be set in Setup
Press and hold to open the OBC
FRONT PANEL BUTTONS
FRONT PANEL BUTTONS

6
BASIC OPERATION
SELECT A SOURCE
Enter main menu:
- Via Touchscreen:
Touch the icon in the upper left corner of the screen.
- Via "HOME" button:
Push "HOME" button to enter main menu.
Operation at main menu:
The main menu consists of three pages: 2 main pages and 1 M-Zone page.
There are two basic ways to get there:
- Slide You can slide the two main pages back and forth.
Just slide your fingertip onscreen in the respective direction.
The M-Zone page (backseat area) cannot be accessed
via sliding.
- Bar Tap on any of the three oval markers on top of the screen to
navigate through all three main menu pages. M-Zone included.
Entering the main menu you have access to all playback sources and settings.
ADJUST LOCAL LANGUAGE
Tap center header button or slide to second main menu page. Choose SETUP
> GENERAL > LANGUAGE and adjust to your likings. You might want to adjust
some other basic settings. See chapter "Setup".
POWER ON/OFF
Main menu 1 Main menu 2 M-Zone page
Correctly installed, your device will power on together with the ignition. Ignition off:
Device does not receive power. When the ignition is activated, you may also switch
the device On and Off using the front panel power button.

7
ZE-N C 5 0 11D
BASIC OPERATION
BASIC OPERATION

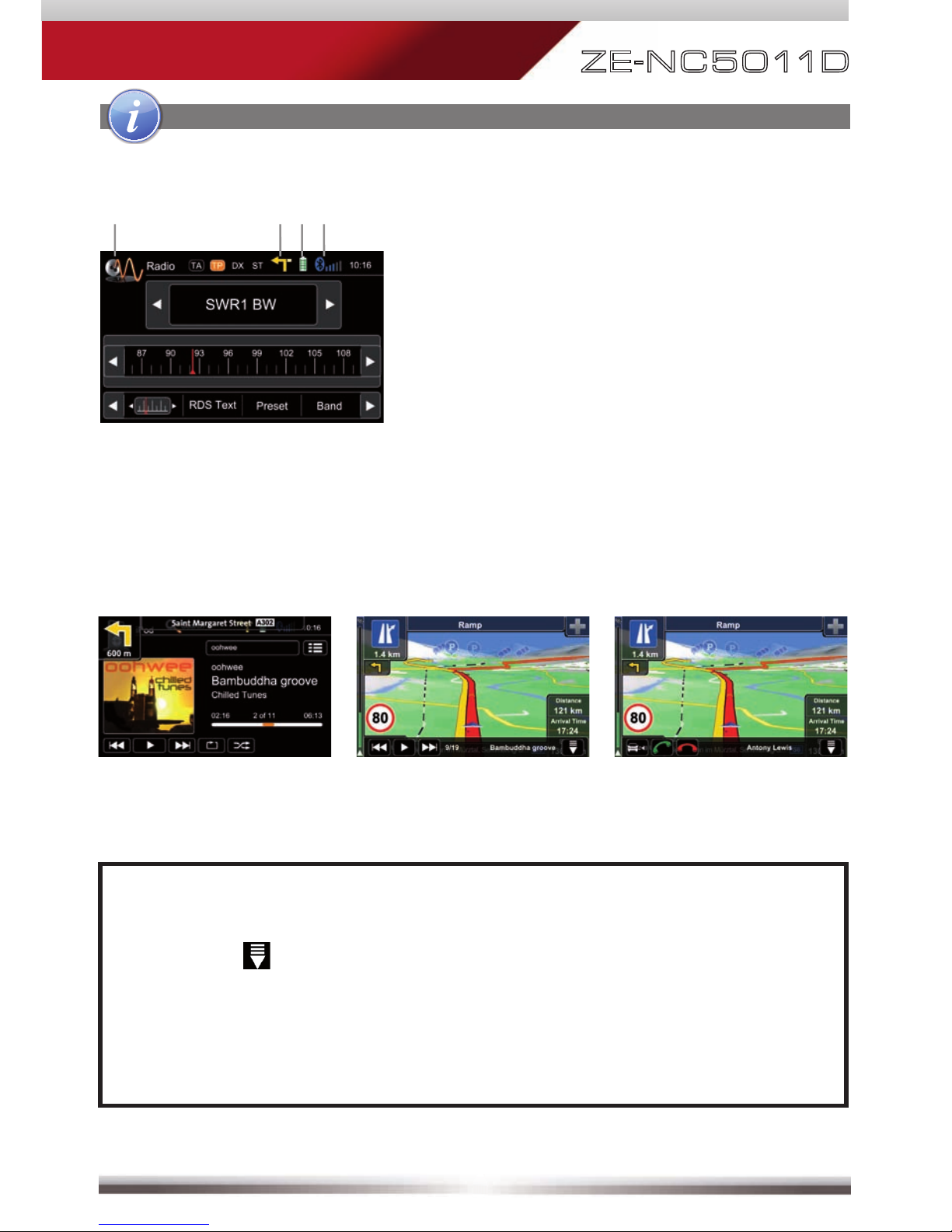

Display & control elements:
 Indicates current source
- Tap to enter main menu
 Indicates when NAV infobar is available
- Tap to display NAV infobar
- Tap again to hide it
 Connected cellphone battery status.
 Cellphone GSM reception fi eld strength

Basic elements (all playback sources)
Three infobar styles:
NAV infobar Playback infobar BT infobar
NOTE:
■Press and hold the NAV button to fade in/out the infobars manually.
Touch the icon to fade out the infobars manually.
■NAV infobar is only available during active route guidance.
■An incoming call or new playback information triggers the automatic
pop-up of the other infobar types at NAV screen. They will fade out after
fi ve seconds.

8

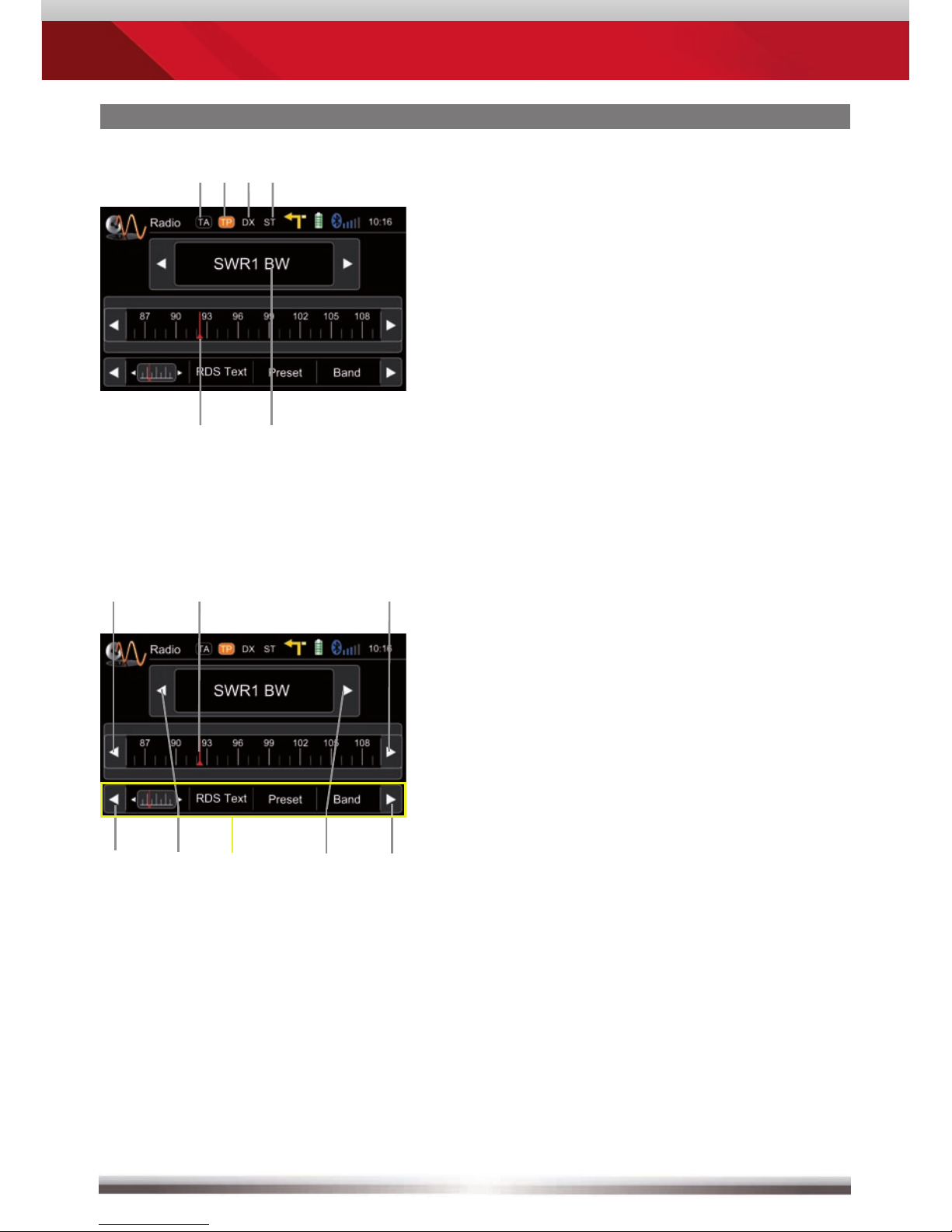

RADIO MODE
Display elements:
 Red line marks current frequency
 Frequency or station name
 Traffi c announcement status
 Traffi c announcements on carrier
 LOC/DX status
 Stereo reception status
Control elements:
 Scroll left
 Previous station
 Tap to select center display content
 Next station
 Scroll right
 100 kHz down
 Drag to adjust frequency
 100 kHz up
 

 


  


9
ZE-N C 5 0 11D
RADIO MODE

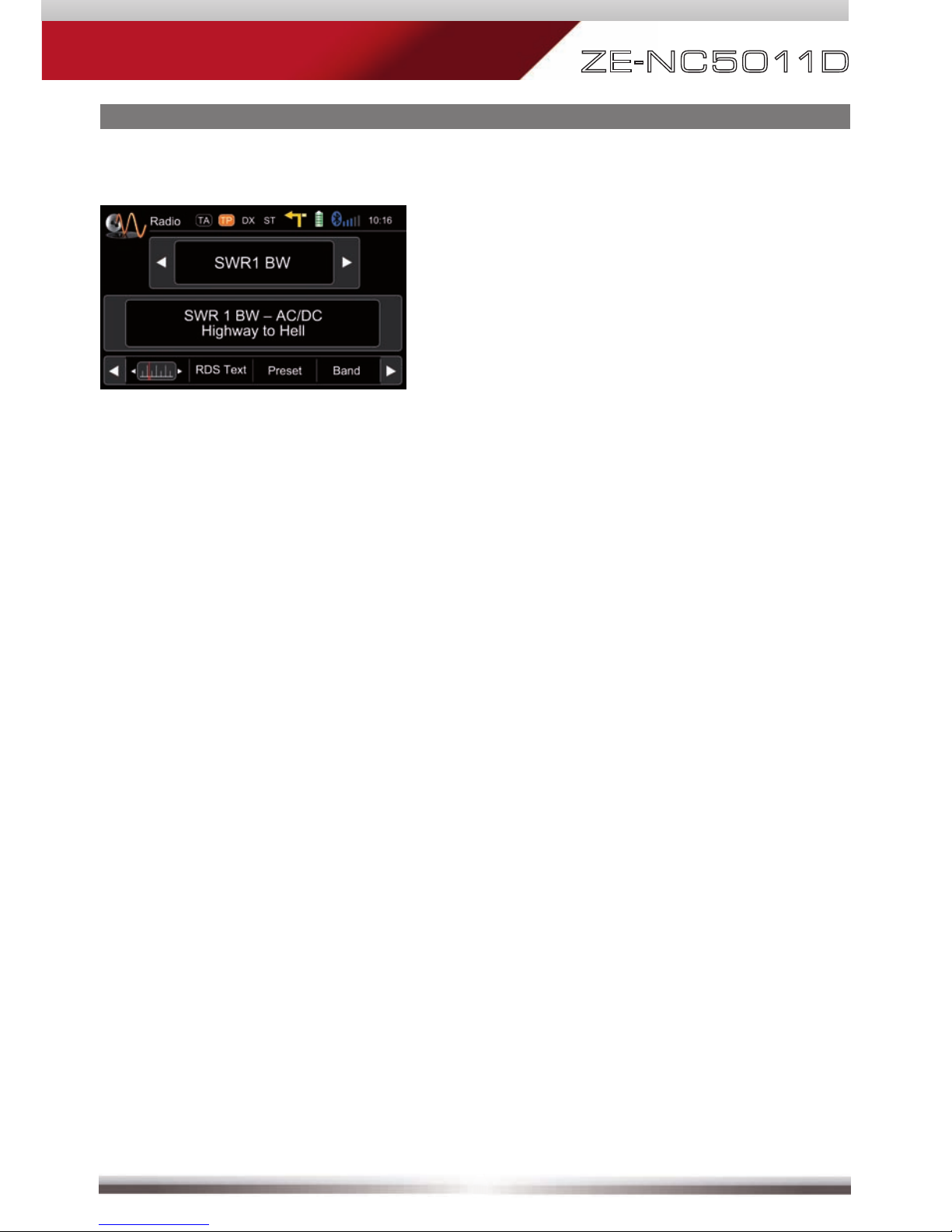

RDS text allows a radio station to transmit
free-form textual information that can be
either static e.g. station slogans or in sync
with the programming such as the title
and artist of the currently playing song or
even short ads. Availability depends on
region, reception quality and carrier.

10
RADIO MODE

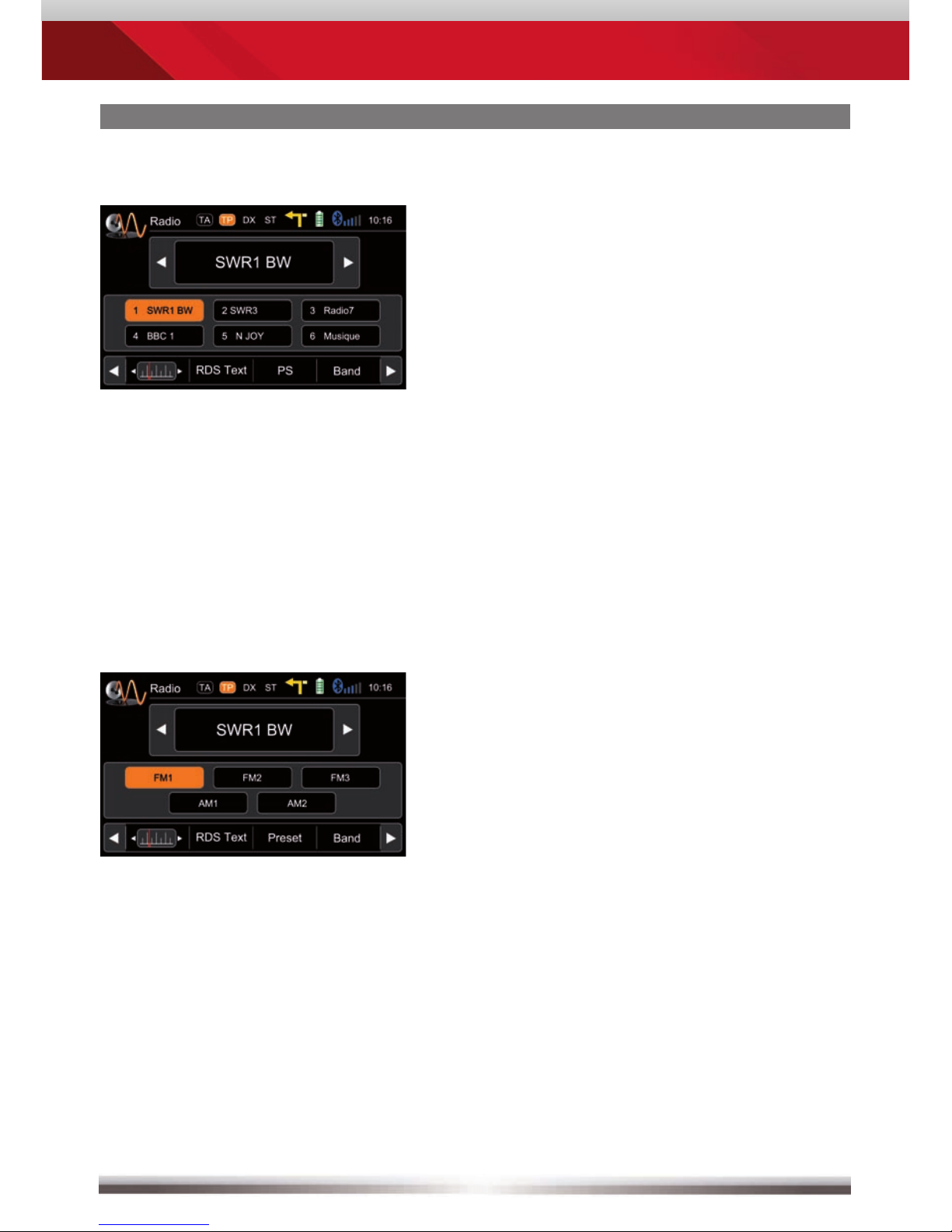

Select preset or save a preset. Press
and hold a center button to set a new
frequency as preset.
To select a radioband tap on a
center button.

11
ZE-N C 5 0 11D
RADIO MODE
NOTE:
■ This unit features an RDS tuner. RDS is a system which transmits data
on top of the FM radio signal. Availability and content of the RDS data
depend on the respective broadcast station and its signal strength. RDS
does, for example, transmit alternative frequencies, which allow for
frequency changes without user interaction. AM band doesn´t support
RDS functions.
■ You need to have the AF function activated in order to use the RDS
feature. However, the AF function is deactivated ex factory. We recom-
mend to activate it directly after mounting/installation of your device.
Lower bar options:
The selected item is highlighted in orange onscreen:
AF ON/OFF: When activated, AF function automatically switches to an alter-
native frequency (AF) of your chosen station, in order to always offer the
best possible reception quality.
TA ON/OFF: When activated, the radio temporarily switches, for the duration
of the traffi c announcement, to tuner mode.
AS Searches for the six strongest stations and saves them as preset.
SCAN Intro-scan of all stations in reception range. You can hear each station for
a short moment. Lock to the one you like by pressing scan again.
REG ON/OFF: At certain daytimes some stations divide their program into
regional subprograms. The REG function prevents your receiver from
switching to an alternative frequency with different content.
LOC Touch LOC/DX to omit or allow reception of stations with weak signals.
/DX If LOC is activated it will exclusively fi nd strong stations.

12
Display elements:
 Source
Current folder/playlist
 ID3 tag info
 Progress bar
 Album Art
PLAYBACK IPOD/USB/SD/DISC
Control elements:
 Previous track
 Play/Pause
 Next track
 Repeat
 Shuffl e
 Switch to playlist page





 
Playback page:

13
ZE-N C 5 0 11D

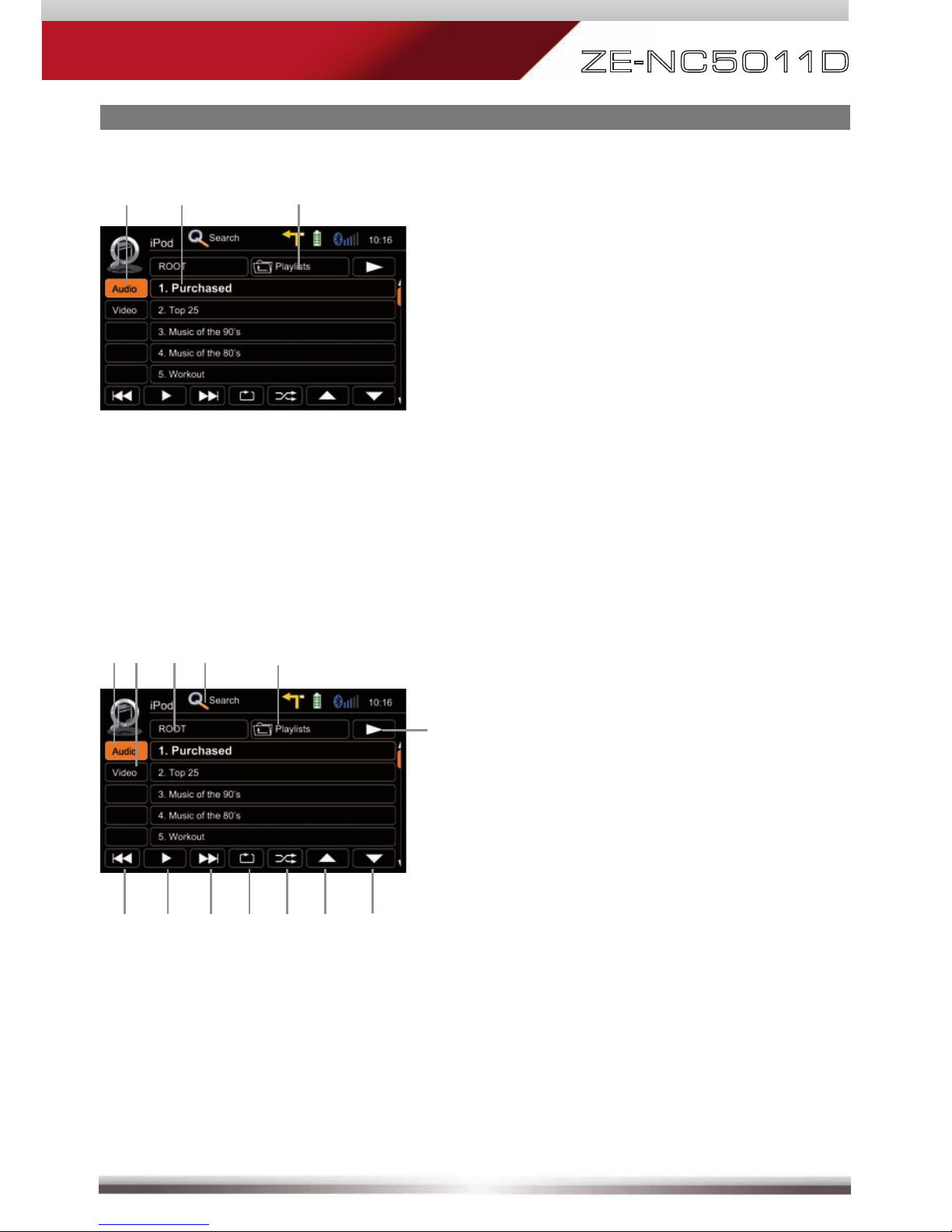

PLAYBACK IPOD/USB/SD/DISC
Display elements:
 iPod mode
Track/folder/playlist
Current folder
Control elements:
 Previous track
 Play/Pause
 Next track
 Repeat
 Shuffl e
 Cursor up
 Cursor down
 Switch to playback page
 Switch to iPod audio mode
 Switch to iPod video mode
 Go to root directory
 Search
 Folder/playlist up
  




 
  
Playlist page iPod:

14
PLAYBACK IPOD/USB/SD/DISC
Display elements:
 Track index
Track/folder
Current folder
Control elements:
 Previous track
 Play/Pause
 Next track
 Repeat track
 Shuffl e
 Cursor up
 Cursor down
 Switch to playback page
 Go to root directory
 Search
 Folder up
  




 
 
Playlist page USB/SD/Disc:

15
ZE-N C 5 0 11D
PLAYBACK IPOD/USB/SD/DISC
USB/SD/Disc modi search:
Tapping on Search pops up an
numeric keyboard, allowing you to
enter track numbers. Numeric search
is unique for USB/SD/Disc modi.
Search function:
iPod search:
Tapping on Search pops up an
alphabetic keyboard, allowing you
to enter an initial letter. Alphabetic
search is unique for iPod mode.
Tapping on pops up the
keyboard option allowing you to
select your preferred keyboard
language.

16
PLAYBACK IPOD/USB/SD/DISC
Control elements:
Previous title/track/chapter
 Play/Pause
 Next title/track/chapter
 To playlist/root menu of DVD
Full screen mode
 DVD settings
     
Display elements:
 Current temporal position in track
 Total duration of track
Elements to control playback of video fi les:
 

17
ZE-N C 5 0 11D
PLAYBACK IPOD/USB/SD/DISC
NOTE:
See www.zenec.com for:
■Compatible fi le formats and their possible restrictions.
■iPod/iPhone compatibility list.
PLAYBACK IPOD/USB/SD/DISC
USB/SD/Disc mode:
■Make sure your mass storage device is FAT32 formatted.
■Depending on directory structure and contents the total number of available
folders is limited.
■Sorting and handling speed depends on speed and capacity of the mass
storage used, as well as on the amount of stored data.
■Connected USB hard disks have to be formatted with FAT32 and are only
allowed to consume a maximum of 400mA (peak) current. Otherwise they
must be considered incompatible and can´t be used with the device.
■Only iPod mode supports album art.
iPod mode:
■Depending on the size of the search list, results may be delayed during first
search. That is due to the iPod, which takes a moment to setup and provide
the search index.
■ iPods/iPhones display, depending on content and sorting, an extended set of
information on the playlist page.

18
BLUETOOTH MODE
Bluetooth main menu:
Control Playback
A2DP On/Off (highlighted=ON)
     
Onscreen keypad
Call Log
Favourites
Audiostreaming (A2DP) toggle
Contacts
Bluetooth settings
A2DP (de-)activation:
 
Control elements:
Control elements:
Tap icon to enter

19
ZE-N C 5 0 11D
BLUETOOTH MODE
Display elements:
 First incoming call
 Second incoming call
 Dialled number
Accept call, dial, hang up, switch between calls:
Control elements:
 Keypad
 Deletes last digit
 Pick up call/Switch to second call
 Toggle to shift call between handsfree
and mobile phone (privacy mode)
 Hang up active call/Back to fi rst call
 Back to BT main menu
  



Caller II

Caller I

20
BLUETOOTH MODE
Pairing a mobile phone:
Tap on "Add" to trigger a search for BT devices.
2
Enter BT settings > Device
1
Control elements:
 Add a mobile phone and input PIN
for pairing
 Back to BT settings
 Tap to select mobile phone
 Browse list (up/down)
   
Choose your mobile phone from the list or retry searching. Press "Add".
3
