Dear Sir, Madam,
Congratulations with your purchase of a portable domestic heater. You have
purchased a quality product, which will serve you for many years to come. This,
of course, provided you use the heater correctly. Please read these Directions
for Use first, to ensure maximum lifetime for your heater.
Your heater comes with a 24-month manufacturer’s warranty on all defects in
materials or workmanship.
Wewish you a warm and comfortable time with your heater.
Yours sincerely,
PVG International b.v.
Customer Service Department
1READ THE DIRECTIONS FOR USE FIRST.
2IN CASE OF ANY DOUBT,CONTACT YOUR DEALER.
3BEFORE YOU START READING, FOLD OUT THE LAST PAGE. EEEEEEEEEE
4
52

GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for
using your heater. For more details, please refer to
the MANUAL (pages 55 ff.).
•The first time you ignite your heater it will smell
like ’new’ for a short time.
•Store your fuel in a cool and dark place.
•Fuel has a limited shelf life. Start every heating
season with renewed fuel.
•The right quality of fuel will be assured, when
you use Zibro Extra or Zibro Kristal for your
heater.
•If you change to another brand and/or type of
parrafin oil, you must first finish up all the
remaining fuel in the heater.

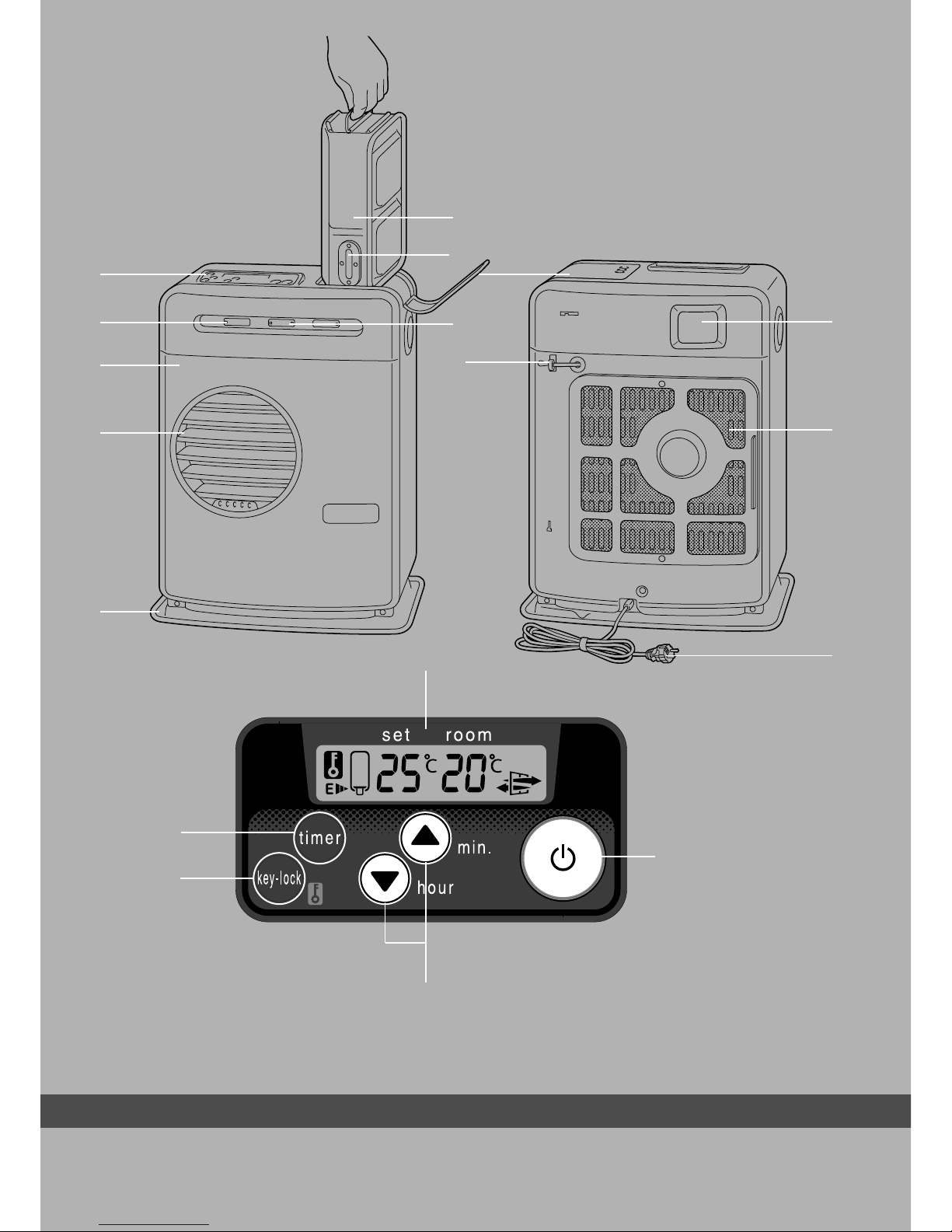

MAIN COMPONENTS
Front plate
Grid
Base plate
Lid for removable
tank
Operation panel
Removable tank
Fuel gauge
removable tank
Vent filter
Thermostat
Plug + cord
Information display
key
Childproof lock
Adjustment keys
(time and
temperature)
Timer
POWER lamp
TIMER lamp
Air quality control
system
A
B
C
4
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
EEEEEEEEEEEEEEEEEEEEEEE
Remove all packaging materials (refer to Section A, Fig. A).
Fill the removable tank 6(refer to Section B, Fig. C).
Insert the plug into the wall-socket.
Ignite the heater using the key L(refer to Section D).
If required, change the temperature using the adjustment keys
(refer to Section E).
Switch offthe heater by pressing the key L.
1
2
3
4
5
6
4
53

This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!

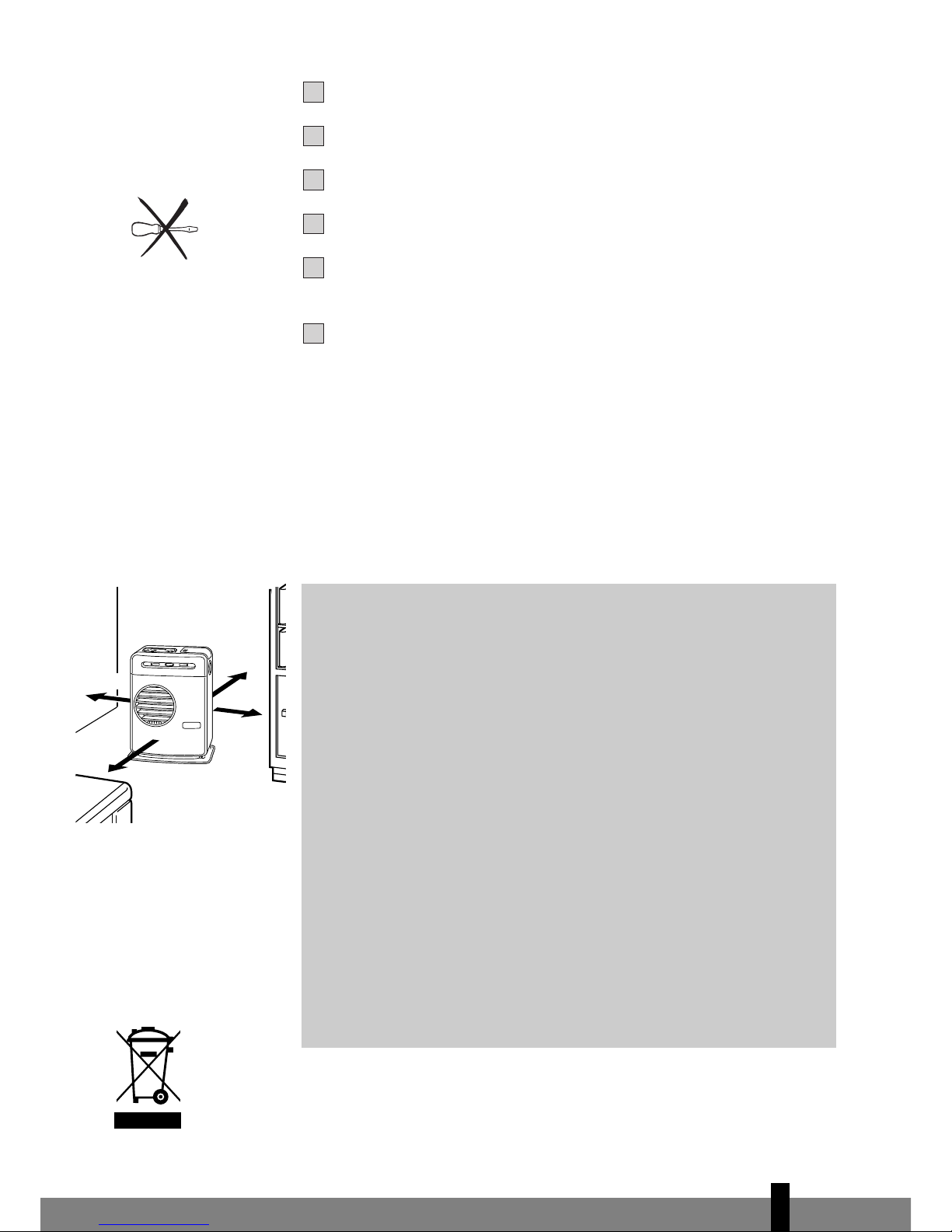

WHAT YOU NEED TO KNOW IN ADVANCE
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION
This heater is equipped with an air quality control system R.When there is
insufficient ventilation in the room or when the heater is being used in a room
which is too small, the heater will shut off automatically. For comfortable and safe
heating ensure that there is sufficient ventilation.
Note: To avoid unexpected shut off, we recommend to put a door or window ajar
when the heater is operating.
For each model the minimum size of space is specified in which you can use the
heater safely, without additional ventilation (refer to Section O).If a particular
room is smaller than the specified space, always put a window or door slightly ajar
(± 2.5 cm). We also recommend doing this in highly insulated or draught-free
rooms and/or at altitudes above 1,500 metres. Do not use your heater in cellars or
other underground areas.
THE RIGHT FUEL
Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.
Your heater has been designed for use with high-quality water-free pure paraffin
oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and
proper burning. Lower quality fuel may result in:
Eincreased possibility of malfunctioning
Eincomplete burning
Ereduced heater lifetime
Esmoke and/or smells
Edeposits on the grid or mantle
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Always refer to your local dealer for the right fuel for your heater.
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of your
heater.
4
54
A

MANUAL

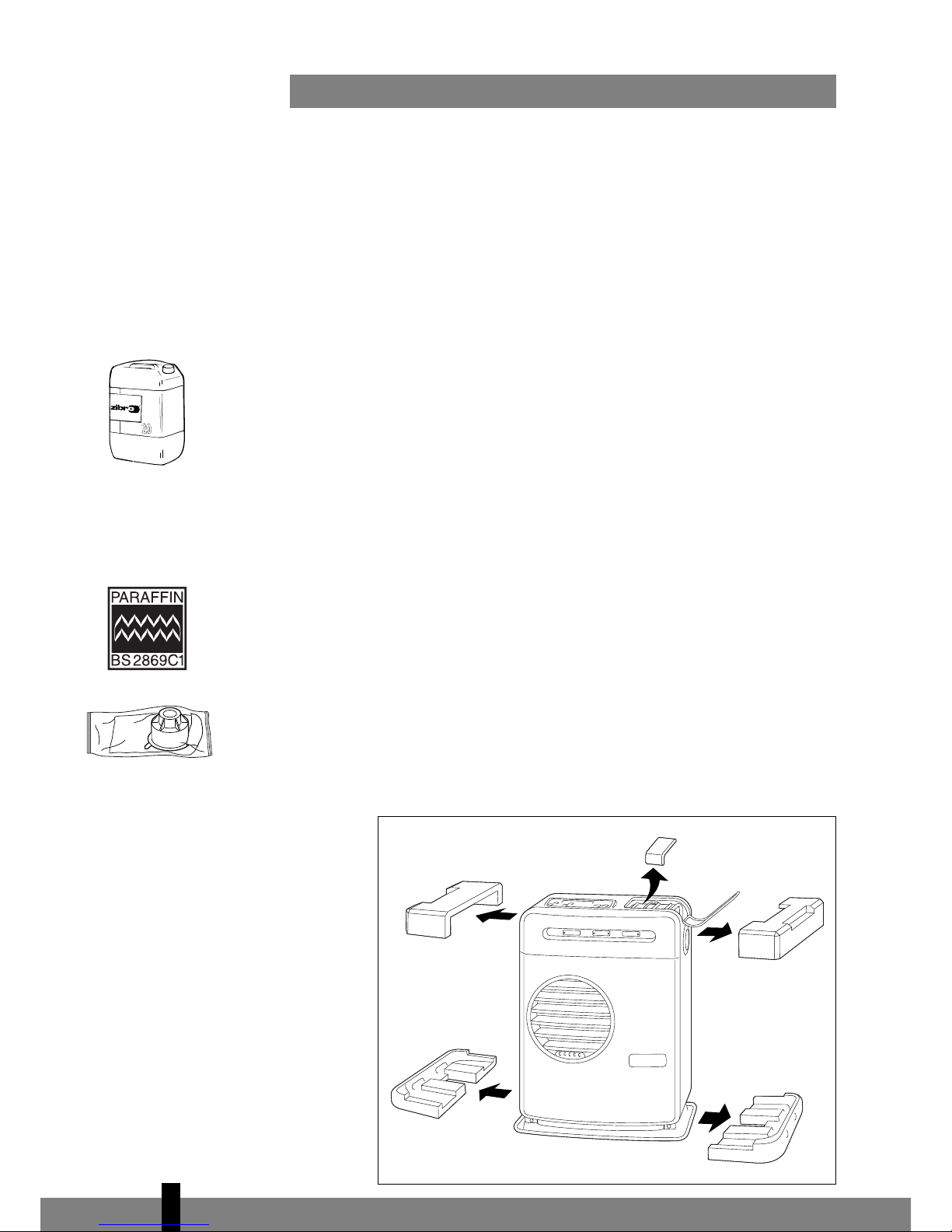

AINSTALLING THE HEATER
Carefully remove your heater from the box and check the contents.
Inaddition to the heater you also need to have:
Eamanual fuel pump
Eatransportation cap
Ethese directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or
transportation.
Open the lid of the removable tank Dand remove the piece of cardboard.
Fill the removable tank as indicated in Section B.
The floor should be firm and completely level. Reposition the heater, when it
is not level. Do not try to correct the situation by placing books or other
goods under the heater.
Insert the plug Jinto the wall-socket (230 Volts - AC / 50 Hz) and set the
correct time using the adjustment keys N(refer to Section C).
Your heater is now ready for use.
BFILLING FUEL
Do not fill the removable tank in the living room, but in a more suitable place
(there can always be some spillage). Follow the procedure below:
Make sure that the heater is switched off.
Open the lid 4and lift the removable tank 6out of the heater (Fig. B).
Note: Some drops may leak from the tank. Put down the removable tank
(cap pointing upwards) and screw off the fuel cap.
Take the manual fuel pump and insert the smooth, most rigid tube into the
jerrycan. Make sure that it is in a higher position than the removable tank
(Fig. C). Insert the ribbed hose into the opening of the removable tank.
Lock the switch button on top of the pump (turn clockwise).
Squeeze the pump a few times, until fuel starts flowing into the removable
tank. As soon as this happens, there is no need to press any longer.
5
4
3
2
1
6
5
4
3
2
1
4
55
EEEEEE
C
B

Check the removable tank fuel gauge 7while filling the tank (Fig. D). Stop
filling by loosening the switch button on top of the pump (turn anti-clock-
wise), once the gauge indicates that the tank is full. Never overfill the tank,
especially not when the fuel is very cold (fuel expands when it heats up).
Let the remaining fuel in the pump flow back into the jerrycan and carefully
remove the pump. Carefully screw the fuel cap back on the tank. Clean off
any spilled fuel.
Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.
CSETTING THE CLOCK
It is only possible to set the correct time, when the heater is connected to the
mains and not burning. Use the adjustment keys Nto set the time. First press
either of the two keys to switch on the function (the 4-digit Kwill start blinking).
Next, set the hours using the key on the left (
N hour) and the minutes using the
key on the right (
M min.). Press once to increase the value by one step. When you
hold down the key, the value will continue going up, until you release the key
again. After approximately 10 seconds the 4-digit will stop blinking and the
setting will be locked. 5 minutes after switching off the heater, the information on
the display will disappear and the heater will automatically switch into the stand-
by position.
When the heater has been unplugged (or after a power failure), the time needs
to be set again.
DIGNITING THE HEATER
When used for the first time, a new heater may give out a smell for a short while.
You should therefore provide extra ventilation. Always ignite the heater with the
button L . Never use matches or a cigarette lighter.
Just press the button Lto ignite the heater. The POWER lamp Pwill start
blinking, indicating that the ignition procedure has started. This will take a short
while. Once the heater is burning, the POWER lamp Pwill remain lit (red). The
information display Kwill show two numbers. The light next to them indicates
that these numbers refer to the temperatures (Fig. F). The actual room temperature
is indicated below ROOM, while the temperature setting is indicated below SET.
The latter can be changed with the adjustment keys (refer to Section E).
Prior to igniting the heater, always check for sufficient fuel in the removable tank.
ESETTING THE REQUIRED TEMPERATURE
The temperature setting can only be adjusted, when the heater is burning. Use the
adjustment keys Nto adjust the temperature. First press either of the two keys to
switch on the function (the °C mark and 4-digit K will start blinking). Next, adjust
the temperature using the key on the right (
M min.) to set the temperature to a
8
7
6
4
56
D
empty full
F: The required
temperature on the left,
the measured
temperature on the
right.
E: When the 4-digit stops
blinking, the setting has
been locked to the
indicated value.
☞

higher setting and the key on the left ( N hour) to lower the temperature. Press
once to increase the value one step. After approximately 10 seconds the °C mark
and 4-digit will stop blinking and the setting will be locked (Fig. F).
The available temperature settings range from 6°C minimum to 28°C maximum.
When the heater has been unplugged (or after a power failure), the temperature
will reset to the factory setting of 20°C.
FUSING THE TIMER
The timer allows you to switch on the heater automatically at a preset time.
In order to switch on the timer, the correct time must have been set (refer to
Section C) and the heater should be off. Follow the procedure below:
Press the button Land then the TIMER key Oimmediately after that.
The TIMER lamp Qand the 4-digit Kwill start blinking.
Use the adjustment keys Nto set the time at which the heater must ignite.
Use the key on the left (
N hour) to set the hours and the key on the right
(
M min.) to set the minutes (interval of 5 minutes).
After approximately 10 seconds the 4-digit will show CLOCK again and the
TIMER lamp Qwill light up, indicating that the timer function has been
activated (Fig. G).
The timer will ensure that the room will have been heated to approximately
the required temperature at the set time.
When you want to switch off the heater and ignite it again with the timer, all
you have to do is press the TIMER key (refer to Section G).
Press the button Lonce to clear the timer setting.
GSWITCHING OFF THE HEATER
There are two ways to switch off the heater.
Press the button L. The information display will show the CLOCK
signal. Within approximately one minute the flame will have extinguished.
Press the TIMER key O, when you want to switch off the heater and ignite it
again with the timer the next time. This not only switches off the heater, but
it also activates the timer function. You can change the required time with
the adjustment keys N(refer to Section F).
2
1
4
3
2
1
4
57
G: The TIMER indicator
light indicates that the
timer function has been
switched on.
☞

HTHE INFORMATION DISPLAY
The information display Knot only serves as an indicator of the (set) time and
temperature (sections C, E, and F), it also indicates any malfunctioning of the
heater. The code on the information display tells you what is the matter:
CODE INFORMATION WHAT TO DO
e - 0 Temperature within the heater too high. Cool-down and re-ignite.
f - 0 Power interrupted. Re-ignite the heater.
e - 1 Faulty thermostat. Contact your dealer.
f - 1 Faulty burner thermistor. Contact your dealer.
e - 2 Starting problems. Contact your dealer.
e - 5 Tipping-over protection. Re-ignite the heater.
e - 6 Poor burning. Contact your dealer.
e - 7 Room temperature If necessary,
above 32°C. re-ignite the heater.
e - 8 Defective booster. Contact your dealer.
e - 9 Air filter dirty; or Clean filter.
Fuel pump dirty. Contact your dealer.
The heater has been in operation
continuously for a period of 48 hours
and has turned itself off automatically. Switch the heater back on.
-- : --
+
Out of fuel. Refill removable tank.
-- : --
+
Too little ventilation. Ventilate better.
e - 1 1
+
Too little ventilation. Ventilate better.
Always contact your dealer for any malfunctioning not listed above.
AUTOMATIC DEACTIVATION
This heater is fitted with a safety system that ensures that it switches off
automatically after 48 hours continuous operation. The following will then appear
in the display: . If desired, you can switch the heater on again by pressing
the button
L (see section D).
AUTOMATIC CLEANING MODE
When the heater has been burning continuously for two hours at its highest
setting, the burner will automatically start an autoclean procedure. The display
will show the autocleaningcode cl 05 running back to cl 01. The procedure takes 5
minutes, during which the heater will burn at its lowest setting, while the burner
autocleans. When the burner is clean again, the heater will automatically switch
back to the highest setting again.
ICHILDPROOF LOCK
The childproof lock can be used to prevent children accidentally changing the
heater settings. When the heater is burning and the childproof lock is on, the heater
can only be switched off. Other functions are blocked then. If the heater has already
been switched off, the childproof lock also prevents accidental ignition of the
heater.
Activate the childproof lock by pressing the appropriate key Mand holding it
down for more than 3 seconds. The KEY-LOCK indicator will appear on the
information display (Fig. H), indicating that the childproof lock has been activated.
Switch off the childproof lock by pressing the key Mand holding it down for more
than 3 seconds once again.
4
58
H: When the mark
appears, the childproof
lock has been activated.
In case of any
malfunctioning the
information display will
tell you what is the
matter.

☞
JTHE 'FUEL' INDICATOR
When the FUEL indicator appears, there is enough fuel left for another 10 minutes
of heater use. The count-down of the remaining heating time can be seen in the
information display K(Fig. J). Every two minutes an alarm signal is sounded,
warning you to refill the removable tank. If you do not react, the heater will
extinguish by itself. The heater will also sound a warning signal, when it switches
off. The FUEL indicator will blink, while four lines are blinking in the information
display. You can stop this by pressing the button Lonce.
Once the heater has used up all its fuel and is extinguished it will take some time,
after the refill, before the heater is completely ready for use again.
KTHE 'VENT' INDICATOR
When there is insufficient ventilation in the room, an intermittent buzzer will be
heard (approximately once each 30 seconds) and the VENT indicator will be lit. When
this signal is given, ensure that the ventilation of the room is improved (e.g. by
opening a door or window a little more), to avoid that the heater shuts off. When the
ventilation of the room is improved, the VENT indicator and buzzer will be
deactivated. When there is still insufficient ventilation, the heater shuts off
automatically. When this occurs, e -1 1 is displayed and the VENT indicator is blinking.
After improving the ventilation of the room (e.g. by opening a door or window a little
more), the heater can be ignited by pushing the button Lagain.
LMAINTENANCE
Switch off the heater and let it cool down, before you start any maintenance
work. Also disconnect the plug from the mains. Your heater needs hardly any
maintenance. It is, however, important that you clean the vent filter 8with a
vacuum cleaner and the grid 2 with a damp cloth, both on a weekly basis.
Regularly inspect the fuel filter as well:
Remove the removable tank 6from the heater and remove the fuel filter
(Fig. L). Some drops may leak from the filter; keep a cloth at hand.
Remove the dirt by tapping the fuel filter upside-down against a hard surface.
(Never clean it with water!)
Reinstall the fuel filter into the heater.
We recommend that you remove dust and stains from time to time with a damp
cloth, because otherwise these may cause stains that are hard to remove.
Do not remove any heater components yourself. Always contact your dealer for
repairs. When the power cord is damaged, it may only be replaced by an
authorised fitter. Use a new cord of the type H05 VV-F.
3
2
1
4
59
L
Fuel filter
J: When the FUEL
indicator has appeard,
the information display
will show the number of
minutes of fuel left in
the tank.
K: A blinking VENT
indicator is a sign that
you need extra
ventilation.
