Zibro SRE 152 TC User manual

SRE 152 TC
2
12
22
32
42
52
62
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
OPERATING MANUAL
ISTRUZIONI D’USO
GEBRUIKSAANWIJZING
3
2
6
5
4
>
1

Dear Sir, Madam,
Congratulations with your purchase of a portable domestic heater. You have
purchased a quality product, which will serve you for many years to come. This,
of course, provided you use the heater correctly. Please read these Directions
for Use first, to ensure maximum lifetime for your heater.
Your heater comes with a 48-month manufacturer’s warranty on all defects in
materials or workmanship.
Wewish you a warm and comfortable time with your heater.
Yours sincerely,
PVG International b.v.
Customer Service Department
1READ THE DIRECTIONS FOR USE FIRST.
2IN CASE OF ANY DOUBT,CONTACT YOUR DEALER.
3BEFORE YOU START READING, FOLD OUT THE LAST PAGE. EEEEEEEEEE
4
42

GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for
using your heater. For more details, please refer to
the MANUAL (pages 45 ff.).
•The first time you ignite your heater it will smell
like ’new’ for a short time.
•Store your fuel in a cool and dark place.
•Fuel has a limited shelf life. Start every heating
season with renewed fuel.
•The right quality of fuel will be assured, when
you use Zibro Extra or Zibro Kristal for your
heater.
•If you change to another brand and/or type of
parrafin oil, you must first finish up all the
remaining fuel in the heater.

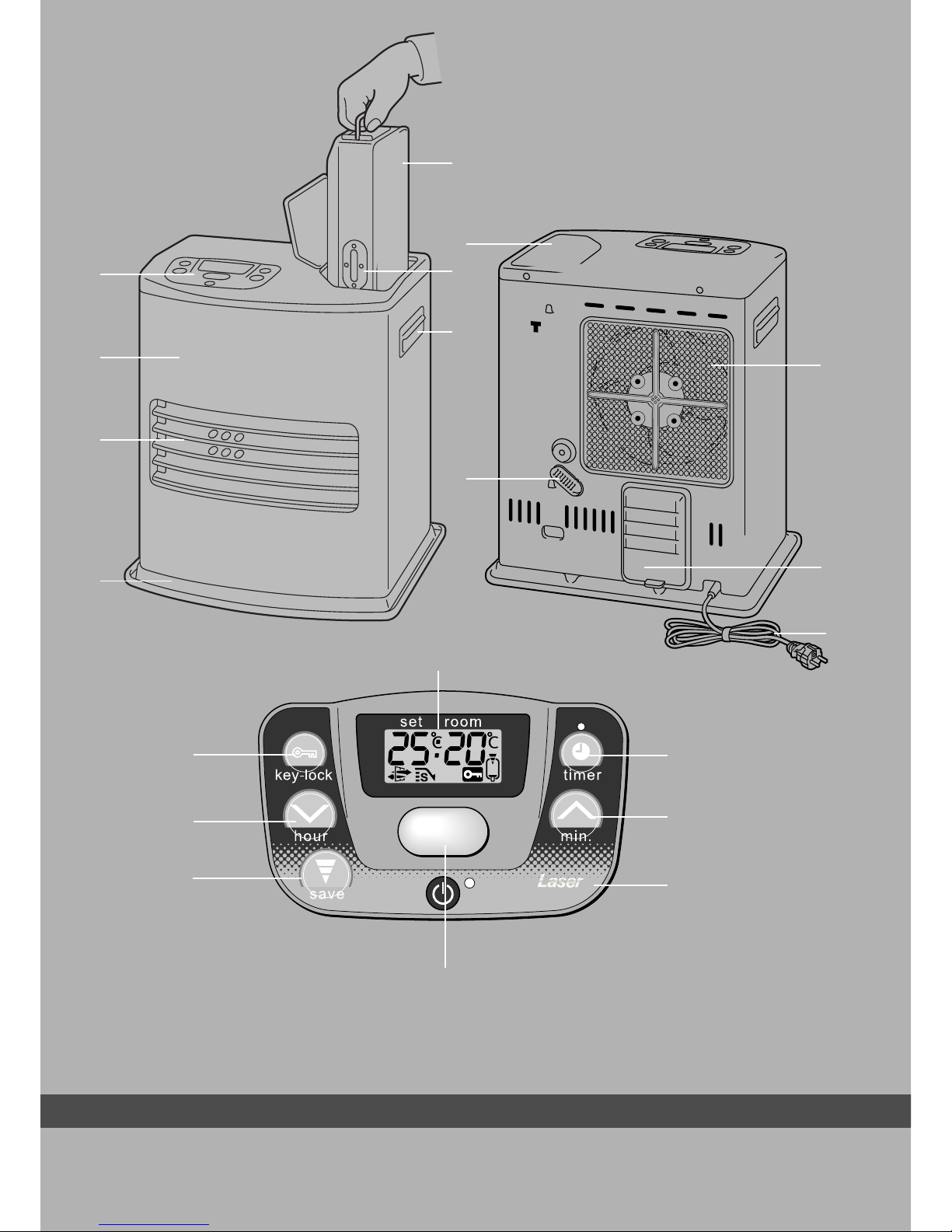

MAIN COMPONENTS
Front plate
Grid
Base plate
Lid for removable
tank
Operation panel
Handle
Removable tank
Fuel gauge
removable tank
Air filter
Vent filter
Thermostat
Plug + cord
Information display
key
Childproof lock
Adjustment keys
(time and
temperature)
Timer
SAVE key
A
B
C
4
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
EEEEEEEEEEEEEEEEEEEEEEE
Remove all packaging materials (refer to Section A, Fig. A).
Fill the removable tank 7(refer to Section B, Fig. C).
Insert the plug into the wall-socket.
Ignite the heater using the key N(refer to Section D).
If required, change the temperature using the adjustment keys
(refer to Section E).
Switch offthe heater by pressing the key N.
1
2
3
4
5
6
4
43

This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Storeit well!

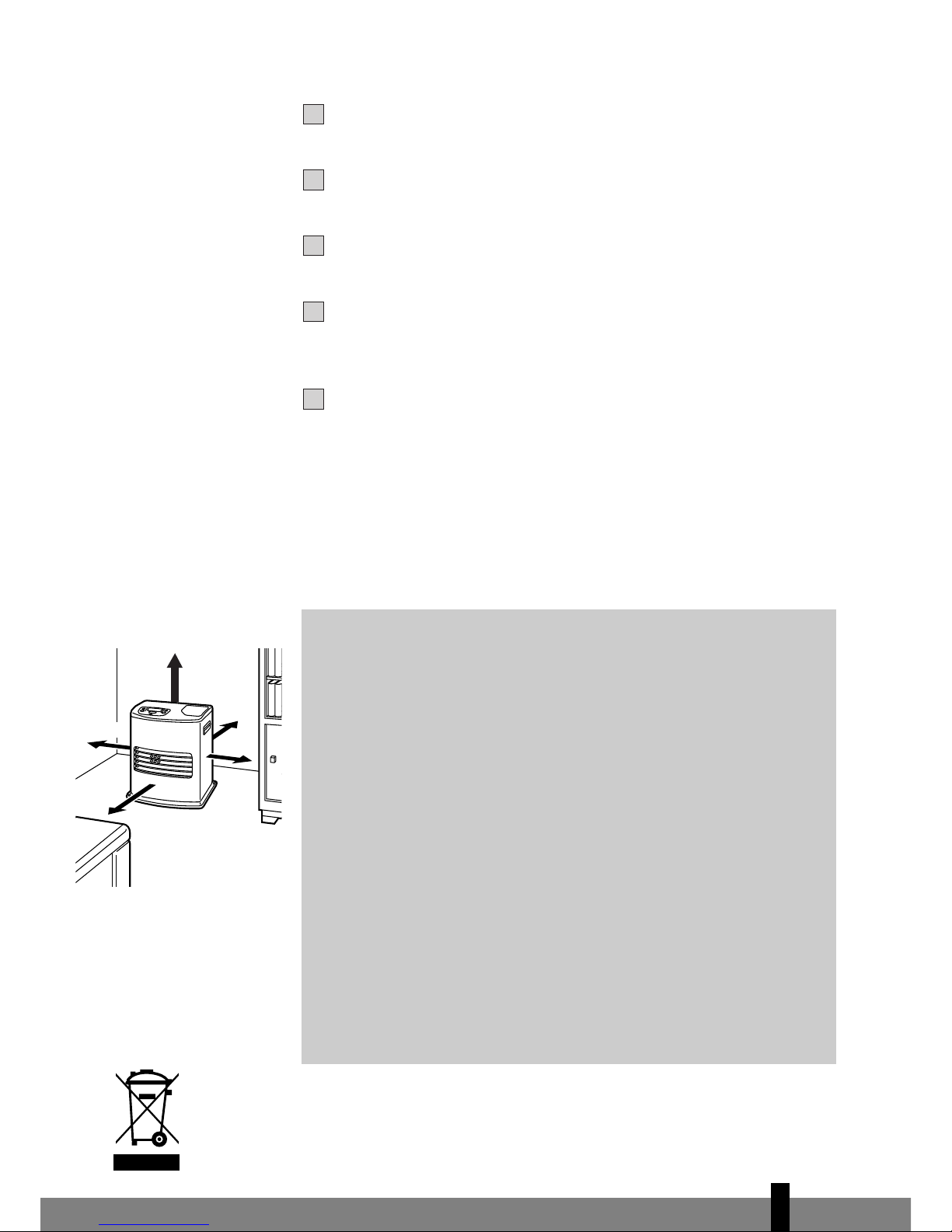

WHAT YOU NEED TO KNOW IN ADVANCE
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION
For each model the minimum size of space is specified in which you can use the
heater safely, without additional ventilation (refer to Section P).If a particular
room is smaller than the specified space, always put a window or door slightly ajar
(± 2.5 cm). We also recommend doing this in highly insulated or draught-free
rooms and/or at altitudes above 1,500 metres. However, if there is insufficient
ventilation (i.e. oxygen), the heater will automatically switch off. Do not use your
heater in cellars or other underground areas.
THE RIGHT FUEL
Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.
Your heater has been designed for use with high-quality water-free pure paraffin
oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and
proper burning. Lower quality fuel may result in:
Eincreased possibility of malfunctioning
Eincomplete burning
Ereduced heater lifetime
Esmoke and/or smells
Edeposits on the grid or mantle
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Always refer to your local dealer for the right fuel for your heater.
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of your
heater.
4
44
A

MANUAL
AINSTALLING THE HEATER
Carefully remove your heater from the box and check the contents.
Inaddition to the heater you also need to have:
Eamanual fuel pump
Eatransportation cap
Ethese directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or
transportation.
Open the lid of the removable tank Dand remove the piece of cardboard.
Fill the removable tank as indicated in Section B.
The floor should be firm and completely level. Reposition the heater, when it
is not level. Do not try to correct the situation by placing books or other
goods under the heater.
Insert the plug Linto the wall-socket (230 Volts - AC / 50 Hz) and set the
correct time using the adjustment keys P(refer to Section C).
Your heater is now ready for use.
BFILLING FUEL
Do not fill the removable tank in the living room, but in a more suitable place
(there can always be some spillage). Follow the procedure below:
Make sure that the heater is switched off.
Open the lid 4and lift the removable tank 7out of the heater (Fig. B).
Note: Some drops may leak from the tank. Put down the removable tank
(cap pointing upwards) and screw off the fuel cap (Fig. B1).
Take the manual fuel pump and insert the smooth, most rigid tube into the
jerrycan. Make sure that it is in a higher position than the removable tank
(Fig. C). Insert the ribbed hose into the opening of the removable tank.
Lock the switch button on top of the pump (turn clockwise).
Squeeze the pump a few times, until fuel starts flowing into the removable
tank. As soon as this happens, there is no need to press any longer.
5
4
3
2
1
6
5
4
3
2
1
4
45
EEEEEE
C
B
B1

☞
Check the removable tank fuel gauge Hwhile filling the tank (Fig. D). Stop
filling by loosening the switch button on top of the pump (turn anti-clock-
wise), once the gauge indicates that the tank is full. Never overfill the tank,
especially not when the fuel is very cold (fuel expands when it heats up).
Let the remaining fuel in the pump flow back into the jerrycan and carefully
remove the pump. Carefully screw the fuel cap back on the tank. Clean off
any spilled fuel.
Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.

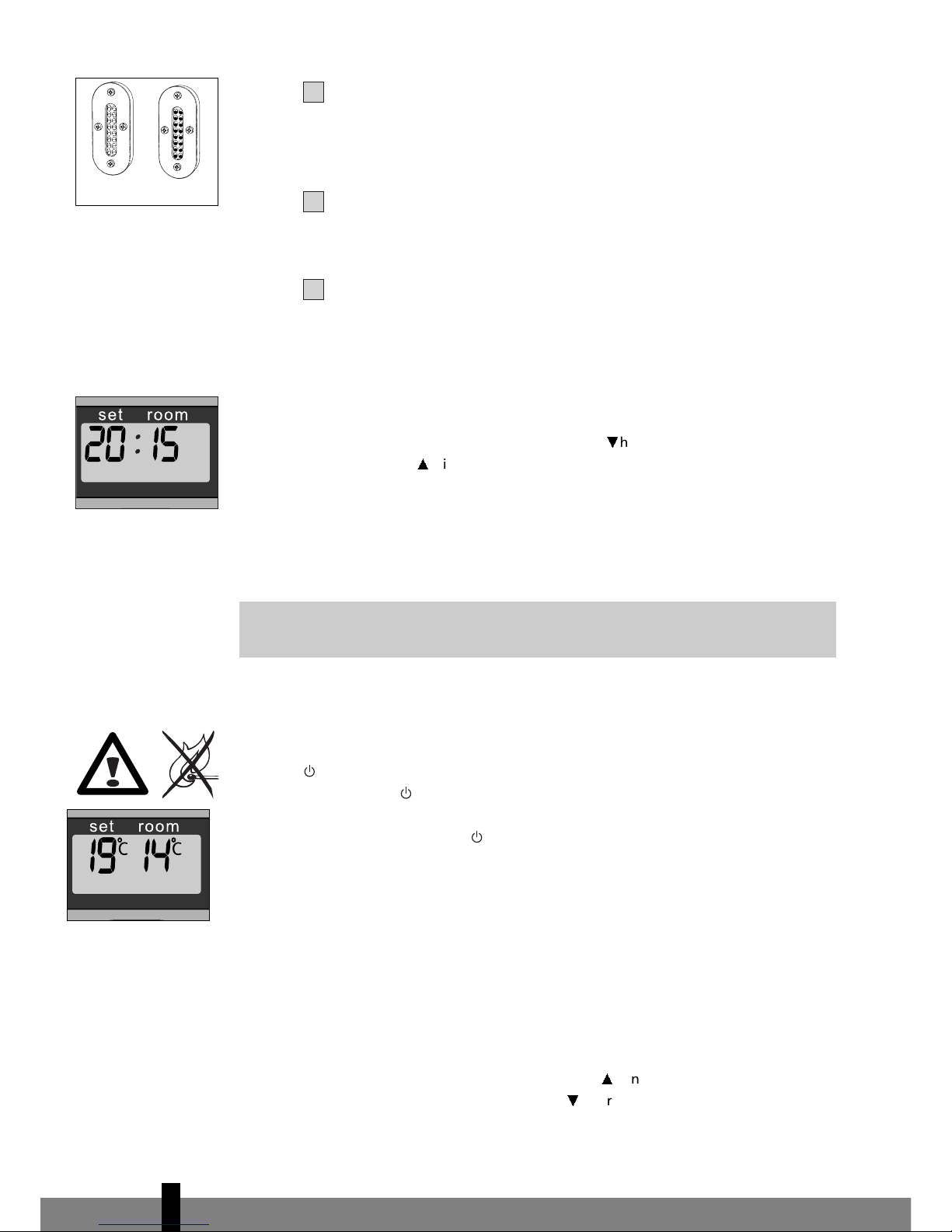

CSETTING THE CLOCK
It is only possible to set the correct time, when the heater is connected to the
mains and not burning. Use the adjustment keys Pto set the time. First press
either of the two keys to switch on the function (the 4-digit Mwill start blinking).
Next, set the hours using the key on the left (
N hour) and the minutes using the
key on the right (
M min.). Press once to increase the value by one step. When you
hold down the key, the value will continue going up, until you release the key
again. After approximately 10 seconds the 4-digit will stop blinking and the
setting will be locked. 5 minutes after switching off the heater, the information on
the display will disappear and the heater will automatically switch into the stand-
by position.
When the heater has been unplugged (or after a power failure), the time needs
to be set again.
DIGNITING THE HEATER
When used for the first time, a new heater may give out a smell for a short while.
You should therefore provide extra ventilation. Always ignite the heater with the
button N . Never use matches or a cigarette lighter.
Just press the button Nto ignite the heater. The button will start blinking,
indicating that the ignition procedure has started. This will take a short while. Once
the heater is burning, the button Nwill remain lit (red). The information display
Mwill show two numbers. The light next to them indicates that these numbers
refer to the temperatures (Fig. F). The actual room temperature is indicated below
ROOM, while the temperature setting is indicated below SET. The latter can be
changed with the adjustment keys (refer to Section E).
Prior to igniting the heater, always check for sufficient fuel in the removable tank.
ESETTING THE REQUIRED TEMPERATURE
The temperature setting can only be adjusted, when the heater is burning. Use the
adjustment keys Pto adjust the temperature. First press either of the two keys to
switch on the function (the °C mark and 4-digit M will start blinking). Next, adjust
the temperature using the key on the right (
M min.) to set the temperature to a
higher setting and the key on the left (
N hour) to lower the temperature. Press
once to increase the value one step. After approximately 10 seconds the °C mark
and 4-digit will stop blinking and the setting will be locked (Fig. F).
8
7
6
4
46
D
empty full
F: The required
temperature on the left,
the measured
temperature on the
right.
E: When the 4-digit stops
blinking, the setting has
been locked to the
indicated value.

The available temperature settings range from 6°C minimum to 28°C maximum.
When the heater has been unplugged (or after a power failure), the temperature
will reset to the factory setting of 20°C.
FUSING THE TIMER
The timer allows you to switch on the heater automatically at a preset time.
In order to switch on the timer, the correct time must have been set (refer to
Section C) and the heater should be off. Follow the procedure below:
Press the button Nand then the TIMER key Qimmediately after that.
The TIMER light and the 4-digit Mwill start blinking.
Use the adjustment keys Pto set the time at which the heater must ignite.
Use the key on the left (
N hour) to set the hours and the key on the right
(
M min.) to set the minutes (interval of 5 minutes).
After approximately 10 seconds the 4-digit will show CLOCK again and the
TIMER indicator light will light up, indicating that the timer function has been
activated (Fig. G).
The timer will ensure that the room will have been heated to approximately
the required temperature at the set time.
When you want to switch off the heater and ignite it again with the timer, all
you have to do is press the TIMER key (refer to Section G).
Press the button Nonce to clear the timer setting.
GSWITCHING OFF THE HEATER
There are two ways to switch off the heater.
Press the button N. The information display will show the CLOCK
signal. Within approximately one minute the flame will have extinguished.
Press the TIMER key Q, when you want to switch off the heater and ignite it
again with the timer the next time. This not only switches off the heater, but
it also activates the timer function. You can change the required time with
the adjustment keys P(refer to Section F).
HTHE INFORMATION DISPLAY
The information display Mnot only serves as an indicator of the (set) time and
temperature (sections C, E, and F), it also indicates any malfunctioning of the
heater. The code on the information display tells you what is the matter:
CODE INFORMATION WHAT TO DO
e - 0 Temperature within the heater too high. Cool-down and re-ignite.
f - 0 Power interrupted. Re-ignite the heater.
e - 1 Faulty thermostat. Contact your dealer.
2
1
4
3
2
1
4
47
G: The TIMER indicator
light indicates that the
timer function has been
switched on.
☞
In case of any
malfunctioning the
information display will
tell you what is the
matter.

f - 1 Faulty burner thermistor. Contact your dealer.
e - 2 Starting problems. Contact your dealer.
e - 5 Tipping-over protection. Re-ignite the heater.
e - 6 Poor burning. Contact your dealer.
e - 7 Room temperature If necessary,
above 32°C. re-ignite the heater.
e - 8 Defective booster. Contact your dealer.
e - 9 Air filter dirty; or Clean filter.
Fuel pump dirty. Contact your dealer.
The heater has been in operation
continuously for a period of 48 hours
and has turned itself off automatically. Switch the heater back on.
-- : --
+
Out of fuel. Refill removable tank.
-- : --
+
Too little ventilation. Ventilate better.
Always contact your dealer for any malfunctioning not listed above.
AUTOMATIC DEACTIVATION
This heater is fitted with a safety system that ensures that it switches off
automatically after 48 hours continuous operation. The following will then appear
in the display: . If desired, you can switch the heater on again by pressing
the button
N (see section D).
AUTOMATIC CLEANING MODE
When the heater has been burning continuously for two hours at its highest
setting, the burner will automatically start an autoclean procedure. The display
will show the autocleaningcode cl:05 running back to cl:01. The procedure takes 5
minutes, during which the heater will burn at its lowest setting, while the burner
autocleans. When the burner is clean again, the heater will automatically switch
back to the highest setting again.
ICHILDPROOF LOCK
The childproof lock can be used to prevent children accidentally changing the
heater settings. When the heater is burning and the childproof lock is on, the heater
can only be switched off. Other functions are blocked then. If the heater has already
been switched off, the childproof lock also prevents accidental ignition of the
heater.
Activate the childproof lock by pressing the appropriate key Oand holding it
down for more than 3 seconds. The KEY-LOCK indicator
() will appear on the
information display (Fig. H), indicating that the childproof lock has been activated.
Switch off the childproof lock by pressing the key Oand holding it down for more
than 3 seconds once again.
JTHE CORRECT USE OF 'SAVE'
The 'SAVE' function allows you to limit the temperature. When this function is
activated, the heater will automatically switch off, when the room temperature
exceeds the set temperature by 3°C. Subsequently, when the room temperature has
dropped again to the set temperature, the heater will automatically switch on again.
Activate the 'SAVE' setting by pressing the appropriate Rkey. will display on the
information display (Fig. I). Switch off the function by pressing the SAVE key once
again.
4
48
H: When the mark
appears, the childproof
lock has been activated.
I: When the SAVE
function is activated, the
heater will automatically
switch on or off in order
to remain within a
specified temperature
range.

☞
Without the 'SAVE' setting your heater will maintain the set temperature by
approximation as well, by adjusting its heating capacity. 'SAVE' is an economy
setting, which you can use when, for instance, you are not present in the room or
to keep it frost-free.
KTHE 'FUEL' INDICATOR
When the FUEL indicator appears, there is enough fuel left for another 10 minutes
of heater use. The count-down of the remaining heating time can be seen in the
information display M(Fig. J). Every two minutes an alarm signal is sounded,
warning you to refill the removable tank. If you do not react, the heater will
extinguish by itself. The heater will also sound a warning signal, when it switches
off. The FUEL indicator will blink, while four lines are blinking in the information
display. You can stop this by pressing the button Nonce.
Once the heater has used up all its fuel and is extinguished it will take some time,
after the refill, before the heater is completely ready for use again.
LTHE 'VENT' INDICATOR
When the VENT indicator starts blinking, this is a sign that the room is not vented
sufficiently (Fig. K). The heater will switch off automatically. If the indicator
continues blinking after extra ventilation, please contact your dealer.
MMAINTENANCE
Switch off the heater and let it cool down, before you start any maintenance
work. Also disconnect the plug from the mains. Your heater needs hardly any
maintenance. It is, however, important that you clean the air filter Iand the vent
filter Jwith a vacuum cleaner and the grid 2 with a damp cloth, both on a
weekly basis. Remove the air filter occasionally (Fig. L) and clean it with soapy
water. Prior to reinstallation, make sure that the air filter cap has fully been dried.
Regularly inspect the fuel filter as well:
Remove the removable tank 7from the heater and remove the fuel filter
(Fig. M). Some drops may leak from the filter; keep a cloth at hand.
Remove the dirt by tapping the fuel filter upside-down against a hard surface.
(Never clean it with water!)
Reinstall the fuel filter into the heater.
We recommend that you remove dust and stains from time to time with a damp
cloth, because otherwise these may cause stains that are hard to remove.
Do not remove any heater components yourself. Always contact your dealer for
repairs. When the power cord is damaged, it may only be replaced by an
authorised fitter. Use a new cord of the type H05 VV-F.
3
2
1
4
49
L
Fuel filter
K: A blinking VENT
indicator is a sign that
you need extra
ventilation.
J: When the FUEL
indicator has appeard,
the information display
will show the number of
minutes of fuel left in
the tank.
☞
M

NSTORAGE (END OF THE HEATING SEASON)
At the end of the heating season, you must store the heater in a dust-free place, if
possible in its original packaging. Unused fuel cannot be used in the next heating
season. We therefore recommend that you burn up all fuel. If there is still some
fuel left, do not throw it away, but dispose of it in accordance with the local
regulations for the disposal of domestic chemical waste.
Always start the new heating season with fresh fuel. When you start re-using the
heater follow the instructions again (starting from section A and as specified).
OTRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of
the heater:
Let the heater cool down.
Remove the removable tank Gfrom the heater and remove the fuel filter
(refer to Section M, Fig. M). Some drops may leak from the filter; keep a cloth
at hand. Store the fuel filter and the removable tank outside the heater.
Place the transportation cap into the position of the fuel filter (Fig. N).
Press it tight.
Always move the heater in an upright position.
PSPECIFICATIONS
Ignition electrical Dimensions (mm) width 374
Fuel paraffin (including base plate) depth 280
Capacity (kW) max. 3.00 height 435
Capacity (kW) min. 0.80 Accessories manual fuel pump
Suitable space (m3)** 40-120 transportation cap
Fuel consumption (l/hr)*0.313 Mains 230V
Fuel consumption (g/hr)*250 -- AC/50 Hz
Burning time per tank (hr)*12.8
Electrical consumption igniter 320 W
Capacity removable tank (litres) 4.0 continuous 28 W
Weight (kg) 9.5 Fuse rating 250V, 5A
* At maximum setting ** Specified values are indicative
QWARRANTY PROVISIONS
Your heater comes with a 48-month warranty starting on the date of purchase.
Within this period all defects in material or workmanship will be repaired without
any charge. The following provisions shall apply regarding this warranty:
We expressly dismiss all other claims for damages, including consequential
damages.
Any repairs or replacements of components within the term of warranty will
not result in an extension of the term of warranty.
2
1
4
3
2
1
4
50
transportation cap
N

The warranty shall no longer apply, when the heater has been modified,
non-original parts have been used, or when it is repaired by third parties.
The warranty shall not apply to parts that are subject to normal wear, such as
the burner mat and the manual fuel pump.
The warranty shall only apply, when you present the original, dated proof of
purchase, provided no changes have been made to it.
The warranty shall not apply to damages caused by actions not in compliance
with the Directions for Use, neglect, and the use of an incorrect type of fuel,
or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
Transportation costs and the risks involved during the transportation of the
heater or heater components shall always be at the expense of the purchaser.
In order to avoid unnecessary costs, we recommend that you always read the
’Directions for Use’ carefully first. In case they offer no solution, please take the
heater to your dealer for repair.
*Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this
happen, never tryto move the heater, but always switch off the heater immediately. In case of emergency you
may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.
10 TIPS FOR SAFE USE
1Make sure that children are always aware of the presence of a burning
heater.
2Do not move the heater when it is burning or still hot. Do not refill nor
service the heater when it is burning or still hot.
3Position the front of the heater at a distance of minimum 1.5 metres
from walls, curtains, and furniture.
4Do not use the heater in dusty rooms or places with strong draughts. In
either situation you will not have optimum burning. Do not use the
heater in the immediate surrounding of a bath, a shower or a
swimmingpool.
5Switch off the heater, before you leave or go to sleep. Unplug the
heater as well, when you go away for a longer period of time
(e.g. holidays).
6Store and move fuel only in suitable tanks and jerrycans.
7Make sure that the fuel is not exposed to heat or extreme temperature
changes. Always store the fuel in a cool, dry and dark place (sunlight
will affect the quality).
8Never use the heater in places where harmful gasses or fumes may be
present (e.g. exhaust gasses or paint fumes).
9Beware that the grid of the heater becomes hot. If the appliance is
covered there is a risk of fire.
10 Always make sure that there is sufficient ventilation.
Defective electrical devices and batteries must be kept separate from household
waste. Ensure that there is effective recycling where possible. Ask you local council
or dealer for expert advice on recycling.
7
6
5
4
3
4
51
150 cm
150 cm
50 cm
20 cm
50 cm

E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E

E E E E E E E E E E E E E E E E E E E E E E E E
M
N
A
E
G
F
D
K
B
C
J
L
I
H
Q
P
E
P
R
O

PVG Traffic avg©080729 man_SRE152 TC
Rev. 7/08 Printed in Japan
7880001921
DISTRIBUTED IN EUROPE BY PVG INTERNATIONAL b.v.
iÖSTERREICH
PVG Austria VertriebsgmbH
Salaberg 49
3350 HAAG
tel: [phone]
fax: [phone]
email: [email protected]
eBELGIË
PVG Belgium NV/SA
Industrielaan 55
2900 SCHOTEN
tel: [phone]
fax: [phone]
email: [email protected]
qSCHWEIZ
PVG Schweiz AG
Salinenstrasse 63
4133 PRATTELN
tel: [phone]
fax: [phone]
email: [email protected]
2DEUTSCHLAND
PVG Deutschland GmbH
Siemensstrasse 31
47533 KLEVE
tel: 0800 - 9427646
fax: [phone]
email: [email protected]
6DANMARK
Appliance A/S
Blovstroed Teglvaerksvej 3
DK-3450 ALLEROED
tel: [phone]
fax: [phone]
email: [email protected]
5ESPAÑA
PVG España S.A.
Pol. Ind. San José de Valderas II
Comunidad ”La Alameda”
C/ Aurora Boreal, 19
28918 LEGANÉS (Madrid)
tel: [phone]
fax: [phone]
email: [e-mail]
3FRANCE
PVG France SARL
4, Rue Jean Sibélius
B.P. 185
76410 SOTTEVILLE SOUS LE VAL
tel: [phone]
fax: [phone]
email: [email protected]
SUOMI
Appliance Finland Oy
Piispantilankuja 6C
02240 ESPOO
tel: [phone]
fax: [phone]
email: [email protected]
4UNITED KINGDOM
Scott Brothers Ltd.
The Old Barn, Holly House Estate
Cranage, Middlewich, CW10 9LT UK
tel.: [phone]
fax: [phone]
email: [email protected]
>ITALIA
PVG Italy SRL
Via Niccolò Copernico 5
50051 CASTELFIORENTINO (FI)
tel: [phone]
fax: [phone]
email: [email protected]
uNORGE
Appliance Norge AS
Vogellunden 31
1394 NESBRU
tel: [phone]
fax: [phone]
email: [email protected]
1NEDERLAND
PVG International B.V.
P.O. Box 96
5340 AB OSS
tel: [phone]
fax: [phone]
email: [email protected]
9PORTUGAL
Gardena, Lda
Recta da Granja do Marquês
ALGUEIRÃO
2725-596 MEM MARTINS
tel: [phone]
fax: + 35 21 92 28 536
email: [email protected]
:POLSKA
PVG Polska Sp. z. o. o.
ul. Kościelna 110
26-800 Białobrzegi
tel: [phone]
fax: [phone]
email: [email protected]
=SVERIGE
Appliance Sweden AB
Sjögatan 6
25225 HELSINGBORG
tel: [phone]
fax: [phone]
email: [email protected]
ySLOVENIJA
Monteko d.o.o.
Neubergerjeva 4
1000 Ljubljana
tel: [phone]
fax: [phone]
email: [email protected]
TURKEY
PVG Is›tma Klima So¤utma Ltd.fiti.
Tepekule is merkezi
Anadolu Cad. No: 40 K:3 D:306
35010 BAYRAKLI/IZMIR
tel: + 90 232 461 51 01
fax: [phone]
email: [email protected]
FFIINN
TTRR
