Zibro SRE 835 E User manual

1
15
R 125 E 1998 / 1999
D Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.zibro.com, oder setzen Sie sich mit
unserem Kundendienst in Verbindung (Telefonnummer auf www.zibro.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.zibro.com eller det lokale Kundecenter (telefon-
numre findes i www.zibro.com).
Si necesita información o si tiene algún problema, visite nuestra página Web www.zibro.com, o póngase en contacto con el servicio cliente
(hallará el número de teléfono en www.zibro.com).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.zibro.
com) ou contactez notre service client (vous trouverez l’adresse et numéro de téléphone sur www.zibro.com).
Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.zibro.com tai kysy neuvoa PVG
kuluttajapalvelukeskuksesta (www.zibro.com).
If you need information or if you have a problem, please visit the our website (www.zibro.com) or contact our sales support (you find its phone
number on www.zibro.com)
I Per informazioni e in caso di problemi, visitate il sito Web www.zibro.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero
di telefono, consultate www.zibro.com).
N Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.zibro.com. Alternativt kan du kontakte
med PVG’ forbrukertjeneste (telefonnummeret i www.zibro.com).
Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.zibro.com) of neem contact op met de afdeling
sales support (adres en telefoon op www.zibro.com).
P Se necessitar de informações ou se tiver problemas, visite o Web site www.zibro.com ou contacte o Centro de Assistência (número de telefone
o www.zibro.com)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Zibro dostępną pod adresem www.zibro.
com lub skontaktuj się z Centrum kontaktów Zibro (www.zibro.com)
S Om du behöver service eller information eller har problem med apparaten kan du besöka www.zibro.com eller kontakta Zibro kundtjänst (du
hittar telefonnumret på www.zibro.com).
Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.zibro.com ali pokličite na telefonsko (www.zibro.com).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.zibro.com adresindeki Zibro Internet sitesini ziyaret edin veya ülkenizde
bulunan Zibro müşteri merkeziyle iletişim kurun (telefon numarasını: www.zibro.com).
--- --- -- ----
-- -- --- -----
-- -- --- -----
-- ---- -- ----
-- -- --- -----
-- -- --- -----
--- --- -- ----
-- ---- -- ----
www.zibro.com
Distributed in Europe by PVG Holding B.V.
Zibro® is registered trademark of TOYOTOMI Co., Ltd. for paraffin heaters.
ZIBRO brand paraffin heaters are made in Japan and imported by PVG Holding B.V.
SRE 835 E
FIN
3
2
6
5
4
>
u
1
:
=
y
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
KÄYTTÖOHJE
OPERATING MANUAL
ISTRUZIONI D’USO
BRUKSANVISNING
GEBRUIKSAANWIJZING
INSTRUKCJA OBSŁUGI
BRUKSANVISNING
NAVODILA ZA UPORABO
1
12
22
32
42
52
62
72
82
92
102
112
cover_SRE835E.indd 3 28-06-12 11:17

D Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.zibro.com, oder setzen Sie sich mit
unserem Kundendienst in Verbindung (Telefonnummer auf www.zibro.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.zibro.com eller det lokale Kundecenter (telefon-
numre findes i www.zibro.com).
Si necesita información o si tiene algún problema, visite nuestra página Web www.zibro.com, o póngase en contacto con el servicio cliente
(hallará el número de teléfono en www.zibro.com).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.zibro.
com) ou contactez notre service client (vous trouverez l’adresse et numéro de téléphone sur www.zibro.com).
Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.zibro.com tai kysy neuvoa PVG
kuluttajapalvelukeskuksesta (www.zibro.com).
If you need information or if you have a problem, please visit the our website (www.zibro.com) or contact our sales support (you find its phone
number on www.zibro.com)
I Per informazioni e in caso di problemi, visitate il sito Web www.zibro.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero
di telefono, consultate www.zibro.com).
N Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.zibro.com. Alternativt kan du kontakte
med PVG’ forbrukertjeneste (telefonnummeret i www.zibro.com).
Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.zibro.com) of neem contact op met de afdeling
sales support (adres en telefoon op www.zibro.com).
P Se necessitar de informações ou se tiver problemas, visite o Web site www.zibro.com ou contacte o Centro de Assistência (número de telefone
o www.zibro.com)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Zibro dostępną pod adresem www.zibro.
com lub skontaktuj się z Centrum kontaktów Zibro (www.zibro.com)
S Om du behöver service eller information eller har problem med apparaten kan du besöka www.zibro.com eller kontakta Zibro kundtjänst (du
hittar telefonnumret på www.zibro.com).
Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.zibro.com ali pokličite na telefonsko (www.zibro.com).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.zibro.com adresindeki Zibro Internet sitesini ziyaret edin veya ülkenizde
bulunan Zibro müşteri merkeziyle iletişim kurun (telefon numarasını: www.zibro.com).
--- --- -- ----
-- -- --- -----
-- -- --- -----
-- ---- -- ----
-- -- --- -----
-- -- --- -----
--- --- -- ----
-- ---- -- ----
www.zibro.com
Distributed in Europe by PVG Holding B.V.
Zibro® is registered trademark of TOYOTOMI Co., Ltd. for paraffin heaters.
ZIBRO brand paraffin heaters are made in Japan and imported by PVG Holding B.V.
                    
- EMC - LV
3 PAGE PLIANTE
2 FALTBLATT
6 FOLDEUDSIDE
5 HOJA DESPLEGABLE
AUKI TAITETTU SIVU
4 FOLD-OUT PAGE
> PIEGHEVOLE
u UTBRETTSIDE
1 UITVOUWBLAD
: INSTRUKCJĘ ROZŁOŻYC
= UTVIKNINGSSIDA
y ZADNJA STRAN ZGIBANKA
FIN
cover_SRE835E.indd 1 28-06-12 11:17

                            
                
1 LISEZ PRÉALABLEMENT LE MANUELD'UTILISATION.
2 EN CAS DE DOUTE, CONTACTEZ VOTRE REVENDEUR ZIBRO.
3 POUR LIRE, DÉPLIEZ LA DERNIÈRE PAGE.              3 POUR LIRE, DÉPLIEZ LA DERNIÈRE PAGE.             
AFNOR CERTIFICATION - 11, RUE FRANCIS DE PRESSENSE
93571 LA PLAINE SAINT-DENIS CEDEX
FICHE INFORMATIVE
NF 128 02 / 02
La marque NF garantit
la qualité de cet article
suivant les normes françaises
et Règles de certification
de l’application NF 128
CONFORME A LA NORME NF D 35-300 ET AUX SPECIFICATIONS
COMPLEMENTAIRES DEFINIES PAR LES REGLES
DE CERTIFICATION DE LA MARQUENF 128
PRINCIPALES CARACTERISTIQUES CERTIFIEES:
• Sécurité du dispositif d’allumage
• Débit calorifique
• Efficacité des dispositifs de sécurité
• Stabilité
• Contrôle de la teneur en NOx dans les produits de combustion
• Contrôle de la qualité de la combustion (absence de CO)
• Endurance
• Intermittence
CONSEILS D’UTILISATION ET D’ENTRETIEN
Se reporter à la notice jointe à l’appareil et à la plaque de sécurité sur
l’appareil
Référence et numéro de lot ou de série de l’article : se reporter au produit
Distributed in Europe by:
PVG Holding B.V.
P.O.Box 96, 5340 AB OSS
Pays-Bas Tél.: [phone]
Si une difficulté subsistait, vous pouvez écrire à
CERTITA
39/41, rue Louis Blanc
92400 COURBEVOIE
En cas d’insatisfaction, consultez d’abord votre revendeur :
cover_SRE835E.indd 5 28-06-12 11:17

Dear Sir, Madam,
Congratulations with your purchase of the Zibro, the number one brand among
movable heaters. You have purchased a first-class quality product, which will
serve you for many years to come. This, of course, provided you use the heater
correctly. Please read these Directions for Use first, to ensure maximum lifetime
for your Zibro.
Your heater comes with a 48-month manufacturer’s warranty on all defects in
material or workmanship.
We wish you much warmth and comfort with your Zibro.
Yours sincerely,
PVG Holding b.v.
Customer Service Department
1 READ THE DIRECTIONS FORUSE FIRST.
2 IN CASE OF ANY DOUBT, CONTACT YOUR ZIBRO DEALER.
3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE.          
                       
4
52
p052_061_SRE835E_uk.indd 52 28-06-12 11:22

GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for
using your Zibro. For more details, please refer to the
MANUAL (pages 53 ff.).
•As a fire precaution, the tank must be filled either
when the heater has been switched off or in an-
other room than the room where the heater is in-
stalled.
•Always ensure that the tank is closed properly af-
ter filling it at a safe distance from all sources of
heat and open flames (see chapter B).
•Store all fuel containers with their original caps
and seals in a cool and dark place.
•Fuel ages. Use new fuel at the start of every heat-
ing season.
•The use of Zibro Premium Quality Fuels as a heat-
ing fuel assures you that you have a good quality
fuel.
•Before changing brands and/or types of fuel make
sure that the mobile heater first completely emp-
ties all of the remaining fuel inside the heater.
1 READ THE DIRECTIONS FORUSE FIRST.
2 IN CASE OF ANY DOUBT, CONTACT YOUR ZIBRO DEALER.
3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE.          
Remove all packaging materials (Fig. A).
Fill the removable tank  (refer to Section B, Fig. D).
Insert the plug into the wall-socket.
Ignite the heater using the key (refer to Section D).
If required, change the temperature using the adjustment keys
(refer to Section E).
Switch off the heater by pressing the key .
1
2
3
4
5
6
MAIN COMPONENTS
Front plate
Grid
Base plate
Lid for removable
tank
Operation panel
Handle
Removable tank
Air filter
Vent filter
Thermostat
Plug + cord
Information display
key
Childproof lock
Adjustment keys
(time and
temperature)
TIMER
SAVE key
Indicator lights
EXTENSION
Air quality control
system




















                       
4
53
p052_061_SRE835E_uk.indd 53 28-06-12 11:22

4
54
This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of your
Zibro.
WHAT YOU NEED TO KNOW IN ADVANCE
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION
Read this user manual carefully before using the appliance and keep it for future
reference. Install this device only when it complies with local/national legislation,
ordinances and standards. This product is intended to be used as a heater in resi-
dential houses and is only suitable for use in dry locations, in normal household
conditions, indoors in living room, kitchen and garage.
This heater is equipped with an air quality control system . When there is insuf-
ficient ventilation in the room or when the heater is being used in a room which is
too small, the heater will shut off automatically. For comfortable and safe heating
ensure that there is sufficient ventilation.
Note: To avoid unexpected shut off, we recommend to put a door or window ajar
when the heater is operating.
Regardless of the model, you must always make sure that the heater is used in a
room large enough to enable the heater to be used safely without extra ventila-
tion. If the room is smaller than required, you must always open a door or window
slightly (ensuring an opening of approx. 2.5 cm). It is important that every room
where the heater is used has sufficient air intake and efficient air outflow (both
openings must have a minimum cross section of 50 cm2). No modifications to the
safety system are allowed, as that will invalidate the guarantee that the air probe
will work properly. Consult your dealer in case of doubt.
Especially for France: Your heater was designed to operate exclusively on fuel for
liquid fuel-operated mobile heaters in accordance with the Decrees of 08-01-1998
and 18-07-2002. The use of other fuels is forbidden. Ask your dealer or check our
website for the addresses of our retailers. The liquid fuel-operated mobile heater
is intended as an extra heater, and not as a continuous source of heat.
Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with
BS2869; Part 2, or equivalent.
The user must comply with the following instructions for proper use: DO NOT
- use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cab-
ins;
- use the liquid fuel-operated mobile heater in insufficiently ventilated rooms
(consult the table of properties for the minimum dimensions of the room to
be heated), underground rooms and / or at a height of over 1500 metres;
- modify the heater safety features.
The use of this type of heating in public rooms is subject to prior regulatory per-
mission. Obtain proper information on this in advance.

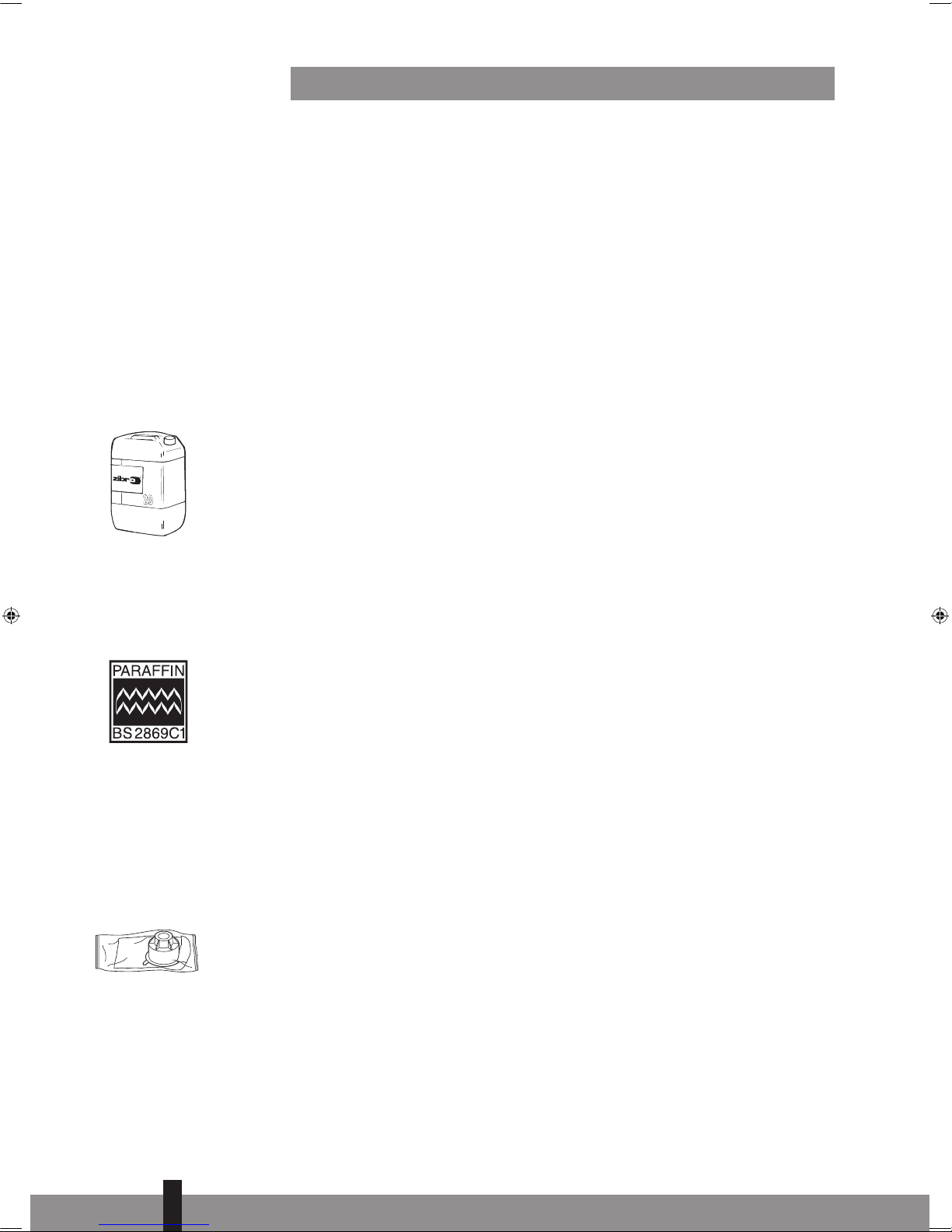

THE RIGHT FUEL
Your Zibro heater has been designed for use with high-quality water-free pure
paraffin oil, such as Zibro Premium Quality Fuels. Only fuels of this kind will ensure
clean and proper burning. Lower quality fuel may result in:
increased possibility of malfunctioning
incomplete burning
reduced heater lifetime
smoke and/or smells
deposits on the grid or mantle
p052_061_SRE835E_uk.indd 54 28-06-12 11:22

     
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Damage and/or malfunctions of the heater due to the use of other than high qual-
ity water-free pure paraffin oil is not covered by the warranty.
Always refer to your local Zibro dealer for the right fuel for your heater.
A
MANUAL
AINSTALLING THE HEATER
1Carefully remove your Zibro from the box and check the contents.
In addition to the heater you also need to have:
a manual fuel pump
a transportation cap
these directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or transporta-
tion.
2Open the lid of the removable tank and remove the piece of cardboard.
3Fill the removable tank as indicated in Section B.
4The floor should be firm and completely level. Reposition the heater, when it
is not level. Do not try to correct the situation by placing books or other
goods under the heater.
5Insert the plug into the wall-socket (230 Volts - AC / 50 Hz) and set the
correct time using the adjustment keys  (refer to Section C).
6Your Zibro is now ready for use.
4
55
p052_061_SRE835E_uk.indd 55 28-06-12 11:22

F: When the 4-digit stops
blinking, the setting has
been locked to the indi-
cated value.
++
D
B
E
empty full
BFILLING FUEL
Fill the removable tank in a suitable place since there can always be some spillage.
Follow the procedure below:
1Make sure that the heater is switched off.
2Open the upper lid and lift the removable tank out of the heater (Fig. B).
Note: Some drops may leak from the tank. Put down the removable tank (cap
pointing upwards, handle on floor (Fig. C) and screw off the fuel cap.
3Fill the removable tank using a fuel pump (refer to fuel pump operation
instructions.) Make sure that it is in a higher position than the removable tank
(Fig. D). Insert the ribbed hose into the opening of the removable tank.
4Check the removable tank fuel gauge while filling the tank (Fig. E). Stop fill-
ing once the gauge indicates that the tank is full. Never overfill the tank,
especially not when the fuel is very cold (fuel expands when it heats up).
5Let the remaining fuel in the pump flow back into the jerry can and carefully
remove the pump. Carefully screw the fuel cap back on the tank. Clean off
any spilled fuel.
6Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.
CSETTING THE CLOCK
It is only possible to set the correct time, when the heater is connected to the
mains and not burning. Use the adjustment keys to set the time. First press
either of the two keys to switch on the function (the 4-digit  will start blinking).
Next, set the hours using the key (hour) and the minutes using the key (min.).
Press once to increase the value by one step. When you hold down the key, the
value will continue going up, until you release the key again. After approximately
10 seconds the 4-digit will stop blinking and the setting will be locked. 5 minutes
after switching off the heater, the information on the display will disappear and
the heater will automatically switch into the stand-by position.
When the heater has been unplugged for more than 10 minutes (or after a
power failure), the time needs to be set again.
DIGNITING THE HEATER
When used for the first time, a new heater may give out a smell for a short while.
You should therefore provide extra ventilation.
Always ignite the heater with the button
 . Never use matches or a cigarette
lighter.
Just press the button to ignite the heater.
The
button will start blinking, indicating that the ignition procedure has start-
ed. This will take a short while. Once the heater is burning, the button  will
remain lit (red). The information display will show two numbers (Fig. G). The
actual room temperature is indicated below ROOM, while the temperature setting
is indicated below SET. The latter can be changed with the adjustment keys (refer
to Section E).
Prior to igniting the heater, always check for sufficient fuel in the removable tank.
4
56
C
p052_061_SRE835E_uk.indd 56 28-06-12 11:22

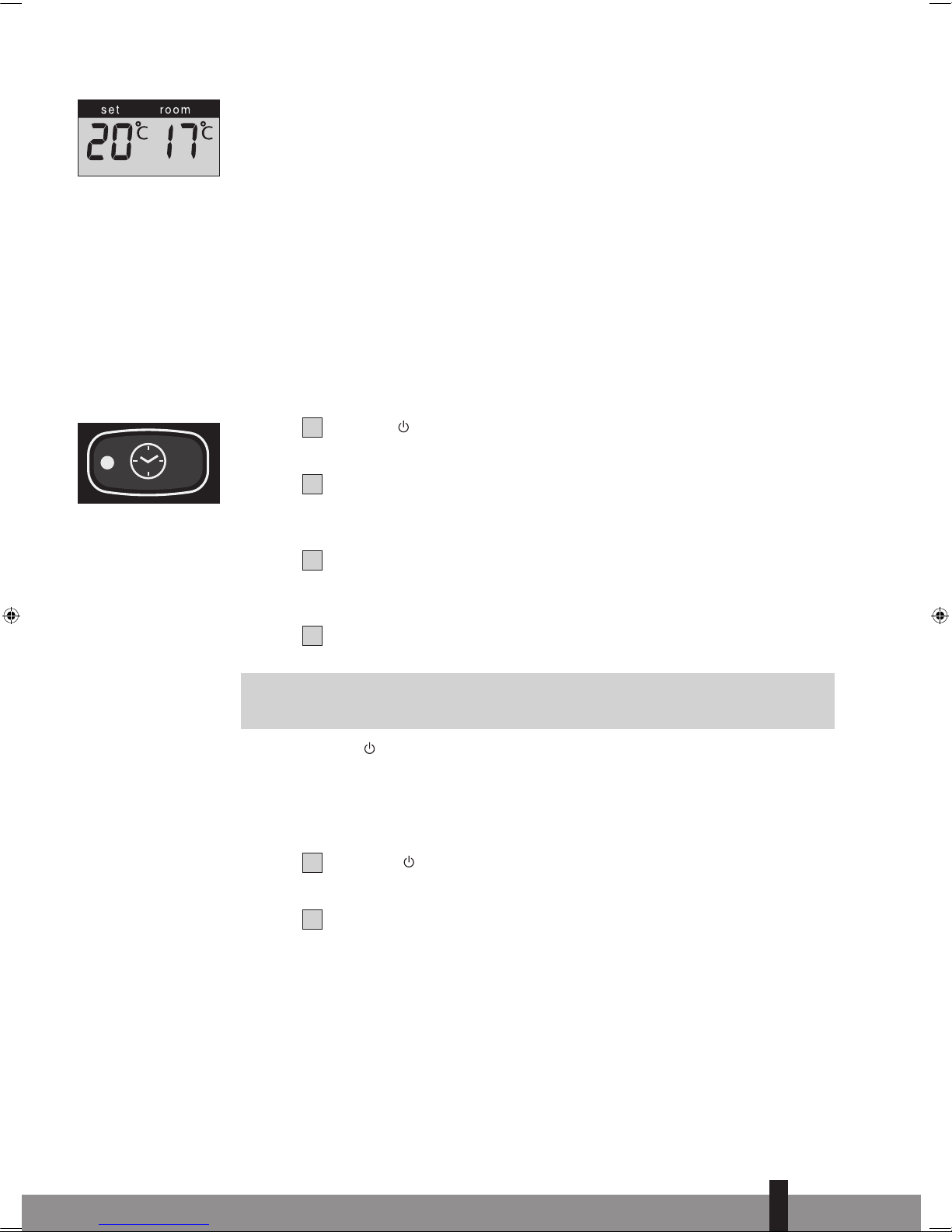

G: The required tem-
perature on the left, the
measured temperature
on the right.
H: The TIMER indicator
light indicates that the
timer function has been
switched on.
+
4
57
ESETTING THE REQUIRED TEMPERATURE
The temperature setting can only be adjusted, when the heater is burning. Use the
adjustment keys to adjust the temperature. First press either of the two keys to
switch on the function (the °C mark and 4-digit  will start blinking). Next, adjust
the temperature using the key (min.) to set the temperature to a higher setting
and the key (hour) to lower the temperature. Press once to increase the value
one step. After approximately 10 seconds the °C mark and 4-digit will stop blink-
ing and the setting will be locked (Fig. F).
The available temperature settings range from 6°C minimum to 28°C maximum.
When the heater has been unplugged for more than 10 minutes (or after a power
failure), the temperature will reset to the factory setting of 20°C.
FUSING THE TIMER
The timer allows you to switch on the heater automatically at a preset time.
In order to switch on the timer, the correct time must have been set (refer to
Section C) and the heater should be off. Follow the procedure below:
1Press the button and then the TIMER key immediately after that.
The TIMER light and the information display will start blinking.
2Use the adjustment keys to set the time at which the heater must ignite.
Use the key (hour) to set the hours and the key (min.) to set the minutes
(interval of 5 minutes).
3After approximately 10 seconds the information display will show CLOCK
again and the TIMER indicator light will light up, indicating that the timer
function has been activated (Fig. H).
4The timer will ensure that the room will have been heated to approximately
the required temperature at the set time.
When you want to switch off the heater and ignite it again with the timer, all
you have to do is press the TIMER key (refer to Section G).
Press the button once to clear the timer setting.
GSWITCHING OFF THE HEATER
There are two ways to switch off the heater.
1Press the button . The information display will show the CLOCK
signal. Within approximately one minute the flame will have extinguished.
2Press the TIMER key , when you want to switch off the heater and ignite it
again with the timer the next time. This not only switches off the heater, but
it also activates the timer function. Y
ou can change the required time with the
adjustment keys (refer to Section F).
p052_061_SRE835E_uk.indd 57 28-06-12 11:22

I: When the mark
appears, the childproof
lock has been activated.
In case of any malfunc-
tioning the information
display will tell you what
is the matter.

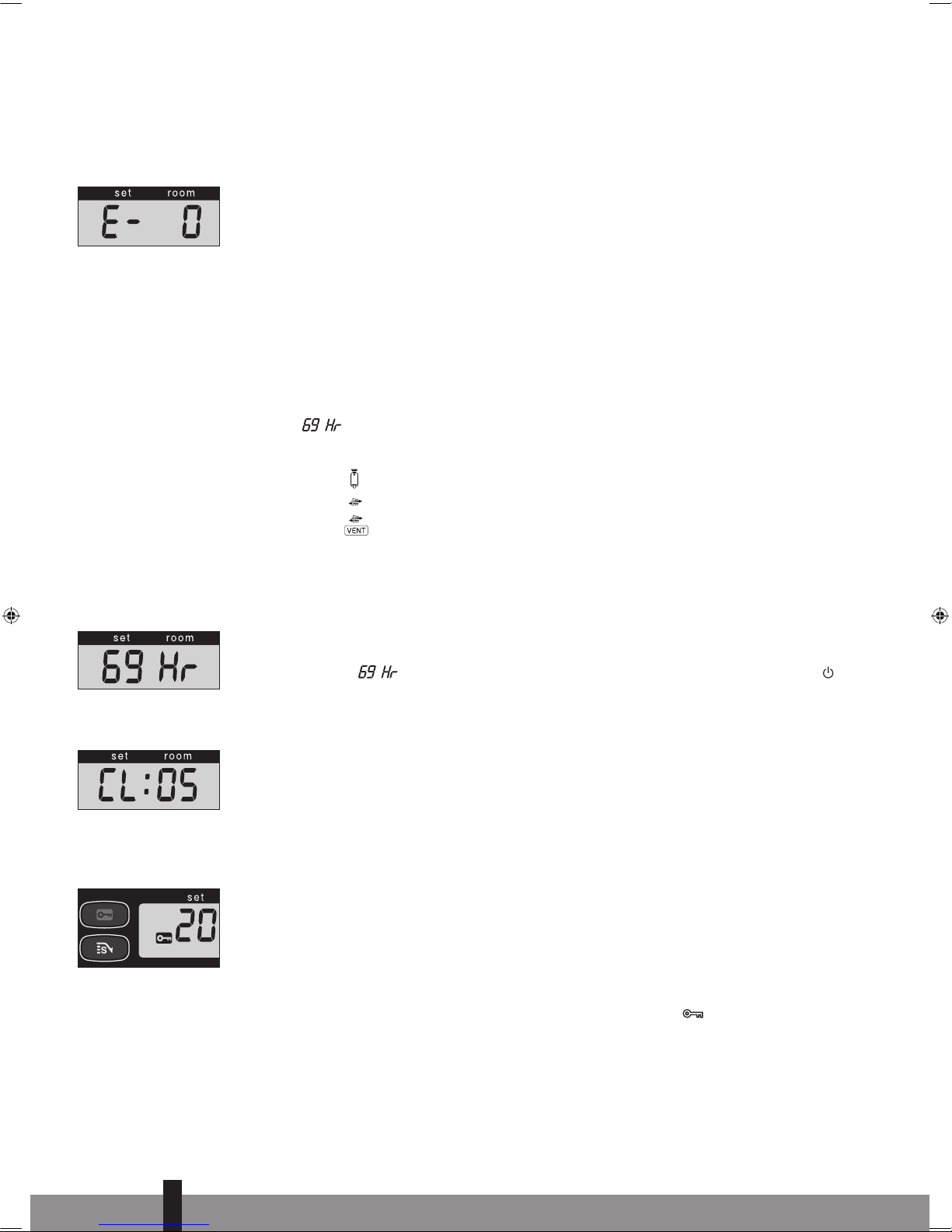

HTHE INFORMATION DISPLAY
The information display not only serves as an indicator of the (set) time and
temperature (Sections C, E, and F), it also indicates any malfunctioning of the
heater. The code on the information display tells you what is the matter:
CODE INFORMATION WHAT TO DO
e - 0 Temperature within the heater too high. Cool-down and re-ignite.
f - 0 Power interrupted. Re-ignite the heater.
e - 1 Faulty thermostat. Contact your dealer.
f - 1 Faulty burner thermistor. Contact your dealer.
e - 2 Starting problems. Contact your dealer.
e - 5 Tipping-over protection. Re-ignite the heater.
e - 6 Poor burning. Contact your dealer.
e - 7 Room temperature If necessary,
above 32°C. re-ignite the heater.
e - 8 Defective booster. Contact your dealer.
e - 9 Air filter dirty; or Clean filter
Fuel pump dirty. Contact your dealer.
The heater has been in operation
continuously for a period of 69 hours
and has turned itself off automatically. Switch the heater back on.
-- : -- + Out of fuel. Refill removable tank.
-- : -- + Too little ventilation. Ventilate better.
e - 1 1 +Too little ventilation. Ventilate better.
Always contact your dealer for any malfunctioning not listed above and/or when
the error keeps occurring after taking the corrective measure as described above.
AUTOMATIC DEACTIVATION
This heater is fitted with a safety system that ensures that it switches off automati-
cally after 69 hours continuous operation. The following will then appear in the
display: . If desired, you can switch the heater on again by pressing the
button  (see Section D).
AUTOMATIC CLEANING MODE
When the heater has been burning continuously for two hours at its highest set-
ting, the burner will automatically start an autoclean procedure. The display will
show the autocleaning code cl:05 running back to cl:01. The procedure takes 5
minutes, during which the heater will burn at its lowest setting, while the burner
autocleans. When the burner is clean again, the heater will automatically switch
back to the highest setting again.
ICHILDPROOF LOCK
The childproof lock can be used to prevent children accidentally changing the heat-
er settings. When the heater is burning and the childproof lock is on, the heater can
only be switched off. Other functions are blocked then. If the heater has already
been switched off, the childproof lock also prevents accidental ignition of the
heater.
Activate the childproof lock by pressing the appropriate key and holding
it down for more than 3 seconds. The KEY-LOCK indicator
() will appear on the
information display (Fig. I), indicating that the childproof lock has been activated.
Switch off the childproof lock by pressing the key and holding it down for more
than 3 seconds once again.
4
58
p052_061_SRE835E_uk.indd 58 28-06-12 11:22

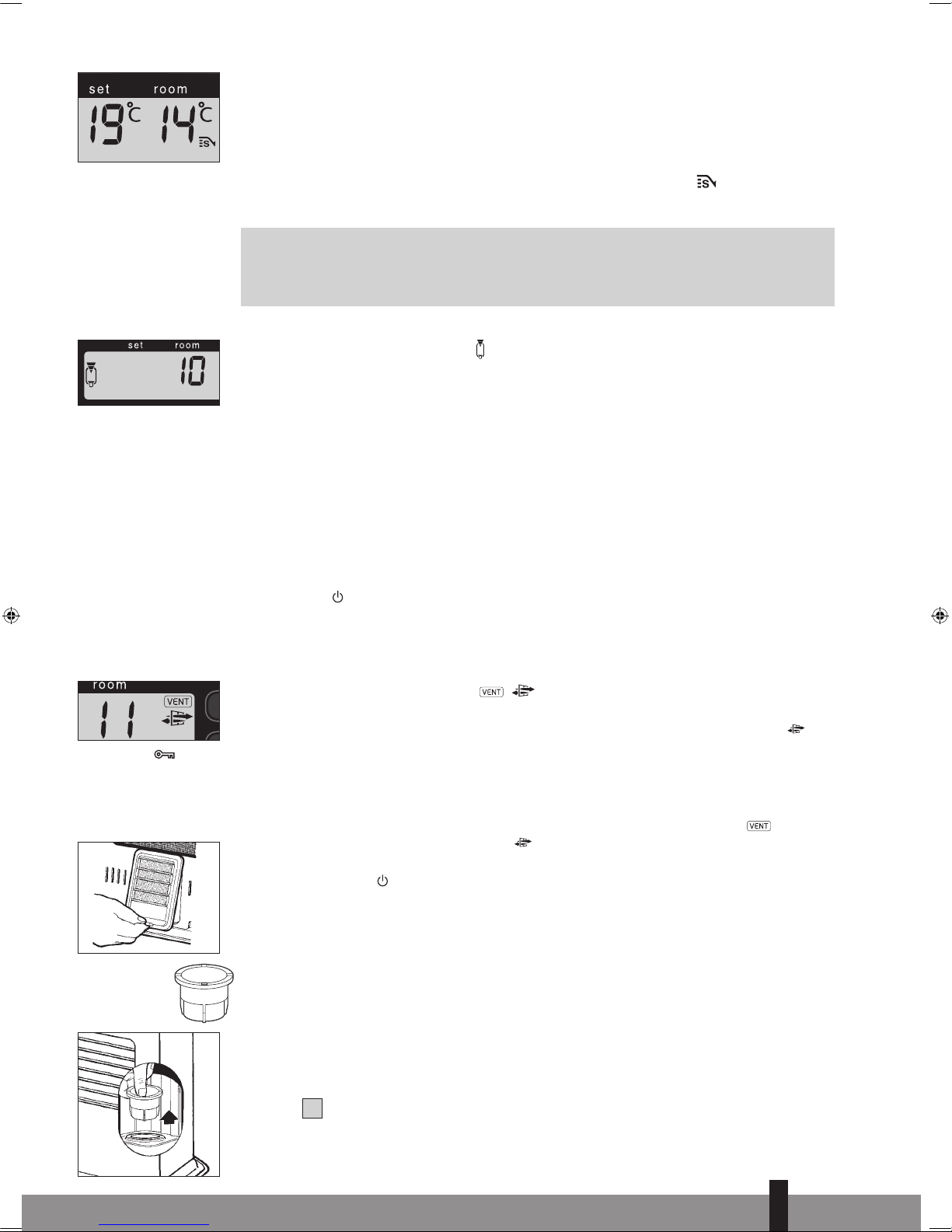

L: A blinking indica-
tor light is a sign that
you need extra ventila-
tion.
K: When the FUEL indi-
cator has appeard, the
information display will
show the number of
minutes of fuel left in
the tank.
+
J: When the SAVE func-
tion is activated, the
heater will automatically
switch on or off in order
to remain within a speci-
fied temperature range.
M
Fuel filter
N
JTHE CORRECT USE OF ‘SAVE’
The ‘SAVE’ function allows you to limit the temperature. When this function is activat-
ed, the heater will automatically switch off, when the room temperature exceeds the
set temperature by 3°C. Subsequently, when the room temperature has dropped again
to the set temperature, the heater will automatically switch on again.
Activate the ‘SAVE’ setting by pressing the appropriate key. will display on the
information display (Fig. J). Switch off the function by pressing the SAVE key once again.
Without the ‘SAVE’ setting your heater will maintain the set temperature by
approximation as well, by adjusting its heating capacity. ‘SAVE’ is an economy
setting, which you can use when, for instance, you are not present in the room
or to keep it frost-free.
KTHE ‘FUEL’ INDICATOR
When the FUEL indicator appears, it means that there is only fuel left for 10 more
minutes. The count-down of the remaining heating time can be seen in the infor-
mation display  (Fig. K). Now you have two options:
you remove the fuel tank and refill it outside the living room (section B) or
you push the button EXTENSION . By pushing this button, the remaining
heating time will extend to 90 minutes. The heater will automatically switch
back to its lowest position. In the display the number 90 will appear, which
will decline to 10. At the arrival of 10, you will hear an alarm signal every two
minutes, warning you to refill the removable tank. If you do not react, the
heater will extinguish by itself. The heater will also sound a warning signal,
when it switches off. The fuel indicator will blink, while four lines (--:--)
are blinking in the information display. You can stop this by pressing the
button  once more.
Once the heater has used up all its fuel and extinguished, it will take some time,
after the refill, before the heater is completely ready for use again.
LTHE ‘VENT’ INDICATOR
When there is insufficient ventilation in the room, an intermittent buzzer will
be heard (approximately once each 30 seconds) and the VENT indicator will
be blinking. When this signal is given, ensure that the ventilation of the room is
improved (e.g. by opening a door or window a little more), to avoid that the heat-
er shuts off. When the ventilation of the room is improved, the VENT indicator and
buzzer will be deactivated. When there is still insufficient ventilation, the heater
shuts off automatically. When this occurs, e- 1 1 is displayed and the indicator
is blinking and VENT indicator ( ) is lit. After improving the ventilation of the
room (e.g. by opening a door or window a little more), the heater can be ignited
by pushing
 again.
MMAINTENANCE
Switch off the heater and let it cool down, before you start any maintenance
work. Also disconnect the plug from the mains. Your Zibro needs hardly any main-
tenance. It is, however, important that you clean the air filter and the vent filter
with a vacuum cleaner and the grid  with a damp cloth, both on a weekly
basis. Remove the air filter cap occasionally (Fig. M) and clean it with soapy water.
Prior to reinstallation, make sure that the air filter cap has fully dried.
Regularly inspect the fuel filter as well:
1Remove the removable tank from the heater and remove the fuel filter
(Fig. N). Some drops may leak from the filter; keep a cloth at hand.
4
59
p052_061_SRE835E_uk.indd 59 28-06-12 11:22

transportation cap
+
O
2Remove the dirt by tapping the fuel filter upside-down against a hard surface.
(Never clean it with water!)
3Reinstall the fuel filter into the heater.
We recommend that you remove dust and stains in time with a damp cloth,
because otherwise these may cause stains that are hard to remove.
Do not remove any heater components yourself. Always contact your Zibro
dealer for repairs. When the power cord is damaged, it may only be replaced
by an authorised fitter. Use a new cord of the type H05 VV-F.
NSTORAGE (END OF THE HEATING SEASON)
At the end of the heating season, you must store the heater in a dust-free place, if
possible in its original packaging. Unused fuel cannot be used in the next heating
season. We therefore recommend that you burn up all fuel. If there is still some
fuel left, do not throw it away, but dispose of it in accordance with the local regu-
lations for the disposal of domestic chemical waste. Always start the new heating
season with fresh fuel. When you start re-using the heater follow the instructions
again (starting from section A and as specified).
OTRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of
the heater:
1Let the heater cool down.
2Remove the removable tank from the heater and remove the fuel filter
(refer to Section M, Fig. N). Some drops may leak from the filter; keep a cloth
at hand. Store the fuel filter and the removable tank outside the heater.
3Place the transportation cap into the position of the fuel filter (Fig. O). Press it
tight. The transportation cap will, as much as possible, prevent oil leakage
from the heater during transport.
4Always move the heater in an upright position.
5Make the fixed tank empty with a fuel pump before transportation or in case
of wrong or dirty fuel. First remove the fuel filter and then insert the fuel
pump into the empty fixed tank. Follow the same procedure if the fuel tank
contains water.
PSPECIFICATIONS
Ignition electrical Dimensions (mm) width 435
Fuel paraffin (including base plate) depth 315
Capacity (kW) max. 3.50 height 437
Capacity (kW) min. 1.05 Accessories manual fuel pump
Suitable space (m3)** 54-150 transportation cap
Fuel consumption (l/hr)*0.365 Mains 230V
Fuel consumption (g/hr)*292 -- AC/50 Hz
Burning time per tank (hr)*20.8
Electrical consumption igniter 320 W
Capacity removable tank (litres) 7.6 continuous 24 W
Weight (kg) 11.5 Fuse rating 250V, 5A
Monitoring of the quality of ventilation (air renewal):
Direct measurement of the CO2level (NDIR CO2-sensor E-Guard ).
* At maximum setting ** Specified values are indicative
4
60
p052_061_SRE835E_uk.indd 60 28-06-12 11:22

QWARRANTY PROVISIONS
Your heater comes with a 48-month warranty starting on the date of purchase.
Within this period all defects in material or workmanship will be repaired without
any charge. The following provisions shall apply regarding this warranty:
1We expressly dismiss all other claims for damages, including consequential
damages.
2Any repairs or replacements of components within the term of warranty will
not result in an extension of the term of warranty.
3The warranty shall no longer apply, when the heater has been modified,
non-original parts have been used, or when it is repaired by third parties.
4The warranty shall not apply to parts that are subject to normal wear, such as
the burner mat and the manual fuel pump.
5The warranty shall only apply, when you present the original, dated proof of
purchase, provided no changes have been made to it.
6The warranty shall not apply to damages caused by actions not in compliance
with the Directions for Use, neglect, and the use of an incorrect type of fuel,
or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7Transportation costs and the risks involved during the transportation of the
heater or heater components shall always be for the account of the purchaser.
In order to avoid unnecessary costs, we recommend that you always read the
’Directions for Use’ carefully first. In case they offer no solution, please take the
heater to your dealer for repair.
* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this
happen, never try to move the heater, but always switch off the heater immediately. In case of emergency you
may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.
11 TIPS FOR SAFE USE
1Children should be supervised to ensure that they do not play with the
appliance.
2Do not move the heater when it is burning or still hot. Do not refill nor ser-
vice the heater when it is burning or still hot.

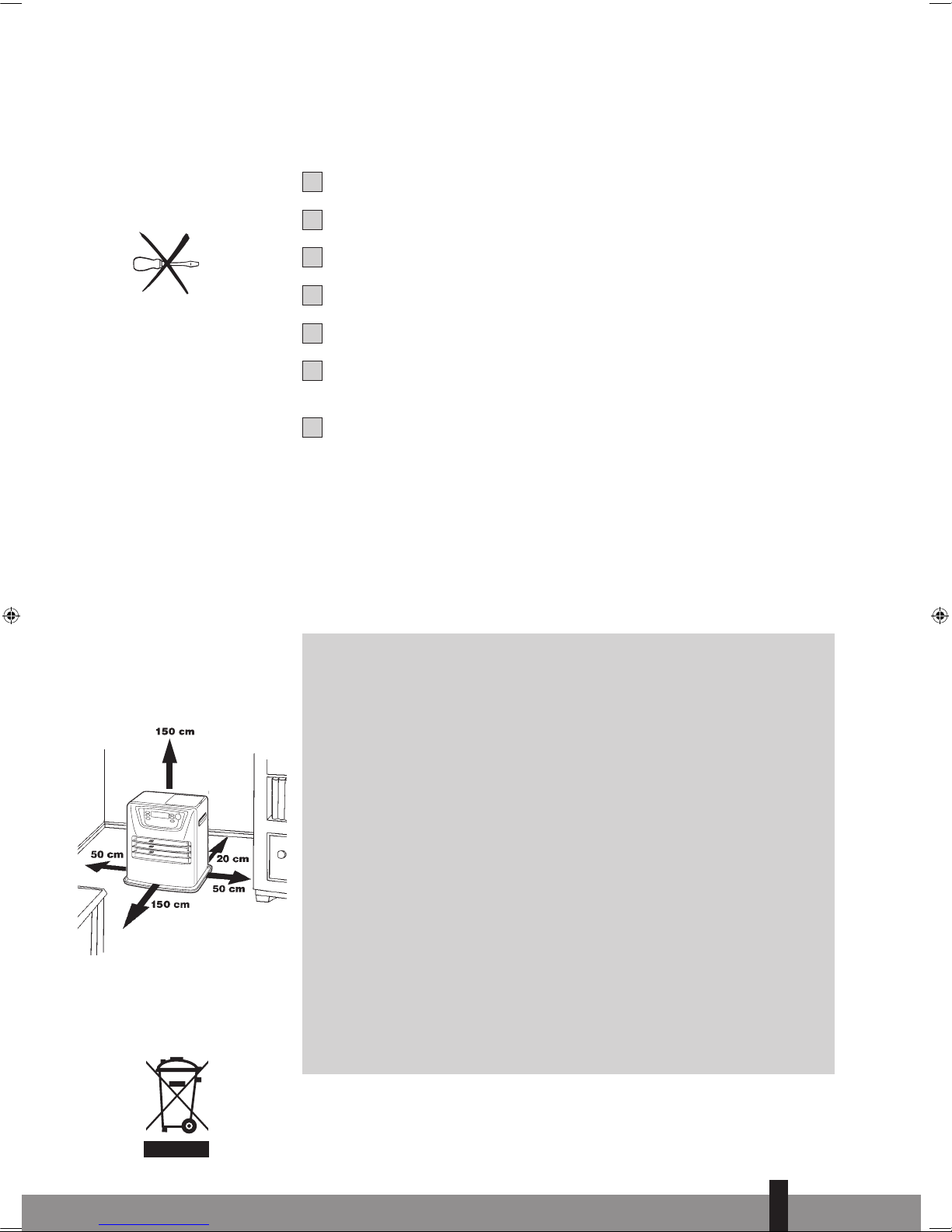

3Position the front of the heater at a distance of minimum 1.5 metres from
walls, curtains, and furniture.
4Do not use the heater in dusty rooms. You will not have optimum burning in
such rooms. Do not use the heater in the immediate surrounding of a bath,
a shower or a swimmingpool.
5Switch off the heater, before you leave or go sleeping. Unplug the heater as
well, when you go away for a longer period of time (e.g. holidays).
6 Store and move fuel only in suitable tanks and jerrycans.
7Make sure that the fuel is not exposed to heat or extreme temperature
changes. Always store the fuel in a cool, dry and dark place (sunlight will
affect the quality).
8Never use the heater in places where harmful gasses or fumes may be pres-
ent (e.g. exhaust gasses or paint fumes).
9Beware that the grid of the heater becomes hot. If the appliance is covered
there is a risk of fire.
10 Always make sure that there is sufficient ventilation.
11 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Defective electrical devices and batteries must be kept separate from household
waste. Ensure that there is effective recycling where possible. Ask you local council
or dealer for expert advice on recycling.
4
61
p052_061_SRE835E_uk.indd 61 28-06-12 11:22

1
15
R 125 E 1998 / 1999
                                             













  



cover_SRE835E.indd 6 28-06-12 11:17

D Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.zibro.com, oder setzen Sie sich mit
unserem Kundendienst in Verbindung (Telefonnummer auf www.zibro.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.zibro.com eller det lokale Kundecenter (telefon-
numre findes i www.zibro.com).
Si necesita información o si tiene algún problema, visite nuestra página Web www.zibro.com, o póngase en contacto con el servicio cliente
(hallará el número de teléfono en www.zibro.com).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.zibro.
com) ou contactez notre service client (vous trouverez l’adresse et numéro de téléphone sur www.zibro.com).
Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.zibro.com tai kysy neuvoa PVG
kuluttajapalvelukeskuksesta (www.zibro.com).
If you need information or if you have a problem, please visit the our website (www.zibro.com) or contact our sales support (you find its phone
number on www.zibro.com)
I Per informazioni e in caso di problemi, visitate il sito Web www.zibro.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero
di telefono, consultate www.zibro.com).
N Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.zibro.com. Alternativt kan du kontakte
med PVG’ forbrukertjeneste (telefonnummeret i www.zibro.com).
Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.zibro.com) of neem contact op met de afdeling
sales support (adres en telefoon op www.zibro.com).
P Se necessitar de informações ou se tiver problemas, visite o Web site www.zibro.com ou contacte o Centro de Assistência (número de telefone
o www.zibro.com)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Zibro dostępną pod adresem www.zibro.
com lub skontaktuj się z Centrum kontaktów Zibro (www.zibro.com)
S Om du behöver service eller information eller har problem med apparaten kan du besöka www.zibro.com eller kontakta Zibro kundtjänst (du
hittar telefonnumret på www.zibro.com).
Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.zibro.com ali pokličite na telefonsko (www.zibro.com).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.zibro.com adresindeki Zibro Internet sitesini ziyaret edin veya ülkenizde
bulunan Zibro müşteri merkeziyle iletişim kurun (telefon numarasını: www.zibro.com).
--- --- -- ----
-- -- --- -----
-- -- --- -----
-- ---- -- ----
-- -- --- -----
-- -- --- -----
--- --- -- ----
-- ---- -- ----
www.zibro.com
Distributed in Europe by PVG Holding B.V.
Zibro® is registered trademark of TOYOTOMI Co., Ltd. for paraffin heaters.
ZIBRO brand paraffin heaters are made in Japan and imported by PVG Holding B.V.
New 06/12 Printed in Japan
8197001921
SRE 835 E
PVG Traffic mvg©120628 man_SRE835E
cover_SRE835E.indd 2 28-06-12 11:17
