Zinwell ZIN-5005HD User manual
1
ZIN-5005HD
User’s Manual
2
Safety Instructions
This product has been engineered and manufactured to assure your personal safety.
However, improper use can result in potential electric shock or fire hazards. In order not to
defeat the safe-guards incorporated in this instrument and its accessories, please adhere
to the following instructions when installing, operating and servicing.
Power Source Warning
◆A marking label attached on the rear side of the adapter (supplied) indicates the correct
power source for this equipment. Operate this product only from an electrical outlet with
the voltage and frequency indicated on the product label. Incorrect power source may
result in a risk of electric shock or fire. If you are uncertain of the type of power supplied to
your home, consult your local power company or appliance dealer.
◆Only use the power cord and adapter provided by the manufacturer. Internal
component may be damaged if you use a different adapter to power this product. To avoid
electric shock and fire hazard, match the plug and outlet connections carefully, then fully
insert. If the plug fails to fit the outlet, please contact an electrician to update your power
outlets.
◆Do not overload electrical outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock. And to prevent power cord damage,
arrange all power cords so that people cannot walk on the cords. Do not place objects on
the cords.
◆Place this product in a location that is close enough to an electrical outlet and where
the power cord is easily accessible to be disconnected from the wall outlet.
3
Usage Warning
◆To reduce the risk of electric shock, do not remove the cover or attempt to disassemble
this product. There are no user-serviceable parts inside. Please refer all servicing to
qualified service personnel.
◆Protect this product from foreign objects. Never push object of any kind into this
product through openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock.
◆Do not expose this product to liquids, rain or moisture.
◆This product has ventilation openings that protect it from overheating. Never block or
cover these openings. And do not place this product near heat sources such as radiators,
heat registers, stoves or other products producing heat.
◆Before cleaning or wiping this product, make sure your power cord is already
unplugged from the electrical outlet. Only use damp cloth to clean this product, and never
use a liquid cleaner or an aerosol cleaner.
◆During a thunderstorm, or when this product is unused for long periods of time, unplug
power cord from the wall outlet. This will prevent damage to the product due to lightning
and power-line surges.
Service Warning
◆Refer all servicing to qualified service personnel. For damage that requires service,
please unplug your power cord from the AC outlet first, and contact your dealer or
servicing personnel to obtain service for the following conditions.
◆If there is damage to the adapter, power cord or plug.
◆If liquid enters this product.
◆If you drop this product, a heavy object falls on this product, or damage occurs to the
cover of this product.
◆If you expose this product to rain or water.
◆If this product does not operate normally by following the operating instructions.
◆ If this product exhibits a distinct change in performance.
4
Table of Contents
ⅠINTRODUCTION
Package Content 5
Specifications 6
Front View 7
Back View 7
Remote Control 8
ⅡSETTING UP FOR ZIN-5005HD
Connections 11
Connect to the Internet 11
Connect to USB Devices 13
Power On 13
Turn On ZIN-5005HD 13
Select the Video Output/Resource 13
ⅢNETWORK CONNECTIONS
Wired 15
Wireless 16

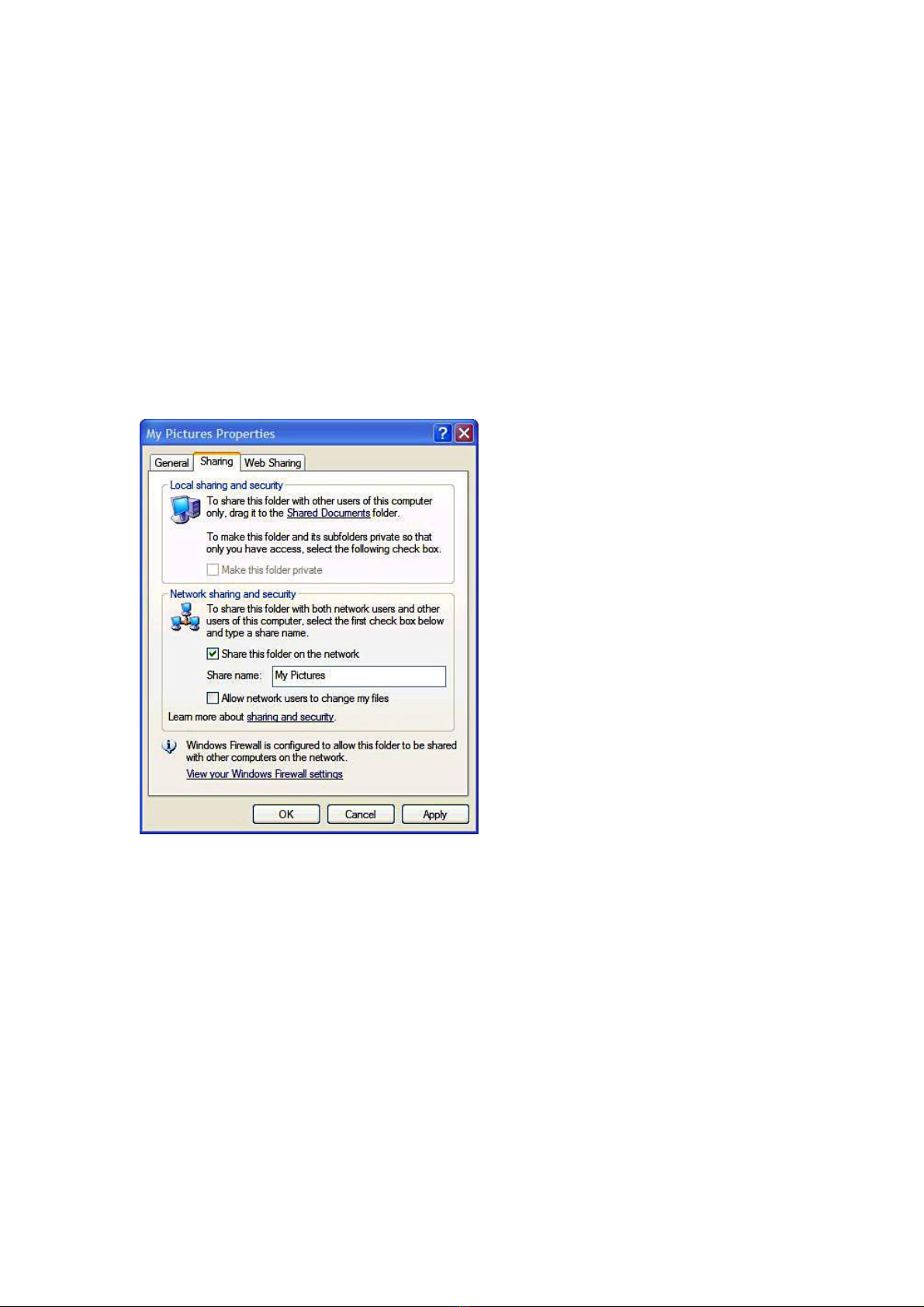

File Sharing Configuration 19
ⅣMEDIA CENTER
Select Media Sources 21
Video Playback 23
Music Playback 25
Photo Playback 26
ⅤBONUS FEATURES
Torrent Download 29
ⅥSETUP MENU
Audio 31
Video 32
System 33
Miscellaneous 34
ⅦTroubleshooting
5
1 INTRODUCTION
ZIN-5005HD is a high-definition multimedia player and streamer connecting to the
external USB ard drives and your HD TV, bringing PC and internet entertainment to the
living room. ZIN-5005HD is also a BitTorrent downloader with built-in BitTorrent engine. It
downloads media files into the attached USB hard drives corresponding to the BitTorrent
seeds already saved on the USB drive. Playing and downloading your favorite media files
is now PC-free. It supports most video/audio/image formats so you do not need to convert
downloaded media to another format. You can plug in your USB devices to the
ZIN-5005HD to play music, movies and pictures on TV by following the on-screen display
(OSD) menu. The ZIN-5005HD can also access the shared folders on the remote PCs
through the intranet (local area network) and play the digital media
files there on your TV. It supports high-definition media playback with HDMI output.

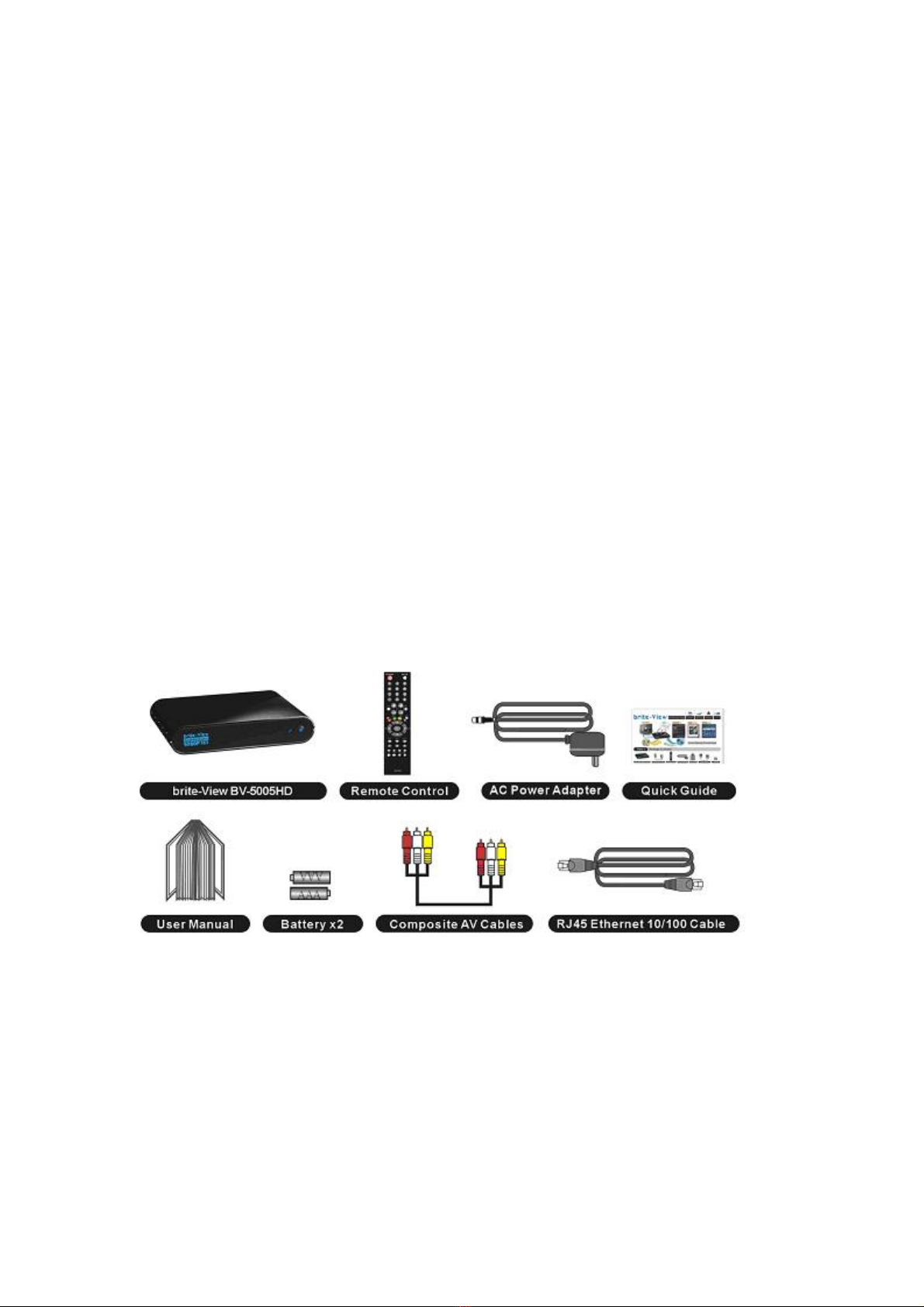

Package content
Please make sure the following items are included within your new ZIN-5005HD package.
might not be compatible with some accessories made by other manufacturers. We highly
recommend that you use only the specific accessories we
suggest.
6
Specification
Interfaces
Video Output: HDMI、YPbPr、Composite Video
Audio Output: Audio L/R、S/P DIF (Optical)
Data Transfer: USB x 2、Ethernet Port
General Specifications:
Support Media Format:
Video:
MPEG1 (AVI/MKV/TS/DAT/MPG/MPEG/VOB)
MPEG2
(MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP)
/M2TS
MPEG4 (AVI/MP4/MKV/MOV/WMV/ASF)
DivX 3/4/5/6、Xvid (AVI/MKV/MP4/MOV)
H.264/AVC
(TS/AVI/MP4/MKV/MOV/FLV)/M2TS
VC-1 (TS/AVI/ASF/WMV)/M2TS
WMV9 (ASF/WMV)
Real Video 8/9/10 (RM/RMVB)
Audio:
MP3、MPEG Audio、Dolby Digital、DTS 、
WMA、PCM、LPCM、ADPCM、FLAC、WAV、
AAC、RA、OGG、MKA
Photo: HD JPEG、GIF、PNG、BMP、TIF、TIFF
Subtitle: SRT、SMI、SUB、SSA、IDX+SUB
USB Device File Systems:
EXT3、NTFS、FAT16/32
Decoding: Up to 1080p (RMVB up to 720p)
Output: Up to 1080p
Dimension: 204 mm× 145.4 mm× 40 mm
Power Supply: 100~240V ±10% input voltage/ 12V @ 2A
7

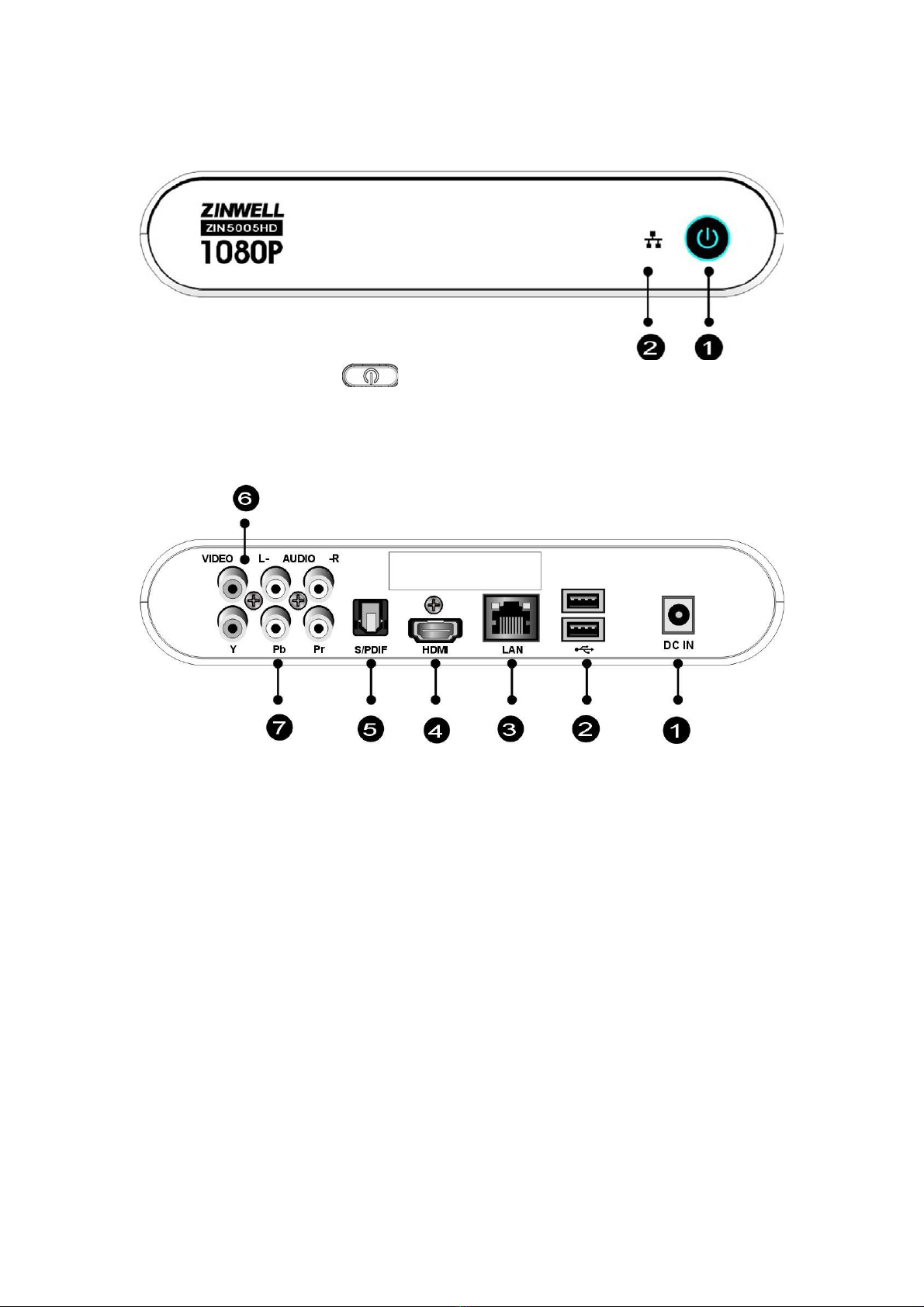

Front View
Power Press to turn the ZIN-5005HD on.
Network LED The LED blinks when ZIN-5005HD accesses to Network.
Back View
DC IN: Connects to the DC output of the power adapter.
USB Port: Plug the supported USB devices into USB ports, such as USB hard drives,
cameras, camcorders and wireless USB dongles.
LAN: Connects to the RJ-45 Ethernet 10/100 based network. Not compatible with the
telephone line.
HDMI OUT: Connects to the HDMI jack on the display; a single cable transmits both
audio and video data.
S/PDIF: Connects the ZIN-5005HD to a display that has an optical digital audio port,
using an optical digital audio (also called S/PDIF) cable.
AUDIO L/R/ VIDEO: Connects to the display with the VIDEO IN/ AUDIO L/R IN jacks
on the display using VIDEO (Yellow)/ AUDIO L (White)/R (Red) cables.
Y/Pb/Pr: Connect to a Y/Pb/Pr-compatible display using three video (Y/Pb/Pr) and two
audio jacks (AUDIO L/R), through a component video cable with green, blue, and red
connectors.
8
REMOTE CONTROL
9
REMOTE CONTROL

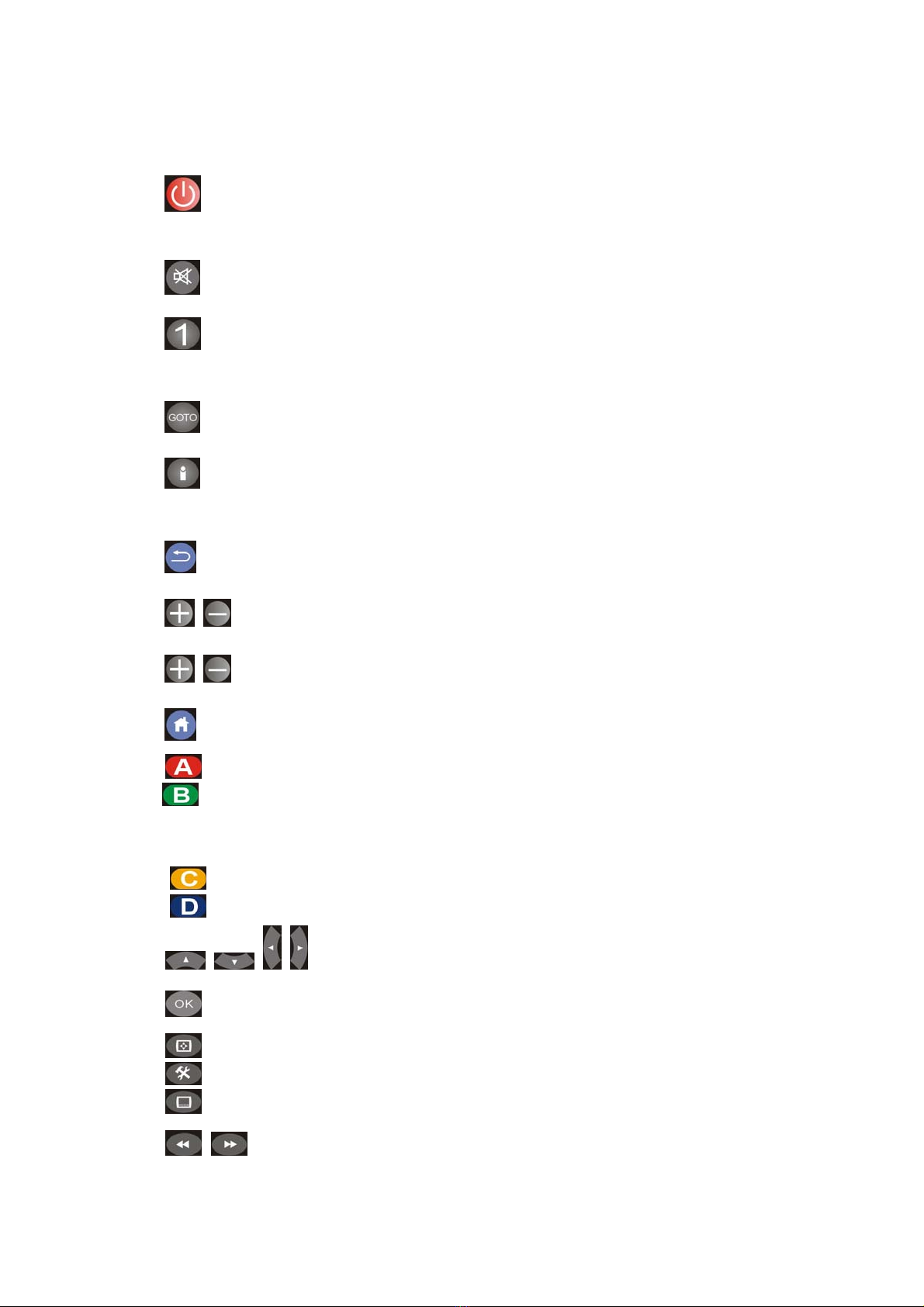

1 POWER Press to turn on the ZIN-5005HD; press
again to switch to stand-by mode.
2 MUTE Press to mute the sound.
3 Number 0-9 number keys for selecting desired
options.
4 GOTO Video/movie chapter selection.
5 INFO Display the information of media files while
in play mode.
6 BACK Return to the previous display.
7 VOL Increase/decrease the volume.
8 CHANNEL Reserved keypad.
9 HOME Hot key to the main OSD menu.
10 REPEAT Enable/disable repeat of file playback.
REPEAT A-B Press once to mark desired repeat point A;
press again to mark desired repeat point B;
press yet again to turn this feature off
ANGLE Switch DVD display angles.
DVD MENU Show DVD Menu.
11 Navigate through menu screen or media libraries.
12 OK Confirmorselect.
13 ASPECT Adjust aspect ratio
14 SETUP Entersetupmenu
15 SUBTITLE Switch subtitle files.
16 MULTI-FUNCTION: Refer to the
10
instructions in the screen.

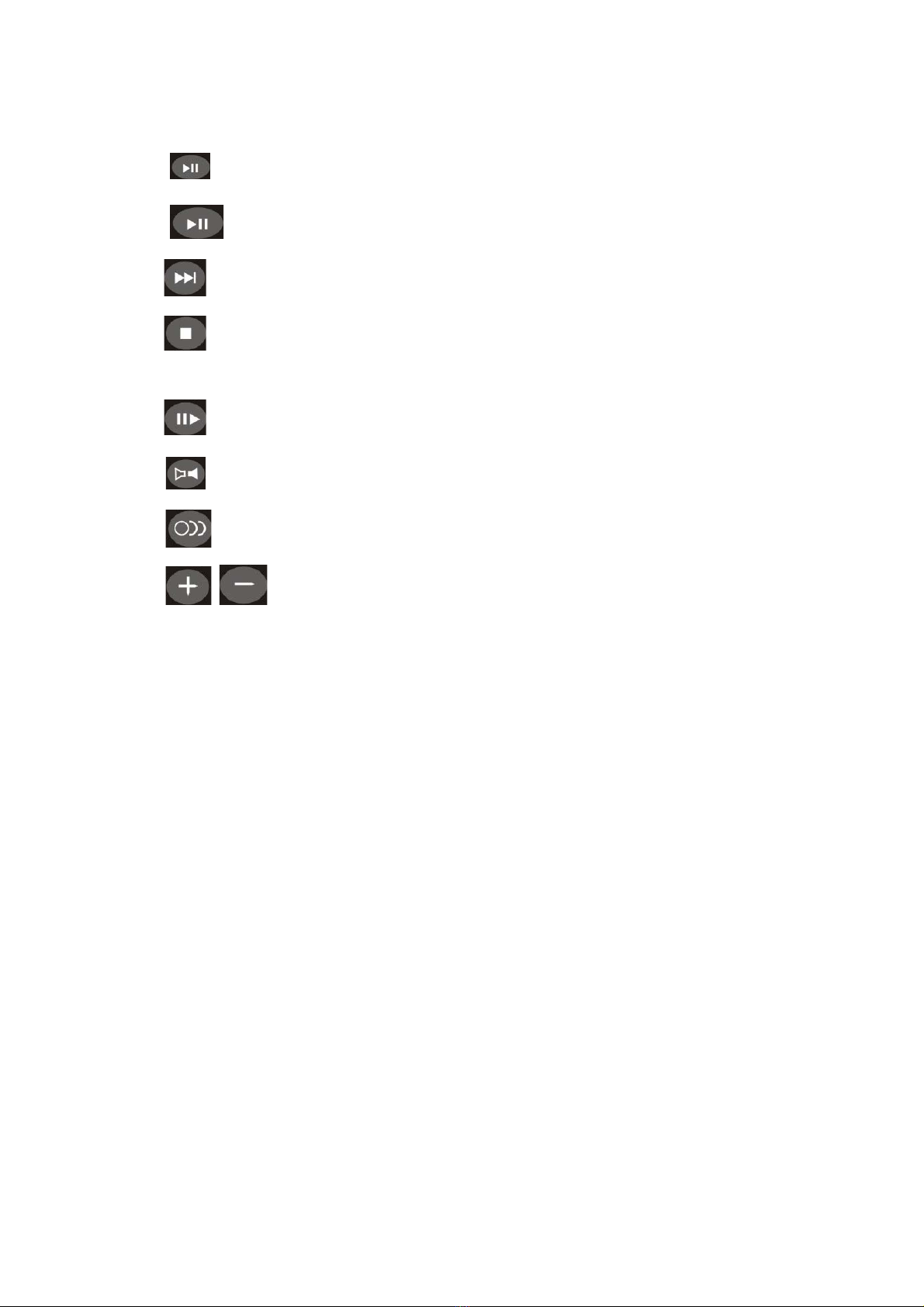

PALY/ PAUSE Play/pause selected file.
PREV Return to previous file.
NEXT Go to next file.
STOP Stop playback and return to the previous
screen.
SLOW MOTION Play films in slow mode.
17 L/R Enable/disable Left/Right speaker.
18 AUDIO Switch audio outputs.
19 ZOOM Zoom video or image display on screen.
11
2SETTING UP ZIN-5005HD
Step1: Cable connections.
Match the cables to the connections on your TV or display. Your choices
of connection include:
HDMI For both audio and video output
RCA Cable For composite video (yellow) and stereo audio (white and red)
Y/Pb/Pr (RGB) For component video output
S/PDIF For audio output
Step2: Connect the ZIN-5005HD to the home network through
wired LAN (Option A) or wireless LAN (Wi-Fi 802.11 b/g/n)
(Option B)
12

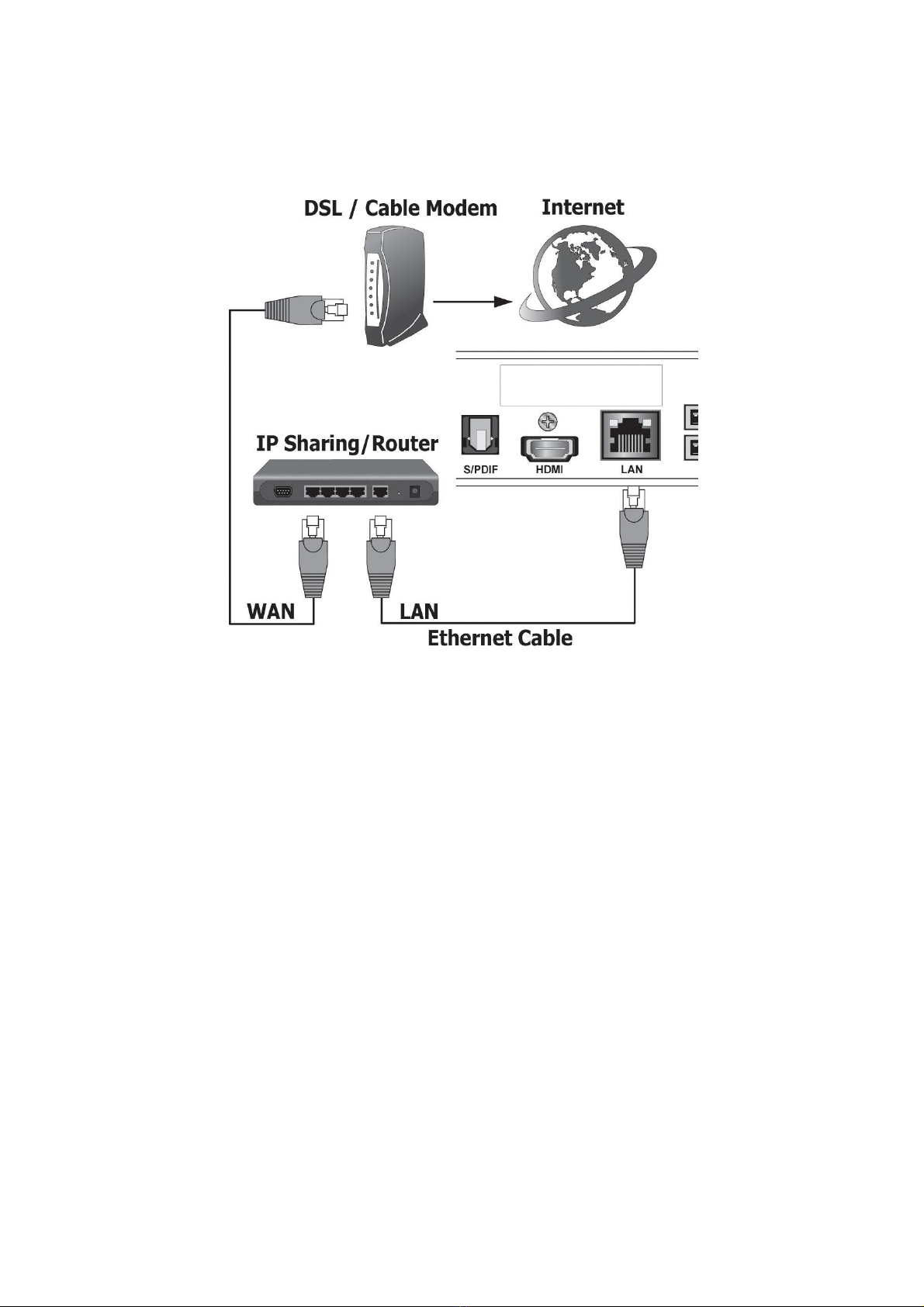

A. Plug the Ethernet cable to the “LAN” jack on the rear panel of ZIN-5005HD, for
wired Internet connection. ZIN-5005HD will detect the network automatically.
B. If you have the optional wireless USB dongle we approved, it is possible to
connect ZIN-5005HD to the network wirelessly using Wi-Fi 802.11 b/g/n. You
need to plug the USB dongle into one of the USB port on the front panel of the
ZIN-5005HD and connect to the internet through wireless IP sharing router.
You may need to know your wireless AP, name of the router, and encryption
keys in order to set up correctly.
13

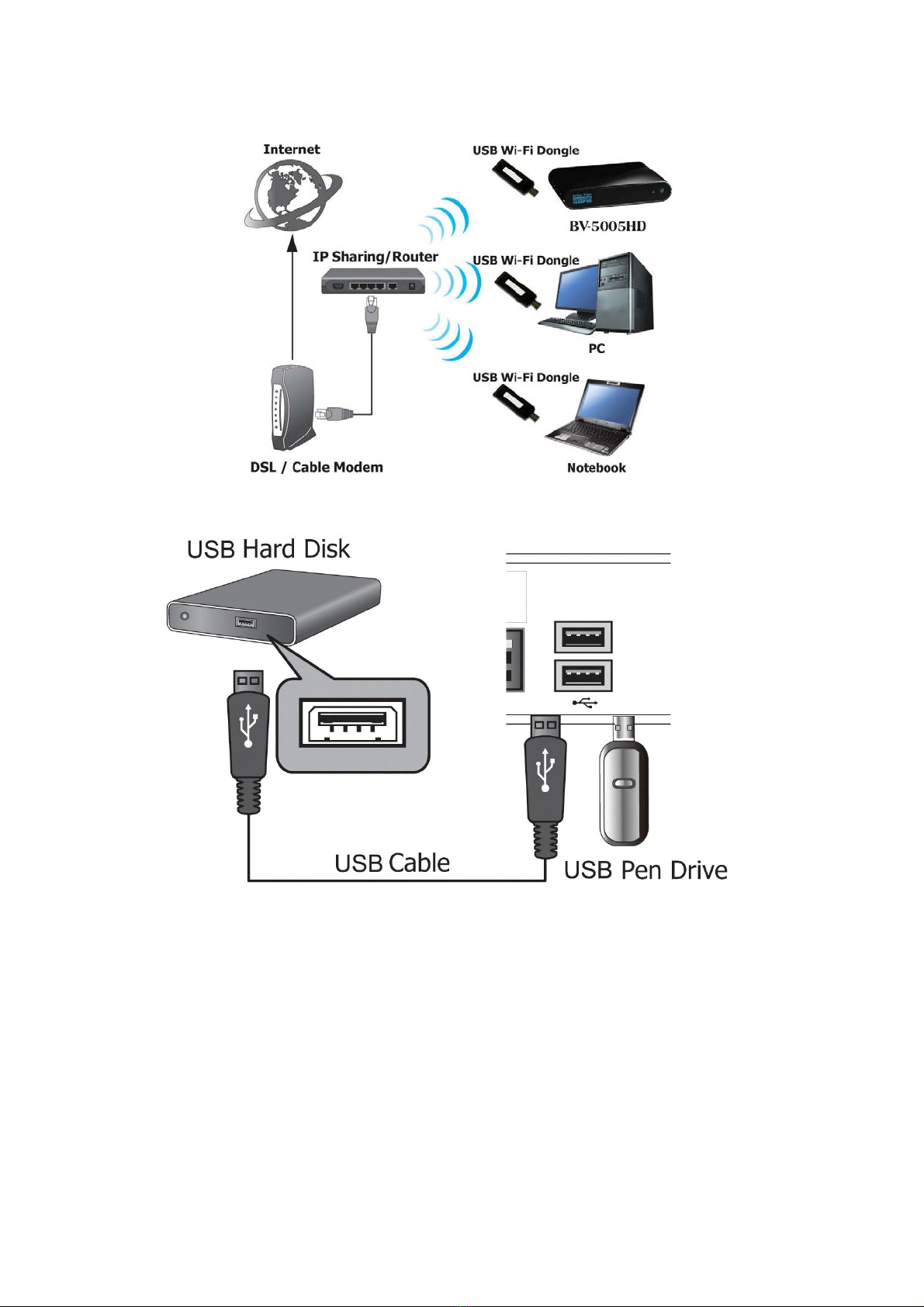

Step3: Connect USB devices
Step4: Power cord connection
Plug one end of the power cord into the back of the ZIN-5005HD and the other
end into a
power outlet. ZIN-5005HD will start automatically without pressing any other
button once
the power is connected.
Step5: Switch your TV Input/Source
After choosing the desired video and audio connection, you need to select
14
appropriate video input mode using the remote control for your TV/display to
switch to the corresponding video output by pressing the Input/Source button on
the remote control.
3 Network Connections
▲Network Connections: needed only when using “PC Media” and “Download
Media” features.
If your wired network equipment such as the IP Sharing router or AP (Access
Point), uses DHCP to assign IP address, by default the ZIN-5005HD will
automatically request the IP and other related information to set up ZIN-5005HD
15
over the network in DHCP mode (under Setup> Network >Wired). If your
network does not have DHCP server, switch to the Static IP mode (under Setup>
Network >Wired) and set up various parameters manually. If you have a
compatible wireless USB dongle, and have already set up the wireless router/AP
according to the instructions that come with the dongle, please enter Setup>
Network> Wireless mode to input the WEP or WPA keys.

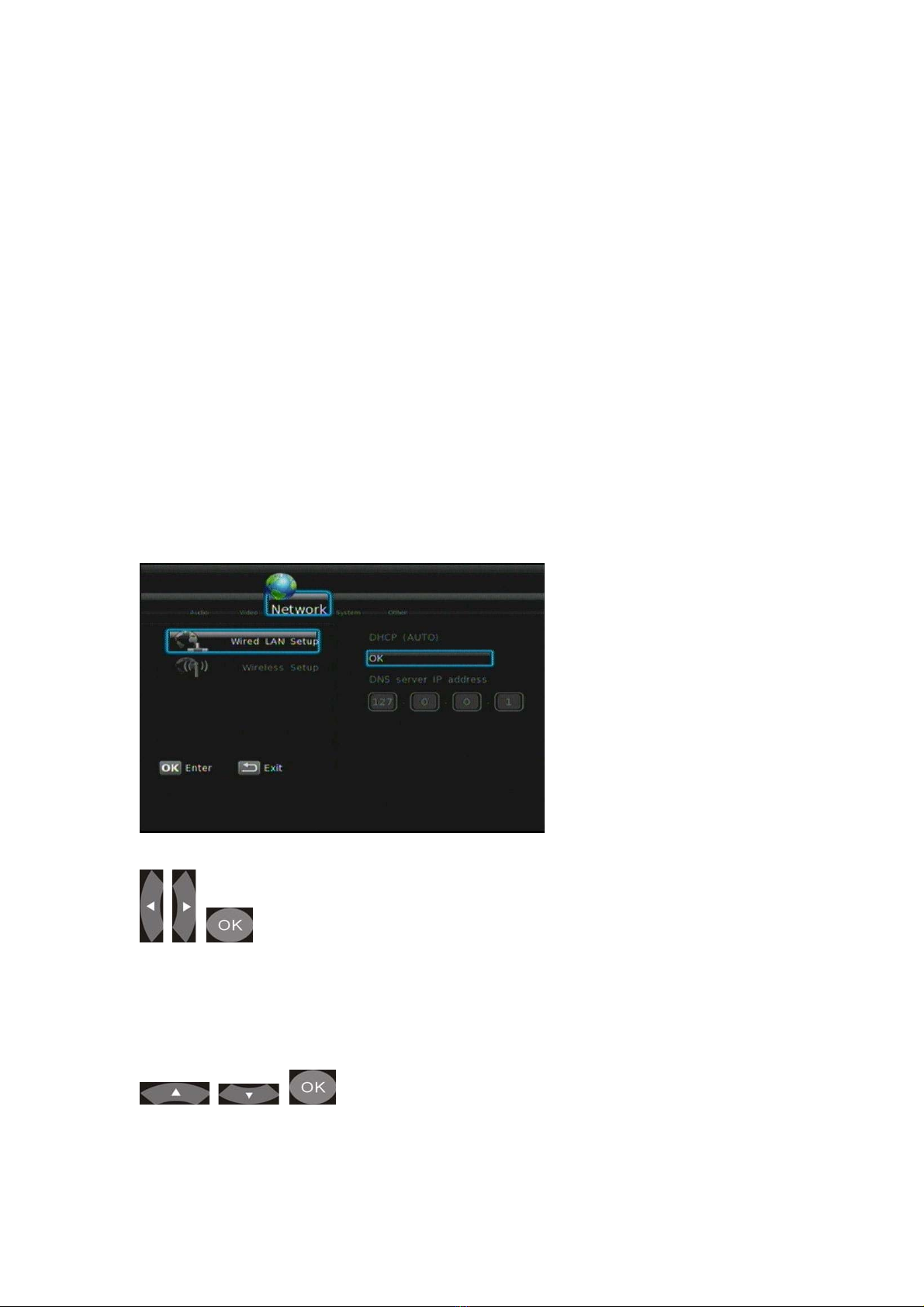

Wired Network Setup
> DHCP
+ Step 1: To access “Setup” on the main menu. Select
“Network”.
Step 2: Select “Wired” on the Network menu. Select
“DHCP”.
+ Step 3: Select Yes to implement DHCP network
setting. ZIN-5005HD will automatically receive its
IP address from a DHCP sever that is built into the
16
access point or IP sharing router.
> Static IP
+ Step 1: Select “Wired” on the Network menu.
Select “Static IP”.
+ Step 2: Input the value IP Address, Subnet
mask, Gateway, and DNS text box
respectively.
PS Please acquire information of these setting values from your ISP（Internet
Service Provider）first.

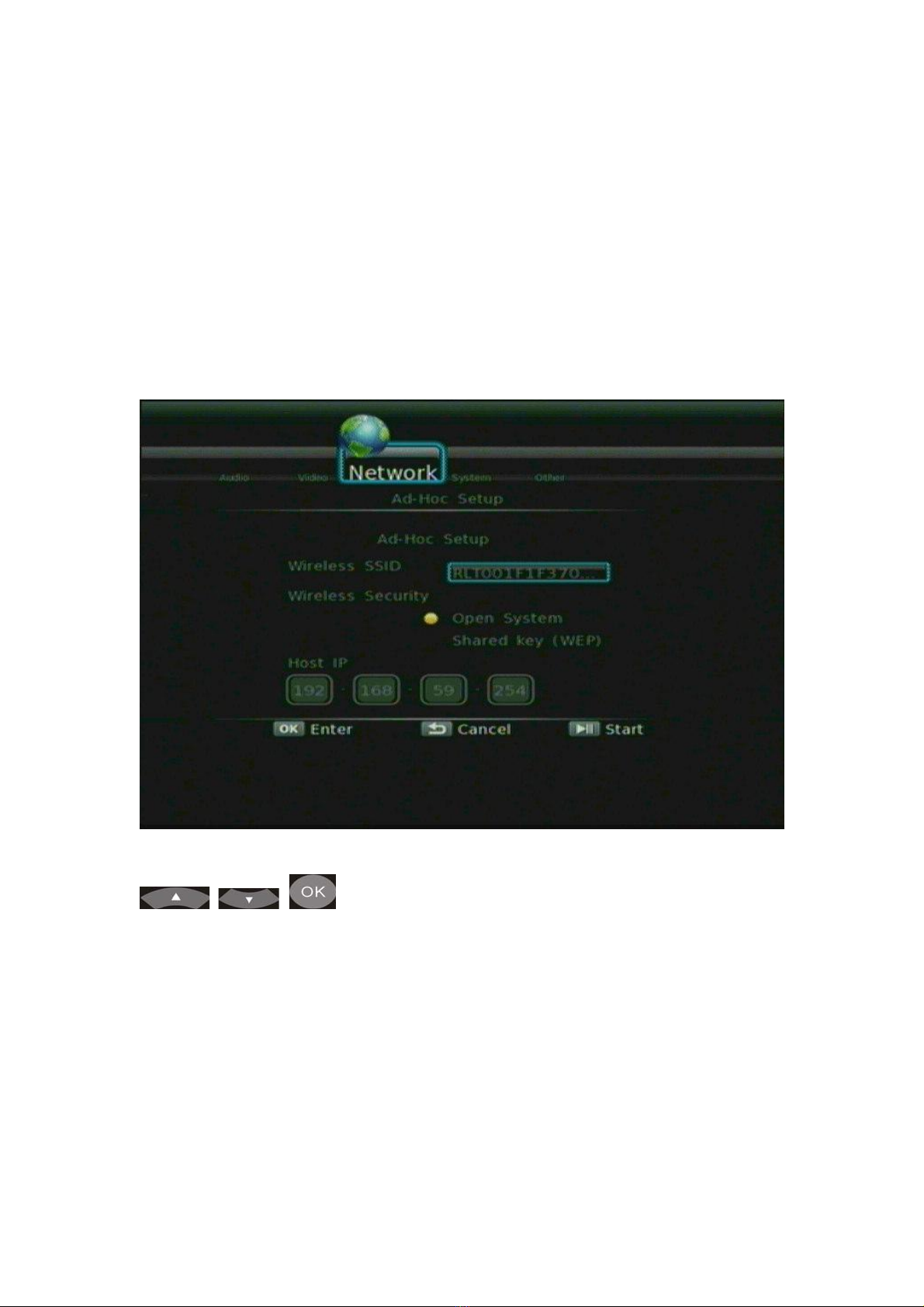

Wireless Network Setup
17
+ Step 1: Select “Wireless setup” on the Network
menu..
+ Step 2: ZIN-5005HD provides you multiple profiles
for use across multiple networks.
Note:
_ ZIN-5005HD supports WPA-PSK and WPA2-PSK encryption modes only.
_ Please use I-BT approved WI-FI dongle for wireless connection.
> Infrastructure (AP)
ZIN-5005HD performs a list of current wireless network connections- “SSIDs”.
Along with its security protocols (WEP/WPA/WPA 2 key) and signal strength.
+ Step1:Selectyourpreferredwireless
network connection.
+ Step 2: If an access key is required for the
network connection, the keyboard will
18
pop up.
Once the wireless network setup is successful, the “SETUP SUCCESSFUL”
screen will appear.
> Ad-Hoc Setup
+ Rename SSID Rename your wireless network
connection.
Wireless Security Set your wireless network as an
open system or have it protected by
WEP key first, in order to connect
the ZIN-5005HD to the network.
19
File sharing Configuration
To activate this feature, please make sure:
The◆ZIN-5005HD is connected to the network;
The network is properly set up. For more information on this part, please refer◆
to “Step 2” in “Setting up ZIN-5005HD” section, and “Network” under “Setup
Menu”.
To allow the ZIN-5005HD to access folders on your computer, you need:
1) ZIN-5005HD already connected to the network
2) to designate the folders/files on your PC as shared resources.
Please refer to Microsoft’s official website:
http://www.microsoft.com/windowsxp/using/networking/setup/home net.mspx
to see the initial and detailed process of Home Network Setup in Windows XP.
Please refer to the following instructions to allow the ZIN-5005HD to access the
shared folders on the remote PC.
Step 1: Right click on the folder to be shared and select Sharing and Security.
Step 2: If this is the first time you intend to share a folder, Windows XP will prompt
a warning message, urging you to use the Network Setup Wizard for safety
purpose. Choose to either run the Wizard or do it yourself. XP will display
another warning. If you want the firewall enabled, select Use the wizard to
enable file sharing. Otherwise, select enable file sharing.
Caution: File sharing may lead to security problems since, by definition, it gives other users access to the
content of a part of the hard drive. As a result, it is essential that you share only folders for which it would not be
extremely important if their contents are revealed.
20
Step 3: You may now specify a “Share Name”, which will be used for users on the
network to access the shared folder. The icon of the shared folder will be
changed to showing a hand holding the folder.
If your operating system is Windows Vista, please refer to the following
instructions:
(1) Open the Control Panel and then open Network and Sharing Center.
(2) Click the down arrow to the right of File Sharing to expand it.
(3) Click Turn on file sharing and then click Apply.
Other manuals for ZIN-5005HD
3
Table of contents
Other Zinwell Media Player manuals
