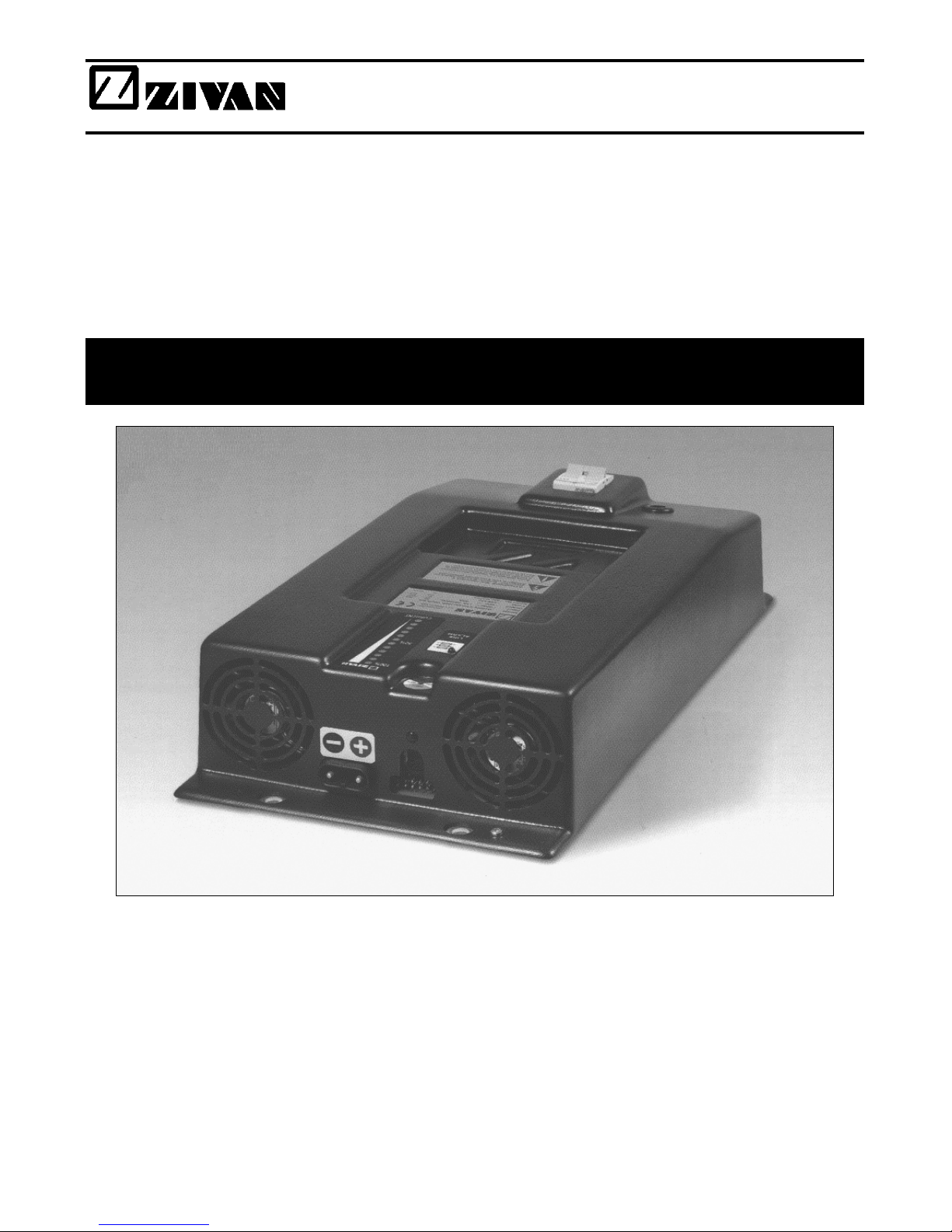

Zivan NG5 User manual

BATTERY CHARGER
BATTERY CHARGER
NG5 – NG7 – NG9
Installation and User Manual

Battery charger NG5-7-9
2D01090-02
ATTENTION: To reduce the risk of
electric shock, do not remove cover.
Refer servicing to qualified service personnel.
Disconnect the mains supply before connecting
or disconnecting the links to the battery.
Read the Instruction Manual carefully
before use. Verify that the selected
charge curve is suitable for the type
of battery You have to re-charge.
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the equipment’s
enclosure; that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the equipment.
This product is covered by warranty.
The relative warranty certificate is attached to the Instructions Manual.
If the Manual is not provided with this certificate, please ask your retailer for a copy.
For further references, please write the serial number in the proper space:
Serial No._____________________
Information contained in this Manual relates to ZIVAN S.r.l. property which reserves
the right to supply for the exclusive use of customers.
No other use is allowed without a written authorization supplied by ZIVAN S.r.l.
ZIVAN S.r.l. will be not responsible for inaccuracies contained in this manual due to
print or translation errors. ZIVAN S.r.l. has the right to make changes or
improvements, also for the user interest, without prejudicing the essential
characteristic of operation and safety.
Copyright ©2003 by ZIVAN S.r.l.
First Edition

Battery charger NG5-7-9
D01274-00 3
Installation and safety instructions
Battery charger NG5-7-9 has been designed to provide safety and reliable. It is necessary to observe the
following precautions in order to avoid damage to persons and to the battery charger:
• Read the installation instructions contained in this Manual carefully. For further information put the
Manual in a proper place.
• Fix the battery charger to a stable surface through the appropriate holes inserted on the fixing
flanges. In case of installation on a vehicle it is advisable to use antivibration supports.
• Preferably the charger should be installed in the vertical position with the fan facing up. The
horizontal installation is allowed. Never install in the vertical position with the fan facing down.
• Ensure all ventilation ports are not obstructed, to avoid the overheating. Do not put the battery
charger near heat sources. Make sure that free space around the battery charger is sufficient to
provide adequate ventilation and an easy access to cables sockets.
• Protect the battery charger from ingress of water. Do not pour liquids inside the case.
• Verify that the available supply voltage corresponds to the voltage that is stated on the battery
charger name plate. In case of doubt, consult a retailer or local Electric Supply Authority.
• For safety and electromagnetic compatibility, the battery charger has a 3-prong plug as a safety
feature, and it will only fit into an earthed outlet. If you can not plug it in, chances are you have an
older, non-earthed outlet; contact an electrician to have the outlet replaced. Do not use an adapter to
defeat the earthing.
• To avoid damaging the power cord, do not put anything on it or place it where it will be walked on. If
the cord becomes damaged or frayed, replace it immediately.
• If you are using an extension cord or power strip, make sure that the total of the amperes required by
all the equipment on the extension is less than the extension’s rating.
• Disconnect the mains supply (turn off the switch) before connecting or disconnecting the links to the
battery.
• To recharge Lead Acid batteries: WARNING: Explosive Gas – Avoid flames and sparks. The battery
must be positioned in a correctly cooled place.
• Do not use to charge batteries installed on board of thermal engine cars.
• Avoid recharging of non-rechargeable batteries.
• Verify that the nominal voltage of the battery to be re-charged corresponds to the voltage stated on
the battery charger name plate.
• Verify that the selected charging curve is suitable for the type of battery to be re-charged. In case of
doubt, consult Your retailer. ZIVAN S.r.l. will not accept any responsibility in case of mistaken choice
of the charging curve that may cause irreversible damage to the battery.
• In order to avoid voltage drop, thereby assuring 100% charge at the battery, the output cables must
be as short as possible, and the diameter must be adequate for the output current.
• Do not try to service the battery charger yourself. Opening the cover may expose you to shocks or
other hazards.
• If the battery charger does not work correctly or if it has been damaged, unplugged it immediately
from the supply socket and from the battery socket and contact a retailer.

Battery charger NG5-7-9
D01274-00 4
Operating principle
The battery charger considerably affects battery life and performances, which is the main part of every
electric vehicle.
A non controlled traditional battery charger (rectifier) provides a simple direct AC/DC conversion.
Disadvantages of this solution are:
• Low efficiency
• Large physical size
• Long charge times
• Charge depends on changes in the mains supply (with
overcharge danger in the final charge phase)
In modern battery chargers these disadvantages are solved with an indirect AC/DC conversion, by
passing through an intermediate DC/DC conversion. This is the usual method of operation for
the SMPS (Switching Mode Power
Supply) at high power. This solution
gives a good performance for minimum
costs and physical dimensions using
switches more faster and powerful
(modern technology).
The main advantages of this solution are:
• High efficiency
• Reduced dimensions
• Short charge times
• Charge independent from the changes of the mains supply
• Electronic control that provides the desired charge curve
The advent of electrical problems (due to commutation) has imposed the introduction of adequate filtering
to satisfy requirements of EMC 89/336/EEC directive for electromagnetic compatibility.

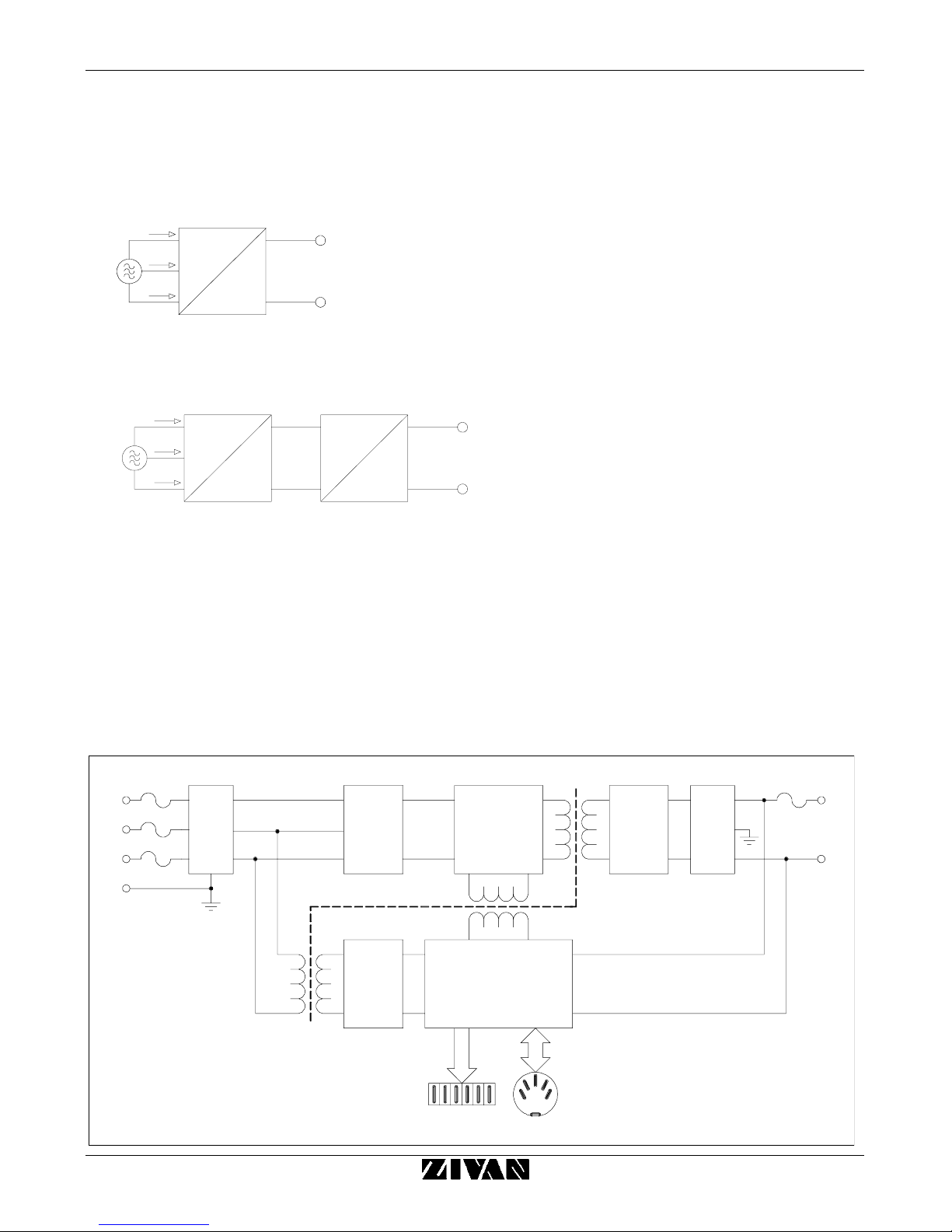

Block Diagram
F0
F2
F4
E
T
S
R
STAGE
POWERF1
LOGIC
CONTROL
FILTER
FILTER
FILTER
RECTIFIER
RECTIFIER
RECTIFIER
AND
AND
AND
FILTER FILTER
EMI EMI
Batteria
i
i
i
vDC
AC
Batteria
i
i
i
v DC
DC
DC
A
C

Battery charger NG5-7-9
D01274-00 5
Charging Level Indicator
RED LED shows that the battery is in the initial charging phase.
YELLOW LED shows that the battery charger has reached 80% of charge.
GREEN LED shows that the battery has reached 100% of charge.
Further information can be found in the description of the Charging Curve.
Line Alarm Indicator
This RED LED turns on when there is a phase missing on the mains.
In this situation the battery charger will not operate and the charging level indicator
changes to yellow.
(Check mains and input fuses).
Alarms (Two-tone audible message)
An two-tone audible message and the flashing LED shows that an Alarm situation has occurred:
Condition Alarm Type Description (Action)
Audible message +
RED flash Battery Presence Battery disconnected or not in conformity. (Verify the connection and the nominal voltage).
Audible message +
YELLOW flash Thermal Sensor The thermal sensor is disconnected during the re- charge or it is out working range. (Verify the
connection of the sensor and measure the temperature
of the battery).
Audible message +
GREEN flash Timeout Phase 1 and/or Phase 2 have a duration in excess of the maximal allowed. (Verify the battery capacity).
Audible message +
RED-YELLOW flash Battery Current Loss of output Current control. (Failure of the control logic).
Audible message +
RED-GREEN flash Battery Voltage Loss of output Voltage control. (Battery disconnected or failure of the control logic).
Audible message +
YELLOW -GREEN flash Selection An unavailable configuration has been selected (Verify the selector’s position)
Audible message +
RED-YELLOW-GREEN
flash
Thermal Overheating of semiconductors. (Verify the fan
operation).
When there is an alarm the battery charger stops supplying current.
Thermal Sensor and/or External Indicator
Thermal Sensor and External Indicator are Options that have to be connected to the 5 poles socket 180°.
Unless otherwise stated, the compensation of the Battery Voltage in function of
the temperature of the Thermal Sensor is of -5mV/°C for battery cell.
The control range of the Thermal Sensor goes from -20°C to +50°C.
The External Indicator reflects exactly the LED Indicator which is placed on the
equipment.
Further information can be found in the description of the Charging Curve.
100%
START
80%80%
ALARM
LINE

Battery charger NG5-7-9
D01274-00 6

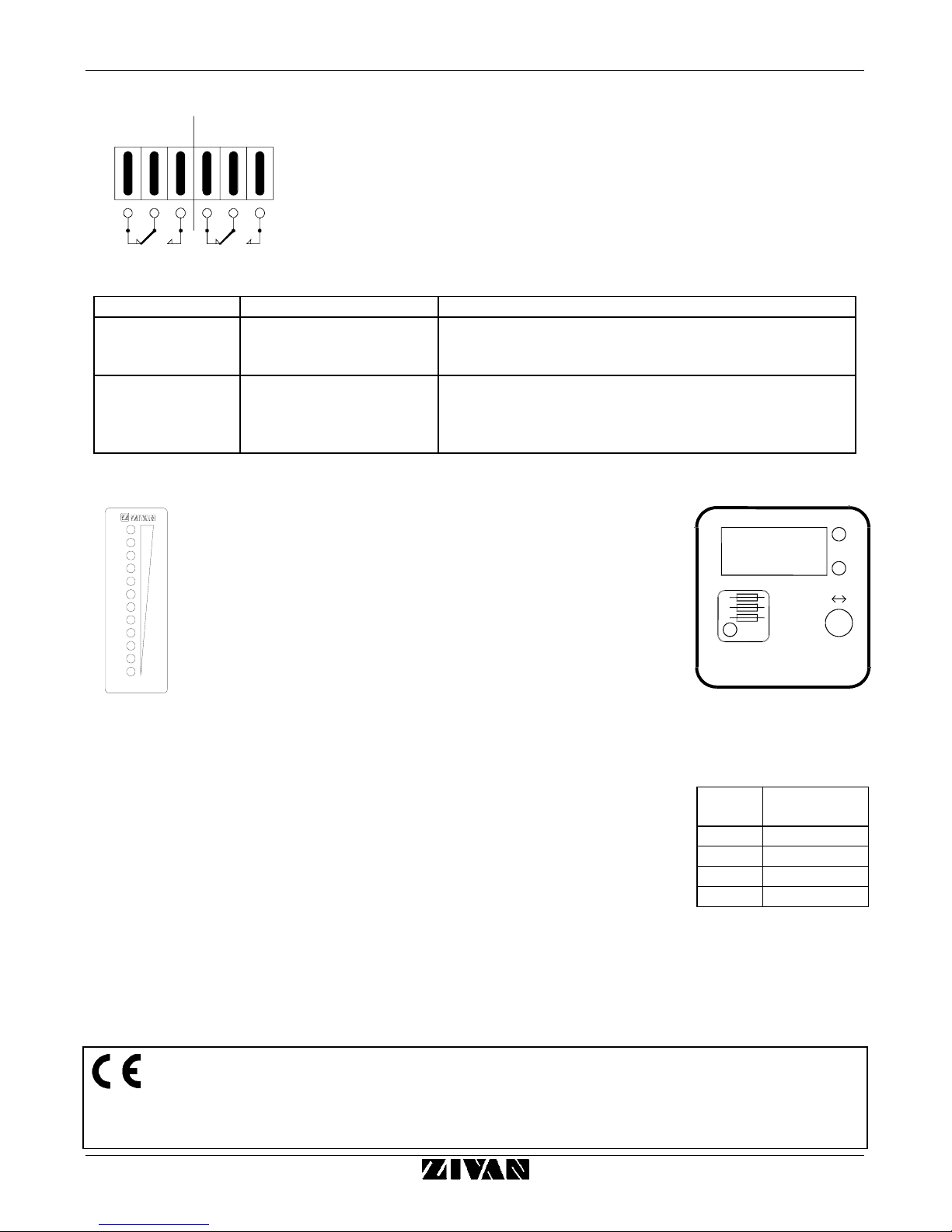

Auxiliary Contacts
Technical Features: changeovers contacts
0,3A 125VAC
0,3A 110VDC
1A 30VDC
Connector: faston 6,3 ×0,8 mm
Unless otherwise stated, the auxiliary contacts provide the following functions:
Section Function Description
AUX1 Mains Presence When the equipment is switched on, the contact
Normally Open (NO) CLOSES and instead the contact
Normally Closed (NC) OPENS.
AUX2 End of charge or Trickle
Phase When the Stop Phase or the No Stop Phase is reached, the contact Normally Open (NO) CLOSES
and instead the contact Normally Closed (NC)
OPENS.
LED Bar Graph and Digital Instrument
The LED Bar Graph is an Option that shows a percentage
indication of output current in comparison with its max. value.
The Digital Instrument indicates the output tension expressed in
Volt (V) and the output current expressed in Ampère (A).
The corresponding unit of measure of the visualised numbers is
indicated by the LED V or A.
By means of the MODE button, it is possible to select A or V to
be visualised.
N.B. The instrument indicates by -L0 the output tensions,
which are inferior to the nominal value of the battery.

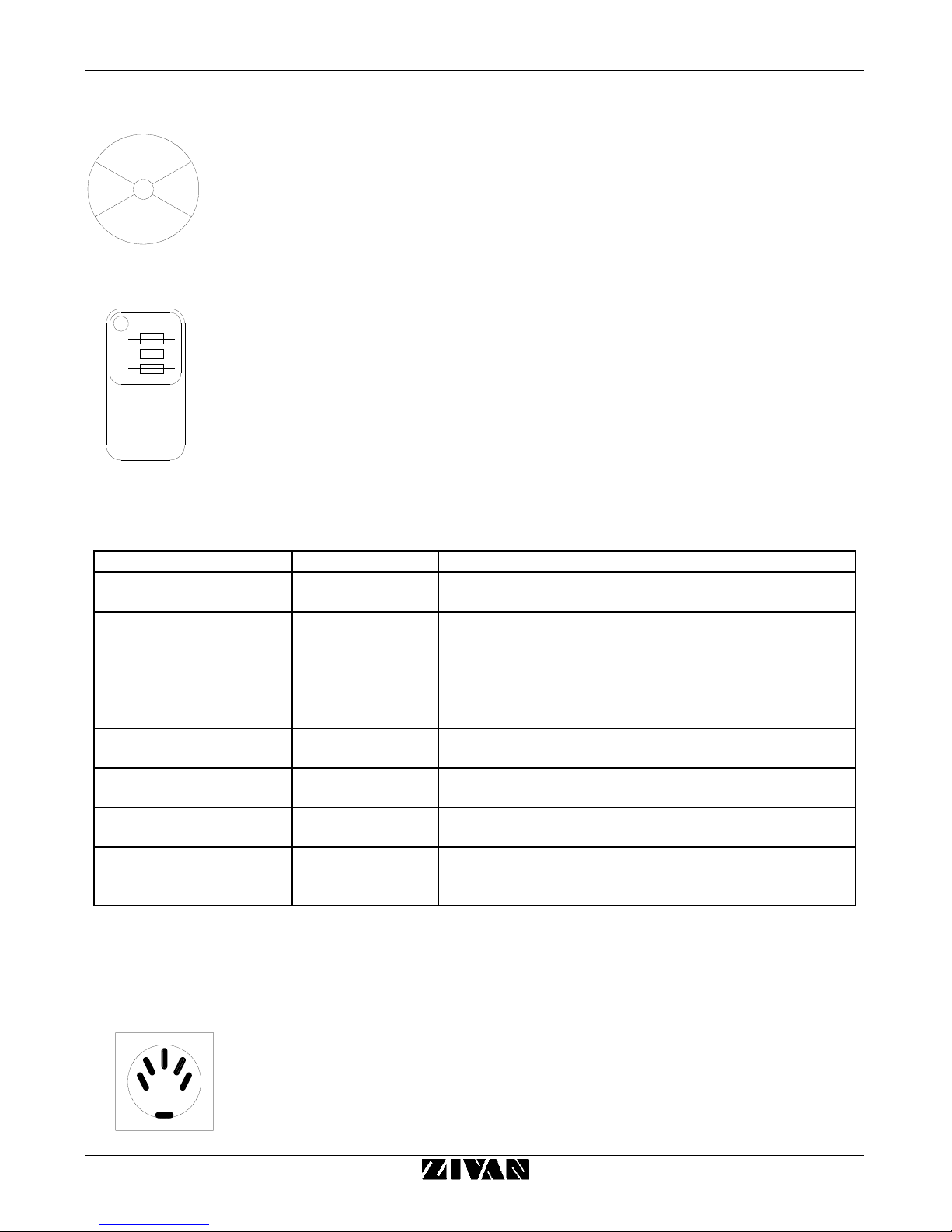

Battery
A battery is characterised by two sizes: tension and capacity.
Tension:
Each element has a nominal tension, which depends on the type of battery (no
matter what size).
In order to reach higher tension, many elements are connected in series, so
creating a “BATTERY” of elements.
The number of elements is calculated by dividing the nominal tension of the
battery for the tension of each single element in the table:
Capacity:
It is the quantity of electric charge that the batteries can supply to an external circuit before the tension
decreases under the final limit value and it is obtained by multiplying the intensity of the discharging
current I, expressed in ampere (A), for the discharging time t expressed in hours (h): C = I x t.
The traction battery capacity is normally referred to the discharging system of 5h: C5 = I x 5h.
The capacity values that can be recharged by the battery chargers can be found in the description of the
Charging Curve (this value is not present in the curves able to charge any capacity).
:
This device is in conformity with the Low Voltage directive 73/23/EEC
and EMC directive 89/336/EEC and their further modifications.
NOCNCNO
C
NC
A
UX2
A
UX1
Type Nominal
Tension
Pb 2 V/cell
NiCd 1,2 V/cell
NiMH 1,2 V/cell
NiZn 1,714 V/cell
A
V
A
V
MODE
A
LARM
LINE
CURRENT
50%
100%

Battery charger NG5-7-9
D01274-00 7
Mechanical dimension
105130
270 470
550
N.B. All dimensions are expressed in mm.
Drilling details
UP

Advised Installation
N.B. All dimensions are expressed in mm.
16
9
16
70
70
518 550
130
260

Battery charger NG5-7-9
D01274-00 8
TECHNICAL FEATURES
Ta=25°C unless otherwise specified
Mains side
Description Symbol Test Condition Value and/or
Range Unit
Supply Voltage Three-phase Vin - 400 ± 15% Veff
Frequency f -
50 ÷ 60 Hz
Absorbed Maximum Current per
phase Ifmax P = Pmax 10 (NG5)
14 (NG7)
18 (NG9)
Aeff
Inrush Current - Vin=400Veff < 2,35 A
Power Factor cosϕP = Pmax 0,72 -
Absorbed Minimum Power Pinmin End of charge < 10 W
Absorbed Maximum Power Pinmax P = Pmax 5 (NG5)
7 (NG7)
9( NG9)
kW
Battery side
Description Symbol Test Condition Value and/or
Range Unit
Output current I - See curve -
Maximum output current I1 Phase 1 See curve A
Output current ripple - I = I1 < 5% -
Absorbed current IaEquipment turned off < 0,5 mA
Output voltage U - See curve -
Constant output voltage U1 Phase 2 See curve V
Thermal compensation of output
voltage dU1/dT Phase 2 -5 mV /
(°C·cell)
Operating range of Temperature
Sensor ∆T - from -20 to +50 °C
Output voltage ripple - U = U1 < 1% -
Maximum power supplied Pmax U = U1, I = I1 4350 (NG5)
6100 (NG7)
7830 (NG9)
W
Output capacity C - Depend on the
model (>0,2) mF

Battery charger NG5-7-9
D01274-00 9
General
Description Symbol Test Condition Value and/or
Range Unit
Operating range of temperature ∆T - from -20 to +50 °C
Maximum relative humidity RH - 90% -
Switching frequency fc- 25 ± 5% kHz
Efficiency η At each operation
condition > 87% -
Maximum size a×b×c Without connecting
cable 550×270×120 mm
Weight -
Without connecting
cable 9 kg
Enclosure class - - IP20 -
Protection and Safety
Description Symbol Test Condition Value and/or
Range Unit
Insulation - Mains to Battery side 1250 VAC
Insulation - Mains side to Earth 500 VDC
Insulation - Battery side to Earth 500 VDC
Leakage current ILSupplied equipment < 1 mA
Input fuses F0-F1-F2 Inside the equipment 20 (NG5)
20 (NG7)
25 (NG9)
A
Output fuse F4 Inside the equipment about 1,2×I1 A
Minimum output voltage of operation
(Battery Detector) - Equipment turn on 1,5 V/cell
Maximum output voltage Um Phase 3 (IUIa - IUIUo) See curve V
Reverse output polarity - At the connection to the
Battery Protection
provided by
fuse F4
-
Thermal protection of semiconductors
(Temperature of Thermal Alarm) - Ta=55°C 100 °C
Safety Requirements (Rules) - EN60335-1, EN60335-2-29 - -
EMC Requirements (Rules) - EN55014-1, EN61000-3-3
EN55014-2, EN61000-4-2
EN61000-4-4, EN61000-4-5
EN61000-4-6, EN61000-4-11
- -

Battery charger NG5-7-9
10 D01274-00
Design, production and sale:
ZIVAN SRL
Via della Costituzione, 36
42028 Poviglio (RE) ITALIA
Tel. [phone]
Fax [phone]
[email protected]
SALES OFFICES
ITALY FRANCE SWITZERLAND
ZAPI SPA URMA SARL ASMO ENGINEERING AG
Via Parma, 59 30, Rue de Morvan Silic 503 Glashütte, 58
42028 Poviglio (RE) 94623 Rungis Cedex CH 4229 Beinwil (SO)
Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone]
[email protected] [email protected] [email protected]
SLOVENIA/CROATIA HOLLAND UNITED KINGDOM
PROTEUS ELECTRIC SRL SPI Special Product for Industry EZ ELECTROFIT ZAPI LTD
Via di Noghere, 94/1 Vlijtseweg 232 Unit 2 - Halesfield 17 - Telford
34147 Muggia Aquilina (TS) 7317 AN Apeldoorn Shropshire TF7 4PW
Tel. [phone]-232388 Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone]
U.S.A. GERMANY SPAIN
ELECTRIC CONVERSIONS ATECH Antriebstechnik GmbH VARELEC SCCL
215, 14th Sreet Gewerbepark Lindach D7 c / Lope de Vega 10-12 Bajos
Sacramento CA 95814 84489 Burghausen 08005 Barcelona
Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone]
[email protected] [email protected] [email protected]
SPAIN SWEDEN BELGIUM
JZ RECIELCA S.L. ETP KRAFTELEKTRONIK AB BATTERY SUPPLIES n.v.
C / Progrés, 2-A. Gavà Järningen, 15 Lindestraat, 89A
08850 Barcelona 43323 Partille 8790 Waregem
Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone]
[email protected] [email protected] battery[email protected]
GREECE CHINA
START Industrial Batteries CNEEC
7-9 Agiou Filippou Street N° 1 Lianhuahe Hutong
18540 Piraeus Beijing 100036
Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone]
[email protected]hnet.gr [email protected]

Battery charger NG5-7-9
D01274-00 11

D01274-00
Electric Conversions
Distributor of ZIVAN Battery Chargers
215 14th Street, Sacramento CA 95814
Tel. [phone]
Fax [phone]
E-mail: [email protected]
Web: www.zivanusa.com
