Zte 4G Fit Smart User manual

1
ZTE 4G Fit Smart
Quick Start Guide
Download the full user guide from www.zte.com.au
Search ‘ZTE Australia’ on Facebook and Google+
to find out more…
V1.0 March 2015
Copyright © 2015 ZTE CORPORATION.
All rights reserved.

2
Getting to Know Your Phone
TIP
The Back and Menu keys can be swapped by user
configuration. Go to Settings > Hard Key to
change the default configuration.

3
Key Functions
Key
Function
Power Key
•
Press to wake up your phone.
•
Press and hold to select Silent,
Vibrate or Flight mode, or to
power on and off.
•
Press to switch your phone to
Sleep mode.
Back
•
Touch to go to the previous
screen.
Home
•
Touch to return to the Home
Screen from any application or
screen.
•Press and hold for Google Now
Menu
•
Press for Options on the current
screen
•
Press and hold to view recent
apps.
Volume Keys
•
Press or hold to turn the volume
up or down.
Apps
•Access the device Applications
and Widgets menu.
LEDStatus indicator
Red
Less than 10% battery charge
Orange
Between 10 – 70% charge
Green
More than 70% charge
LED Flashing
Message or Missed Call
Notification. The colour
represents the charge level
shown above.

4

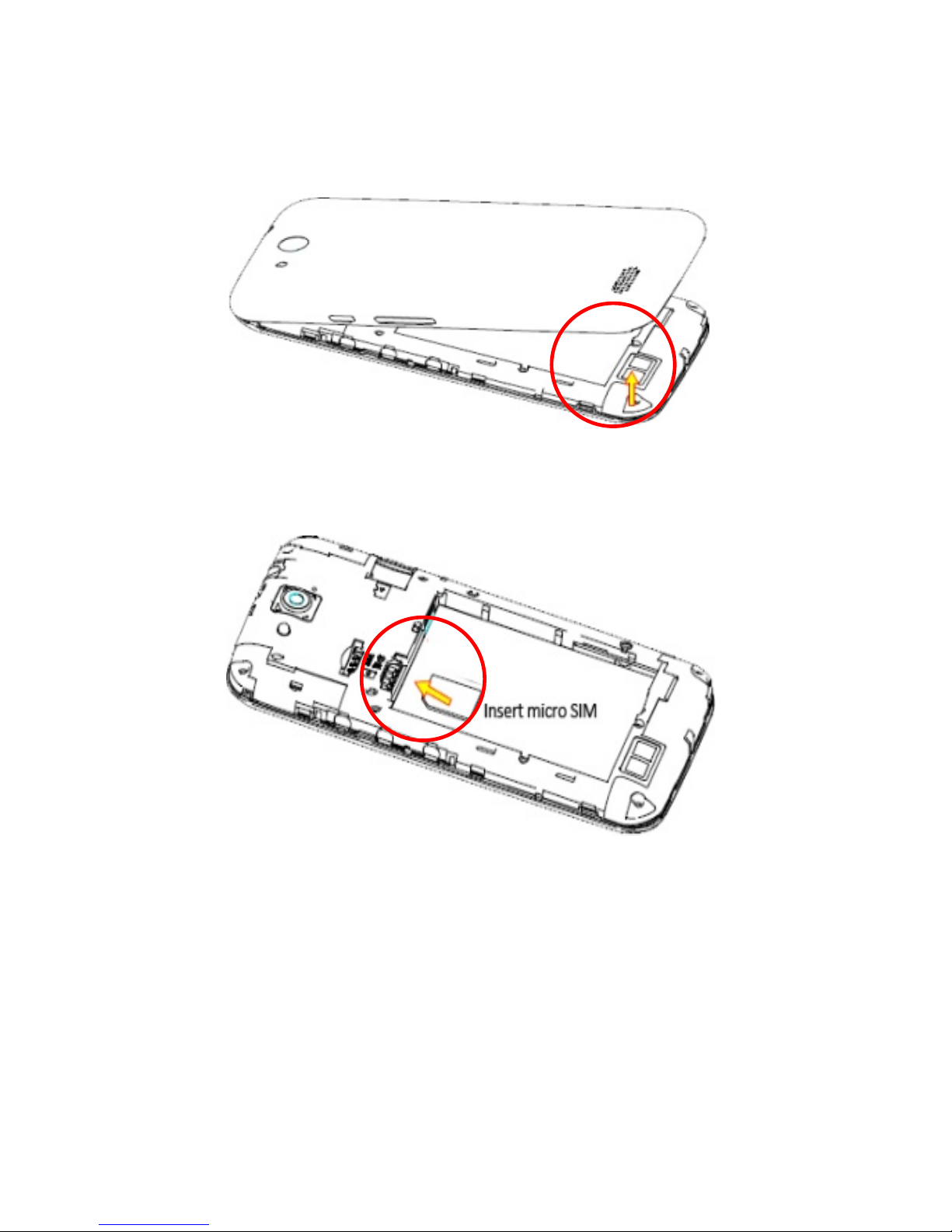

Insert your SIM Card
This device only supports micro SIM or 3FF size.
1. Remove the back cover.
2. Hold the SIM card with the cut corner as shown
and push it fully into the SIM slot.
Install a microSD Card (optional)
A microSD card can be installed or removed while
the phone is turned on. You need to unmount the
microSD card before removing it. The device
supports microSD(HC) cards up to 32GB.

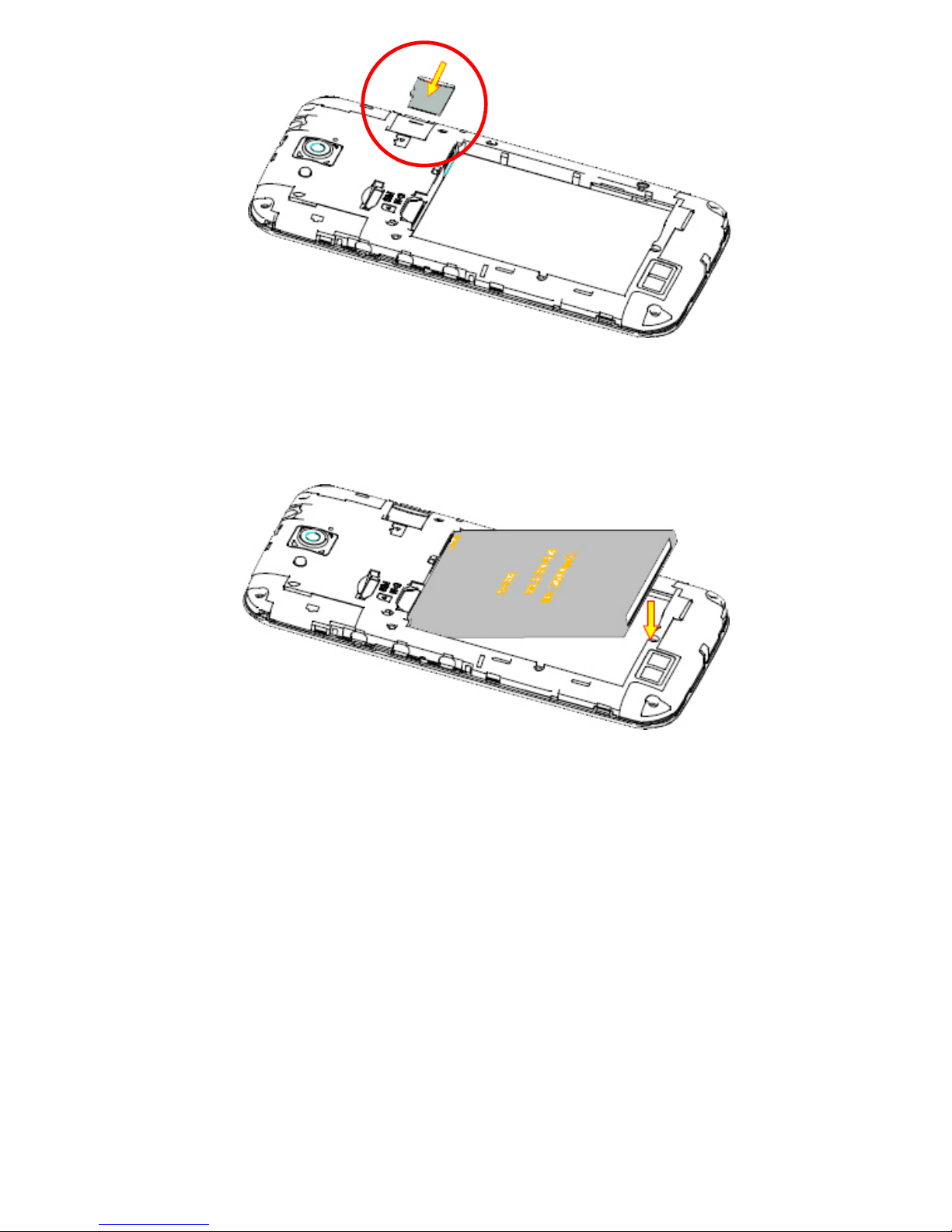

1. Remove the back cover.
2. Hold your microSD card with the metal contacts
facing down and push in until it clicks into place.

5
3. Press the cover gently to click back into place.
Insert the Battery
Charge the Battery
1. Check the orientation of the charging jack and
gently insert into the handset charging port.
2. Connect the charger to a standard AC wall
outlet.
3. Disconnect the charger when the battery is fully
charged.
4. Battery life will improve after a few charge
cycles.
5. Do not harshly pull on the USB charging lead as
this could damge your device. Be careful not to
trip over the charging lead whilst it is plgged in.

6
Power Your Phone On or Off
●Hold the Power Key to switch on your phone.
●To switch it off, hold the Power Key to view the
options. Touch Power off, and then touch OK.
Wake Up Your Phone
1. Press the Power Key to activate your screen
display.
2. Long press on the screen to unlock the device.
NOTE: If you have set an ‘unlock pattern’, or a
PIN/password for your phone, you’ll need to draw
the pattern or enter the PIN/password to unlock
your screen.
First time power up, Google Account
It is recommended that you create or log in with a
Google account. Creating an account gives you
access to the Google Play Store to update,
download and manage your applications, and can
protect your account by backing up Contacts and
other data. If you lock your device and forget your
unlock code (PIN or pattern) then you can unlock
the device using your Google account password.

7
Factory Reset if you have forgotten your PIN,
password or unlock pattern
Switch the handset off. Press and hold the Volume
Up key then the power key. The handset will enter
Android Recovery mode. Select wipe data/factory
reset from the menu and press the volume Up to
confirm. Select OK from the next screen to confirm
the reset process.
How to get to Settings
There are a few ways to get to the Settings menu:
1. Go to Apps > Settings
2. Pull down the Notifications panel and press
>
From Settings you can customise all your phone
settings to suit your needs.
Using the Touch Screen
You can use the touch screen in various ways:
•Touch text entry fields to bring up the keyboard.
Touch buttons, or icons to use them
•Touch and Hold. A long press on some icons
brings up further options. Ie In Messaging,
press and hold a message to Forward.
•Swipe horizontally or vertically on screens to
move between screens.
•Drag, press and hold on an icon to move it on
the screen. Release at the target position.
•Pinch Zoom, on the Camera, Maps, Browser
and Gallery you can zoom in and out by

8
placing two fingers on the screen at once and
pinching together or spreading apart.
•Auto rotation when enabled will automatically
rotate from portrait to landscape.
Transfer files to a Computer
Connecting to a computer enables you to transfer
music, pictures and other files to and from your
handset. There are various ways to do this.
1. Connect using a USB lead. Select MTP on the
handset to browse the handset folders on your PC.
First time use you can run the setup file to install
the handset drivers (PC)
2. Use Google Drive to share files in the cloud
3. Connect via Bluetooth to share files with other
devices.
See the full User Guide available on line at
www.zte.com.au for more details.
MAC users need to download the File Transfer app
from Android onto your MAC device.
Using the Camera - Select Apps > Camera

9
Making Calls
1. Touch Home Key > > select the dialer tab
2. Enter the phone number using the keypad.
Touch to delete wrong digits.
3. Press Options to add a Pause or Wait if
required
4. Press and hold the 0 key to enter the plus (+)
symbol for international dialling.
5. Touch the Phone icon below the keypad
to dial.
Options during a call
Press to open the number pad
Press to use loudspeaker (Handsfree) mode
Press to mute the microphone
Press to put the current call on hold
Press to dial in another party (Conference)
Press to End the call
When you receive a phone call
The display shows the caller ID and any additional
information about the caller saved in Contacts.
swipe right to to answer the call,
swipe left to to reject the call,
swipe up to to reject the call and send
an SMS which is displayed on screen.
Set this at Dialler > Options > Settings > Other
Settings > Quick responses
TIP: You can silence the incoming ring by pressing
either of the Volume keys.

10
Adjusting Volumes
The side volume keys work in three different ways:
1. When you are on a call use the volume keys to
adjust the in call volume.
2. When you are using a media application, such as
music, video or games, the volume keys adjust the
media volume.
3. At other times when you are not in either of the
above states, the volume keys set the ringtone
volume or enable vibrate mode at minimum
volume.
Enable Silent or Vibrate mode
Press and hold the Power Key and then touch
to enable silent mode, touch to enable vibrate
mode, or touch to disable silent mode.
Go to Apps > Settings > Audio Profiles > >
Vibrate to enable Vibrate on Ring.
Access the Quick Settings Panel
Swipe down from the top of the screen and touch
the Quick Setting icon. Tap to enable or disable the
features. Some icons can be configured with a long
press (press and hold).
Connect to a local Wi-Fi network
1. Touch Home > Apps > Settings > Wi-Fi, tap the
switch to turn On.
2. Tap Wi-Fi to view available networks.
3. Touch a network name to connect to it.
Previously connected networks will connect
automatically. If the network is secured enter the
password.
