Aaeon GENE-6310 User manual

GENE-6310
VIA Eden/ Ezra EBGA
SubCompact Board
With LCD, LVDS, Ethernet,
TV-out & Audio
GENE-6310 Rev. A Manual
July. 2003

SubCompact Board GENE-6310
i
Copyright Notice
This document is copyrighted, 2003. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its use.
The material inthis document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

SubCompact Board GENE-6310
ii
Acknowledgments
All other products’name or trademarks are properties of their respective
owners.
lAward is a trademark of Award Software International, Inc.
lCompactFlash™is a trademark of the Compact Flash Association.
lVIA Edenis a trademark of VIA Technology Inc.
lMicrosoft Windows®is a registered trademark of Microsoft Corp.
lPC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.

SubCompact Board GENE-6310
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1 GENE-6310 All-In-One Single Board Computer
•1Hard disk drive (IDE) interface cable
•1Floppy disk drive interface cable
•16-pin mini-DIN dual outlet adapter for keyboard and PS/2
•1Parallel port mouse & serial portadapter kit
•1USB cable with bracket
•1Audio and 3 RCA jack cables with 4-pin CDIN connector
•1TV-out 8-pin cable with a RCA Jack & S-terminal
•1Accessory for all series jumper
•1Quick Installation Guide
•1Utility CD-ROM
If any of these itemsshould bemissing or damaged, please contact your
distributor or sales representative immediately.

SubCompact Board GENE-6310
iv
Contents
Chapter 1 General Information
1.1Introduction..................................................................................1-2
1.2Features .........................................................................................1-3
1.3Specifications ................................................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions........................................................................2-2

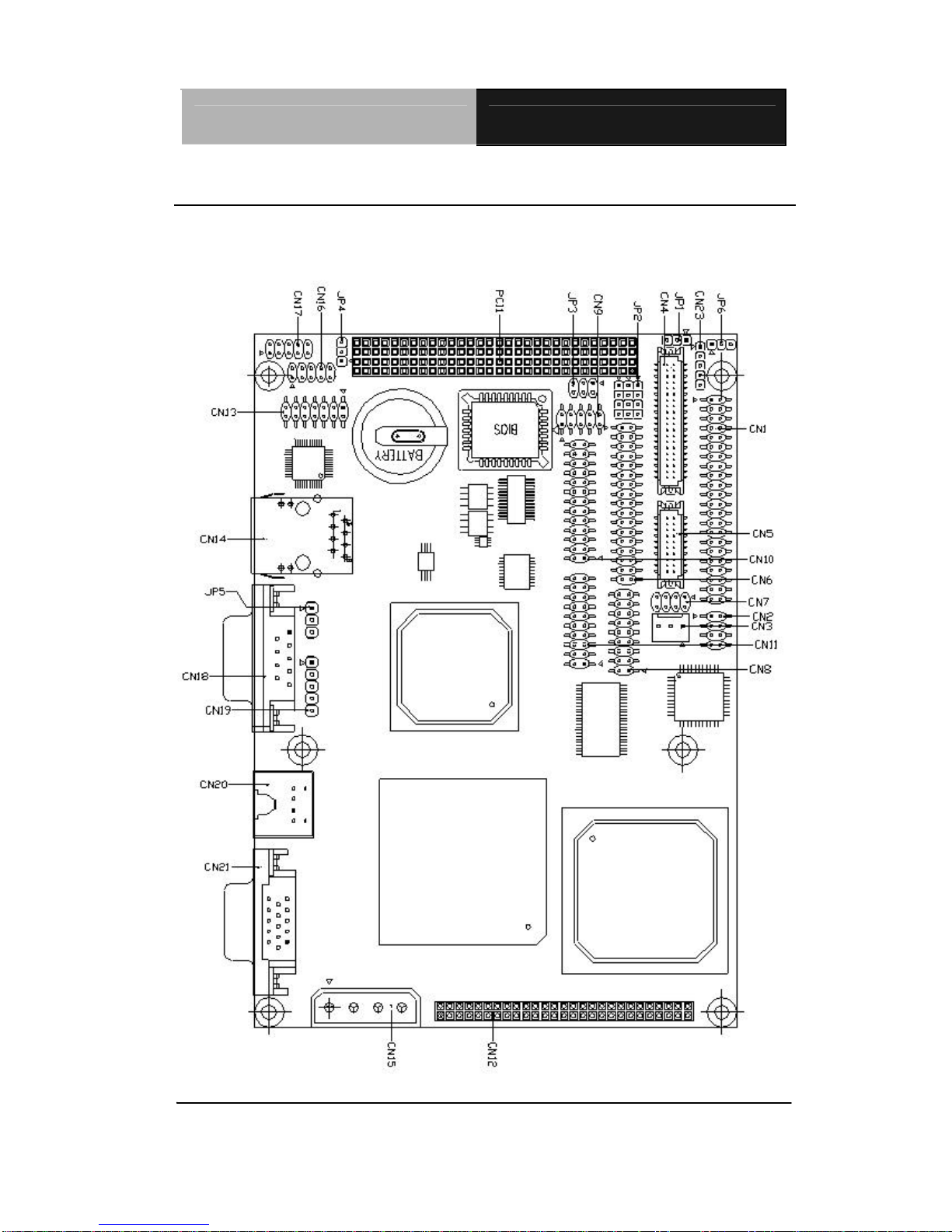

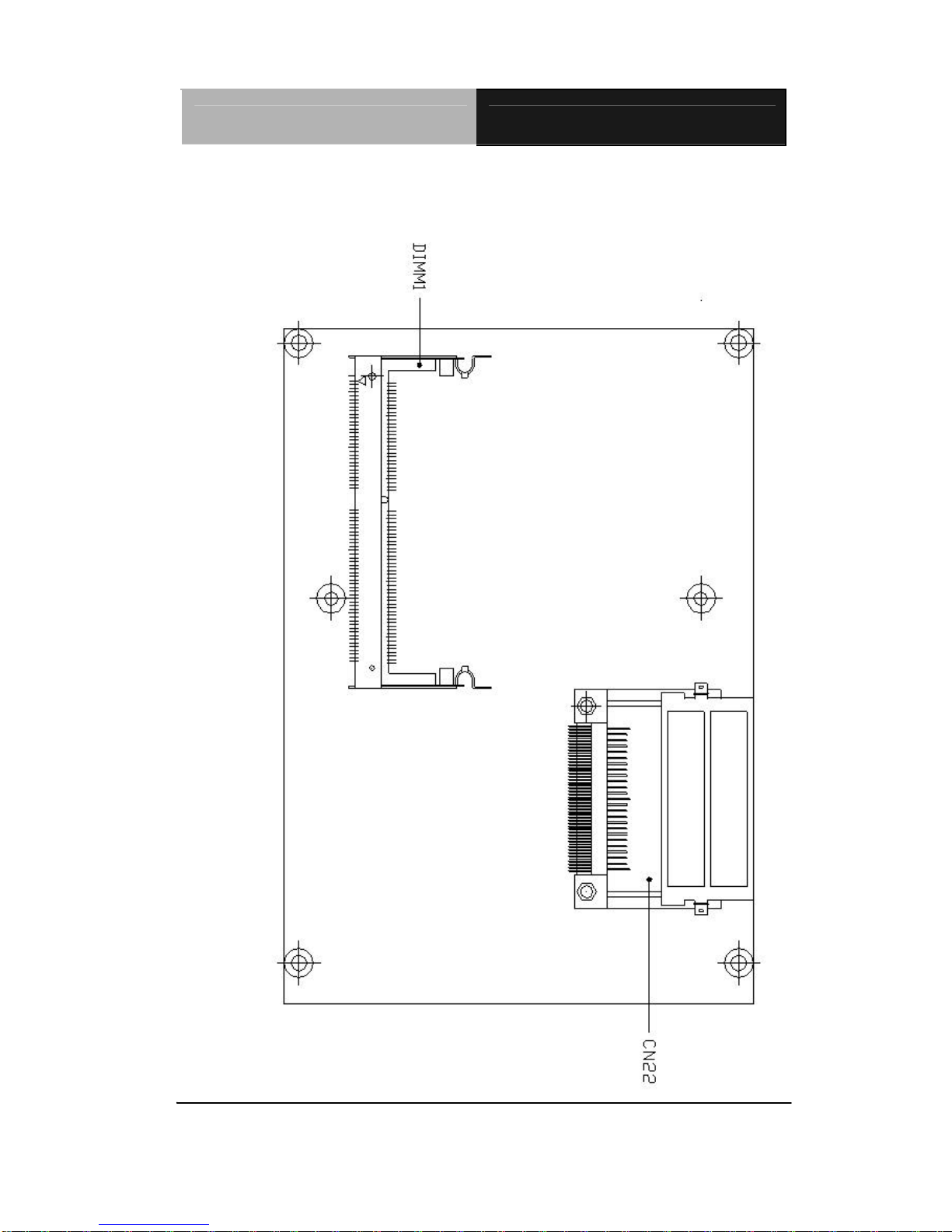

2.2 Location of Connectors and Jumpers........................................2-3

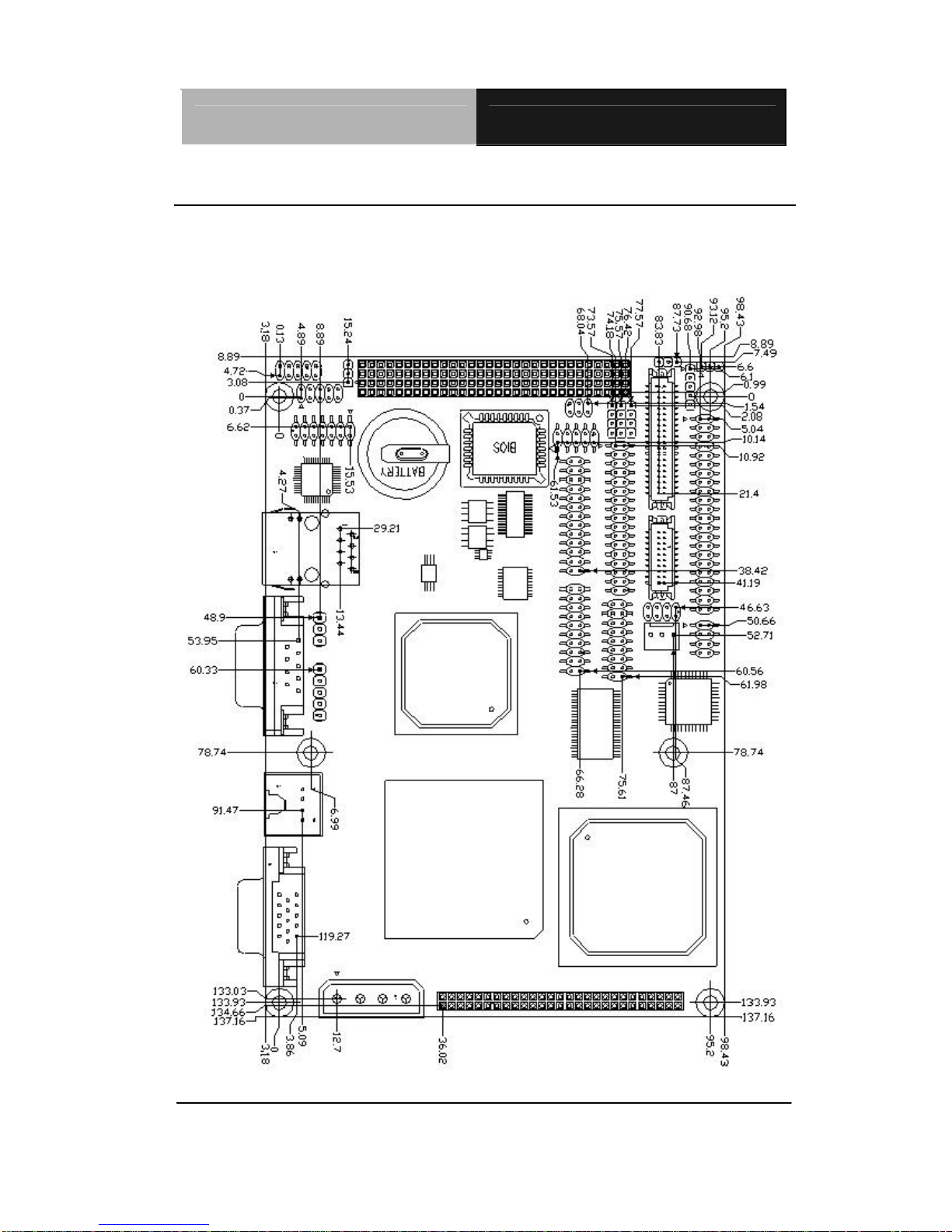

2.3 Mechanical Drawing.....................................................................2-5
2.4 List of Jumpers .............................................................................2-7
2.5 List of Connectors........................................................................2-8
2.6 Setting Jumpers.............................................................................2-9
2.7 LCD Voltage (JP1).......................................................................2-10
2.8 RS-232, RS-422 and RS-485 Select (JP2 & JP3).......................2-10
2.9 PC/104 + Power I/O(JP4)........................................................2-10
2.10 Clear CMOS (JP5)......................................................................2-10
2.11 LCD Shift Clock Select (JP6)....................................................2-11
2.12 Hard DriveConnector (CN1)...................................................2-11
2.13 TV-out Connector (CN2)..........................................................2-13
2.14 Fan Connector (CN3)................................................................2-13
2.15 TTL LCD Connector (CN4, CN5)..........................................2-13
2.16 Floppy Drive Connector (CN6) ...............................................2-15
2.17 Front Panel Connector (CN7)..................................................2-15

SubCompact Board GENE-6310
v
2.18 LVDS Channel 1 Connector(CN11).......................................2-16
2.19 LVDS Channel 2 Connector(CN8).........................................2-16
2.20 Serial Port/ COM 2(CN9) .......................................................2-17
2.21 Parallel Port Connector (CN10) ...............................................2-17
2.22 Audio Connector (CN13)..........................................................2-18
2.23 100 Base-T Ethernet Connector(CN14).................................2-18
2.24 Power Connector (CN15).........................................................2-19
2.25 USB Connector (CN16, CN17)................................................2-19
2.26 Serial Port/ COM 1 (CN18).....................................................2-20
2.27 IrDA Connector(CN19)...........................................................2-20
2.28 PS/2 Keyboard and Mouse Connector (CN20).....................2-21
2.29 VGA Connector (CN21)...........................................................2-21
2.30 CompactFlash Connector (CN22)...........................................2-22
2.31PME# Connector for PCM-3794(CN23)...............................2-23
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization.....................................................3-2
3.2 Award BIOSSetup.......................................................................3-3
3.3Standard CMOS Features ............................................................3-6
3.4Advanced BIOS Features ............................................................3-7
3.5Advanced Chipset Features.........................................................3-8
3.6Integrated Peripherals..................................................................3-9
3.7Power management Setup...........................................................3-10
3.8PnP/PCI Configuration ..............................................................3-11
3.9PC Health Status...........................................................................3-12
3.10 Frequency/ Voltage control......................................................3-13

SubCompact Board GENE-6310
vi
3.11 Load Fail-Safe Defaults.............................................................3-14
3.12 Load Optimized Defaults..........................................................3-14
3.13 Set Supervisor/ User Password ................................................3-14
3.14 Save & Exit Setup.......................................................................3-15
3.15 Exit without saving ....................................................................3-15
Chapter 4 Driver Installation
4.1 Installation 1..................................................................................4-3
4.2 Installation 2..................................................................................4-4
4.3Installation 3..................................................................................4-5
Appendix A Programming the WatchDog Timer
Programming the Watchdog timer..............................................A-2

SubCompact Board GENE-6310
Chapter 1 General Information 1-1
General
Information
Chapter
1

SubCompact Board GENE-6310
Chapter 1 General Information
1
-
2
1.1 Introduction
TheGENE-6310 is an all-in-one VIA EdenSeries processor based
single board computer (SBC) with an Integrated AGP 4X 2D/3D
Graphics Accelerator, an audio controller, a 10/100 Base-T Ethernet
Controller, Dual channel LVDS interface, and PC/104 plus
expansion capability. This compact (only 5.75”x 4”) unit offers all
the functions of a single board computer, but still fits in the space of
a FDD drive.
Onboard features include two serial ports (one RS-232, one
RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port,
pin header for 4 USB (Universal Serial Bus) ports, a floppy drive
controller, and a keyboard/PS/2 mouse interface. The built-in high
speed IDE controller supports Ultra DMA-33 master mode. Up to
two IDE devices can be connected, including large hard disks,
CD-ROM drives, and tape backup drives, etc.
The GENE-6310 also features power management to minimize
power consumption. It complies with the APM standard and
supports three types of power saving features: HDD power down,
Doze mode, and Suspend mode. In addition, the board’s watchdog
timer can be programmed to reset the system or generate an interrupt
in case the system stops due to a program bug or SMI.
Highly Integrated Multi-media SBC
The GENE-6310 is a highly integrated multi-media SBC that
combines audio, video, and network functions on a FDD drive size
single board computer. It provides an AC-97 audio interface 2.0
version. Major onboard devices adopt PCI technology to achieve
outstanding computing performance when used with VIA Eden
(PentiumIII level) processors, making the GENE-6310 one of the
world’s smallest and most powerful all-in-one multimedia boards

SubCompact Board GENE-6310
Chapter 1 General Information
1
-
3
1.2Features
•3.5”FDD SubCompact Form Factor
•Supports VIA EdenCPU (400/667MHz) and VIA Ezra
CPU (800MHz)
•Integrated AGP 4X 2D/3D Graphics Accelerator
•Supports CRT and 36/18-bit TFT/DSTN panels
•Supports NTSC/PAL TV output
•Supports CompactFlashStorage
•Supports one 10/100 Base-T Fast Ethernet
•2 COMs/ 1 Parallel/ 4 USBs/ 1 IrDA Port
•5 volt only operation

SubCompact Board GENE-6310
Chapter 1 General Information
1
-
4
1.3 Specifications
System
lCPU: VIA EdenEBGA mobile
processor
lMemory:Onboard one 144-pin SODIMM
socket supports up to 512MB
SDRAM
lChipset: VT8606 (66/100/133FSB)/
VT82C686B
lBIOS: Award 256KB FLASH BIOS
lEthernet: RTL8139C, 10/100 Base-T RJ-45
connector x 1
lSSD: Type II CompactFlshsocket
lExpansion Interface: PCI-104 connector x 1
lBattery Lithium battery for data retention
lWatchdog Timer: Can generate a system reset, IRQ, or
NMI.
lDMA: 7 DMA channels
lInterrupt: 15 interrupt levels
lH/W Status Monitoring: Embedded in VIA VT82C686B
supports power supply voltages, fan
speed, and temperature monitoring.
lPower Supply Voltage: +5V (4.75V to 5.25V), AT
lSize/ Weight 5.75”(L) x 4”(W)

SubCompact Board GENE-6310
Chapter 1 General Information
1
-
5
(146 mm x 101.6 mm)
0.88 lb (0.4 kg)
Display
lChipset VT8606
lMemory Size: Shared memory up to 32MB
lDisplay Type: Supports CRT, LVDS (36/18-bit
only), and up to 36/18-bit TTL
LCD displays. Can display both
CRT and flat panel simultaneously,
such as CRT with TTL or CRT with
LVDS at the same time.
lTV-out: VIA 1621 supports NTSC/PAL
composite outputs
lResolution: Up to 1280 x 1024 @ 32-bit colors
for CRT
Up to 1024 x 768 @ 18-bit colors
for LCD
I/O
lMIO: IDE (UDMA33) x 1, FDD x 1, KB
+ Mouse x 1, RS-232 x 1,
RS-232/422/485 x 1, Parallel x 1
lIrDA:One IrDA Tx/Rx header
lAudio:VIA VT82C686B with AC-97 2.0
compliant audio codec VT1612

SubCompact Board GENE-6310
Chapter 1 General Information
1
-
6
lUSB: Two 5x2 pin headers support 4 USB
1.1 ports

SubCompact Board GENE-6310
Chapter 2 Quick InstallationGuide
Quick
Installation
Guide
Chapter
2
Part No. 2007631012 Printed in Taiwan 7/2003
Notice:
The Quick Installation Guide is derived from
Chapter 2 of
user manual. For other chapters and
further installation
instructions, please refer to the user manual CD-
ROM
coming with the product.

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
2
2.1 Safety Precautions
Always completely disconnect the power cord from
your board whenever you are working on it. Do not
make connections while the power is on, because a
sudden rush of power can damage sensitive
electronic components.
Always ground yourself to remove any static charge
before touching the board. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface
or in astatic-shielded bag when they are not in the
chassis

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
3
2.2Location of Connectors and Jumpers
Locating connectorsand jumpers (component side)

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
4
Locating connectors (solder side)

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
5
2.3 Mechanical Drawing
Mechanical drawing (component side)

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
6
Mechanical Drawing (solder side)

SubCompact Board GENE-6310
Chapter 2 Quick Installation Guide
2
-
7
2.4List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board'sjumpers:
Jumpers
Label Function
JP1LCD Voltage Select
JP2RS-232/422/485 select
JP3RS-232/422/485 select
JP4PC/104 + Power I/O
JP5Clear CMOS
JP6 Shift Clock Setting
