Aaeon HSB-800P User manual

Half-size SBC HSB-800P
HSB-800P
AMD LX800 Processor
PCI Half-size CPU Card
With DDR, Ethernet,
CompactFlash™&4COMPorts&4USB
HSB-800P Manual Rev. A 3rd Ed.
March 2010

Half-size CPU Card HSB-800P
i
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Half-size CPU Card HSB-800P
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 AMD, the AMD Arrow logo and combinations thereof are
trademarks of Advanced Micro Devices, Inc.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.

Half-size CPU Card HSB-800P
iii
Packing List
Before you begin installing HSB-800P, please make sure that
the following items have been shipped:
 1701340704 Flat Cable.34P.70cm.GRAY for FDD
 1701400453 Cable.40P 2.54mm IDC W/Nose
W/Fold.40P 2.54mm IDC W/Nose
W/Fold.45cm.Blue ATA-100
 1700060192 Cable.6P-6P-6P.19cm.IVORY
PS2/KB&Mouse
 1703030501 Wire.3P 2.5mm Housing.3P 2.5mm
Housing.50cm
 1701260307 Flat Cable.9P/DB9P MALE&25P DB25P
FEMALE.10P 2mm&26P 2mm/IDC NO
FOLD.30cm.W/BKT.A002-015
 1701100305 Flat Cable.9P/DB9P MALE.10P/2.0mm
Pitch/IDC NO FOLD.30cm.W/BRACKET
 1709100201 USB Cable.20cm2.0mm.W/Bracket
 1709070800 SATA CABLE.7P Pitch
1.27mm.80cm.W/Lock
 HSB-800P
 Quick Installation Guide
 CD-ROM for manual (in PDF format) and drivers
If any of these items are missing or damaged, please contact
your distributor or sales representative immediately.

Half-size CPU Card HSB-800P
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Feature......................................................................1-3
1.3 Specification..............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precaution......................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawings................................................2-5
2.4 List of Jumpers..........................................................2-6
2.5 List of Connectors .....................................................2-7
2.6 Setting Jumpers ........................................................2-8
2.7 CFD Voltage 3.3V/5V Selection (JP1) ......................2-9
2.8 LCD Clock and Power Selection (JP2) .....................2-9
2.9 Inverter Voltage Selection (JP3) ...............................2-9
2.10 Clear CMOS (JP4) ..................................................2-9
2.11 AT/ATX Power Type Selection (JP5)......................2-9
2.12 Front Panel Connector (FP1)..................................2-10
2.13 Front Panel Connector (FP2)..................................2-10
2.14 RS-232 Serial Port Connector (COM1, COM3, COM4)
.........................................................................................2-10
2.15 RS-232/422/485 Serial Port Connector (COM2).....2-11
2.16 IrDA Connector (IR1)...............................................2-11

Half-size CPU Card HSB-800P
v
2.17 Digital I/O (CN1)......................................................2-11
2.18 LPT Port Connector (LPT1) ....................................2-12
2.19 USB Connector (USB1~2) ......................................2-12
2.20 FAN Connector (CN2).............................................2-13
2.21 Audio Input/ Output (CN3).......................................2-13
2.22 AT Power_5V, 12V Connector (CN5) .....................2-13
2.23 LCD Inverter (CN6) .................................................2-13
2.24 LVDS1 (CN7) ..........................................................2-14
2.25 +5VSB Power Connector (CN8) .............................2-14
2.26 Internal Keyboard Connector (CN9)........................2-15
2.27 PS2 Keyboard/ Mouse Connector (CN10)..............2-15
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8712 Watchdog Timer Initial Program..............A-5
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-3
B.3 IRQ Mapping Chart................................................B-3

Half-size CPU Card HSB-800P
vi
B.4 DMA Channel Assignments...................................B-3
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

Half-size SBC HSB-800P
Chapter 1 General Information 1-1
General
Chapter
1
Information

Half-size SBC HSB-800P
Chapter 1 General Information 1-2
1.1 Introduction
AAEON releases the economic half-size Single Board Computer
(SBC) – HSB-800P, which is designed to target the industrial
control and automation market. HSB-800P is based on AMD
LX800 processor, which features the low power consumption and
faster heat spreading to ensure the performance of the product.
HSB-800P supports onboard DDR400 system memory up to
256MB and the chipset of HSB-800P is AMDLX800 +CS5536. For
the display function, the VGA controller is integrated to the AMD LX
800 processor that supports CRT and LCD simultaneous display.
Moreover, 2D graphics accelerator has been integrated to provide
higher performance to graphic processing. The LCD interface is
up to 24-bit and support LVDS/ LCD.
HSB-800P targets the common industrial applications include
factory automation systems and production process control devices.
If you are looking for a cost-effective and reliable solution for your
essential application, HSB-800P definitely is your first choice. For
more detailed product information and instruction, please read the
manual before the installation.

Half-size SBC HSB-800P
Chapter 1 General Information 1-3
1.2 Features
 Ultra Low Voltage CPU Power Consumption
 CPU Clock 500 MHz
 Onboard 256MB DDR400 Memory
 Integrated 2D GraphicsAccelerator, VGA Support
 Supports CRT/LVDS
 10/100 Base-TX Ethernet x 1
 Ultra ATA100 x 1; SATA I x 2
 USB2.0 x 4 / RS-232 x 3 ; RS232/422/485 x 1/ Parallel x
1/Digital I/O
 Watchdog Function 1~255 Sec
 AC97 Audio Codec (optional)

Half-size SBC HSB-800P
Chapter 1 General Information 1-4
1.3 Specification
System
 Form Factor PCI Half-Size Card
 Processor AMD LX800
 System Memory On board 256MB DDR400
Memory
 Chipset CS5536
 Ethernet PCI 10/100Mb LAN x 1, RJ-45
x 1; Realtek 8100C controller
 Audio AC 97 codec daughter board
(optional)
 BIOS Award Plug & Play FWH
BIOS-8Mb ROM
 RTC Internal RTC
 Watchdog Timer 1~255 step, can be set with
software on Super I/O
 Expansion Interface PCI Interface
 Power Requirement ATX 5V, 12V, 4-pin power
connector
 Certification CE/FCC Class A
 Board Size (L x W) 7.3" (L) x 4.8" (W)(185 mm x
121 mm)
 Gross Weight 0.61lb (0.3kg)
 Operating Temperature 32°F~140°F (0°C~60°C)

Half-size SBC HSB-800P
Chapter 1 General Information 1-5
Display: Supports CRT and LCD Simultaneous Display
 Chipset LX800
 LCD Interface Up to 24-bit, LVDS LCD
Support
 Memory Shared memory up to 16M
 Resolution 1600 x 1200@32bpp at
100MHz for CRT
1024 x 768@24bpp for LVDS
I/O: CS5536
 Serial Port COM Port x 4 (Internal Pin
Header x 3; Rear I/O x 1);
COM 1(Rear I/O), COM 3,
COM 4: RS-232; COM 2:
RS-232/422/485
 KB & Mouse Mini-Din PS/2, KB & Mouse
Connector x 1 (Rear I/O);
Internal keyboard Box header x
1
 Universal Serial Bus USB x 4 (pin header x 4)
 Storage ATA100 x 1(Slave), Standard
FDD port x 1, supports up to
one floppy device; CFD Type II
connector (Master) x 1;
Onboard SATA I x 1

Half-size SBC HSB-800P
Chapter 1 General Information 1-6
 Digital I/O 8 bit digital I/O, 4 input/ 4
output by super I/O
 Parallel SPP/EPP/ECP mode
 Audio AC 97 codec daughter board
(optional)
 LAN PCI 10/100Mb LAN x 1, RJ-45
x 1; Realtek 8100C controller
(Rear I/O)

Half-size SBC HSB-800P
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of the user manual. Fo
r
other chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007800P21 Printed in Taiwan Nov. 2009

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-3
2.2 Location of Connectors and Jumpers
Component Side

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-4
Solder Side

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-5
2.3 Mechanical Drawing
Component Side
Solder Side

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-6
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Label Function
JP1 CFD Voltage 3.3V/5V Selection
JP2 LCD Clock and Power Selection
JP3 Inverter Voltage Selection
JP4 Clear CMOS
JP5 AT/ATX Power Type Selection

Half-size SBC HSB-800P
Chapter 2 Quick Installation Guide 2-7
2.5 List of Connectors

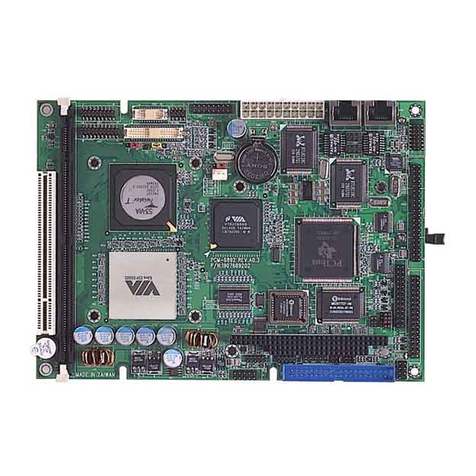

The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Label Function
FP1 Front Panel Connector 1
FP2 Front Panel Connector 2
VGA1 VGA Display Connector
FDD1 Floppy Connector
IDE1 EIDE Connector
CFD1 Compact Flash Slot
COM1, COM3, COM4 RS-232 Serial Port Connector
COM2 RS-232/422/485 Serial Port Connector
IR1 IrDA Connector
LPT1 LPT Port Connector
USB1~2 USB Connector
LAN1 10/100 or 100/1000 Base-TX Ethernet
Connector
CN1 Digital I/O
CN2 Fan Connector
CN3 Audio Input/Output
CN5 AT Power_5V, 12V Connector
CN6 LCD Inverter Power Connector
CN7 LVDS1 Connector
CN8 +5VSB Power Connector
CN9 Internal Keyboard Connector
CN10 PS/2 Keyboard/Mouse Connector
