Aaeon GENE-9655 User manual

SubCompact Board GENE-9655
GENE-9655
Intel
® CoreTM 2 Duo/Celeron®M (65nm)
Processors
Intel®82574L for 10/100/1000Mbps
Type II CompactFlashTM
4 COM, 6 USB2.0, Digital I/O
MiniPCI/MiniCard
GENE-9655 Manual Rev.A2nd Ed.
June 2010

SubCompact Board GENE-9655
i
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

SubCompact Board GENE-9655
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
zAward is a trademark of Award Software International, Inc.
zCompactFlash™ is a trademark of the Compact Flash
Association.
zIntel®, Core™ 2 Duo, Celeron®M are trademarks of Intel®
Corporation.
zMicrosoft Windows®is a registered trademark of Microsoft Corp.
zITE is a trademark of Integrated Technology Express, Inc.
zIBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
zSoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.

SubCompact Board GENE-9655
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1700060157 Keyboard & Mouse Cable
•1654929900 DVI-I to VGA Adapter
•9657666600 Jumper Cap
•Cooler
•Quick Installation Guide
•CD-ROM for manual (in PDF format) and drivers
•GENE-9655
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

SubCompact Board GENE-9655
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors & Jumpers...........................2-3

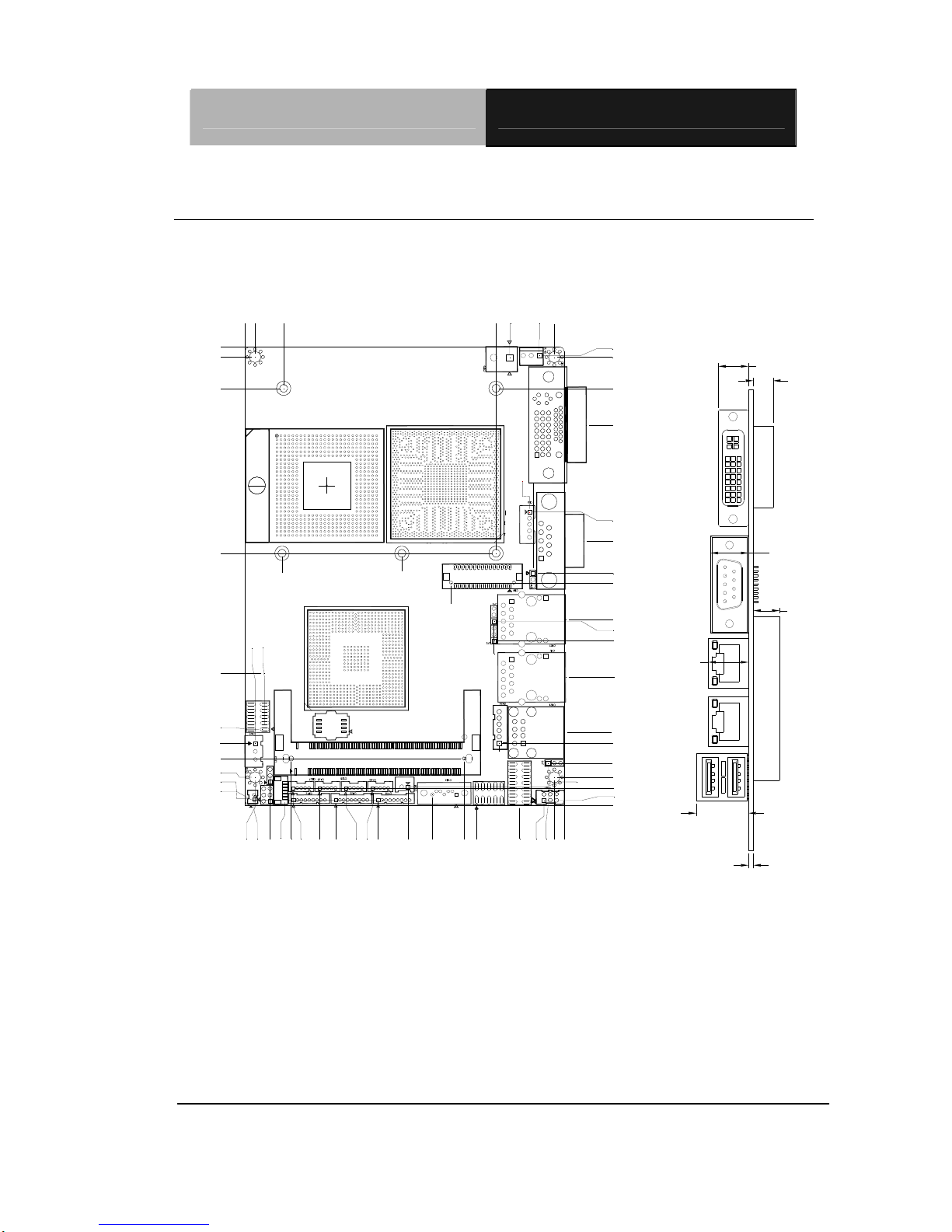

2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ........................................................2-10
2.7 Clear CMOS (JP1) ....................................................2-11
2.8 LVDS LCD +5V/+3.3V Selection (JP2).....................2-11
2.9 LCD Backlight +5V/+12V Selection (JP3).................2-11
2.10 COM2 Ring/ +5V/ +12V Selection (JP5).................2-11
2.11 AT/ATX Power Mode Selection (JP6).....................2-11
2.12 LCD Backlight Voltage / PWM Control Selection (JP7)
.........................................................................................2-12
2.13 VGA/ DVI Display Connector (CN2)........................2-12
2.14 LVDS LCD Connector (CN4) ..................................2-13
2.15 LCD Backlight Connector (CN5).............................2-13
2.16 Audio Connector (CN8)...........................................2-14

SubCompact Board GENE-9655
v
2.17 Digital I/O Connector (CN9)....................................2-14
2.18 Fan Connector (CN10)............................................2-15
2.19 COM1 RS-232 Serial Port Connector (CN11) ........2-15
2.20 COM2 RS-232/422/485 Serial Port Connector (CN12)
.........................................................................................2-16
2.21 COM3 RS-232 Serial Port Connector (CN18) ........2-16
2.22 PS/2 Keyboard/Mouse Connector (CN19)..............2-17
2.23 COM4 RS-232 Serial Port Connector (CN20) ........2-17
2.24 +5V Standby Power Output w/PSON#/SMBus
Connector (CN24)...........................................................2-18
2.25 Power Input Connector (CN25)...............................2-18
2.26 Front Panel (CN26).................................................2-18
2.27 USB Connector (CN27)...........................................2-18
2.28 USB Connector (CN28)...........................................2-19
2.29 USB Connector (CN29)...........................................2-19
2.30 USB Connector (CN30)...........................................2-19
2.31 +5V Output Connector for 2.5” SATA Hard Disk (CN36)
.........................................................................................2-20
2.32 UIM Connector for SIM (CN37)...............................2-20
2.33 CompactFlash Disk Connector (CFD1)...................2-20
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3

SubCompact Board GENE-9655
vi
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8781 Watchdog Timer Initial Program..............A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments...................................B-4
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

SubCompact Board GENE-9655
Chapter 1 General Information 1- 1
General
Chapter
1
Information

SubCompact Board GENE-9655
1.1 Introduction
AAEON, a leading embedded boards manufacturer, is pleased to
announce the debut of their new generation 3.5” SubCompact
Board—GENE-9655. The GENE-9655 is a cutting-edge product that
provides high performance and low power consumption in the
embedded market.
GENE-9655 adopts the latest Intel®CoreTM 2 Duo/ Celeron®M
processors and the system memory is deployed with SODIMM DDRII
533/667 up to 2GB. In addition, Intel®82574L supports two
10/100/100Base-TX that allows faster network connections. This
model applies one Mini-PCI and one Mini Card expansions.
Moreover, one SATA II and one Type II CompactFlashTM storages are
configured on the GENE-9655. In addition to the diverse storages,
GENE-9655 also equips six USB2.0, four COM, one keyboard/mouse
ports for flexible I/O expansions. There are no more worries about
installing many necessary devices to complete the functions of your
system.
The display of GENE-9655 supports CRT/LCD, DVI/LCD
simultaneous/ dual view displays and is up to 24-bit dual-channel
LVDS. This brand new SubCompact board is developed to cater to
the requirements of Automation, Medical, ticket machine,
transportation, gaming, KIOSK, and POS/POI applications.
Chapter 1 General Information 1- 2

SubCompact Board GENE-9655
1.2 Features
zIntel®Core™ 2 Duo/ Celeron®M (65nm) Processors Up
To 2.2 GHz
zIntel®GME965 + ICH8M
zSODIMM DDRII 533/667, Max. 2 GB
zGigabit Ethernet x 2
zDVI-I or CRT (Optional), 24-bit Dual-channel LVDS LCD
z2CH Audio
zSATA II x 1, CompactFlash™ x 1
zUSB 2.0 x 6, COM x 4, 8-bit Digital I/O
zMini-PCI x 1, Mini Card x 1
z+12V Only Operation
zOnboard Trusted Platform Module (Optional)
Chapter 1 General Information 1 - 3

SubCompact Board GENE-9655
1.3 Specifications
System
zProcessor Socket 478M or onboard
Intel®Core™ 2 Duo/ Celeron® M
(65nm) Processors up to
2.2GHz, FSB 533/667/800MHz
zSystem Memory 200-pin DDRII SODIMM x 1,
Max. 2GB (DDRII 533/667)
zChipset Intel
®GME965 + ICH8M
zI/O Chipset ITE8781
zEthernet Intel®82574L & 82566MM,
10/100/1000Base-TX, RJ-45 x 2
zBIOS Award Plug & Play SPI BIOS –
2MB Flash
zWake On LAN Yes
zWatchdog Timer Generates a time-out system
reset
zH/W Monitor Chipset Supports power supply voltages
and temperature monitoring
zExpansion Interface Mini-PCI x 1, Mini Card x 1
zTrusted Platform Infineon SLB 9635 TT 1.2
Module (TPM) (Optional)
zBattery Lithium battery
zPower Requirement +12V, AT/ATX
Chapter 1 General Information 1- 4

SubCompact Board GENE-9655
zPower Consumption Intel®Core™ 2 Duo T7500 2.2
GHz, DDRII 667 2 GB,
4.12A @ +12V
zBoard Size 5.75”(L) x 4”(W) (146mm x
101.6mm)
zGross Weight 0.88 lb (0.4 kg)
zOperating Temperature 32˚F~ 140˚F (0˚C ~ 60˚C)
zStorage Temperature -40˚F~ 176˚F (-40˚C ~ 80˚C)
zOperating Humidity 0%~90% relative humidity,
non-condensing
Display: Supports CRT/LCD, DVI/LCD simultaneous/dual
view displays
zChipset Intel®GME965 integrated
zMemory Shared system memory up to
384 MB/ DVMT4.0
zLCD Interface Up to 24-bit dual-channel LVDS
zResolution Up to 1920x1440 for CRT;
Up to 1920x1200 for LCD
I/O
zStorage SATA II x 1, Type II
CompactFlash™ x 1
zSerial Port RS-232 x 3,
RS-232/422/485 (auto flow) x 1
zUSB Port USB2.0 x 6
zPS/2 Port Keyboard x 1, Mouse x 1
Chapter 1 General Information 1 - 5

SubCompact Board GENE-9655
zDigital I/O Supports 8-bit (Programmable)
zAudio Line-in, Line-out, Mic-in, CD-in
Chapter 1 General Information 1- 6

SubCompact Board GENE-9655
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derived
from Chapter 2 of user manual. For other
chapters and further installation
instructions, please refer to the user
manual CD-ROM that came with the
product.
Part No. 2007965511 Printed in Taiwan June 2010

SubCompact Board GENE-9655
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

SubCompact Board GENE-9655
Chapter2QuickInstallationGuide2-3

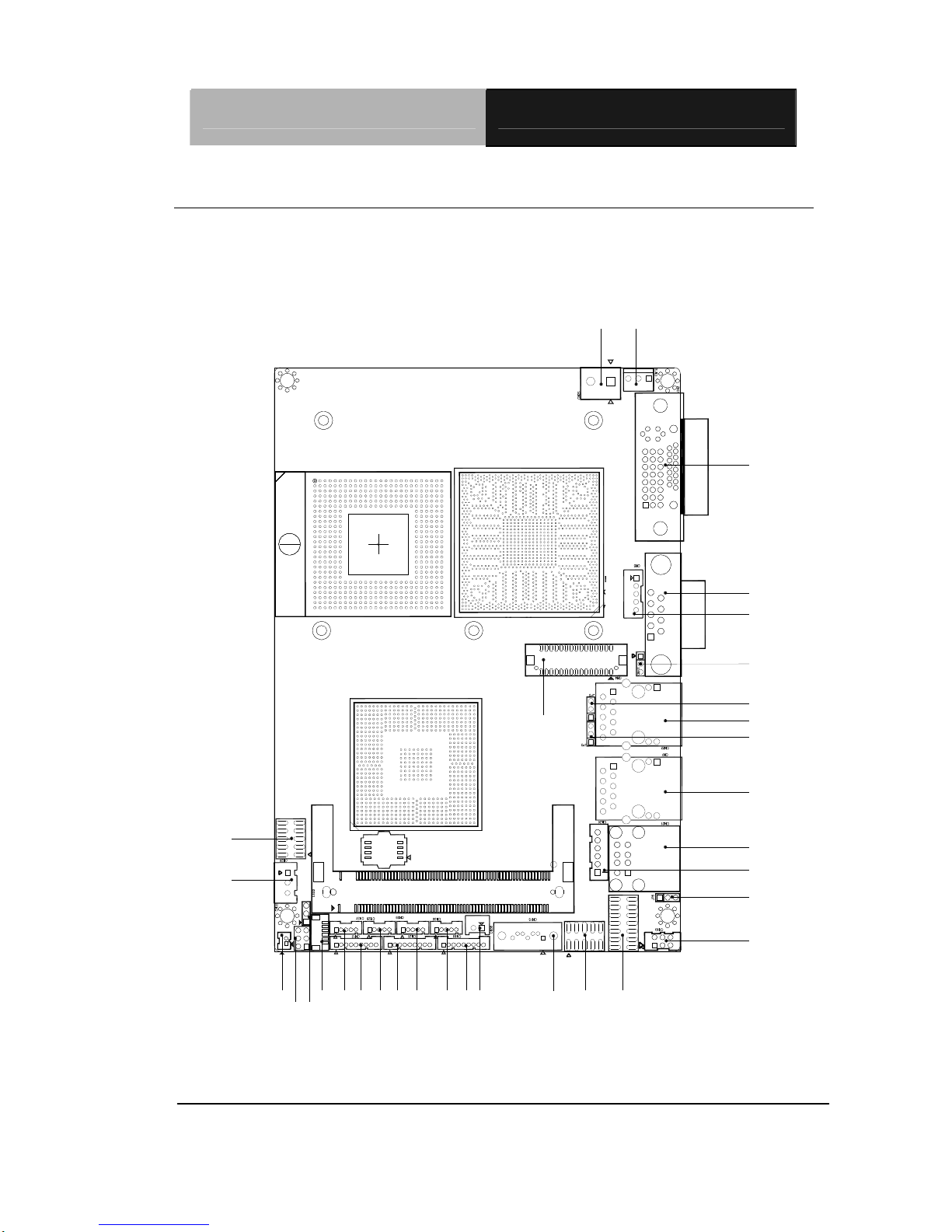

2.2 Location of Connectors and Jumpers
Component Side
BAT1
CN25 CN10
CN5
CN11
CN22
CN7
CN21
CN24
JP6
CN19
CN37
CN27
CN12
CN20 CN29
CN30
CN18
CN15
CN9
JP1
CN35
CN4
CN8
CN9
CN2
CN26
CN28
CN36
JP3
JP2
CN8
JP4
JP7

SubCompact Board GENE-9655
Chapter 2 Quick Installation Guide 2-4
Solder Side
DIMM1
CN13
CFD1
CN13

SubCompact Board GENE-9655
Chapter2QuickInstallationGuide2-5
2.3 Mechanical Drawing
Component Side
0.00
0.00
59.23
61.05
69.43 72.69
77.81
86.19
8.89 8.89
3.17
84.24
121.18
142.75
7.94
17.44
21.72
132.84
89.28 98.37
142.82
146.05
101.60
132.84
80.26
89.79
51.69
70.90
36.03
93.43
24.19
42.16
95.31
93.61
31.92
14.86
86.92
11.06
143.32
3.17
5.46
98.37
CN8
CN9
58.63
52.39
22.39
40.73
59.26
23.18
19.81
20.70
13.46
5.17
1.54
6.44
27.98
41.99
49.77
5.88
1.65
19.69
98.31
14.22
88.88
98.66
2.02
73.92
9.96
(10.04)
(12.55)
(13.35)
(17.30)
(1.60)
(6.50)
(8.70)

SubCompact Board GENE-9655
Chapter 2 Quick Installation Guide 2-6
Solder Side
0.00
0.00
21.74
65.95
25.77
72.14
31.31
31.71
55.92
67.38
56.32
124.97
91.19
24.38
CN13

SubCompact Board GENE-9655
Chapter2QuickInstallationGuide2-7
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 Clear CMOS
JP2 LVDS LCD +5V/+3.3V Selection
JP3 LCD Backlight +5V/+12V Selection
JP4 COM2 +5V/+12V/Ring Selection
JP6 AT/ ATX Power Mode Selection
JP7 LCD Backlight Voltage / PWM Control Selection
