Aaeon AHP-1083 User manual

Touch Panel PC AHP-1083
AHP-1083
Intel®Atom™ D2550
1.86 GHz Processor
Touch Panel PC
With 8.4” TFT LCD
AHP-1083 Manual 2nd Ed.
July 2013

Touch Panel PC AHP-1083
i
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Touch Panel PC AHP-1083
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Award is a trademark of Award Software International, Inc.
Intel®, and Atom™ are trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft
Corp.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

Touch Panel PC AHP-1083
iii
Packing List
Before you begin operating your PC, please make sure that the
following materials are enclosed:
1 AHP-1083 Touch Panel PC
1 Phoenix Terminal Block
1 Mounting bracket and screws
1 CD-ROM for manual (in PDF format)
If any of these items should be missing or damaged, please contact
your distributor or sales representative immediately.

Touch Panel PC AHP-1083
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from anyAC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a firm surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.

Touch Panel PC AHP-1083
v
d. The equipment does not work well, or you cannot get it
to work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT INAN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE IS BELOW -20°C
(-4°F) OR ABOVE 60°C (140°F). IT MAY DAMAGE THE
EQUIPMENT.
FCC
This device complies with Part 15 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received including
interference that may cause undesired
operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling or
disposal directives.

Touch Panel PC AHP-1083
vi
Below Table for China RoHS Requirements
产品中有毒有害物质或元素名称及含量
AAEON Panel PC/ Workstation
有毒有害物质或元素
部件名称 铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件 ×○○○○○
外部信号
连接器及线材 ×○○○○○
外壳 ×○○○○○
中央处理器
与内存 ×○○○○○
硬盘 ×○○○○○
液晶模块 ×○○○○○
光驱 ×○○○○○
触控模块 ×○○○○○
电源 ×○○○○○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。

Touch Panel PC AHP-1083
vii
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Specification..............................................................1-3
1.3 Dimension .................................................................1-6
Chapter 2 Hardware Installation
2.1 Panelmount Installation.............................................2-2
2.2 Clear CMOS (JP2) ....................................................2-3
2.3 COM2 RI/+5V/+12V Selection (JP3).........................2-3
2.4 COM Port #2 (CN19).................................................2-3
2.5 COM Port #1 (CN33).................................................2-4
2.6 CompactFlash™ Installation.....................................2-5
2.7 Hard Disk Drive Installation.......................................2-6
Chapter 3 AMI BIOS Setup
3.1 Setup Menu...............................................................2-2
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3

Touch Panel PC AHP-1083
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Touch Panel PC AHP-1083
Chapter 1 General Information 1- 2
1.1 Introduction
The AHP-1083 operator panel is an Intel®Atom™ D2550 1.86 GHz
processor computer that is designed to serve as a human machine
interface (HMI). It is a PC-based system with 8.4" color TFT LCD
display, onboard Ethernet controller, multi-COM port interfaces and
an audio controller. With a built-in CFast socket, the AHP-1083 is
as compact and user friendly as a multi-function computer. In
addition, its "fit anywhere" design makes it very flexible and able to
be used in many different kinds of installations. It can be VESA 75
mounted or Panel mounted.
For system integrators, this simple, complete, compact and highly
integrated system let you easily build an operator panel into your
applications. Common industrial applications include factory
automation systems, precision machinery, and production process
control. It is also suitable for many non-industrial applications,
including vending machine, and car park automation. Our operator
panel is a reliable, cost-effective solution to your application's
processing requirements.

Touch Panel PC AHP-1083
Chapter 1 General Information 1-3
1.2 Specification
System
CPU Onboard Intel®Atom™ D2550 1.86 GHz
Processor
System Memory 204pin DDRIII 800/1066 SODIMM x 1,
Max. 4GB, default 2GB
LCD / CRT Controller Intel®NM10 Integrated
I/O Port USB2.0 x 2
RS-232 x 1
RS-232/422/485 x 1
LAN x 2
VGA x 1
Power input x 1
Power button x 1
Storage Disk Drive CFast™ slot x 1 (Easy to swap);
2.5” SATA HDD bay x 1 (Anti-vibration
1G)
Expansion Mini card x 1
OS Support Windows CE 6.0, Windows XP Pro,
Windows XP Embedded, Windows 7,
Windows Embedded Standard 7, Linux
Kernel 2.6.3 or above

Touch Panel PC AHP-1083
Chapter 1 General Information 1- 4
Mechanical
Construction Plastic front bezel and aluminum back
chassis
Mounting Panel/ VESA
Dimension 16"(W) x 12.2"(H) x 2.67"(D)
(407mm x 310.5mm x 67.9mm)
Carton Size 20.67"(W) x 18.31"(H) x 9.1"(D)
(4525mm x 465mm x 230mm)
Net Weight 4.4 lb (2kg)
Gross Weight 6.16 lb (2.8kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~50°C)
Storage Temperature -4°F~158°F (-20°C~70°C)
Operating Humidity 5 to 90%@ 40°C, non-condensing
Vibration 1 Grms / 5~ 500Hz / operation – With
HDD
3 Grms / 5~ 500Hz / operation – With
CFast
Shock 20 G peak acceleration (11 msec.
duration) – With HDD
EMC CE/FCC Class A
Power Supply DC 12V (Phoenix) (ATX Mode)

Touch Panel PC AHP-1083
Chapter 1 General Information 1-5
LCD
Display Type 8.4”, SVGA, 450 nits, LED backlight
Max. Resolution 800x600
Max. Colors 262k
Power Consumption 7.44W
Response Time (msec) 10
Interface Single channel LVDS
Luminance (cd/m2)450 nits
Contrast Ratio 600:1
Viewing Angle 80° (H) x 70° (V)
Backlight MTBF (Hours) 50,000
Touch Screen
Type 5-wire analog touch panel
Light Transmission > 80%
Lifetime 35 million activations

Touch Panel PC AHP-1083
Chapter 1 General Information 1- 6
1.3 Dimension
AHP-1083
UNITS:mm
245.0
183.0
67.9
146.0
237.9
175.9
VESA75

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide 2-1
Hardware
Installation
Chapter
2

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide 2 - 2
2.1 Panelmount Installation
The display panel can be mounted into the wall. You will need the
screws along with the mounting brackets, which be packed in the
accessory box. Follow the steps below:
Step 1: Place the operator panel into the wall.
Step 2: Place the mounting brackets and bore the screw on it.
Step 3: Screw mounting kits to fix the operator panel.
Step 4: When the mounting set has been tightened, repeat the
Steps above and tighten all mounting sets around the
monitor until the monitor has been firmly mounted to
the wall.

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide
2 - 3
2.2 Clear CMOS (JP2)
JP2 Function
1-2 Normal (Default)
2-3 Clear CMOS
2.3 COM2 RI/+5V/+12V Selection (JP3)
JP3 Function
1-2 +12V
3-4 RI (Default)
5-6 +5V
Note: Max. Current rating is 0.5A.
2.4 COM Port #2 (CN19)
RS-232 Mode
Pin Signal Pin Signal
1 DCDB 2 DSRB
3 RXB 4 RTSB
5 TXB 6 CTSB
7 DTRB 8 RIB / +5 Volt. / (+12 Volt.)
9 Ground 10 N/C
RS-422 Mode
Pin Signal Pin Signal
1 TXD- 2 N/C

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide 2 - 4
3 RXD+ 4 N/C
5 TXD+ 6 N/C
7 RXD- 8 N/C / +5 Volt. / (+12 Volt.)
9 Ground 10 N/C
RS-485 Mode
Pin Signal Pin Signal
1 TXD- 2 N/C
3 N/C 4 N/C
5 TXD+ 6 N/C
7 N/C 8 N/C / +5 Volt. / (+12 Volt.)
9 Ground 10 N/C
43 CRT_PLUG#
2.5 COM Port #1 (CN33)
Pin Signal Pin Signal
1 DCDA 2 RXA
3 TXA 4 DTRA
5 Ground 6 DSRA
7 RTSA 8 CTSA
9 RIA

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide
2 - 5
2.6 CompactFlash™ Installation
Step 1: Loose the screw of cover to open the CompactFlash™ Slot
Step 2: Insert the CompactFlash™ to the CompactFlash™ slot

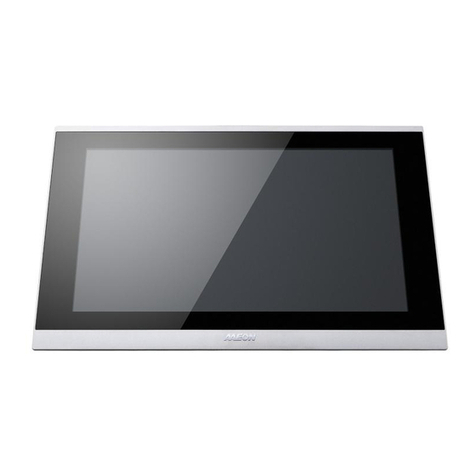

Touch Panel PC AHP-1083
Chapter 2 Quick Installation Guide 2 - 6
2.7 Hard Disk Drive Installation
Step 1: Loose the eight M3 screws of the rear cover.
Step 2: Loose the three specified M3 screws to get the Hard Disk Drive
(HDD) bracket.
