ABB Busch-priOn Series Product manual

0073-1-7388 │Rev. 03 │01.2011
KNX Technical Reference Manual
Busch-priOn®
Pos: 2 /Produkthandbuc h - DIN-A4/Titelblätter /Titelblatt - Busch-priOn @ 9\mod_126924 2014078_15.doc @ 52250 @
Busch-priOn®
innovative and intuitive
Improved control elements. For example, the new 8.9 cm
(3.5”) TFT display as informative component of a flush-type
combination is both stylish and efficient. Its menu can be
individually adapted to every building and at all times
provides an overview of the electrical consumers. From here
the heating can be controlled, the lights dimmed or
comprehensive scenes called up that trigger numerous
preprogrammed actions. Meaningful symbols lead even the
untrained user to his objective in just a few steps. The
division of functions into individual areas such as light,
heating or blinds, assists everyone to find his way around
intuitively. Yet, this is not the end of possibilities for the
Busch-priOn® in classical building technology. The display
can also be used for controlling music.
The combination of pushbutton/rotary control element and
display has a universal operating concept. The definition of
a primary function makes its use particularly easy. The
primary function appears when one approaches the display
(a special proximity sensor is available) or when pressing
the rotary control element. In principle, any switching,
dimming, blinds, scene or sequence function that has been
stored in the unit can be defined as primary function. It is
only when the menu button is pressed that the display
changes to the circuit menu. Up to 8 entries can be
displayed via one symbol. By turning the pushbutton/rotary
control element the user can bring the desired function into
the foreground. An associated text below the focused
symbol is shown (e.g. system settings, room control office,
room control, living room, etc.). By activating the
pushbutton/rotary control element the display changes to the
respective list menu, which can consist of up to 15 different
functions. The user can scroll through these functions by
turning the pushbutton/rotary control element. The function
is selected by pressing the button.
=== Ende der Liste für Textmarke Cover ===

KNX Technical Reference Manual
Busch-priOn®
2 | 0073-1-7388 | KNX Technical Reference Manual
Pos: 4.1 /Produkthandbuc h - DIN-A4/Überschr iften/1. Ebene/S - Z/Sicherheitshinweise @ 9\ mod_1269243781484_15. doc @ 52309 @ 1
Safety instructions
Pos: 4.2 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout_ 2010/++++++++ ++++ Wechsel von ein- auf zweispa ltig ++++++++++++ @ 9\mod_1268898451593_0.doc @ 52140 @
Pos: 4.3 /Produkthandbuc h - DIN-A4/Busch-pr iOn/Sicherheitshin weise/Sicher heitshinweise @ 9\mod_12692 45364203_15.doc @ 52365 @
Work on the 230 V power supply system must
only be performed by specialist staff.
Disconnect the mains power supply prior to
mounting and/or disassembly!
Failure to observe the installation and
operating instructions may result in fire or
other hazards.
Pos: 4.4 /Produkthandbuc h - DIN-A4/Busch- priOn/Sicherheitshi nweise/Haftungsau sschluss @ 16\mod_1292 413036321_15.doc @ 97864 @
Disclaimer
The content of this printed material has been
checked for compliance with hardware and
software. However, no liability can be assumed
for any deviations that may still occur. Any
necessary corrections will be implemented in
future versions of this manual.
Please advise us of any suggestions
concerning the manual's improvement you may
have.
Pos: 4.5 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout_ 2010/++++++++ ++++ Spaltenumbruch ++ ++++++++++ @ 9\mod_12688987614 21_0.doc @ 52154 @

KNX Technical Reference Manual | 0073-1-7388 | 3
os: 4.6 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout_ 2010/++++++++ ++Wechsel zwei- auf einspal tig ++++++++++++ @ 9\mod_12 68898591406_0.doc @ 52144 @
Pos: 6.1 /Produkthandbuc h - DIN-A4/Überschr iften/1. Ebene/M - R/Maßzei chnungen @ 9\mod_12692 43888140_15.doc @ 52313 @ 1
Dimensional drawings
Pos: 6.2 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout_ 2010/++++++++ ++++ Wechsel von ein- auf zweispa ltig ++++++++++++ @ 9\mod_1268898451593_0.doc @ 52140 @
Pos: 6.3 /Produkthandbuc h - DIN-A4/Busch-pr iOn/Maßzeichnungen/ Maßzeichnungen_Be st_Nr_ABB @ 15\mod_1289220 462033_15.doc @ 96904 @
Flush-type 8,9 cm (3,5") display with control element,
Busch-priOn®
Flush-type control element, Busch-priOn®
6340-xxx-101-500
Flush-type movement detector Busch-priOn®
6345-xxx-101-500
107
71
31
Support frame for Busch-priOn® 6346/12-101-500
Flush-type rotary control element,
6341-xxx-101-500
Pos:6.4 /Spezial/NeuesLayout 2010/Steuermodule_Neues_Layout_2010/++++++++++++Wechselzwei- auf einspaltig++++++++++++ @ 9\mod_126889859140 6_0.doc @ 52144 @
Pos: 7 /Spezial/Neues Lay out 2010/Steuermodul e_Neues_Layout_201 0/+++++++++ +++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual
Busch-priOn®
4 | 0073-1-7388 | KNX Technical Reference Manual
Pos: 8.1 /Produkthandbuc h - DIN-A4/Überschr iften/1. Ebene/M - R/Rah menlose Vielfalt @ 9\mod_ 1269243889687_15.doc @ 52318 @ 1
Frame-free variety
Pos: 8.2 /Produkthandbuc h - DIN-A4/Busch-pr iOn/Rahmenlose Vielfa lt/Rahmenlose Vielf alt @ 9\mod_1269245480843 _15.doc @ 52373 @
It is not merely individuality which characterises Busch-priOn® during programming of the individual buttons:
Also the assembly arrangement of the Busch-priOn®combinations are highly flexible. For Busch-priOn is not bound to
frames -- instead, up to 3 individual elements are fixed to a support frame and, at the end, provided with end strips above
and below. There are four choices of finish for the control elements: studio white, glass white, glass black and stainless
steel. Most of the end strips are also available in these colour versions. For the display (style sheets), there are three
choices: black, blue and silver.
Modular design
End strips
These not only have a beautiful shape -- they optionally
contain a temperature sensor for room temperature
control, an infrared interface for the remote control and
a proximity sensor for activating the display or LED of
the control elements when somebody approaches. This
IR / proximity sensor version is only available in glass
black and not in the other colours. Additional
information about controlling the room temperature with
Busch-priOn® is contained in the brochure on heating,
ventilation and air conditioning.
Pos: 9 /Spezial/Neues Lay out 2010/Steuermodul e_Neues_Layout_201 0/+++++++++ +++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual | 0073-1-7388 | 5
Pos: 10.1 /Produkthandb uch - DIN-A4/Überschr iften/1. Ebene/G - L/ Kombinationen nach Wunsc h @ 9\mod_1269243898187_1 5.doc @ 52323 @ 1

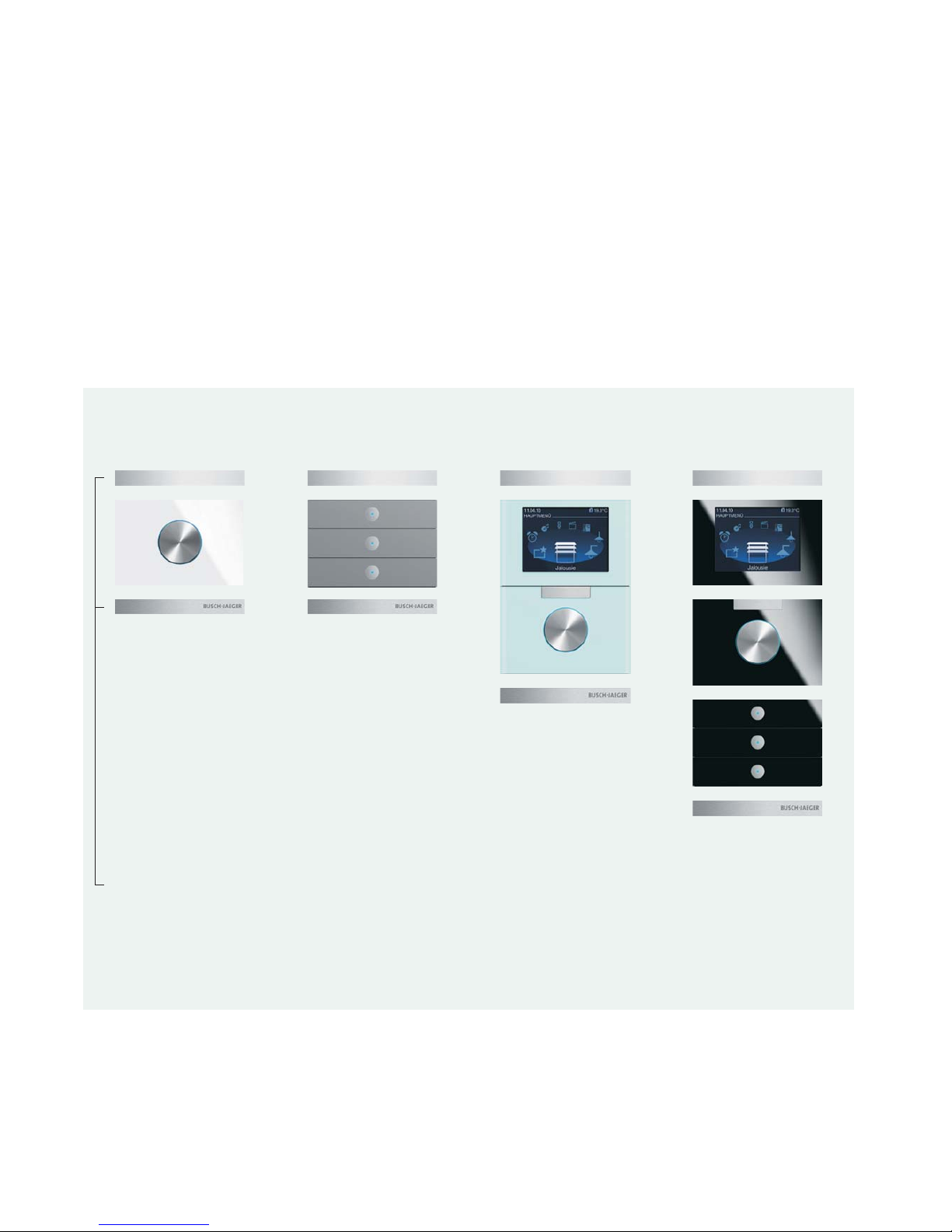

Combinations as desired
Pos: 10.2 /Produkthandb uch - DIN-A4/Busc h-priOn/Kombinationen nac h Wunsch/Kombinatio nen nach Wunsch_Best_Nr_A BB @ 11\mod_127962987 3579_15.doc @ 84942 @
The control elements and end strips can be freely combined for Busch-priOn®with regard to colour and function. Up to 3-
gang combinations are possible, whereby a single bus coupler will suffice.
Support frameArticle number
1-gang 2-gang 3-gang
Top end strip, IR / proximity sensor 6350-825-101-500 ●●●
Top end strip with display, IR / proximity sensor RTC 6351-825-101-500 ●●●
Top end strip, standard 6348-101-500 ●●●
1-gang control element 6340-101-500 ●●●
3-gang control element 6342-101-500 ●●●
Rotary control element 6341-101-500 ●●●
Movement detector 6345-101-500 ●●●
8.9 cm display including control element 6344-101-500 - ●●
Bottom end strip, temperature 6352-101-500 ●●●
Bottom end strip, standard 6349-101-500 ●●●
Bus coupler 6120/12-500 ●- -
Power bus coupler and additional power supply, MDRC 6120/13-500 +
CP-D 2472.5 ●●●
Flush-type switch actuator 6354-500 - ●●
Flush-type dimming actuator, 1-gang 6355-500 - ●●
Flush-type blind / 2-gang actuator 6356-500 - ●●
Pos: 11 /Spezial/Neues Lay out 2010/Steuermodu le_Neues_Layout_20 10/++++++++++ ++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual
Busch-priOn®
6 | 0073-1-7388 | KNX Technical Reference Manual
Pos: 12.1 /Produkthandb uch - DIN-A4/Übersc hriften/1. Ebene/G - L/ Kein gewöhnliches KNX-Bedi enelement @ 9\mod_1269 243899796_15.doc @ 52328 @ 1
Not just any KNX control element
Pos: 12.2 /Produkthandb uch - DIN-A4/Busc h-priOn/Kein gewöhnlic hes KNX-Bedienelement/ Kein gewöhnliches KNX- Bedienelement - Text @ 9\mod_1269426042218_15. doc @ 52740 @
Each of the buttons of the Busch-priOn® can be programmed individually, as is usually the case with KNX. The applications
range from switching, dimming and blinds on through to scenes. Logic functions are also possible. The use of the display
makes additional functions available. Weekly timers, messages and multimedia applications can be integrated here, for
example. Also additional applications can be implemented with the assigning of internal group addresses. The user menu
can be configured in 19 languages.
Pos: 12.3 /Produkthandb uch - DIN-A4/Busc h-priOn/Kein gewöhnlic hes KNX-Bedienelement/ Kein gewöhnliches KNX-B edienelement - Tab elle - Applikationen @ 15\ mod_1289221025466_15. doc @ 96936 @

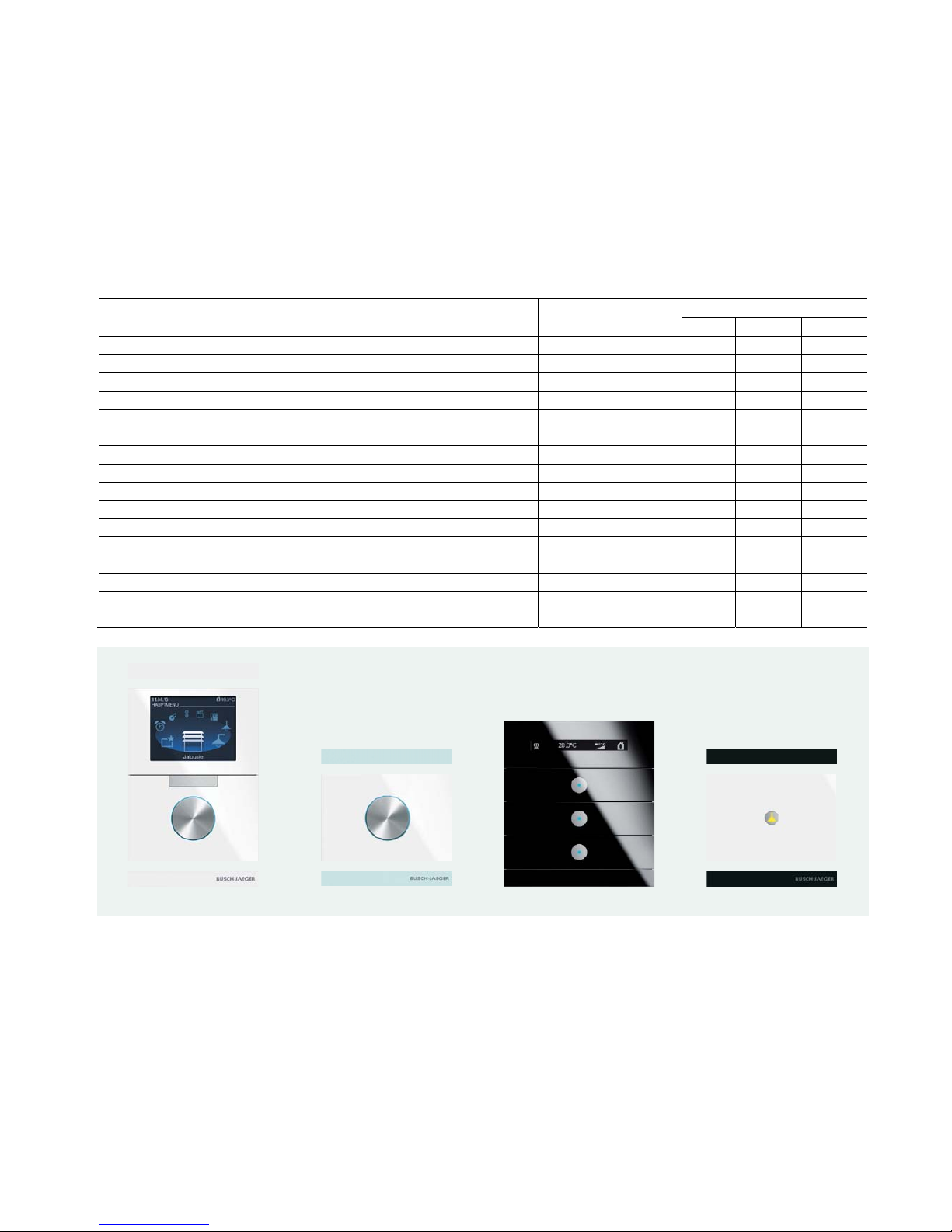

Applications
Application Control element Rotary control
element
8,9 cm (3,5") TFT display
with control element
Movement
detector
Page number
Switching, rocker total ●- - - Page 21
Switching, rocker left/right ●- ●- Page 21
Dimming, rocker total ●- - - Page 21
Dimming, rocker left/right ●●●- Page 22
Blind, rocker total ●- - - Page 22
Blind, rocker left/right ●●●- Page 22
Value sender, rocker total ●- - - Page 23
Value sender, rocker left/right ●●●- Page 23
Value sender, 2 objects, rocker left/right ●- - - Page 24
Value dimming sensor, rocker total ●- ●- Page 24
Light scene extension unit with memory
function
●- ●- Page 25
Level switch, rocker total ●- - - Page 25
Level switch, rocker left/right ●- - - Page 26
Multiple actuation, rocker left/right ●- - - Page 26
Short/long operation, rocker left/right ●- - - Page 28
Setting RTC operation mode ●- ●- Page 28
Media control, CD player - - ●- Page 29
Media control, radio - - ●- Page 30
Media control, video player - - ●- Page 31
Short-time timer - - ●- Page 31
Weekly timer - - ●- Page 32
Alarm clock - - ●- Page 33
Messages - - ●- Page 34
Title text - - ●- Page 34
Unit blockage - - ●- Page 35
RTC settings - - ●1- Page 35
Sequence actuator settings - - ●- Page 35
Venetian blind application ●●●2- Page 36
Switch actuator application ●●●- Page 36
Movement detector - - - ●Page 37
LED functionality ●●●- Page 39
Alarm function ●●- - Page 39
Storage function Light scenes ●●●- Page 39
1 Only in connection with a bottom end strip "temperature sensor" or another external sensor. Busch- priOn®has 1 internal room thermostat.
2 Only in connection with flush-type blind / 2-gang actuator 6356.
Pos: 12.4 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout _2010/++++++ ++++++ Seitenumbruch ++++ ++++++++ @ 9\mod_12688986680 93_0.doc @ 52149 @

KNX Technical Reference Manual | 0073-1-7388 | 7
Pos: 12.5 /Produkthandb uch - DIN-A4/Busc h-priOn/Kein gewöhnlic hes KNX-Bedienelement/ Kein gewöhnliches KNX-Be dienelement - Tab elle - Allg. Funktionen @ 15\m od_1289904254518_15.d oc @ 97280 @
General functions
Function Large-area control
element
Rotary control
element
8,9 cm (3,5") TFT display
with control element
Movement
detector
Page number
Delay ●●●●Page 40
Staircase lighting ●●●●Page 41
Light scene actuator settings ●●●●Page 42
Sequence ●●●●Page 42
Preset ●●●●Page 43
Cyclic telegram ●●●●Page 43
Flahing ●●●●Page 44
Logic ●●●●Page 44
Gate ●●●●Page 45
Min/Max value transducer ●●●●Page 46
Threshold value / hysteresis ●●●●Page 47
PWM inverter ●●●●Page 47
Priority ●●●●Page 47

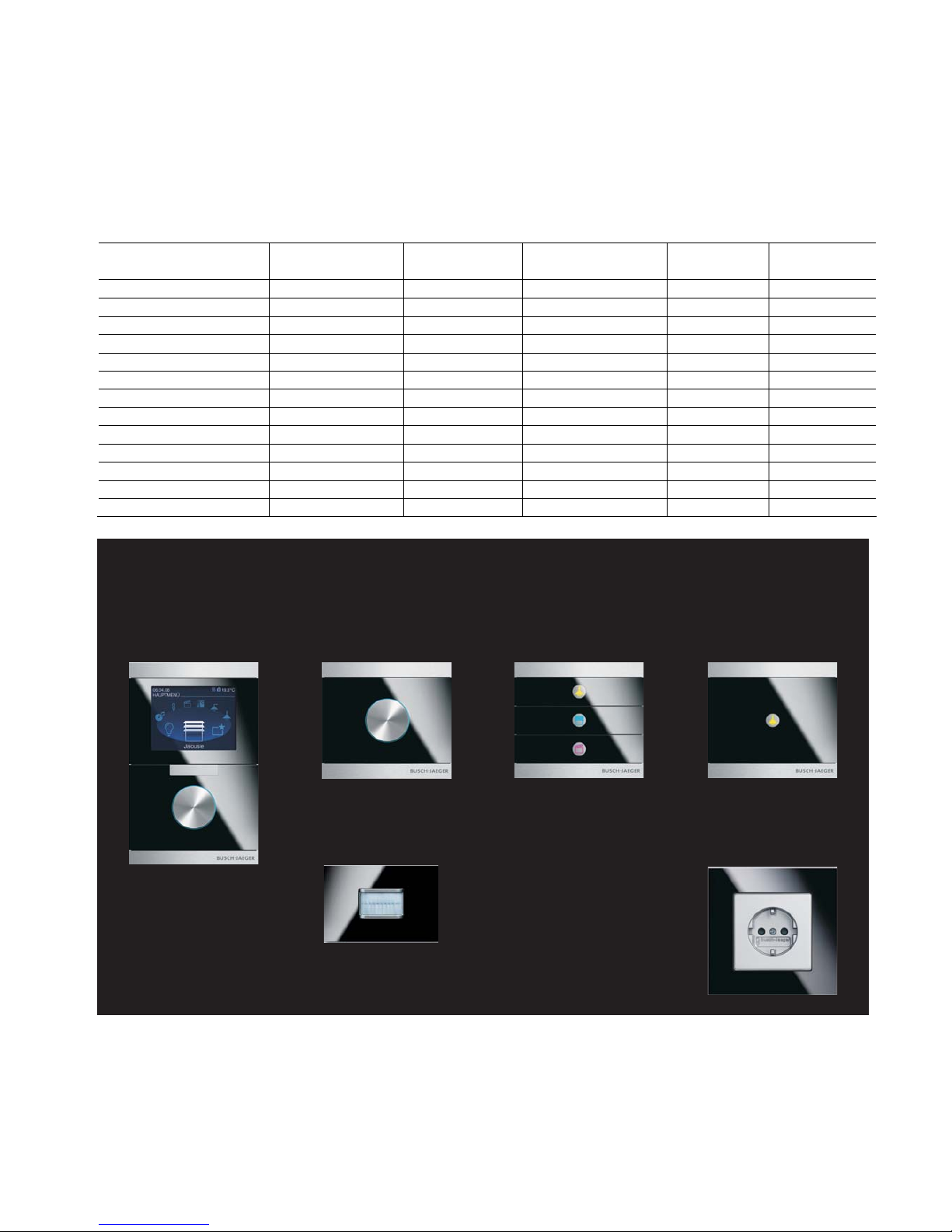

Pos: 12.6 /Produkthandb uch - DIN-A4/Busc h-priOn/Kein gewöhnlic hes KNX-Bedienelement/ Kein gewöhnliches KNX-Be dienelement - Abbildun g 1/2fach @ 15\mod_12892 23461875_15.doc @ 96952 @
Busch-priOn®
Rotary control element
Glass black
Busch-priOn®
3-gang control element
Glass black
Busch-priOn®
1-gang control element
Glass black
Busch-priOn®
2-gang combination
Glass black
Busch-priOn®Watchdog 180 flush-mounted,
glass black
Busch-priOn®is ideally combinable with
the carat®switch series. These switches
distinguish themselves through their
uniformly designed surfaces.
Pos: 13 /Spezial/Neues Lay out 2010/Steuermodu le_Neues_Layout_20 10/++++++++++ ++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual
Busch-priOn®
8 | 0073-1-7388 | KNX Technical Reference Manual
Pos: 14.1 /Produkthandb uch - DIN-A4/Überschr iften/1. Ebene/A - F/Der richtige Ankoppler @ 9\ mod_1269243900921_15. doc @ 52333 @ 1
The right bus coupler
Pos: 14.2 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout _2010/++++++ ++++++ Wechsel von ein- auf zweispa ltig ++++++++++ ++ @ 9\mod_1268898451593 _0.doc @ 52140 @
Pos: 14.3 /Produkthandbuch - DIN-A4/Busch-priOn/Der richtige Ankoppler/Der ric htigeAnkoppler - Tabelle+Text _Best_Nr_ABB@ 16\ mod_1291294382201_15.doc @ 97635 @

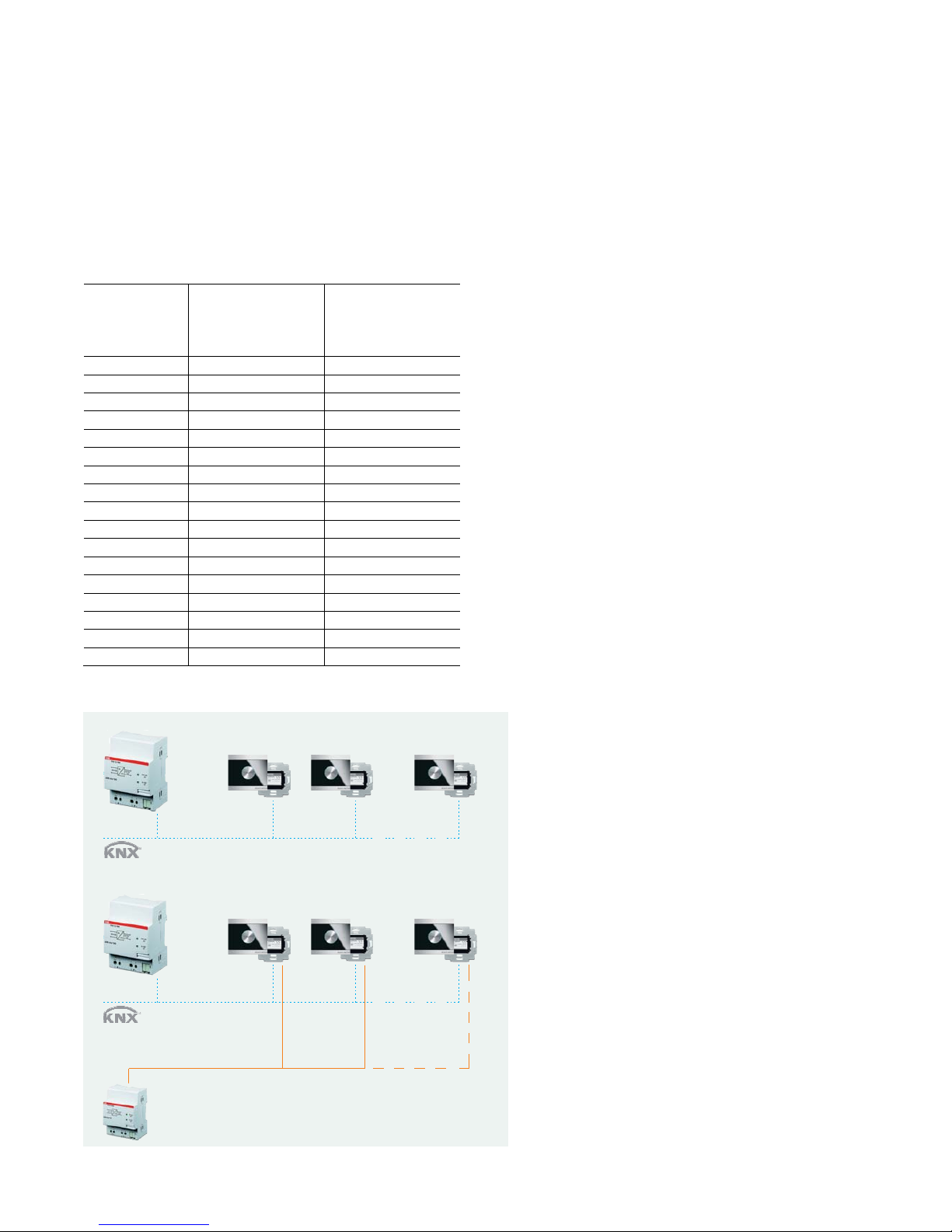

Maximum number of Busch-priOn®devices per TP line
Number of
display
combinations per
line
Total number of
combinations 1
Total number of TP-
Power bus couplers
6120/13 per line
0 0 + 60 60
1 1 + 59 60
2 2 + 58 60
3 3 + 57 60
4 4 + 56 60
5 5 + 55 60
6 6 + 54 60
7 7 + 53 60
8 8 + 52 60
9 9 + 51 60
10 10 + 45 55
11 11 + 37 48
12 12 + 30 42
13 13 + 22 35
14 14 + 15 29
15 15 + 7 22
16 16 + 0 16
1 Composed of display combinations plus 1- to 3-gang combinations without
display with end strips
Only one bus coupler is mounted behind every Busch-
priOn®combination. One standard bus coupler is adequate
for one 1-gang support frame. With the use of the 2-gang
carrier frame the more powerful power bus coupler must be
used.
The twisted pair version requires an external power pack for
this purpose. The table to the left describes the
corresponding device combinations.
Pos:14.4 /Spezial/NeuesLayout 2010/Steuermodule_Neues_Layout_2010/++++++++++++W echselzwei- aufeinspaltig ++++++++++++@ 9\mod_126889859140 6_0.doc @ 52144 @
Pos: 14.5 /Produkthandb uch - DIN-A4/Busc h-priOn/Der richti ge Ankoppler/Der richti ge Ankoppler - Abbildung_ABB _ABB-STOTZ @ 16\mod_129 1294546873_15.doc @ 97651 @
Standard bus coupler, TP
STN1 STN2 STN32
Power coupler, TP
Power supply KNX
STN1 STN2 STN64
24 V DC power supply
For the number of device
combinations see the table
above
Pos: 15 /Spezial/Neues Lay out 2010/Steuermodu le_Neues_Layout_20 10/++++++++++ ++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual | 0073-1-7388 | 9
Pos: 16.1 /Produkthandb uch - DIN-A4/Überschr iften/1. Ebene/A - F/Einfache Montage @ 9\mod_12692 43901843_15.doc @ 52338 @ 1
Easy to mount
Pos: 16.2 /Produkthandb uch - DIN-A4/Busc h-priOn/Einfache Montage/ Einfache Montage - Te xt@ 10\ mod_1272614580478 _15.doc @ 53803 @
The carrier frame serves to hold and make contact with the individual control elements, the 8.9 cm (3,5”) TFT display, the
end strips and the flush-type bus coupler. The position of the control elements can be selected freely for multiple
combinations. A special strip must be mounted on top as well as below. Its material can be different to that of the module.
The support frame is mounted by screwing it to the flush-type bus coupler and, for multiple combinations, also to the wall.
Thanks to the anti-fingerprint surface, the stainless steel Busch-priOn® is easy to keep clean and maintains its sophisticated
surface finish even when it is in use. Glass surfaces and end strips match the carat® series.
Pos: 16.3 /Produkthandb uch - DIN-A4/Busc h-priOn/Einfache Montage/ Einfache Montage - Abbi ldung 3fach @ 9\mod_126924 5658421_15.doc @ 52398 @
Busch-priOn®
Glass black
Busch-priOn®
Studio white
Busch-priOn®
Stainless steel
Busch-priOn®
Glass white
Pos: 17 /Spezial/Neues Lay out 2010/Steuermodu le_Neues_Layout_20 10/++++++++++ ++ Seitenumbruch ++++++ ++++++ @ 9\mod_1268898668093_0. doc @ 52149 @

KNX Technical Reference Manual
Busch-priOn®
10 | 0073-1-7388 | KNX Technical Reference Manual
Pos: 18.1 /Produkthandb uch - DIN-A4/Überschri ften/1. Ebene/M - R/Raumtempera turregler @ 13\mod_1286 268674432_15.doc @ 91479 @ 11
Room thermostat
Pos: 18.2 /Produkthandbuc h- DI N-A4/Überschriften/2. Ebene/P - R/Raumte mperaturregler-Di splay @13\ mod_1286269387786_15.doc @ 91504 @ 2
Room thermostat with display
Pos: 18.3 /Produkthandb uch - DIN-A4/Überschr iften/3. Ebene/Sta ndardansicht @ 13\mod_12 86269449786_15.doc @ 91512 @ 2222
Standard view
Pos: 18.4 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout _2010/++++++ ++++++ Wechsel von ein- auf zweispa ltig ++++++++++ ++ @ 9\mod_1268898451593_0. doc @ 52140 @ 3
Pos: 18.5 /Produkthandb uch - DIN-A4/Busch-tr iton/Raumtemperaturr egler/Standardansi cht @ 13\mod_1286269136131_1 5.doc @ 91487 @ 2

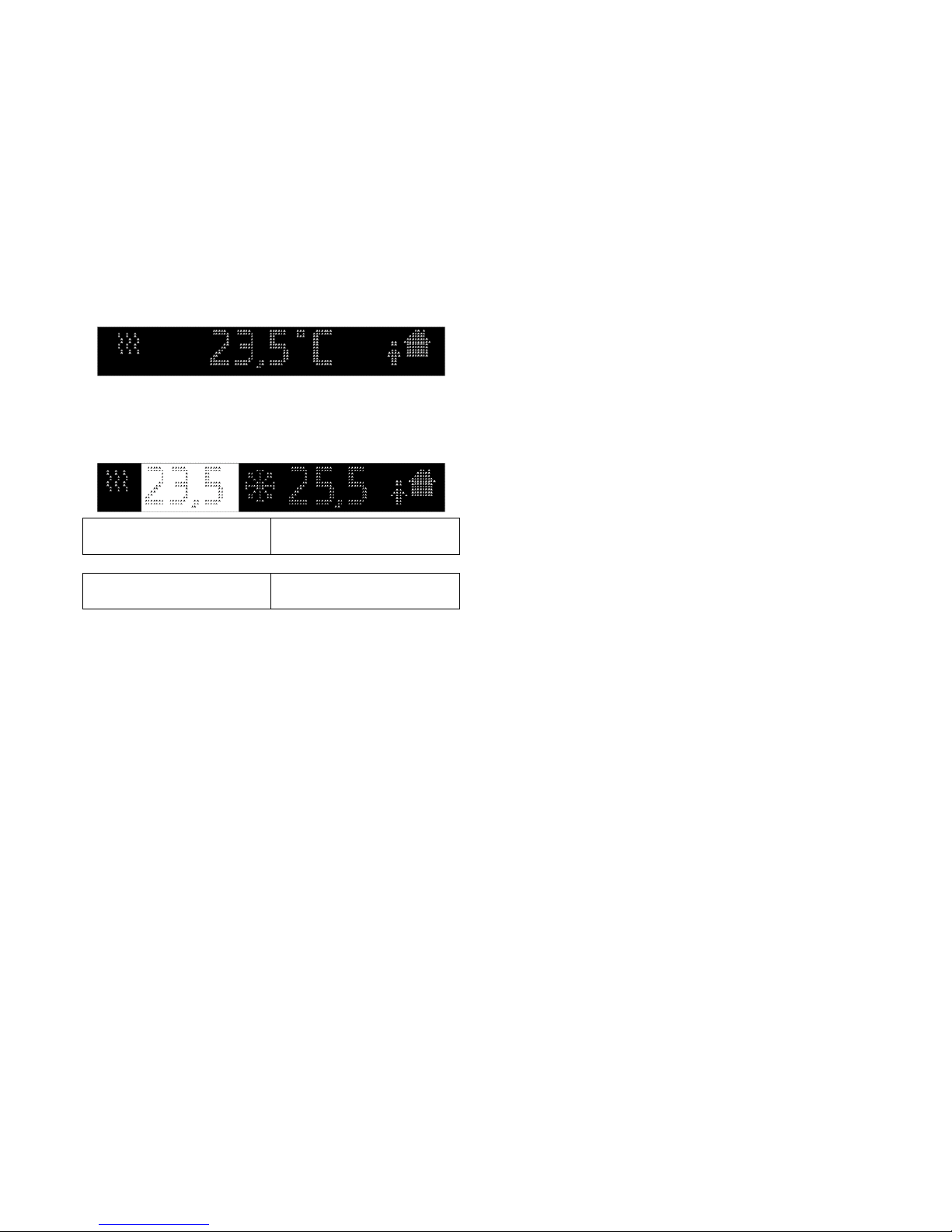

Operating state Operating mode
Actual or setpoint temperature
The display of the room thermostat shows either the current
room temperature or the setpoint for the temperature,
depending on the parameterization.
The current operating state is shown in the left area of the
display and the current operating mode in the right area.
Pos:18.6 /Spezial/NeuesLayout 2010/Steuermodule_Neues_Layout_2010/++++++++++++W echselzwei- aufeinspaltig ++++++++++++@ 9\mod_126889859140 6_0.doc @ 52144 @
Pos: 18.7 /Produkthandb uch - DIN-A4/Überschr iften/3. Ebene/Sol lwerte @ 13\mod_128626949 2130_15.doc @ 91520 @ 22
Set values
Pos: 18.8 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layout _2010/++++++ ++++++ Wechsel von ein- auf zweispa ltig ++++++++++ ++ @ 9\mod_1268898451593_0. doc @ 52140 @ 3
Pos: 18.9 /Produkthandb uch - DIN-A4/Busc h-triton/Raumtemperatur regler/Sollwert e @ 13\mod_1286269283224_ 15.doc @ 91495 @
Heating setpoint Cooling setpoint
{Temperature - {Temperature +
zNext setpoint zPrevious setpoint
{Comfort/Standby {FanCoil-Steps
zOn/Off
{Short press zLong press
In the setting level, which is accessed by pressing the
additional key once, the setpoints for heating and/or cooling
can be adjusted.
The corresponding setpoints are located to the right of each
respective symbol for heating or cooling.
The value brightly highlighted can be changed.
The adjustment is made with the upper rocker of the control
element. A short press of the left side lowers the setpoint, a
short press of the right side raises the setpoint. With a long
press of the button the selection jumps to the next setpoint.
This one can now also be adjusted with a short press of the
button.
After an adjustable time, the display returns to the standard
view.
Pos: 18.10 /Spezial/ Neues Layout 2010/Steuer module_Neues_Layou t_2010/++++++++++++ Wechselzwei- auf einspaltig ++++++++++++ @ 9\mod_1268898591406_0.doc @ 52144 @ 2
Pos: 18.11 /Spezia l/Neues Layout 201 0/Steuermodule_ Neues_Layout_2010/ +++++++++++ + Seitenumbruch ++ ++++++++++ @ 9\mod_1 268898668093_0.doc @ 52149 @
