ABB M22311 Series User manual

VER:1.0 ││31.03.2014
ABB-Welcome M
Pos: 2 /DinA 4 - Anl eitun gen Onl ine /Inh alt /KN X/D oo rEntry /832 20-A P- xx x/Tit el blat t - 832 20-AP -xxx - AB B @ 1 9\ mod_ 132 3249 806 476 _15. docx @ 11 108 4 @ @ 1
M22311-.
M22313-.

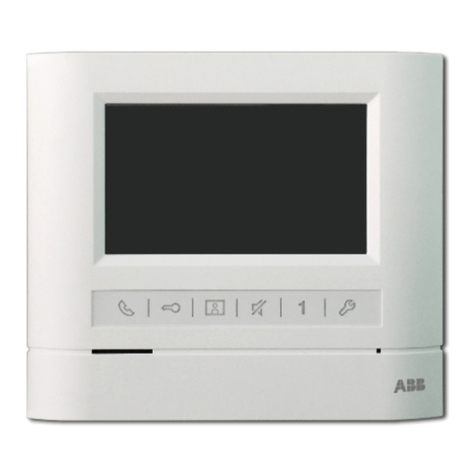

4.3" Video hands-free
indoor station
===E nde der Lis te für Tex tmarke C over == =

ABB
-Welcome
| — 2 —
Pos: 4 /Busc h-Ja ege r (N eust rukt ur)/Mo dul -St ruktu r/O nli ne-D ok u ment ation /Inh al tsve rzei ch nis ( --> Fü r alle D oku men te <-- )/In haltsv e rzeic hni s @ 19\ mod _13 206 490 4438 6_1 5.d ocx @ 109 653 @ @ 1
1Safety.......................................................................................................3
2Intended use.............................................................................................3
3Environment..............................................................................................3
3.1 ABB devices.............................................................................3
4Operations................................................................................................5
4.1 Standard operations..................................................................5
4.1.1 Control elements.......................................................................5
4.2 Control actions..........................................................................8
4.2.1 Incoming call / In a call..............................................................8
4.2.2 Display & volume settings during calling.....................................9
4.2.3 Communication menu .............................................................10
4.3 Settings..................................................................................13
4.3.1 Overview ................................................................................13
4.3.2 Intercom call settings...............................................................14
4.3.3 Switch actuator settings...........................................................16
4.3.4 Program button settings ..........................................................17
4.3.5 Call forward settings................................................................18
4.3.6 Auto unlock settings................................................................19
4.3.7 OS password settings .............................................................20
4.3.8 Ringtone settings....................................................................21
4.3.9 Volumesettings ......................................................................22
4.3.10 Date and time settings.............................................................23
4.3.11 Door entry system settings......................................................24
4.3.12 Blacklist settings .....................................................................25
4.3.13 History review.........................................................................26
4.3.14 Language settings...................................................................28
4.3.15 Information..............................................................................28
4.3.16 Reseting factory default...........................................................29
4.4 Cleaning.................................................................................30
4.5 Adjusting the device................................................................31
5 Technical data.........................................................................................32
6Mounting / Installation..............................................................................33
6.1 Requirements for the electrician...............................................33
6.2 General installation instructions...............................................34
6.3 Mounting.................................................................................35
===E nde der Liste f ür Textma rke TOC == =

ABB
-Welcome M
Safety
| — 3 —
Pos: 6 /Busc h-Ja ege r (N eust rukt ur)/Mo dul -St ruktu r/O nli ne-D ok u ment ation /Ü be rschri ften (- -> Für alle D okum ent e < --)/1. Eb ene/S - T /Si cher heit @ 18\ mod _13 026 127 917 90_ 15.d oc x @ 103 357 @ 1 @ 1
1Safety
Pos: 7 /Busc h-Ja ege r (N eust rukt ur)/Mo dul -St ruktu r/O nli ne-D ok u ment ation /S icher hei t (--> Für all e Dok um ente <- -)/Wa rn hinw eise /S ic herhei t - 23 0 V @ 18\m od_ 130 260 681 675 0_15 .docx @ 1 033 08 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 100-240 V.
– Work on the 100-240V supply system may only be performed by
authorised electricians!
– Disconnect the mains power supply prior to installation and/or
disassembly!
Pos: 8 /Busc h-Ja ege r (N eust rukt ur)/Mo dul -St ruktu r/O nli ne-D ok u ment ation /Ü be rschri ften (- -> Für alle D okum ent e < --)/1. Eb ene/A - F /Bes tim mun gsge mä ßer Geb rau ch @ 18\ mod _13 027 6332 131 6_1 5.do cx @ 1034 83 @ 1 @ 1
2Intended use
Pos: 9 /DinA 4 - Anl eitun gen Onl ine /Inh alt /KN X/D oo rEntry /832 20-A P- xx x/B esti mmu ngsg em aess e r Ge bra uch - 83 220 -AP -xxx- 500 @ 2 0\mo d_1 324 561 168 699 _15. doc x @ 11 272 8 @ @ 1
The M2231x-x is an integral part of the ABB Welcome M door communication system
and operates exclusively with components from this system. The device must only be
installed in dry indoor rooms.
Pos: 10 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/Ü be rsch rifte n ( --> Fü r alle D oku men te < --)/1. E bene /U - Z/U mwelt @ 18\ mod _13 026 141 5896 7_1 5.d ocx @ 103 383 @ 1 @ 1
3Environment
Pos: 11 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/U mw elt ( --> F üral l e Dok u me nte <--)/H inwei s e/Hi nw eis -U mwelt - H inwei s El ektr oge räte @ 1 8\mo d_1 302 763 973 434 _15. doc x @ 10 350 0 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with
domestic waste.
– The device contains valuable raw materials which can be recycled.
Therefore, dispose of the device at the appropriate collecting
depot.
Pos: 12 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ers c hrift en/2 ./ AB B Gera ete @ 19 \ mod_1 323 162 843 832_ 15. docx @ 11 087 5 @ 2 @ 1
3.1 ABB devices
Pos: 13 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/U mw elt ( --> F üral l e Dok u me nte <--)/H inwei s e/Hi nw eis -U mwelt - A BB E lektro ger äte @ 19\ mo d_1 3231 627 458 39_ 15.d oc x @ 110 867 @ @ 1
All packaging materials and devices from ABB bear the markings and test seals for
proper disposal. Always dispose of the packaging material and electric devices and their
components via the authorized collecting depots and disposal companies.

ABB
-Welcome M
Environment
| — 4 —
ABB products meet the legal requirements, in particular the laws governing electronic
and electrical devices and the REACH ordinance.
(EU-Directive 2002/96/EG WEEE and 2002/95/EG RoHS)
(EU-REACH ordinance and law for the implementation of the ordinance (EG)
No.1907/2006)

ABB
-Welcome M
Operations
| — 5 —
Pos: 18 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/1 ./B edie nun g @ 18\ mod_ 130 261 392 416 5_15 . docx @ 1 033 65 @ 1 @ 1
4Operations
Pos: 19 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ers c hrift en/2 ./ Nor male r Bet rieb @ 18 \mo d_1 302 768 8209 65_ 15. docx @ 10 3540 @ 2 @ 1
4.1 Standard operations
Pos: 20 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ers c hrift en/3 ./ Bedie nel e men te @ 20\ mod _13 232 6022 055 9_1 5.do cx @ 1 116 47 @ 3 @ 1
4.1.1 Control elements
Pos: 21 /Di nA 4 - A nl eitu ngen Onl in e/In hal t/KN X/D o orEnt ry/83 220 -A P-x xx/B e dienel eme nte - 8 322 0-A P-xx x @ 18\ mo d_1 3032 128 536 05_ 15.d ocx @ 103 673 @ @ 1
Fig. 1 Control elements
1
3 4 5 6 72
8

ABB
-Welcome M
Operations
| — 6 —
No. Functions
14.3" Color display
2Comunication button
2A When a call is coming, press this button to activate the communication
within 30 seconds and press it again to end the call.
2B In standby mode, press this button to enter the communication menu.
2C In standby mode, hold this button to activate the broadcast function (if
the multi-indoor station is installed in the same apartment).
If the LED flashes slowly, this means an incoming call.
If the LED illuminates,, this means that a conversation is in progress.
If the LED flashes rapidly, it means system is busy.
3Unlock button
3A Press this button to open the door at any time.
3B Auto-unlock: the door is automatically opened after an incoming call
(Hold this button for more than 10 seconds until the backlit LED turns
on, Tthe same operation will switch off the function and LED will be
turned off ).
If the LED illuminates, this means auto-unlock.
If the LED flashes rapidly, it means that the door has been opened over the
set time (The sensor must be connected first).
4Surveillance button
4A In standby mode, press this button to survey the default outdoor station.
4B While the display is on, press this button to the survey the next outdoor
station. (This function is available depending on the installation type)
4C While the display is on, hold this button to take a snapshot.
4D In standby mode, if the LED flashes, press this button to display the
"History" record.
If the LED flashes slowly, this represents a notification on a missed
call.
5Mute button
5A In standby mode, press this button to mute ringtone of the indoor
station.
5B In standby mode, hold the button to mute ringtone of all indoor stations
in the apartment.
5C When a call is coming, press this button to reject the call.
5D During the conversation, press this button to mute microphone.
The LED illuminates to indicate mute status.

ABB
-Welcome M
Operations
| — 7 —
6Programmable button 1
6A Release the lock connected with an outdoor station (COM-NC-NO)
(default function).
6B In standby mode, hold this button for 3 seconds to send SOS alarm to
the guard unit. If LED flashes slowy, it means success; and if flashes
rapidly, it means failure.
6C *Programmable button for additional functions, e.g. call to guard unit,
intercom.....
7System setting button
Enter the system setting menu for various functions of the device.
If the LED flashes rapidly, it means that setting is busy.
8**Induction loop function
* For use of those buttons, please contact your electrical installer.
** The function is only available in M22313-.
Pos: 22 /B usc h-J aeg er (Neus truk tur )/M odul -Strukt ur/O nline -Dok u me ntatio n/S teu er mod ule - Onli n e-Dok ume ntati on (-- > F ür alle D ok ume nte <- -)/ +++++ ++ +++++ S eiten umb ruch + +++ ++ +++++ + @ 9\m od_ 126 8898 668 093 _0. docx @ 521 49 @ @ 1

ABB
-Welcome M
Operations
| — 8 —
Pos: 26 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/2 ./B edie nak ti onen @ 2 0\m od_ 1323 262 294 281 _15. docx @ 11 191 1 @ 2 @ 1
4.2 Control actions
Pos: 27 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/3 ./S pr ech- und V ideov erbi ndu ng @ 20\ mod _13 232 6236 870 0_1 5.do cx @ 1119 27 @ 3 @ 1
4.2.1 Incoming call / In a call
Pos: 28 /Di nA 4 - A nl eitu ngen Onl in e/In hal t/KN X/D o orEnt ry/83 220 -A P-x xx/S p rech - u nd Vi de over bind ung - 8 322 0-AP -xxx @ 20\ mo d_1 3232 623 418 52_ 15.d ocx @ 111 919 @ @ 1
Fig. 2 Incoming call / in a call
During calls, the following functions are available:
No. Functions
1Press this button to accept the incoming call; In a call, press this button to
end the call.
2Press this button to open the door where the call is from.
3-A Press this button to survey the analog camera of the outdoor station if
there is one.
3-B Hold this button to take a snapshot.
4Press this button to mute the ringtone of an incoming call; in a call, press
this button to mute the microphone.
5-A Press this button to activate the function of the programmable button.
5-B If the function "release 2nd-lock" or "control switch actuator" is assigned to
The programmable button, press this button to activate the function.
6-A
6-B Press this button to enable or disable the full-screen function.
Hold this button to enter the brightness and volume setttings menu.
7Time left of the connection.
8Number of outdoor stations
Pos: 29 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/S teu er mod ule - Onli n e-Dok ume ntati on (-- > F ür alle D ok ume nte <- -)/ +++++ ++ +++ ++S eiten umb ruch + +++ ++ +++++ + @ 9\m od_ 126 8898 668 093 _0. doc x @ 521 49 @ @ 1
30s
Outdoor 1
136
7
8
2 4 5

ABB
-Welcome M
Operations
| — 9 —
Pos: 30 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/3 ./T uer oeff nen @ 2 0\ mod_1 323 263 277 453 _15. docx @ 11 193 5 @ 3 @ 1
4.2.2 Display & volume settings during calling
Pos: 31 /Di nA 4 - A nl eitu ngen Onl in e/In halt /KN X/D o orEnt ry/83 220 -A P-xx x/ Tue r o effne n - 832 20-AP -x xx @ 20\ mod_ 132 326 795 847 9_15 . docx @ 1 121 09 @ @ 1
Fig. 3 Display & volume settings during calling
Hold button for 3s to enter the display & volume setttings menu during a call or
conversation, the following functions are available.
No. Functions
1Navigation buttons ( up / down / confirm / cancel, etc)
2Press the navigation buttons as needed.
3Speech volume(only can be adjusted during conversation)
4Saturation
5Brightness
6Value set
Pos: 32 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/S teu er mod ule - Onli n e-Dok ume ntati on (-- > F ür alle D ok ume nte <- -)/ +++++ ++ +++ ++S eiten umb ruch + +++ ++ +++++ + @ 9\m od_ 126 8898 668 093 _0. doc x @ 521 49 @ @ 1
120s
Outdoor 1
24
5
6
1
2
3

ABB
-Welcome M
Operations
| — 10 —
Pos: 33 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/3 ./S tum m sc hal te n @ 2 0\m od_ 132 326 360 7142 _15 .docx @ 1 119 51 @ 3 @ 1
Pos: 66 /B usc h-J aeg er (Neus truk t ur)/M odul -Strukt ur/O nline -Dok u me ntatio n/S teu er mod ule - Onli n e-Dok ume ntati on (-- > F ür alle D ok ume nte <- -)/ +++++ ++ +++ ++S eiten umb ruch + +++ ++ +++++ + @ 9\m od_ 126 8898 668 093 _0. doc x @ 521 49 @ @ 1
4.2.3 Communication menu
Pos: 31 /Di nA 4 - A nl eitu ngen Onl in e/In halt /KN X/D o orEnt ry/83 220 -A P-xx x/ Tue r o effne n - 832 20-AP -x xx @ 20\ mod_ 132 326 795 847 9_15 . docx @ 1 121 09 @ @ 1
4.2.3.1 Overview
Press button to enter the communication menu. The following functions are available:
No. Functions
1Intercom call
-Touch the existing call list to make an intercom call .
2Call to guard unit
-Call guard unit directly.
3Broadcast
-Enable the broadcast function in this menu.
4Swtich actuator
-Activate the existing actuator list
4.2.3.2 Intercom call
Fig. 4: Intercom call
Set intercom call lists in the “System settings-intercom settings“ menu first.
After chosing a list, press button√to make the call.
INTERCOM CALL
Intercom 1 (001)
Intercom 2

ABB
-Welcome M
Operations
| — 11 —
4.2.3.3 Call to guard unit
Fig. 5: Call to guard unit
4.2.3.4 Broadcast
Fig. 6: Broadcast call
CALL GUARD UNIT
Call Guard Unit
BROADCAST
Long-pressing “√“ button to broadcast

ABB
-Welcome M
Operations
| — 12 —
4.2.3.5 Switch actuator
Fig. 7: Switch actuator
Set the actuator list in the “system settings-switch actuator“ menu first.
After chosing a list, press button √to enable the lock or light which is connected with the
switch actuator.
SWITCH ACTUATOR
Actuator 1 (001)

ABB
-Welcome M
Operations
| — 13 —
4.3 Settings
4.3.1 Overview
Press button to enter the system settings menu. The following functions are available:
No. Functions
1Intercom settings
-Set intercom lists among different apartments or within the same
apartment
2Switch actuator
-Set the actuator list in this menu
3Program button
-Set functions for programmable buttons
4Call forward
-Set the target (e.g. other indoor stations or guard units) that you want to
forward the call from visitors when you are absent from home.
5Auto unlock
-Set the automatic unlock time range
6Set OS password
-Set a customized door open password, which is available together with
a keypad at an outdoor station.
7 Ringtone
-Set the ringtone for outdoor bells, indoor bell or others
8Volume
-Set ringtone volumes
9Date and time
-Set different times.
10 Other settings
-Other settings, e.g. auto full screen
11 Blacklist
-Set a blacklist which is used to prevent unwanted calls from other
apartment(s)
12 History
-View all communication entries in the menu, e.g. received calls, missed
calls,
13 Language
-Set the local language
14 Information
15 Reset factory default
Pos: 27 /Di nA 4 - A nl eitu ngen Onl in e/Ueb ersc hrift en/3 ./S pr ech- und V ideov erbi ndu ng @ 20\ mod _13 232 6236 870 0_1 5.do cx @ 1119 27 @ 3 @ 1

ABB
-Welcome M
Operations
| — 14 —
4.3.2 Intercom call settings
Fig. 8: intercom settings menu
No. Functions
1Choose the previous selection or scroll up
2Choose the next selection or scroll down
3Confirm the selection you choose or enter to edit it
4Return to the previous screen
5Add a new intercom list . In total, up to 32 intercom lists can be added.
6Existing intercom list: Press button √to modify the settings.
means an external intercom from different
apartments.
*For establishing an external intercom, each apartment must have a master
indoor station.
7Existing intercom list: Press button √to modify the settings.
means an internal intercom in the same
apartment.
1 2 3
6
4
Intercom 1 (001)
Intercom 2
Add New 5

ABB
-Welcome M Op
erations
| — 15 —
Add a new list
Fig. 9: Add a new intercom
No. Functions
1Enter to choose the call type :
-an external intercom means a call from different apartments
-an internal intercom means a call within the same apartment
2Enter to change the target address, from 001 to 250.
*If the call type is the internal intercom, there is no need to set the target
address.
3Rename the intercom list:
Scroll through letters of the alphabet or numbers one by one with “+” or
“-” button
After setting, press “Save” for confirmation.
1Call Type External Intercom
Target Address
Rename 3
INTERCOM
001
mike
Save Cancel
2

ABB
-Welcome M
Operations
| — 16 —
4.3.3 Switch actuator settings
Fig. 10: Switch actuator settings
No. Functions
1Existing switch actuator list: Press button √to modify the settings.
2Add a new actuator list:Totally, up to 10 switch actuator lists can be added.
3Enter to change target address with “+” or “-” button from 001 to 199.
4 Rename the switch actuator list:
Scroll through letters of the alphabet or numbers one by one with “+” or
“-” button
3
4
SWITCH ACTUATOR
Actuator 1 (001)
Add New
Target Address
Rename
002
light
Save Cancel
SWITCH ACTUATOR
2
1
Add a new list

ABB
-Welcome M
Operations
| — 17 —
4.3.4 Program button settings
Fig. 11: Program button settings
No. Functions
1Set functions for the program button, e.g. releasing 2nd-lock, calling guard
unit, intercom call, enabling the switch actuator.
*2nd-lock means the lock is connected with an outdoor station (NC-NO-
COM)
*Only the existing intercom call list & switch actuator list can be assigned
to the program button.
Button 1 Release 2nd-Lock
PROGRAM BUTTON
1

ABB
-Welcome M
Operations
| — 18 —
4.3.5 Call forward settings
Fig. 12: Call forward settings
No. Functions
1Enable/disable the call forward function.
2Enter to choose a call type, including indoor or guard unit.
3Enter to change the target address if the call type is an indoor station.
*If the call forward function is activated, the auto unlock function will be disabled.
*The function only can be set in the master indoor station
1
2
Call Forward
Call Type
√
Indoor
Save Cancel
CALL FORWARD
Target Address 001 3
1

ABB
-Welcome M
Operations
| — 19 —
4.3.6 Auto unlock settings
Fig. 13: Auto unlock settings
No. Functions
1Enable/disable the auto unlock function.
2Enable/disable the auto unlock during Time 1.
3Set starting time and ending time for Time 1
4Enable/disable auto unlock during Time 2.
5Set starting time and ending time for Time 2.
*If you activate the auto unlock function without setting exact working time, this function will be
available for 10 hours.
*If the auto unlock function is activated, the call forward function will be disabled.
*The function only can be set in master indoor station.
.
1
Auto Unlock
Time 1 2
AUTO UNLOCK
√
√
08 00
17 00
：
：
Time 2 X
00 00
00 00
：
：
4
3
5

ABB
-Welcome M
Operations
| — 20 —
4.3.7 OS password settings
Fig. 14: OS password settings
No. Functions
1Enable/disable the password functions
2Enter the password as you wish in 6~8 digits.
*only available with the keypad.
*The function only can be set in the master indoor station.
1
Enable Password
Enter Password
(6-8 digits)
SET OS PASSWORD
√
123456 2
