ABB CP-ASI/2.8 User manual

2CDC271002S0012
Data sheet
Power Supply CP-ASI/2.8
Primary switch mode power supply for AS-interface
The CP-ASI power supply range is specifically
designed with integrated data decoupling for the
supply of AS-Interface systems.
Up to 62 slaves (binary I/O devices) can be
supplied with a single two-conductor cable.
The configurable IR addressing mode allows the
easy assign of new ID addresses by means of an
external infrared programming unit.
Characteristics
– Rated output voltage 30.5 V DC
– Rated output current 2.8 A
– Rated output power 85 W
– Rated input voltage 115 or 230 V AC, configurable
– Infrared addressing mode
– High efficiency of up to 90.5 %
– Low power dissipation and low heating
– Free convection cooling (no forced cooling with
ventilators)
– Ambient temperature range during operation -10…70 °C
– Open-circuit, overload and short-circuit stable
– Integrated input fuse
– Tool-free mounting on DIN rail as well as demounting
– LEDs for the indication of operational states
Approvals
AUL 508, CAN/CSA C22.2 No.107.11)
HUL 60950-1, CAN/CSA C22.2 No. 60950-11)
1) Approvals refer to rated input voltage Uin
Marks
aCE
Order data
Type Input voltage range Rated output voltage Rated output current Order code
CP-ASI/2.8 85-132 V AC
184-264 V AC
30.5 V DC 2.8 A 1SVR427090R0280
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Functions
2CDC271002S0012
1Output
+, -, +, -, SHIELD: output terminals
2Indication of operational states
AS-I OK: green LED – output voltage OK
3Configuration of operation mode
Jumper
4Indication of operational states
IR ADDRESSING ON: red LED – infrared addressing mode active
5Circuit diagram
6Input voltage selector
Adjustment of input voltage
7Input
L, N, PE: input terminals
Application
The primary switch mode power supply is specifically designed with integrated data decoupling for the supply of AS-
interface systems. It operates at two selectable input voltage ranges and can be used worldwide, within compact
dimensions. The easy-to-set front-face jumper allows the assignment of new ID addresses to slaves by means of an
external infrared programming unit without disconnecting them from the AS-Interface cable.
Up to 62 binary I/O devices can be connected and supplied according to the AS-interface bus technology with a single
two-conductor cable. The communication signals are modulated onto the slaves’ DC supply voltage of the AS-interface
system, which therefore requires a specific power supply with integrated data decoupling.
Operating mode
By means of the input voltage selector the input voltage can either be set to 115 V AC or 230 V AC. The front-face
jumper allows the configuration of the operation mode of the power supply, i.e. “1-2 COMMUNICATION MODE” or “2-3
IR ADDRESSING MODE” to enable communication control and supply of AS-interface slaves or to interrupt the data
communication for the assignment of new ID addresses to participants by means of an external infrared programming unit.
The green LED “AS-I OK” is on during normal operation, i.e. when the output voltage exceeds 30 V DC, and is off at
overload.
The red LED “IR ADDRESSING ON” is on when data communication has been interrupted by means of the jumper.
3
1
2
4
5
6
7
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Installation
The device must be installed by qualified persons only and in accordance with the specific national regulations (e.g. VDE,
etc.). The devices are maintenance-free chassis-mounted units.

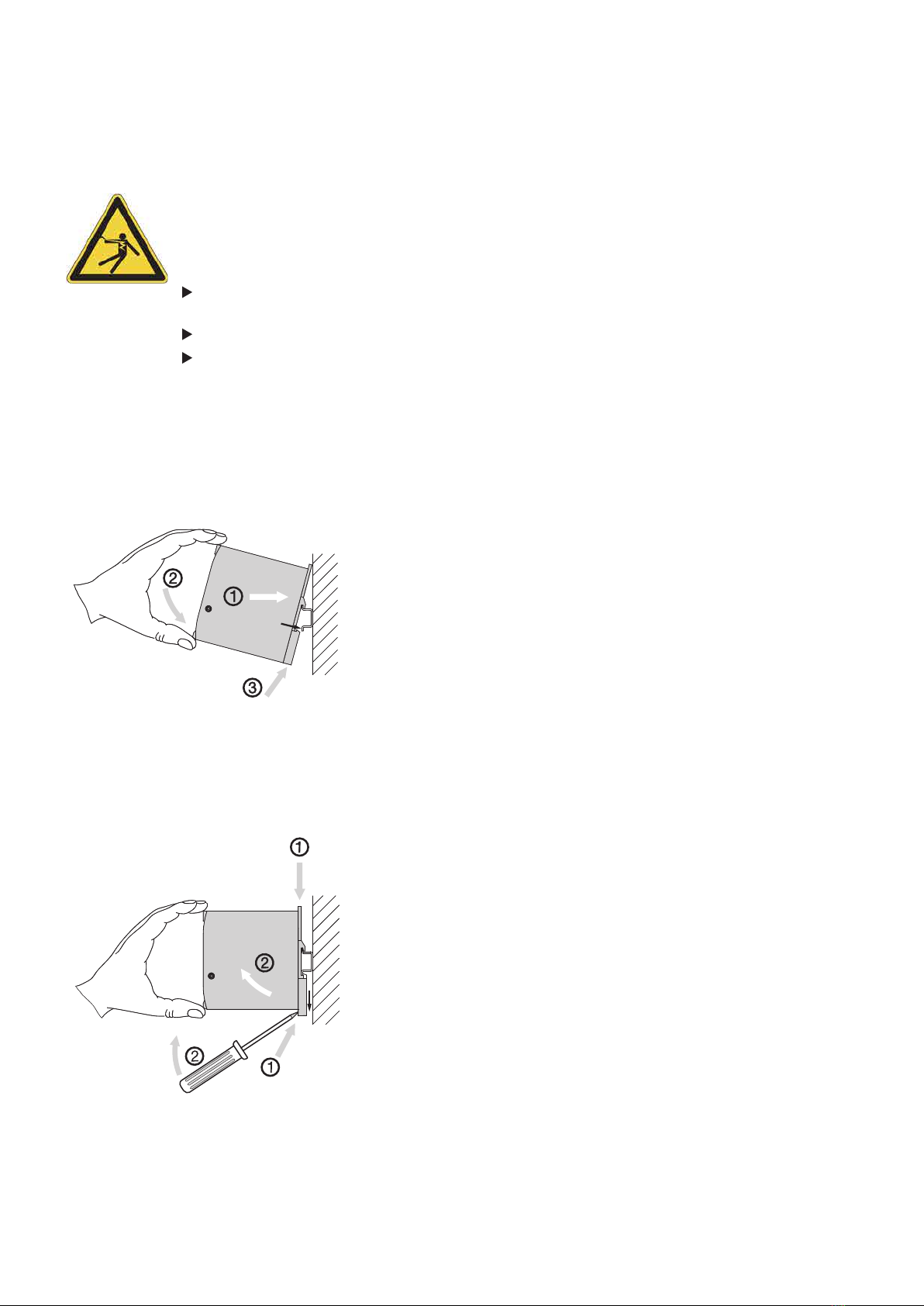

Before installation
DANGER!
Components with high stored energy and circuits with high voltage
Danger to be electrocuted!
Disconnect the system from the supply network and protect against switching on before any
installation, maintenance or modification work.
Do not introduce any objects into the unit and do not open the unit.
Ensure that the service personnel is protected against inadvertent contact with parts carrying energy.
Mounting
The switch mode power supply can be snapped on a DIN rail (TH 35-15 or TH 35-7.5 according to IEC/EN 60715) as
shown in the accompanying picture. For that the device is set with its mounting rail slide on the upper edge of the mounting
rail and locked by lifting it downwards.
2CDC273001F0012
click
Demounting
Remove the switch mode power supply as shown in the accompanying picture. For that the latching lever is pulled
downwards by means of the screwdriver. Alternatively the upperside of the latching lever can be pressed to release the
device. Then in both cases the device can be unhinged from the mounting rail edge and removed.
2CDC273002F0012
Alternative:
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

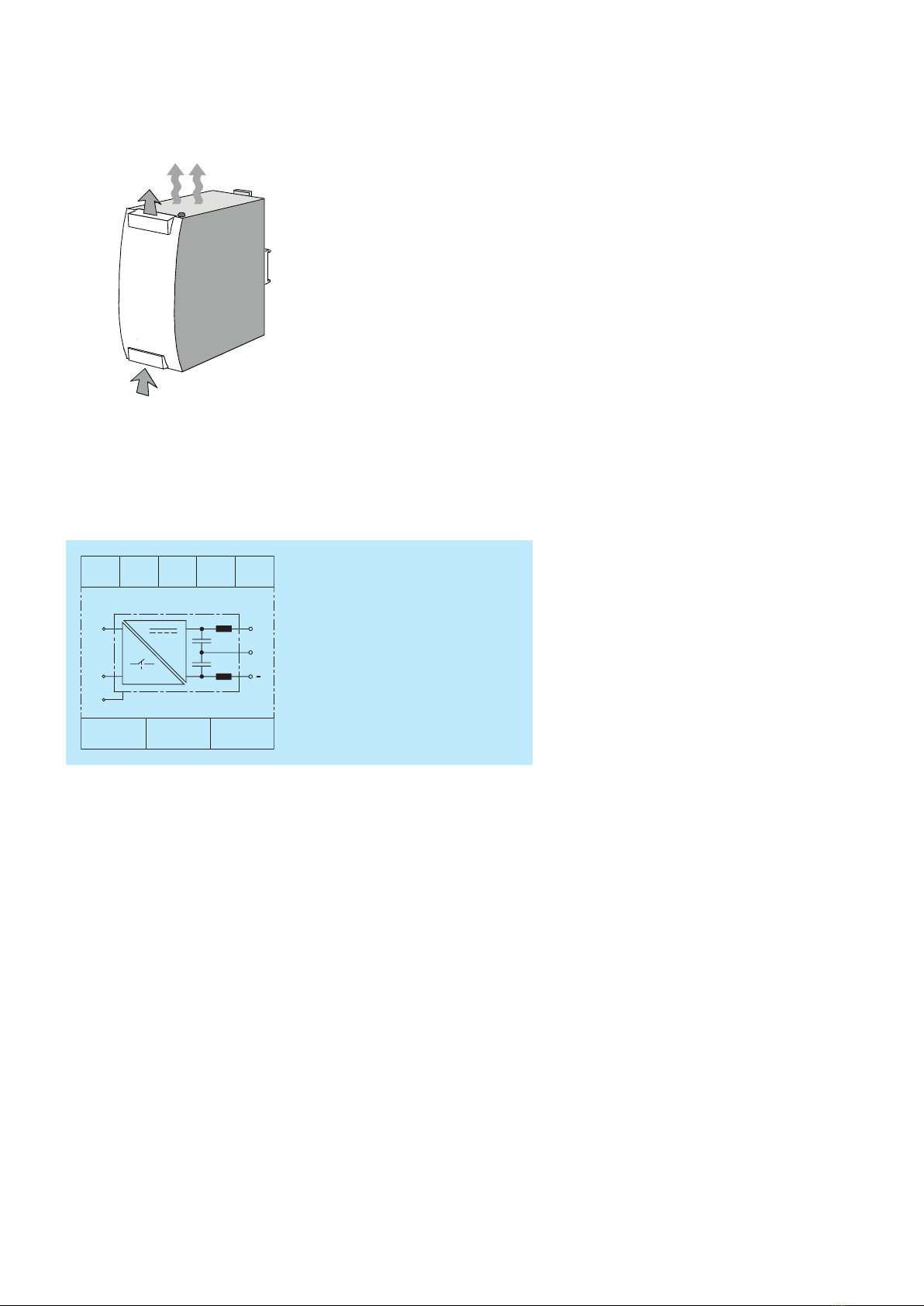

Mounting position
The devices have to be mounted horizontally with the input terminals on the bottom. In order to ensure a sufficient
convection, the minimum distance to other modules should not be less than 15 mm (0.59 in) in vertical and 25 mm (0.98 in)
horizontal direction.
2CDC 272 001 F0012
IN
OUT
Electrical connection
+, - Output voltage
SH Shield
L, N Input voltage
oProtective earth
Preparations:
– Connect to mains according to the specific national regulations.
– Power supply cables and unit must be sufficiently fused. A disconnecting device has to be provided for the power supply
to disengage unit and supply cables from supply mains if required.
– We recommend to choose the cable section as large as possible in order to minimize voltage drops.
– In order to ensure sufficient air-cooling the distance to other devices has to be considered.
Instructions:
1. Connect the input terminals L and N.
2. Connect the protective earth conductor to terminal o(protection class I).
3. Provide a suitable disconnecting device (e.g. line protection switch) in the supply line acc. to IEC/EN 60950-1.
4. Rate the lines for the maximum output current (considering the short-circuit current) or provide a separate fuse protection.
The input side is protected by an internal input fuse.
5. Observe the polarity.
Connect the ‘shield’ terminal on the AS-i power supply to the machine ground so that the AS-i system is symmetrically
operated against this machine ground. This improves noise sensitivity in case of symmetrical interference on the AS-i cable.
The device is overload, short-circuit and open-circuit proof. The secondary side of the power supply unit is electrically
isolated from the input.
2CDC272003F0012
SH
_
_
++
NL
o
PWM
SH
L+
N
o
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Operation
DANGER!
High current
Risk of electric arcs and electric shocks!
Do not modify the installation (primary and secondary side).
Intended use.
CAUTION!
Depending on the operation conditions the enclosure can become very hot
Risk of burns!
In order to ensure sufficient air-cooling the distance to other devices has to be considered.
The device is intended for use as a primary switch mode power supply for AS-interface systems. Any other usage is not
supported by the manufacturer. Other usage may impair safety and cause operational difficulties or destruction of the unit.
Service
The internal fuse is not user-replaceable. If the internal fuse blows, most probably the device is defective. In this case, an
examination of the switch mode power supply by the manufacturer is necessary.
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Technical data
Data at Ta= 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated
Input circuit – Supply circuit L, N
Rated input voltage Uin switch position 115 V 100-120 V AC
switch position 230 V 220-240 V AC
Input voltage range switch position 115 V 85-132 V AC
switch position 230 V 184-264 V AC
Frequency range AC 47-63 Hz
Typical input current switch position 115 V 2.0 A
switch position 230 V 0.9 A
Typical power consumption 94 W
Inrush current limiting / I²t (cold start) < 20 A (132 V AC) / approx. 1.5 A²/s
< 38 A (264 V AC) / approx. 1.8 A²/s
Discharge current towards PE < 3.5 mA
Power failure buffering time at 115 V AC min. 35 ms
at 230 V AC min. 40 ms
Transient overvoltage protection varistor
Internal input fuse 2.5 A slow acting / 250 V AC
External fusing (not necessary, but recommended) circuit breaker with C characteristic min. 6 A,
or alternatively 10 A with B characteristic
Power Factor Correction (PFC) at 115 V AC 0.58
at 230 V AC 0.53
Indication of operational states
Output voltage AS-I OK LED green
IR addressing mode IR ADDRESSING ON LED red
Output circuit +, -
Rated output power 85 W
Rated output voltage 30.5 V DC
Tolerance of the output voltage ± 3 %
Rated output current IrTa≤ 60 °C 2.8 A
Derating of the output current 60 °C < Ta≤ 70 °C 2.5 % / °C
Control time < 2 ms
Starting time after applying the supply voltage max. 400 ms
Rise time max. 100 ms
Residual ripple BW = 500 kHz typ. < 50 mVpp
Switching peaks BW = 20 MHz typ. < 100 mVpp
Output circuit – No-load, overload and short-circuit behaviour
Characteristic curve of output U/I characteristic curve
Short-circuit protection continuous short-circuit stability
Short-circuit behavior continuation with output power limiting
Current limiting at short circuit min / max 3.2 A / 4.6 A
Overload protection output power limiting
No-load protection continuous no-load stability
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

General data
MTBF on request
Power dissipation typ. < 9.1 W (230 V AC, 2.8 A)
Efficiency typ. 90.5 %
Duty time 100 %

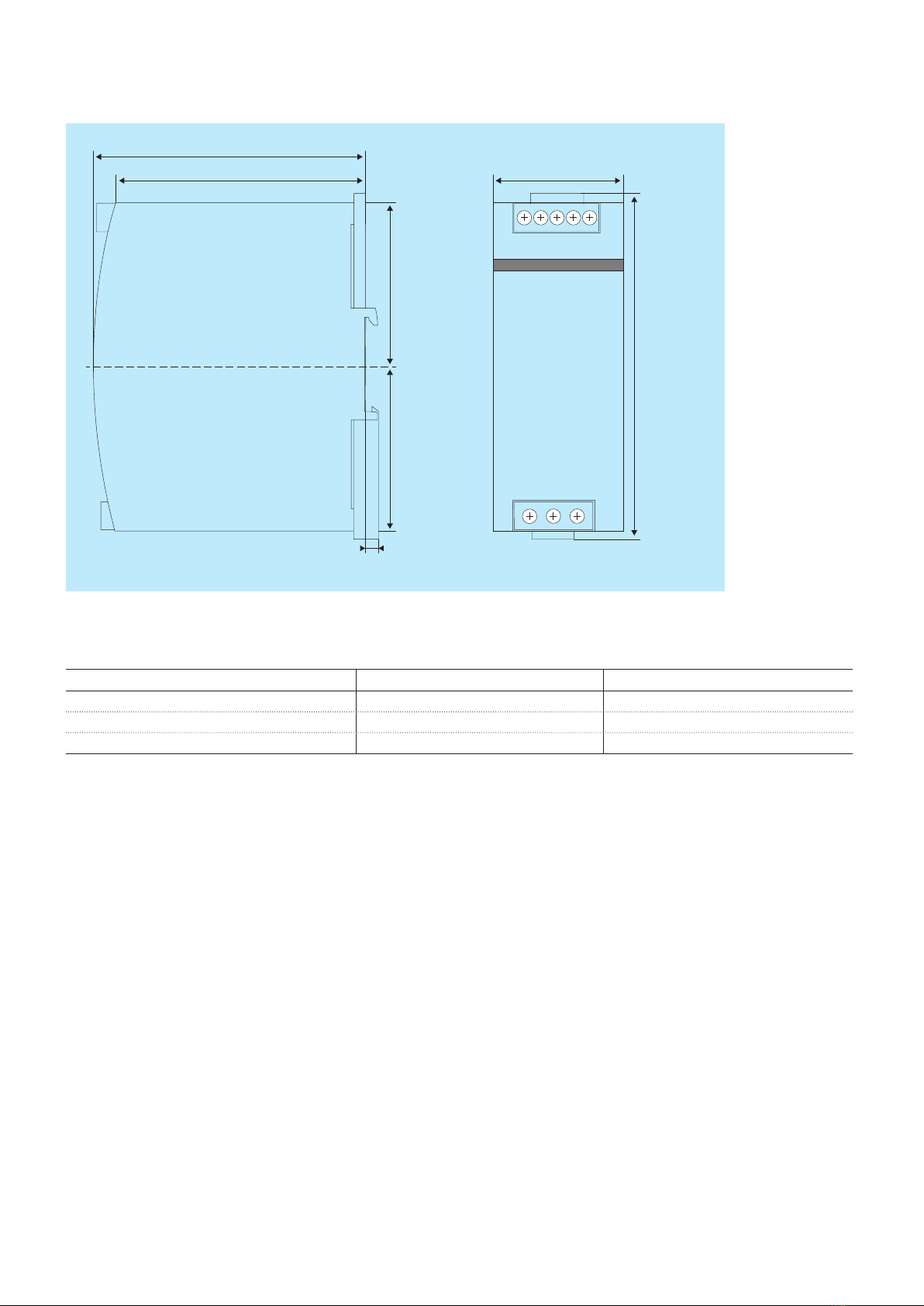

Dimensions (W x H x D) product dimensions 49 x 131 x 107 mm (1.93 x 5.16 x 4.21 in)
packaging dimensions 151 x 65 x 140 mm (5.94 x 2.56 x 5.51 in)
Weight net weight 0.495 kg (1.019 lb)
gross weight 0.568 kg (1.252 lb)
Material of housing metal
Mounting DIN rail (IEC/EN 60715), snap-on mounting without any tool
Mounting position horizontal
Minimum distance to other units horizontal / vertical 15 mm / 25 mm (0.59 / 0.99 in)
Degree of protection housing / terminals IP 20
Protection class I
Electrical connection
Wire size fine-strand with wire end ferrule 0.5-4 mm² (20-12 AWG)
fine-strand without wire end ferrule 0.5-4 mm² (20-12 AWG)
rigid 0.5-6 mm² (20-10 AWG)
Stripping length 7 mm (0.28 in)
Tightening torque 0.8 Nm (7.08 lb.in)
Environmental data
Ambient temperature ranges operation -10...+70 °C
rated load -10...+60 °C
storage -25...+85 °C
Vibration 2-17.8 Hz, amplitude ± 1.6 mm
sinusoidal (IEC/EN 60068-2-6) 17.8 Hz - 500 Hz, 2 g
random (IEC 60068-2-64) 2-800 Hz 0.5 s² (s³)
Shock, half-sine (IEC/EN 60068-2-27) 15 g (6 ms), 10 g (11 ms)
Isolation data
Rated insulation voltage Uiinput / output 300 V
(IEC/EN 60950-1, EN 50178) input / PE 300 V
output / PE 50 V
shield / output 50 V
shield / PE 50 V
Rated impulse withstand voltage Uimp input / output 6 kV 1.2/50 µs
(EN 50178) input / PE 4 kV 1.2/50 µs
output / PE 500 V 1.2/50 µs
Power-frequency withstand voltage test (test voltage) input / output 2.5 kV AC / 3.0 kV AC
(routine test / type test) input / PE 2.5 kV AC / 2.5 kV AC
output / PE 500 V AC / 500 V AC
Pollution degree (IEC/EN 60950-1) 2
Overvoltage category (IEC/EN 60950-1, EN 50178) input II (IEC/EN 60950-1), III (EN 50178)
output II (IEC/EN 60950-1), II (EN 50178)
Standards
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
RoHS Directive 2011/65/EC
Electrical safety IEC/EN 60950-1
Protective low voltage SELV (IEC/EN 60950-1), PELV
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Electromagnetic compatibility
Interference immunity to IEC/EN 61000-6-2
electrostatic discharge IEC/EN 61000-4-2 Level 4 (8 kV / 15 kV)
radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3 (10 V/m)
electrical fast transient/burst IEC/EN 61000-4-4 input circuit: Level 4 (4 kV)
output circuit: Level 3 (2 kV)
surge IEC/EN 61000-4-5 input circuit: L-L Level 3 (2 kV) / L-PE Level 4 (4 kV)
output circuit: Level 1 (0.5 kV)
conducted disturbances, induced by radio- IEC/EN 61000-4-6 Level 3 (10 V, 150 kHz - 80 MHz)
frequency fields
voltage dips, short interruptions and voltage
variations
IEC/EN 61000-4-11 Class 3
Interference emission IEC/EN 61000-6-3
high-frequency radiated IEC/CISPR 22, EN 55022 Class B
high-frequency conducted IEC/CISPR 22, EN 55022 Class B
limits for harmonic current emissions IEC/EN 61000-3-2 Class A
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Technical diagrams
Output behaviour
12
16
20
24
28
32
8
4
0
01234
Uout [V]
Iout [A]
2CDC272007F0012
Characteristic curve of output at Ta= 25 °C
Temperature behaviour
-10 60 70 Ta[°C]
Iout [A]
2.8
2.1
2CDC272006F0212
Characteristic curve of temperature at rated load
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Dimensions
in mm and inches

102 4.02”
49 1.93”
62 2.44”
131 5.16”
50.20”
94 3.78”
62 2.44”
2CDC272014F0012
Further documentation
Document title Document type Document number
Electronic products and relays Technical catalogue 2CDC 110 004 C02xx
Power supply units Application manual 2CDC 114 048 M020x
CP-ASI/2.8, CP-ASI/4.0, CP-ASI/8.0 Instruction manual 1SVC 427 090 M0000
You can find the documentation on the internet at ABB Website -> Control Products -> Power Supplies.
CAD system files
You can find the CAD files for CAD systems at ABB Website -> Low Voltage
Products & Systems -> Control Products -> Power Supplies.
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]
