ABB CalMaster User manual

ABB Instrumentation
Instruction ManualCalMaster
CalMaster
ASEABROWNBOVERI

ABB KENT-TAYLOR
R
E
G
I
S
T
E
R
E
D
F
I
R
M
BS EN ISO 9001
St Neots, U.K. – Cert. No. Q5907
Stonehouse, U.K. – Cert. No. FM 21106
The Company
ABB Kent-Taylor is an established world force in the design and
manufacture of instrumentation for industrial process control, flow
measurement, gas and liquid analysis and environmental
applications.
As a part of ABB, a world leader in process automation technology,
we offer customers application expertise, service and support
worldwide.
We are committed to teamwork, high quality manufacturing,
advanced technology and unrivalled service and support.
The quality, accuracy and performance of the Company’s products
result from over 100 years experience, combined with a continuous
program of innovative design and development to incorporate the
latest technology.
TheNAMASCalibrationLaboratoryNo.0255(B)isjustoneoftheten
flow calibration plants operated by the Company, and is indicative of
ABB Kent-Taylors dedication to quality and accuracy.
Health and Safety
To ensure that our products are safe and without risk to health, the following points must be noted:
1. The relevant sections of these instructions must be read carefully before proceeding.
2. Warning labels on containers and packages must be observed.
3. Installation,operation,maintenanceandservicingmustonlybecarriedoutbysuitablytrainedpersonneland
in accordance with the information given.
4. Normal safety precautions must be taken to avoid the possibility of an accident occurring when operating in
conditions of high pressure and/or temperature.
5. Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry.
Normal safe handling procedures must be used.
6. When disposing of chemicals ensure that no two chemicals are mixed.
Safetyadviceconcerningtheuseoftheequipmentdescribedinthismanual or any relevant hazard data sheets
(where applicable) may be obtained from the Company address on the back cover, together with servicing and
spares information.
Use of Instructions
Warning.
An instruction that draws attention to the risk of
injury or death.
Caution.
An instruction that draws attention to the risk of
damage to the product, process or surroundings.
✶
Note.
Clarification of an instruction or additional
information.
Information.
Further reference for more detailed information or
technical details.
Although Warning hazards are related to personal injury, and Caution hazards are associated with equipment or
property damage, it must be understood that operation of damaged equipment could, under certain operational
conditions,resultindegradedprocesssystemperformanceleadingtopersonalinjuryordeath.Therefore,comply
fully with all Warning and Caution notices.
Informationinthis manualisintendedonlytoassistourcustomersin theefficientoperationof ourequipment.Use
of this manual for any other purpose is specifically prohibited and its contents are not to be reproduced in full or
part without prior approval of Technical Communications Department, ABB Kent-Taylor.
Stonehouse, U.K. – Cert. No. 0255
EN 29001 (ISO 9001)
Lenno, Italy – Cert. No. 9/90A

1
CONTENTS
Contents Page
1 PREPARATION .................................. 2
1.1 Unpacking ..................................... 2
2 INSTALLATION .................................. 2
2.1 Adapting the MagMaster
Transmitter .................................... 2
2.2 Preparing the MagMaster
Transmitter for Verification ............ 3
2.2.1 Removing the Covers ....... 3
2.2.2 Fitting the Adaptor Board.. 4
2.2.3 Wiring the Adaptor Socket 5
2.2.4 System Setup ................... 6
3 OPERATION ....................................... 7
3.1 Software Installation ...................... 7
3.1.1 Windows 3.1 or 3.11......... 7
3.1.2 Windows 95 ...................... 7
3.2 Initialising the CalMaster ............... 7
3.3 Battery Charging ........................... 7

2
2.1 Adapting the MagMaster
Transmitter
To enable a MagMaster system to be tested
by the CalMaster it is necessary to initially fit
a small adaptor board to the MagMaster
transmitter. This adaptor is provided with the
CalMaster Unit.
Once the adaptor is fitted to the MagMaster
transmitter, the CalMaster can be easily
connected to the transmitter for testing at any
time.
Extra adaptor kits are available from the
Company
The adaptor is supplied in the form of a PCB
fittedwithconnectorswhichfitintothesensor
connection terminals of the MagMaster
transmitter.
A connection socket is also provided, which
after termination with the sensor cable, is
connected with the plug on the adaptor PCB.
This provides a flexible means of inserting
connecting leads from the CalMaster, when
testing is required, and reconnecting the
MagMaster sensor wiring when the testing is
complete.
1 PREPARATION 2 INSTALLATION
1.1 Unpacking
Unpack and visually inspect the CalMaster.
Also packed with the CalMaster are:
a) CalMaster sensor test lead set.
b) CalMaster to MagMaster communication
lead set (includes three test probes for
frequency measurement).
c) Adaptor PCBs incorporating a plug to
accept the socket in item d) below.
d) Socket which fits into item c) above.
The socket is first terminated with the
sensor cable.
e) One lead to interconnect the CalMaster
and a computer (Serial Data Connection).
f) Screwdriver for terminals.
g) Two 'CalMaster Software' Disks.
h) This Instruction Manual.
i) Mains operated battery charger
j) Lead for charging battery from12 Volts.
Save packing materials for any re-shipment,
or to support any claim of shipment damage.
All damage claims are made against the
carrier and are the responsibility of the
customer.
Fig. 2.1 Adaptor Board for Transmitter
Adaptor PCB fitted with plug,
and connectors for direct
connection to terminals
Plug
Socket for termination
of sensor cable

3
2.2 Preparing the MagMaster Transmitter for Verification
2.2.1 Removing the Covers
2 INSTALLATION…
Fig. 2.2 Access to fit Adaptor Board
2
2
...and
Slide Off
1
Slide
Down
4
Slacken
Captive
Screws
Remove
Protection
Cover
3
Pull Out
Slightly...

4
…2 INSTALLATION
2.2.2 Fitting the Adaptor Board
(Fig. 2.3 and 2.4)
a) Turn off the power to the MagMaster.
b) Record the position of the sensor cable
wiring and remove the wiring from the
terminals. Slacken the terminal screws
by at least 6 turns.
c) Carefully ease the sensor wiring to one
side and arrange the adaptor board so
that the extended pins fit into the
terminals previously occupied by the
sensor wiring – see Fig.2.4.
d) Fit and tighten the securing screw to the
corner of the adaptor board.
e) Tighten the associated terminal block
screws.

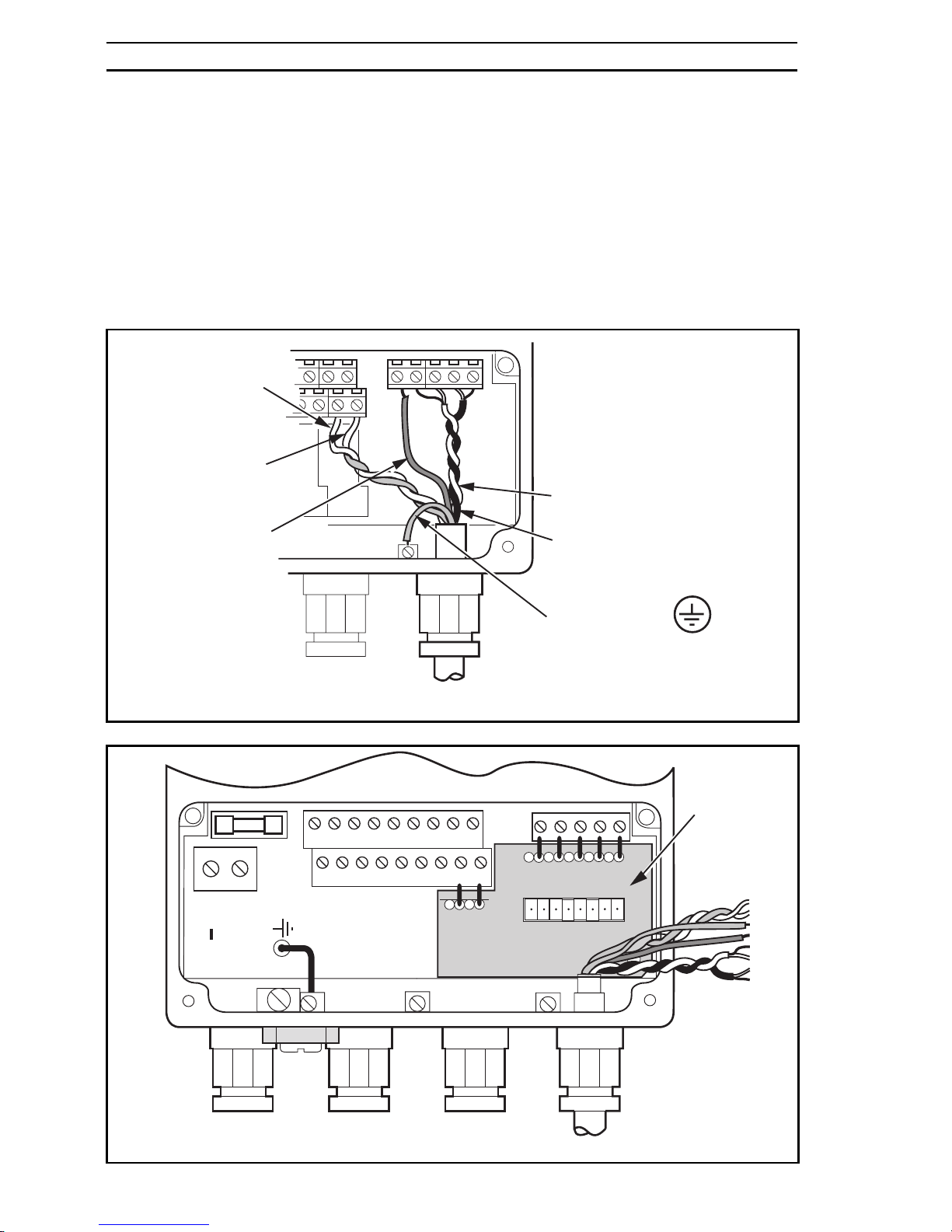

Fig 2.3 Normal Sensor Wiring in the Transmitter
Fig 2.4 Fitting the Adaptor Board
DS 2
IC 2 CD 1 CD 2
SIG GND DS 1 SIG 1
Grey Coax
Pink Inner (SIG 2)
Screen (DS 2)
Red
(CD 1)
Yellow
(CD 2) White Coax
Blue Inner (SIG 1)
Screen (DS 1)
Ground Wire
(Safety Earth)
Violet
Adaptor
Board
ALARM 1
F OUTA
ALARM 2
F OUT B
PLS OV
PLS OV
EXT I/P+
EXT I/P-
TX- SIG
RX- SIG
TX+ SIG
RX+ SIG
OVC
N
+ L

5
…2 INSTALLATION
2.2.3 Wiring theAdaptor Socket
(Fig. 2.5)
The wires in the sensor cable must now be
wired to the 8-way adaptor socket which will
then connect to the plug on the adaptor
board.
1Adjust the wire lengths of the sensor
cable to allow for termination and
subsequent removal of the adaptor
socket.
2Insert the sensor cable wiring into the
socket as shown in Fig 2.5, and tighten
the plug screws with the screwdriver
provided.
Caution. Ensure that no bare
wires touch each other; in particular,
ensure that there is no connection
between the screens of the grey and
white coaxial wires.
3Insert the adaptor socket into the plug on
the adaptor PCB.
Warning. Testing the MagMaster
involves operation with the MagMaster
terminal cover removed, exposing live
terminals. Take precautions to avoid
electric shock hazard.
Switch on the power to the MagMaster and
check that the system operates correctly.
If the MagMaster operates correctly, either
the transmitter covers can be replaced for
normal working or the MagMaster can be
tested by the CalMaster.

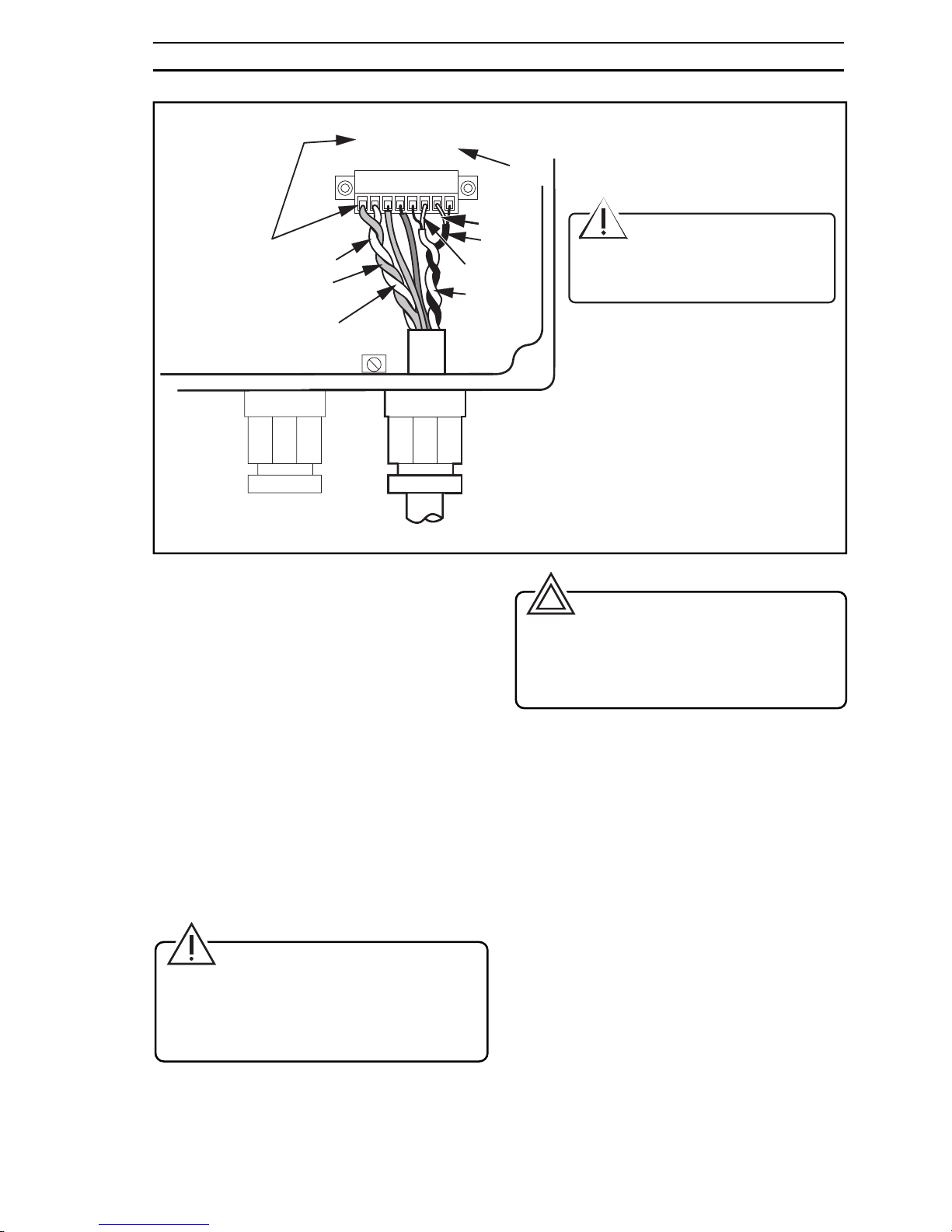

Fig 2.5 Fitting the Sensor Wiring onto the Adaptor Socket
Blue
CD1 CD2 GROUND
3
1
2
Red
Yellow
Pink
Grey
White
Caution. Remove any
exposed black conductive layer
from the inner insulation of both
coaxial cables
DS 2 DS 1 SIG 1 SIG GND SIG 2

6
…2 INSTALLATION
2.2.4 System Setup (Fig. 2.6)
Warning. Care is needed when
CalMaster is used with cathodically protected
MagMasters.
Cathodically protected installations, wired as
directed in the MagMaster manual, which
isolate the sensor using earthing flanges, are
electricallyearthedanddonotposeanysafety
issues.
When apparatus, such as CalMaster or the
PC,areconnected to systemswhich'float'the
sensoratthecathodicpotential,thisapparatus
will also float at the cathodic potential and
therefore must not be grounded or
accidentally grounded.
With the adaptor PCB installed in the MagMaster
Transmitter as detailed in Section 2.2.2, and the
sensor cable plugged into the adaptor as for
normal operation:

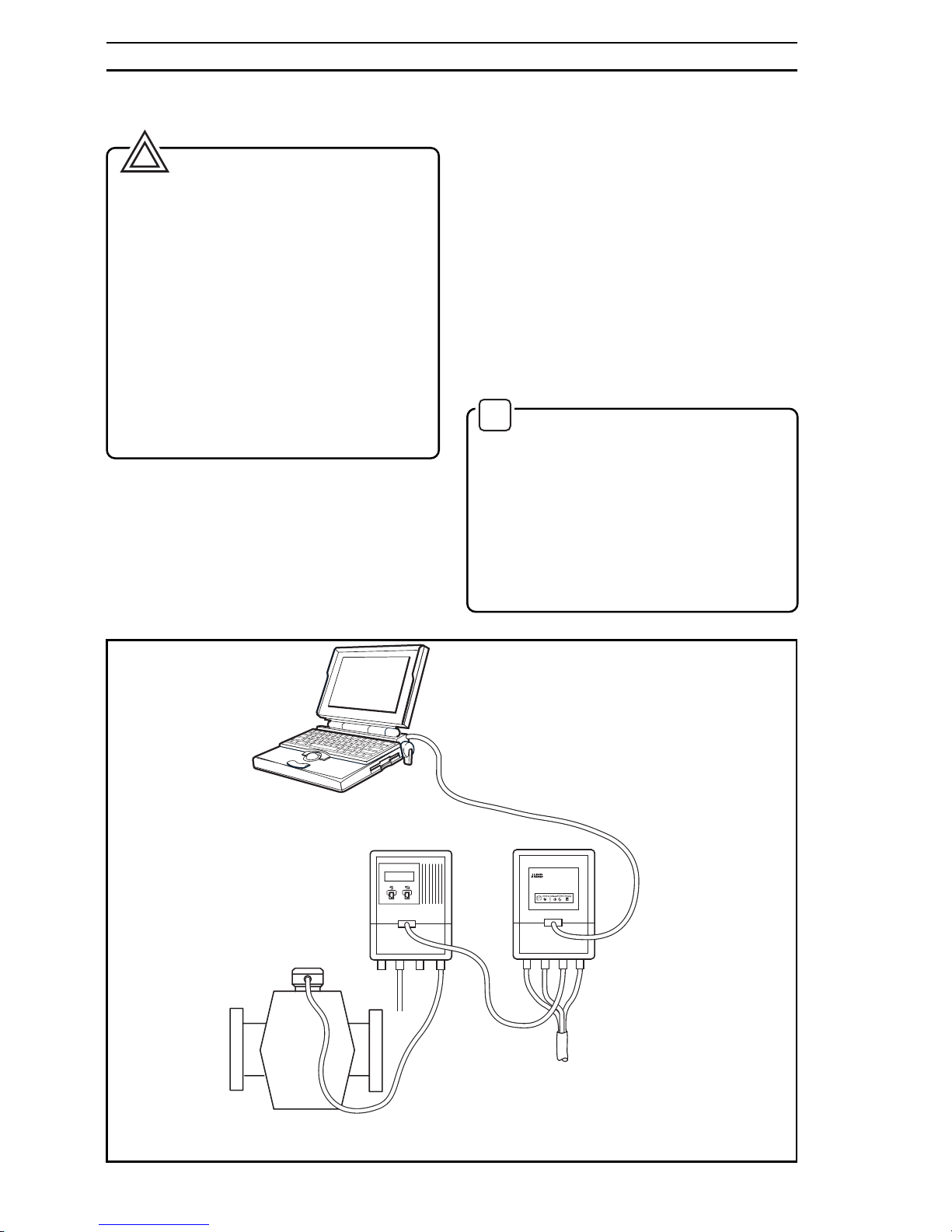

Fig. 2.6 Connection Details for Initialisation
MagMaster CalMaster
1234
Sensor
Sensor
Test Lead Set
ASEABROWNBOVERI
CalMaster
a) Connect lead 3 of the CalMaster to the
MagMaster 9-pin D-Type socket. The three
small probes should not be connected until
requestedtodosobytheCalMastersoftware.
For details of when to connect these probe
leads, follow the instructions on the provided
software – see Section 3.2. For details of
where to connect the probe leads, follow the
'on-line help' under the heading, 'test lead
connections'.
b) Connect the 9-Pin D-Type socket on the
CalMaster to a computer (Serial Comms
Connection).
✶
Note.The use of CalMaster with a line
powered desktop PC, as opposed to a
portable, battery powered PC, is not
recommended,astheresultingground(eqrth)
loop can corrupt the sensitive CalMaster
measurements.
In these circumstances, an external RS232
isolatorbetweenthePCandtheCalMasterwill
effect a solution

7
3 OPERATION
3.1 Software Installation
✶
Note. The CalMaster Program can
be used with or without a 'Mouse'. Where
instructions say 'Select', either click on
the item with the left hand mouse button,
or use the 'TAB' key to move between
fields and press the 'ENTER' key to
complete the selection.
Insert the first CalMaster floppy disk into the
computer disk drive and proceed as follows:
3.1.1 Windows 3.1 or 3.11
a) Select 'RUN' from the Program or File
Manager menu.
b) Type 'a:setup' or 'b:setup', depending on
the floppy drive designation.
c) Press 'ENTER' and follow instructions.
3.1.2 Windows 95
a) Press 'START'
b) Select 'Settings', 'Control Panel' and
double click on 'Add/Remove Programs'.
c) Choose 'Install' and follow the instructions.
3.2 Initialising the CalMaster
✶
Note. It is advisable to avoid the
use of radio equipment in the vicinity of a
CalMaster/MagMaster test setup, during
testing.
a) FromWindows'ProgramManager'openthe
'ABB Applications' folder and double click
on the 'CalMaster' icon. The program
automaticallyfindstheMagMasterandopens
up to the Main 'ABB' Screen.
d) Select 'Test Meter', and the 'Verification
Information' screen is displayed.
c) Follow the on–screen instructions and
on–screen Help as required – click on the
Help button or press F1.
3.3 Battery Charging
The CalMaster internal battery may be
charged using the mains charger unit
supplied, or from a 12 volt vehicle connector
for which a lead is also supplied.
Charging is automatic and takes
approximately 4 hours for a discharged
battery.
For further information, refer to <battery
monitoring> from the CalMaster <options>
menu.
…3 OPERATION

8
NOTES

PRODUCTS & CUSTOMER SUPPORT
A Comprehensive Product Range
Analytical Instrumentation
• Transmitters
On-line pH, conductivity, and dissolved oxygen
transmitters and associated sensing systems.
• Sensors
pH, redox, selective ion, conductivity and
dissolved oxygen.
• Laboratory Instrumentation
pH and dissolved oxygen meters and associated
sensors.
• Water Analyzers
For water quality monitoring in environmental,
power generation and general industrial
applicationsincluding:pH,conductivity,ammonia,
nitrate, phosphate, silica, sodium, chloride,
fluoride, dissolved oxygen and hydrazine.
• Gas Analyzers
Zirconia, paramagnetic, infrared, thermal
conductivity.
Controllers & Recorders
• Controllers
Digital display, electronic, pneumatic. Discrete
single-loop and multi-loop controllers which can
be linked to a common display station, process
computer or personal computer.
• Recorders
Circular and strip-chart types (single and multi-
point) for temperature, pressure, flow and many
other process measurements.
Electronic Transmitters
• Smart & Analog Transmitters
For draft, differential, gauge and absolute
pressure measurement. Also, liquid level and
temperature
• I to P Converters and Field Indicators
Flow Metering
• Magnetic Flowmeters
Electromagnetic, insertion type probes and
watermeters.
• Turbine Flowmeters
• Wedge Flow Elements
• Mass Flow Meters
Transmitters, sensors, controllers and batch/
display units.
Level Control
• Submersible, Capacitance & Conductivity.
Pneumatic Instrumentation
• Transmitters
• Indicating Controllers
• Recording Controllers
Customer Support
ABBKent-Taylorprovidesacomprehensiveaftersales
service via a Worldwide Service Organization. Contact
one of the following offices for details on your nearest
Service and Repair Centre.
United Kingdom
ABB Kent-Taylor Limited
Tel: [phone]
Fax: [phone]
United States of America
ABB Kent-Taylor Inc.
Tel: [phone]
Fax: [phone]
Italy
ABB Kent-Taylor SpA
Tel: [phone]
Fax: [phone]
Client Warranty
Prior to installation, the equipment referred to in
this manual must be stored in a clean, dry
environment, in accordance with the Company's
publishedspecification.Periodicchecksmustbe
made on the equipment's condition.
In the event of a failure under warranty, the
following documentation must be provided as
substantiation:
1. A listing evidencing process operation and
alarm logs at time of failure.
2. Copies of operating and maintenance records
relating to the alleged faulty unit.

The Company's policy is one of continuous product
improvement and the right is reserved to modify the
information contained herein without notice.
© 1997 ABB Printed in UK (3.97)
IM/CALMAS Issue 2
ABB Kent-Taylor Ltd.
St. Neots,
Cambs.
England, PE19 3EU
Tel: [phone]
Fax: [phone]
ABB Kent-Taylor SpA
22016 Lenno
Como
Italy
Tel: [phone]
Fax: [phone]
ABB Instrumentation Inc.
PO Box 20550, Rochester
New York 14602-0550
USA
Tel: [phone]
Fax: [phone]
ABB Kent-Taylor Ltd.
Analytical & Flow Group
Stonehouse, Glos.
England, GL10 3TA
Tel: [phone]
Fax: [phone]
