ACV 381178-12 User manual

2
1
3
4
© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with double DIN devices
 •KiaPicanto2004->
Double DIN Kit contents
• (1) Metal Frame
• (2) Installation Kit
• (3) Facia Plate
• (4) Trim Frame
InstallationManual
DoubleDINKit
standard (black): 381178-12
rubber-touch (black): 391178-12
standard (silver): 381178-22
rubber-touch (silver): 391178-22

Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect t.
(see sample)
(Beispielabbildung)(Beispielabbildung)
Installation Manual Double DIN Kit
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

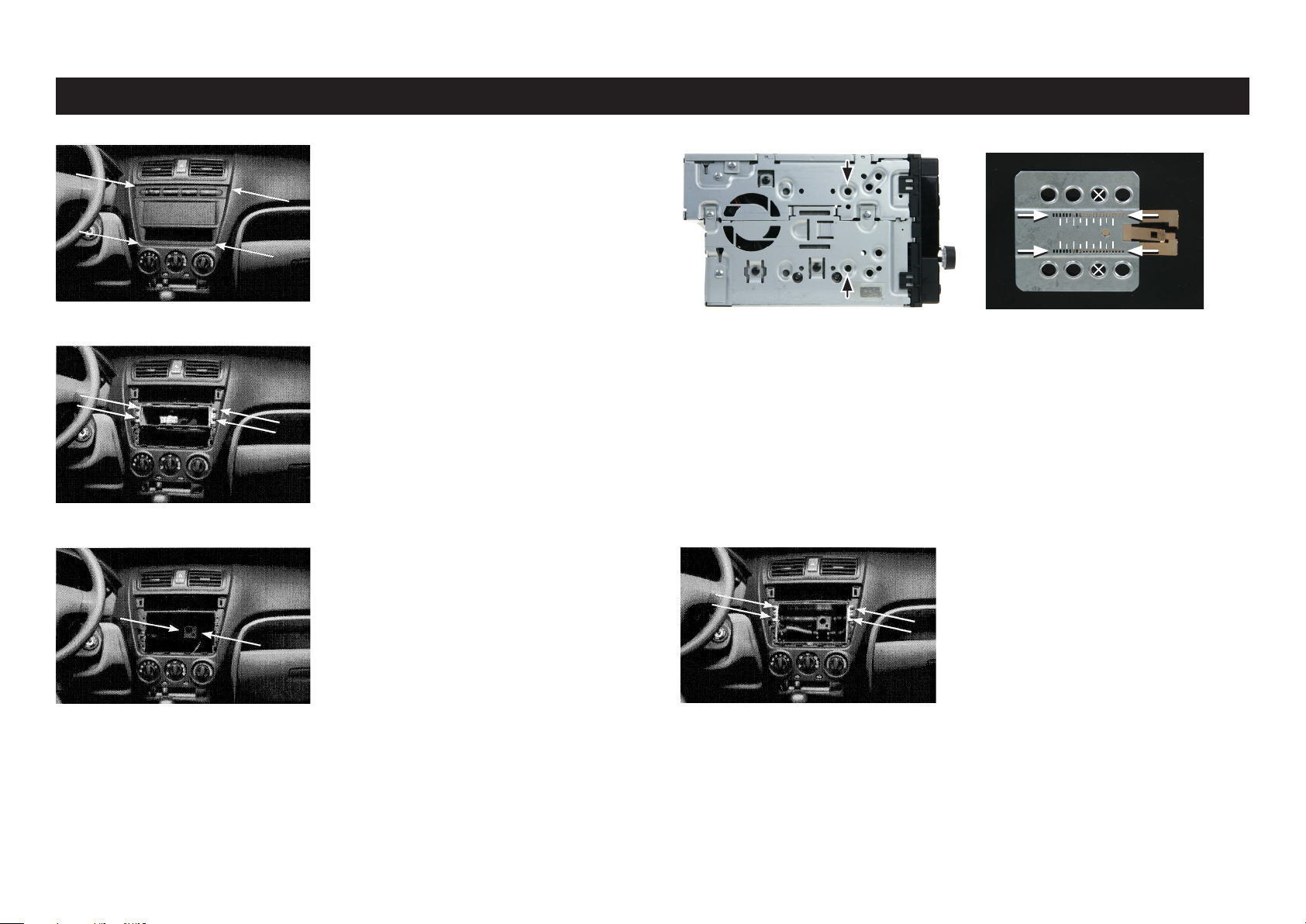

1. Remove OEM Radio
2. Remove OEM metal frame
3. Remove OEM metal frame 4. Mount metal frame
to dash board
Push the double DIN head unit
into the metal frame until it
snaps in
Place trim frame
