ADE M301020 Series User manual

M301020-01-210322-Rev005-UM-e
Operating Manual
Class III approved Scales
Electronic Platform and Handrail Scales
Series
M301020

2 M301020-01-210322- ev005-UM-e
Content
Introduction ............................................................................................................................................ 3
Assembly ................................................................................................................................................ 3
Attachment of the indicator ................................................................................................. 3
Power supply ........................................................................................................................ 3
eplacing the rechargeable battery ................................................................................... 4
Tips for handling the batteries ............................................................................................ 4
Quality features .................................................................................................................... 4
Display .................................................................................................................................................... 5
Description ............................................................................................................................ 5
Safety ...................................................................................................................................................... 6
Safety instructions ............................................................................................................... 6
Connecting additional devices ........................................................................................... 6
Housing and connections ................................................................................................... 7
Modes .................................................................................................................................... 7
Settings ................................................................................................................................. 7
Setting date and time ........................................................................................................... 8
Operation ................................................................................................................................................ 8
Weighing ............................................................................................................................... 8
esetting the scales back to zero ...................................................................................... 8
Tare function ......................................................................................................................... 8
Hold function ........................................................................................................................ 9
Determining the Body Mass Index (BMI) ........................................................................... 9
Evaluating Body Mass Index ............................................................................................... 9
Print out a record ............................................................................................................... 10
Care, servicing and recalibration ....................................................................................................... 10
Cleaning .............................................................................................................................. 10

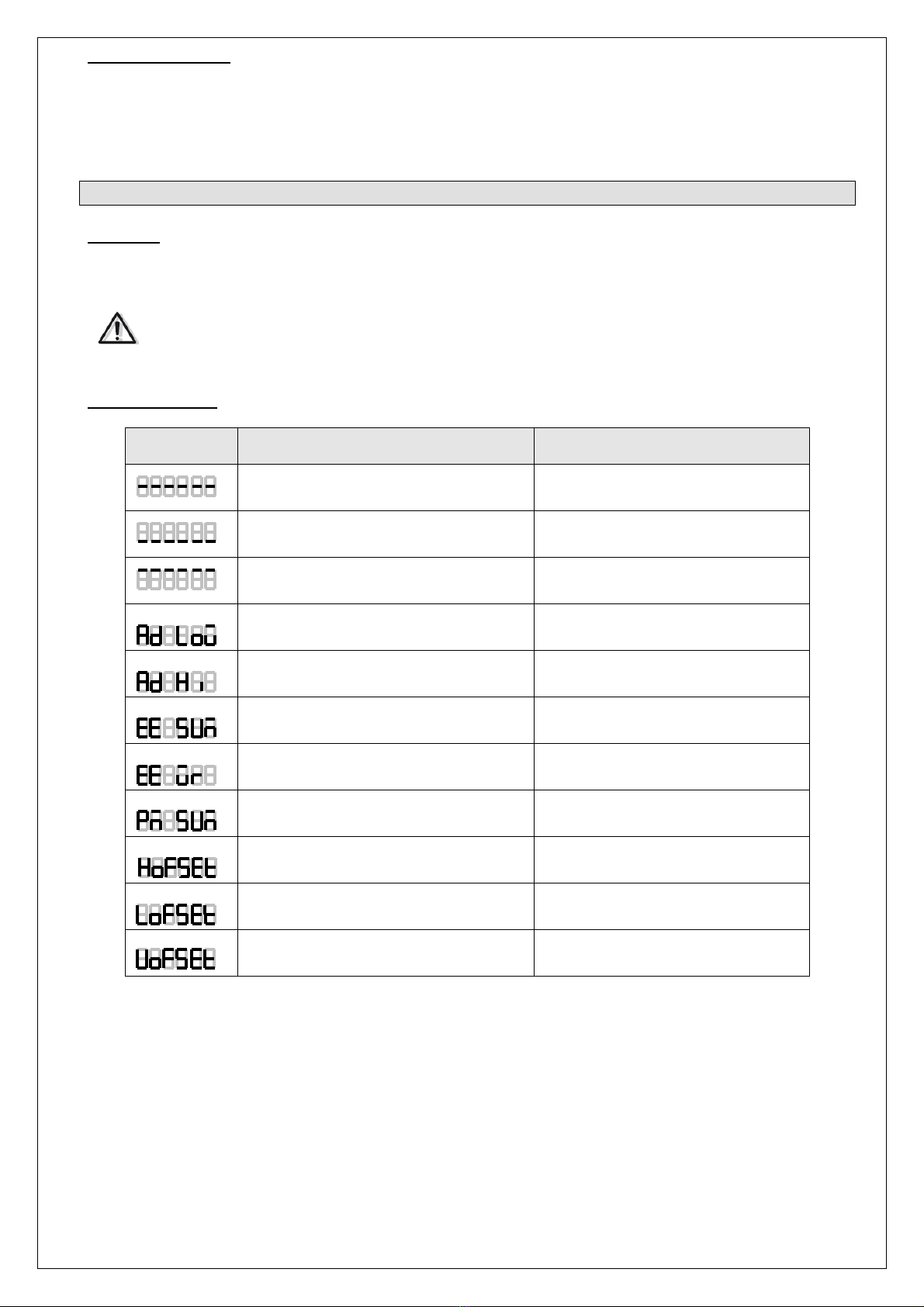

Error messages .................................................................................................................. 10
Waste disposal ................................................................................................................... 11
Storage and transport conditions .................................................................................... 11
Warranty .............................................................................................................................. 11
ecalibration ....................................................................................................................... 11
Technical specifications ..................................................................................................................... 12
Conformity declaration ....................................................................................................................... 13
Dealer: ................................................................................................................................................... 16

M301020-01-210322- ev005-UM-e 3
Introduction
This symbol means: "Consult operating instructions". To achieve accurate results, read the
instructions for use carefully before use and follow all instructions provided therein. Keep the
instructions for use for future reference.
Your ADE electronic scale is a quality, sturdy and durable product manufactured under the high standards and
regulations for calibrated class III scales in accordance with national regulation in Germany. The scale is de-
signed and manufactured for the daily practice in hospitals, doctors’ surgeries and in-patient nursing facilities.
The scale is especially being designed for the use of adipose patients.
ADE instruction manuals have been prepared to provide the user with all the necessary knowledge about the
safe use of ADE scales and their related accessory equipment.
For further questions about how to use the products or about this or other service manuals, feel free to contact
your local ADE representative or visit our web page at www.ade-hamburg.de
Assembly
The indicator/ display of your ADE scale is able to be mounted on walls, on sockets, handrails or on stand-on
devices for the table depending on the model you have selected.
Please insure that your scale is being placed vibration free of any vibration and at a dry place.
Please take the indicator and the cable extension out of the packaging and follow the instruction for assembly.
Attachment of the indicator
The ADE scales are delivered in a largely assembled state. Only model M301020 requires the indicator to be
connected to the weighing platform. Connect the indicator to the scale platform using the connector provided.
Alignment of the scale
Place the scale on a plain, dry and level surface.
Adjust the scales so that all feet are in contact with the surface.
The air bubble in the spirit level should be right in the centre of the circle
If the scale has been transported or stored, it must be re-adjusted as described above.
Power supply
Power is supplied either by the rechargeable battery in the display unit or by the mains power via the supplied
power unit. The imprinted voltage value at the mains adapter must match the local mains voltage.
After checking same connect the mains cable to the indicator and to a socket.
Note: The wall socket must be located near to the unit and be easily accessible. Please use only the mains
adapter supplied by ADE. The mains adapter is charging the battery pack at the same time.
When the battery is being charged for the first time a sufficient charging period of approx. 24 hours is neces-
sary to achieve a full battery load.
In case the scale is being used with batteries only and the display indicates – Lo, the battery should be re-
charged with the ADE mains adapter. After the first charging period the battery need 12-16 hours. The battery
should be charged while the scale is switched off. Upon completion of the charging period switch the scale on
again to check the battery status. In case Lo- still appears on the display inform your service partner.

4 M301020-01-210322- ev005-UM-e

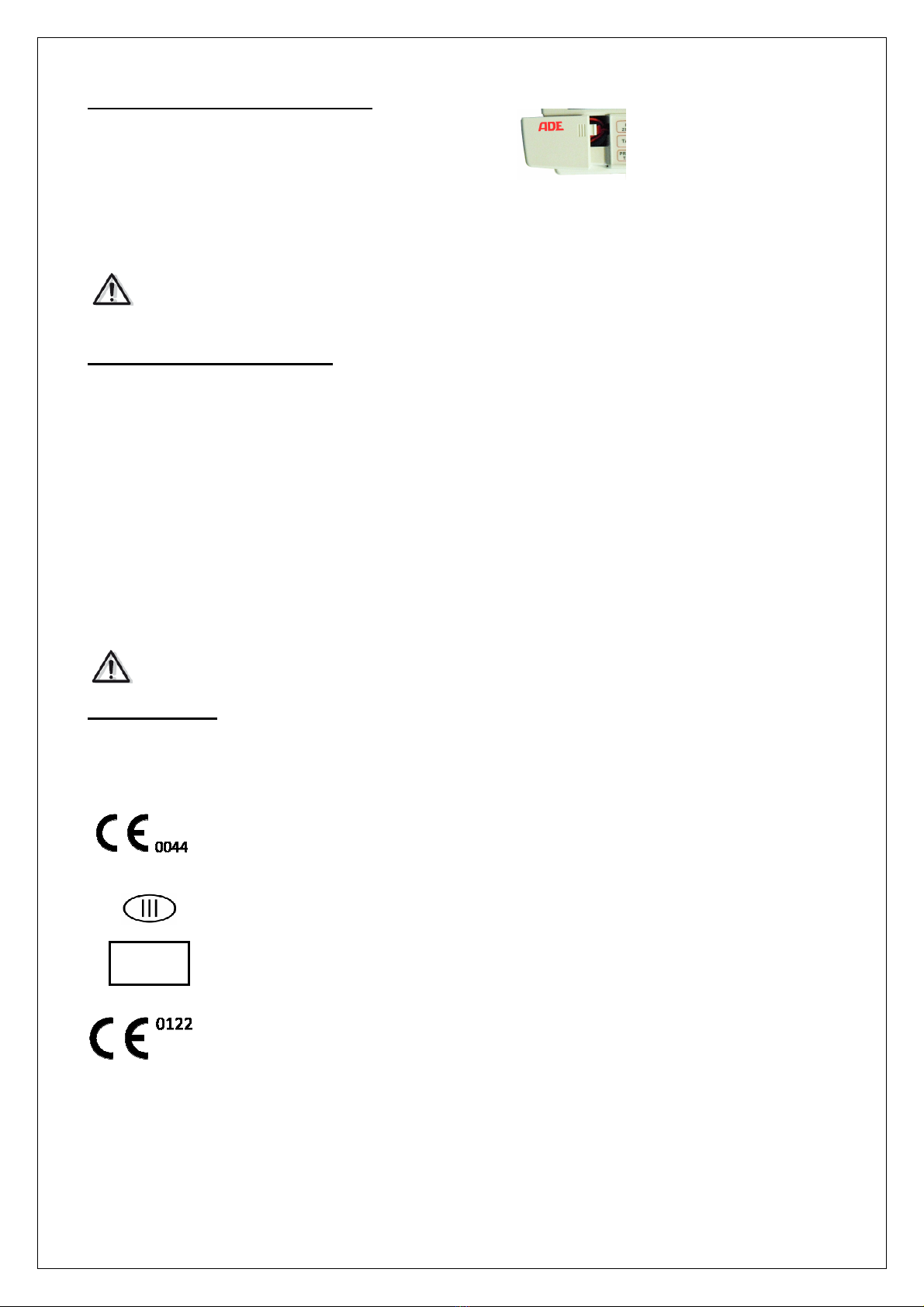

eplacing the rechargeable battery
The battery compartment is located on the front of the unit.
1) Open the battery compartment.
2) emove the battery cables carefully from the housing, connect the wires (red to red, black to black) and
insert the battery into the housing.
3) Close the battery compartment again.
Only use original rechargeable batteries and charger units from ADE. The warranty does not
cover any damage caused by using other types of batteries or charger units.
Tips for handling the batteries
The life of a battery depends essentially on the load, frequency of use, temperatures, settings and the acces-
sories used.
– New batteries or batteries that have been stored for long periods require a longer charging period.
– Charge the batteries at room temperature.
– Store the batteries empty (uncharged) in a cool, dark and dry place.
– Never expose the batteries to temperatures below -10°C (14°F) or above 45°C (113°F).
– Over the course of time, batteries lose their charging capacity and require a recharging period. If the bat-
tery performance drops considerably, then it is time to replace the battery.
– New batteries are supplied only partially charged. Some batteries only achieve their full capacity after
several complete charge and discharge cycles.
– When disposing of disused batteries, observe the valid legal and municipal regulations.
Never dispose of batteries in fire as they can leak or explode!
Quality features
ADE products correspond to the applicable EC Directives and European standards to manufacture
and distribute world-wide medical devices as per the latest technical standards ensuring a long life
time and continuous reliability.
This symbol stands for compliance of the European Directive covering medical
devices and declares the conformity as per the Medical Device Law..
Approved scales classes III respecting the standards of the European guideline
covering approved scales are carrying this sign.
Scales carrying this symbol are approved and accredited within the European
Community and fulfils first class demands for calibrated scales.
Products carrying this symbol meet the requirements as per:
 The valid EC Directive for non automatic scales
in the latest version.
M21

M301020-01-210322- ev005-UM-e 5

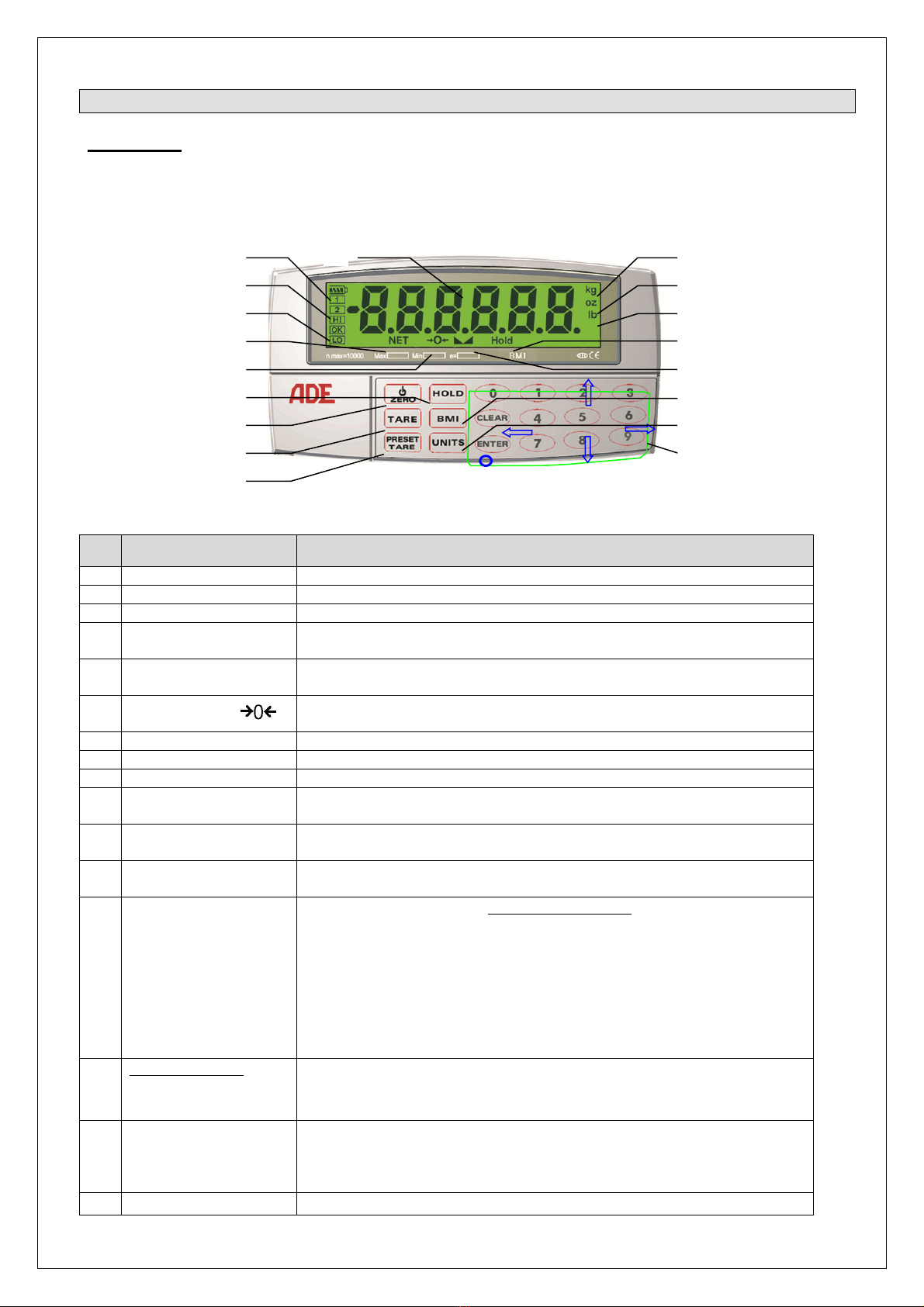

Display
Description
The ADE-display (MAK) is a digital precision display unit for medical use in hospitals by doctors and special-
ists of all medical fields. The unit in particular features easy operation, high efficiency and long-lasting opera-
tion (over 200 hours in power save mode).
Fig. 1-1 Indicator and operating controls
No. Name Description
1 Display LCD display for weight, mode, settings and configuration information.
2 Battery charge level Status indicator for the current battery charge level.
3 Switching points 1 & 2 In program mode: Status indicator for switching points 1 & 2.
4 BMI status indicator
(HI, OK, LO) Status indicator of the automatic BMI (Body Mass Index) evaluation.
5 Net status indicator LCD on - net weight is being displayed.
LCD off – gross weight is being displayed.
6 Status indicator LCD on - the weight is within ¼ of a calibrated value from the zero point.
LCD off - the weight is outside ¼ of a calibrated value from the zero point.
7 Hold – button Activates the hold function.
8 On/off, zero – button Switch the scale on and off or re-sets the display.
9 Tare- button Activate/ deactivate the tare function.
10 Preset tare – button Short push on the button to recover the stored tare value.
Long push on the button to enter and save the tare value.
11 BMI – Button Enter to proceed with BMI mode and to enter as next step the height.
Press again to return to weight mode.
12 Units – Button Switch button between primary and secondary units. Not available for CE
approved class III scales
13 Number pad
Figures 0-9, Clear, Enter. - Navigation functions:
Key 6 menu direction to the IGHT
Key 4 menu direction to the LEFT
Key 8 menu direction DOWN
Key 2 menu direction UP
The blue symbols under the keys (up, down, left, and right) describe the
key functions in configuration and setting modes. These keys are used
to navigate through the menus, to select numerical values and to in-
crease or lower the values.
Special function:
"0" key
In weight mode, you can change between gross and net weight using
figure "0" (if any weight have been tared off).
"Enter" key Function in weight mode: "Print" if printer has been connected.
14 Standstill status indica-
tor (14) :
The scale is at a standstill, meaning the weight is stable and no
movement is on the platform. This is a mandatory precondition for func-
tions such as resetting, printing and taring).
If the LCD is not displayed: The scale is not in a the standstill mode
15 “Hold” If displayed is the hold function is activated
18
17
16
15
14
1
2
3
4
5
6
7
8
9
1
0
11
12
13

6 M301020-01-210322- ev005-UM-e
No. Name Description
16 “Ib” If displayed is the weight is displayed in pounds
17 “oz” If displayed is the weight is displayed in ounces
18 “kg” If displayed is the weight is displayed in kilograms
“g” If displayed is the weight is displayed in grams
Safety
Safety instructions
The ADE-display unit (MAK) corresponds to the latest state of the art technology and complies with standard
regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific
installation standards as well as the applicable safety conditions and accident prevention regulations in all
aspects. Portable and mobile HF-communication systems may influence electronic medical devices.
Electronic medical devices are restricted to special safety regulations in respect of their electromagnetic com-
patibility. For positioning and operation follow the instructions of this Operating Manual.
– Before commissioning, ascertain whether the mains voltage and power type stated on the type plate
match the mains voltage and power type at the place of use.
– Make sure that the mains cable does not pose any potential trip hazard.
– Only use approved accessories and peripheral equipment.
– Only operate the unit under permitted ambient conditions.
– emove the mains plug before cleaning the unit.
– Do not operate the unit in hazardous or unstable conditions.
– Do not submerge the unit in water or other liquids.
– All actions/operations described in this operating manual may only be carried out by trained and by ADE
authorised professional personnel.
– Using accessories that do not meet the safety requirements of this unit can lead to a reduction in the
safety level of the entire system.
– Set up the unit as far away as possible from equipment that generates electromagnetic or other interfer-
ence.
– Only ADE power adapters are allowed to use to avoid any risk of fire and electric shock.
– Clean with a dry cloth; do not use any sharp cleaning materials.
Hazard-free operation is no longer guaranteed
- If the power unit exhibits visible damage.
- If the power unit is no longer working.
- After longer periods of storage in damp rooms.
Inform your service partner in such cases for your own safety.
Connecting additional devices
Connection of printer, PC or remote-display will be done with the S-232 interface. For connection of addi-
tional devices kindly ask your local representative or authorized ADE dealer for further instructions.

M301020-01-210322- ev005-UM-e 7
Housing and connections
The mains adapter connection, serial port connection and connection to the weighing cell are located on the
back of the ADE indicator housing. The set-up switch to start configuration mode is recessed underneath the
housing. It is protected by a cover plate and secured by a screw (not shown in Fig. 2-1).
Do not use the set-up button as otherwise calibration will be lost. This procedure is only al-
lowed to be done by authorized service personnel appointed by ADE (GmbH & Co.). Any unau-
thorized manipulations made to the configuration mode will affect the warranty agreement.
Modes
The ADE display unit has four modes:
 Weighing mode
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by
attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode.
 Setting mode
Date, time and consecutive numbers for print commands are being set in this mode. To start setting mode,
hold the G OSS/NET key pressed until TIME appears on the display.
 Configuration mode (set-up mode)
The values for different parameters including the calibration could be set in the configuration mode. This func-
tion is reserved for authorized service personnel only.
 Test mode
There are different diagnostic functions for the ADE-MAK in test mode. This is reserved for service personnel
only.
Manipulations to test and configuration modes can revoke the calibration status and will result
in loss of warranty!
Settings
The following functions are available in setting mode:
– Select the serial interface,
– Set date, time and consecutive printout numbers.
– Set print format.
– Set switching points.
– Test functions
The setting mode is not designed for the input of metrological parameters. Access the function menu by press-
ing the CLEA (13) key until TIME appears on the display. Use the key pad (13) to navigate within the menus,
to select numerical values and to increase or lower the values. Press the ENTE key to save the values en-
tered and to return to the super ordinate menu level.

8 M301020-01-210322- ev005-UM-e
Menus structure of setting mode:
FILTE SE IAL P OG PFO MT SETPTS TEST TIME DATE VE S
Setting date and time
– Enter the CLEA key for approx. 4 sec; FILTE appears on the display.
– Press key "6" six timed and TIME appears on the display.
– Press ENTE key and SHOW appears on the display.
– Press key "6" one time and HOU appears on the display.
– Press ENTE key and set the hours using the arrow keys "2", "4", "6" and "8".
– Press the ENTE key and set the minutes and seconds.
– Go back by pressing key "2"; TIME appears on the display.
– Press key "6" one time and DATE appears on the display like the time entry.
– Press key "2" two times and EXIT Y appears on the display.
– Confirm with ENTE ; date and time are set.
Operation
Weighing
Press the ON key for at least 3 seconds to turn the scales on. An automatic function test is carried out after
being switched on. This test is completed when the display shows zero. The scale is now ready to be loaded.
The weighing results can be read directly after a period of standstill at the display.
esetting the scales back to zero
Wait until the standstill status indicator  (14) appears. By pressing the ZE O key (8), measuring inaccura-
cies after switching on the scale are being compensated. The zero key restarts the scale. The status indicator
(6) appears when the scale is being resetted.
Tare function
The TA E key (9) is used when the patient is being weighed with other items (e.g. clothing, shoes or other
items) which have to be ignored by the scale. To do this, weigh these items first. After the weight is displayed,
press the TA E key (9) to reset the display back to zero. The ADE-MAK changes to net mode (NET status
indicator (5) is on). The weight of the previously weighed and saved items is ignored when the patients’ weight
is displayed. Enter the tare button again to get back to the normal weighing mode and remove any load from
the platform.
Entering manually tare - values:
Enter the appropriate tare value just by using the key pad under normal weighing mode. If the tare value has
been entered correctly, the value will be stored. Press the ENTE key (or TA E). The ADE-display is now
ready for weighing and changes to net mode [NET status indicator (5) is on]. Enter the tare button again to
leave this mode.
The manual tare value must be >0, the maximum value is limited by the weighing range.
P ESET TA A :
Press and hold the P ESET TA E key (10) [approx. 3 sec.], P O PT X appears on the display. Select the
memory location (e.g. 2). Now enter the TA E VALUE which you would like to be tared off and confirm same
with ENTE . Enter the tare button again to leave this mode.

M301020-01-210322- ev005-UM-e 9
estore the preset P ESET TA A value:
Press the P ESET TA E key (10). "Pt x" appears on the display. Enter a number from 0-9 (memory location
for the tare value). If no number is entered within five seconds, the unit will turn back to weighing mode.
After entering the number, the ADE-MAK accesses the preset tare value, shows it for five seconds on the dis-
play and then changes to net mode. The accessed tare value is accepted at the same time. Enter the tare
button again to leave this mode.
Displaying the gross weight, net weight and tare value:
Press the "0" key to change between displays for tare, gross weight (NET status indicator (5) off) and net
weight (NET status indicator (5) on). If a tare value is saved, the net weight shown corresponds to the gross
weight minus the tare value. If there is no tare value saved, the display remains in gross mode.
The tare value flashes briefly, then after a second the display changes to gross mode.
Hold function
Use the HOLD key to hold the display if there are weight fluctuations which e.g. are caused by patient move-
ments on the scales. You could also use this function if you like to hold the results at the display after the
weight/load has been removed from the scale.
To do this, the scales must be at standstill, e.g. the standstill status indicator  (14) is on (depending on the
setting it is not always necessary for the scales to be at standstill). The Hold status indicator (15) is on.
Deactivate the HOLD function by pressing the key again.
Determining the Body Mass Index (BMI)
The BMI figure is a index which displays the ratio between height and weight.
BMI=
body weight
(height)²
To determine this value you need the height of the person. Best way to get the height is of course to use an
ADE height measuring rod; model MZ10023.
Start the scale and weigh the person. Then press the BMI key (11) to start BMI mode. The last value entered
appears on the display. Use the numerical key pad to enter a new value for the height (in cm) or retain the
value which is already displayed.
Confirm the value entered with the ENTE key or delete same by using the CLEA key. After the entry has
been confirmed by the ENTE key, the BMI value will be calculated using the weight on the scales. The dis-
play changes between weight value and BMI value "b xx.x" (every two seconds) for a period of 3 minutes.
Press the BMI key (11) to cancel befoe this time has expired.
Evaluating Body Mass Index
BMI evaluation according to WHO
BMI < 16 Severely underweight
16 - 17 Moderately underweight
17 - 18.5 Slightly underweight
BMI 18.5 - 25 Normal weight
BMI 25 - 30 Overweight
30 - 35 Obese Class I
35 - 40 Obese Class II
> 40 Obese Class III

10 M301020-01-210322- ev005-UM-e
Print out a record
The scales must be at standstill, e.g. standstill status display  (14) appears at the screen.
Press the ENTE key (13) to send the data to the serial interface.
Note: Printing is not possible if the net weight is 0. The print function only produces one print-out. A reset is
required to print out another copy.
Care, servicing and recalibration
Cleaning
Please disconnect the unit from the operating voltage before cleaning. Do not use any aggressive cleaning
materials for cleaning; only use a damp cloth or conventional disinfectant.
Make sure that no liquids penetrate the unit!
Error messages
Error mes-
sage
Description Problem solution
Overload display Weight exceeds max. capacity of the
scales.
Overflow indicator (negative) Negative weight indicated – weight too
low to be displayed (<=99999).
Overflow indicator (positive) Positive weight indicated – weight too
high to be displayed (>=999999).
AD LOW A/D above negative range Check if the scales are correctly as-
sembled or if they are damaged.
AD HI A/D above positive range Check if the scales are correctly as-
sembled or if they are damaged.
EE SUM Parameter or calibration error ecalibrate – please contact your sup-
plier or service partner:
EE W EEP OM indicates an error Please contact your supplier or service
partner.
PM SUM Internal program indicates a check error Please contact your supplier or service
partner.
HOFSET Switch on – above zero Please remove the weight from the
scales and restart.
LOFSET Switch on – below zero Check scales for damage and inform
your service partner:
UOFSET Irregular
Do not touch the scales after they have
been switched on.

M301020-01-210322- ev005-UM-e 11
Waste disposal
Used electrical equipment and batteries do not belong in the domestic waste.
Please dispose of defective or used equipment and batteries according to legal regulations of
your specific country!
Please make sure that only discharged batteries or batteries with insulated "poles" are dis-
posed of as otherwise they may short-circuit!
Storage and transport conditions
Keep all packaging in case you need to return the item, in order to avoid any potential transport damage.
Disconnect all connected cables before dispatch. This is how you can avoid unnecessary damage.
Warranty
A two-year warranty from date of delivery applies to defects attributable to poor materials or workmanship.
All movable parts, e.g. batteries, cables, power units, etc. are excluded. This warranty does not cover any
normal, external appearance of use and wear or any damage occurring as a result of an accident or misuse.
Any warranty or damage compensation claims presuppose the use of original ADE accessories and replace-
ment parts. The warranty does not cover units that have been opened by unauthorised persons.
The legally regulated rights of the customer are in no way affected by this agreement.
The supplier who sold the scales is in charge of complaints, customer service and replacement parts.
ecalibration
Have the calibration carried out by an authorised company or authorised person according to national legisla-
tive regulations. The CE symbol shows the authorised site (0122) and the year of initial calibration. ecalibra-
tion must be carried out
- if the calibration mark has been damaged
- after calibrated scales have been successfully repaired
- or after expiry of a period for recalibration as stipulated by national, legal regulations.

12 M301020-01-210322- ev005-UM-e
Technical specifications
Power supply
Mains Adapter:
Mains voltage 115 or 230VAC
Frequency 50 or 60HZ
Power Consumption 11W in-charger, 2W off-charger
Main power circuit
Input Voltage 5.0VDC
Max. Current (in-charger) 1000mA
Battery equirement: echargeable Lithium Ion Cylindrical (18650x2) Cell 3.7V 4000mAH
Battery Operation:
Charger 7~10 Hours
Saving (350ohm, Backlight-ON 30Sec,
Shutdown 5Min) 200Hours
Serial Communications
EDP Port Full duplex S-232
38400,19200,9600, 4800, 2400, 1200 bps
Printer Port Output-only S-232 or active 20 mA current loop,
9600, 4800, 2400, 1200 bps
Both Ports 7 or 8 data bits; even, odd, or no parity
Operator Interface
Display 6-digit LCD display. 7-segment, 0.815 in (21.2 mm) digits
LCD annunciator net, center of zero, standstill, kg/lb/g/oz/ units,
Battery, Set points, Hold, HI/OK/LO
Keyboard 24-key flat membrane panel
Environmental
Operating Temperature –10 to +40°C (legal);
Storage Temperature –25 to +70°C
Humidity 0–95% relative humidity
Altitude 2000 m (6500 ft) maximum
Housing
Dimensions 18.6 cm x 9.5 cm x 10 cm
Weight 0.4 kg (without battery)
Material ABS plastic, white

M301020-01-210322- ev005-UM-e 13
Conformity declaration
M
anufacturer
:
ADE Germany GmbH
Neuer Hoeltigbaum 15
22143 Hamburg / Germany
℡ [phone]
 [phone]

info@ade
-
germany.de
Notified body:
TÜV NO D CE T GmbH
NB 0044 (93/42/EEC)
Langemarckstraße 20
D - 45141 Essen
℡ [phone]
 [phone]

info.tncert@tuev
-
nord.de
Declaration of conformity by the manufacturer
This product has been manufactured in accordance with the harmonised European standards. They con-
form to the regulations of the EC-directives listed below:
 NAWI Directive 2014/31/EC
 Medical Devices Directive 93/42/EEC
 EMC Directive 2014/30/EC regarding electromagnetic compatibility
 Low Voltage Directive 2014/35/EC
 oHS Directive 2011/65/EC
in the currently valid versions.
This declaration loses its validity if modifications are made to the scale without our approval.
Hamburg, March 2021
ADE Germany GmbH
Neuer Hoeltigbaum 15
22143 Hamburg / Germany

14 M301020-01-210322- ev005-UM-e

M301020-01-210322- ev005-UM-e 15

16 M301020-01-210322- ev005-UM-e
Dealer:
