ADF Web HD67029M-232-20 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 1 of 47
User Manual
Revision 3 000
English
M-Bus Master / Modbus Slave -
Converter
(Order Code: HD67029M-232-20, HD67029-B2-232-40,
HD67029-B2-232-80, HD67029-B2-232-160, HD67029-B2-232-250,
HD67029M-485-20, HD67029-B2-485-40, HD67029-B2-485-80,
HD67029-B2-485-160, HD67029-B2-485-250)
For Website information:
www adfweb com?Product=HD67029
For Price information:
www adfweb com?Price=HD67029M-232-20
www adfweb com?Price=HD67029-B2-232-40
www adfweb com?Price=HD67029-B2-232-80
www adfweb com?Price=HD67029-B2-232-160
www adfweb com?Price=HD67029-B2-232-250
www adfweb com?Price=HD67029M-485-20
www adfweb com?Price=HD67029-B2-485-40
www adfweb com?Price=HD67029-B2-485-80
www adfweb com?Price=HD67029-B2-485-160
www adfweb com?Price=HD67029-B2-485-250
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others M-Bus products see also the following link:
Converter M-Bus Wireless to
www adfweb com?Product=HD67083 (Modbus TCP
Slave)
www adfweb com?Product=HD67084 (Ethernet)
Converter M-Bus to
www adfweb com?Product=HD67021 ( S232)
www adfweb com?Product=HD67022 ( S485)
Analyzer / Scanner /Sniffer M-Bus
www adfweb com?Product=HD67031
Isolator/ epeater M-Bus
www adfweb com?Product=HD67032M
Gateway M-Bus / Modbus TCP
www adfweb com?Product=HD67044
Gateway M-Bus / P OFIBUS
www adfweb com?Product=HD67053M
Gateway M-Bus Concentrator
www adfweb com?Product=HD67054M
Gateway M-Bus Slave / Modbus TU master
www adfweb com?Product=HD67059M-232
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 2 of 47
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 9
CONFIGURATION 9
POWER SUPPLY 10
FUNCTION MODES 11
LEDS 12
RS232 14
RS485 15
M-BUS 16
ETHERNET 16

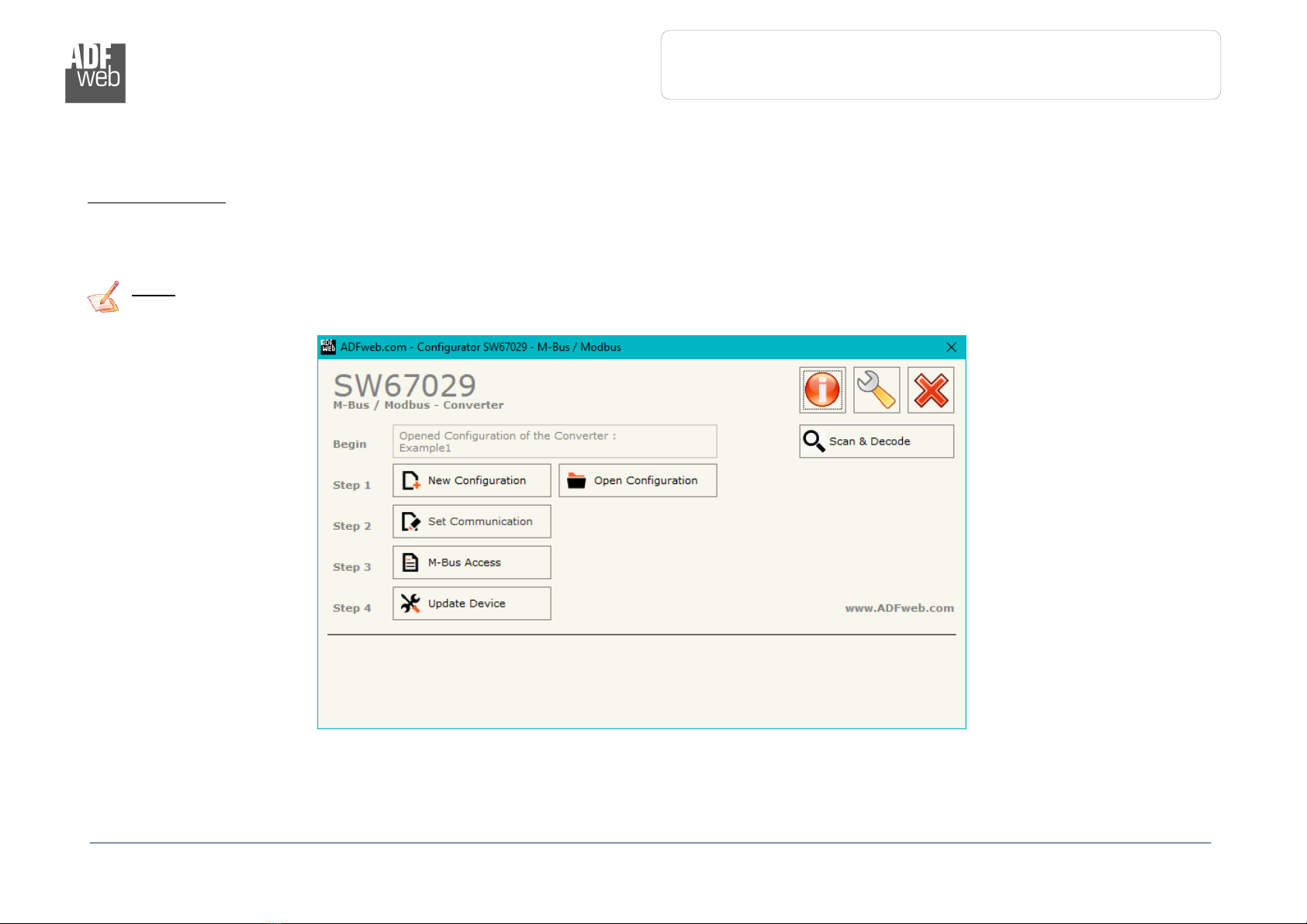

USE OF COMPOSITOR SW67029 17
NEW CONFIGURATION / OPEN CONFIGURATION 18

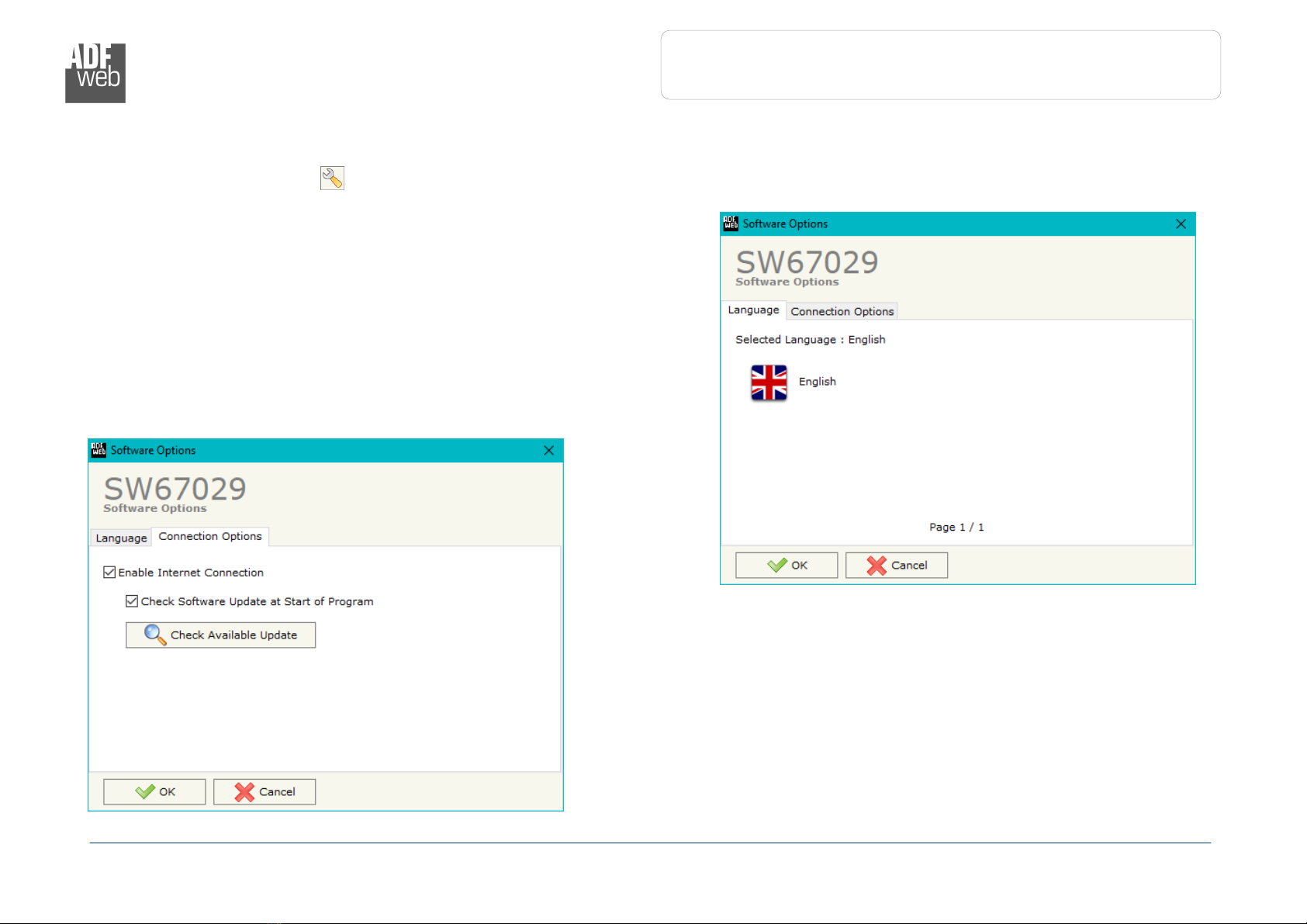

SOFTWARE OPTIONS 19

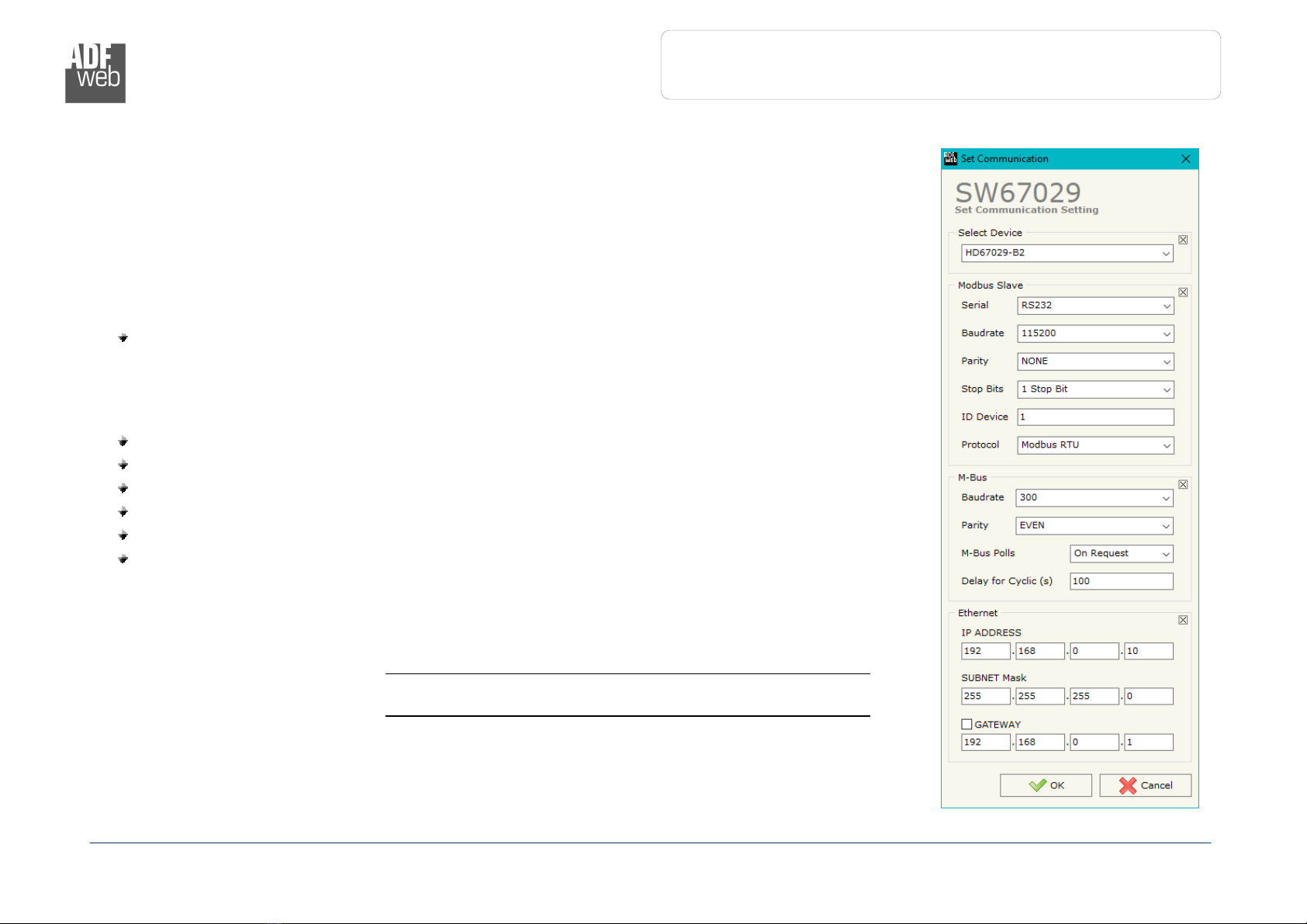

SET COMMUNICATION 20
M-BUS 22
MANUFACTURER SPECIFIC DATA 36
UPDATE DEVICE 37
SCAN & DECODE 40
MECHANICAL DIMENSIONS 41
ORDERING INFORMATIONS 43
ACCESSORIES 45
DISCLAIMER 46
OTHER REGULATIONS AND STANDARDS 46
WARRANTIES AND TECHNICAL SUPPORT 47
RETURN POLICY 47
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
EVISION LIST:
WA NING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
T ADEMA KS:
All trademarks mentioned in this document belong to their respective
owners
evision Date Author Chapter Description
2 052 01/02/2012 Fl All Revision
2 053 04/03/2013 Nt All Added new chapters
2 054 12/12/2013 Ff All Revision
3 000 15/12/2017 Ff All New hardware version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 3 of 47
SECU ITY ALE T:
G ENE AL I NFO MATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P E SONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
ESIDUAL ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFO MITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 4 of 47

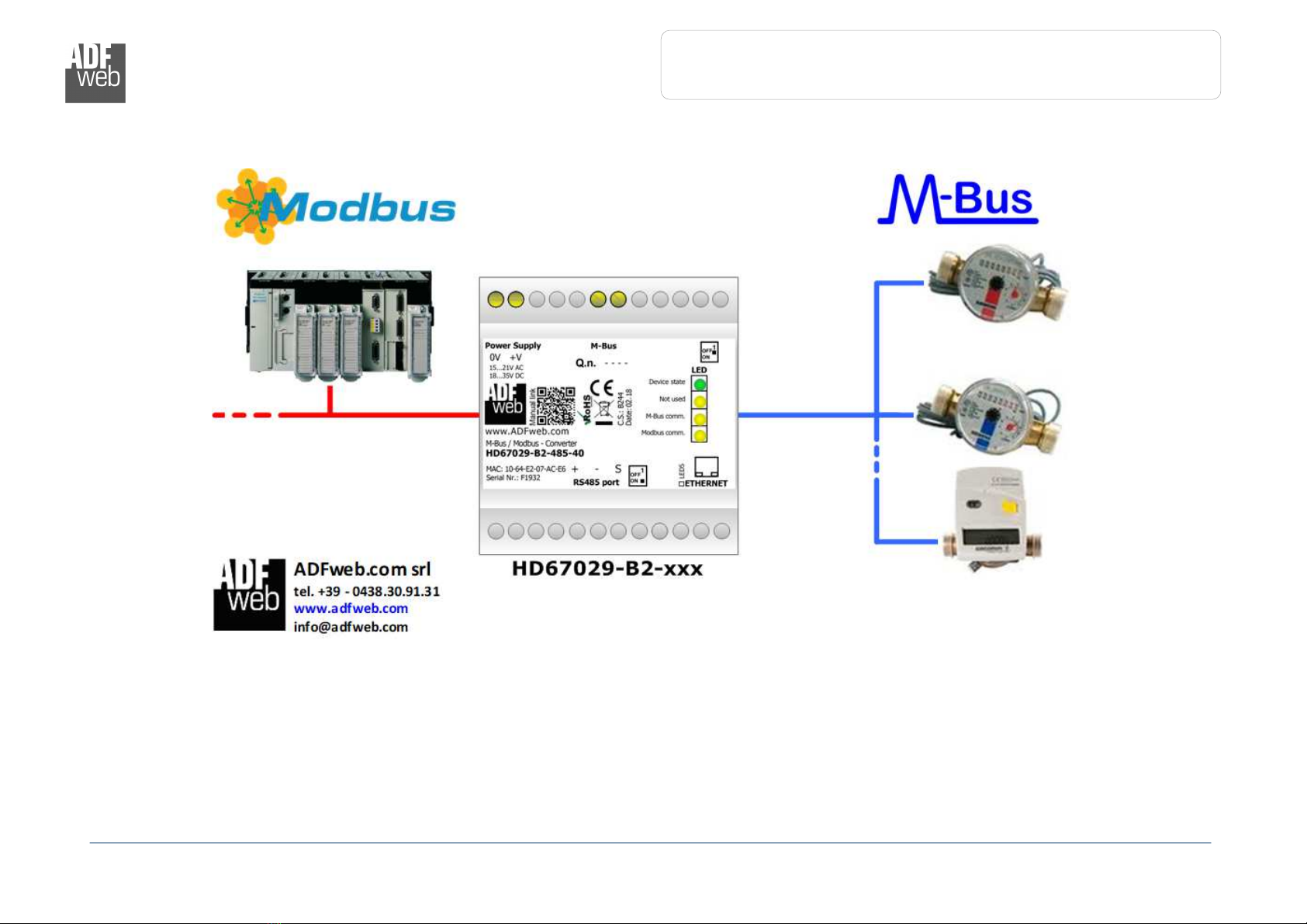

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 5 of 47
CONNECTION SCHEME:
Figure
1a
: Connection scheme for HD670
2 M
-
232
-
20

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 6 of 47

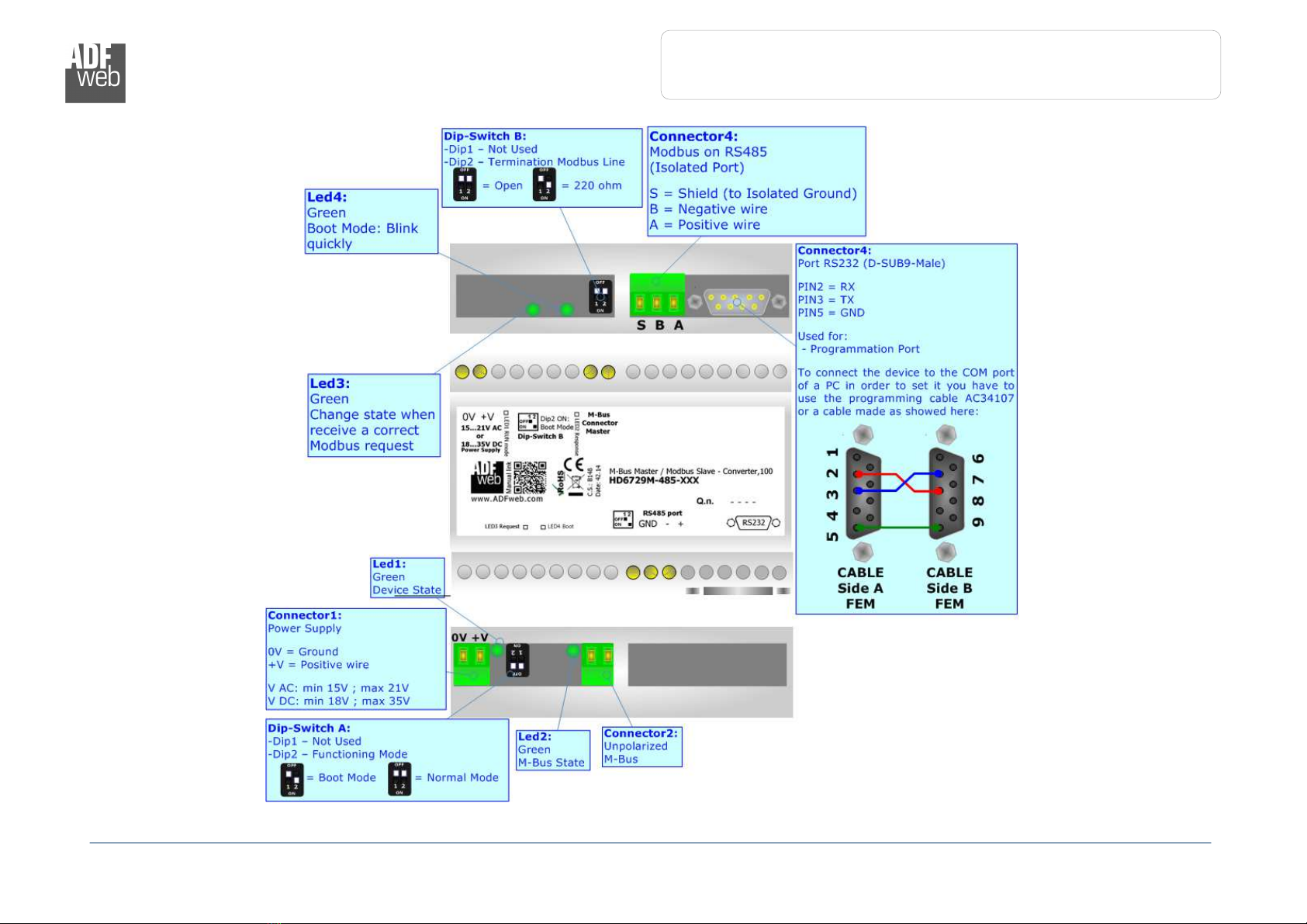

Figure 1b: Connection scheme for HD6702 M-485-20

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 7 of 47

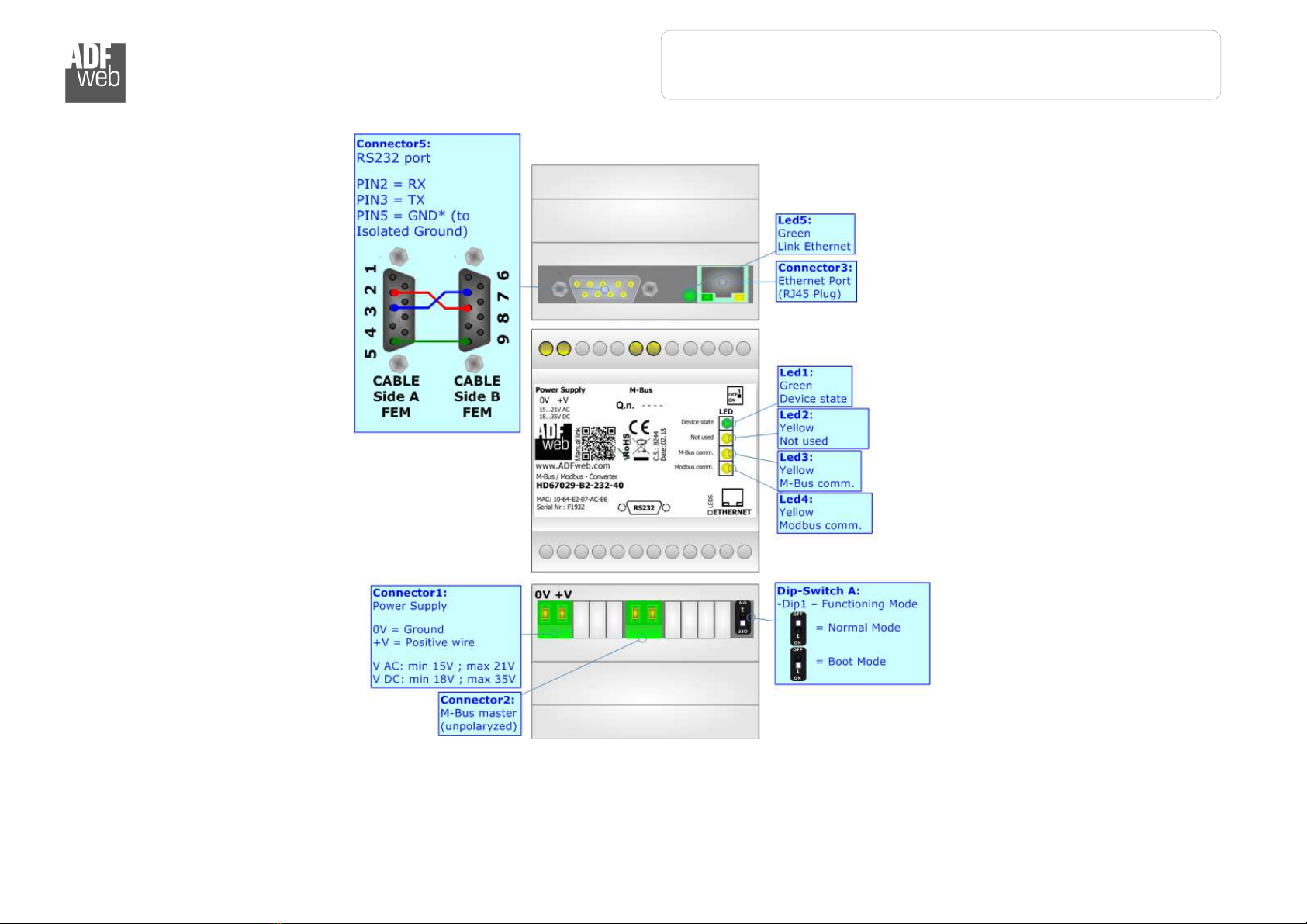

Figure
1c
: Connection scheme for HD670
2
-
B2
-
232
-
xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 8 of 47
Figure
1c
: Connection scheme for HD670
2
-
B2
-
485
-
xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 9 of 47
CHA ACTE ISTICS:
The HD67029 is a M-Bus master to Modbus slave Converter
It allows the following characteristics:
Electrical isolation between RS232/RS485 - M-Bus – Power Supply;
Baud Rate and Parity changeable with software;
Mountable on 35mm Rail DIN;
Wide power supply input range: 15…21V AC or 18…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
At the Converter can be connected up to 250 standard M-Bus devices This number depends of the code expressed by the xxx number:
HD67029M-232-20 or HD67029M-485-20 support up to 20 M-Bus devices;
HD67029-B2-232-40 or HD67029-B2-485-40 support up to 40 M-Bus devices;
HD67029-B2-232-80 or HD67029-B2-485-80 support up to 80 M-Bus devices;
HD67029-B2-232-160 or HD67029-B2-485-160 support up to 160 M-Bus devices;
HD67029-B2-232-250 or HD67029-B2-485-250 support up to 250 M-Bus devices
In the case of HD67029-B2-xxx-160 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate To avoid obstructions to the airflow around the unit it is recommended to not cover the paths of air
In the case of HD67029-B2-xxx-250 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate These units have a fan in the top of the enclosure To avoid obstructions to the airflow around the unit it is recommended
to not cover the paths of air Take care to not cover the fan It is recommended to put the device into a ventilated cabinet
CONFIGU ATION:
You need Compositor SW67029 software on your PC in order to perform the following:
Define the parameter of Modbus and M-Bus line;
Define which M-Bus variables are readable on Modbus ;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 10 of 47
POWE SUPPLY:
The devices can be powered at 15…21V AC and 18…35V DC The consumption depends to the code of the device For more details see the
two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
15V 21V 18V 35V
Consumption at 24V DC:
Device No Load [W/VA] Full Load [W/VA]*
HD67029M-xxx-20
3 5
4
HD67029-B2-xxx-40 5
HD67029-B2-xxx-80 8
HD67029-B2-xxx-160 14
HD67029-B2-xxx-250 30
* This value is with all the Slave M-Bus devices of the code (20, 40, 80, 160, 250) connected to the line
HD67029
Warning:
Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 11 of 47

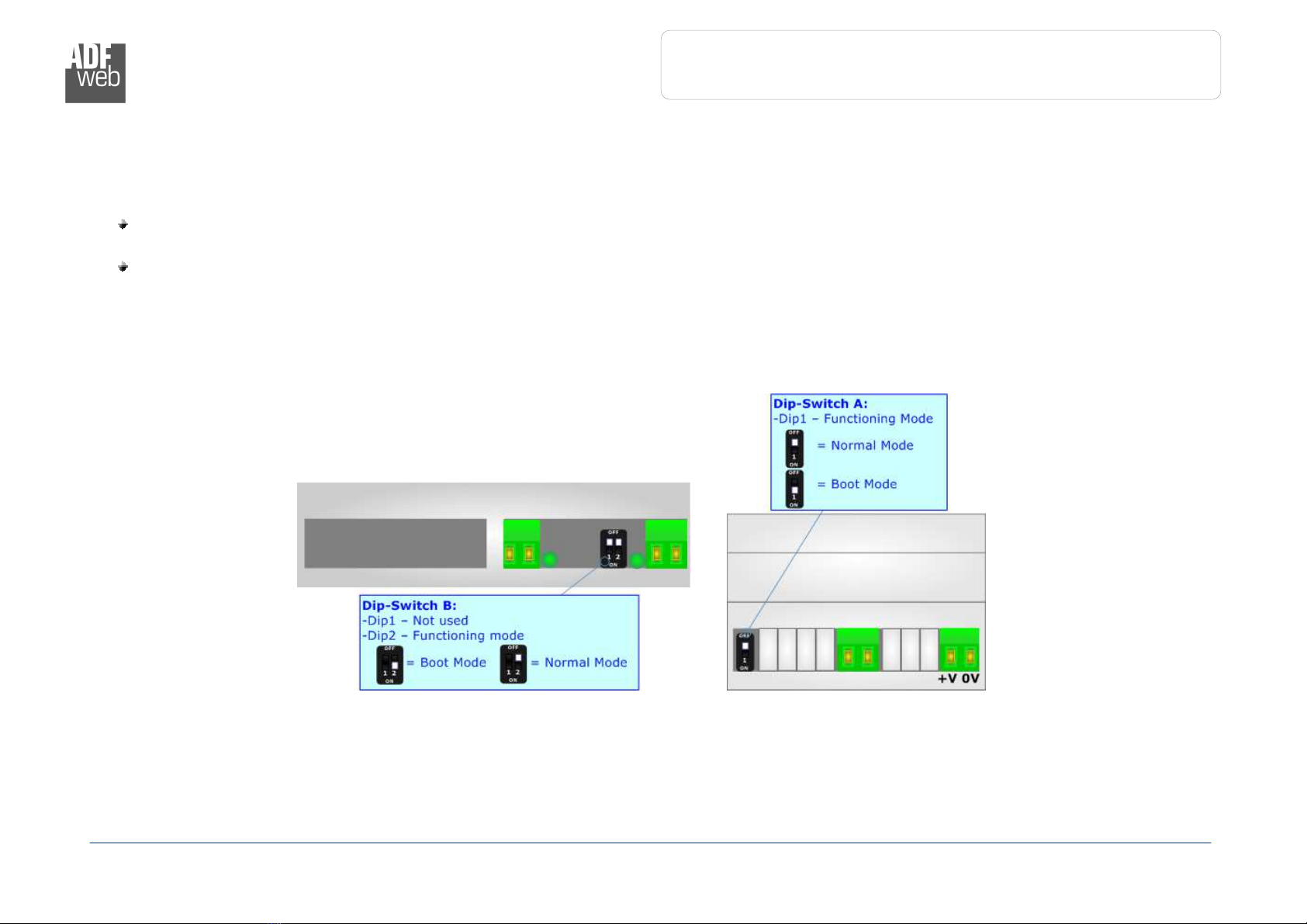

FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’ of HD67029M-xxx-20 or Dip1 of ‘Dip-Switch A’
of HD67029-B2-xxx-xxx:
The first, with Dip2 of ‘Dip-Switch A’ at OFF position (for HD67029M-xxx-20) or with Dip1 of ‘Dip-Switch A’ at OFF position (for
HD67029-B2-xxx-xxx), is used for the normal working of the device
The second, with Dip2 of ‘Dip-Switch A’ at ON position (for HD67029M-xxx-20) or with Dip1 of ‘Dip-Switch A’ at ON position (for
HD67029-B2-xxx-xxx), is used for uploading the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 12 of 47
LEDS:
HD67029M- XXX -20:
The HD67029M-xxx-20 device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) OFF
2: M-Bus state (green) Blinks when a M-Bus response is received OFF
3: Modbus state (green) Blinks when a Modbus request is received OFF
4: Boot Mode (green) OFF Blinks quickly

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 13 of 47
HD67029-B2- XXX - XXX :
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Not used OFF
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: M-Bus Comm Blinks when a M-Bus response is
received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus comm
(green)
Blinks when a Modbus request is
received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 14 of 47

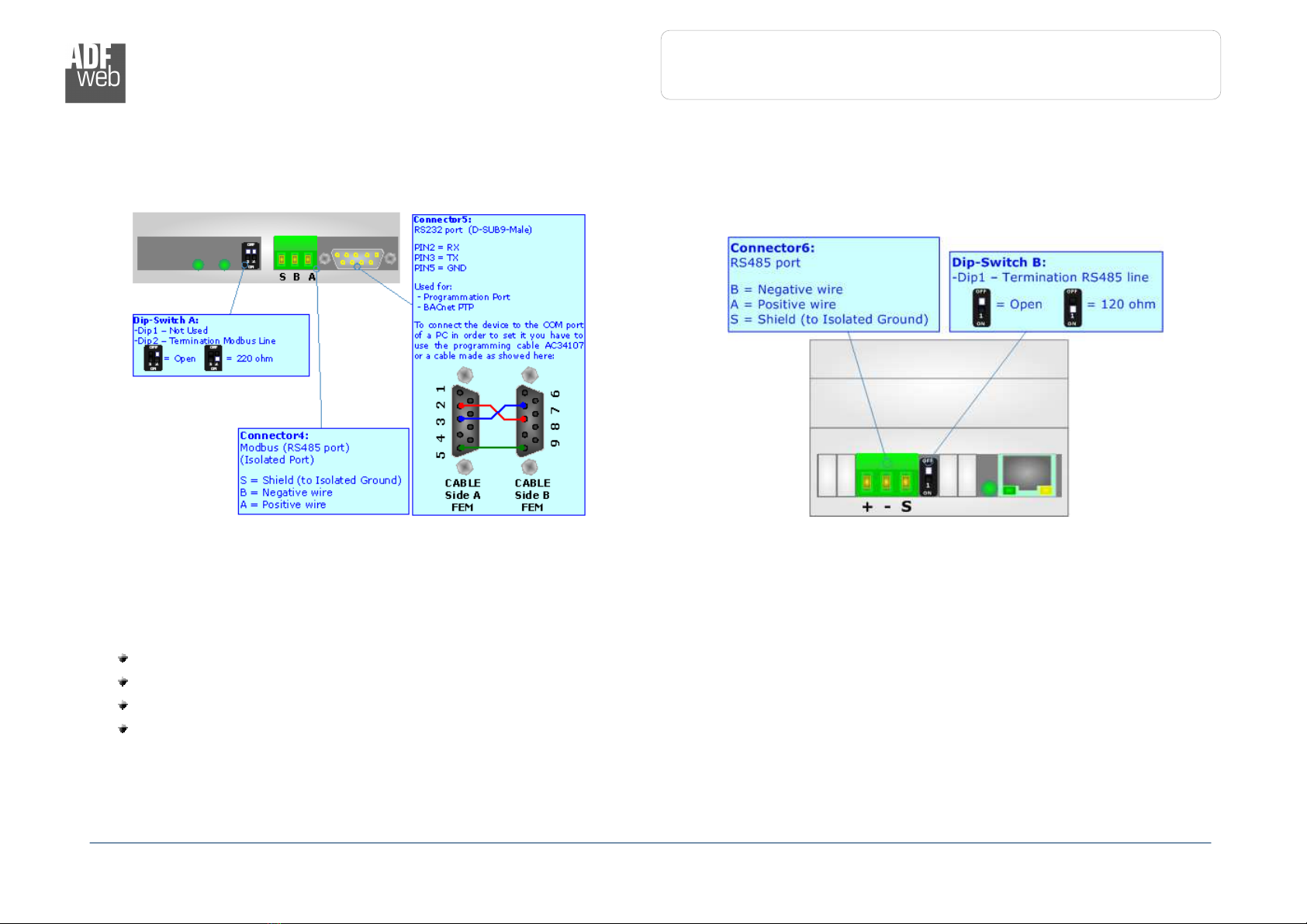

S232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial
cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters
The HD67029 is provided with a D-sub connector type DE-9 Male (also called DB-9) The cable must use a DE-9 Female connector
The serial port is used for programming the device (HD67029M-xxx-20) and for Modbus communication

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 15 of 47
S485:
To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 16 of 47
M-BUS:
The M-Bus is a unpolarized bus
A two wire standard telephone cable (JYStY N*2*0 8 mm) is used as the transmission medium for the M-
Bus The maximum distance between a slave and the repeater is 350m; this length corresponds to a
cable resistance of up 29Ω This distance applies for the standard configuration having Baud rates
between 300 and 9600 Baud, and a maximum of 250 slaves The maximum distance can be increased by
limiting the Baud rate and using fewer slaves, but the bus voltage in the space state must at no point in a
segment fall below 12V, because of the remote powering of the slaves In the standard configuration the
total cable length should not exceed 1000m, in order to meet the requirement of a maximum cable
capacitance of 180nF (Taken from M-Bus specifics)
ETHE NET:
The Ethernet connection must be made using Connector3 with at least a Category 5E cable The
maximum length of the cable should not exceed 100m The cable has to conform to the T568 norms
relative to connections in cat 5 up to 100 Mbps To connect the device to an Hub/Switch is recommended
the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 17 of 47
USE OF COMPOSITO SW67029:
To configure the Converter, use the available software that runs with Windows called SW67029 It is downloadable from the site
www adfweb com and its operation is described in this document (this manual is referenced to the last version of the software present on the
web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67029, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW6702

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 18 of 47
NEW CONFIGU ATION / OPEN CONFIGU ATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “M-Bus master / Modbus slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 19 of 47
SOFTWA E OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67029 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus master / Modbus slave
-
Converter
Document code: MN67029_ENG Revision 3 000 Page 20 of 47
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, Modbus and M-Bus
By Pressing the “Set Communication” button from the main window for SW67029 (Fig 2) the window
“Set Communication” appears (Fig 3)
The window is divided in three sections, one for the Modbus line (Modbus slave), one for the M-Bus and
the other for Ethernet
The means of the fields for Select Device are:
If the hardware in your possession is the HD67029M-xxx you have to select “HD67029M”;
otherwise if the hardware in your possess is the HD67029-B2-xxx-xxx you have to select
“HD67029-B2”
The means of the fields for “Modbus Slave” are:
In the field “Serial” the serial port to use for the Modbus communication is defined;
In the field “Baudrate” the data rate of the Modbus line is defined;
In the field “Parity” the parity of the Modbus line is defined;
In the field “Stop Bits” the number of Stop bits of the Modbus line is defined;
In the field “ID Device” the Modbus ID to assign to the converter is defined
In the field “Protocol” the protocol to use in the serial line is defined:
oModbus TU;
oModbus ASCII;
oJBUS;
oBinary: simple protocol defined by Us, whose functions are described in the document “Simple
Protocol” downloadable at www adfweb com/download/filefold/Simple_Protocol_ENG pdf;
oASCII: simple protocol defined by Us, whose functions are described in the document “Simple
Protocol” downloadable at www adfweb com/download/filefold/Simple_Protocol_ENG pdf
Figure 3: “Set Communication” window
