ADF Web HD67B46-B2 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 1 of 26
User Manual
Revision 1.
English
OPC UA Server / PROFINET Slave -
Converter
(Order Code: HD67B46-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B46
for Price information:
http://www.adfweb.com/?Price=HD67B46-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others OPC UA Server devices, see also the following links:
OPC UA Server fro /to …
www.adfweb.com?Product=HD67B26 (Serial)
www.adfweb.com?Product=HD67B26 (Modbus Master)
www.adfweb.com?Product=HD67B28 (Modbus Slave)
www.adfweb.com?Product=HD67B29 (Modbus TCP Master)
www.adfweb.com?Product=HD67B3 (Modbus TCP Slave)
www.adfweb.com?Product=HD67B31 (Bacnet Master)
www.adfweb.com?Product=HD67B32 (Bacnet Slave)
www.adfweb.com?Product=HD67B33 (CAN)
www.adfweb.com?Product=HD67B34 (CANopen)
www.adfweb.com?Product=HD67B35 (DeviceNet Master)
www.adfweb.com?Product=HD67B36 (DeviceNet Slave)
www.adfweb.com?Product=HD67B37 (DMX)
www.adfweb.com?Product=HD67B38 (EtherNet/IP Master)
www.adfweb.com?Product=HD67B39 (EtherNet/IP Slave)
www.adfweb.com?Product=HD67B4 (J1939)
www.adfweb.com?Product=HD67B41 (KNX)
www.adfweb.com?Product=HD67B42 (MQTT)
www.adfweb.com?Product=HD67B43 (NMEA0183)
www.adfweb.com?Product=HD67B44 (NMEA2000)
www.adfweb.com?Product=HD67B45 (PROFINET Master)
www.adfweb.com?Product=HD67B47 (SNMP Manager)
www.adfweb.com?Product=HD67B48 (SNMP Agent)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 2 of 26
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 1
USE OF COMPOSITOR SW67B46 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 15
OPC UA ACCESS 17
PROFINET XML 17
UPDATE DEVICE 18
PLC CONFIGURATION 2
MECHANICAL DIMENSIONS 23
ORDERING INFORMATIONS 24
ACCESSORIES 24
DISCLAIMER 25
OTHER REGULATIONS AND STANDARDS 25
WARRANTIES AND TECHNICAL SUPPORT 26
RETURN POLICY 26
Pagina 2 di 26
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1. 13/ 3/2 19 Tf All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 3 of 26
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 4 of 26
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 5 of 26
Figure
1
: Connection scheme for HD67
B
46
-
B2
CONNECTION SCHEME:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 6 of 26
CHARACTERISTICS:
The HD67B46-B2 is a OPC UA Server / PROFINET Slave converter.
It allows the following characteristics:
Up to 15 bytes in reading and 15 bytes in writing;
Two-directional information between PROFINET Slave and OPC UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67B46 software on your PC in order to perform the following:
Define the parameter of the OPC UA;
Define the parameter of the PROFINET Slave;
Define the OPA UA variables accessible by the OPC UA Client;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 7 of 26

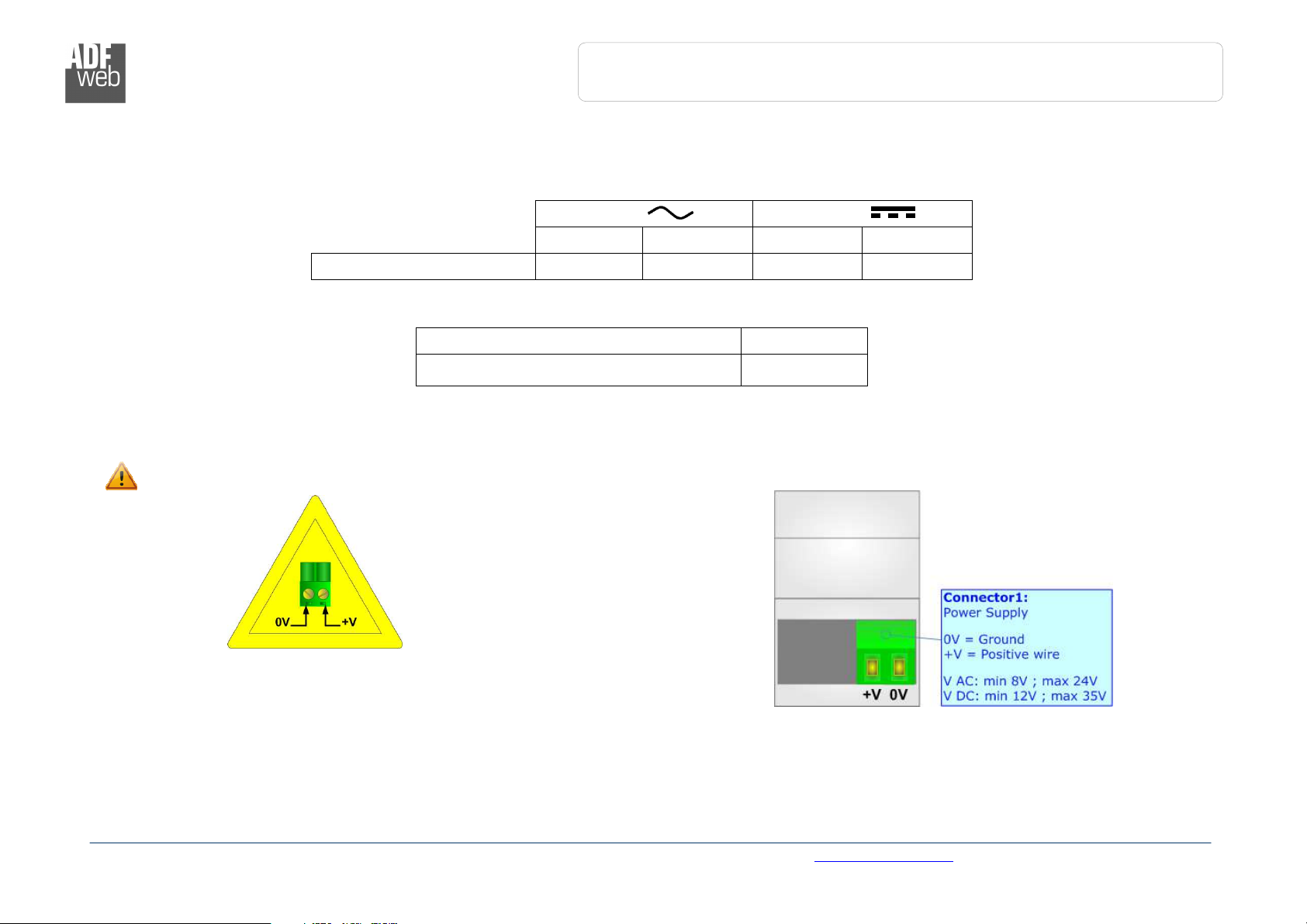

POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
V in V ax V in V ax
HD67B46-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B46-B2 4
Caution: Not reverse the polarity power
HD67B46-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 8 of 26
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 9 of 26

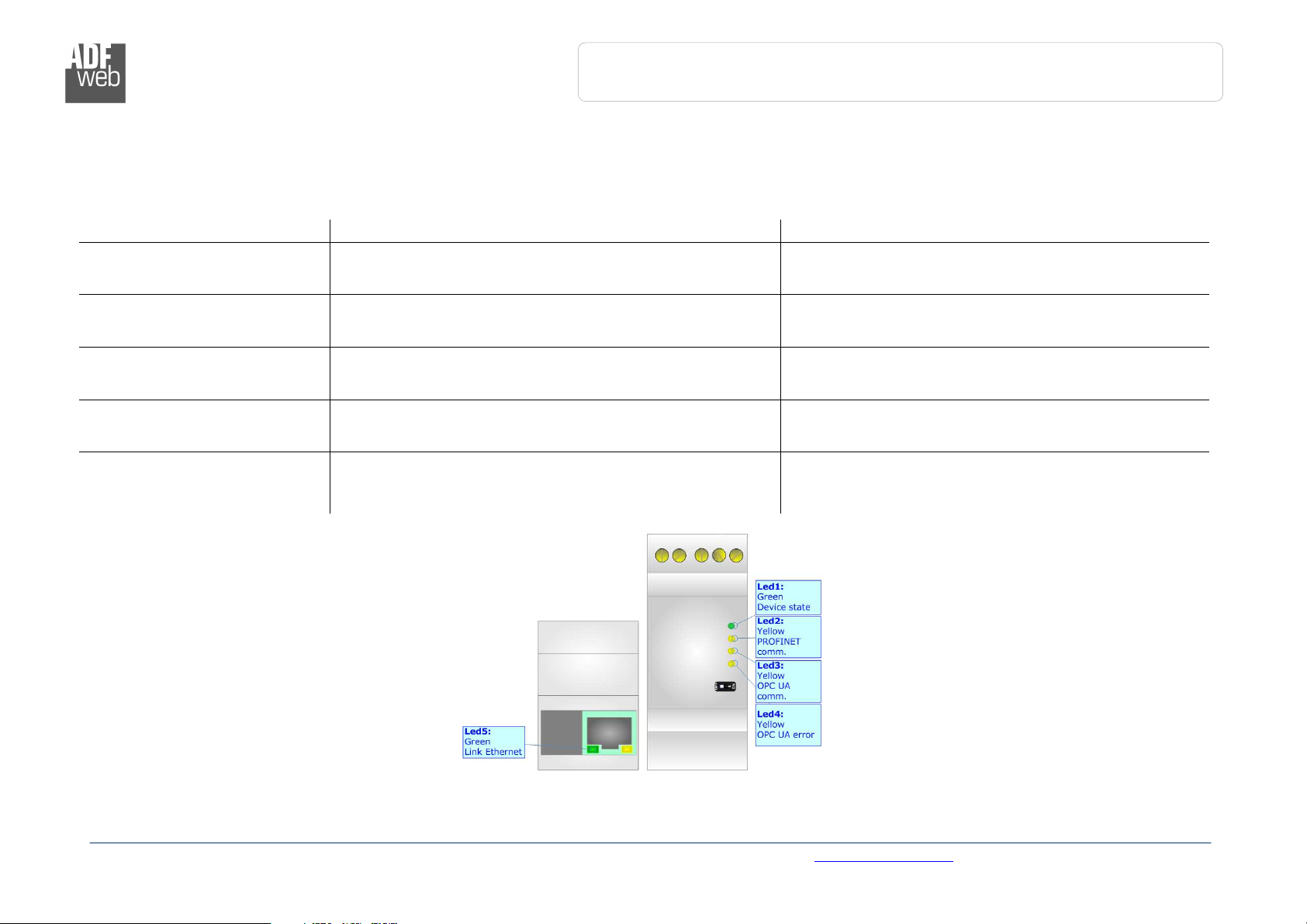

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Nor al Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: PROFINET Slave comm.
(yellow)
Flashing: PROFINET communication
OFF: No PROFINET communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: OPC UA comm. (yellow) Flashing: OPC UA response
OFF: No OPC UA response
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: OPC UA error (yellow) ON: At least one OPC UA Server is disconnected
OFF: all OPC UA Servers are connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 1 of 26
ETHERNET:
The Ethernet connection must be made using Connector3 of HD67B46-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 11 of 26
USE OF COMPOSITOR SW67B46:
To configure the Converter, use the available software that runs with Windows called SW67B46. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).

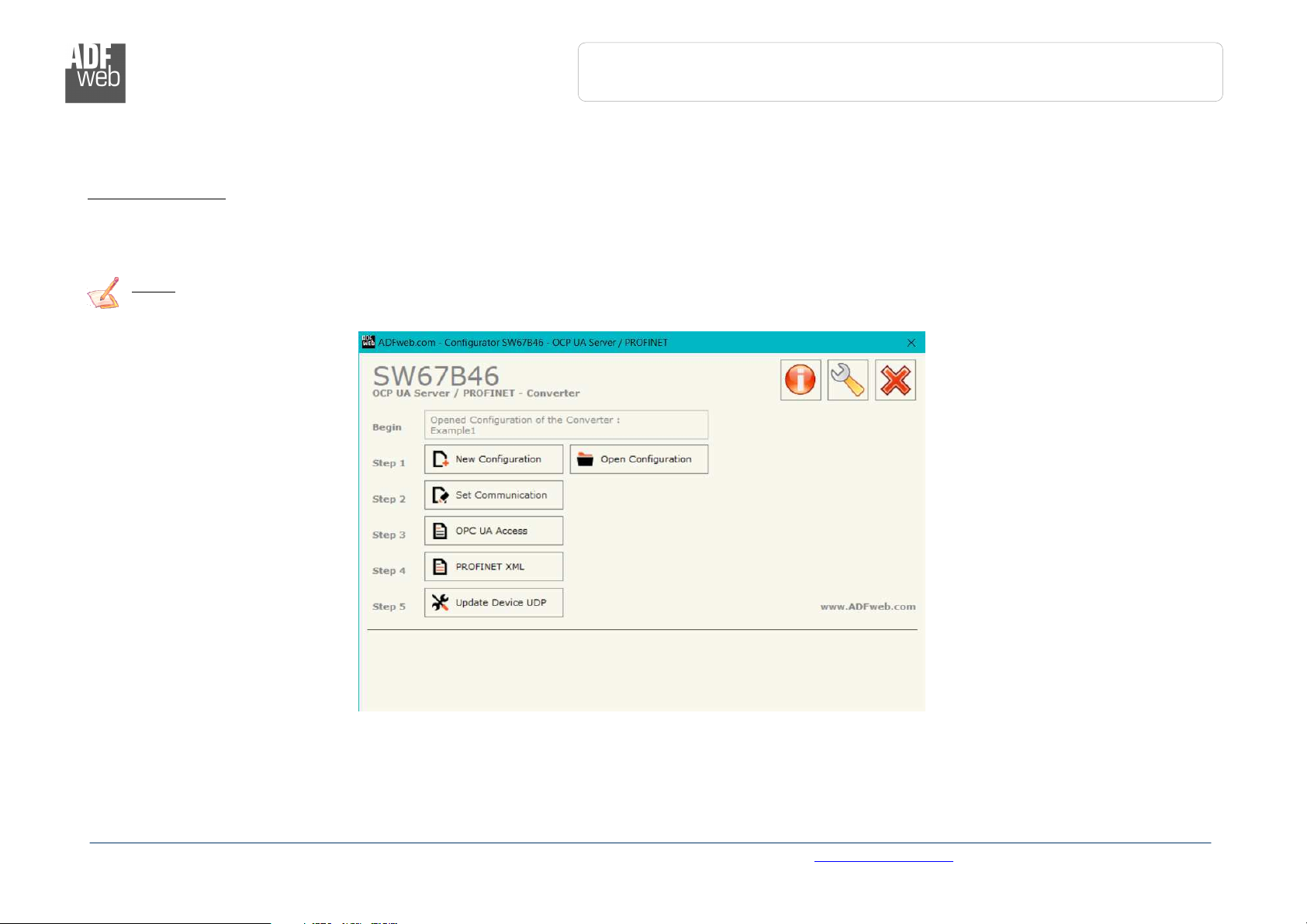

When launching the SW67B46, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67B
46

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 12 of 26
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “OPC UA Server / PROFINET Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 13 of 26

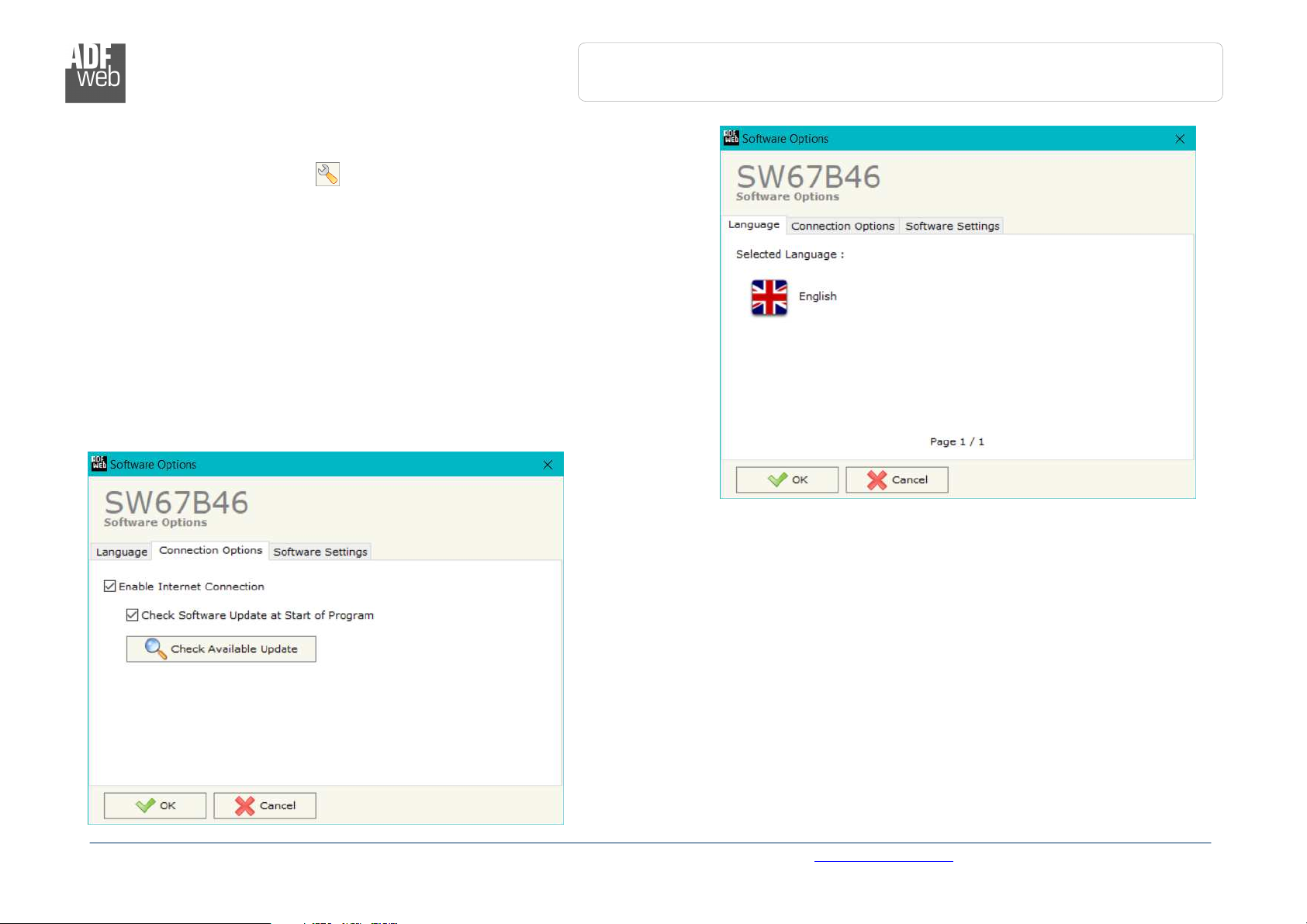

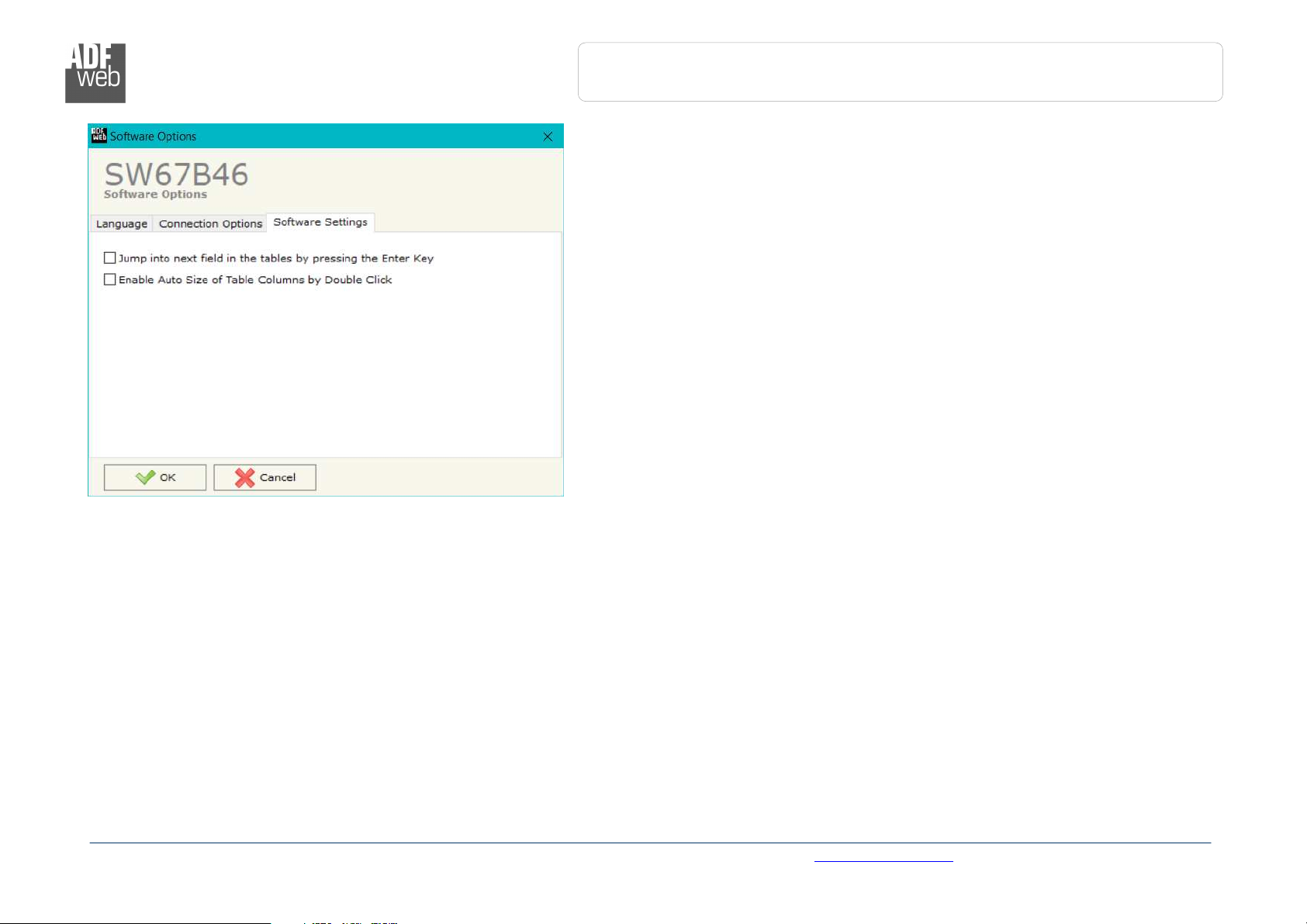

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Progra ”, the
SW67B46 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 14 of 26
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 15 of 26
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, OPC UA
Client and PROFINET.
By Pressing the “Set Co unication” button from the main window for SW67B46 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “OPC UA Client” are:
In the field “IP Address” the IP address for OPC UA side of the converter is
defined;
In the field “SubNet Mask” the SubNet Mask for OPC UA side of the converter is
defined;
In the field “Gateway” the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field “DNS” the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field;
In the field “Port” the port used for OPC UA communication is defined.
The means of the fields for “PROFINET” are:
In the fields “IP ADDRESS” the IP address for PROFINET side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask for PROFINET side of the converter
is defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field “Tunneling Port” the port to use for the “Tunneling mode” is defined;
In the field "PROFINET Na e of Station" the name of the PROFINET node is
defined;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 16 of 26
In the fields “Nu ber Byte IN” the number of input byte of the slave station is defined;
In the fields “Nu ber Byte Out” the number of output byte of the slave station is defined.
The means of the fields for “NTP (Network Time Protocol)” are:
In the field “Server URL” the URL or the IP Address of the NTP Server is defined;
In the field “Poll Ti e (seconds)” the polling time for the time synchronization is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 17 of 26
Figure 4: “O C UA Client Access” window
OPC UA ACCESS:
By Pressing the “OPC UA Access” button from the main window for SW67B46 (Fig. 2) the window “OPC UA Server Access” appears (Fig. 4).
This section is used to define the list of OPC UA variables to read/write.
The means of the checkboxes inside the table are:
In the field “Type” the data format of the OPC UA variable is defined;
In the field “Position” the starting byte of the internal memory arrays where getting the value is defined;
In the field “Length” the byte length of the OPC UA variable is defined;
In the field “Na e” the name of the OPC UA variable is defined;
In the field “R/W” the access type of the OPC UA variable is defined;
In the field “Mne onic” a description of the OPC UA variable is defined.
PROFINET XML:
By Pressing the “PROFINET XML” button from the main window for SW676 7 (Fig. 2) it is possible to generate the xml file to be imported
into the master PROFINET.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 18 of 26
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update fir ware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update fir ware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 19 of 26
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67B46 device.
Warning:

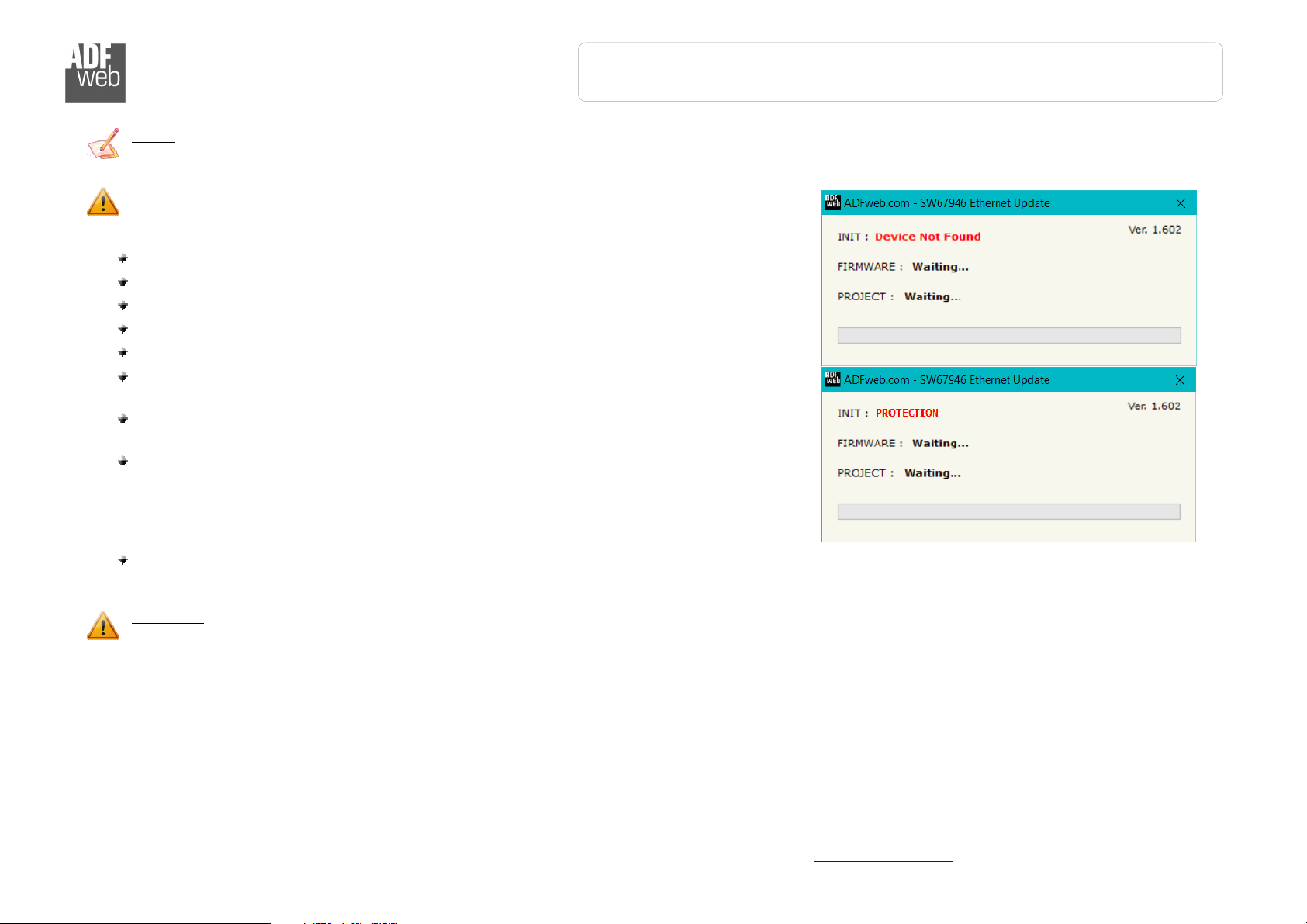

If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Check if the serial cable is connected between the PC and the device;
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 1 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For
do this you have to launch the "Command Prompt" and write the command "arp -d".
Pay attention that with Windows Vista, Seven, 8, 1 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
Warning:
In the case of HD67B46 you have to use the software “SW67B46”: www.adfweb.com\download\filefold\SW67B46.zip.
Figure
6
:
“
Error
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
S
e
r
ve
r
/
PROFINET
Slave
Document code: MN67B46_ENG Revision 1. Page 2 of 26

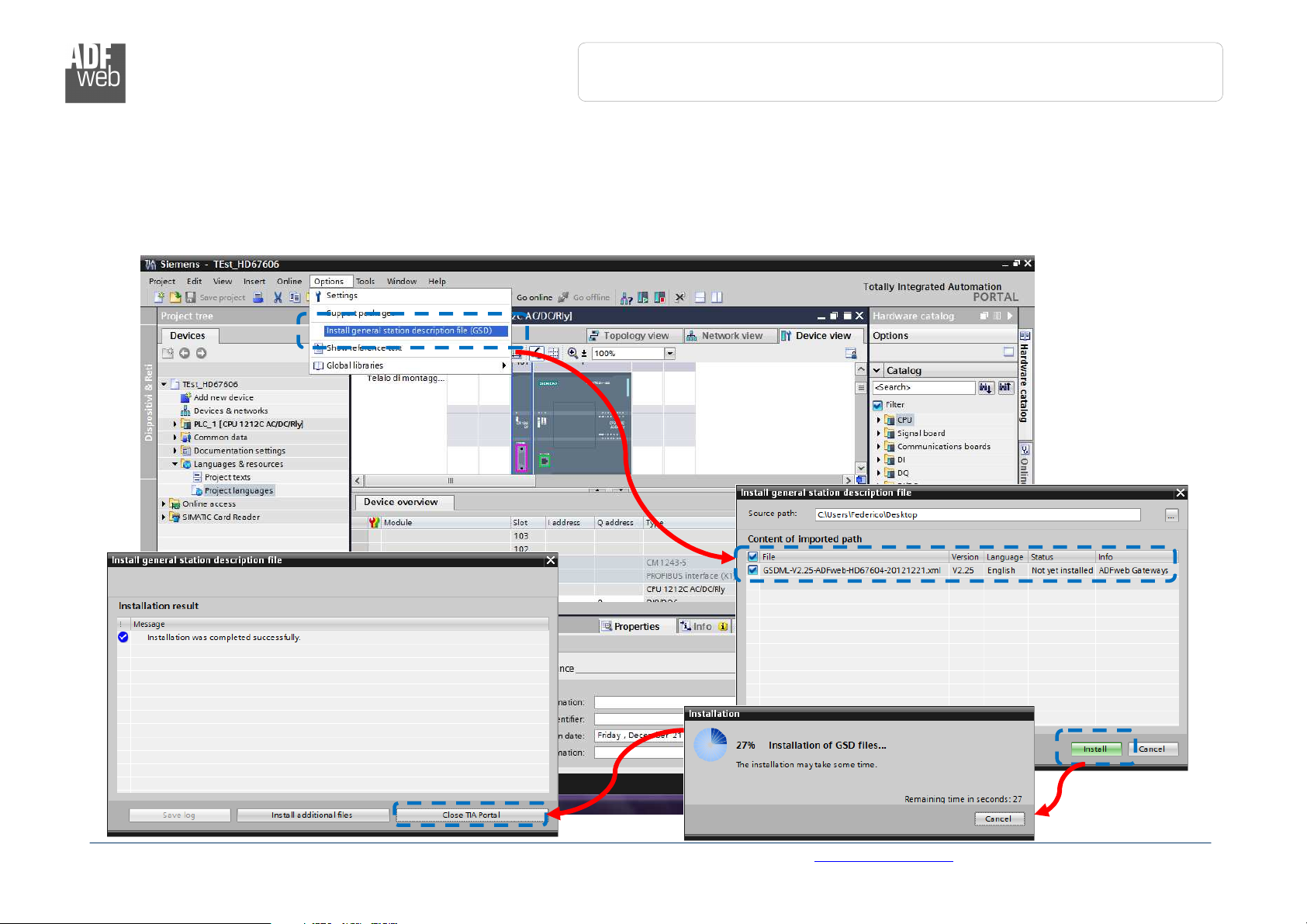

PLC CONFIGURATION:
The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the
TIA Portal software of Siemens. In case of using a control system from another supplier please attend to the associated documentation.
These are the steps to follow:
1) Install the description file of the module.
