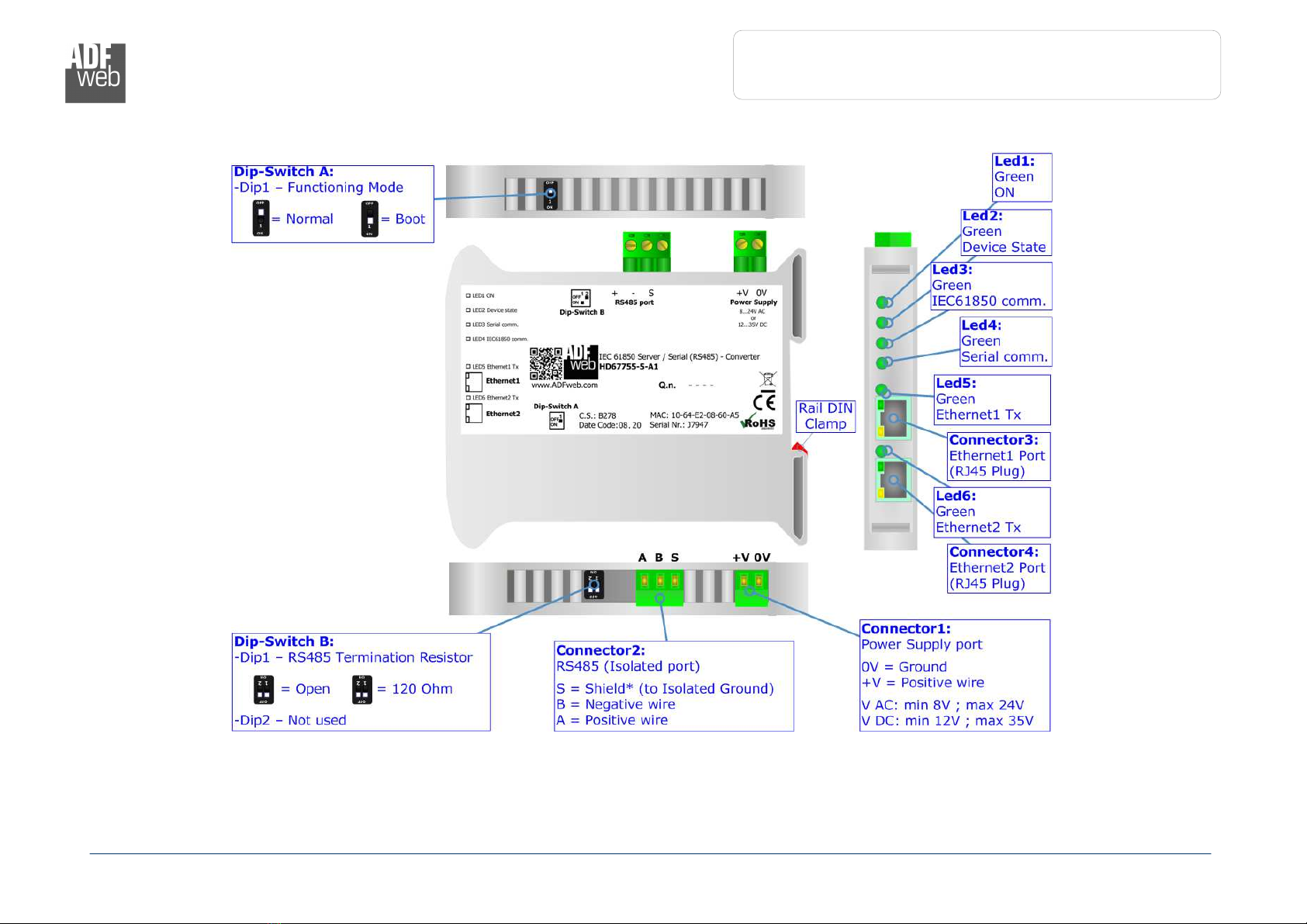

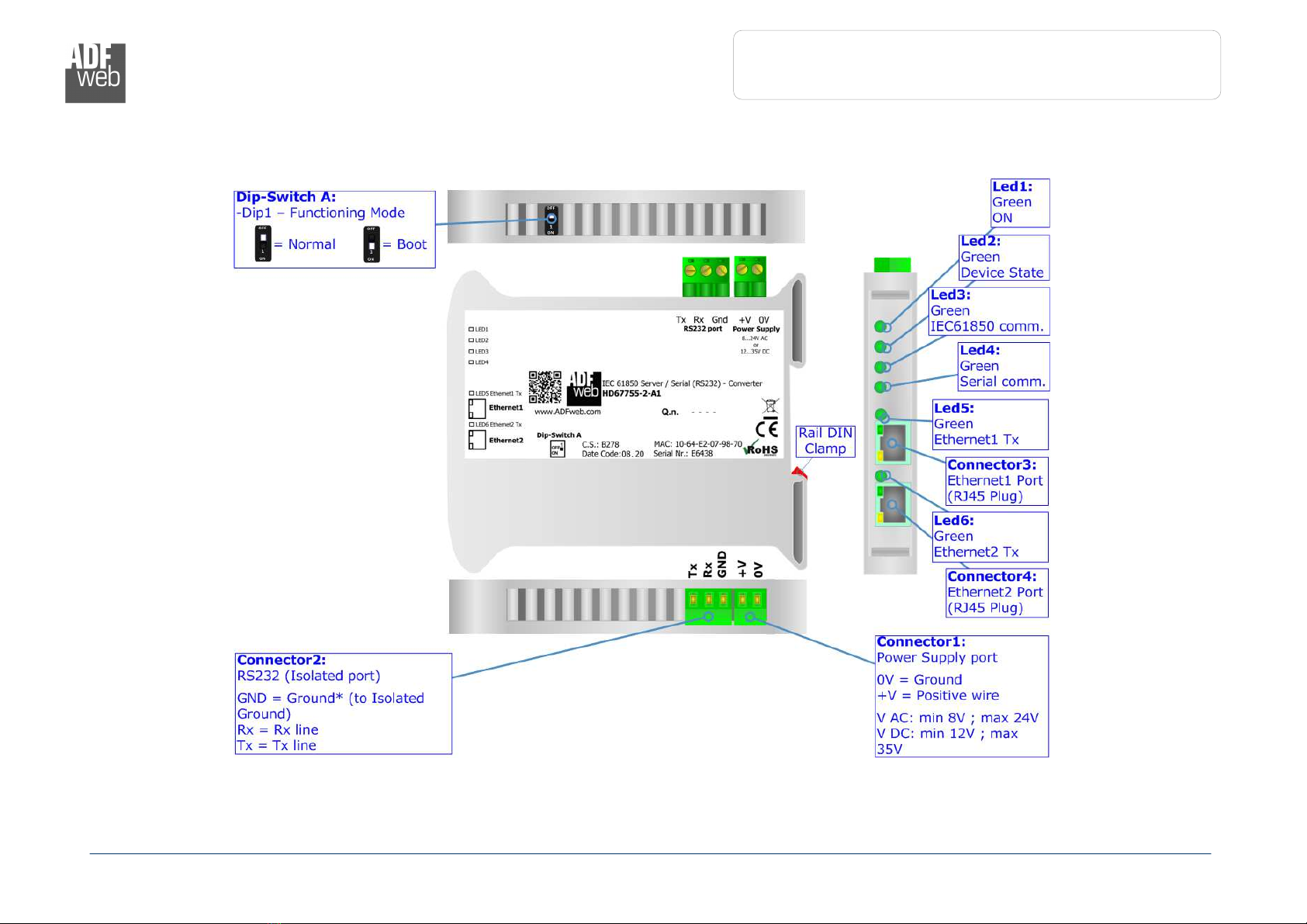

Figure 1a: Connection scheme for HD67755- -A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 6 of 29
Figure 1b: Connection scheme for HD67755-5-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 7 of 29
CHARACTERISTICS:
The HD67755-x-A1 are IEC 61850 / Serial - Converters.
It allows for the following characteristics:
Triple isolation between RS232/RS485 - ower Supply, RS232/RS485 - Ethernet, Ethernet - ower Supply;
Two-directional information between IEC 61850 bus and Serial bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67755 software on your C in order to perform the following:
Define the parameters of IEC 61850 line;
Define the parameters of Serial line;
Define IEC 61850 variables that contains the data written from Serial side;
Define IEC 61850 variables that contains the data to read from Serial side;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 8 of 29
POWER SUPPLY:

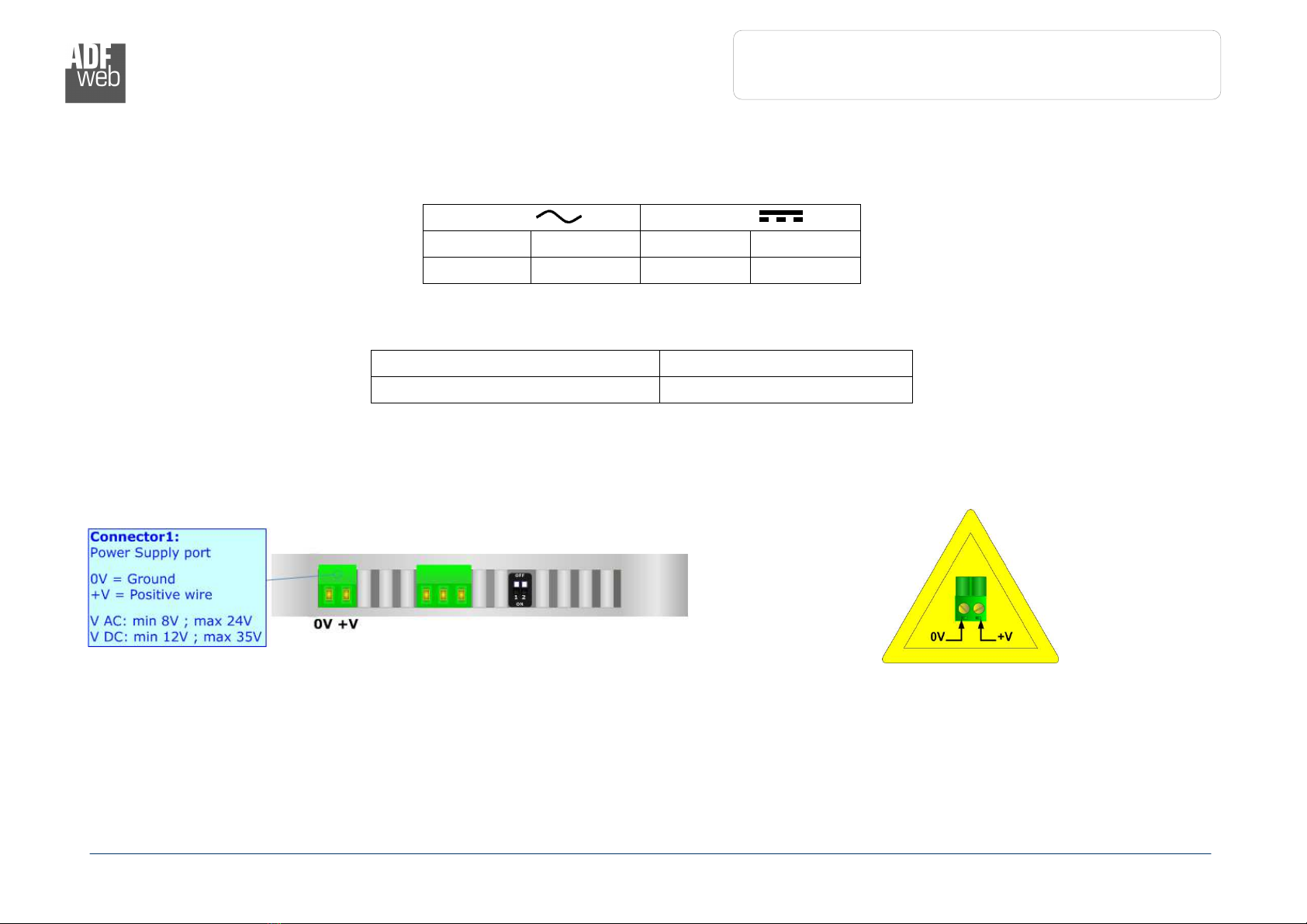

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67755-X-A1 3.5
HD67755-X-A1
Caution:
Do n
ot reverse the pola
rity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 9 of 29
FUNCTION MODES:

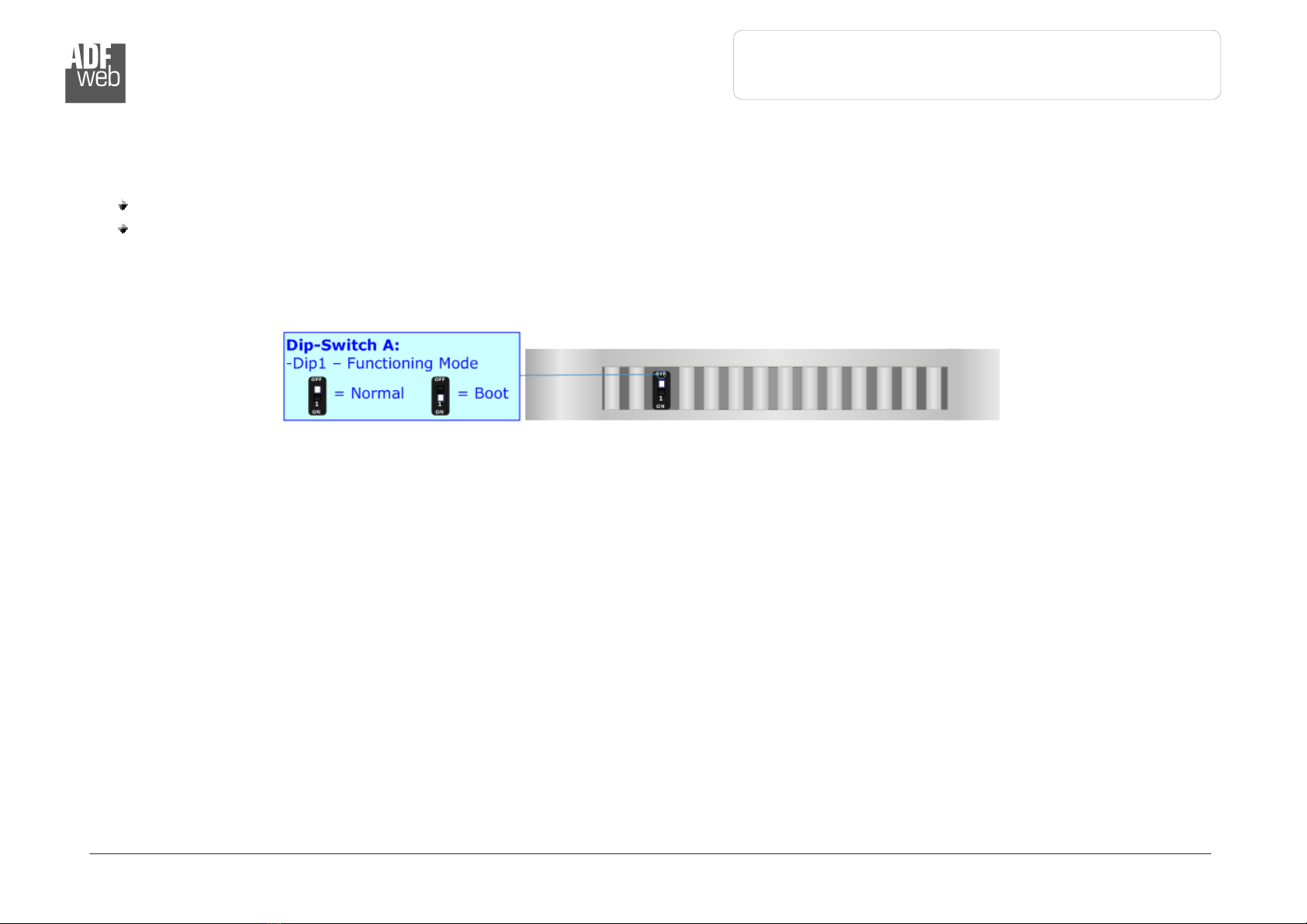

The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 10 of 29
LEDS:

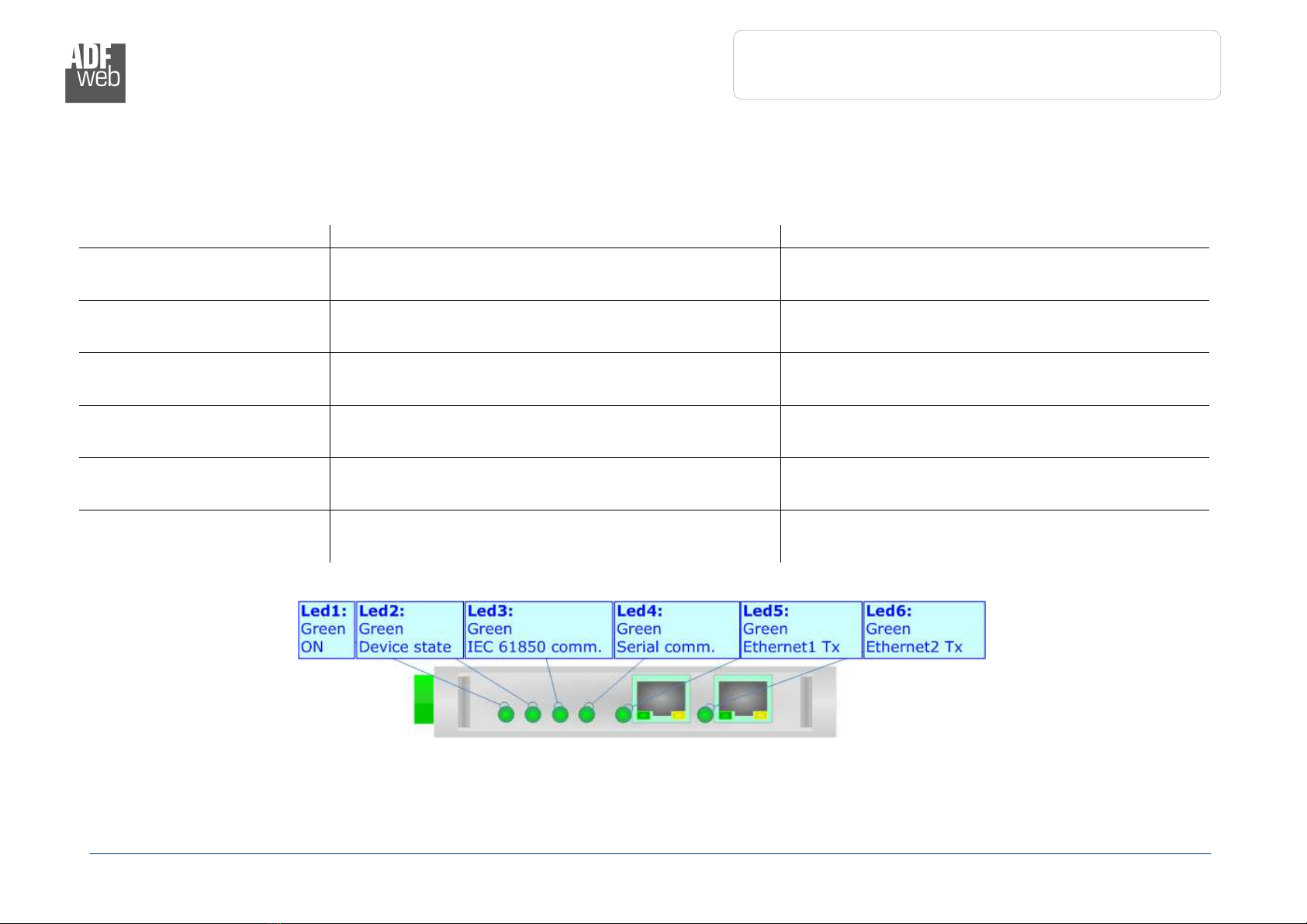

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
3: IEC 61850 communication
(green) It blinks when a IEC 61850 request is received Blinks quickly: Boot state Blinks very slowly (~0.5Hz : update in progress
4: Serial communication
(green) It blinks when a Serial request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 11 of 29

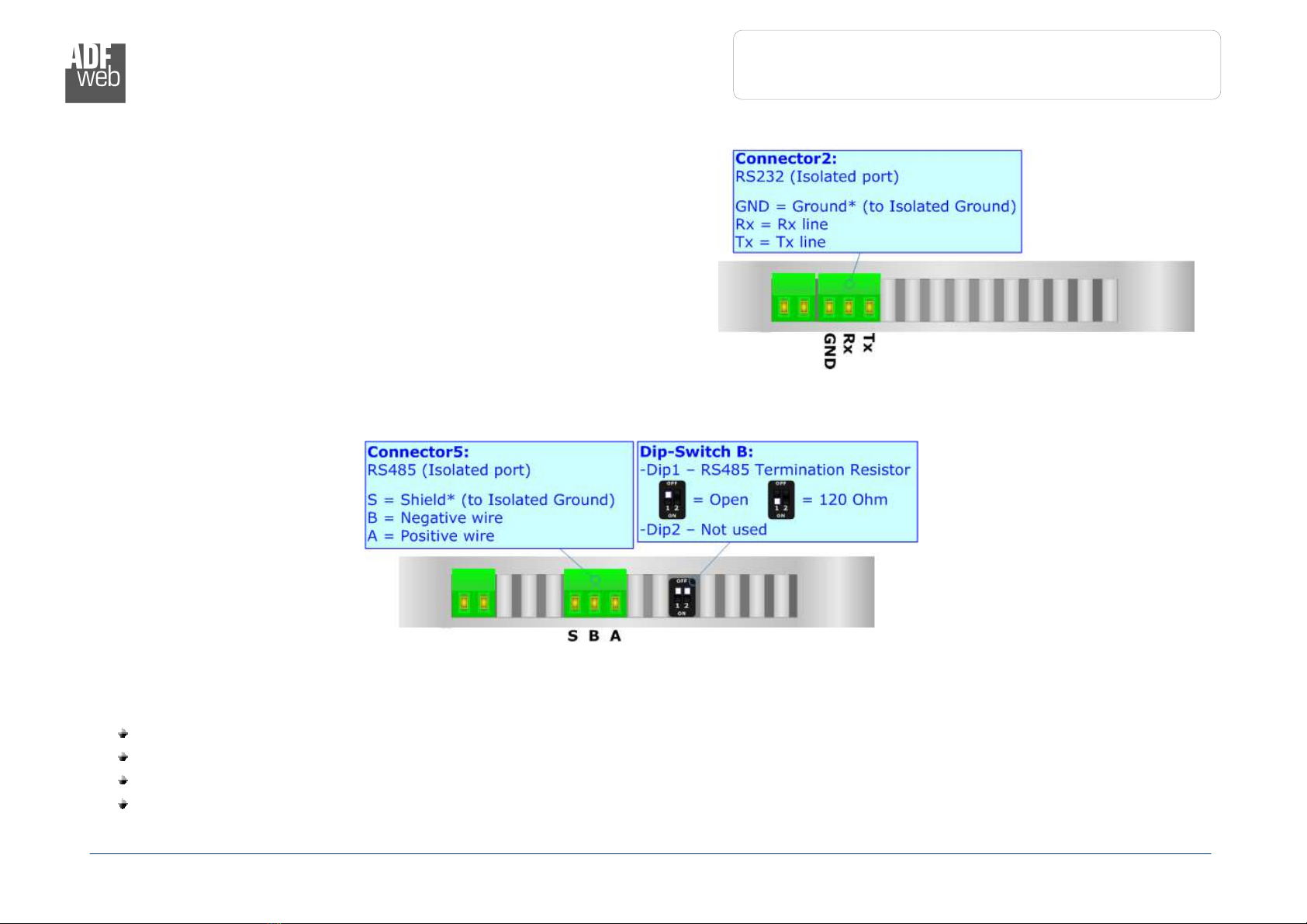

RS232:
The connection from RS232 socket to a serial port (example one from a
personal computer) must be made with a Null Modem cable (a serial cable
where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.
RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 12 of 29
ETHERNET:

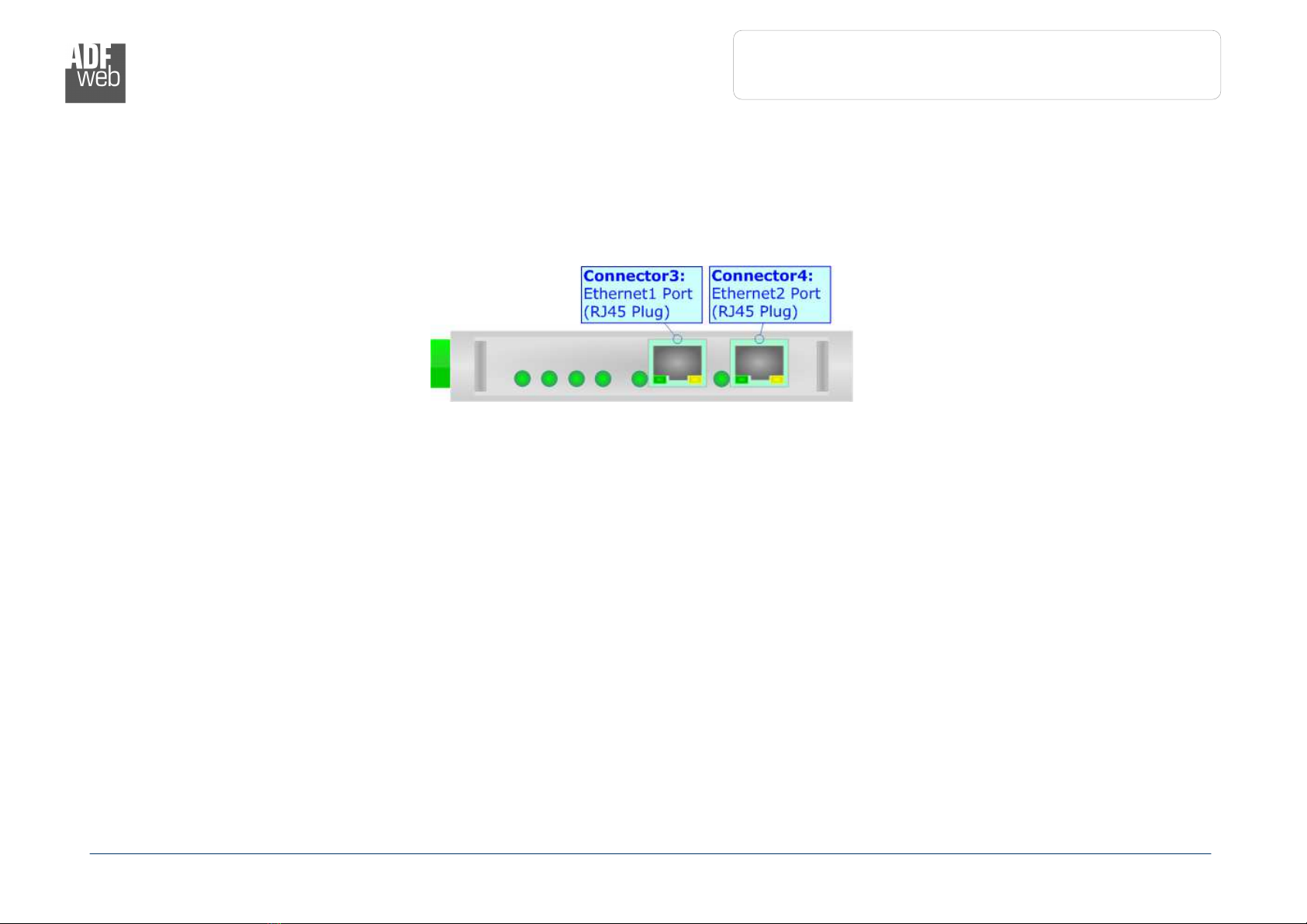

IEC 61850 connection and the updating of the converters must be made using Connector3 and/or Connector4 of the HD67755-X-A1 with at
least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 13 of 29
USE OF COMPOSITOR SW67755:
To configure the Converter, use the available software that runs with Windows called SW67755. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).

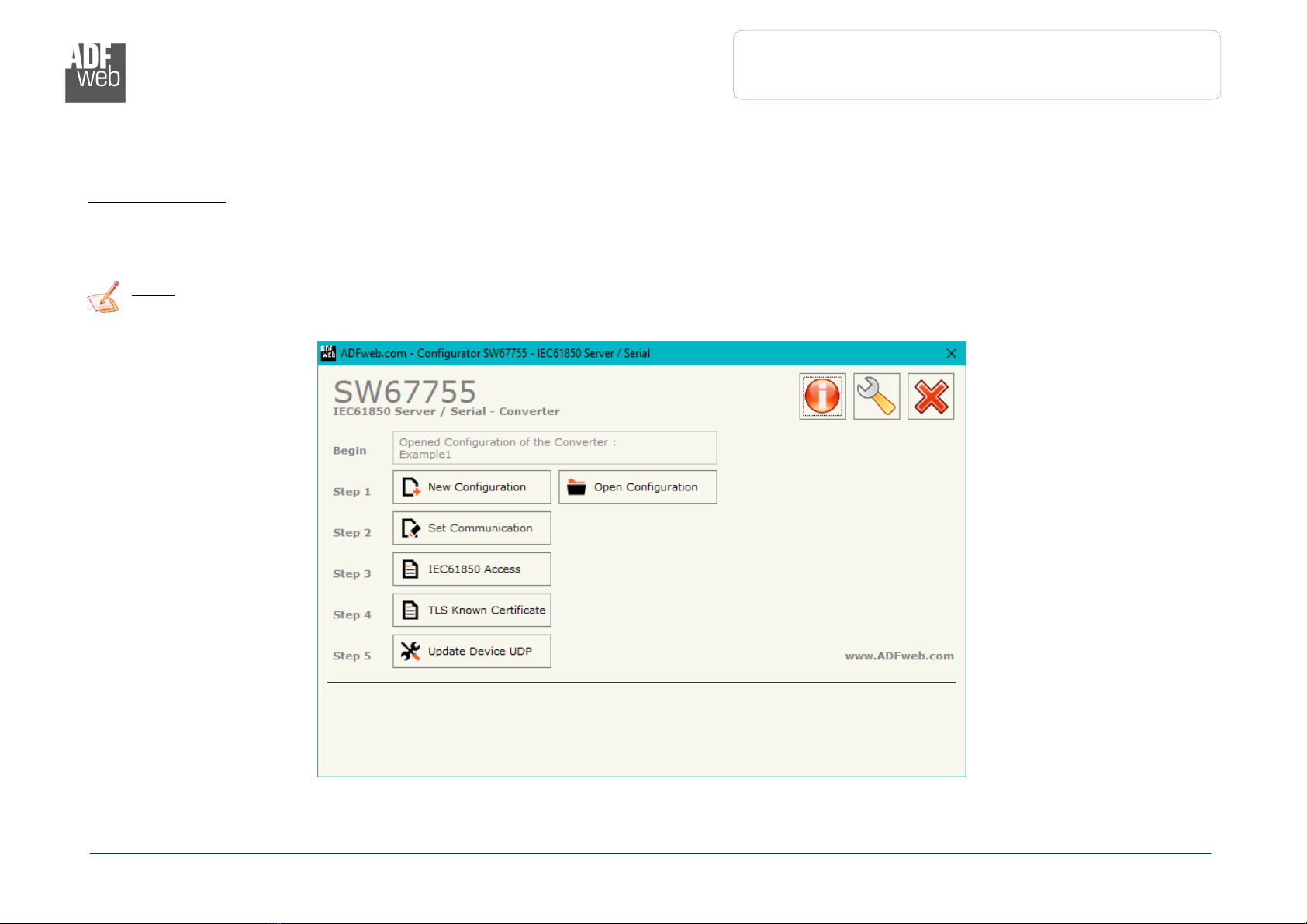

When launching the SW67755, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure : Main window for SW677
55

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 14 of 29
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “IEC 61850 Server / Serial - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 15 of 29
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67755 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 16 of 29
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 17 of 29

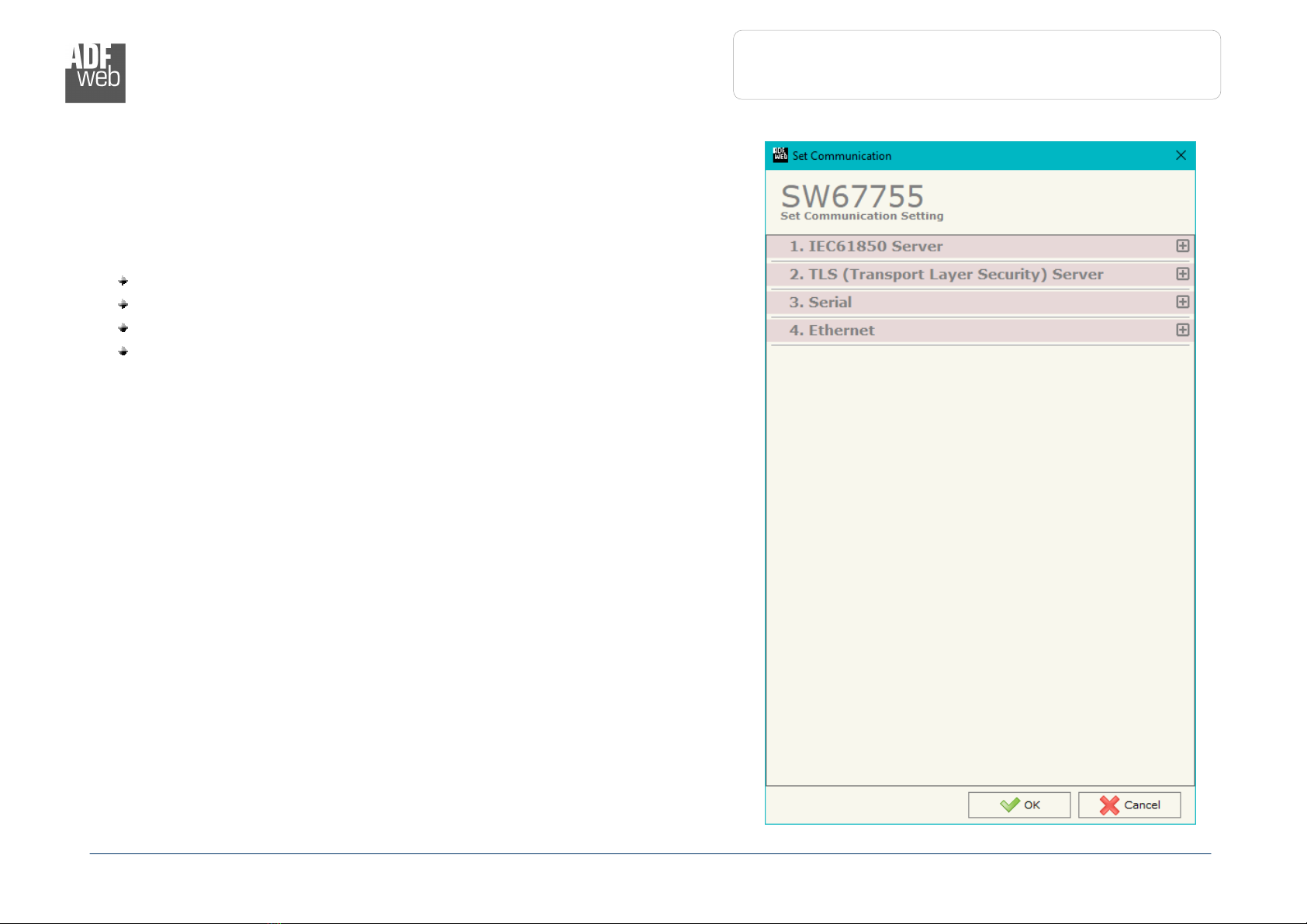

SET COMMUNICATION:
By ressing the “Set Communication” button from the main window for SW67755
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The window is divided in different sections in order to define the different
parameters of the converter:
IEC 61850 Server
TLS (Transport Layer Security) Server
Serial
Ethernet
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 18 of 29
Figure 3b: “Set Communication  IEC 61850
Server” window
Figure 3c: “Set Communication

TLS” window

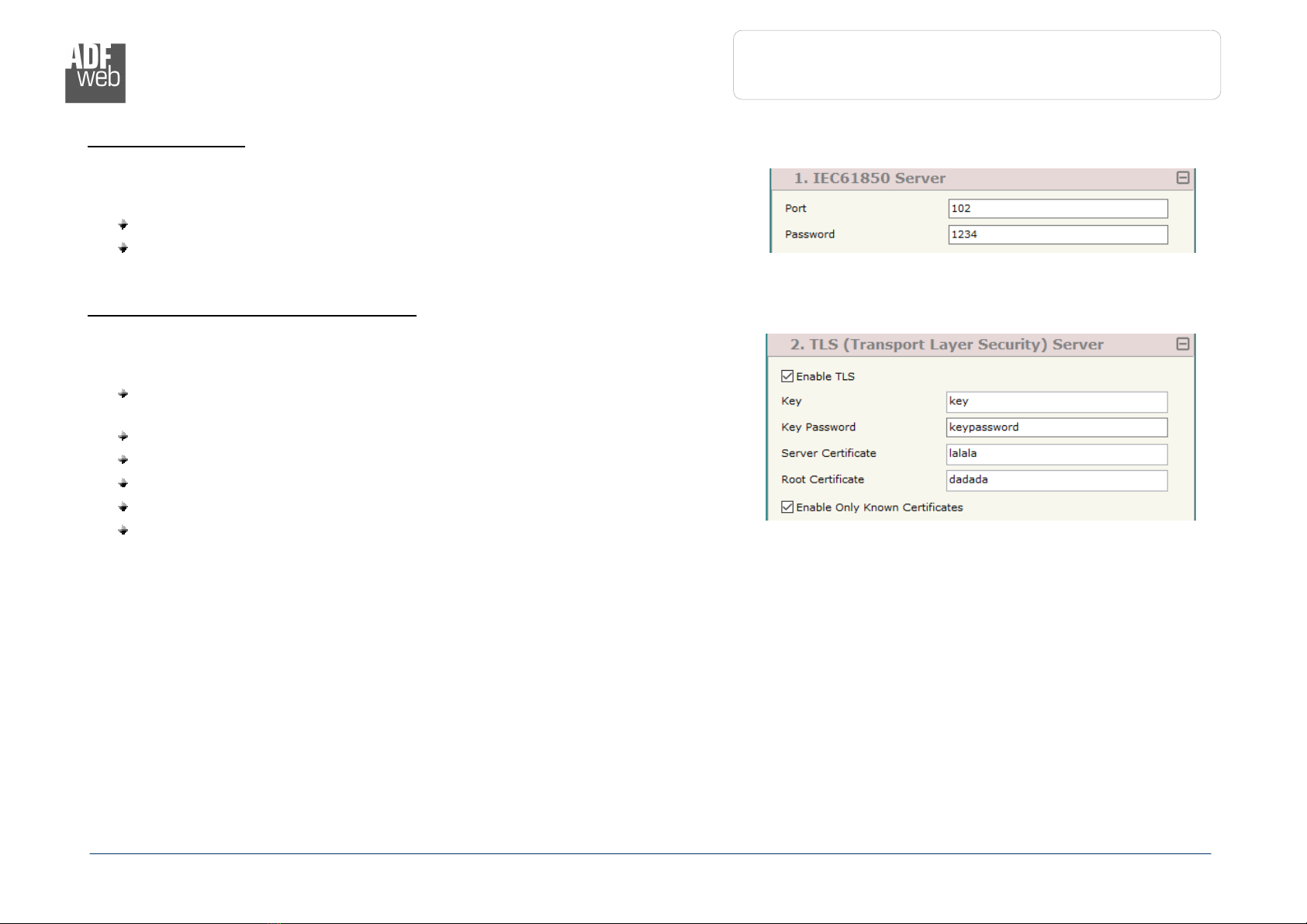

IEC 61850 S ERVER :
This section is used to define the main parameters of IEC 61850 line. The means of
the fields are:
In the field “Port” the port used for IEC 61850 communication is defined;
If the field “Password” the password used for accessing to IEC 61850
variables is defined.
TLS (T RANSPORT L AYER S ECURITY S ERVER
This section is used to define the main parameters of TLS protocol. The means of
the fields are:
If the field “Enable TLS” is checked, the TLS protocol for secure connection
is enabled;
In the field “Key” the key for the authentication is defined;
In the field “Key Password” the password for decrypting the key is defined;
In the field “Server Certificate” the certificate for the server is defined;
In the field “Root Certificate” the root of the server is defined;
If the field “Enable Only Known Certificates” is checked, the converter will
accept just connection from known Clients (defined in the section “TLS
Known Certificate”).

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 19 of 29
Figure 3e: “Set Communication  Ethernet”
window
Figure 3d: “Set Communication

Serial
” window

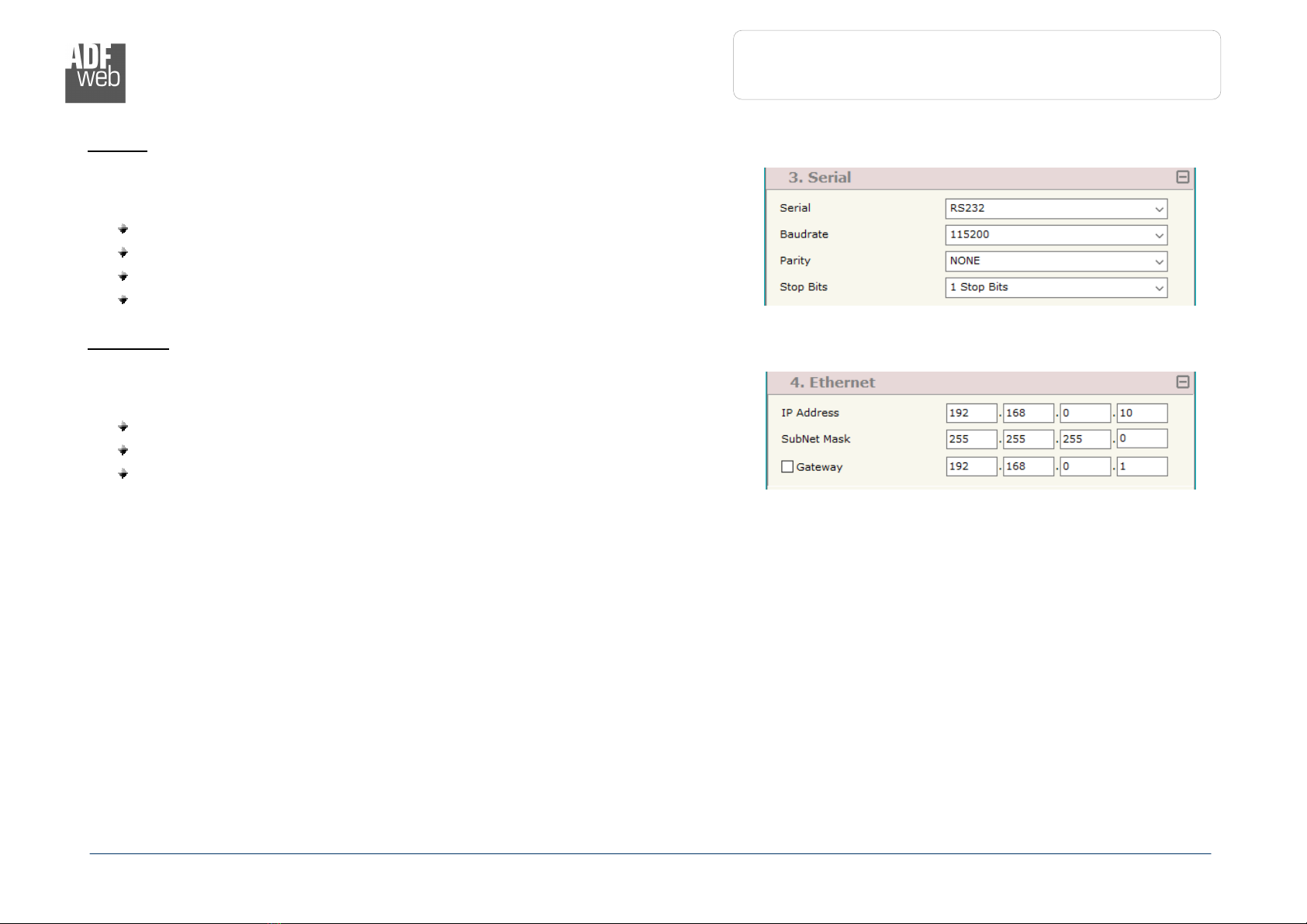

S ERIAL :
This section is used to define the main parameters of Serial line. The means of the
fields are:
In the field “Serial” the serial port to use is defined (RS232 or RS485);
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined.
E THERNET :
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the field “IP Address” the I address of the converter is defined;
In the field “SubNet Mask” the Subnet Mask of the converter is defined;
In the field “Gateway” the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
IEC 61850 Server /
Serial
Document code: MN67755_ENG Revision 1.000 age 20 of 29
Figure 4: “IEC 61850 Access” window
IEC 61850 ACCESS:
By ressing the “IEC 61850 Access” button from the main window for SW67755 (Fig. 2) the window “Set Variables Access for IEC 61850”
appears (Fig. 4).
This section is used to define the IEC 61850 variables accessible from serial side.
The means of the fields are:
If the field “Enable” is checked, the IEC 61850 variable is enabled;
In the field “Name” the name of the IEC 61850 variable is defined;
In the field “Type” the data format of the IEC 61850 variable is defined;
If the field “Read Only” is checked, the IEC 61850 variable is just in reading. Otherwise, it is writeable too;
In the field “Position” the starting byte of the internal memory arrays from/to which taking/mapping the data is defined;
In the field “Start Bit” the starting bit of the byte of the field “ osition” is defined;
In the field “Conversion” the conversion of the data is defined. This option is used to convert the data format between Serial and IEC
61850;
In the field “Molt. Factor” a multiplicative factor of the value is defined;
In the field “Mnemonic” a description of the variable is defined.
