ADF Web HD67030-B2-20 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page of 22
User Manual
Revision 2. 00
English
M-Bus / Ethernet - Converter
(Order Code: HD67030-B2-20, HD67030-B2-40,
HD67030-B2-80, HD67030-B2- 60,
HD67030-B2-250)
For Website information:
www.adfweb.com?Product=HD67030
For Price information:
www.adfweb.com?Price=HD67030-B2-20
www.adfweb.com?Price=HD67030-B2-40
www.adfweb.com?Price=HD67030-B2-80
www.adfweb.com?Price=HD67030-B2- 60
www.adfweb.com?Price=HD67030-B2-250
Benefits and Main Features:
TCP/UDP messages allowed
Microprocessor for queue data control
Temperature range: -40°C/85°C (-40°F/ 85°F)
For others M-Bus products see also the following link:
Converter M-Bus Master /
www.adfweb.com?Product=HD6702 (RS232)
www.adfweb.com?Product=HD67022 (RS485)
www.adfweb.com?Product=HD67024 ( SB)
M-Bus Analyzer - Scanner - Sniffer
www.adfweb.com?Product=HD6703
M-Bus Isolator - Repeater
www.adfweb.com?Product=HD67032M
Converter M-Bus /
www.adfweb.com?Product=HD67029M-232 (Modbus RT on RS232)
www.adfweb.com?Product=HD67029M-485 (Modbus RT on RS485)
www.adfweb.com?Product=HD67044 (Modbus TCP)
www.adfweb.com?Product=HD6705 -B2 (CANopen)
www.adfweb.com?Product=HD67053 (PROFIB S)
www.adfweb.com?Product=HD67056 (BACnet)
www.adfweb.com?Product=HD67058 (DeviceNet)
www.adfweb.com?Product=HD67077 (EtherNet/IP)
www.adfweb.com?Product=HD67078 (PROFINET)
M-Bus – Concentrator - Datalogger
www.adfweb.com?Product=HD67054M
www.adfweb.com?Product=HD67057-B2-xxx
M-Bus Slave / Modbus Master - Converter
www.adfweb.com?Product=HD67059M-232
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 2 of 22
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 0
M-BUS 0
USE OF COMPOSITOR SW67030
NEW CONFIGURATION / OPEN CONFIGURATION
2
SOFTWARE OPTIONS
3

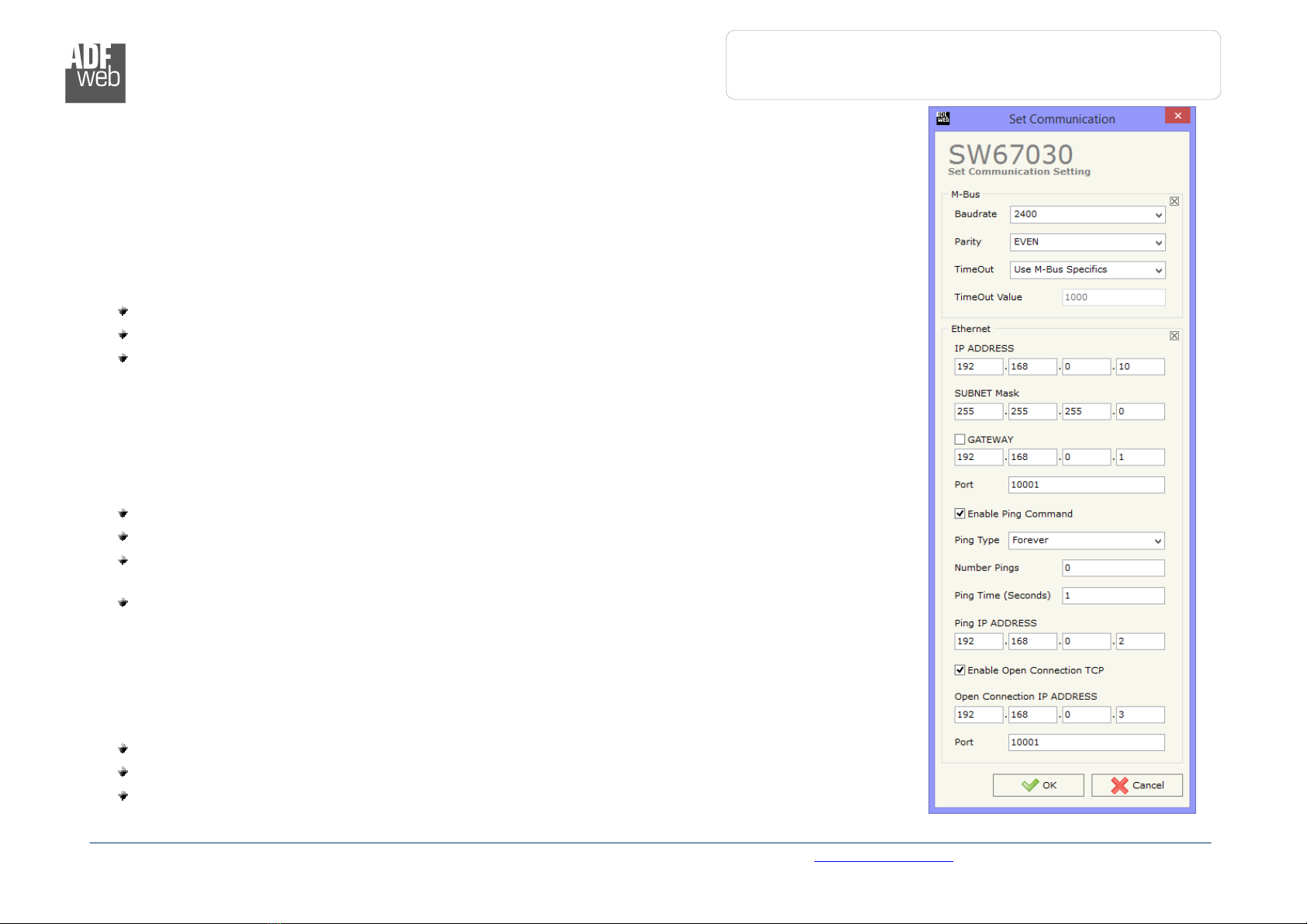

SET COMMUNICATION 4

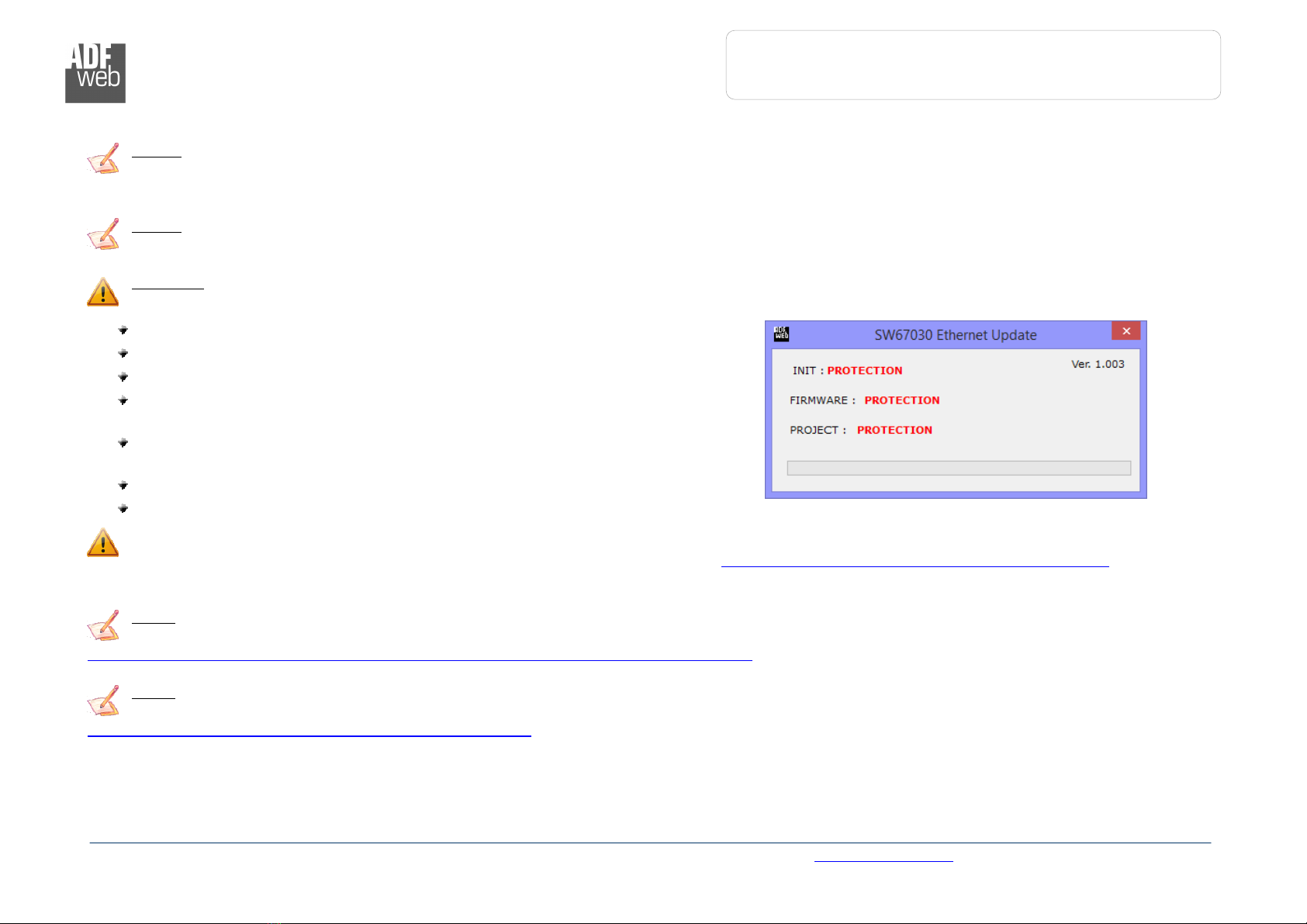

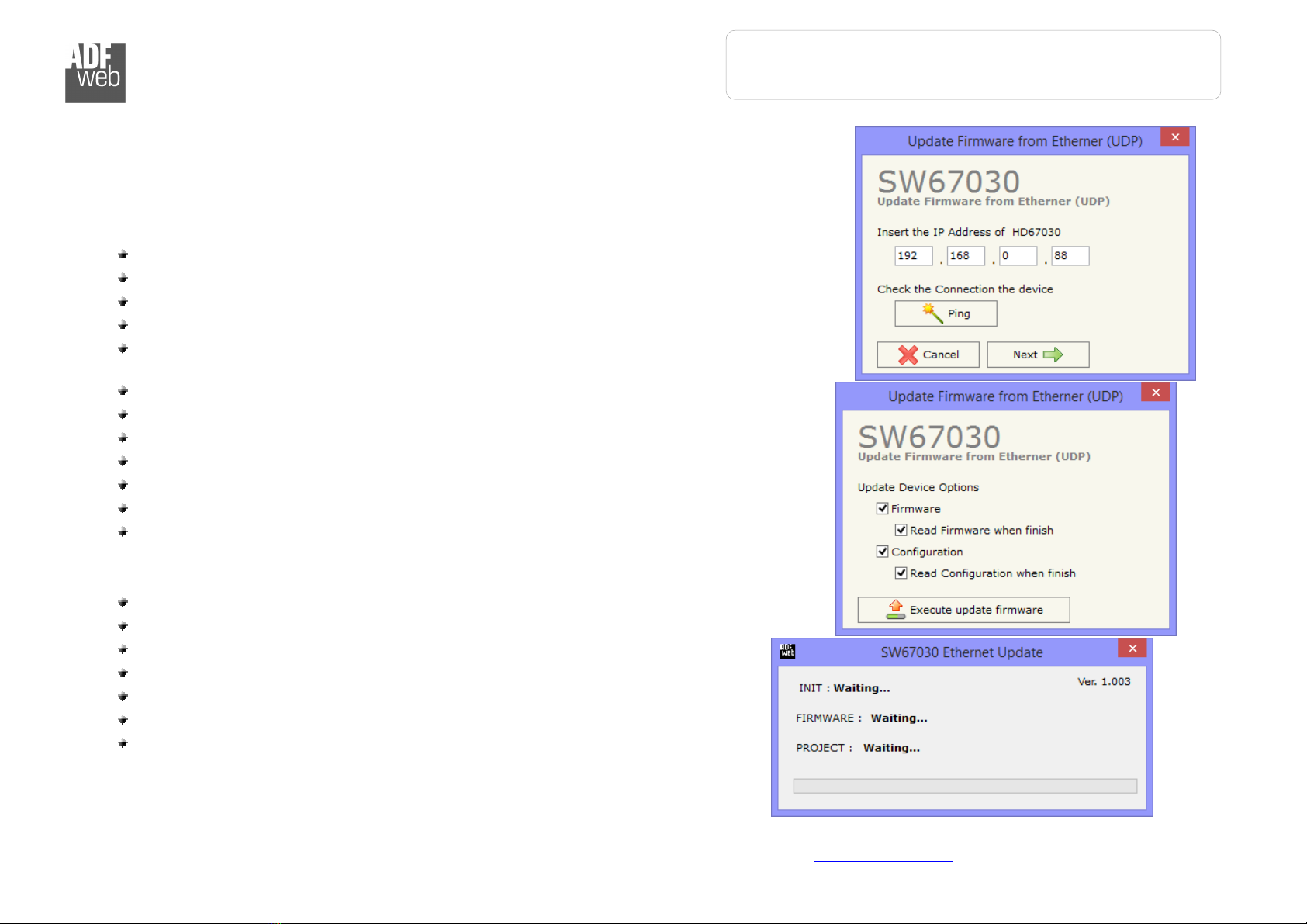

UPDATE DEVICE 6
DOWNLOD CONF. 8
MECHANICAL DIMENSIONS 9
ORDER CODE 20
ACCESSORIES 20
DISCLAIMER 2
OTHER REGULATIONS AND STANDARDS 2
WARRANTIES AND TECHNICAL SUPPORT 22
RETURN POLICY 22
PRODUCTS AND RELATED DOCUMENTS 22
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
2.0 0 03/ 2/20 2 Fl All Software changed (v .500)
2.0 29/03/20 3 Fl All Added new chapters
2.020 3/05/20 5 Fl All Software changed (v2.000)
2. 00 04/07/20 7 Ff All Revision

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 3 of 22
SEC RITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q ALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESID AL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 4 of 22
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 5 of 22
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67030-B2-xxx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 6 of 22
CHARACTERISTICS:
The “HD67030-B2-xxx” is Converter M-Bus from/to Ethernet line.
The control by microprocessor with 32 bits makes it particularly suitable for supervisor software and the connection to a Personal Computer.
The product allows to use an existent M-Bus program or allows to create an own program. It is necessary only to write the M-Bus frames on
Ethernet and then receive the reply. For information about M-Bus see the link: www.m-bus.com.
The M-Bus / Ethernet Converter allows the following characteristics:
Electrical isolation between Ethernet and M-Bus;
Baud Rate and Parity changeable with software;
Mountable on Rail DIN;
Power Supply 5…2 V AC or 8…35V DC;
Temperature range -40°C to 85°C.
At the Converter can be connected up to 250 standard M-Bus devices. This number depends of the code expressed by the xxx number:
HD67030-B2-20 support up to 20 M-Bus devices;
HD67030-B2-40 support up to 40 M-Bus devices;
HD67030-B2-80 support up to 80 M-Bus devices;
HD67030-B2- 60 support up to 60 M-Bus devices;
HD67030-B2-250 support up to 250 M-Bus devices.
In the case of HD67030-B2- 60 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate. To avoid obstructions to the airflow around the unit it is recommended to not cover the paths of air.
In the case of HD67030-B2-250 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate. This unit have a fan in the top of the enclosure. To avoid obstructions to the airflow around the unit it is recommended to not
cover the paths of air. Take care to not cover the fan. It is recommended to put the device into a ventilated cabinet.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 7 of 22
POWER S PPLY:
The devices can be powered at 5…2 V AC and 8…35V DC. The consumption depends to the code of the device. For more details see the
two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
15V 21V 18V 35V
Consumption at 24V DC:
Device No Load [W/VA] Full Load [W/VA]*
HD67030-B2-20
3.5
4
HD67030-B2-40 5
HD67030-B2-80 8
HD67030-B2- 60 4
HD67030-B2-250 30
* This value is with all the Slave M-Bus devices of the code (20, 40, 80, 60, 250) connected to the line
HD67030M-B2-xxx
Caution: Not r
everse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 8 of 22
F NCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip of Dip-Switch A’ of HD67030-B2-xxx:
The first, with ‘Dip of Dip-Switch A’ at “OFF” position, is used for the normal working of the device;
The second, with ‘Dip of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Warning:
Dip2 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 9 of 22
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
: Device state (green) Blinks slowly (~ Hz) Blinks quickly
2: M-Bus Comm. (yellow) Blinks quickly when receive M-Bus
data Blinks quickly
3: M-Bus Error (yellow) Changes state when the reply to
the command isn’t arrived Blinks quickly
4: Ethernet Comm.
(yellow)
Changes state when receive a
Ethernet frame Blinks quickly
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 0 of 22

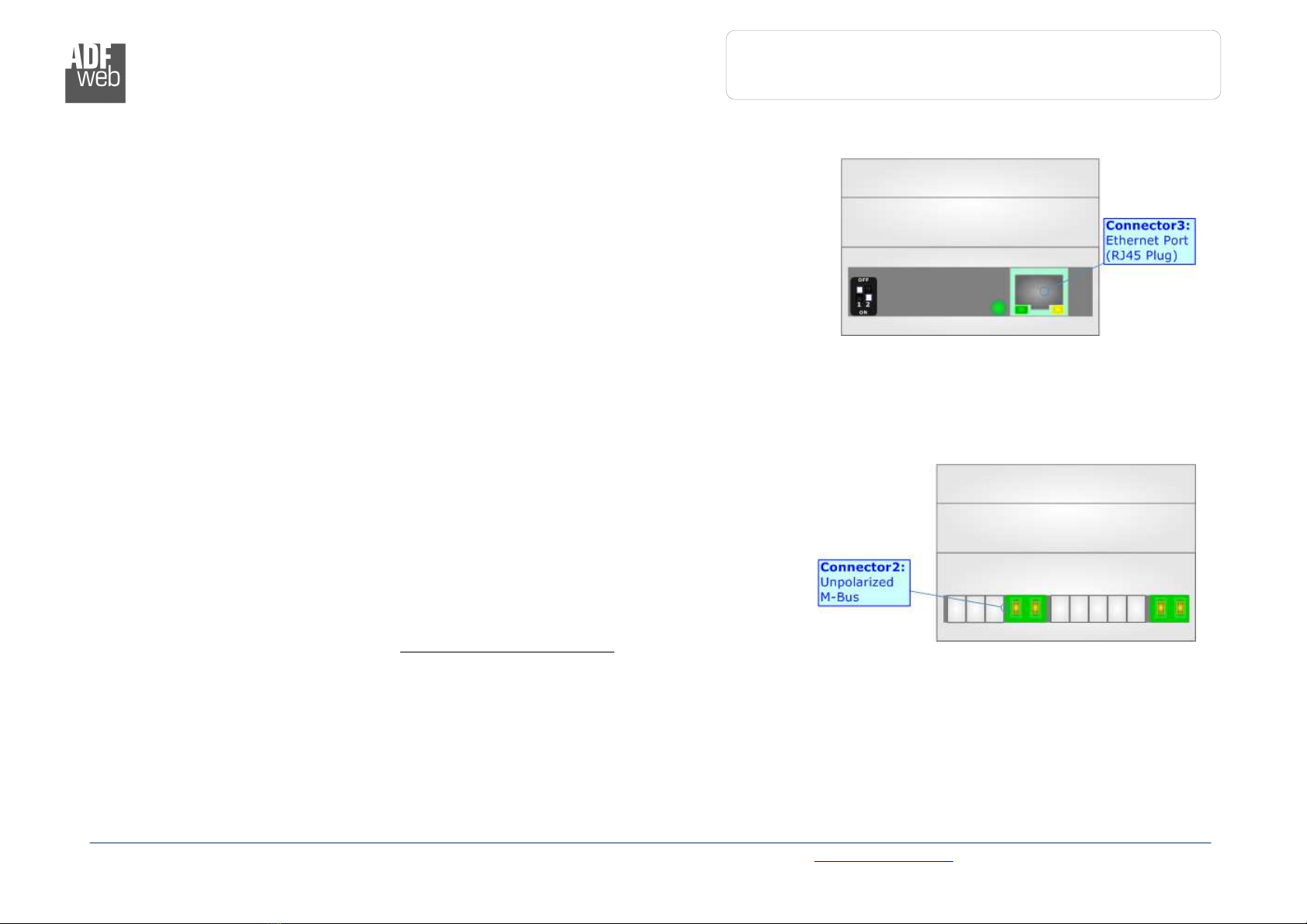

ETHERNET:
The Ethernet connection must be made using Connector3 of HD67030-B2 with at least a
Category 5E cable. The maximum length of the cable should not exceed 00m. The cable has
to conform to the T568 norms relative to connections in cat.5 up to 00 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to
a PC/PLC/other is recommended the use of a cross cable.
M-B S:
The M-Bus is a unpolarized bus.
A two wire standard telephone cable (JYStY N*2*0.8 mm) is used as the transmission
medium for the M-Bus. The maximum distance between a slave and the repeater is 350m;
this length corresponds to a cable resistance of up 29Ω. This distance applies for the
standard configuration having Baud rates between 300 and 9600 Baud, and a maximum of
250 slaves. The maximum distance can be increased by limiting the Baud rate and using
fewer slaves, but the bus voltage in the space state must at no point in a segment fall
below 2V, because of the remote powering of the slaves. In the standard configuration
the total cable length should not exceed 000m, in order to meet the requirement of a
maximum cable capacitance of 80nF. (Taken from M-Bus specifics)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page of 22
SE OF COMPOSITOR SW67030:
To configure the Converter, use the available software that runs with Windows called SW67030. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8; 32/64bit).

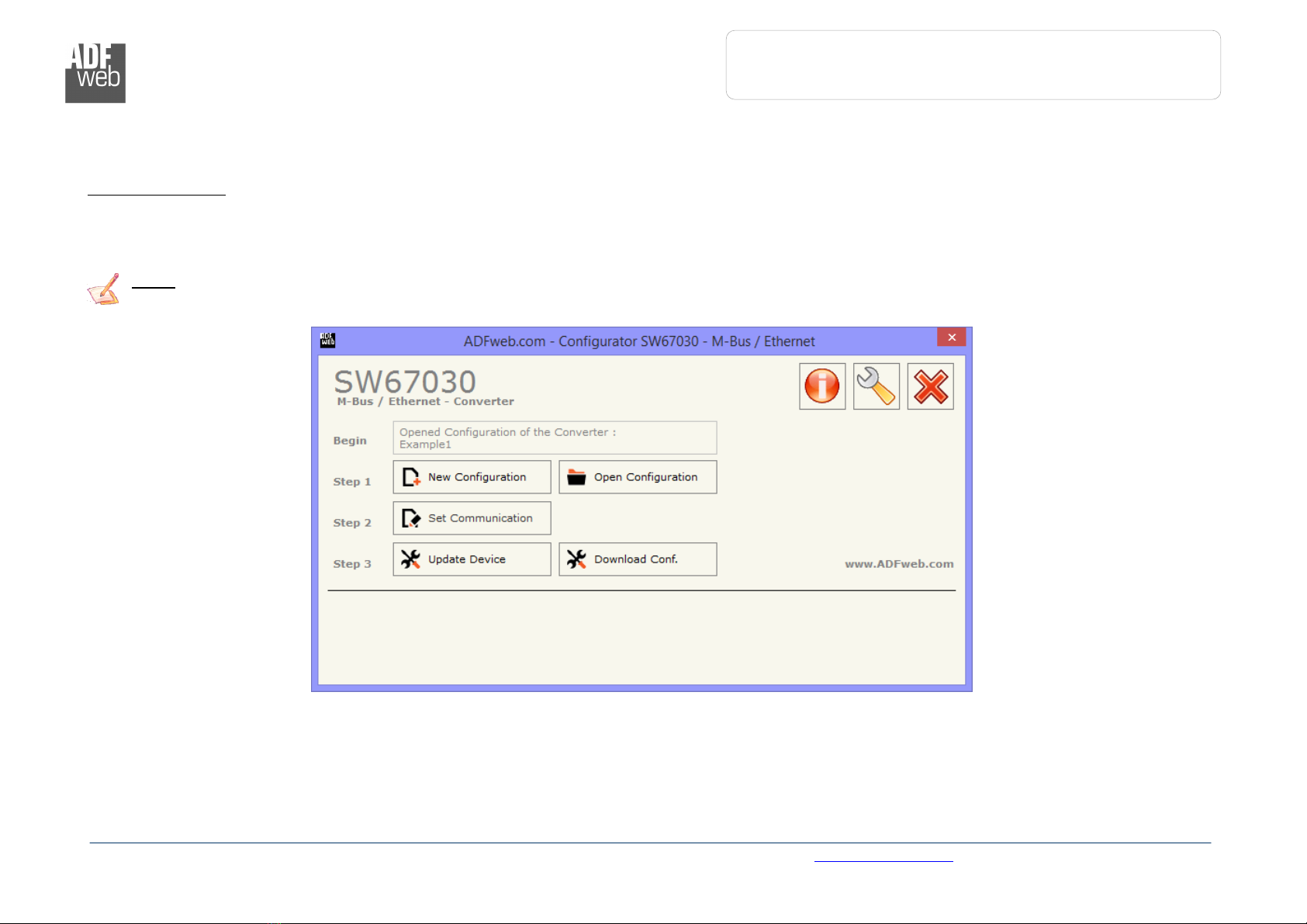

When launching the SW67030, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67030

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 2 of 22
NEW CONFIG RATION / OPEN CONFIG RATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “M-Bus / Ethernet - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient
to duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 3 of 22
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software pdate at Start of Program”, the
SW67030 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 4 of 22
SET COMM NICATION:
By Pressing the “Set Communication” button from the main window for SW67030 (Fig. 2), the window
“Set Communication” appears (Fig. 3).
The window is divided in two section, one for the parameters of M-Bus line and the other for the
parameters of Ethernet.
The means of the fields for M-Bus are:
In the field “Baudrate” it is possible to select the baudrate of the M-Bus line;
In the field “Parity” it is possible to select the parity of the line;
In the field “TimeOut” there is the possibility to set the “M-Bus TimeOut”. There are two ways:
oBy selecting the field “ se M-Bus Specifics” the value is the default one; calculated with
this formula: (330000/Baudrate)+50 [ms];
oBy selecting “Manual Value” is possible to insert in the value (expressed in milliseconds)
manually.
The parameters of Ethernet are:
“IP address”, where is specified the IP address assigned to the device;
“SubNet Mask”, where is specified SubNet Mask where the device is located;
In the field “Gateway” insert the IP address used for going out of the net. For enable it the you
must check the field “Gateway”;
In the field “Port” insert the number of port;
There is the possibility to use two special functions with the device: the possibility to send a PING in the
network to a specific device; and the possibility to open a TCP connection.
For sending a PING is necessary to check the field “Enable Ping Command”; then is possible to select
when send the PING Type in the field “Ping Type”:
“Forever”, when is necessary to send a PING continuously;
“ntil response”, the PING is sent until a reply is received by the device;
“Number PINGs”, the PING is sent for the number of times expressed in the field below the
command.
Fig. 3: “
Set Communication
”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 5 of 22
In the field “PING Time Seconds” is necessary to specify the interval time between to requests. This time can be set from to 65535
seconds. This time is used by all types of PING.
In the field “PING IP Address” is necessary to insert the IP address of the device that the PING is addressed to.
If the Client cannot open the connection to the HD67030-B2, when using TCP, is possible to configure the HD67030-B2 to open the
connection to the client.
For doing this is necessary to check the field “Enable Open Connection TCP”, then insert the IP of the Client in the field “IP Destination”
and in the field “Port Destination” the Port used for the communication.
Note:
This functionality is only available for TCP connections.
Note:
If the Client closes the connection, automatically the HD67030-B2 tries to reopen it at regular intervals.
Note:
For the HD67030-B2 there isn’t the selection of “TCP” or “UDP” for the Ethernet communication, both are available at the same
time.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 6 of 22
PDATE DEVICE:
By pressing the “ pdate Device” button, it is possible to load the created Configuration into
the device; and also the Firmware, if necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.0.88” (for hardware with CS: B 6 /B 73/B206) or
“192.168.2.205” (for hardware with CS: B244);
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip of ‘Dip-Switch A’ at OFF position;
Turn on the device.
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at
Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 4: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 7 of 22
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67030-
B2-xxx device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67030-B2-xxx device.
Warning:
If the Fig. 5 appears when you try to do the Update try these points before seeking assistance:
Try to repeat the operations for the update;
Try with another PC;
Try to restart the PC;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven or Vista or 8, make sure that you have the
administrator privileges;
Take attention at Firewall lock;
Check the LAN settings.
In the case of HD67030-B2-xxx you have to use the software “SW67030”: www.adfweb.com\download\filefold\SW67030.zip.
Note:
To download the old version of the manual (the one where is present only the HD67030M device) please follow this link:
www.adfweb.com/download/filefold/Adapter_M-Bus_to_Ethernet_MN67030_ENG.pdf.
Note:
To download the old version of the software (the one where is possible to update the HD67030M) please follow this link:
www.adfweb.com/download/filefold/SW67030_ .20 .zip.
Figure 5: “ rotection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 8 of 22
DOWNLOAD CONF.:
By pressing the “Download Conf.” button, it is possible to download the Configuration that is inside the device into the opened project.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.0.88” (for hardware with CS: B 6 /B 73/B206) or
“192.168.2.205” (for hardware with CS: B244);
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Press the “Execute update firmware” button to start the download;
When all the operations are “OK” turn off the Device;
Put Dip of ‘Dip-Switch A’ at OFF position;
Turn on the device.
At this point the configuration of the device is correctly downloaded.
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration of the device is correctly downloaded.
Figure 6: “Download Conf.” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 9 of 22
MECHANICAL DIMENSIONS:
Figure 7: Mechanical dimensions scheme for HD67030-B2-xxx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
M
-
Bus / Ethernet
-
Converter
Document code: MN67030_ENG Revision 2. 00 Page 20 of 22
ORDERING INFORMATIONS:
The ordering part number is formed by a valid combination of the following:
HD67030 – B 2 – xxx
Maximum number of slaves supported
20: up to 20 standard slaves ( .5mA consumption) connected to M-Bus
40: up to 40 standard slaves ( .5mA consumption) connected to M-Bus
80: up to 80 standard slaves ( .5mA consumption) connected to M-Bus
60: up to 60 standard slaves ( .5mA consumption) connected to M-Bus
250: up to 250 standard slaves ( .5mA consumption) connected to M-Bus
Connectors Type
2: Fixed Screw Terminal
Enclosure Type
B: Modulbox 4M DIN Rail mounting
Device Family
HD67030: M-Bus Master / Ethernet - Converter
Order Code: HD67030-B2-20 - Converter M-Bus Master / Ethernet (up to 20 slaves connected to M-Bus)
Order Code: HD67030-B2-40 - Converter M-Bus Master / Ethernet (up to 40 slaves connected to M-Bus)
Order Code: HD67030-B2-80 - Converter M-Bus Master / Ethernet (up to 80 slaves connected to M-Bus)
Order Code: HD67030-B2-160 - Converter M-Bus Master / Ethernet (up to 60 slaves connected to M-Bus)
Order Code: HD67030-B2-250 - Converter M-Bus Master / Ethernet (up to 250 slaves connected to M-Bus)
ACCESSORIES:
Order Code: APW020 - Power Supply for M-Bus Master device that supports up to 20 Slaves
Order Code: APW040 - Power Supply for M-Bus Master device that supports up to 40 Slaves
Order Code: APW080 - Power Supply for M-Bus Master device that supports up to 80 Slaves
Order Code: APW160 - Power Supply for M-Bus Master device that supports up to 60 Slaves
Order Code: APW250 - Power Supply for M-Bus Master device that supports up to 250 Slaves
