ADF Web HD67694-IP-B2-1-10 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 1 of 25
User Manual
Revision 1.
English
M-Bus / BACnet/IP - Converter
(Order Code: HD67694-IP-B2-1-1 , HD67694-IP-B2-3-25,
HD67694-IP-B2-15-5 , HD67694-IP-B2-3 -75, HD67694-IP-B2-5 -1 )
For Website information:
www.adfweb.com?Product=HD67694
For Price information:
www.adfweb.com?Price=HD67694-IP-B2-1-1
www.adfweb.com?Price=HD67694-IP-B2-3-25
www.adfweb.com?Price=HD67694-IP-B2-15-5
www.adfweb.com?Price=HD67694-IP-B2-3 -75
www.adfweb.com?Price=HD67694-IP-B2-5 -1
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -4 °C/85°C (-4 °F/185°F)
For others M-Bus products see also the following link:
Converter M-Bus to
www.adfweb.com?Product=HD67 21 (RS232)
www.adfweb.com?Product=HD67 22 (RS48 )
Analyzer / Scanner /Sniffer M-Bus
www.adfweb.com?Product=HD67 31
Isolator/Repeater M-Bus
www.adfweb.com?Product=HD67 32M
Gateway M-Bus / Modbus RTU
www.adfweb.com?Product=HD67 29M-232 (on RS232)
www.adfweb.com?Product=HD67 29M-485 (on RS48 )
Gateway M-Bus / Modbus TCP
www.adfweb.com?Product=HD67 44
Gateway M-Bus / CANopen
www.adfweb.com?Product=HD67 51-B2
Gateway M-Bus / PROFIBUS
www.adfweb.com?Product=HD67 53M
Gateway M-Bus Concentrator
www.adfweb.com?Product=HD67 54M
Gateway M-Bus Slave / Modbus RTU master
www.adfweb.com?Product=HD67 59M-232
Do you have an your customer protocol?
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 2 of 25
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
M-BUS 1
ETHERNET 11
USE OF COMPOSITOR SW67694 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
M-BUS 17
SET BDT ACCESS 18
BACNET EDE FILE 18
UPDATE DEVICE 19
MECHANICAL DIMENSIONS 21
ORDERING INFORMATIONS 22
ACCESSORIES 23
DISCLAIMER 24
OTHER REGULATIONS AND STANDARDS 24
WARRANTIES AND TECHNICAL SUPPORT 25
RETURN POLICY 25
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you
that you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document
code” that appears at the top right-hand corner of each page of this
document.
With this “Document Code” go to web page
www.adfweb.com/download/ and search for the corresponding code on
the page. Click on the proper “Document Code” and download the
updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual
about our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 16/1 /2 2 VDB All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 3 of 25
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 4 of 25
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 5 of 25
CONNECTION SCHEME:

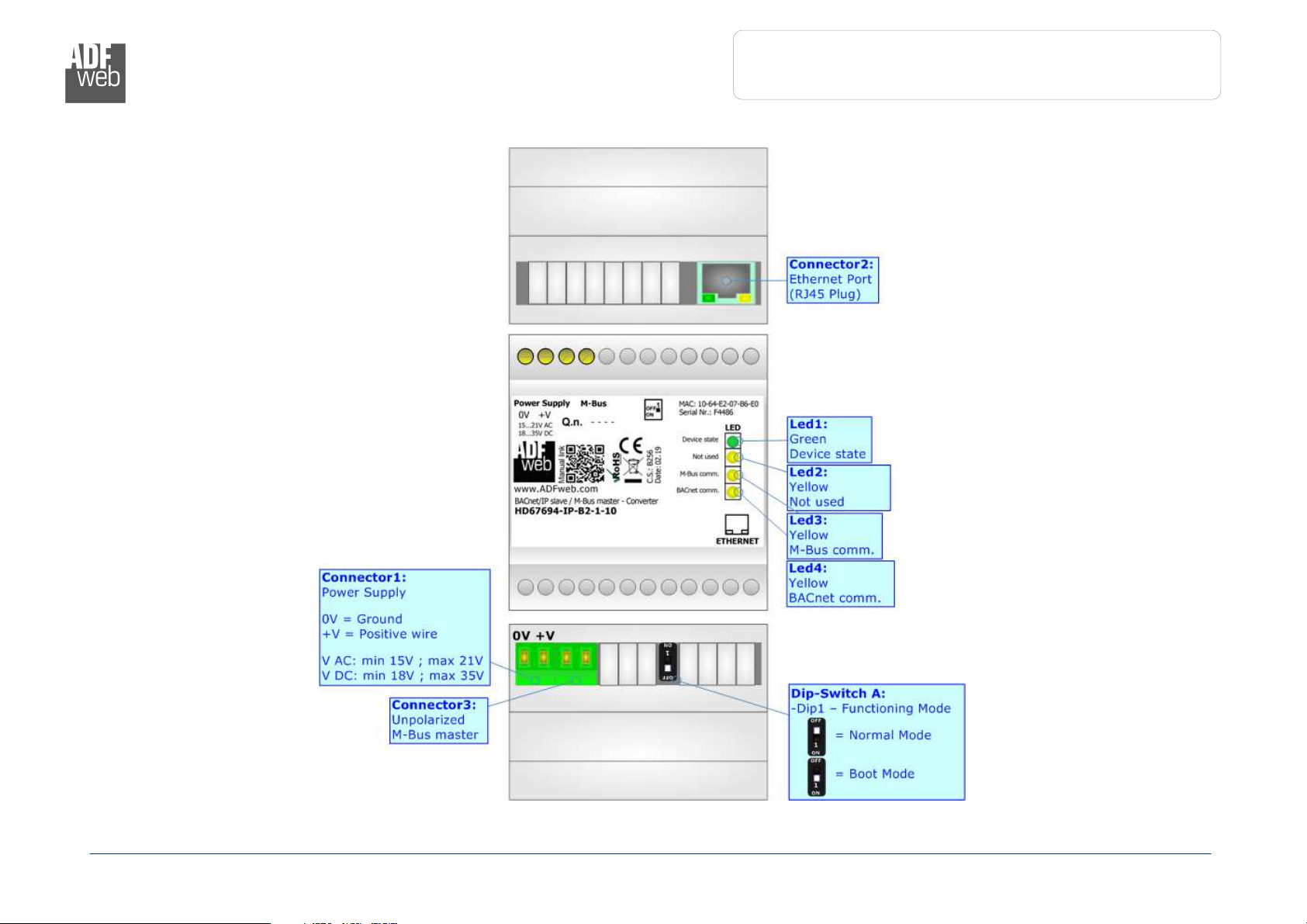

Figure 1: Connection scheme for HD67694- P-B2-xx-xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 6 of 25
CHARACTERISTICS:
The HD67694-IP-B2 are converters between M-Bus to BACnet/IP and vice-versa.
They allow to read standard M-Bus meters and M-Bus heating controllers like Siemens RVD series, AMARC AVD5 and many others.
They allows the following characteristics:
Electrical isolation between BACnet/IP and M-Bus;
Baud Rate and Parity changeable with software;
Mountable on 35mm Rail DIN;
Wide power supply input range: 15…21V AC or 18…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67694 software on your PC in order to perform the following:
Define the parameter of BACnet/IP line;
Define the parameter of M-Bus line;
Define which M-Bus variables are readable/writeable on BACnet/IP;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 7 of 25

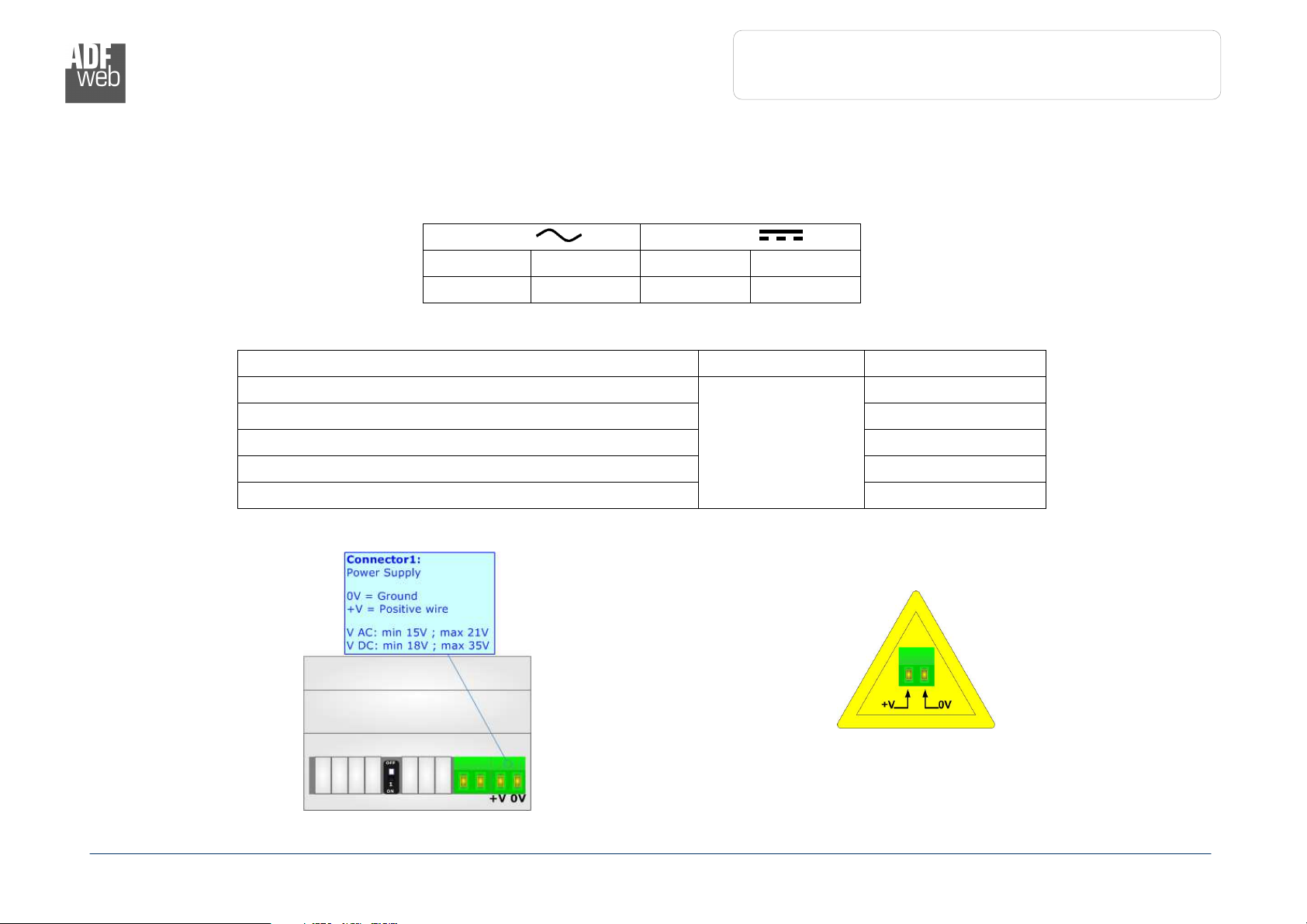

POWER SUPPLY:
The devices can be powered at 15…21V AC and 18…35V DC. The consumption depends to the code of the device. For more details see the
two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
1 V 21V 18V 3 V
Consumption at 24V DC:
Device No Load [W/VA] Full Load [W/VA]*
HD67695-B2-1-1
3.5
4
HD67695-B2-3-25 5
HD67695-B2-15-5 8
HD67695-B2-3 -75 14
HD67695-B2-5 -1 3
* This value is with all the Slave M-Bus devices of the code connected to the line
HD67695-B2-xx-xxx
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 8 of 25
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device;
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 9 of 25

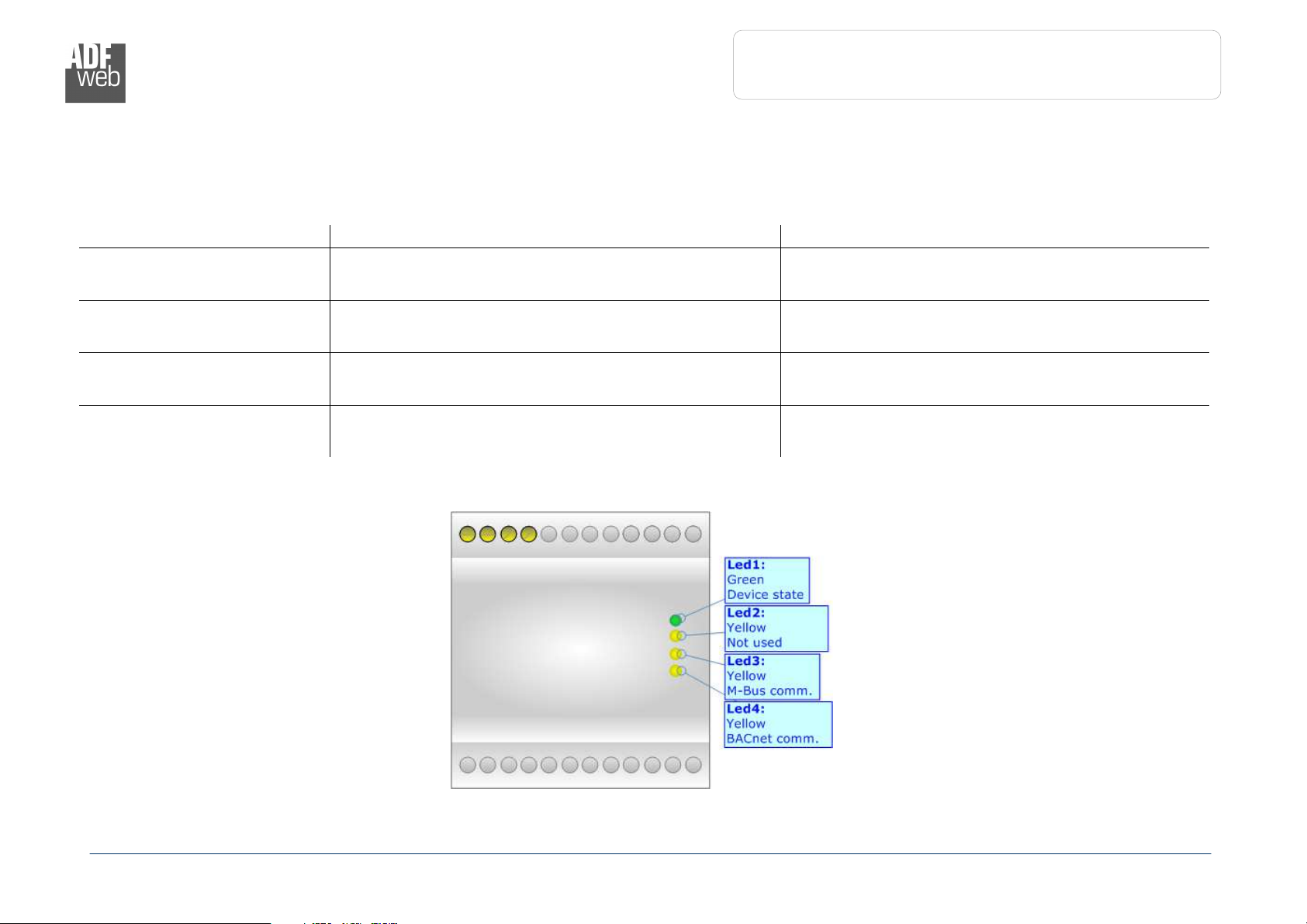

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0. Hz): update in progress
2: Not used (yellow) OFF Blinks quickly: Boot state
Blinks very slowly (~0. Hz): update in progress
3: M-Bus communication
(yellow) Blinks when correct M-Bus frame is received Blinks quickly: Boot state
Blinks very slowly (~0. Hz): update in progress
4: BACnet communication
(yellow) Blinks when a BACnet request is received Blinks quickly: Boot state
Blinks very slowly (~0. Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 1 of 25
M-BUS:
The M-Bus is a unpolarized bus.
A two wire standard telephone cable (JYStY N*2* .8 mm) is used as the transmission medium for the M-Bus. The maximum distance
between a slave and the repeater is 35 m; this length corresponds to a cable resistance of up 29Ω. This distance applies for the standard
configuration having Baud rates between 3 and 96 Baud, and a maximum of 25 slaves. The maximum distance can be increased by
limiting the Baud rate and using fewer slaves, but the bus voltage in the space state must at no point in a segment fall below 12V, because
of the remote powering of the slaves. In the standard configuration the total cable length should not exceed 1 m, in order to meet the
requirement of a maximum cable capacitance of 18 nF. (Taken from M-Bus specifics)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 11 of 25

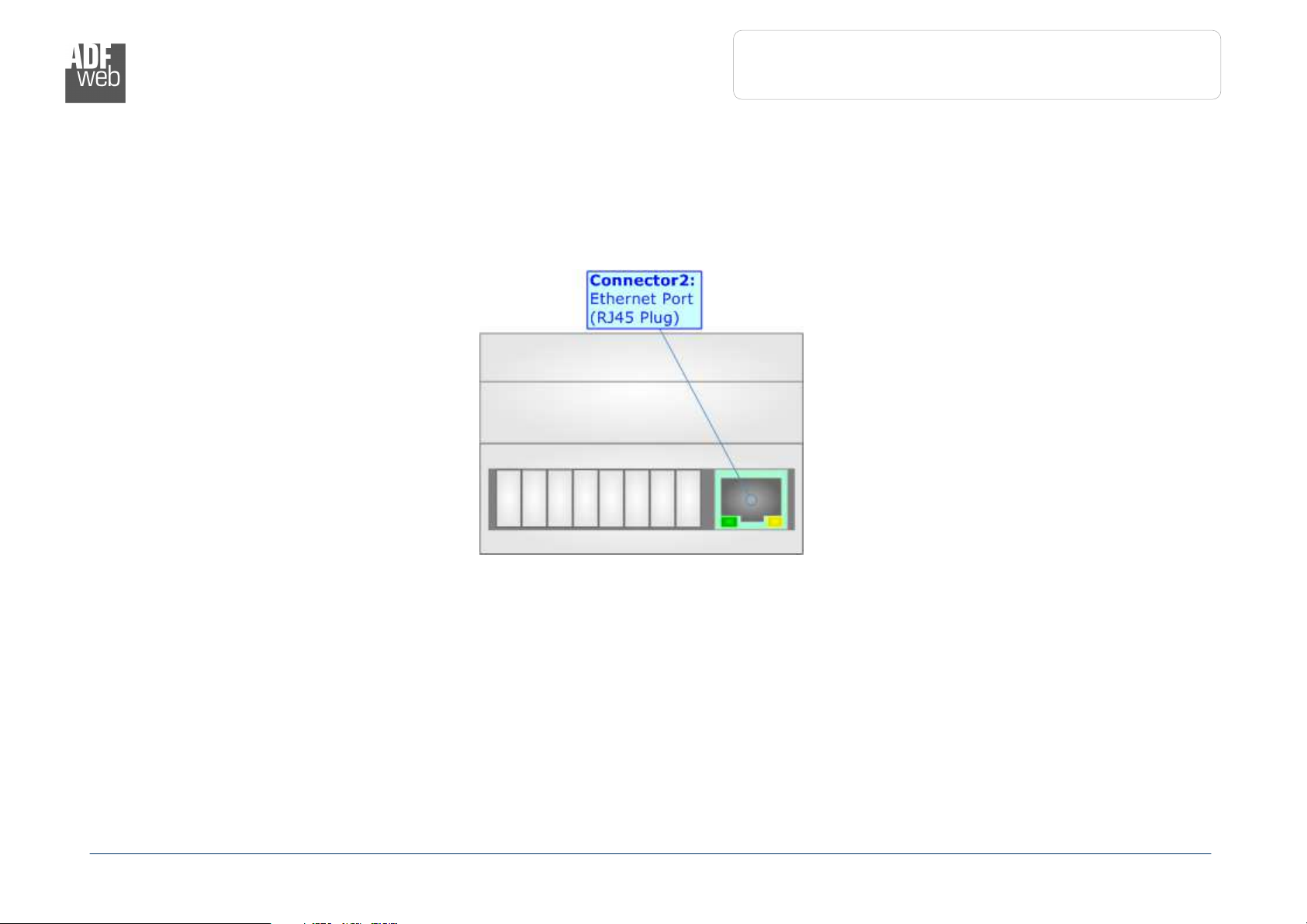

ETHERNET:
The Ethernet port is used for Modbus TCP communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67694-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 12 of 25
USE OF COMPOSITOR SW67694:
To configure the Converter, use the available software that runs with Windows called SW67694. It is downloadable from the site
www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our
web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67694, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
F
igure 2: Main window for SW6769
4

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 13 of 25
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “M-Bus / BACnet/IP - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 14 of 25

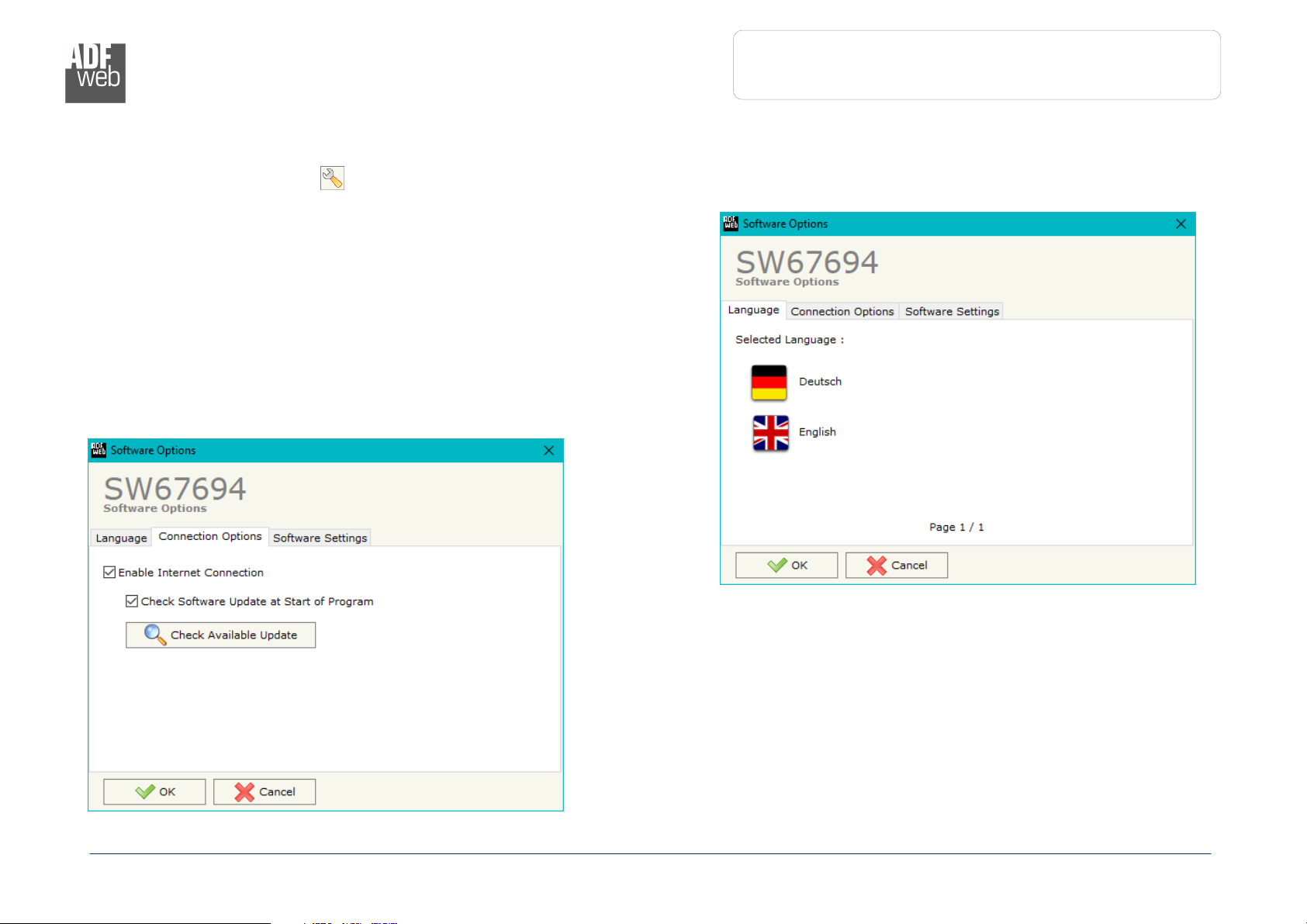

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67694 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 15 of 25
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 16 of 25

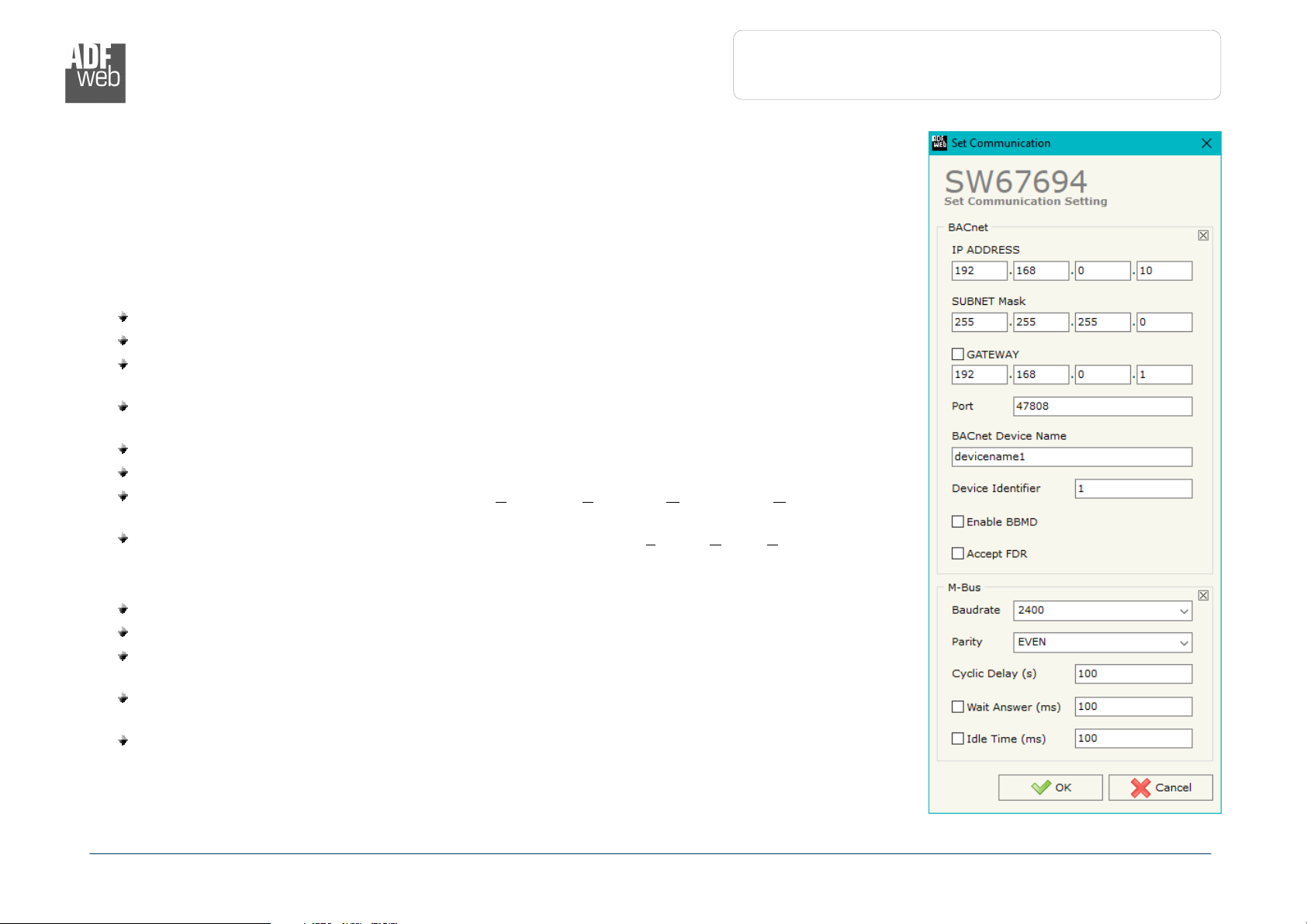

SET COMMUNICATION:
This section define the fundamental communication parameters of the three buses, BACnet/IP and M-
Bus.
By Pressing the “Set Communication” button from the main window for SW67694 (Fig. 2) the window
“Set Communication” appears (Fig. 3). The window is divided in two sections.
The means of the fields for “BACnet” are:
In the fields “IP ADDRESS” the IP address of BACnet/IP side of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/IP side of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The default port used for
BACnet communication is 478 8, but is possible to insert any value;
In the field "BACnet Device Name" the name of BACnet/IP side of the converter is defined;
In the field “Device Identifier” the device instance of BACnet/IP side of the converter is defined;
If the field “Enable BBMD” is checked, the BACnet/IP Broadcast Management Device function is
enabled;
If the field “Accept FDR” is checked, the converter accepts the Foreign Device Registration.
The means of the fields for “M-Bus” are (present only if the M-Bus port is “Present”):
In the field “Baudrate” it is possible to select the data rate of the M-Bus line;
In the field “Parity” it is possible to select the parity of the line;
If the field “Cyclic Delay (s)” it is possible to define the delay with which the converter polls the
M-Bus slaves;
If the field “Wait Answer (ms)” is checked, the converter will wait for the response from M-Bus
with the timeout defined in the field on the right;
If the field “Idle Time (ms)” is checked, the converter will insert and the idle time defined
between the last M-Bus response and the following request.
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 17 of 25
M-BUS
By pressing the “M-Bus” button from the main
window for SW67694 (Fig. 2) the window “M-
Bus” appears (Fig. 4).
In this section, it is possible to select the
converter type and the list of nodes/variables of
M-Bus side.
The means of the fields are:
In the field “Select Converter” the
converter used is defined;
In the field “Select Template” the M-
Bus controller connected is defined;
In the field “Description” a description
for the node is defined;
In the field “M-Bus ID Type” the type
of polling (by Primary or Secondary
Address) is defined;
In the field “M-Bus ID” the ID of the M-
Bus controller is defined;
If the field “Node State” is checked, the
Status of the controller is mapped on
Modbus side;
If the field “Identification Number” is checked, the Secondary Address of the M-Bus controller is mapped on Modbus side;
In the field “MSB (xx)” the first part of the description of the M-Bus variable is defined;
In the field “SST (yy)” the second part of the description of the M-Bus variable is defined;
In the field “Third Field (zzz)” the third part of the description of the M-Bus variable is defined.
After that, pressing the “ADD” button, a new node appears in the “List of M-Bus Devices” table. In order to modify a created node it is
necessary to select the desired node, change the wrong items and then press the “MODIFY” button.
Figure 4: “M-Bus” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 18 of 25
SET BDT ACCESS
By pressing the “Set BDT Access” button from the main window for SW67694 (Fig. 2) the window “Broadcast Distribution Table Access”
appears (Fig. 5).
In this section, it is possible to route the broadcast messages to the specific IP Addresses.
The means of the fields are:
If the field “Enable” is checked, the rule is enabled;
In the field “IP Address” the IP Address of the device to which addressing the broadcast messages is defined;
In the field “SubNet Mask” the SubNet Mask of the device to which addressing the broadcast messages is defined;
In the field “SubNet Mask” the UDP port for the communication is defined;
In the field “Mnemonic” a brief description is defined.
BACNET EDE FILE:
By pressing the “BACnet EDE File” button it is possible to save the EDE file for the BACnet Master.

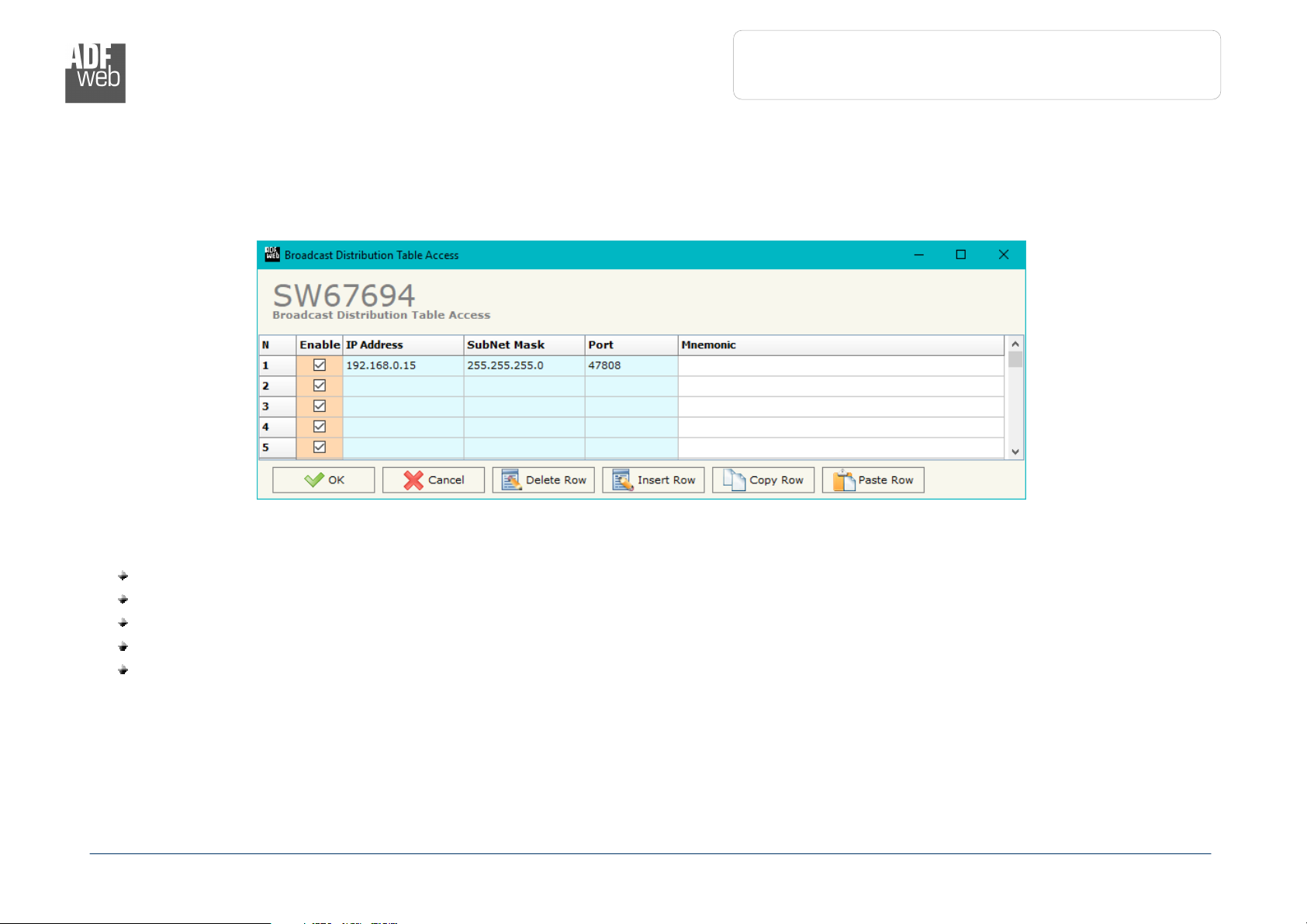

Figure 5: “Broadcast Distribution Table Access” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 19 of 25
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into
the device; and also the Firmware, if necessary. This by using the Ethernet port.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.20 ”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / BACnet/IP
Document code: MN67694_ENG Revision 1. Page 2 of 25
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67694 device.
Warning:
If Fig. 7 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main Operating
System;
If you are using Windows Seven, Vista, 8 or 1 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you have
to cancel the ARP table every time you connect a new device on Ethernet. For do this
you have to launch the "Command Prompt" and write the command "arp -d". Pay
attention that with Windows Vista, Seven, 8, 1 you have to launch the "Command
Prompt" with Administrator Rights;
Pay attention at Firewall lock.
Warning:
In the case of HD67694 you have to use the software “SW67694”: www.adfweb.com\download\filefold\SW67694.zip.
Figure
7
:
“
Error
” window
