UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you
that you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document
code” that appears at the top right-hand corner of each page of this
document
With this “Document Code” go to web page
www adfweb com/download/ and search for the corresponding code on
the page Click on the proper “Document Code” and download the
updates
REVISION LIST:
WARNING:
ADFweb com reserves the right to change information in this manual
about our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 25/03/2015 Ff All First Release
1 001 08/04/2015 Ff All Revision

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 3 of 22
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 4 of 22

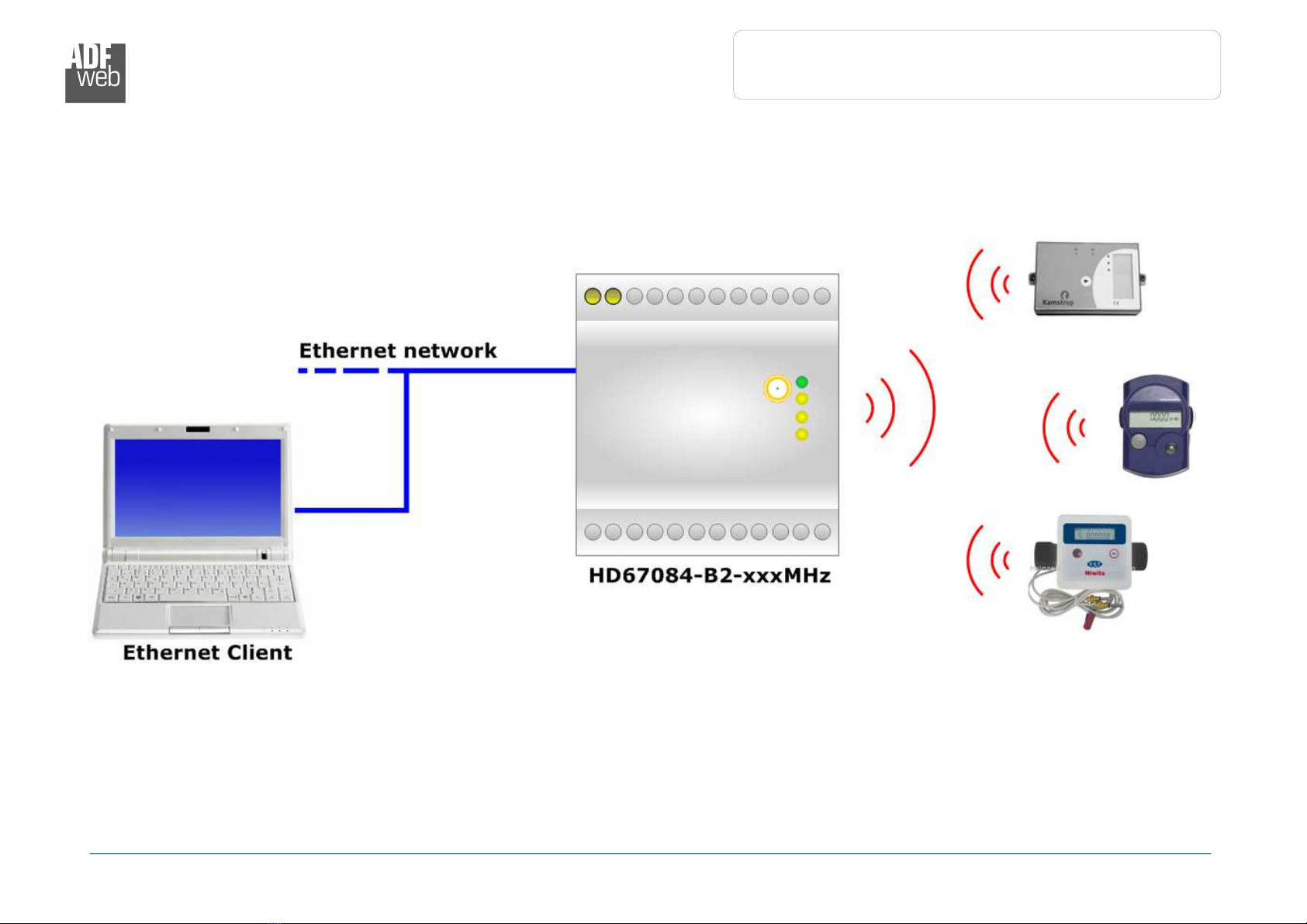

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 5 of 22
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67084 B2 xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 6 of 22
CHARACTERISTICS:
The HD67084-B2-xxxMHz are converters from wM-Bus to Ethernet and vice-versa
They allows the following characteristics:
Electrical isolation between Ethernet and M-Bus;
Possibility to filter the wM-Bus meters to read;
Available wM-Bus frequency: 169 MHz or 868 MHz (in relation to the order code);
Mountable on 35mm Rail DIN;
Wide power supply input range: 15…21V AC or 18…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need Compositor SW67084 software on your PC in order to perform the following:
Define the parameter of Ethernet;
Define the parameter of wM-Bus line;
Define which wM-Bus nodes are readable on Ethernet;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 7 of 22
POWER SUPPLY:

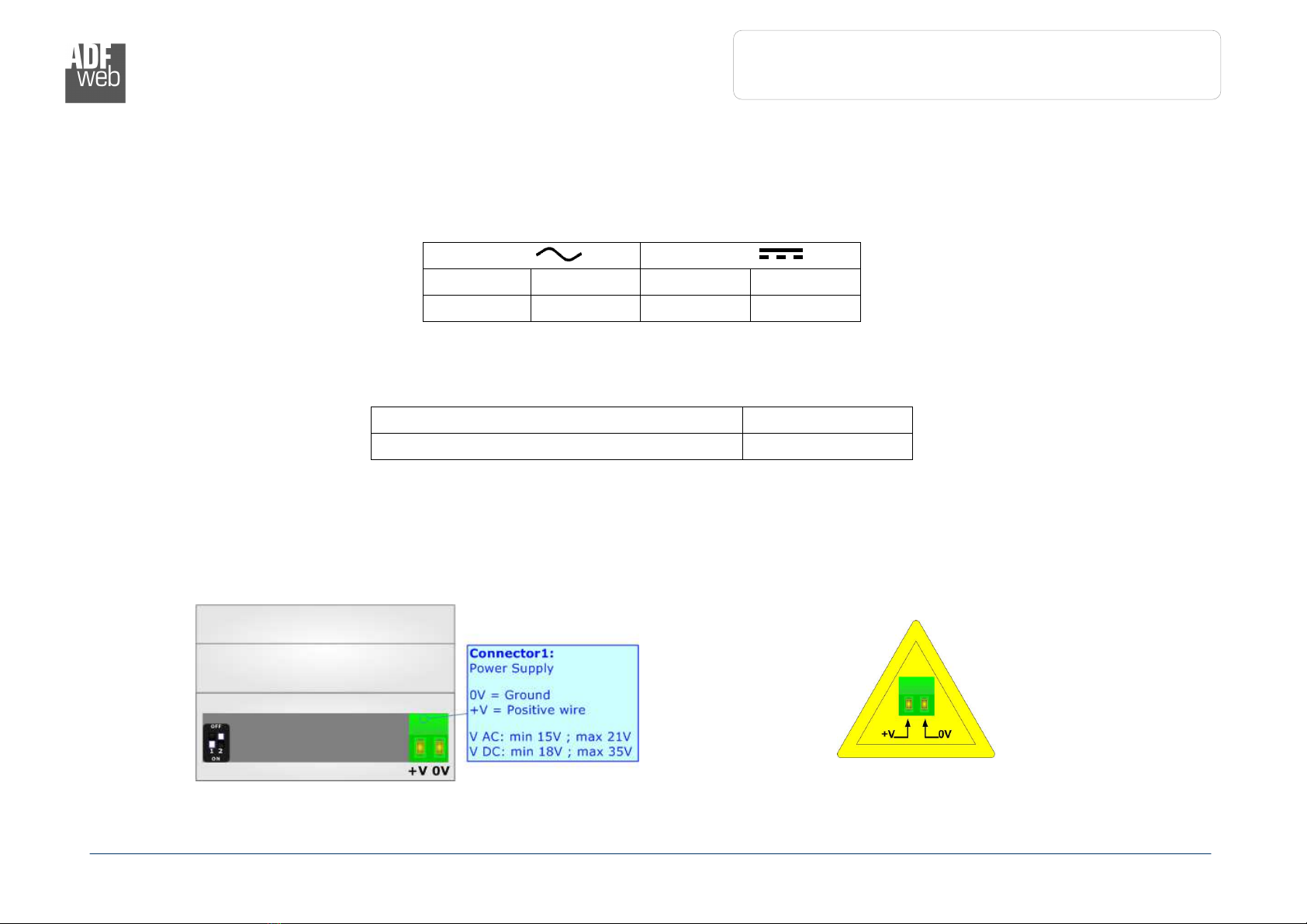

The devices can be powered at 15…21V AC and 18…35V DC The consumption depends to the code of the device For more details see the
two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
15V 1V 18V 35V
Consumption at 24V DC:
Device [W/VA]
HD67084-B2-xxxMHz 3 5
HD67084
-
B2
-
xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 8 of 22
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device;
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section
Warning:
Dip2 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable isn’t inserted

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 9 of 22
LEDS:

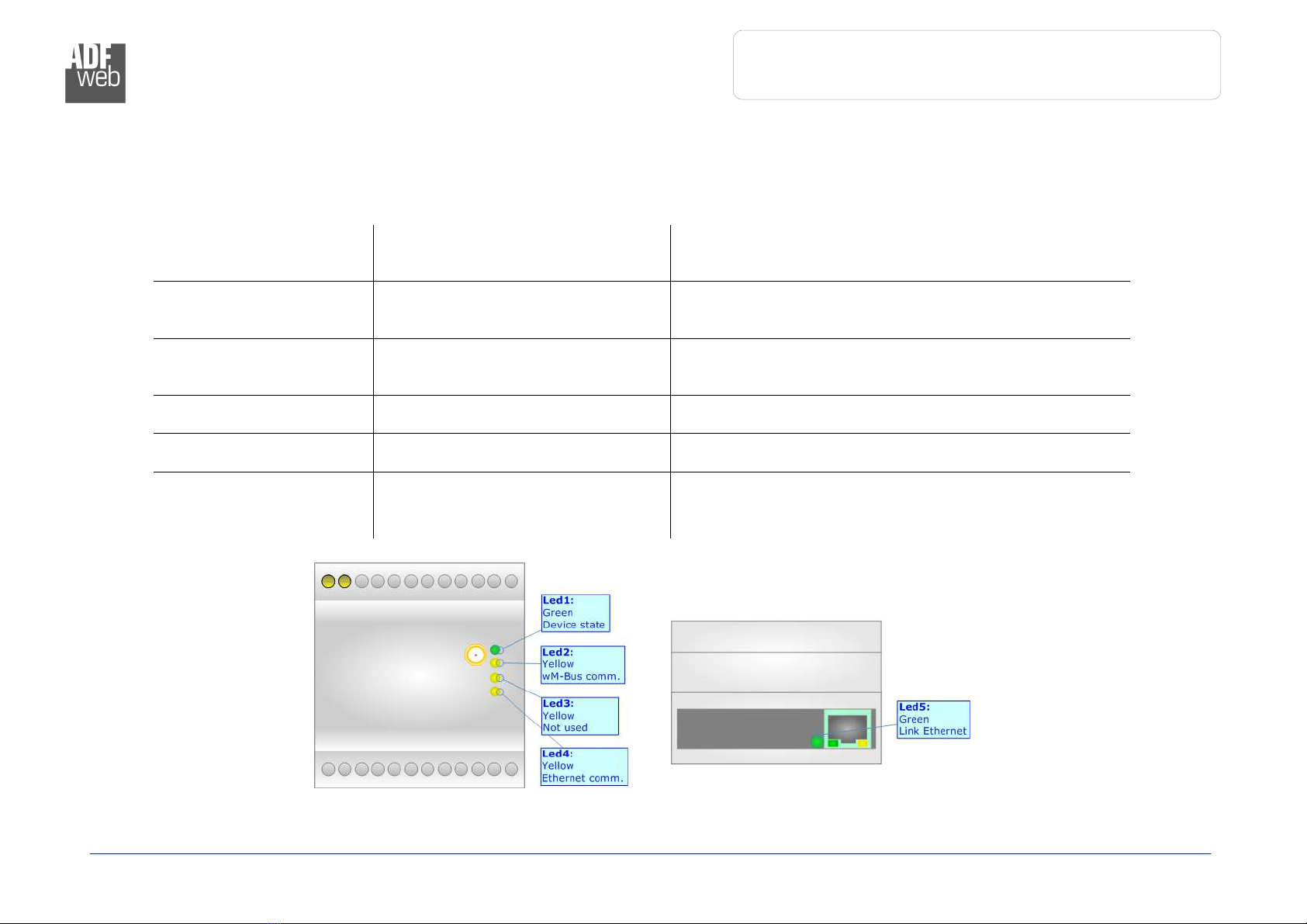

The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly
2: wM-Bus comm
(green)
Blinks quickly when data on
wM-Bus arrives Blinks quickly
3: Not used (green) OFF Blinks quickly
4: Ethernet comm Blinks quickly when data on
Ethernet is transmitted Blinks quickly
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 10 of 22
ETHERNET:

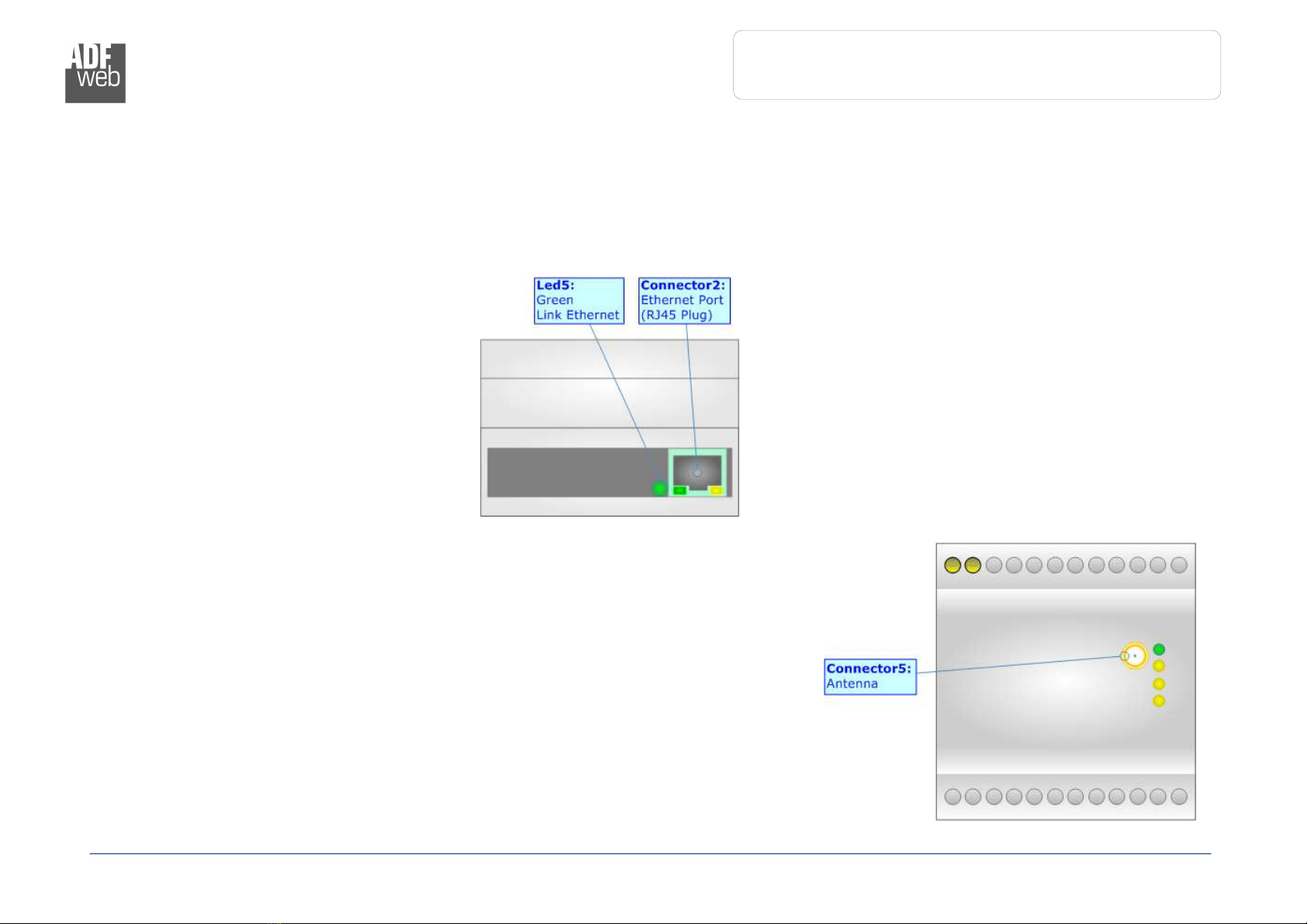

The Ethernet port is used for the Ethernet communication and for programming the device
The Ethernet connection must be made using Connector2 of HD67084-B2-xxxMHz with at least a Category 5E cable The maximum length of
the cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect
the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of
a cross cable
WM-BUS:
The standards of wM-Bus are specified in EN 13757-4 The signal is @ 868Mhz or 169 MHz
(in relation to the order code) Our converter supports wM-Bus Mode S1 and Mode T1
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 11 of 22
USE OF COMPOSITOR SW67084:
To configure the Converter, use the available software that runs with Windows called SW67084 It is downloadable from the site
www adfweb com and its operation is described in this document (this manual is referenced to the last version of the software present on our
web site) The software works with MSWindows (XP, Vista, Seven, 8; 32/64bit)

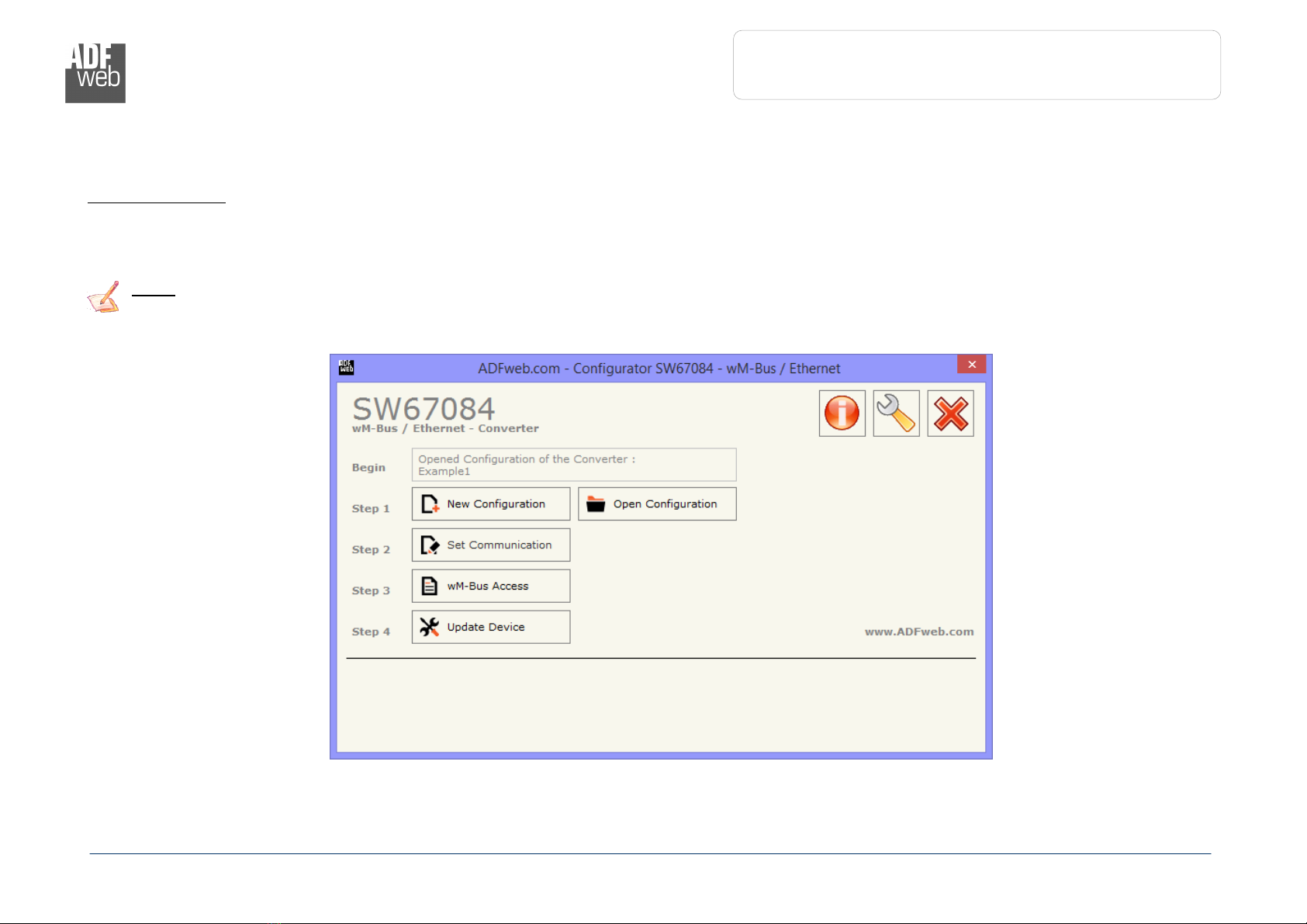

When launching the SW67084, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67084

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 12 of 22
NEW CONFIGURATION / OPEN CONFIGURATION:

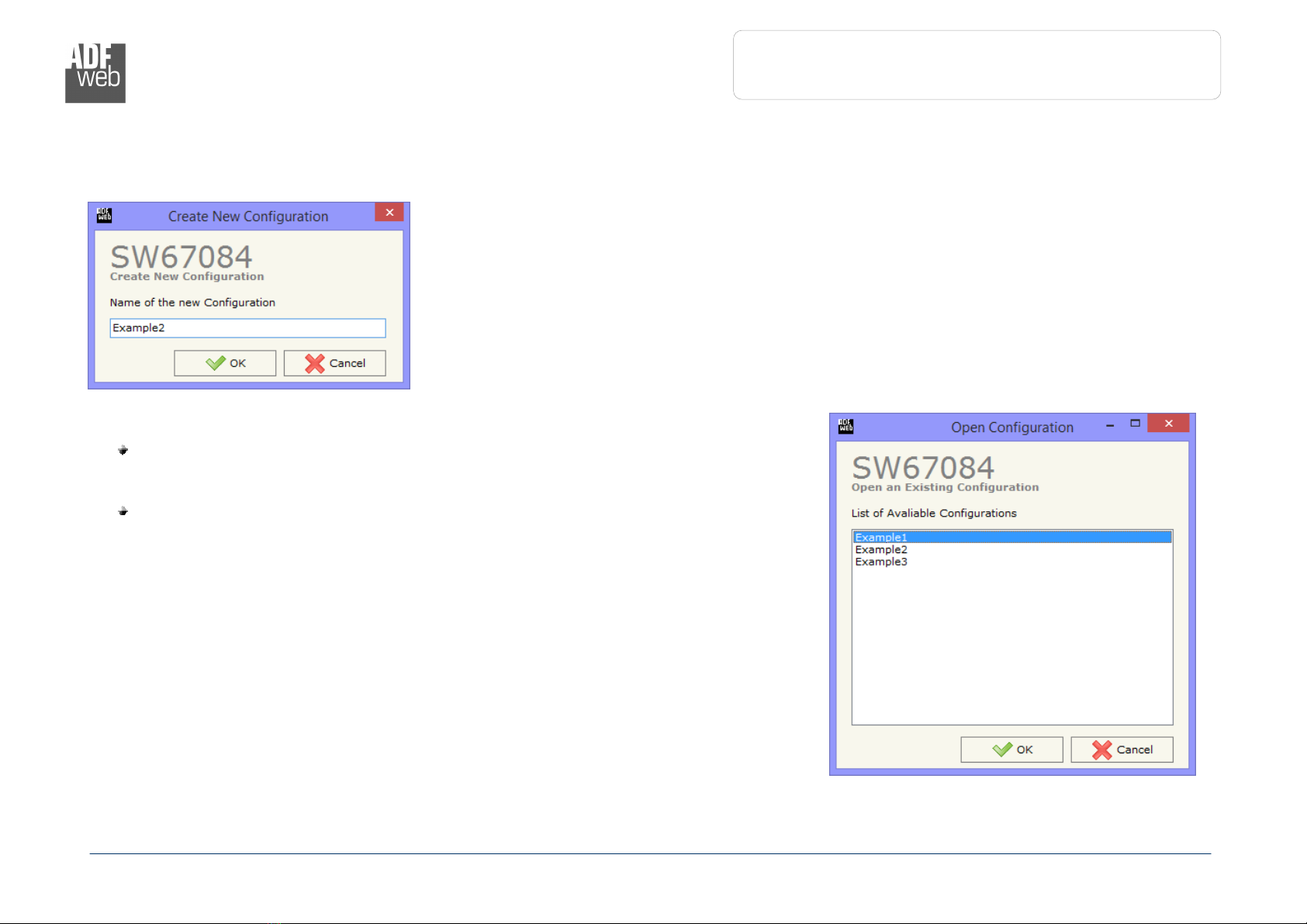

The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “M-Bus Wireless / Ethernet -
Converter” in order to configure another device in the same manner, it is necessary
to maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient
to duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 13 of 22
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67084 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 14 of 22
SET COMMUNICATION:
This section define the fundamental communication parameters of the two buses, Ethernet and
wM-Bus
By Pressing the “Set Communication” button from the main window for SW67084 (Fig 2) the

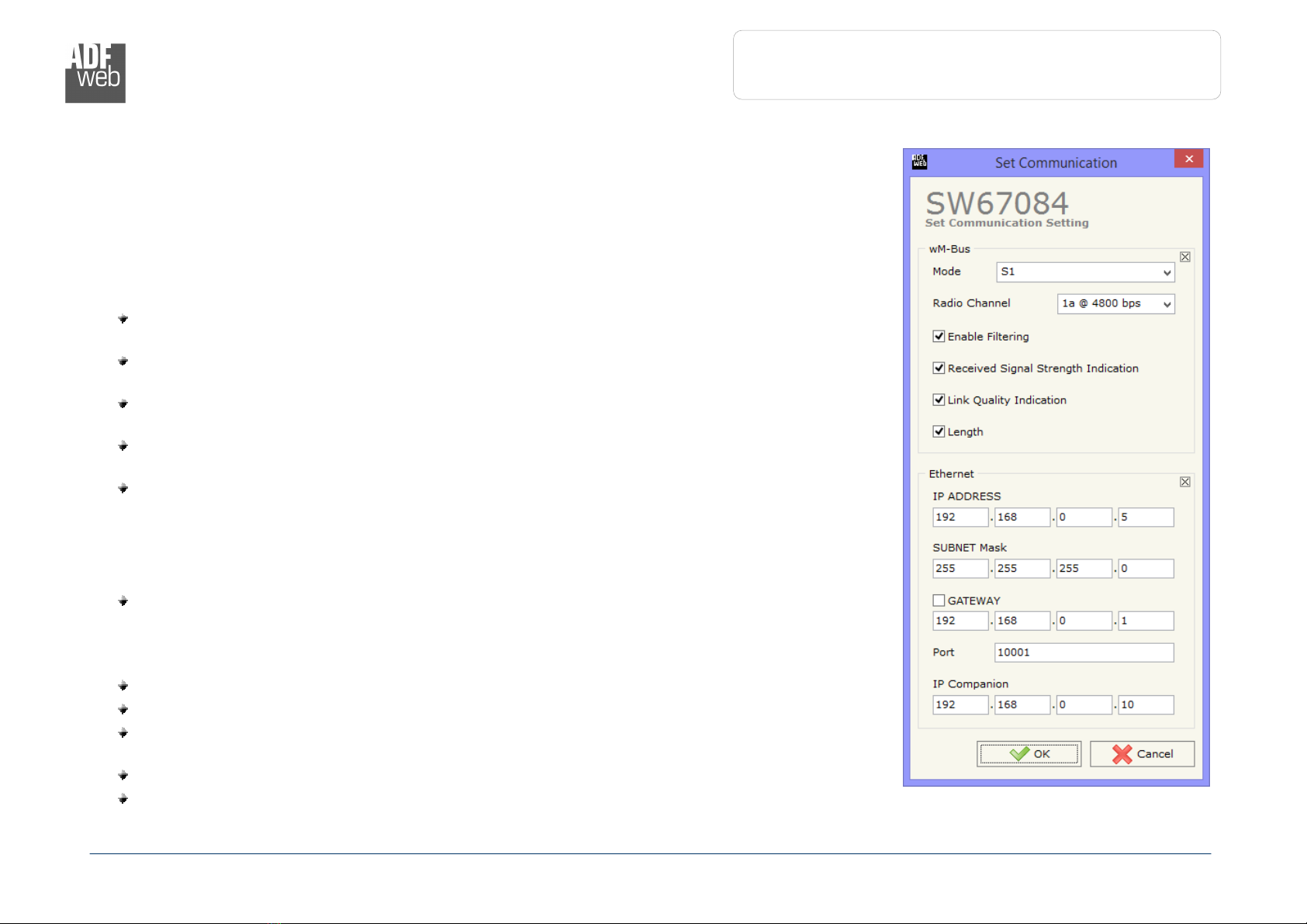

window “Set Communication” appears (Fig 3) The window is divided in two sections
The means of the fields for “wM-Bus” are:
In the field “Mode” it is possible to select the Communication Mode (S1 or T1 for 868 MHz
version and N1 or N2 for 169 MHz version) used for the M-Wireless Communication;
In the field “Radio Channel” it is possible to define the Radio Channel used for the wM-Bus
communication (only for 169 MHz version)
If the field “Enable Filtering” is checked, it is possible to filter the data, sending on Ethernet
only the data defined in the section “wM-Bus Access” (See page 15);
If the field “Received Signal Strenght Indication” is checked, it is possible to add a byte at
the end of the Ethernet frame to indicate the Strenght of the wM-Bus signal (dBm);
If the field “Link Quality Indication” is checked, it is possible to add a byte at the end of the
Ethernet frame to indicate the quality of the wM-Bus signal (1, 2 or 3):
o1: Low Quality
o2: Middle Quality
o3: High Quality
If the field “Lenght” is checked, it is possible to add a byte at the start of the Ethernet frame
to indicate the lenght of the frame (only wM-Bus data)
The means of the fields for “Ethernet” are:
In the field “IP ADDRESS” insert the IP address that you want to give to the Converter;
In the field “SUBNET Mask” insert the SubNet Mask;
In the field “GATEWAY” insert the default gateway that you want to use This feature can be
enabled of disabled pressing the Check Box field;
In the field “Port” insert the TCP port used for the Ethernet communication;
In the field “IP Companion” insert the IP Address of the device to send the informations
from wM-Bus
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 15 of 22
wM-BUS ACCESS

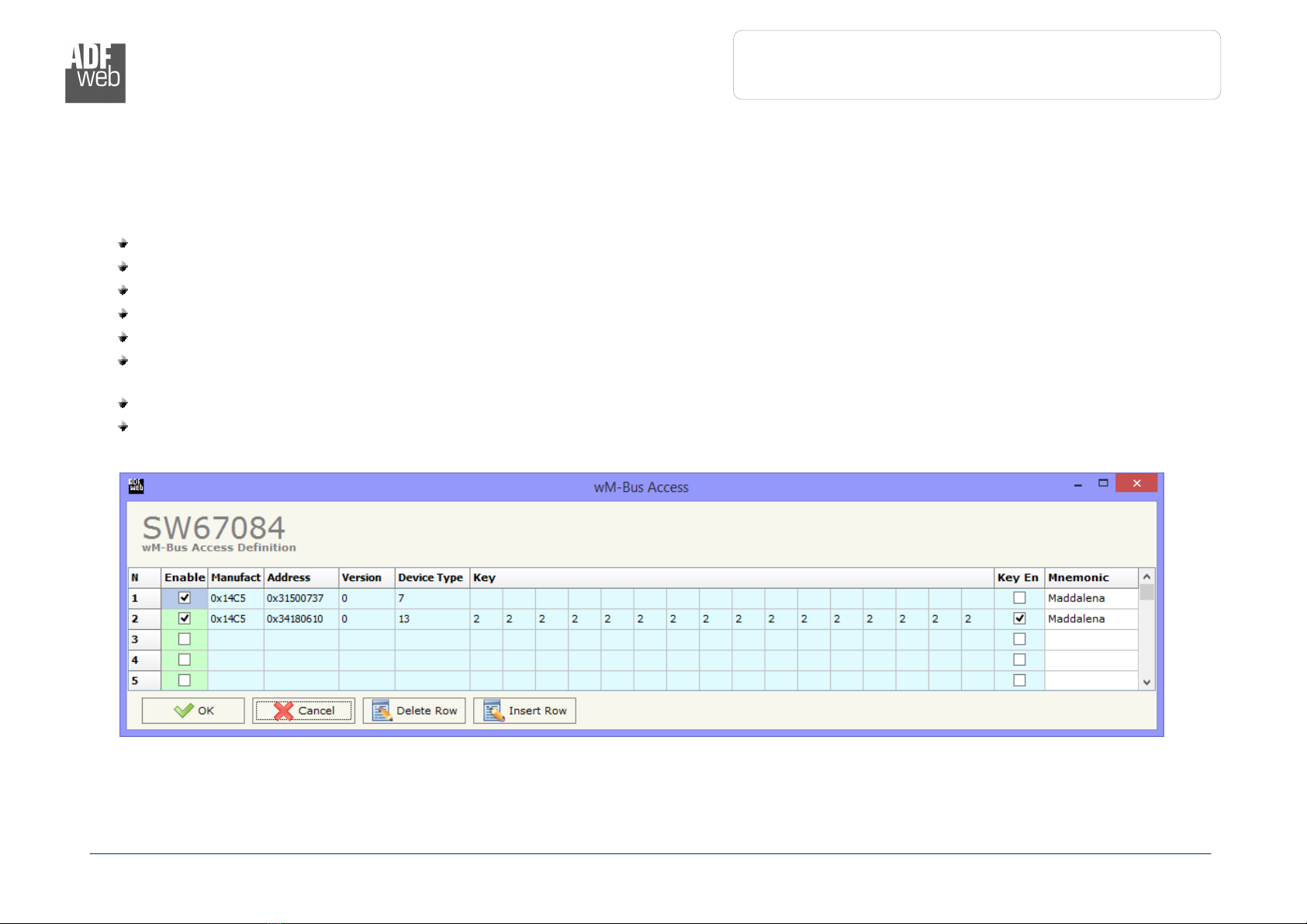

By pressing the “wM-Bus Access” button from the main window for SW67084 (Fig 2) the “wM-Bus Access” window appears (Fig 4)
The data of the columns have the following meanings:
If the field “Enable” is checked, the data for the wM-Bus node will be sent on Ethernet;
In the field “Manufacturer ID”, the Manufacturer ID of the wM-Bus node is defined;
In the field “Address”, the ID of the wM-Bus node is defined;
In the field “Version”, the version of the wM-Bus node is defined;
In the field “Device Type”, the type of the wM-Bus node is defined;
In the fields “Key”, the key to encode the message of the wM-Bus node is defined These fields must be defined only if the wM-Bus
node uses encrypted communication;
The field “Key En” must be checked if the wM-Bus node uses encrypted communication;
In the field “Mnemonic”, a brief description is defined
Figure
4
:
“wM
Bus Access” windo
w

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 16 of 22
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;

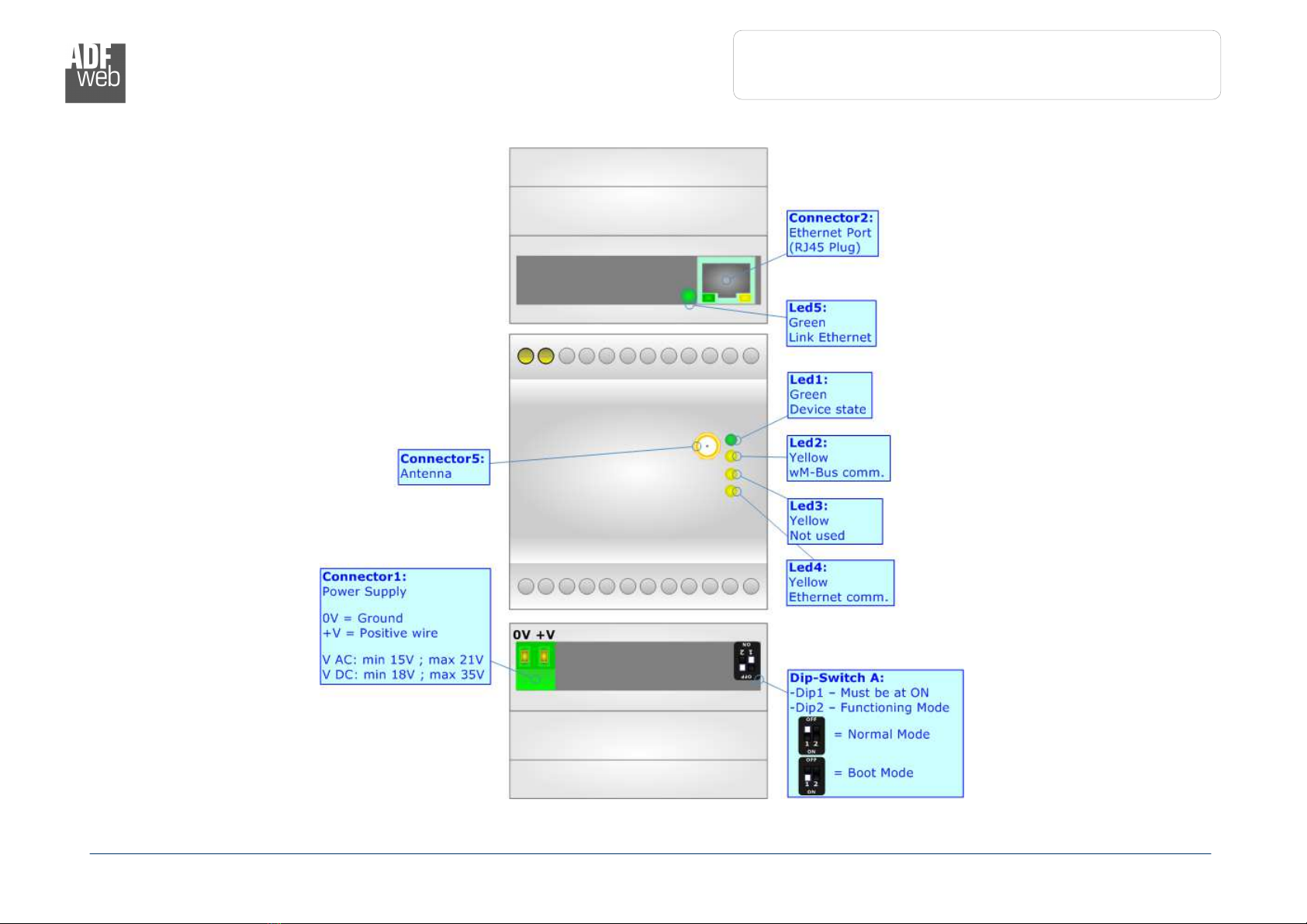

Put Dip2 of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “19 .168. . 05”;
Press the “Ping” button, “Device Found!” must appear”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at OFF position;
Turn on the device
At this point the configuration/firmware on the device is correctly updated
Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 17 of 22
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode
At this point the configuration/firmware on the device is correctly updated
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67084
device
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67084 device
Warning:
If Fig 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven or Vista or 8, make sure that you have the
administrator privileges;
Take attention at Firewall lock;
Check the LAN settings
In the case of HD67084 you have to use the software “SW67084”: www adfweb com\download\filefold\SW67084 zip
Figure 6: “Protection” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 18 of 22
ETHERNET COMMUNICATION
The Bytes that compose the frame are these:
Byte Number Description
1 wM-Bus Data Lenght (*)
2 ÷ n wM-Bus Data
(2 ÷ n) + 1 LQI (**)
(2 ÷ n) + 2 RSSI (***)
(*) present if “Lenght” option is checked
(**) present if “Link Quality Indication” option is checked
(***) present if “Received Signal Strenght Indication” option is checked
Example
In the section “Set Communication” they are enabled the fields “Lenght”, “Received Signal Strenght Indication” and “Link Quality Indication”
The frame sent by the wM-Bus node is: 44 A2 05 26 01 00 26 01 1B 7A F6 00 00 20 2F 2F 02 66 ED 00 01 FB 1B 2F 2F 2F 2F 2F 2F 2F
(hex)
The converter will send this Ethernet frame:
1E 44 A2 05 26 01 00 26 01 1B 7A F6 00 00 20 2F 2F 02 66 ED 00 01 FB 1B 2F 2F 2F 2F 2F 2F 2F 01 A4
Example
In the section “Set Communication” they are enabled the fields “Lenght” and “Received Signal Strenght Indication”
The frame sent by the wM-Bus node is: 44 C5 14 37 07 50 31 00 07 7A 8A 2B 00 20 2F 2F 04 6D 2E 2F FF 13 04 13 38 30 00 00 01 FD 17
48 04 78 C1 A9 E0 01 (hex)
The converter will send this Ethernet frame:
26 44 C5 14 37 07 50 31 00 07 7A 8A 2B 00 20 2F 2F 04 6D 2E 2F FF 13 04 13 38 30 00 00 01 FD 17 48 04 78 C1 A9 E0 01 C2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 19 of 22
MECHANICAL DIMENSIONS:

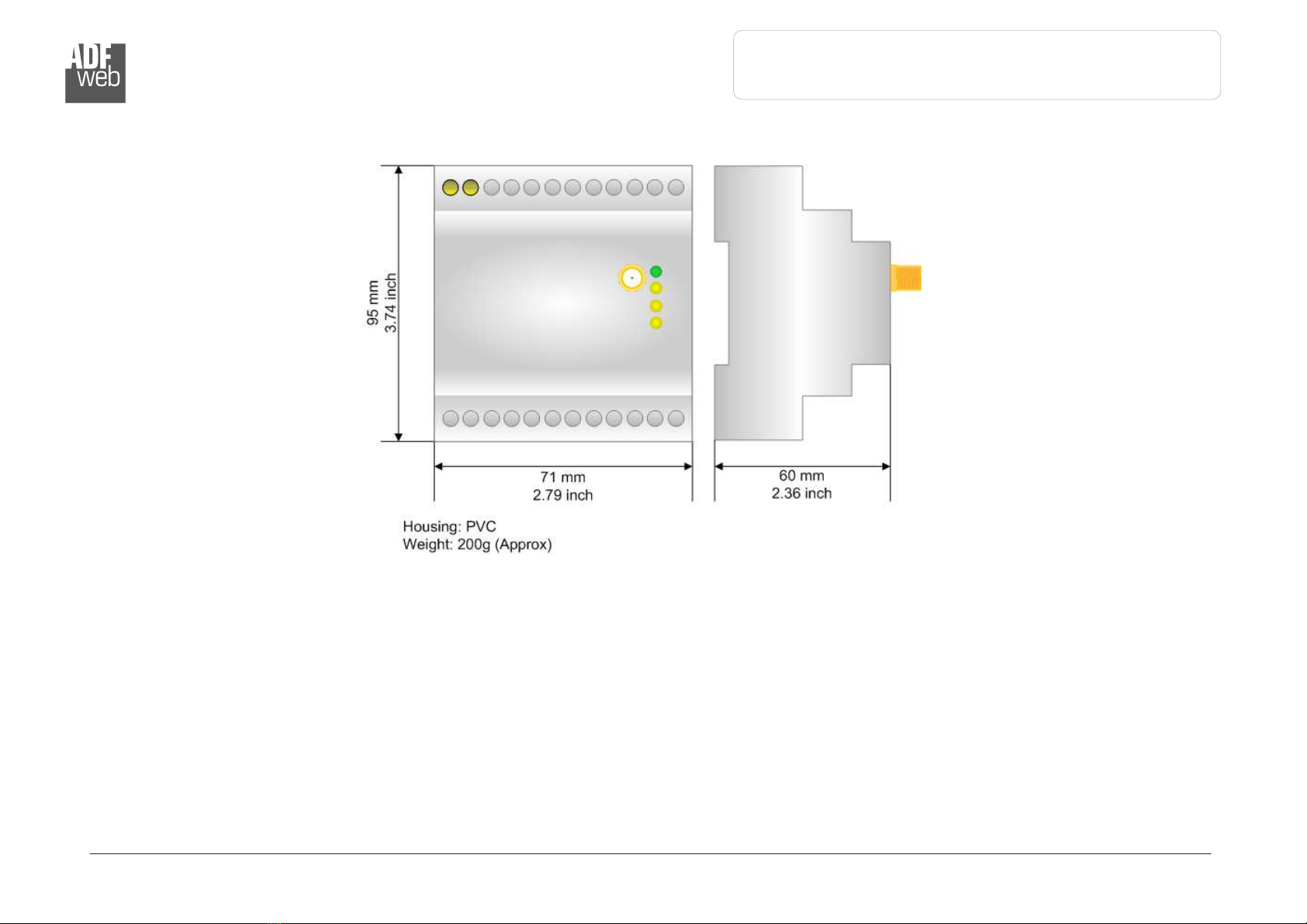

Figure 7: Mechanical dimensions scheme for HD67084 B2 xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Wireless / Ethernet
Document code: MN67084_ENG Revision 1 001 Page 20 of 22
ORDERING INFORMATIONS:
The ordering part number is formed by a valid combination of the following:
HD67084 – B – xxxMHz
M-Bus Wireless Frequency
169MHz: M-Bus Wireless communication @ 169 MHz
868MHz: M-Bus Wireless communication @ 868 MHz
Connectors Type
2: Fixed Screw Terminal
Enclosure Type
B: Modulbox 4M, 35mm DIN Rail mounting
Device Family
HD67084: M-Bus Wireless / Ethernet - Converter
Order Code: HD67084-B -169MHz - M-Bus Wireless / Ethernet – Converter (@ 169 MHz)
Order Code: HD67084-B -868MHz - M-Bus Wireless / Ethernet – Converter (@ 868 MHz)
ACCESSORIES:
Order Code: APW0 0 - Power Supply for M-Bus Master device that supports up to 20 Slaves
