ADF Web HD67B23-B2 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 1 of 30
User Manual
Revision 1 000
English
OPC UA Client / SNMP Agent - Converter
(Order Code: HD67B23-B2)
for Website information:
http://www adfweb com/?Product=HD67B23
for Price information:
http://www adfweb com/?Price=HD67B23-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others OPC UA Client devices, see also the following links:
OPC UA Client from/to …
www adfweb com?Product=HD67B08 (Serial)
www adfweb com?Product=HD67B09 (Modbus Slave)
www adfweb com?Product=HD67B09 (Modbus CP Slave)
www adfweb com?Product=HD67B11 (Bacnet Slave)
www adfweb com?Product=HD67B12 (CAN)
www adfweb com?Product=HD67B13 (CANopen)
www adfweb com?Product=HD67B14 (DeviceNet Slave)
www adfweb com?Product=HD67B15 (DMX)
www adfweb com?Product=HD67B16 (EtherNet/IP Slave)
www adfweb com?Product=HD67B17 (J1939)
www adfweb com?Product=HD67B18 (KNX)
www adfweb com?Product=HD67B19 (MQ )
www adfweb com?Product=HD67B20 (NMEA0183)
www adfweb com?Product=HD67B21 (NMEA2000)
www adfweb com?Product=HD67B22 (PROFINE )
Do you have an your customer protocol?
See the following links:
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 2 of 30
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COMPOSITOR SW67B23 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 15
OPC UA ACCESS 16
SET SNMP ACCESS 23
SNMP MIB 24
UPDATE DEVICE 25
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SUPPORT 30
RETURN POLICY 30
Pagina 2 di 30
UPDA ED DOCUMEN A ION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIS :
Revision Date Author Chapter Description
1 000 13/03/2019 Tf All First release version
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
RADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 3 of 30
SECURI Y ALER :
G ENERAL I NFORMA ION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I N ENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMI Y
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 4 of 30

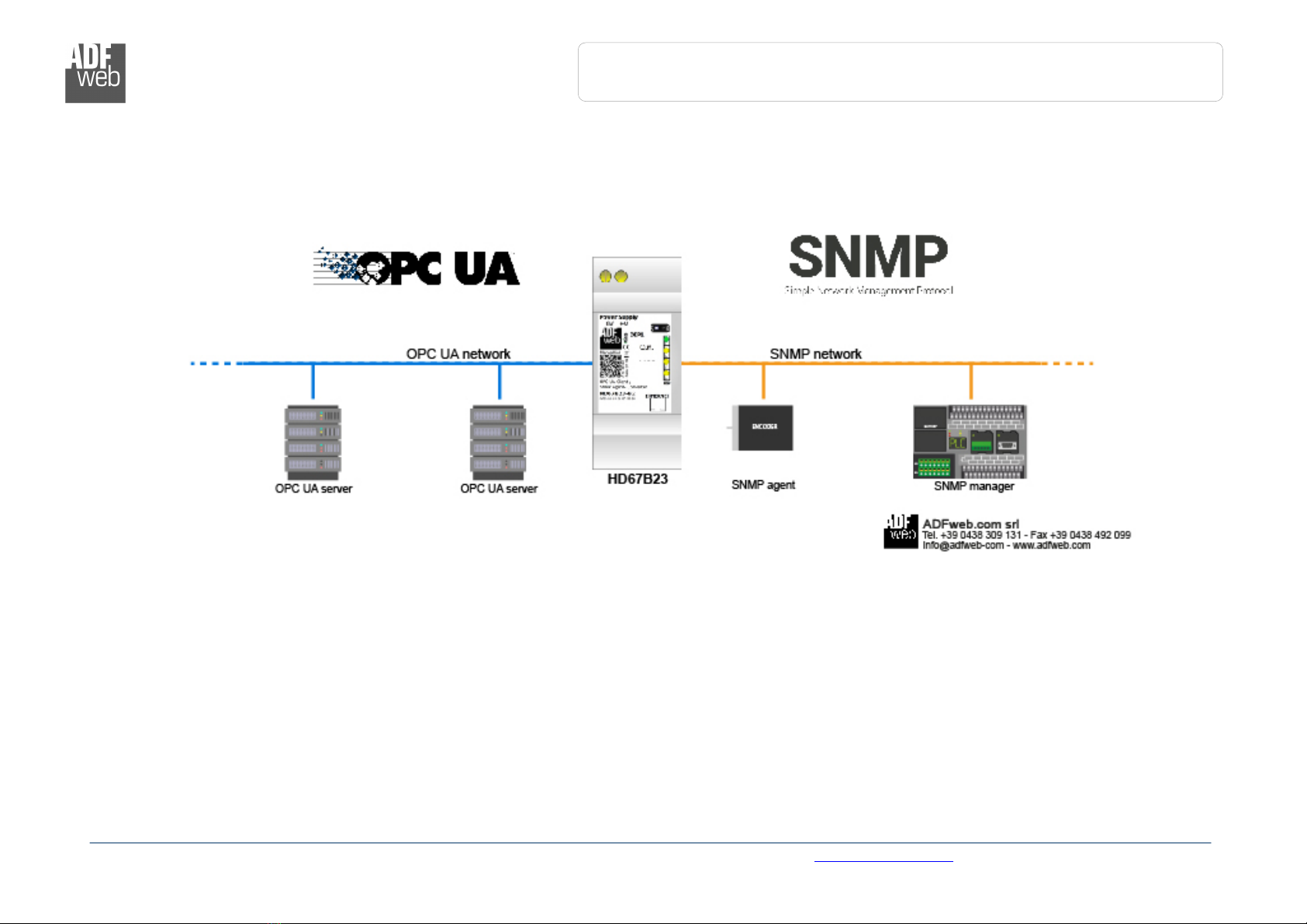

EXAMPLE OF CONNEC ION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 5 of 30

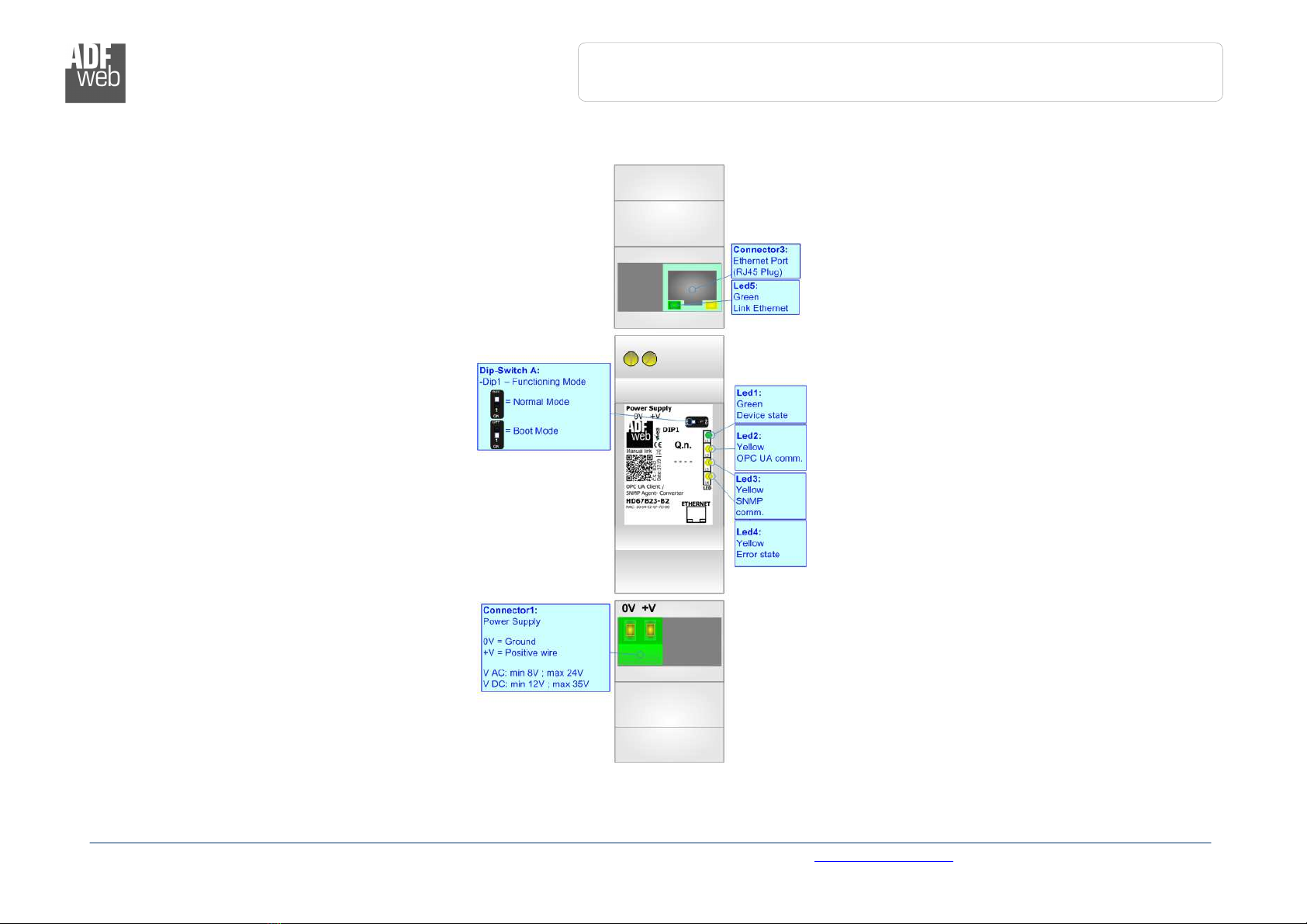

Figure
1
: Connection schem
e for HD67
B
2
3
-
B2
CONNEC ION SCHEME:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 6 of 30
CHARAC ERIS ICS:
The HD67B23-B2 is a OPC UA Client / SNMP Agent converter
It allows the following characteristics:
Up to 1500 bytes in reading and 1500 bytes in writing;
Two-directional information between SNMP and OPC UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURA ION:
You need Compositor SW67B23 software on your PC in order to perform the following:
Define the parameter of the OPC UA;
Define the parameter of the SNMP;
Define the list of OPC UA servers connected to the converter;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 7 of 30
POWER SUPPLY:
The devices can be powered between a wide range of tensions For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B23-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B23-B2 4
Caution: Not reverse the polarity power
HD67B23-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 8 of 30

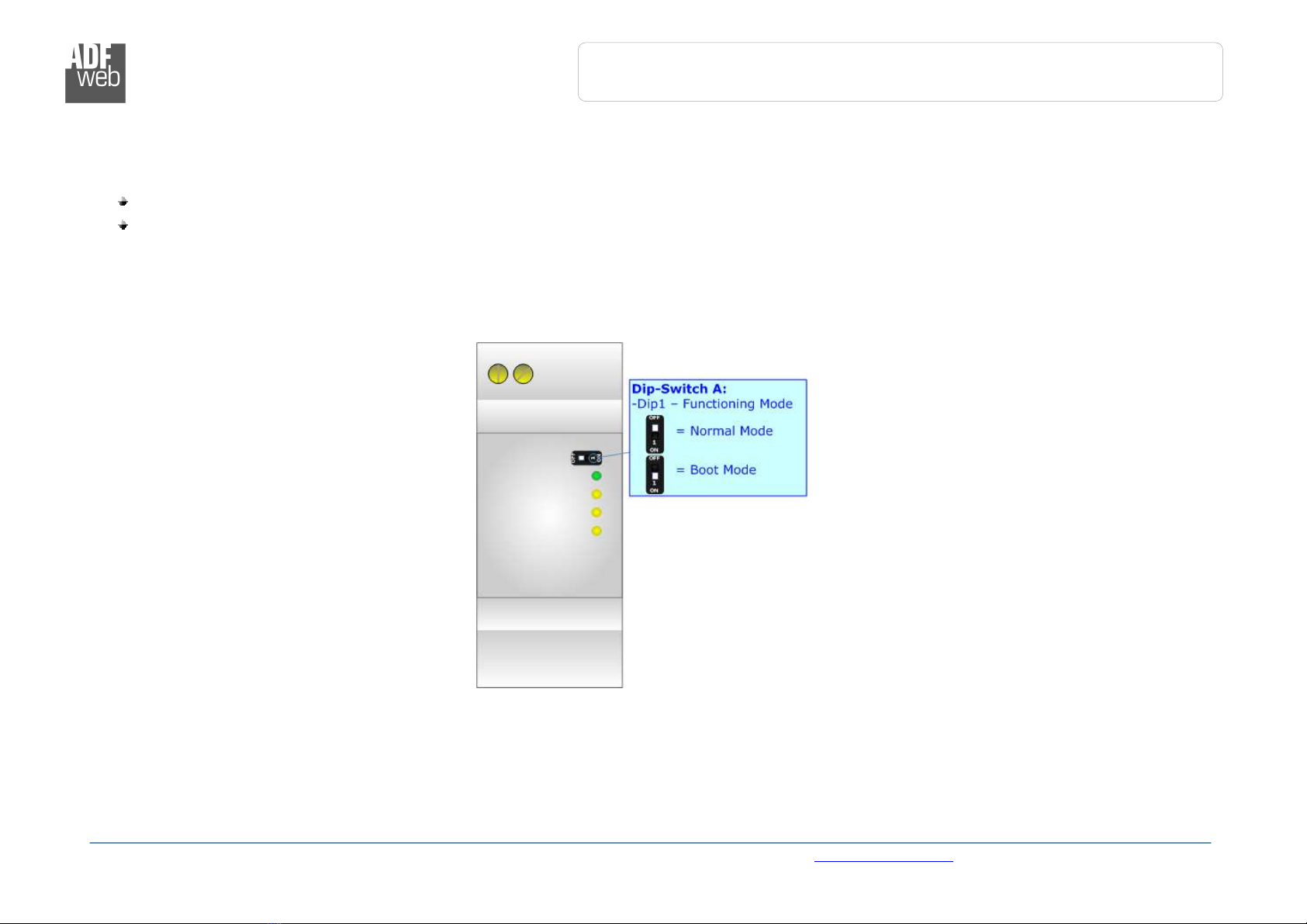

FUNC ION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device
The second, with Dip1 in On position, is used for upload the Project/Firmware
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section)
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 9 of 30
LEDS:
The device has got six LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: OPC UA comm (yellow) Flashing: OPC UA response
OFF: No OPC UA response
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: SNMP comm (yellow) Flashing: SNMP request
OFF: No SNMP request
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: At least one OPC UA Server is disconnected
OFF: all OPC UA Servers are connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 10 of 30

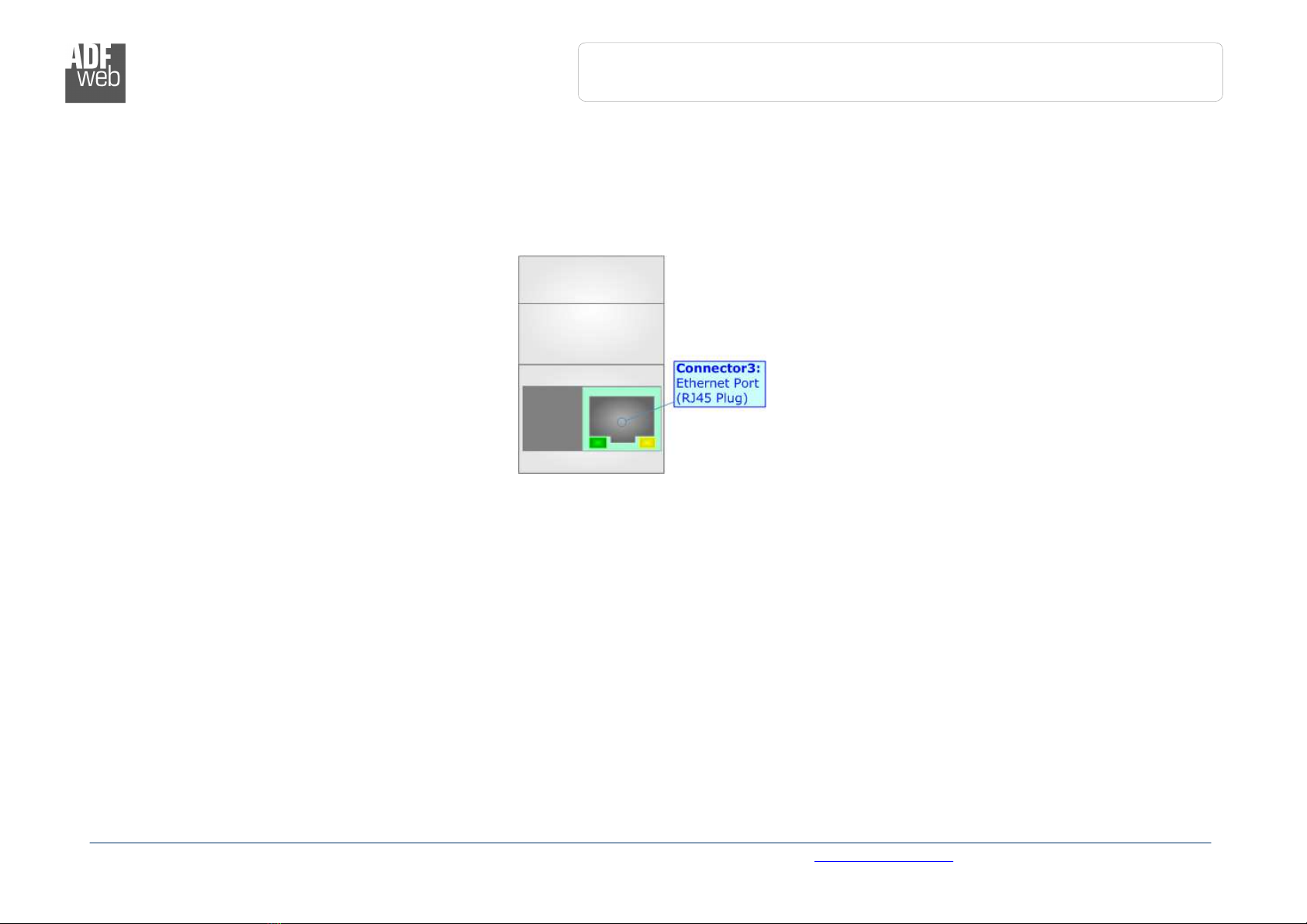

E HERNE :
The Ethernet connection must be made using Connector3 of HD67B23-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 11 of 30
USE OF COMPOSI OR SW67B23:
To configure the Converter, use the available software that runs with Windows called SW67B23 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67B23, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67B
23

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 12 of 30

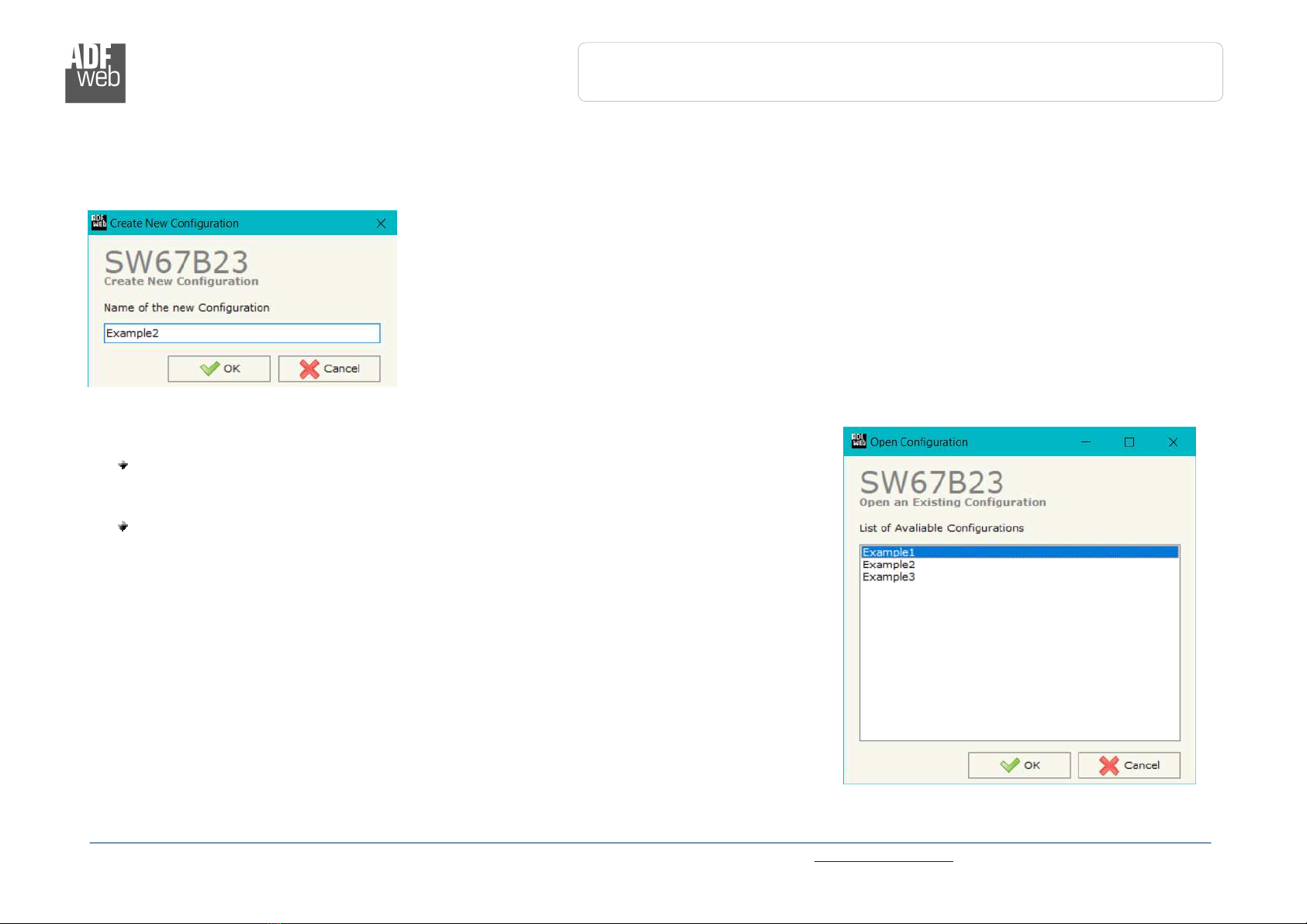

NEW CONFIGURA ION / OPEN CONFIGURA ION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “OPC UA Client / SNMP Agent -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 13 of 30
SOF WARE OP IONS:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67B23 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 14 of 30
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 15 of 30
SE COMMUNICA ION:
This section define the fundamental communication parameters of two buses, OPC UA and
SNMP
By Pressing the “Set Communication” button from the main window for SW67B23 (Fig 2)
the window “Set Communication” appears (Fig 3)
The means of the fields for “OPC UA Client” are:
In the field “IP Address” the IP address for OPC UA side of the converter is defined;
In the field “SubNet Mask” the SubNet Mask for OPC UA side of the converter is
defined;
In the field “Gateway” the default gateway of the net is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out
of the net;
In the field “DNS” the IP Address of the DNS server is defined This feature can be
enabled or disabled pressing the Check Box field
The means of the fields for “SNMP Agent” are:
In the field “IP ADDRESS” the IP address of SNMP side of the converter is defined;
In the field “SUBNE Mask” the SubNet Mask of SNMP side of the converter is
defined;
In the field “GA EWAY” the default gateway of the network is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for
going out of the net;
In the field "SNMP Name of Station" the name for SNMP Agent station is defined;
In the field "Contact" the contact for SNMP Agent station is defined;
In the field "Location" the location for SNMP Agent station is defined;
In the field “Version” the version of SNMP is defined;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 16 of 30
If SNMP V3 is used, the following fields must be filled:
oIn the field “User” the user for the SNMP authentication is defined;
oIn the field “Security Level” the type of security used is defined;
oIn the field “Authority” the password for the SNMP authentication is defined;
oIn the field “Authority Mode” the mode used for the authentication is defined;
oIn the field “Privacy” the password for Privacy authentication is defined;
oIn the field “Privacy Mode” the mode used for Privacy is defined;
The means of the fields for “NTP (Network Time Protocol)” are:
In the field “Server URL” the URL or the IP Address of the NTP Server is defined;
In the field “Poll ime (seconds)” the polling time for the time synchronization is defined

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 17 of 30
Figure 4: “
O C UA Client Access
” window
OPC UA ACCESS:
By Pressing the “OPC UA Client Access” button from the main window for SW67B23 (Fig 2) the window “OPC UA Client Access” appears
(Fig 4)
This section is used to define the list of the OPC UA Servers to read/write with the OPC UA Client

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 18 of 30
Figure 5: “Add O C UA Server” Figure 6: “Modify O C UA Server”
By clicking on “Add”, it is possible to add a new OPC UA Server inserting its characteristics (Server Address, Authorization, Security Type…)
The window “Add OPC UA Server” appears (Fig 5) By clicking on “Modify”, it is possible to change these characteristics for the selected
Server The window “Modify OPC UA Server” appears (Fig 6)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 19 of 30
Figure 7: “Scan Server O C UA” window
By clicking on “Scan”, it is possible to get the list of available variables from the selected Server The window “Scan Server OPC UA” appears
(Fig 7)
The means of the checkboxes inside the table are:
If the field “Read” is checked, the variable can be read;
If the field “Write” is checked, the variable can be written
Note:
For each variable, it is possible to uncheck these fields and the variable will not be used in read/write

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
SNMP Agent
Document code: MN67B23_ENG Revision 1 000 Page 20 of 30
Figure 8: “Variables in Read” section
After the scan, the selected variables will appear in “Variables in Read” and/or “Variables in Write” sections, in the lower part of the window
“OPC UA Client Access” (Fig 4)
The “Variables in Read” section is used to define the OPC UA variables to read from SNMP side (Fig 8)
The means of the fields are:
If the field “Enable” is checked, the OPC UA variable is enabled;
In the field “Display name” the name of the OPC UA variable is defined;
In the field “Node ype ” the type of the OPC UA node, which includes the variable, is defined;
In the field “Node ID” the name of the OPC UA node, which includes the variable, is defined;
In the field “Var ype” the data format of the OPC UA variable is defined;
In the field “Name Space Index” the Name Space Index of the node, which includes the variable, is defined;
In the field “ ime (ms)” the delay in ms between two readings of the variable is defined;
In the field “Position” the starting byte of the internal memory arrays where saving the value is defined;
In the field “Mnemonic” a description of the variable is defined
