ADF Web HD67162-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 1 di 33
User Manual
Revision 1.000
English
J1939 / SNMP - Converter
(Order Code: HD67162-A1, HD67162-B2)
for Website information:
www.adfweb.com? roduct=HD67162
for rice information:
www.adfweb.com? rice=HD67162-A1
www.adfweb.com? rice=HD67162-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others SNM Agent products, see also the following links:
Converter SNMP to
www.adfweb.com? roduct=HD67B23 (OPC UA Client
www.adfweb.com? roduct=HD67B48 (OPC UA Server
www.adfweb.com? roduct=HD67E25 (EtherCAT
www.adfweb.com? roduct=HD67C79 (EnOcean
www.adfweb.com? roduct=HD67D41 (LoRaWAN
www.adfweb.com? roduct=HD67040 (DMX
www.adfweb.com? roduct=HD67092 (M-Bus Wireless
www.adfweb.com? roduct=HD67155 (CAN
www.adfweb.com? roduct=HD67156 (CANopen
www.adfweb.com? roduct=HD67158 (EtherNet/IP
www.adfweb.com? roduct=HD67159 (EtherNet/IP Master
www.adfweb.com? roduct=HD67160 (DeviceNet Master
www.adfweb.com? roduct=HD67161 (DeviceNet Slave
www.adfweb.com? roduct=HD67163 (M-Bus Master
www.adfweb.com? roduct=HD67164 (Modbus Master
www.adfweb.com? roduct=HD67165 (Modbus Slave
www.adfweb.com? roduct=HD67166 (Modbus TCP Master
www.adfweb.com? roduct=HD67167 (Modbus TCP Slave
www.adfweb.com? roduct=HD67168 (PROFIBUS Master
www.adfweb.com? roduct=HD67169 (PROFIBUS Slave
www.adfweb.com? roduct=HD67613 (PROFINET
www.adfweb.com? roduct=HD67693 (BACnet Slave
www.adfweb.com? roduct=HD67719 (BACnet Master
www.adfweb.com? roduct=HD67726 (BACnet Master
www.adfweb.com? roduct=HD67754 (IEC 61850 Server
www.adfweb.com? roduct=HD67779 (IEC 61850 Client
www.adfweb.com? roduct=HD67820 (KNX
www.adfweb.com? roduct=HD67850 (DALI
www.adfweb.com? roduct=HD67878 (IO-Link Master
www.adfweb.com? roduct=HD67954 (MQTT
Do you have an your customer protocol?
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 2 di 33
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
OWER SU LY 8
FUNCTION MODES 9
LEDS 10
SNM 11
CAN 12
USE OF COM OSITOR SW67162 13
NEW CONFIGURATION / O EN CONFIGURATION 14
SOFTWARE O TIONS 15
SET COMMUNICATION 16
RECEIVE FRAMES 18
SEND FRAMES 19
SET SNM ACCESS 20
SNM MIB 21
U DATE DEVICE 22
SNM COMMUNICATION 24
MECHANICAL DIMENSIONS 29
ORDERING INFORMATIONS 31
ACCESSORIES 31
DISCLAIMER 32
OTHER REGULATIONS AND STANDARDS 32
WARRANTIES AND TECHNICAL SU ORT 33
RETURN OLICY 33
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 07/01/2020 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 3 di 33
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 4 di 33
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 5 di 33
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67162-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 6 di 33
Figure 1b: Connection scheme for HD67162-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 7 di 33
CHARACTERISTICS:
The HD67162-A1 and HD67162-B2 is a J1939 / SNM - Converter.
It has the following characteristics:
Up to 1024 bytes in reading and 1024 bytes in writing;
Triple isolation between J1939 - ower Supply, J1939 - Ethernet, ower Supply - Ethernet.
Two-directional information between J1939 bus and SNM bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67162 software on your C in order to perform the following:
Define the parameter of SNM line;
Define the parameter of J1939 line;
Define the J1939 frames that the converter can accept;
Define the J1939 frames that the converter sends trough the J1939 line;
Define the map of J1939 byte that must be written in the SNM array;
Define the map of which SNM bytes must be written in J1939 frames;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 8 di 33

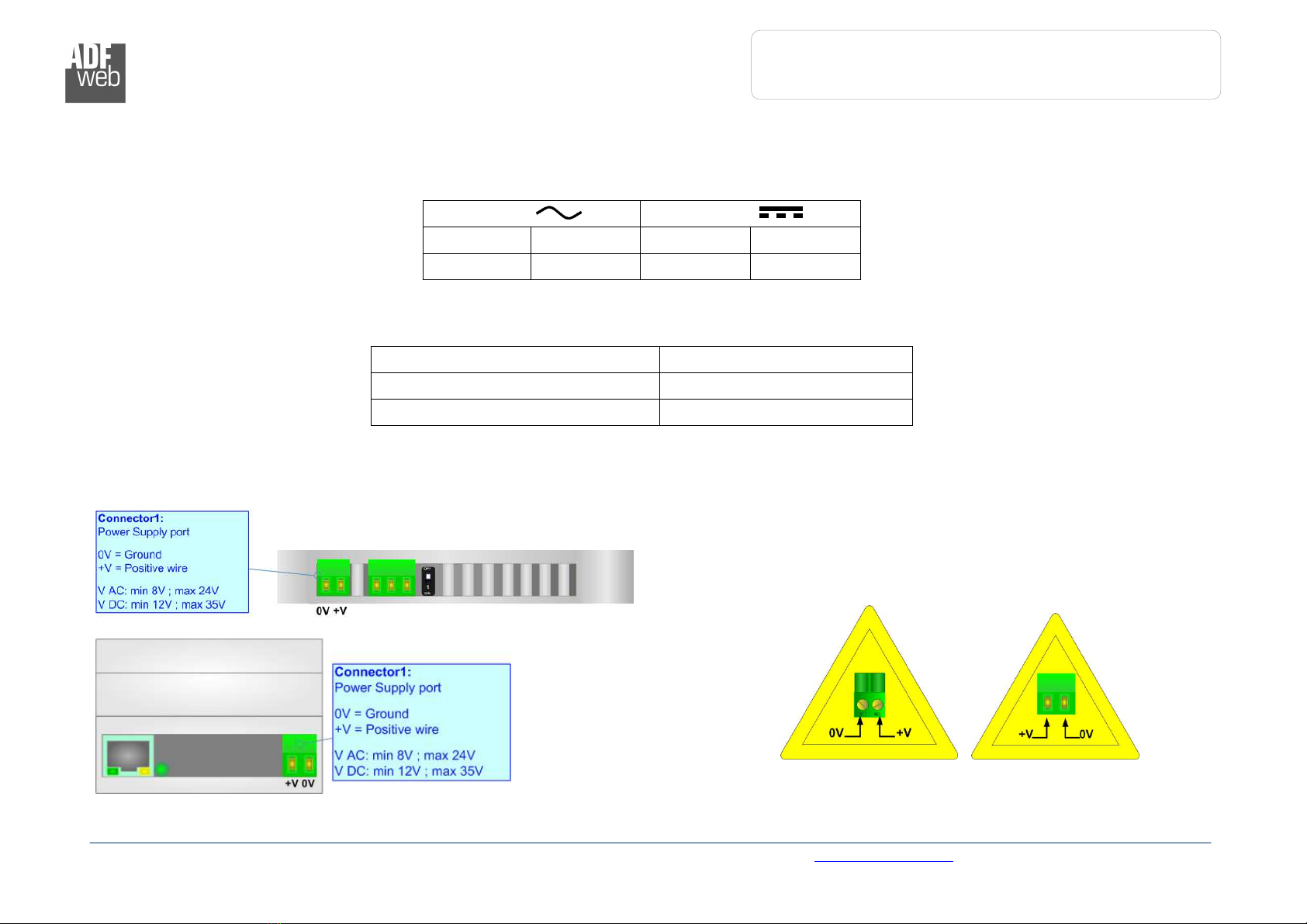

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67162-A1 3.5
HD67162-B2 3.5
HD67162-A1
Caution: Not reverse the polarity power
HD67
1
62
-
B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 9 di 33
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 10 di 33

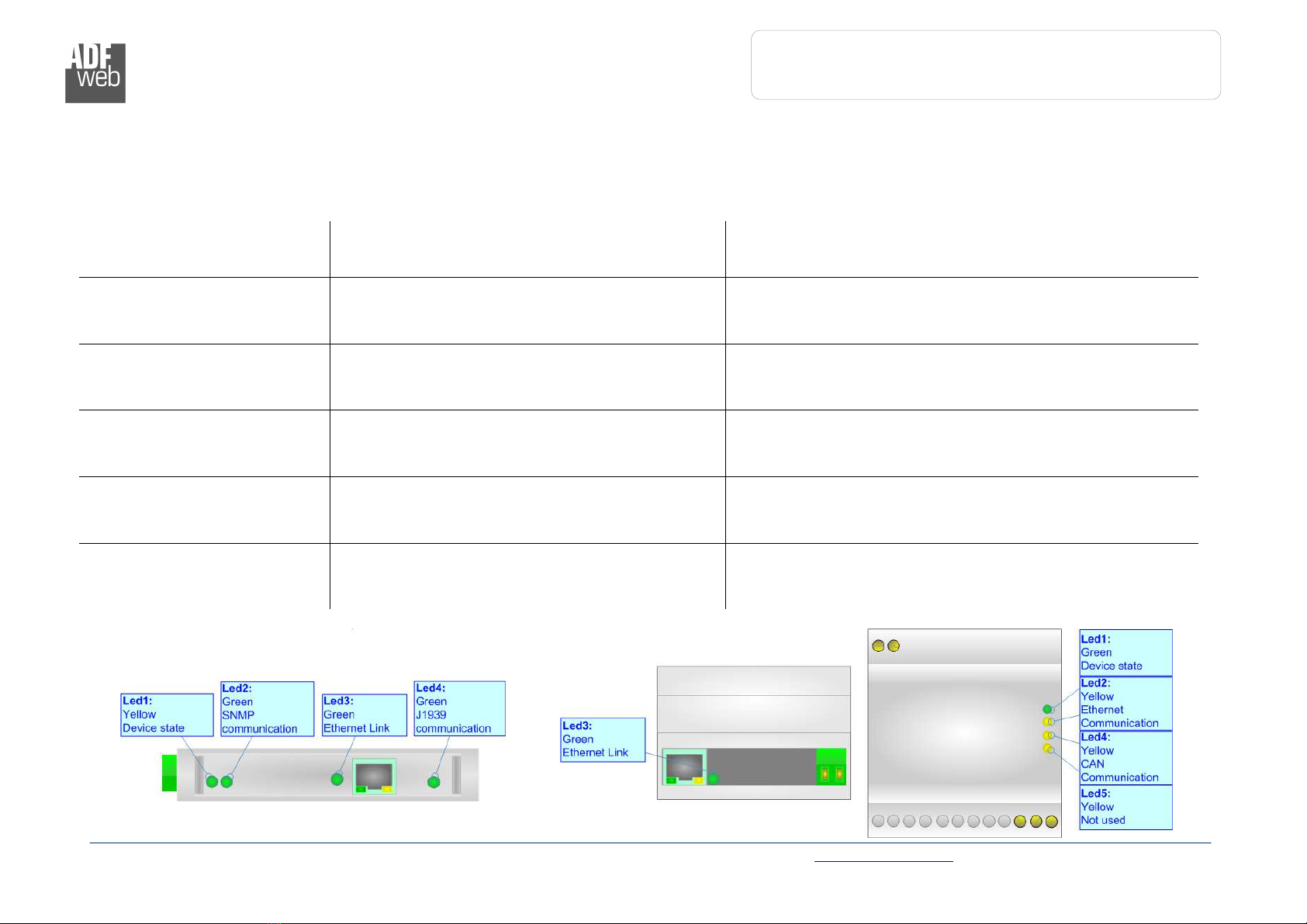

LEDS:
The devices has got four (five for HD67515-B2) LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
2: SNM communication Blinks when SNM frames are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
3: Ethernet Link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
4: J1939 communication Blinks when J1939 frames are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress
5: Not used ( resent only on
HD67162-B2) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 11 di 33
SNMP:
The SNM connection must be made using Connector5 of HD67162-A1/B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/other is recommended the use of a cross
cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 12 di 33
CAN:
For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position.
Cable characteristics:
DC parameter: Impedance 70 Ohm/m
AC parameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 13 di 33
USE OF COMPOSITOR SW67162:
To configure the Converter, use the available software that runs with Windows called SW67162. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67162, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main
window for SW671
62

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 14 di 33

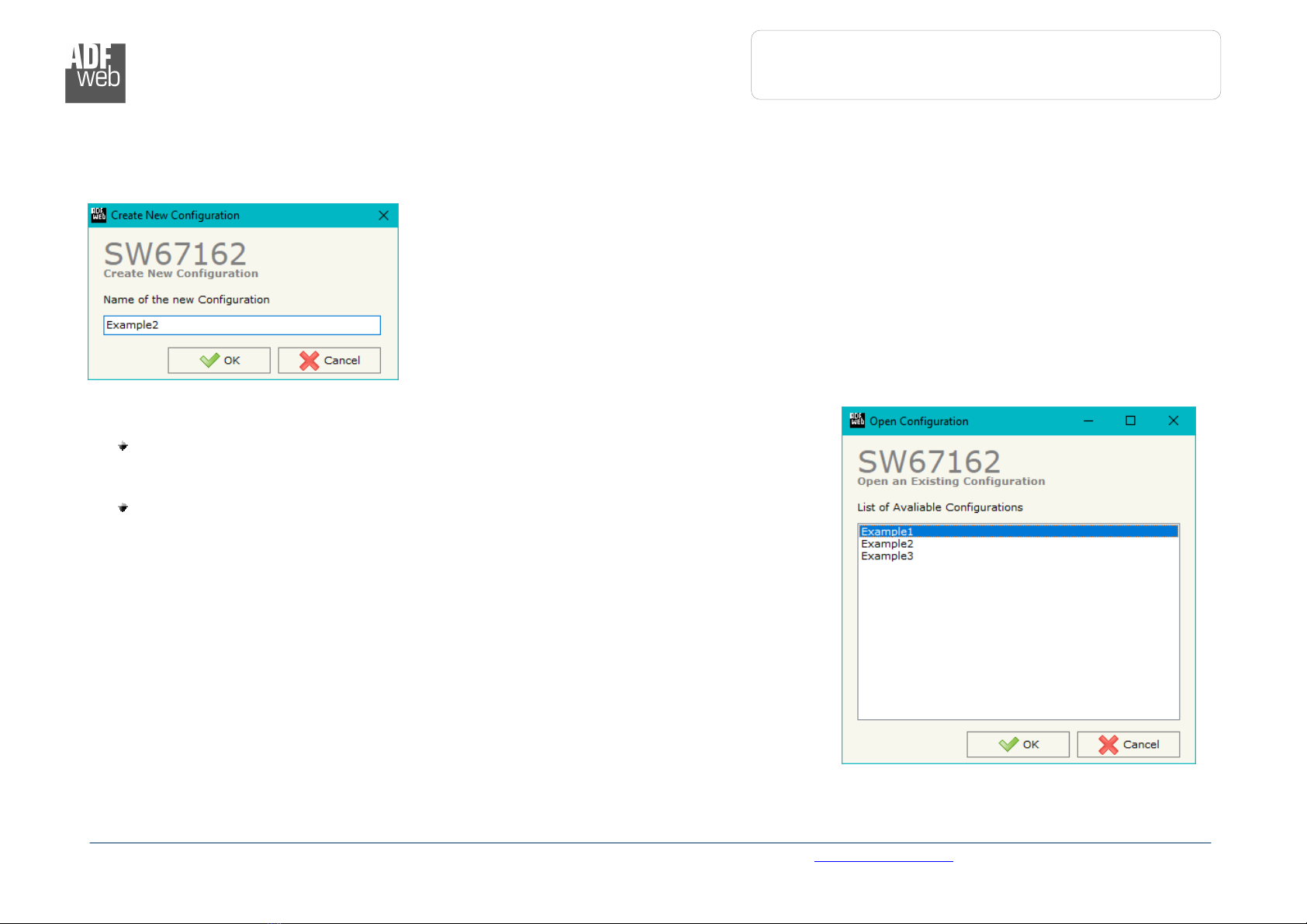

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “J1939 / SNM - Converter” in order to
configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 15 di 33
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67162 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 16 di 33
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, SNM and J1939.
By ressing the “Set Communication” button from the main window for SW67162 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the SNM and the other for the J1939.
The means of the fields for “SNM ” are:
In the fields “IP ADDRESS” the I address of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the
net;
In the field "SNMP Name of Station" the name for SNM Agent station is defined;
In the field "Contact" the contact for SNM Agent station is defined;
In the field "Location" the location for SNM Agent station is defined.
In the field “Version” the version of SNM is defined;
If SNM V3 is used, the following fields must be filled:
oIn the field “User” the user for the SNM authentication is defined;
oIn the field “Security Level” the type of security used is defined;
oIn the field “Authority” the password for the SNM authentication is defined;
oIn the field “Authority Mode” the mode used for the authentication is defined;
oIn the field “Privacy” the password for rivacy authentication is defined;
oIn the field “Privacy Mode” the mode used for rivacy is defined.
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 17 di 33
The means of the fields for “J1939” are:
In the field “Baudrate” the data rate of J1939 is defined;
In the field “TimeOut Data” a time is defined. When a J1939 message is not received in this time, the data on SNM side are set to
0xFF;
If the field “Enable Peer to Peer” is checked, the gateway will mask the Source Address of the J1939 messages received.
In the field “Device ID” the ID of J1939 side of the converter is defined;
If the field “Enable Not Standard Cancel Data” is checked, the default value after the TimeOut Data will be the one defined on the right.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 18 di 33
RECEIVE FRAMES:
By pressing the “Receive Frames” button from the main window for SW67162 (Fig. 2) the “Receive J1939 Frames” window appears (Fig.
4).
The COB inserted in this table contains the Output data of SNM . These frames are accepted by the Converter.
The data of the columns have the following meanings:
In the field “Data Page” the Data age is defined, the value can be 0 or 1 (usually it is 0);
In the field “PGN” the GN of the data of J1939 message is defined (it is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined;
If the field “Transport Protocol” is checked, the frame use transport protocol functions (used to send more than 8 bytes);
In the field “Start Byte” the start byte of the J1939 message to map into the SNM array is defined;
In the field “N° Byte” the number of bytes to save is defined;
If the field “Cancel Data” is checked, the data in the frame will be erased after the expiration of the “TimeOut Data” defined in
“Set Communication” section;
In the field “Mnemonic” a brief description is defined.
Figure 4: “Receive
J1939
Frames” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 19 di 33
SEND FRAMES:
By pressing the “Send Frames” button from the main window for SW67162 (Fig. 2) the “Send J1939 frames” window appears (Fig. 5).
The COB inserted in this table contains the Input data of SNM . These frames are sent by the Converter.
The data of the columns have the following meanings:
In the field “Priority” the priority of the J1939 message is defined. In J1939 protocol, it is a number among 0,1,2,3,4,5,6,7. The
number “0” is the highest priority and “7” is the lowest;
In the field “Data Page” the Data age is defined, the value can be 0 or 1 (usually it is 0);
In the field “PGN” the GN of J1939 message is defined (it is an identifier);
In the field “Source Address” the source address to use to send the frame is defined;
In the field “N Bytes” the number of byte of the frame is defined;
If the field “Request” is checked, the J1939 message is sent when a J1939 request is received;
If the field “Data Change” is checked, the J1939 frame is sent when the data from SNM change;
If the field “On Timer” is checked, the J1939 message is sent cyclically with the delay defined in the field “Send Timer”;
In the field “Mnemonic” a brief description is defined.
Figure
5
: “
Send
J1939
Frames
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
J1939
/ SNMP
Document code: MN67162_ENG Revision 1.000 agina 20 di 33
SET SNMP ACCESS:
By pressing the “Set SNMP Access” button from the main window for SW67162 (Fig. 2) the “Set SNM Trap Access” window appears (Fig.
6). In this section, it is possible to create the OIDs for SNM side to read or write using GET and SET commands or to be sent as TRA
messages. The window is divided into two tables, one for SNM readings and one for SNM writings.
The data of the columns in the
“SNM Read” have the following
meanings:
If the field “Enable” is
checked, the SNM OID is
enabled;
In the field “Community
Name” the name of the
Community is defined;
In the field “Type” the type of
data of the OID is defined
(Octet String or Integer);
If the field “On Change” is checked, the OID is sent as Trap when the data from J1939 side change;
If the field “On CMD” is checked, the OID is sent as Trap when a new J1939 message is received;
If the field “On Timer” is checked, the OID is sent as Trap cyclically;
In the field “Time (ms ” the delay time for the Trap send is defined (if “On Timer” option is checked);
In the field “Position” the starting byte of the internal memory array where taking the data is defined;
In the field “Start Bit” the starting bit of the selected osition is defined;
In the field “Num Bits/Bytes” the dimension of the OID is defined. For ‘Int’ type the dimension is in bit, for ‘String’ type the
dimension is in bytes;
In the field “Description” the description/name of the OID is defined;
In the field “IP Address” the I Address of the SNM device where addressing the Trap message is defined. This field is used only
when ‘On Change’ or ‘On CMD’ or ‘On Timer’ option is checked;
In the field “Mnemonic” a brief description of the OID is defined.
Figure
6
a
: “
Set SNM Access
-
> SNM Read
” window
