ADF Web HD67689-IP-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 1 of 32
User Manual
Revision 1.
English
BACnet Slave / EtherNet/IP Master -
Converter
(Order Code: HD67689-IP-A1, HD67689-MSTP-A1,
HD67689-MSTP-B2)
for Website information:
http://www.adfweb.com/?Product=HD67689
for Price information:
http://www.adfweb.com/?Price=HD67689-IP-A1
http://www.adfweb.com/?Price=HD67689-MSTP-A1
http://www.adfweb.com/?Price=HD67689-MSTP-B2
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others EtherNet/IP Master devices, see also the following links:
EtherNet/IP Master from/to …
www.adfweb.com?Product=HD67158 (SNMP Agent)
www.adfweb.com?Product=HD67643 (P OFIBUS Slave)
www.adfweb.com?Product=HD67645 (CAN)
www.adfweb.com?Product=HD67646 (CANopen)
www.adfweb.com?Product=HD67647 (DeviceNet Slave)
www.adfweb.com?Product=HD67661 (P OFINET)
www.adfweb.com?Product=HD67665 (Modbus TCP Slave)
www.adfweb.com?Product=HD67667 (Serial)
www.adfweb.com?Product=HD67669 (Modbus Slave)
www.adfweb.com?Product=HD67689 (BACnet Slave)
www.adfweb.com?Product=HD67743 (IEC 61850 Server)
www.adfweb.com?Product=HD678 6 (KNX)
www.adfweb.com?Product=HD67876 (Ethernet)
www.adfweb.com?Product=HD67955 (MQTT)
www.adfweb.com?Product=HD67B38 (OPC UA Server)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 2 of 32
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
POWER SUPPLY 9
FUNCTION MODES 1
LEDS (for HD67689-IP-A1) 11
LEDS (for HD67689-MSTP-xx) 12
ETHERNET 13
RS485 (for BACnet MS/TP) 14
USE OF COMPOSITOR SW67689 15

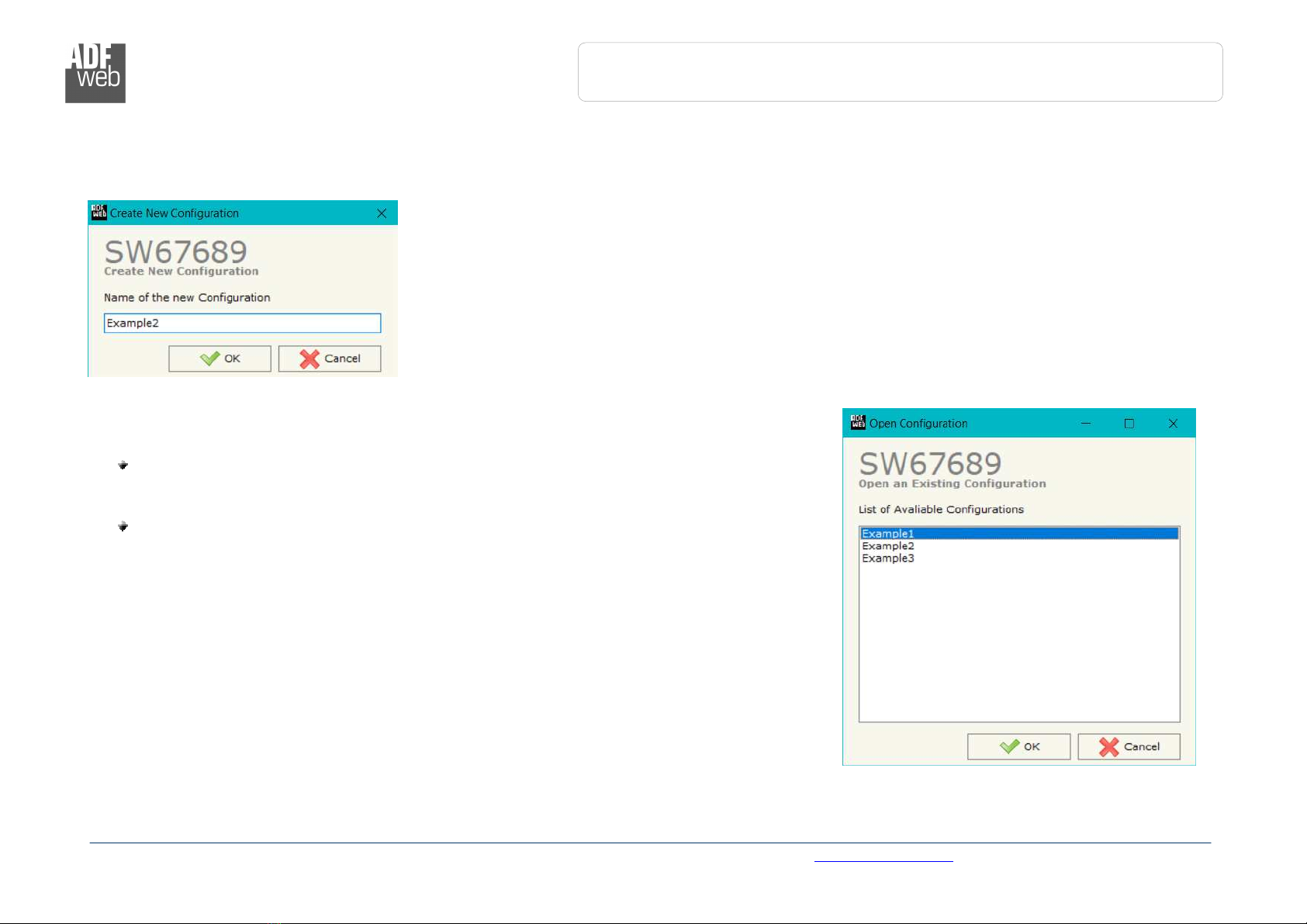

NEW PROJECT / OPEN PROJECT 16

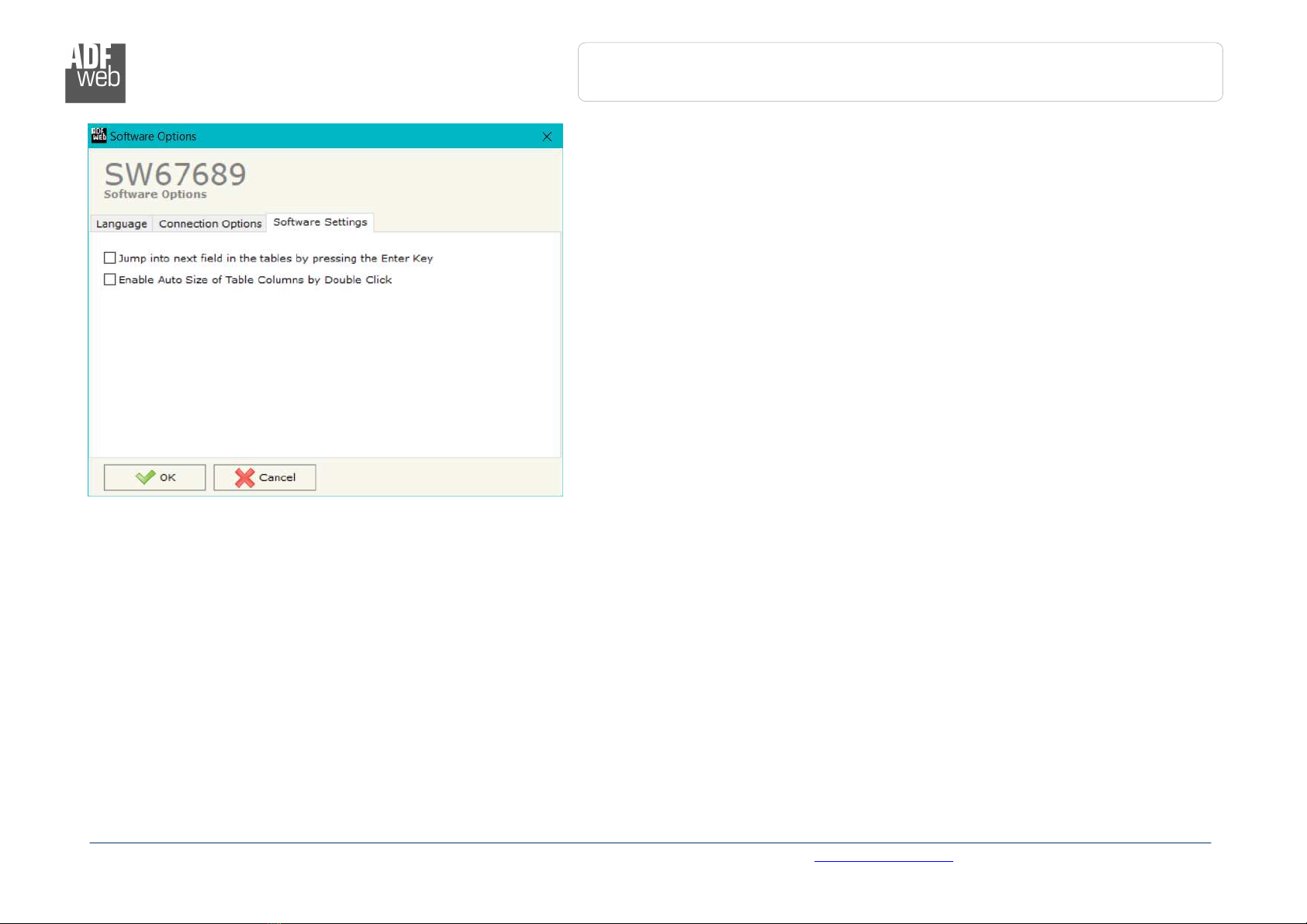

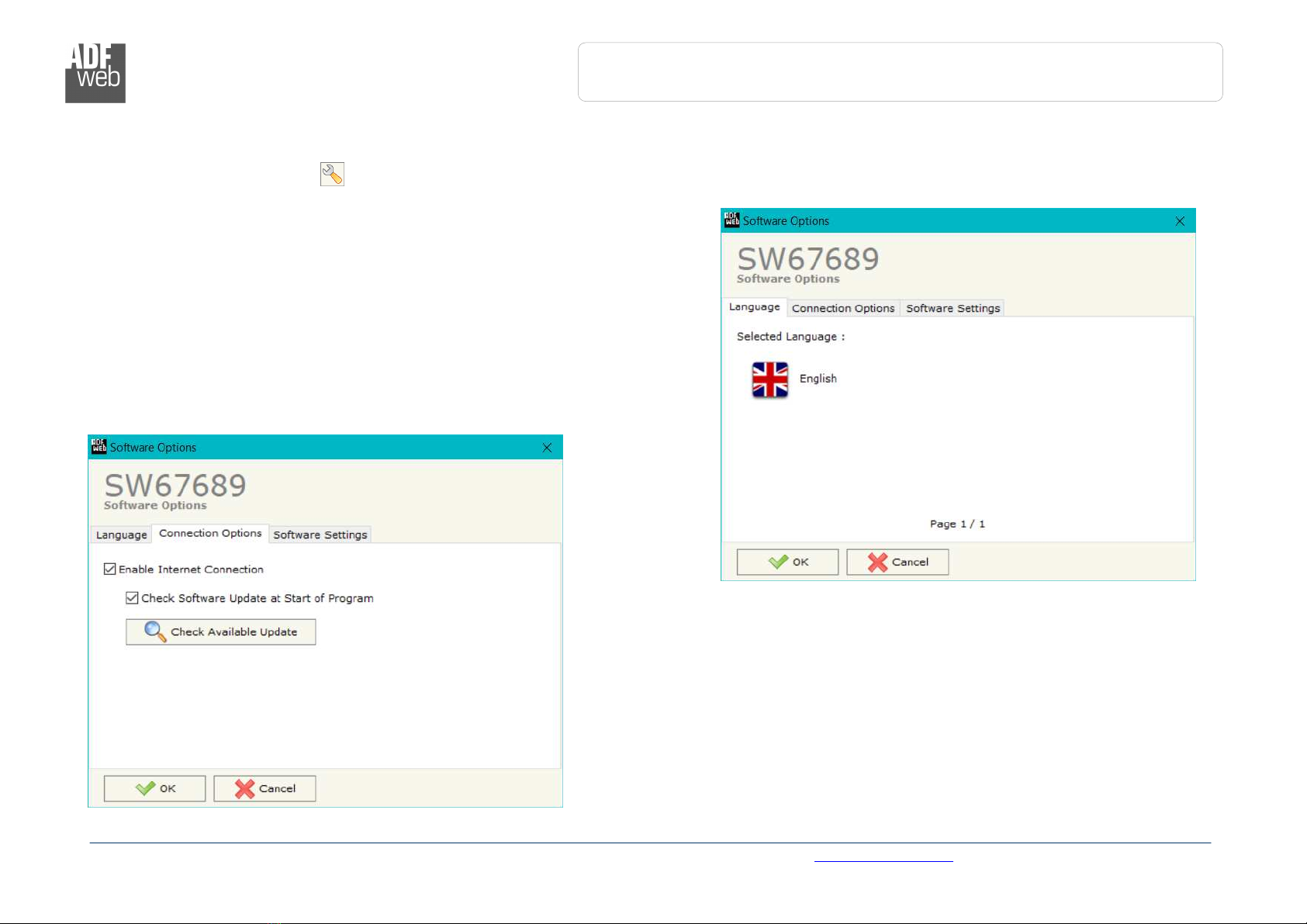

SOFTWARE OPTIONS 17

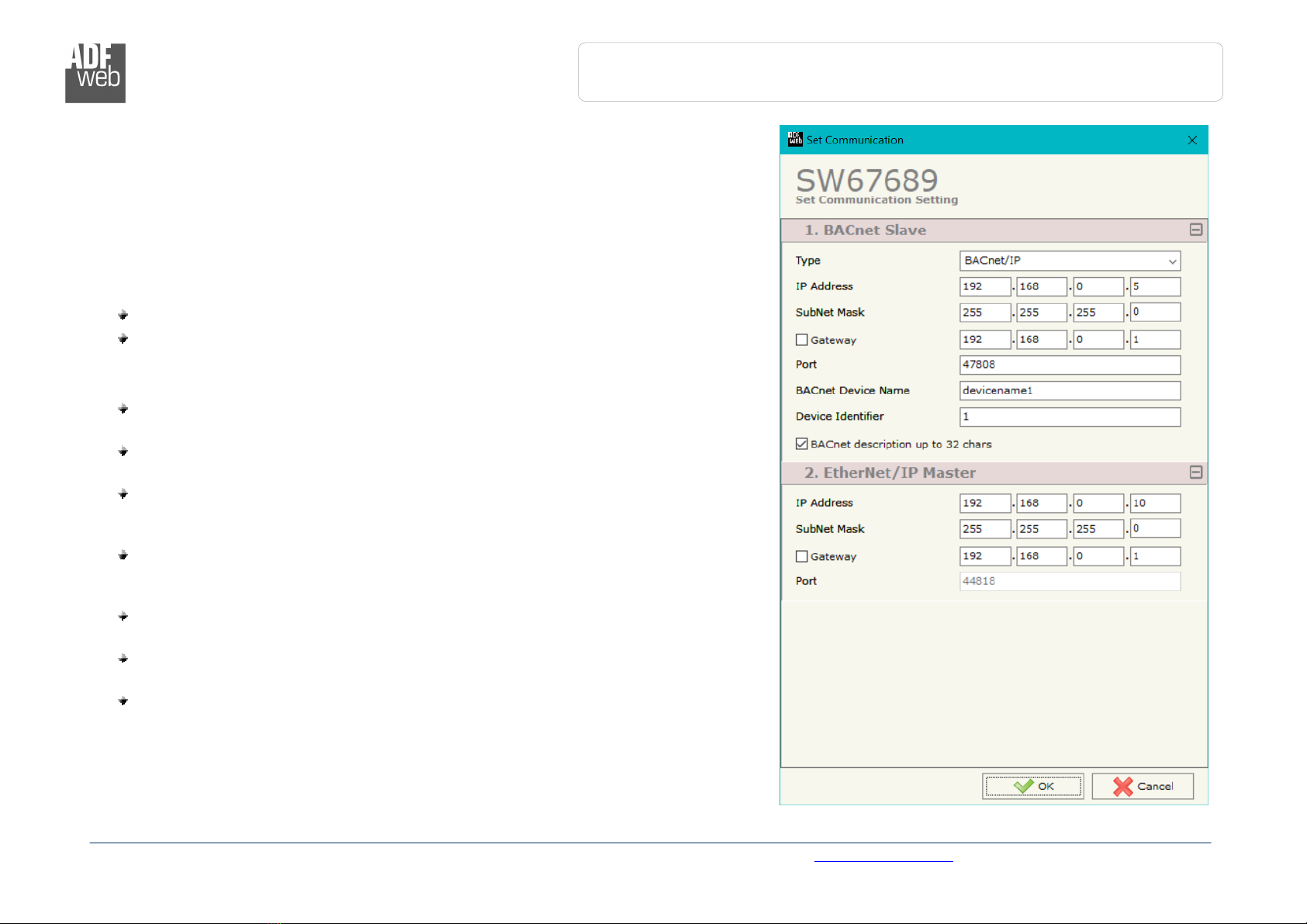

SET COMMUNICATION 19
ETHERNET/IP ACCESS 22
SET BACNET ACCESS 23
UPDATE DEVICE 25
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 3
ACCESSORIES 3
DISCLAIMER 31
OTHER REGULATIONS AND STANDARDS 31
WARRANTIES AND TECHNICAL SUPPORT 32
RETURN POLICY 32
Pagina 2 di 32
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
EVISION LIST:
evision Date Author Chapter Description
1. 13/ 3/2 19 Tf All First release version
WA NING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
T ADEMA KS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 3 of 32
SECU ITY ALE T:
G ENE AL I NFO MATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P E SONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
ESIDUAL ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFO MITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 4 of 32

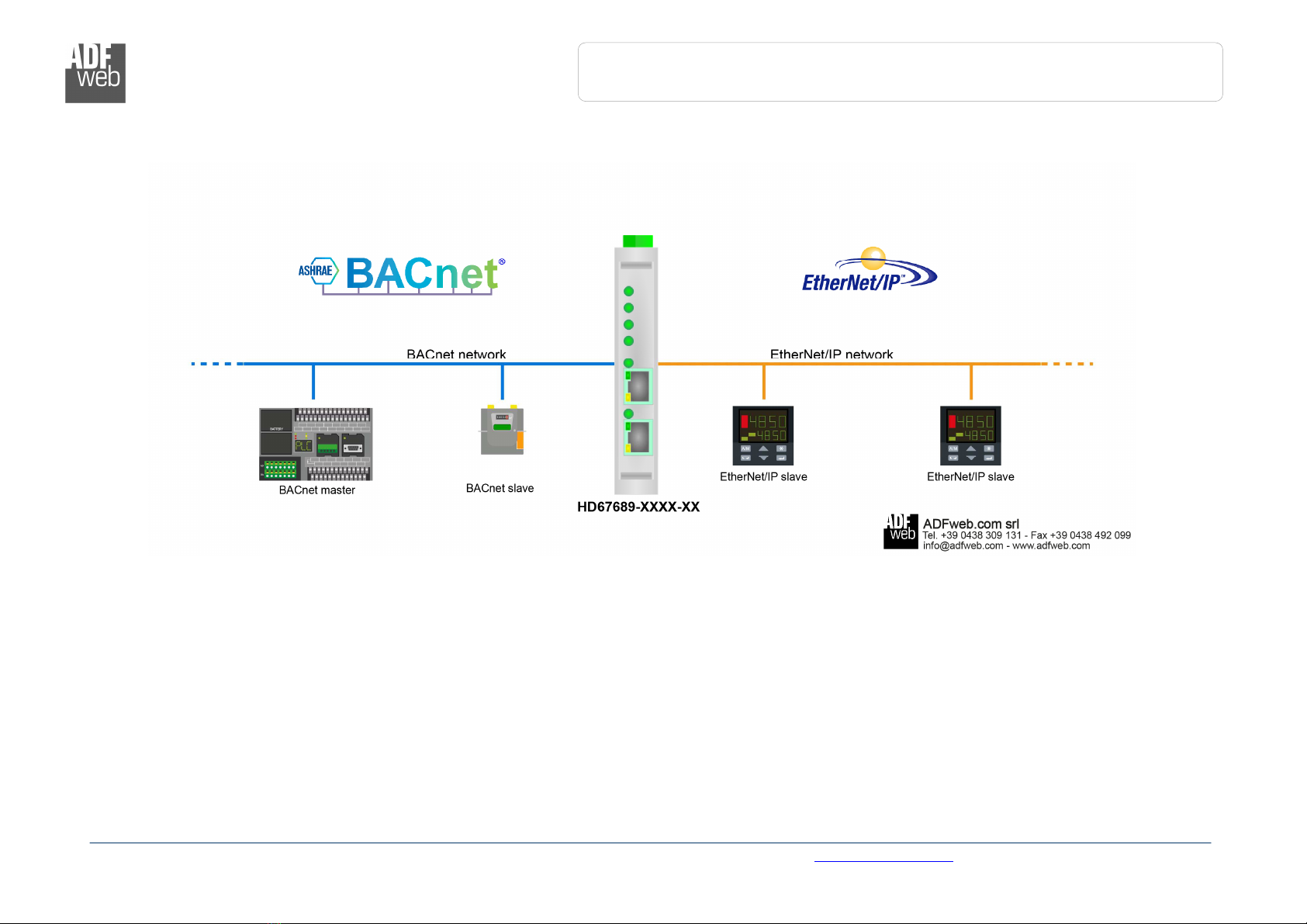

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 5 of 32
CONNECTION SCHEME:
Figure
1
a
: Connection scheme for HD67
689
-
I
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 6 of 32
Figure
1
b
: Connection scheme for HD67
689
-
MST
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 7 of 32
Figure
1
c
: Connection scheme for HD67
689
-
MST
-
B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 8 of 32
CHA ACTE ISTICS:
The HD67689-xx-A1 is a BACnet Slave / EtherNet/IP Master Converter.
It allows the following characteristics:
Two-directional information between BACnet and EtherNet/IP;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGU ATION:
You need Compositor SW67689 software on your PC in order to perform the following:
Define the parameter of the EtherNet/IP;
Define the parameter of the BACnet;
Define the list of EtherNet/IP slaves connected to the converter;
Define the list of BACnet objects accessible on BACnet side;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 9 of 32
POWE SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67689-xx-xx 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67689-xxxx-xx 4
Caution: Not reverse the polarity power
HD67689-xxxx-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 1 of 32
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 11 of 32
LEDS (for HD67689-IP-A1):
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: BACnet state (green) Blinks when a BACnet request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: EtherNet/IP
communication (green) Blinks when EtherNet/IP communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (green) OFF OFF
6: Not used (green) OFF OFF

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 12 of 32

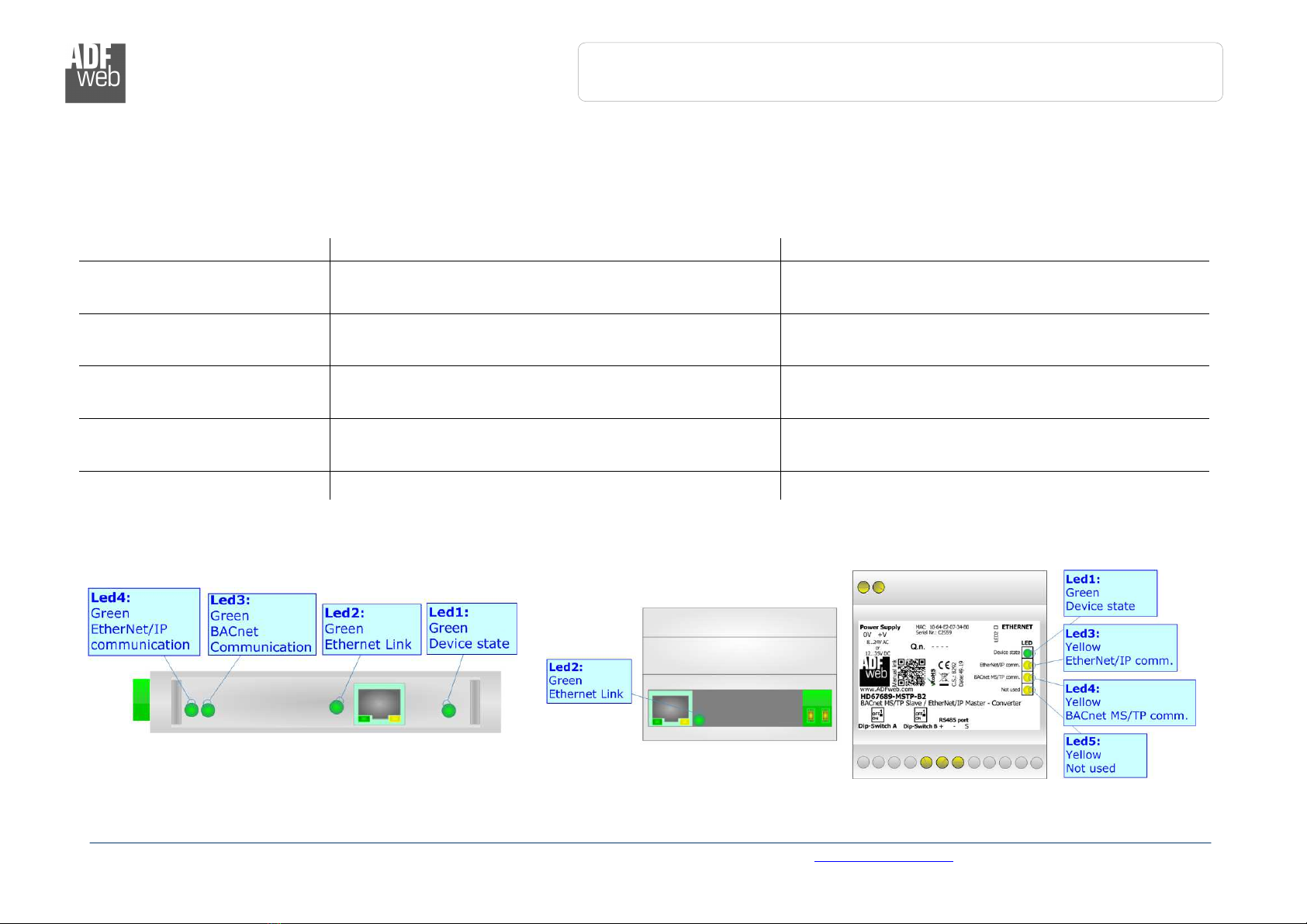

LEDS (for HD67689-MSTP-xx):
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device state Blinks slowly (~1Hz) ON: Device powered
OFF: Device not powered
2: Ethernet Link ON: Ethernet cable inserted
OFF: Ethernet cable not inserted
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BACnet Communication Blinks when a BACnet request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: EtherNet/IP
Communication Blinks when EtherNet/IP communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (green) OFF OFF

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 13 of 32

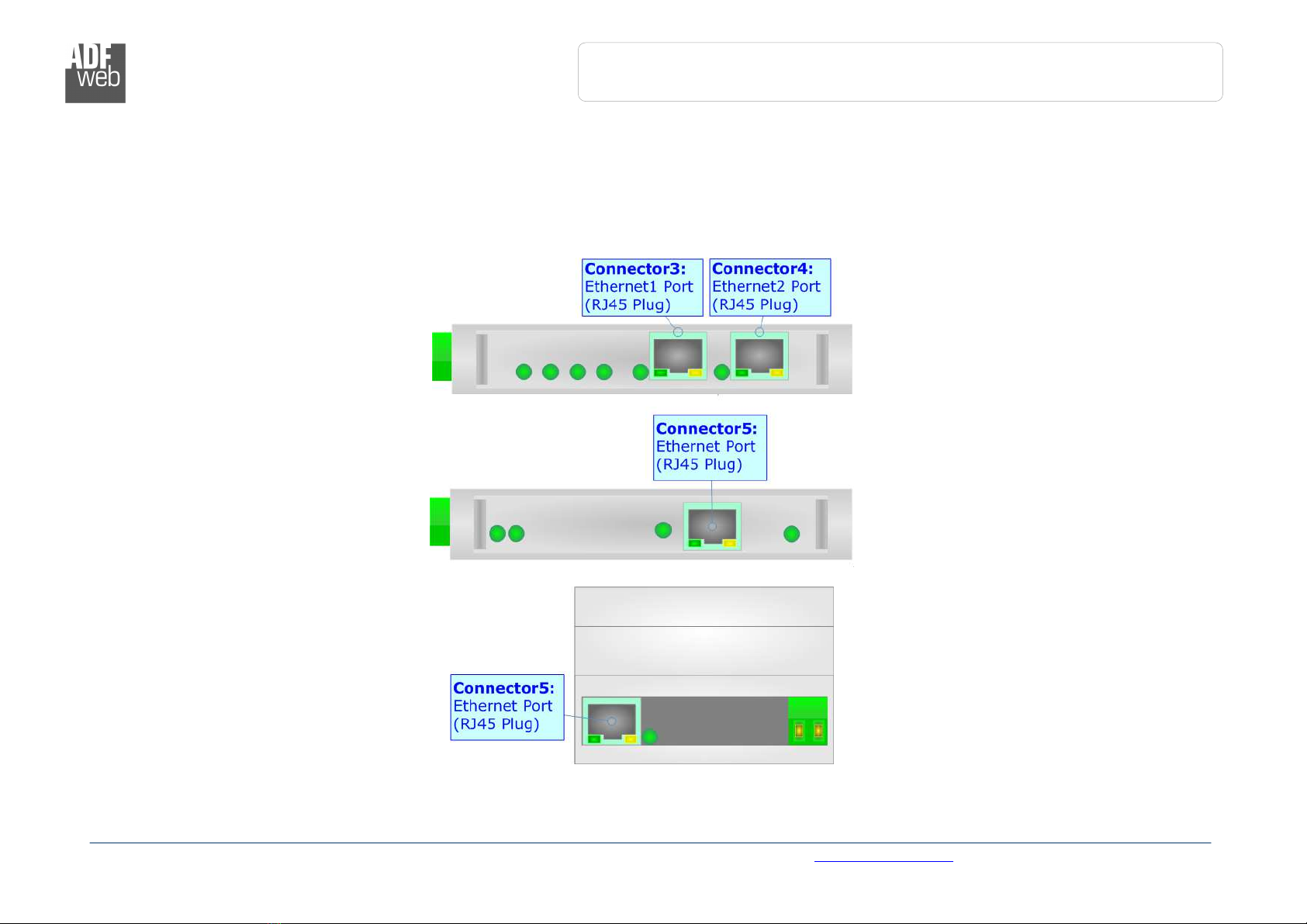

ETHE NET:
The Ethernet connection must be made using Connector3 or Connector4 or Connector5 of HD67689-xxxx-xx with at least a Category 5E
cable. The maximum length of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 1 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a
PC/PLC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 14 of 32

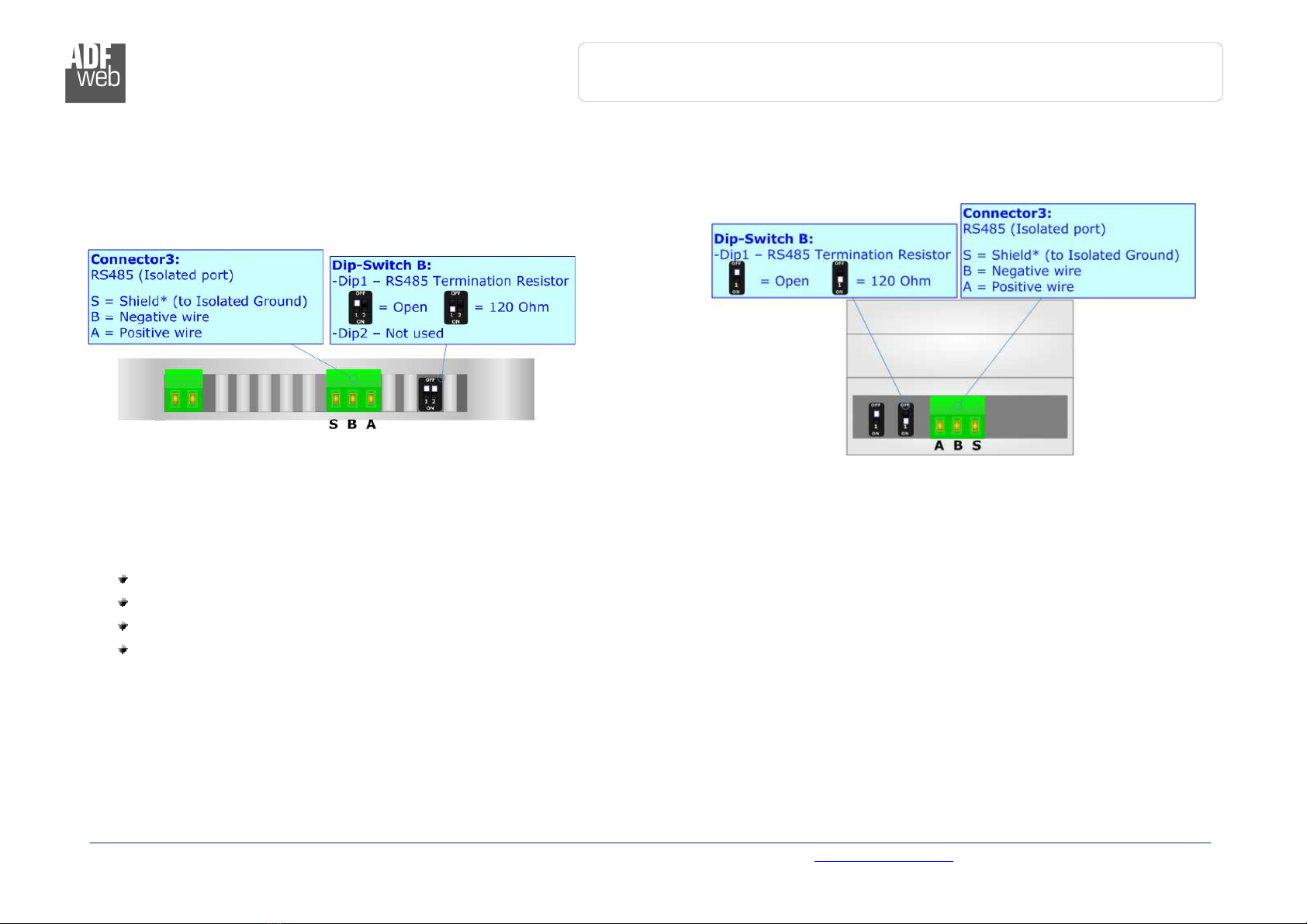

S485 (for BACnet MS/TP):
For terminate the RS485 line with a 12 Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 12 m (4 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 15 of 32
USE OF COMPOSITO SW67689:
To configure the Converter, use the available software that runs with Windows called SW67689. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).

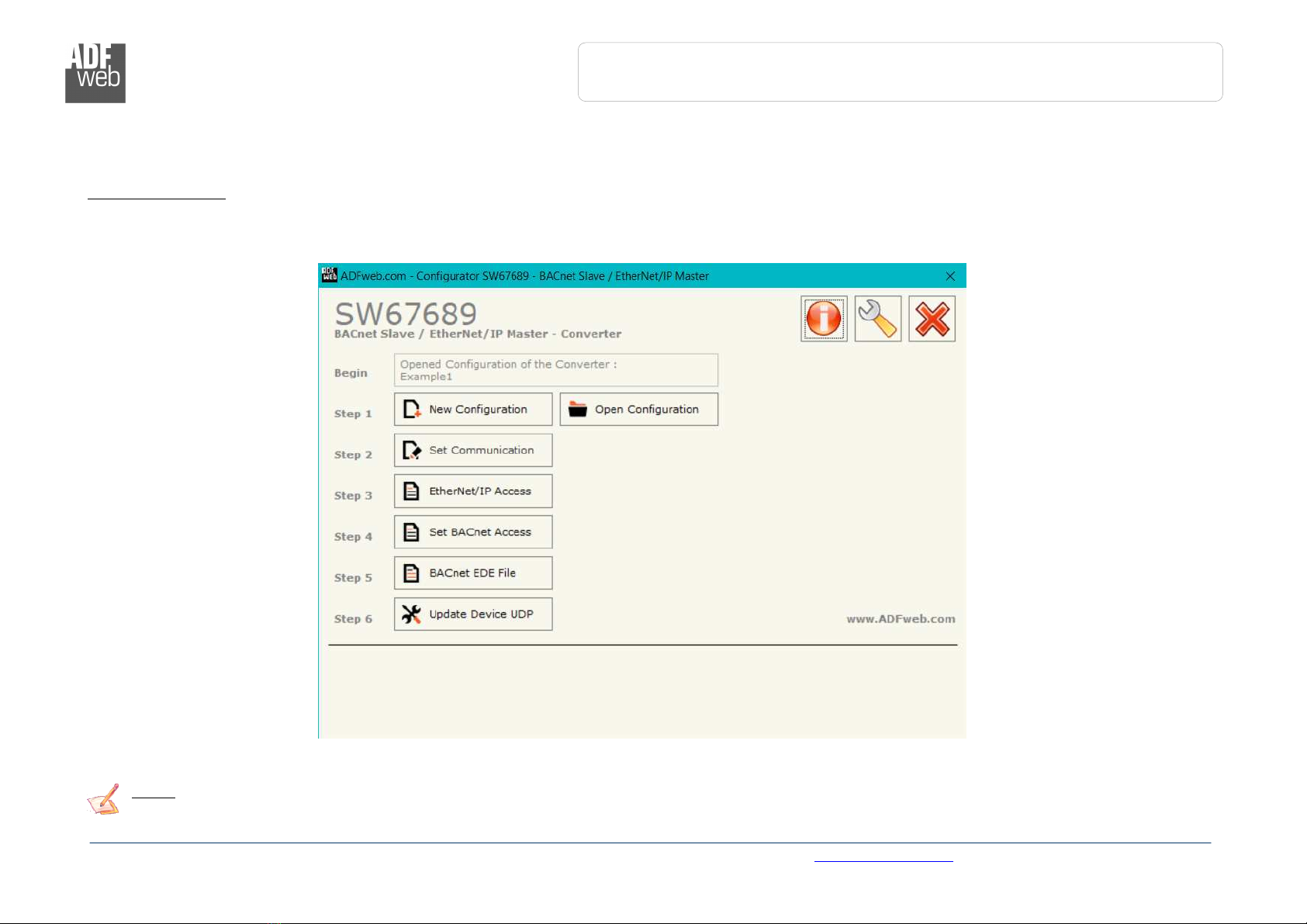

When launching the SW67689, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figu
re 2: Main window for SW67689

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 16 of 32
NEW CONFIGU ATION / OPEN CONFIGU ATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “BACnet Slave / EtherNet/IP Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 17 of 32
SOFTWA E OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67689 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 18 of 32
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 19 of 32
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, BACnet
and EtherNet/IP.
By Pressing the “Set Communication” button from the main window for SW67689
(Fig. 2) the window “Set Communication” appears (Fig. 3).
In the field “Type” is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
If selected “BACnet/IP” the means of the fields for “BACnet Slave” are:
In the fields “IP ADD ESS” the IP address of BACnet/IP side of the converter
is defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/IP side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature is
used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The
default port used for BACnet communication is 478 8, but is possible to insert
any value (except 1 and 1 1);
In the field "BACnet Device Name" the name of BACnet/IP side of the
converter is defined;
In the field “Device Identifier” the ID of BACnet/IP side of the converter is
defined;
If the field “BACnet description up to 32 chars” is checked, the description
for the BACnet Objects can be up to 32 chars long.
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave /
EtherNet/IP
Master
Document code: MN67689_ENG Revision 1. Page 2 of 32
The means of the fields for “EtherNet/IP Master” are:
In the fields “IP ADD ESS” the IP address for EtherNet/IP side of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask for EtherNet/IP side of the converter is defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can be enabled or disabled pressing the Check Box
field. This feature is used for going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined. The port has a fixed value of 44818.
