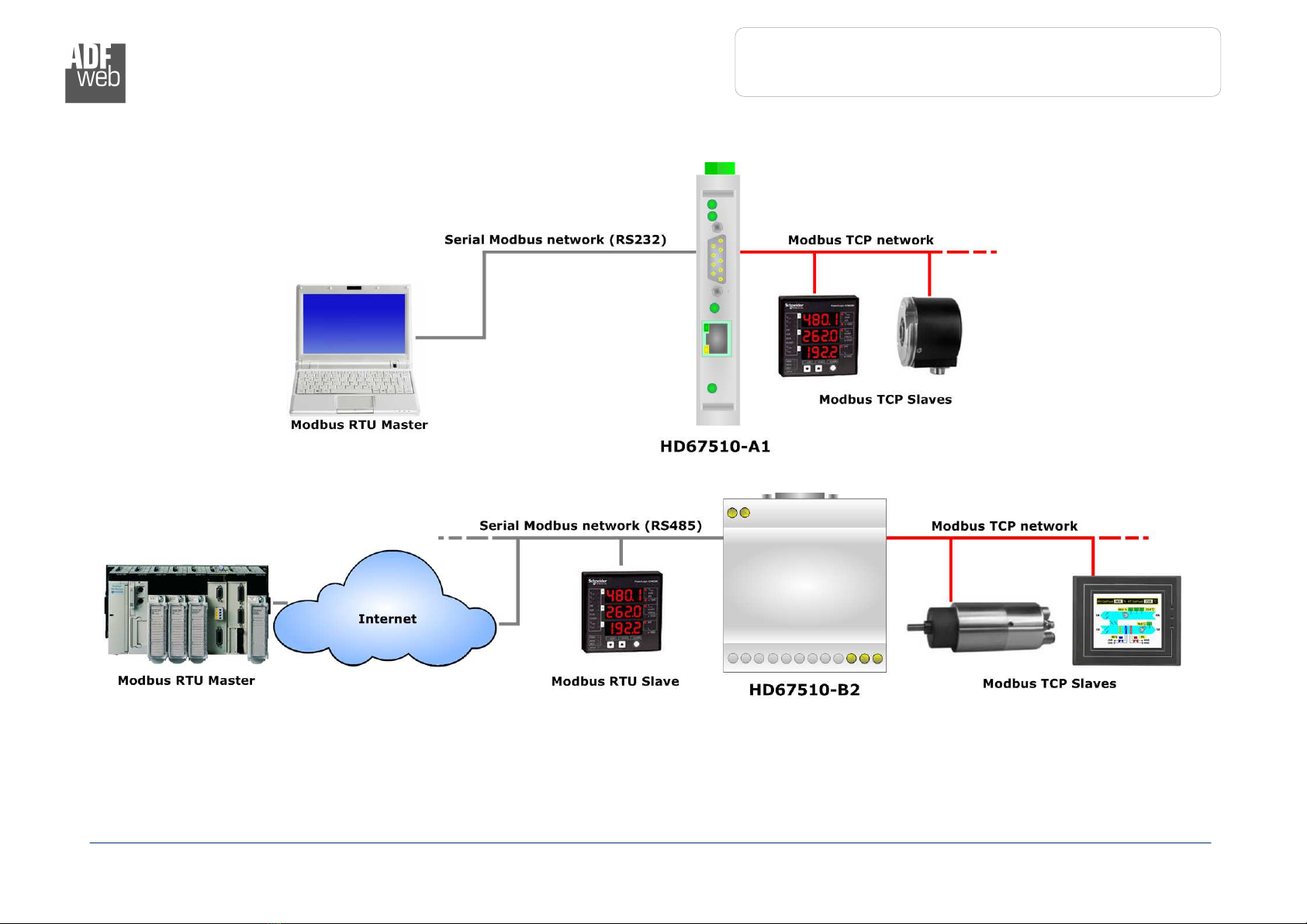

EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 5 of 33
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67510 A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 6 of 33
Figure 1b: Connection scheme for HD67510 A1 422

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 7 of 33
Figure
1c
: Connection
s
cheme for HD675
10
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 8 of 33
CHARACTERISTICS:
The HD67510-A1 and HD67510-B2 are a Modbus Slave / Modbus TCP Master – Converter
It allows for the following characteristics:
Triple isolation between Serial - Power Supply, Serial - Ethernet, Power Supply - Ethernet
Ethernet 10Base-T / 100Base-T, autosensing for Modbus TCP ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIG RATION:
You need Compositor SW67510 software on your PC in order to perform the following:
Define the parameters of Modbus TCP line;
Define the parameters of Serial Modbus line;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 9 of 33
POWER S PPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67510-A1-xxx 3 5
HD67510-B2 3 5
Ca
ution: Not reverse the polarity power
HD67510-A1
HD67
510
-
A1
-
422
HD67510
-
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 10 of 33
F NCTION MODES:
The device has got two function modes depending on the position of the ‘Dip-Switch A’
HD67510-A1-xxx version:

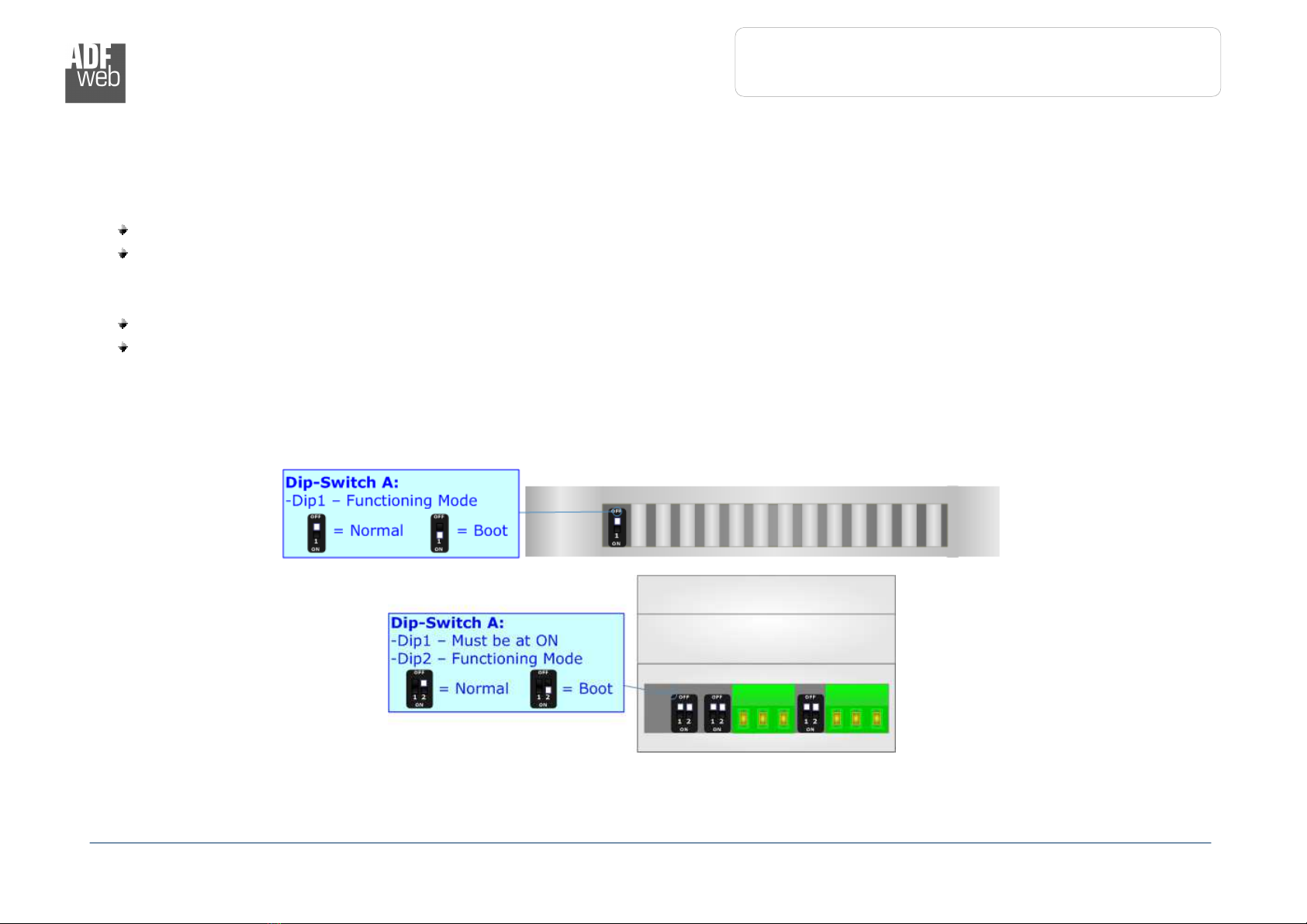

With ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
With ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware
HD67510-B2 version:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 11 of 33
LEDS:
The devices has got four (five for HD67510-B2) LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet Link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: Serial communication Blinks when are received Modbus response
frames (RS232/RS485)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus TCP
communication
Blinks when are received Modbus TCP request
frames
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (present only on
HD67510-B2) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 12 of 33
ETHERNET:
The Ethernet connection must be made using Connector5 of HD67510-A1/HD67510-B2 with at least a Category 5E cable The maximum
length of the cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To
connect the device to a Hub/Switch the use of a straight cable is recommended To connect the device to a PC/PLC/other the use of a cross
cable is recommended
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial
cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters
The device is provided with a D-sub connector type DE-9 Male (also called DB-9) The cable must use a DE-9 Female connector
The serial port is used for programming the device and for Modbus communication

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 13 of 33
RS485:

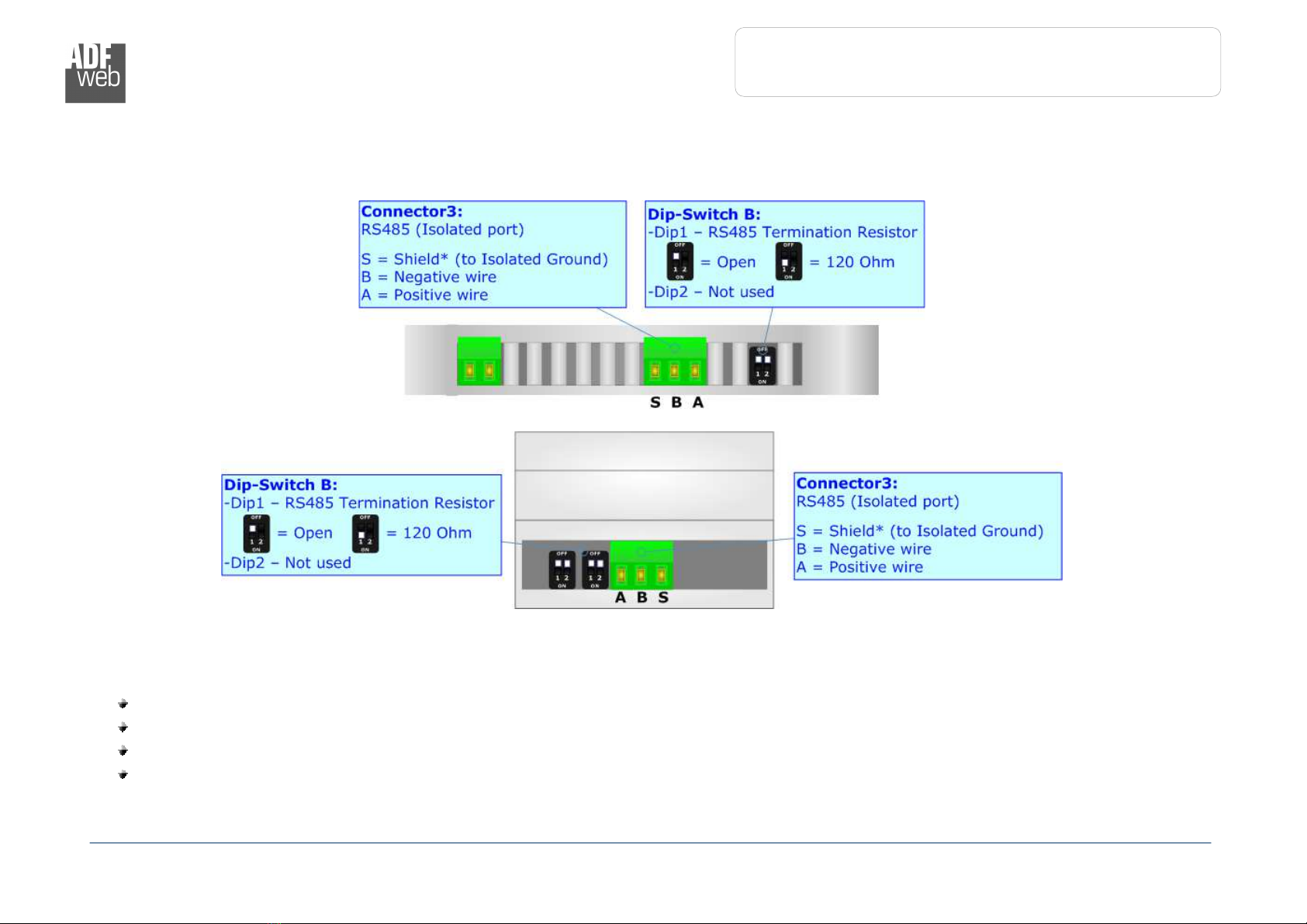

To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 14 of 33
RS422:

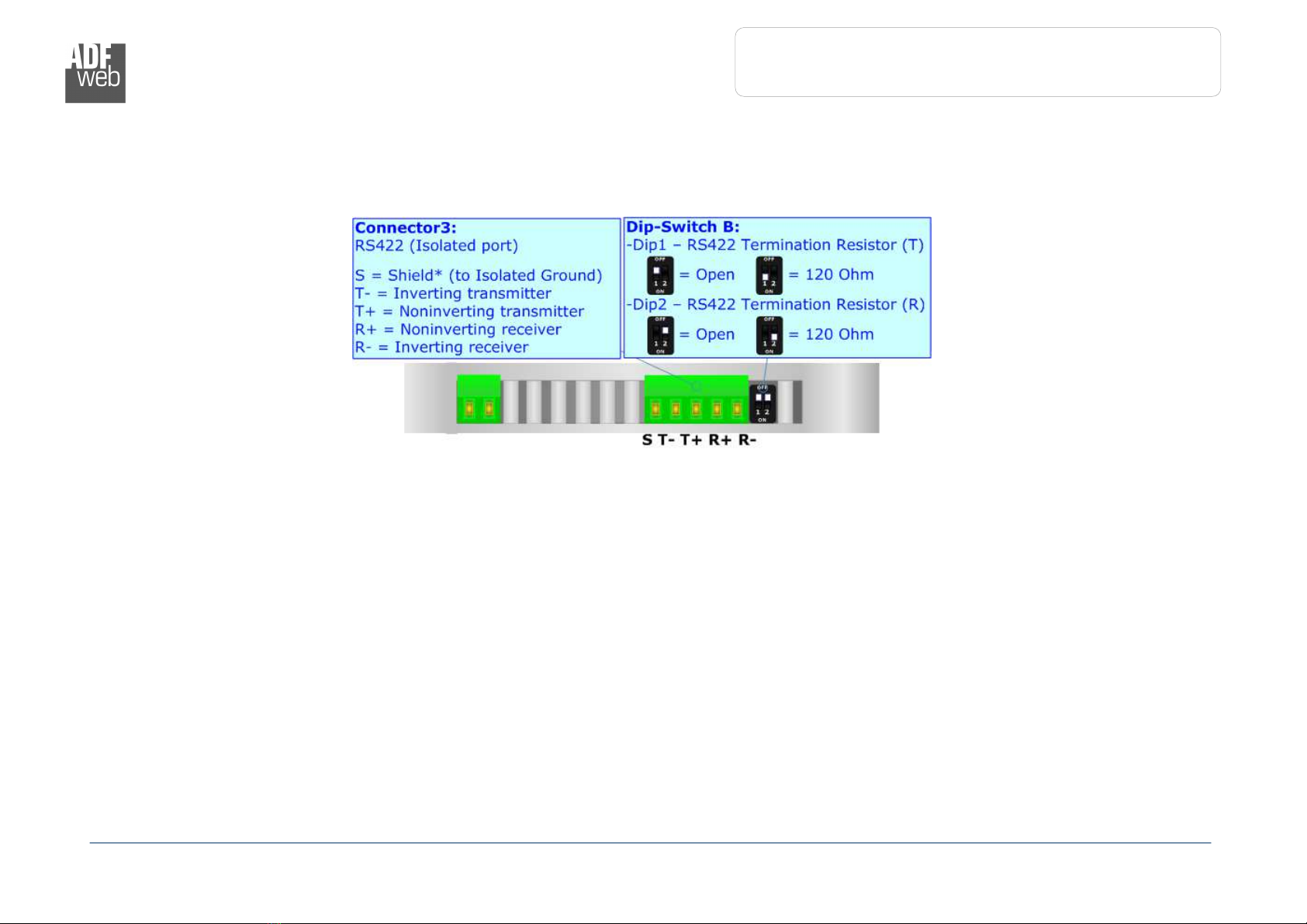

For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure
The maximum length of the cable should be 1200m (4000 feet)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 15 of 33
SE OF COMPOSITOR SW67510:
To configure the Converter, use the available software that runs with Windows called SW67510 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67510, the window on the right appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67510

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 16 of 33
NEW CONFIG RATION / OPEN CONFIG RATION:

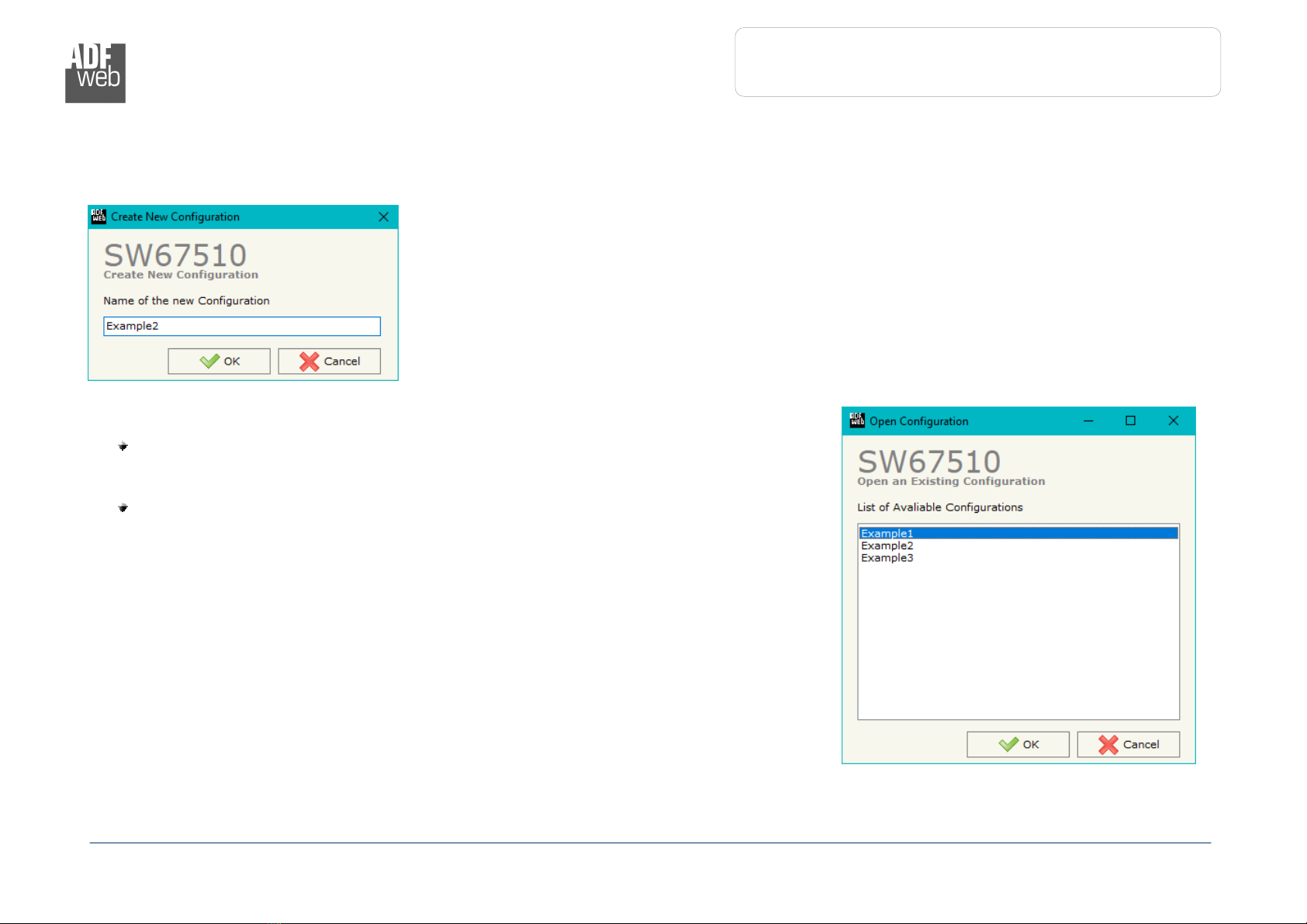

The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “Modbus Slave / Modbus TCP Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 17 of 33
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor

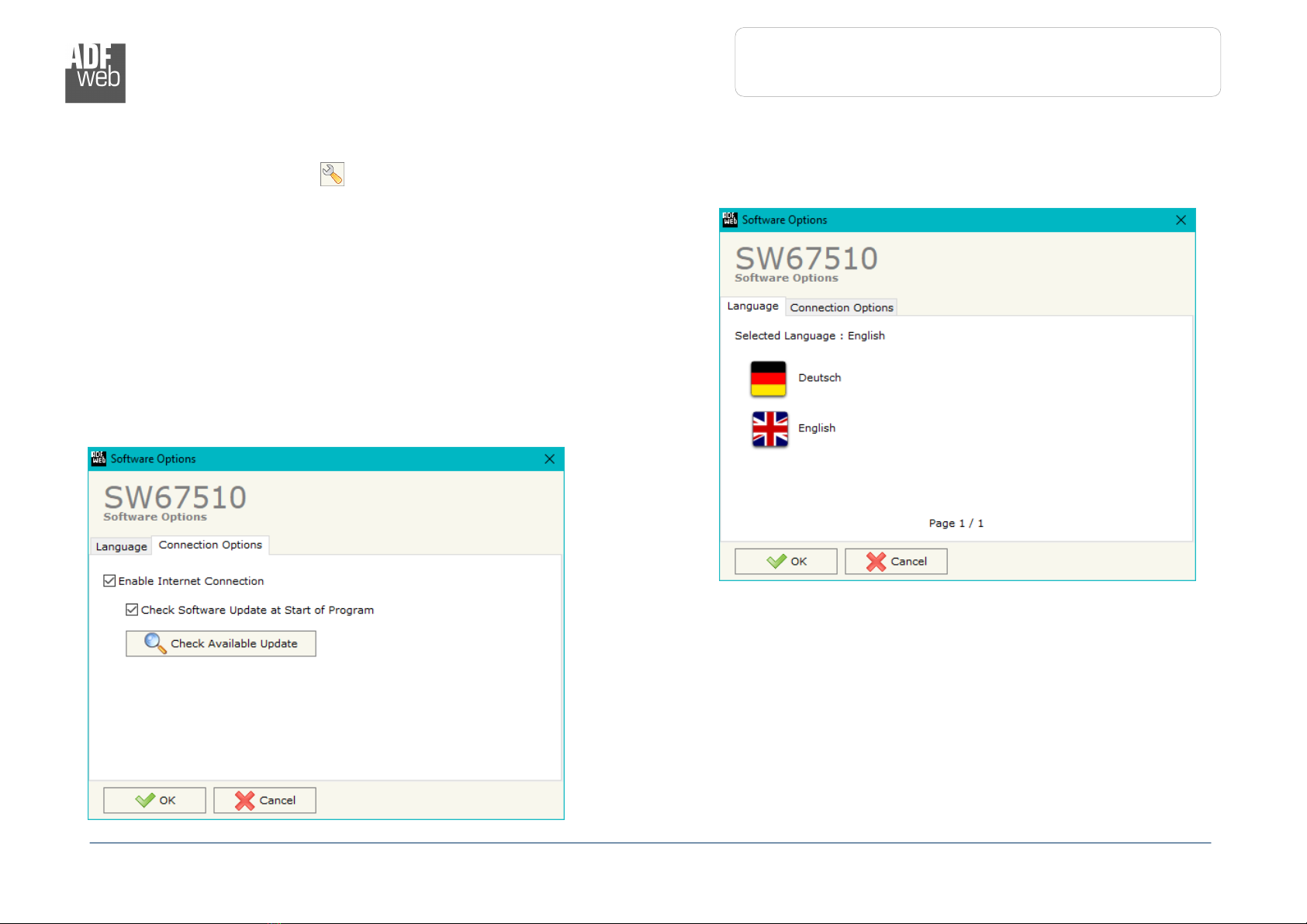

In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software pdate at Start of Program”, the
SW67510 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 18 of 33
SET COMM NICATION:
By Pressing the “Set Communication” button from the main window for SW67510
(Fig 2) the window “Set Communication” appears (Fig 3)
The window is divided in different sections in order to define the different
parameters of the converter:
Operation Mode
Modbus Slave
Modbus TCP Master

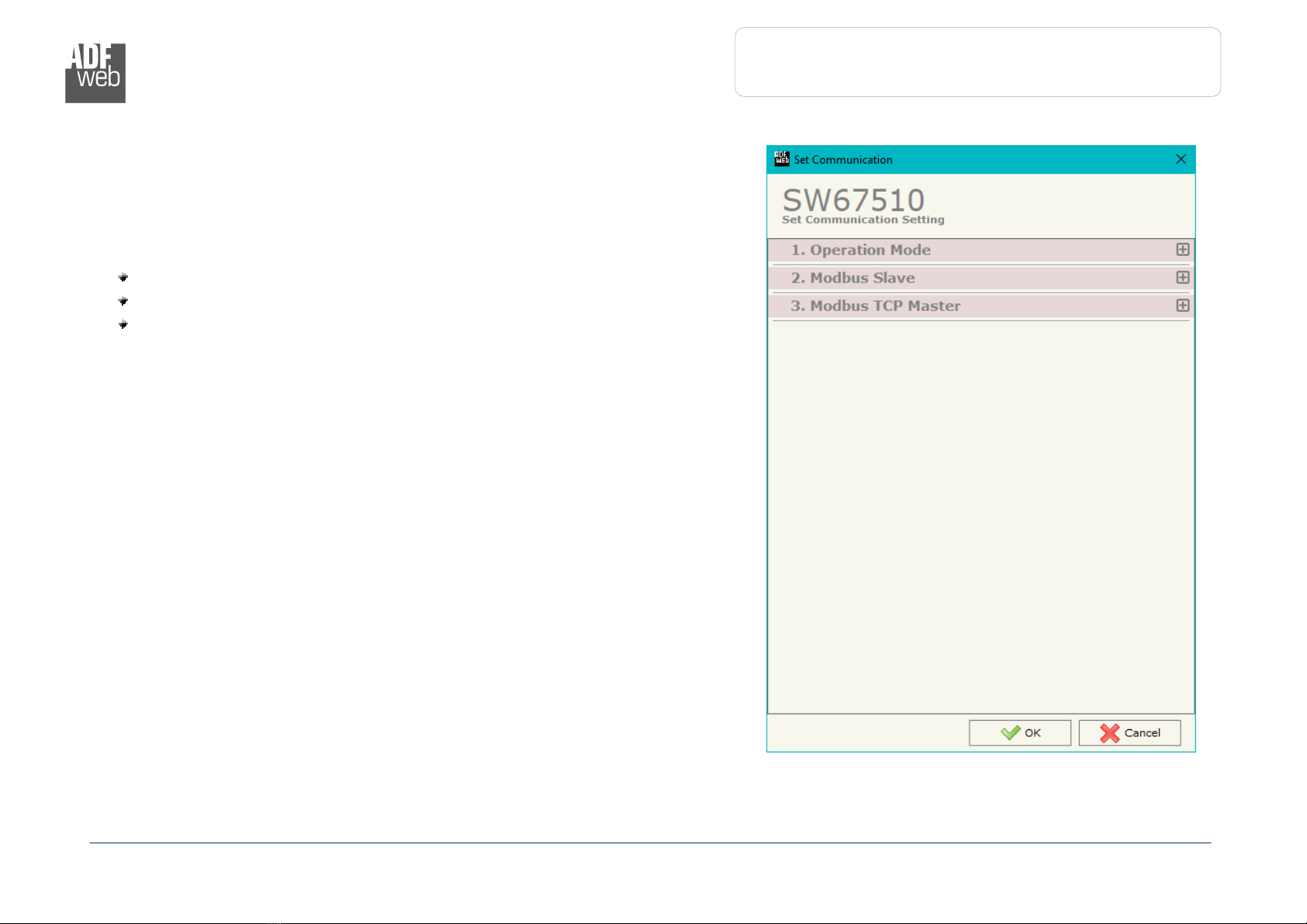

Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 19 of 33
Figure 3b: “Set Communication  Operation Mode”
window
Figure 3c: “Set Communication  Modbus Slave”
window
O PERATION M ODE :
This section is used to define the working mode of MQTT side of the converter It is
possible to define:
Normal Mode (with Translate Table): the converter can be seen like a
single serial Modbus slave The address of Modbus is assigned in the “Set
Communication” section
Routing Slave Address: the converter can be seen like more than one serial Modbus slave Each serial Modbus slave is a row of the
table and it is possible to assign to which TCP device is linked
Work with Fix IP Address: the converter can be seen like a single serial Modbus slave The address of Modbus is assigned in the
“Set Communication” section It is not necessary to compile the Translate Table: every request that arrives on serial is transferred on
TCP (using TCP format of frame) to the slave with the IP address defined in the “Set Communication” section
M ODB S S LAVE :
This section is used to define the main parameters of Modbus line The means of the
fields are:
In the field “Serial” the serial lien to use for Modbus communication is
defined;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits is defined;
In the field “ID Device” the address of serial Modbus device is defined This
field can be compiled only if the selected “Operation Mode” is “Normal Mode
(with Translate Table)” or “Work with Fix IP Address”;
If the option “Enable Broadcast message with ID Zero” is checked, the
converter will accept broadcast requests addressed to the Modbus ID 0 (only
if “Routing Slave Address” mode is set);
If the option “No Modbus Exception on TCP TimeOut” is checked, the converter does not send any exception code in case of
missing response from Modbus TCP side Otherwise, it sends the exception code 0x36

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 20 of 33

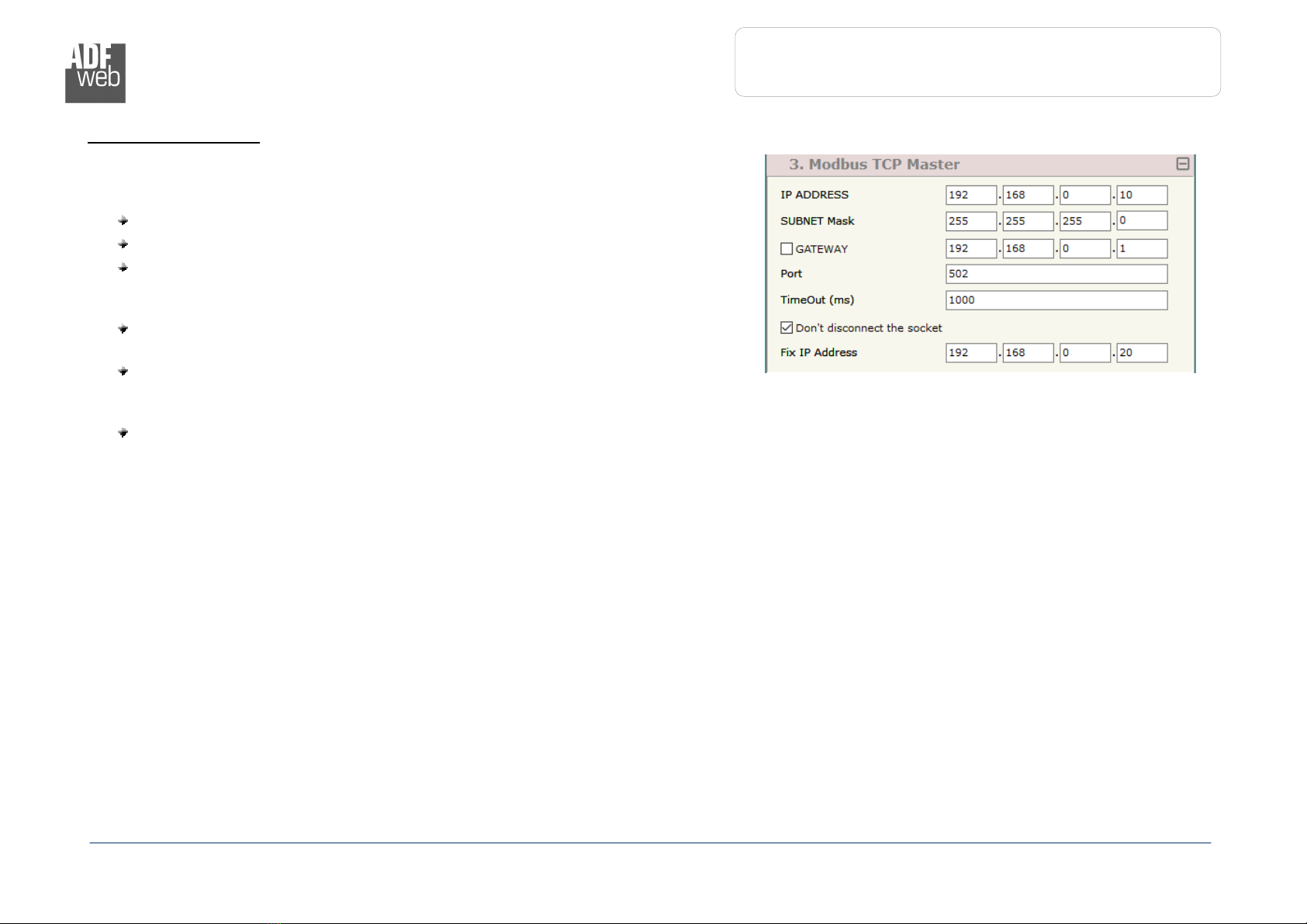

Figure 3d: “Set Communication  Modbus TCP
Master” window
M ODB S TCP M ASTER :
This section is used to define the main parameters of Modbus line The means of the
fields are:
In the field “IP Address” the IP address of the converter is defined;
In the field “SubNet Mask” the Subnet Mask of the converter is defined;
In the field “Gateway” the default gateway of the net is defined This
feature can be enabled or disabled pressing the Check Box field This feature
is used for going out of the net;
In the field “Port” the TCP port for Modbus TCP communication of the
converter is defined;
If the option “Don’t disconnect the socket” is checked, the converter will
hold the TCP connection opened Otherwise It will close it after every
request/response
In the field “Fix IP Address” the IP Address of the Modbus TCP slave is
defined (only if “Work with Fix IP Address” mode is set)
