ADF Web HD674-A025 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 1 of 30
User Manual
Revision 1.000
English
DMX / Ethernet – Converter
(Order Code: HD674-A025)
For Website information:
www.adfweb.com?Product=HD674-A025
For Price information:
www.adfweb.com?Price=HD674-A025
Benefits and Main Features:
Very easy to configure
Wide supply input range
Electrical isolation
Industrial temperature range:
-40°C / 105°C (-40°F / 221°F)
For others ateways / Bridges:
J1939 to Modbus
See also the following links:
www.adfweb.com?Product=HD67212 (Modbus RTU)
CA open to Modbus
See also the following links:
www.adfweb.com?Product=HD67001 (Modbus RTU Master)
www.adfweb.com?Product=HD67002 (Modbus RTU Slave)
www.adfweb.com?Product=HD67004 (Modbus TCP Master)
www.adfweb.com?Product=HD67005 (Modbus TCP Slave)
For others ateways / Bridges:
For CA bus 2.0A and/or CA bus 2.0B to Modbus
See also the following links:
www.adfweb.com?Product=HD67011 (Modbus RTU Slave)
www.adfweb.com?Product=HD67012 (Modbus RTU Master)
www.adfweb.com?Product=HD67014 (Modbus TCP Slave)
www.adfweb.com?Product=HD67015 (Modbus TCP Master)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 2 of 30
I DEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNIN 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFI URATION 7
POWER SUPPLY 8
LEDS 9
RS485 10
ETHERNET 11
USB 11
USE OF COMPOSITOR SW674-A025 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
DMX DEFAULT VALUE 17
UPDATE DEVICE UDP 18
ETHERNET PROTOCOL 20
MECHANICAL DIMENSIONS 24
ORDER CODE 28
ACCESSORIES 28
DISCLAIMER 29
OTHER RE ULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SUPPORT 30
RETURN POLICY 30
Pagina 2 di 30
UPDATED DOCUME TATIO :
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISIO LIST:
Revision Date Author Chapter Description
1.000 11/01/2017 Ff All First released version
WAR I G:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 3 of 30
SECURITY ALERT:
G E ERAL I FORMATIO
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I TE DED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSO EL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CO FORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 4 of 30

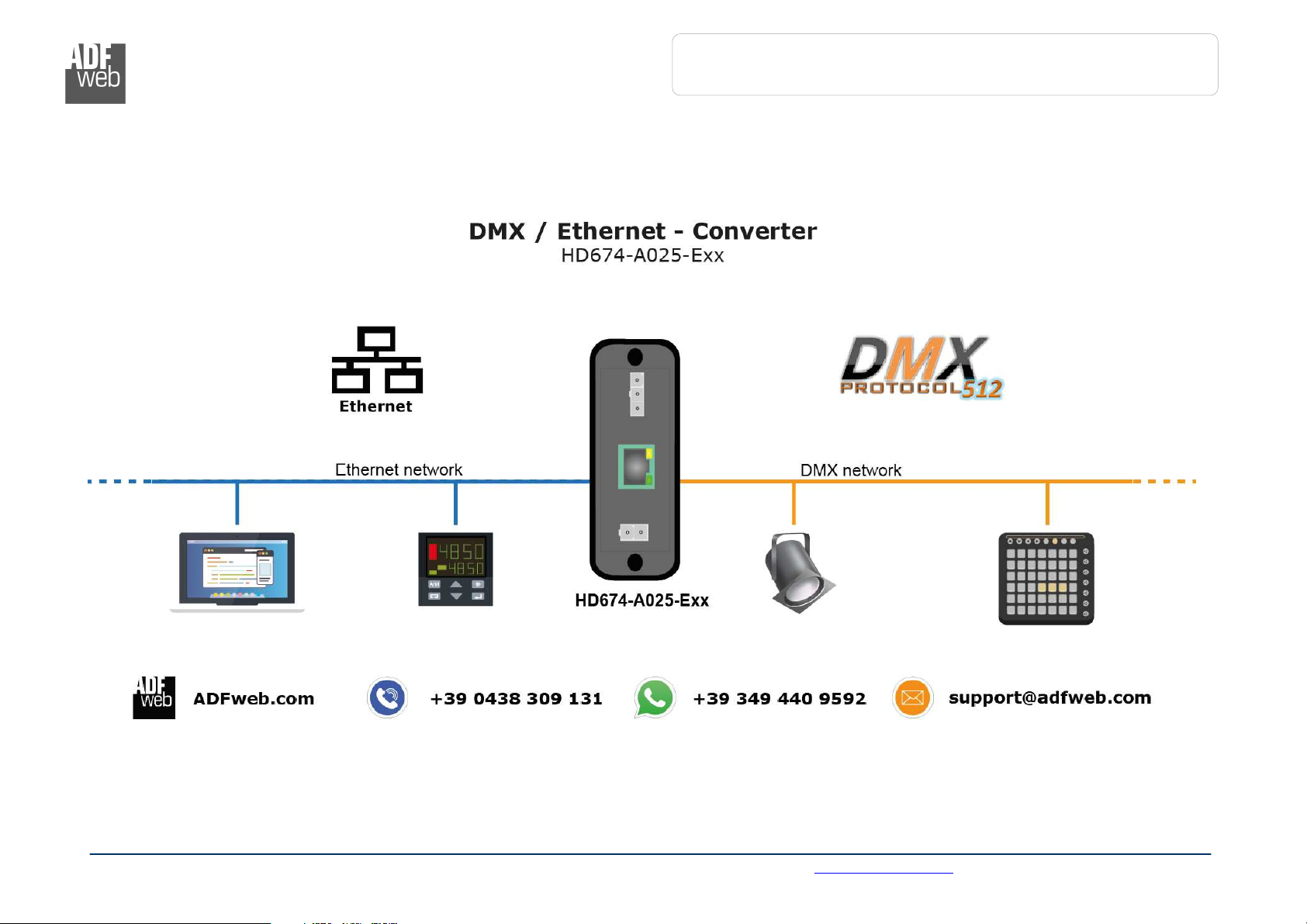

EXAMPLE OF CO ECTIO :

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 5 of 30

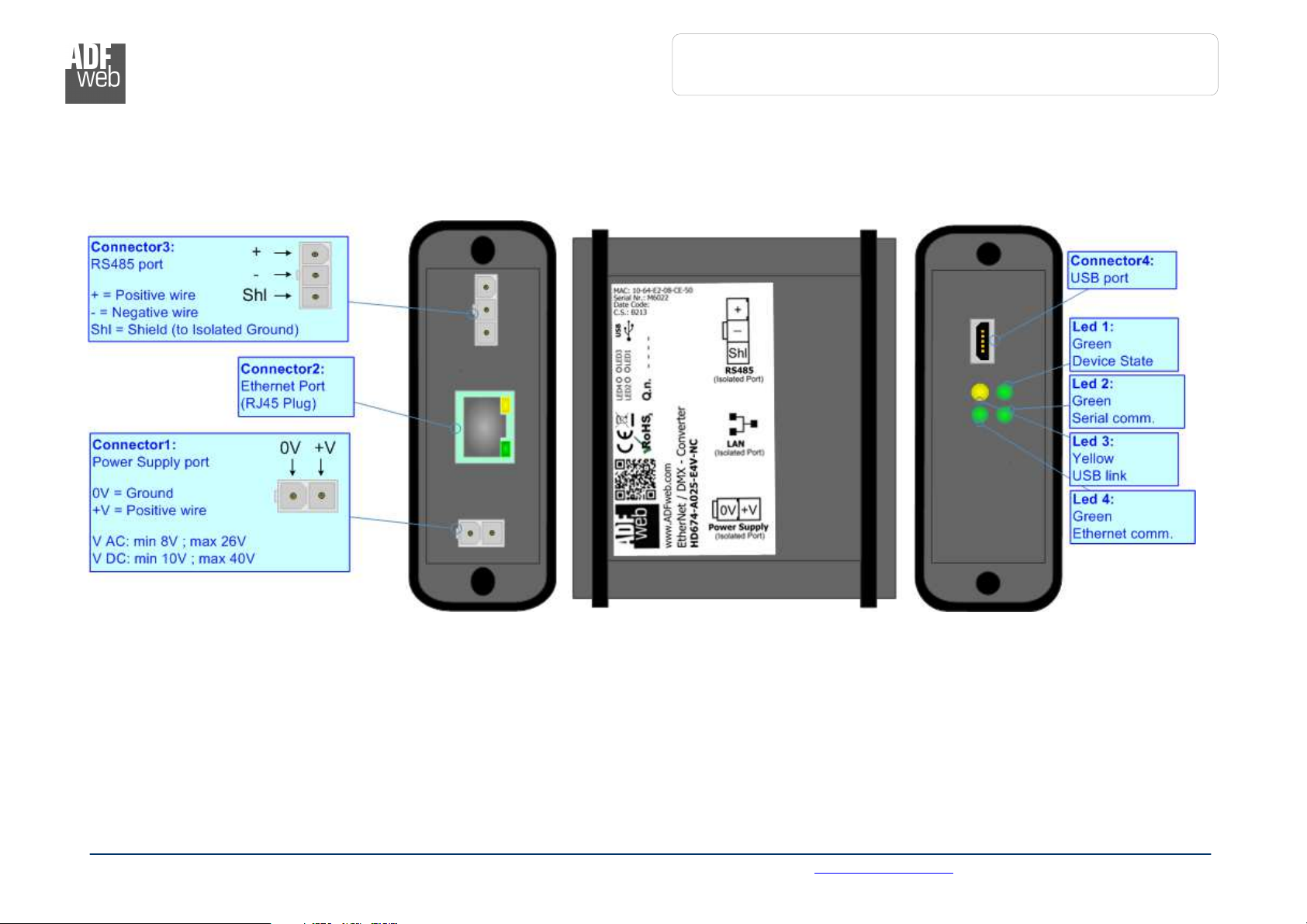

Figure
1a
: Connection scheme
for HD674
-
A0
25
-
E4x
-
xx
CO ECTIO SCHEME:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 6 of 30
Figure
1b
: Connection scheme
for HD674
-
A0
25
-
E7x
-
xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 7 of 30
CHARACTERISTICS:
The “HD674-A025” series are rugged devices used to interface DMX devices with Ethernet network.
With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,
vertical, oblique).
It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1.5”
connectors. If is resined, the enclosure, like the “AMP SuperSeal 1.5" connectors, is waterproof.
All the four series have these characteristics:
Triple 4kV isolation between Power Supply / Ethernet / DMX;
Varnished / Resined (optionally);
Wide power supply input range: 8…26V AC | 10…40V DC;
Mini-Fit® / AMP SuperSeal 1.5 connectors;
Metal enclosure with fixing lugs;
Possibility to use Metal hose clamps for fixing it without using lugs;
Microprocessor for data control;
Wide temperature range: -40°C / 105°C (-40°F / 221°F).
CO FIGURATIO :
You need Compositor SW674-A025 software on your PC in order to perform the following:
Define the parameter of Ethernet line;
Define the parameter of DMX line;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 8 of 30
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two
tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD674-A025-Exx-xx 8V 26V 10V 40V
Consumption at 24V DC:
Device W/VA
HD674-A025-Exx-xx 4
Note: It is possible to use also negative tensions. In this case the polarity must be
inverted.
Caution: ot reverse the polarity power
HD674-A025-E4x-xx HD674-A025-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 9 of 30
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED ormal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Serial Communication
(green) Blinks when DMX messages are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: USB Link (yellow) O : USB cable inserted
OFF: USB cable not inserted
O : USB cable inserted
OFF: USB cable not inserted
4: Ethernet communication
(green) Blinks when Ethernet communication is working Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 10 of 30

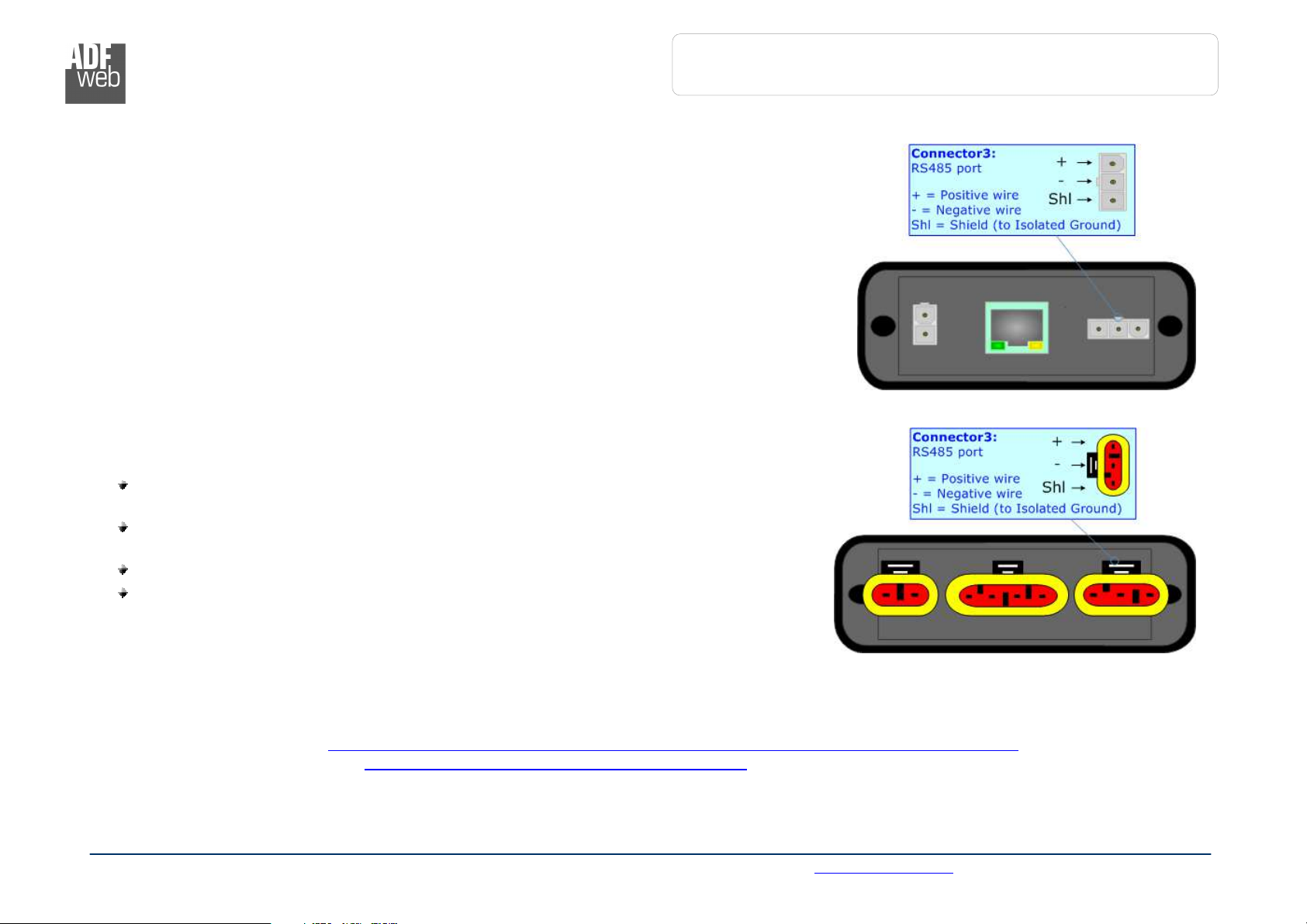

RS485:
The connection of the RS485 in the HD674-A025-E4x-xx device must be made with a 3way
MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of
the page.
The connection of the RS485 in the HD67-A025-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of
the page.
The termination of RS485 line, with a 120Ω resistor, in the HD674-A025-Exx-xx is made
internally of the device; when the order is performed. If the device have the RS485 terminated
the code is the follow: HD674-A025-Exx-Yx; otherwise is this other: HD674-A025-Exx-Nx.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AW stranded twisted pairs conductor + foil shield + braid
shield;
Belden p/n 82842 - 2x 24AW stranded twisted pairs conductor + foil shield + braid
shield;
Tasker: p/n C521 - 1x 24AW twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AW twisted pairs conductor + foil shield + braid shield.
Link for Mini-Fit® connectors: http://www.molex.com/molex/products/group?key=minifit_products&channel=products
Link for SuperSeal 1.5 connectors: http://www.te.com/catalog/cinf/en/c/10876/956

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 11 of 30

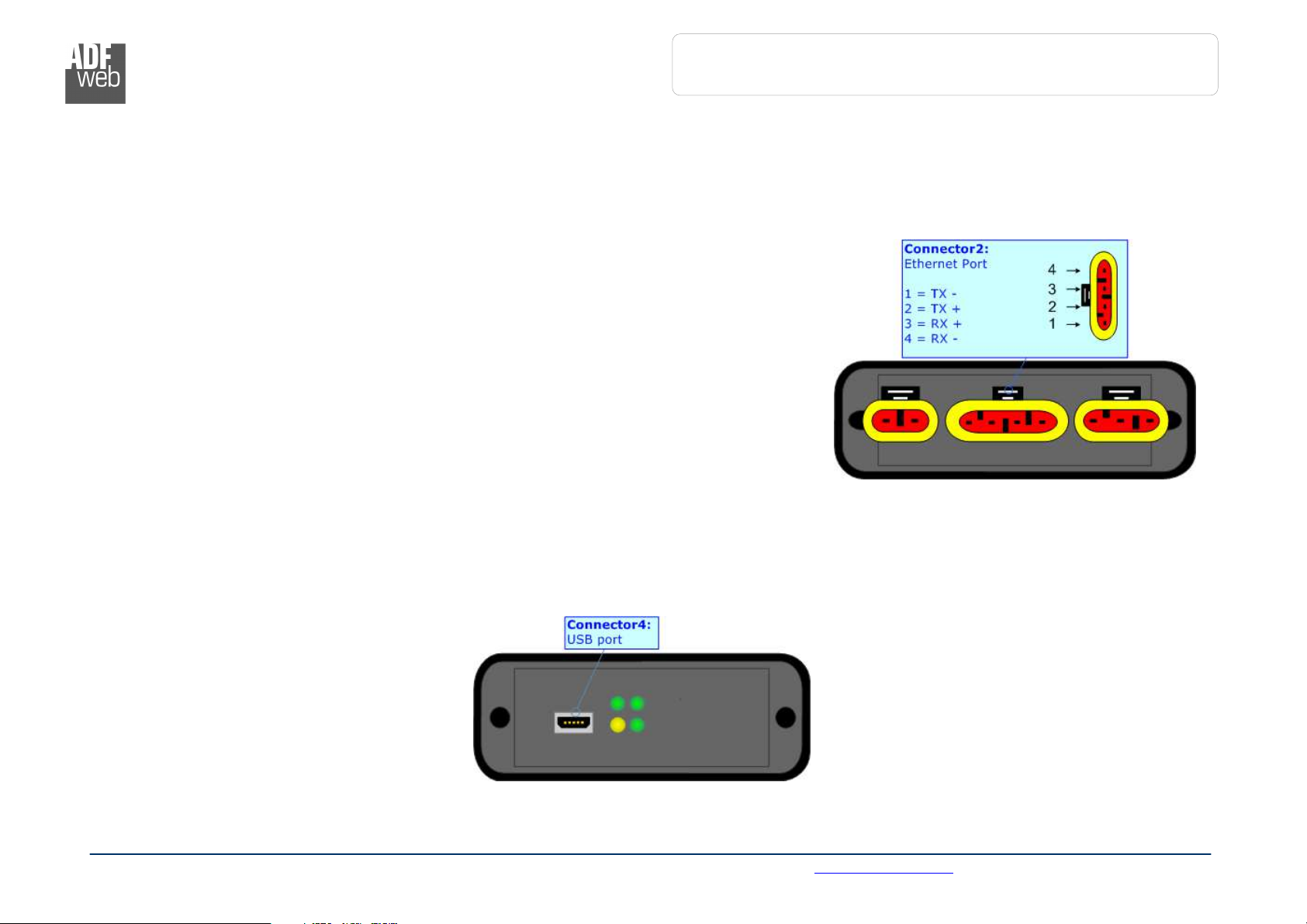

ETHER ET:
The connection of Ethernet in the HD674-A025 device must be made with at least a Category 5E cable. The maximum length of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable.
The connection of Ethernet in the HD674-A025-E4x-xx device must be made with RJ45
connector.
The connection of the Ethernet in the HD674-A025-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of
the page.
USB:
The USB port is used to start the converter in Boot Mode. It is necessary to use a Micro USB type B cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 12 of 30
USE OF COMPOSITOR SW674-A025:
To configure the Converter, use the available software that runs with Windows called SW674-A025. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).
When launching the SW674-A025, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for
SW674
-
A0
25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 13 of 30

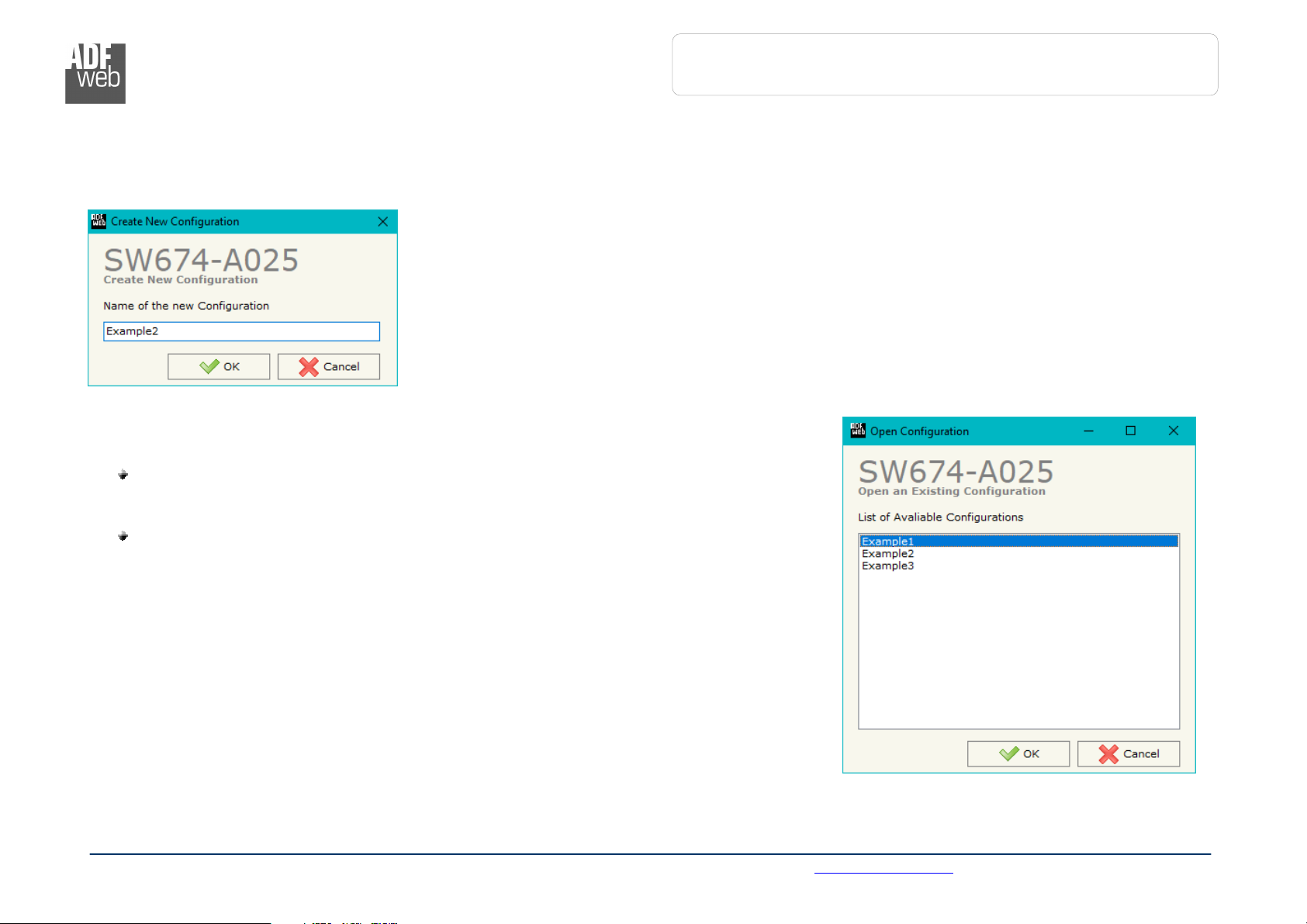

EW CO FIGURATIO / OPE CO FIGURATIO :
The “ ew Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “ DMX / Ethernet - Converter” in order
to configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 14 of 30
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW674-A025 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 15 of 30
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 16 of 30
SET COMMU ICATIO :
This section define the fundamental communication parameters of two buses, DMX Slave and Ethernet.
By Pressing the “Set Communication” button from the main window of SW674-A025 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The means of the fields for “DMX” section are:
In the field “DMX” it is possible to define if the converter will act as DMX controller (“DMX OUT”)
or as DMX device (“DMX IN”);
In the field “Channel umber” the number of channels of the DMX side is defined (up to 512
channels).
The means of the fields for “Ethernet” are:
In the field “IP ADDRESS” the IP address of the converter is defined;
In the field “SUB ET Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the net is defined. This feature can be enabled
or disabled pressing the Check Box field. This feature is used for going out of the net.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 17 of 30
DMX DEFAULT VALUE:
By pressing the “DMX Default Value” button from the main window for SW674-A025 (Fig. 2) the “DMX Default Value” window appears (Fig.
4).
In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON.
Figure
4
:
“DMX Default Value” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 18 of 30
UPDATE DEVICE UDP:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ at OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 19 of 30
Figure
6
:
“
rotection
” window
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD674-
A025 device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD674-A025 device.
Warning:
If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For do
this you have to launch the "Command Prompt" and write the command "arp -d". Pay
attention that with Windows Vista, Seven, 8, 10 you have to launch the "Command
Prompt" with Administrator Rights;
Pay attention at Firewall lock.
In the case of HD674-A025 you have to use the software “SW674-A025”: www.adfweb.com\download\filefold\SW674-A025.zip.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX
/
Ethernet
-
Converter
Document code: MN674-A025_EN Revision 1.000 Page 20 of 30
ETHER ET PROTOCOL
DMX WRITE ( WHE DMX = DMX OUT)
The bytes that compose the request are these:
Byte umber Description
1 ASCII char ‘E’
2 ASCII char ‘D’
3 ASCII char ‘M’
4 ASCII char ‘X’
5 ÷ 7 0 ÷ 511  Starting DMX channel in ASCII format
8 ÷ 10 1 ÷ 512  Number of consecutive DMX channels in ASCII format
11 ÷ n+11 Value in Hex for each DMX channel
n = Number of DMX channels
If the request is correct, the bytes that compose the response are these:
Byte umber Description
1 ASCII char ‘T’
2 ASCII char ‘R’
3 ASCII char ‘A’
4 ASCII char ‘N’
5 ASCII char ‘S’
6 ASCII char ‘F’
7 ASCII char ‘E’
8 ASCII char ‘R’
9 ASCII char ‘ ’
10 ASCII char ‘D’
11 ASCII char ‘O’
12 ASCII char ‘N’
13 ASCII char ‘E’
14 ASCII char ‘!’
