ADF Web HD67704-IP-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 1 of 28
User Manual
Revision 1.000
English
DMX / BACnet Master - Converter
(Order Code: HD67704-I -B2)
For Website information:
www.adfweb.com? roduct=HD67704
For rice information:
www.adfweb.com? rice=HD67704-I -B2
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others BACnet Master products see also the following link:
Converter BACnet Master to
www.adfweb.com? roduct=HD67712 (Modbus Slave)
www.adfweb.com? roduct=HD67714 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67716 (PR FIBUS Slave)
www.adfweb.com? roduct=HD67717 (CAN)
www.adfweb.com? roduct=HD67718 (CANopen)
www.adfweb.com? roduct=HD67719 (PR FINET)
www.adfweb.com? roduct=HD67721 (DeviceNet Slave)
www.adfweb.com? roduct=HD67722 (EtherNet/IP)
www.adfweb.com? roduct=HD67723 (NMEA 2000)
www.adfweb.com? roduct=HD67725 (J1939)
www.adfweb.com? roduct=HD67726 (SNMP Agent)
www.adfweb.com? roduct=HD67801 (KNX)
www.adfweb.com? roduct=HD67832 (DALI)
Do you have an your customer protocol?
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 2 of 28
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
RS485 10
ETHERNET 11
USE OF COM OSITOR SW67704 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
SET BACNET ACCESS 18
DMX DEFAULT VALUE 22
U DATE DEVICE 23
MECHANICAL DIMENSIONS 25
ORDERING INFORMATIONS 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SU ORT 28
RETURN OLICY 28
UPDATED D CUMENTATI N:
Dear customer, we thank you for your attention and we remind you
that you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document
code” that appears at the top right-hand corner of each page of this
document.
With this “Document Code” go to web page
www.adfweb.com/download/ and search for the corresponding code on
the page. Click on the proper “Document Code” and download the
updates.
REVISI N LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual
about our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 15/06/2017 Ff All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 3 of 28
SECURITY ALERT:
G ENERAL I NF RMATI N
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERS NNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE C NF RMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 4 of 28
EXAMPLE F C NNECTI N:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 5 of 28
C NNECTI N SCHEME:
Figure 1: Connection scheme for HD67704- P-B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 6 of 28
CHARACTERISTICS:
The HD67704-I -B2 is a converter from BACnet Master to DMX and vice-versa.
They allows the following characteristics:
Up to 512 BACnet objects in reading and 512 objects in writing;
Triple isolation between Serial - ower Supply, Serial - Ethernet, Ethernet - ower Supply;
Two-directional information between DMX bus and BACnet bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
C NFIGURATI N:
You need Compositor SW67704 software on your C in order to perform the following:
Define the parameters of BACnet line;
Define the parameters of DMX line;
Define the BACnet data that the converter reads;
Define the BACnet data that the converter writes;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 7 of 28
P WER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67704-I -B2 3.5
HD67
704
-
I
-
B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 8 of 28
FUNCTI N M DES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 9 of 28
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) N: Device powered
FF: Device not powered
2: BACnet communication
(yellow) Blinks when a BACnet response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: DMX communication
(yellow) Blinks when a DMX frame is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (yellow) FF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) N: Ethernet cable connected
FF: Ethernet cable disconnected
N: Ethernet cable connected
FF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 10 of 28
RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 11 of 28
ETHERNET:
The Ethernet port is used for BACnet/I communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67704-I -B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 12 of 28
USE F C MP SIT R SW67704:
To configure the Converter, use the available software that runs with Windows called SW67704. It is downloadable from the site
www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our
web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).

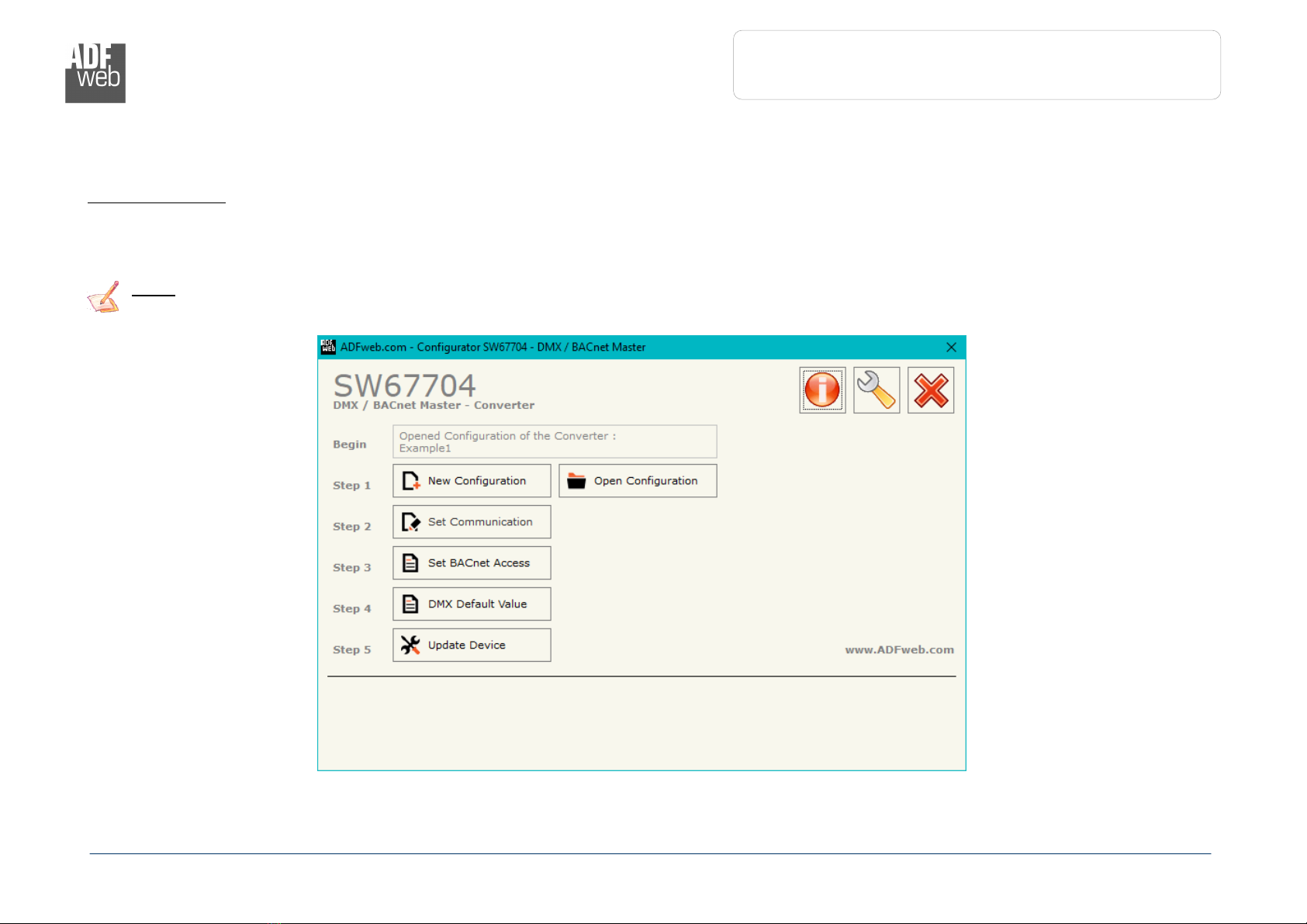

When launching the SW67704, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67
704

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 13 of 28

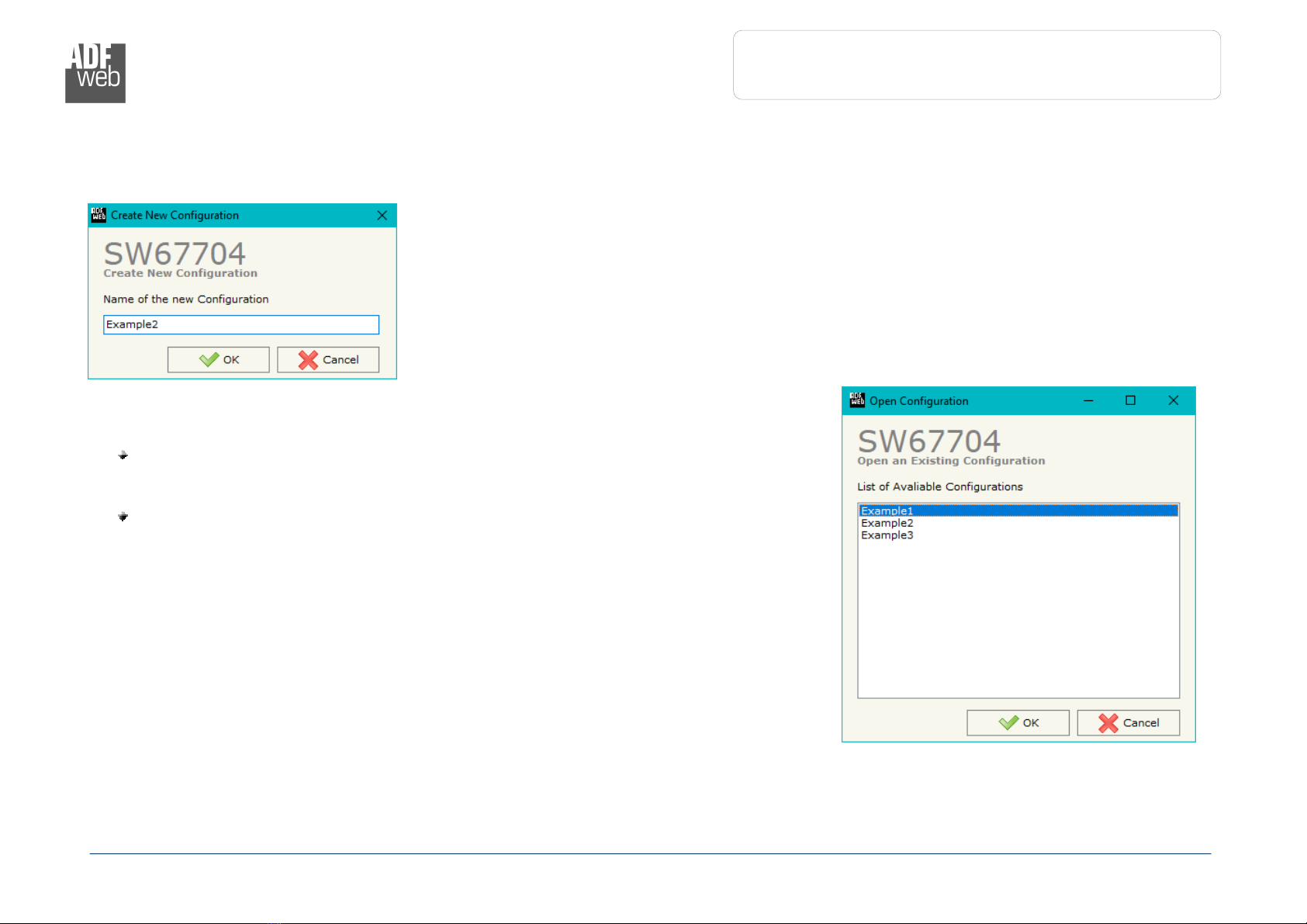

NEW C NFIGURATI N / PEN C NFIGURATI N:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “DMX / BACnet Master - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “ pen Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 14 of 28

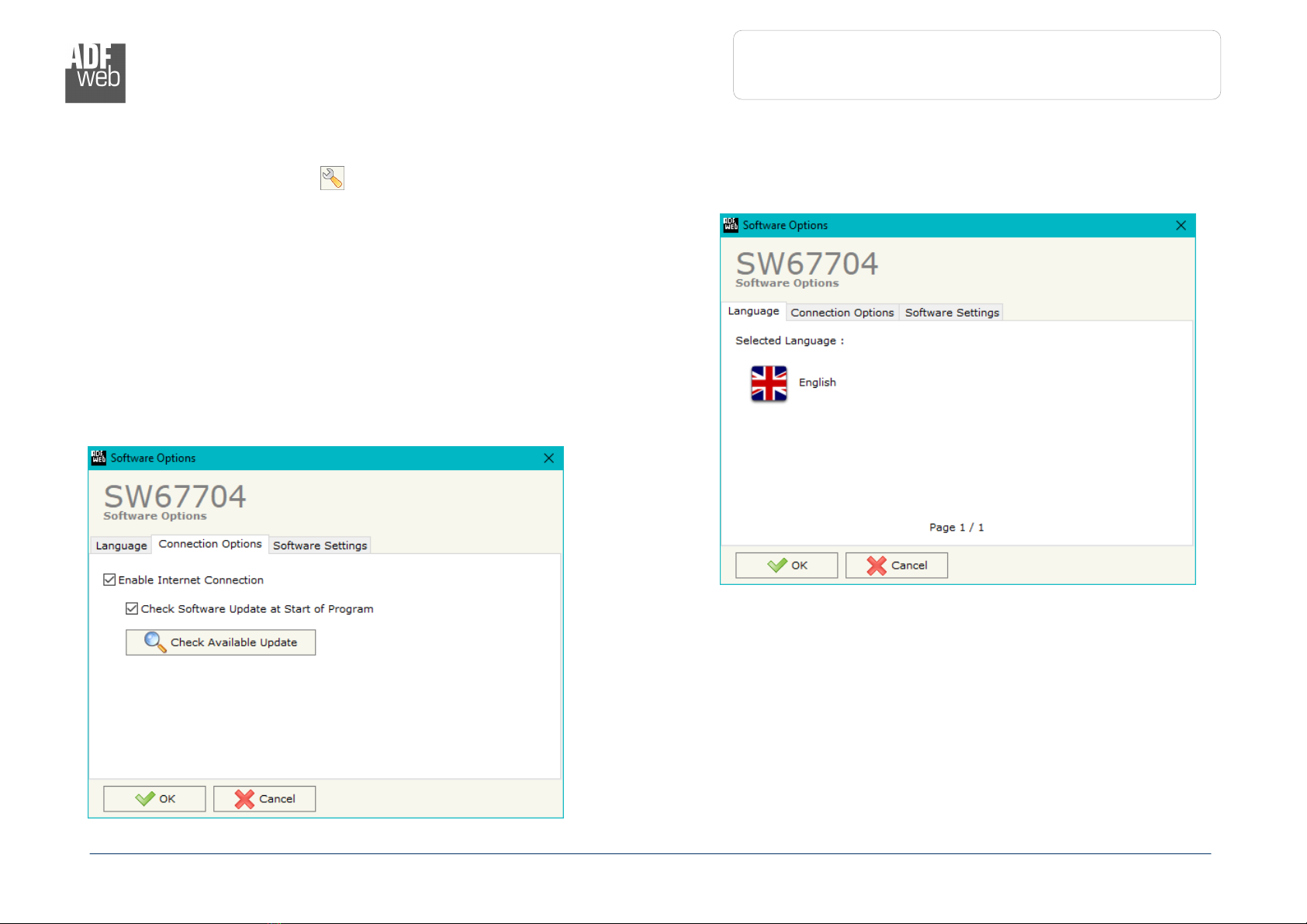

S FTWARE PTI NS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67704 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 15 of 28
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 16 of 28
SET C MMUNICATI N:
This section define the fundamental communication parameters of two buses, BACnet and DMX.
By ressing the “Set Communication” button from the main window for SW67704 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
bought), one for the BACnet parameters and the other for the DMX parameters.
In the section “BACnet Type” is possible to select the type of BACnet to use from:
BACnet/I (it uses Ethernet);
BACnet MS/T (it uses RS485).
If selected “BACnet/I ” the means of the fields for “BACnet” are:
In the field “IP ADDRESS” the I address to assign to the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The default port used for
BACnet communication is 47808, but it is possible to insert any value (except 10000 and
10001);
In the field "BACnet Device Name" the name to the BACnet node is defined;
In the field “Device Identifier” the number to the BACnet node (used for the Device Identifier)
is defined.
The means of the fields for “DMX” section are:
In the field “DMX” it is possible to define if the converter will act as DMX controller (“OUT”) or
as DMX device (“IN”);
In the field “Channel Number” the number of channels of the DMX side is defined (up to 512
channels).
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 17 of 28
If selected “BACnet MS/T ” the means of the fields for “BACnet” are:
In the field “Baudrate” it is possible to select the baudrate of the BACnet (9600, 19200, 38400,
57600, 76800, 115200);
In the field “Parity” it is possible to select the parity of the line (None, Odd, Even);
In the field “BACnet Device Name” is possible to insert the name to give to the BACnet node
(maximum 17 characters);
In the field “MAC Address” it is possible to define the MAC of BACnet node (from 0 to 254);
The field “Max Masters” specifies the highest allowable address for master nodes. The value shall
be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information frames the node may
send before it must pass the token;
In the field “Device Istance” it is possible to assign a number to the BACnet node (Used for the
Device Istance).
The means of the fields for the “Ethernet Update” section are:
In the fields “IP ADDRESS” the I address to assign to the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net.
These informations are used for programming the Converter.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 18 of 28
Figure 4a: “Set BACnet Access  BACnet Read” window
SET BACNET ACCESS:
By ressing the “Set BACnet Access ” button from the main window of SW67704 (Fig. 2), the window “Set BACnet Access” appears (Fig.
4).
The window is divided in two parts, the “BACnet Read” that contains the BACnet objects that the converter reads from the BACnet slaves
(only if “DMX OUT” is set); and “BACnet Write” that contains the BACnet objects that the converter writes into the BACnet slaves (only if
“DMX IN” is set).
The means of the fields in the window (BACnet in Read) are the following:
In the field “IP Address / ID” the I address / ID of the slave that contains the data to be read is defined;
In the field “ bject Type” the object to be read is defined;
In the field “Instance” the instance number of the object is defined;
By checking the field “En Dest” it is possible to enable the Destination Network (D Net), Destination Length (D Len) and Destination
Address (D Adr). These informations are used for make a request to other segments of network (through a BACnet router);
In the field “D Net” the destination network (from 1 to 65535) is defined;
In the field “D Len” the length of “D Add” field (1 or 2 or 6) is defined;

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 19 of 28
In the field “D Adr” the address of the endpoint is defined. If “D Len” is ‘1’ it is possible to insert a number from 1 to 255; if “D Len”
is ‘2’ it is possible to insert a number from 1 to 65535; if “D Len” is ‘6’ it is possible to insert an I and port in this format
“192.168.2.188:47808”;
In the field “Poll Time” the frequency of the request is defined (in ms);
In the field “Max Error” the number of consecutive errors that the Master waits before resetting the data for the specific requests is
defined;
In the field “Channels” the channel of the DMX array where saving the data is defined;
In the field “Mnemonic” a description of the data inserted in the row is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
DMX / BACnet
M
a
ster
Document code: MN67704_ENG Revision 1.000 age 20 of 28
Figure 4b: “Set BACnet Access  BACnet Write” window
The means of the fields in the window (Write) are the following:
In the field “IP Address / ID” the I address / ID of the slave that contains the data to be written is defined;
In the field “ bject Type” the object to be written is defined;
In the field “Data Type” the type of data to write is defined;
In the field “Instance” the instance number of the object is defined;
In the field “Property” the property to be read is defined;
In the field “Priority” the priority of the BACnet request is defined;
By checking the field “En Dest” it is possible to enable the Destination Network (D Net), Destination Length (D Len) and Destination
Address (D Adr). These informations are used for make a request to other segments of network (through a BACnet router);
In the field “D Net” the destination network (from 1 to 65535) is defined;
In the field “D Len” the length of “D Add” field (1 or 2 or 6) is defined;
In the field “D Adr” the address of the endpoint is defined. If “D Len” is ‘1’ it is possible to insert a number from 1 to 255; if “D Len”
is ‘2’ it is possible to insert a number from 1 to 65535; if “D Len” is ‘6’ it is possible to insert an I and port in this format
“192.168.2.188:47808”;
By checking the field “Change” the BACnet write request is made only if DMX data are changed; otherwise (if is selected the field
“Timer”) it is sent cyclically, using the “ oll Time”;
