ADTRAN Type 400 User manual

ADTRAN 400 Series
GPON ONT
RG ONT
P/N: 1287RGONT
Basic Configuration Guide
February 2021
61287RGONT-29C

To the Holder of this Document
261287RGONT-29C
Revision C
To the Holder of this Document
This document is intended for the use of ADTRAN customers only for the purposes of the
agreement under which the document is submitted, and no part of it may be used, reproduced,
modified or transmitted in any form or means without the prior written permission of ADTRAN.
The contents of this document are current as of the date of publication and are subject to
change without notice.
Trademark Information
“ADTRAN” and the ADTRAN logo are registered trademarks of ADTRAN, Inc. Brand names
and product names included in this document are trademarks, registered trademarks, or trade
names of their respective holders.
Disclaimer of Liability
The information or statements given in this document concerning the suitability, capacity, or
performance of the mentioned hardware or software products are given “as is”, and any
liability arising in connection with such hardware or software products shall be governed by
ADTRAN’s standard terms and conditions of sale unless otherwise set forth in a separately
negotiated written agreement with ADTRAN that specifically applies to such hardware or
software products.
To the fullest extent allowed by applicable law, in no event shall ADTRAN be liable for errors in
this document for any damages, including but not limited to special, indirect, incidental or
consequential, or any losses, such as but not limited to loss of profit, revenue, business inter-
ruption, business opportunity or data, that may arise from the use of this document or the infor-
mation in it.
fImportant Notice on Product Safety
This product may present safety risks due to laser, electricity, heat, and other sources of
danger.
Only trained and qualified personnel may install, operate, maintain or otherwise handle this
product and only after having carefully read the safety information applicable to this product.
Safety and Regulatory information is provided in this document and/or a separate Safety and
Regulatory document that is part of the product-applicable document set.
Copyright © 2021 ADTRAN, Inc.
All Rights Reserved.

Revision History
61287RGONT-29C 3
Revision C
Revision History
CFebruary 2021 Added the following ONTs:
BApril 2017 Adding PPPoE Provisioning for the 424RG/434RG ONT.
AJune 2016 Initial release.
■ADTRAN 414 RG 2 POTS/4 GigE ONT and Single
Band (2.4 GHz) WiFi Residential Gateway ONT
(P/N 1287790F1)
■ADTRAN 424 RG 2 POTS/4 GigE ONT and Dual Band
WiFi Residential Gateway ONT (P/N: 1287781F2)

Revision History
461287RGONT-29C
Revision C

Table of Contents
61287RGONT-29C 5
Revision C
Table of Contents
1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Document Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3 Hazard Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.4 Hazard - Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.5 Hazard - Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.6 Related Online Documents and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1 Scope of this Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.2 LEDs, Buttons, Connectors, and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.1 Physical Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.2 Required tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.3 Physical Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3.4 Physical Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.3.4.1 Step 1: Attach the 424 or 434 ONT to the Base and Connect Fiber . . . . . . . . . 19
2.3.4.2 Step 2: Connect POTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3.4.3 Step 3: Connect Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.3.4.4 Step 4: Connect Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.3.4.5 Step 5: Connect USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.3.4.6 Step 6: Connect UPS (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.3.4.7 UPS Power/Alarm Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3.4.8 WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3.4.9 Registration ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2 Configuration Steps Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.3 Configuration Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.4 Overview of Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.5 Using 434RG MoCA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.6 Customer Premises Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.6.1 Restore ONT to Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.6.1.1 LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.7 Central Office Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.7.1 Step 1: Discover the ONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.7.2 Method Guidelines for Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.7.2.1 Auto-Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.7.2.2 Auto-Discovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.7.3 Method Guidelines for Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.7.4 Working Examples Using CLI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table of Contents
661287RGONT-29C
Revision C
3.8 Step 2: Log On to the ONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.8.1 Device Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.9 Step 3: Configure Data Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.9.1 Setup WAN Data Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.9.2 WAN Services Configuration, Additional Parameters . . . . . . . . . . . . . . . . . . . . 36
3.9.3 WAN IP Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.9.4 Network Address Translation Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.9.5 Routing Default Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.9.6 DNS Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.9.7 WAN Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.9.8 Wide Area Network (WAN) Service Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.10 Step 4: Configure Video Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.1 Set Up WAN Video Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.2 WAN Service Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.10.3 WAN Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.10.4 WAN Service Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.10.5 Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3.10.6 Interface Grouping Configuration for Video Service. . . . . . . . . . . . . . . . . . . . . . 48
3.10.7 WAN Service Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.11 Step 5. Configure Wireless Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.11.1 Configure for 2.4GHz Wireless Data Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.11.1.1 Configure Security for 2.4GHz Wireless Data Service. . . . . . . . . . . . . . . . . . . . 53
3.11.2 Configure for 5.0GHz Wireless Data Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.11.3 Configure Security for the 5GHz Wireless Data Service . . . . . . . . . . . . . . . . . . 55
3.11.4 Configure for 5GHz Wireless Video Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.11.5 Configure the Video Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.11.6 Removing a Video Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.11.7 Adding a Wireless Video Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.11.8 Configuring a Wireless Video Interface Group. . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.12 Configure MoCA (434RG Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.13 Step 1: Configure the 434RG ONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.14 Optional Provisioning for PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.14.1 WAN Service Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.14.2 Set User Name and Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3.14.3 Routing Default Gateway Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.14.4 DNS Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.15 Removing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.15.1 Remove WAN Interface Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.15.2 Remove Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.16 Reboot the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4 Warranty and Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.2 Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

List of Figures
61287RGONT-29C 7
Revision C
List of Figures
Figure 1. RG ONTs LEDs and Internet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 2. 424RG Assembled Base and Fiber Connection . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 3. 434RG Assembled Base and Fiber Connection . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 4. POTS (Phone) Connection, RJ-11 Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 5. UPS Connector, 8-Pin MOLEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 6. RG ONT Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 7. Log In Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 8. Device Info Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 9. Wide Area Network (WAN) Service Setup Screen . . . . . . . . . . . . . . . . . . . . . . 34
Figure 10. WAN Service Interface Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 11. WAN Services Configuration, Additional Parameters . . . . . . . . . . . . . . . . . . . . 36
Figure 12. WAN IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 13. Network Address Translation Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 14. Routing Default Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 15. DNS Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 16. WAN Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 17. WAN Services Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Figure 18. WAN Services Interface Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 19. WAN Service Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 20. WAN Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 21. WAN Service Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Figure 22. Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 23. Interface Grouping Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 24. Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Figure 25. WAN Service Setup Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 26. Wireless 2.4GHz Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Figure 27. Wireless 2.4GHz Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Figure 28. Wireless 5GHz Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Figure 29. 5GHz Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Figure 30. Configure 5GHz Wireless Video Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Figure 31. Remove Video Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Figure 32. Remove Wireless Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure 33. Configure Wireless Video Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Figure 34. Add Wireless Video Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Figure 35. Wireless Video Interface Added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Figure 36. Add MoCA Interface Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 37. Configure MoCA Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 38. MoCA Interface Group Added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 39. Wide Area Network (WAN) Service Setup Screen . . . . . . . . . . . . . . . . . . . . . . 66
Figure 40. WAN Services Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 41. PPP Username and Password Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Figure 42. Routing Default Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

List of Figures
861287RGONT-29C
Revision C
Figure 43. DNS Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Figure 44. Remove WAN Interface Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Figure 45. Remove Interface Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Figure 46. Reboot the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

List of Tables
61287RGONT-29C 9
Revision C
List of Tables
Table 1. Topic List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 2. Related Online Documents and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 3. Front Panel LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 4. RG ONT Buttons, Connectors, and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 5. Ethernet RJ-45 Pin-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 6. UPS Power/Alarm Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 7. Configuration Steps Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 8. 424 RG and 434RG ONT LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 9. 414RG ONT LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

List of Tables
10 61287RGONT-29C
Revision C

Overview
61287RGONT-29C 11
Revision C
1Overview
This guide provides the instructions necessary to physically install and configure the ADTRAN
400 Series Residential Gateway (RG) ONTs.
■Physical installation takes place at the customer premises
■Configuration takes place at both the customer premises and the Central Office (CO)
1.1 Intended Audience
This guide explains the fields and options in the user interface; it is intended as a reference
while actively engaged with the user interface. Both craft and installation personnel can use
the information contained in this guide.
NOTE
g
ADTRAN also recommends using the Total Access 5000 Series FTTP Deployment Guide in
conjunction with the system release you are currently using for your network. These guides
can be found in the ADTRAN Support Community. Login is required.
1.2 Document Structure
Table 1. Topic List
1Overview This section describes how to physically install
the ONTs at the customer premises.
3Basic Configuration This section describes steps to configure ONTs
for basic operation at the Customer Premises
and Central Office.
4Warranty and Contact Informa-
tion
This section provides the warranty and cus-
tomer support information.
This guide contains the topics listed in Table 1.
NOTE
g
Before performing the procedures in this guide, the following prerequisites are necessary:
■Qualified technical personnel at both the customer premises and the CO are needed to
perform this configuration.
■The ONT must be “discovered” on the PON.
Section Topic Scope

Overview
12 61287RGONT-29C
Revision C
1.3 Hazard Symbols
The following Hazard symbols are used throughout this guide:
1.4 Hazard - Hardware
Protective measures are requirements for the protection of people, equipment, and the
environment.
WARNING!
f
Warning indicates a hazard which, if not avoided, could result in death, injury, or serious
property damage.
CAUTION!
C
This symbol combined with the CAUTION! signal word indicates that a Laser product is incor-
porated with the product and provides compliance and safety information governing its use.
CAUTION!
f
Caution indicates a hazard, which if not avoided, could result in service interruption, damage
to the equipment or minor property damage.
NOTE
g
Notes inform the user of additional, but essential, information or features.
tThis symbol indicates a tip.
1.5 Hazard - Software
The following symbols are intended for use where the physical risk to personnel or equipment
is negligible (software related).
WARNING!
f
Warning: Service affecting. Possible risk of system failure.
CAUTION!
f
Caution: Indicates that a failure to take or avoid a specific action could result in a loss of data.
NOTICE!
w
Notice: Provides information that is essential to the completion of a task.
NOTE
g
Note: Information that emphasizes or supplements important points of the main text.
1.6 Related Online Documents and Resources
Refer to Ta b l e 2 for additional online documentation and resources for this product.
Documentation for ADTRAN Access and Aggregation products is available for viewing and
download directly from the ADTRAN Support Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.

Table 2. Related Online Documents and Resources
ADTRAN 414 RG 2 POTS/4 GigE
ONT with 2.4 GHz WiFi
61287790F1-22 This document provides a brief over-
view of the 414RG ONT. It can be
used for reference purposes during
and after the ONT has been installed.
ADTRAN 424RG 2 Pots/4GigE and
Dual Band WiFi Job Aid
61287781F1-22 This document provides a brief over-
view of the 424RG ONT. It can be
used for reference purposes during
and after the ONT has been installed.
ADTRAN 424RG 2 Pots/4GigE with
2.4+5.0 Gig WiFi Optical Network
Unit Job Aid
61287781F2-22 This document provides a brief over-
view of the 424RG ONT. It can be
used for reference purposes during
and after the ONT has been installed.
ADTRAN 434RG 2 Pots/4GigE/RF/
MoCA with Dual Band WiFi Job Aid
61287782F1-22 This document provides a brief over-
view of the 434RG ONT. It can be
used for reference purposes during
and after the ONT has been installed.
Total Access 5000 ONT Installation
Precautions Job Aid
6ONTINSTALL-22 This Job Aid provides a list of precau-
tions that should be implemented
during ONT installation to minimize
potential lightning damage to ONTs.
Total Access 5000 Series Fiber to the
Premises (FTTP) Deployment Guide
65K95FTTP-50 Provides the minimum configuration
steps needed for the Total Access
5000 Series Fiber to the Premises
(FTTP) deployment, using GPON or
Active Ethernet and Fiber to the Curb.
Use this information to gain a better
understanding of how to configure
elements essential to FTTP applica-
tions.
Total Access 5000 Series CLI Dictio-
nary SR 10.3
65K103CLI-35 Provides Command Line Interface
(CLI) commands for the ADTRAN
Total Access 5000 Series products.
This guide gives detailed descrip-
tions of the commands, descriptions
of the syntax, and usage examples
for each supported product. CLI uses
one-line commands for configuring
purposes. Use this information in con-
junction with the deployment guide
when using CLI to deploy the OLT for
your application.
Overview
61287RGONT-29C 13
Revision C
Title Part Number Description
ADTRAN Component-level Documentation
Total Access System-level Documentation

Physical Installation
14 61287RGONT-29C
Revision C
2 Physical Installation
2.1 Scope of this Section
This section describes how to physically install the following ONTs (see Figure 1 on page 15)
at the customer premises:
■ADTRAN 424 RG 2 POTS/4 GigE and Dual Band WiFi Residential Gateway ONT
(P/N: 1287781F1)
■ADTRAN 424 RG 2 POTS/4 GigE ONT and Dual Band WiFi Residential Gateway ONT 
(P/N: 1287781F2)
■ADTRAN 434 RG 2 POTS/4 GigE/RF/MoCA with Dual Band WiFi ONT (P/N: 1287782F1)
■ADTRAN 414RG 2 POTS/4 GigE ONT w/WiFi 2.4 GHz (P/N: 1287790F1)

Physical Installation
61287RGONT-29C 15 Revision C

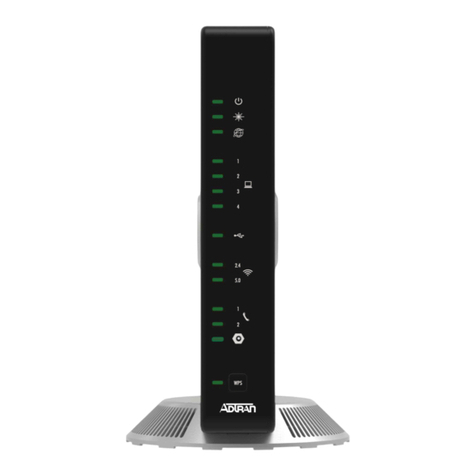

Figure 1. RG ONTs LEDs and Internet Connections
Front
UPS
PHONE 1
PHONE 2
USB
RESET
GE 1
GE 2
GE 3
GE 4
12V
1287781F1 1287781F2 1287782F1
Rear
Front Rear
3
UPS
PHONE 1
PHONE 2
USB
RESET
GE 1
GE 2
GE 3
GE 4
12V
1
2
RF
2.4
5.0
1
2
3
4
WPS
PH
O
NE
2
MoCA+RF
Front Rear
RESET
USBGE 4GE 3GE 2GE 1PHONE 2 PHONE 1UPS12V
W
P
S
1234 21
WPS
2.4
WPS
Rear
Top
1287790F1
WPS
S
RESET
USB
GE 4GE 3GE 2GE 1
PHONE 1PHONE 2
UPS12V
1
2
3
4
2.4
5.0
1
2
Front Rear

Physical Installation
61287RGONT-29C 16
Revision C
NOTE
g
If the ONT is already physically installed at the customer’s premises, go directly to
Section 3.
2.2 LEDs, Buttons, Connectors, and Interfaces
Tab l e 3 lists each LED on the three ONTs listed in Figure 1 on page 15. Table 4 on page 17
lists the various Buttons, Connectors and Interfaces for these ONTs.
Table 3. Front Panel LED Indicators
Label Function LED Description
Power LED 

AC or battery off
No Failure
Fiber LED 

2
No connection to the OLT, open fiber, failure at the ONT, or
power is Off
DS signal present and is within operating range
Ranging in Progress or AOE Auto-upgrade in progress
Internet LED 

No IP address configured on WAN Interface, or Power is
Off
WAN Interface is configured with IP address
GigE LEDS 1-4 

2
Link is down or not connected
Link is up
Data is being sent or received
USB LED 

2
Power Off or no device 
connected
Device connected
Data is being sent or received
(WiFi--802.11
a/b/g/n/ac
compliant)
2.4 (GHz) LED* 

2
Power is Off, or Wireless 2.4 GHz is Disabled
Wireless 2.4 GHz is Enabled
Data is being sent or received on 2.4 GHz
5.0 (GHz) LED* 

2
Power is Off, or Wireless 2.4 GHz is Disabled
Wireless 5.0 GHz is Enabled
Data is being sent or received on 2.4 GHz
PHONE 1-2 

2
Unequipped or on-hook and not ringing
Line is off-hook
Line in ringing state
RF
RF+MoCA*
(434RG Only)


2

No RF function
RF-only connection
MoCA-only connection
RF+MoCA down

WPS
Physical Installation
61287RGONT-29C 17
Revision C
Note: The * indicates the use of this feature is dependent upon configuration by network personnel.
WPS* 

2
Power Off or WPS is Disabled
WPS is Enabled
WPS push button pressed and device is ready to accept
connection
Table 4. RG ONT Buttons, Connectors, and Interfaces
RESET Button Reboots the ONT. To reboot, hold the RESET button down for five
seconds or longer.
WARNING: Reset returns the unit to Factory Defaults and
erases registration configuration.
USB USB Connector Supports Standard USB 2.0 interface.
GE 1-4 RJ-45 Connectors Supports data service through four 10/100/1000Base-T Ethernet
interfaces.
PHONE 1-2 POTS Interfaces Supports plain old telephone service. POTS uses in-band
signaling tones and currents to determine call status (for example,
Call Request). Because POTS allows for the transfer of audio
signals below 3.3 kHz, POTS systems are also used for modems
that allow data transmission (referred to as dial up connections).
MOCA+RF
(434RG
Only)
Coaxial Connector Supports Multimedia over Coax Alliance 2.0, with backup
compatibility to 1.1.
MoCA is an industry standard technology for connecting the home
to a service provider. MoCA technology uses existing coaxial
cabling for distributing high definition video with multi-room
applications such as DVRs.
The 434RG ONT supports MoCA Version 2.0 and is backward
compatible to MoCA Version 1.1. MoCA 2.0 operates in C4-band
with a frequency 1000 MHz and in D-band with a frequency rang
from 1125 to 1675 MHz. Channel bandwidth throughput increased
from > 125 Mb/s (MoCA 1.1) to 400 Mb/s (MoCA 2.0).
UPS UPS Connector Supports an un-interruptible power supply (UPS) (optional). An
UPS is a battery backup system that continues to provide power
when the primary power source is lost. Power is supplied to the
ONT by a local power source with battery backup that uses the
AC power at the customer premises.
12V Power Connector Connect the supplied power adapter here to supply power to the
ONT. The power adapter operates from a main power source
input of 100 VAC to 240 VAC, 50/60 Hz, with a nominal output of
12 VDC. The total power consumption with WiFi enabled, 4
Ethernet Ports running and both POTS lines off-hook, is
approximately 15.0 Watts.
Label Function Description
Table 3. Front Panel LED Indicators (Continued)
Label Function LED Description

Physical Installation
18 61287RGONT-29C
Revision C
2.3 Physical Installation
After unpacking the ONT, inspect it for damage. If damage is noted, file a claim with the carrier
and then contact ADTRAN. For more information, refer to the warranty.
Installation consists of positioning the ONT on a desktop (wall-mount is optional), and
connecting POTS (PHONE), Ethernet, Fiber, and Power.
NOTE
g
The 414 RG ONT can be mounted on a wall or desktop. For instructions for wall-mounting,
refer to the ADTRAN 414 RG 2 POTS/4 GigE ONT with 2.4 GHz WiFi Job Aide

(P/N 61287790F1-22) for instruction
2.3.1 Physical Installation Guidelines
The following are guidelines for this installation.
■Read all warnings and cautions before installing or servicing the ONT.
■Do not locate the ONT in direct sunlight or next to any thermal obstructions.
2.3.2 Required tools
Standard technician tools and those listed below are required for installing the ONT:
■PON power meter with wavelength filtering
■Fiberscope or videoscope
For fiber optic connections, the following is required:
■ODC Fiber cleaning tool
2.3.3 Physical Installation Overview
NOTE
g
Unless otherwise noted, Steps 2 through 6 apply to all the ONTs in this guide.
To install the ONT, complete the following steps in the order presented.
■Section 2.3.4.1, “Step 1: Attach the 424 or 434 ONT to the Base and Connect Fiber” on
page 19
■Section 2.3.4.2, “Step 2: Connect POTS” on page 20
■Section 2.3.4.3, “Step 3: Connect Ethernet” on page 21
■Section 2.3.4.4, “Step 4: Connect Power” on page 21
■Section 2.3.4.5, “Step 5: Connect USB” on page 21
■Section 2.3.4.6, “Step 6: Connect UPS (optional)” on page 21

Physical Installation
61287RGONT-29C 19
Revision C
2.3.4 Physical Installation Steps
To install an ONT, complete the following steps in the order in which they appear.
NOTICE!
w
The ADTRAN 424RG and 434RG ONTs must sit upright using the stand provided. DO NOT
lay the ONT flat, as the ONT may overheat.
2.3.4.1 Step 1: Attach the 424 or 434 ONT to the Base and Connect Fiber
Ensure the ONT is not located in direct sunlight and is not located next to any thermal obstruc-
tions.
■To attach the 424RG ONT to the base, refer to Figure 2, and complete the following steps.
■To attach the 434RG ONT to the base, refer to Figure 3 on page 20 and complete the
following steps.
1. Position the ONT on the base.
2. Using the screw(s) provided, secure the base to the ONT.
3. Thread the fiber cable through the opening in the base. If there is excess fiber, carefully
wrap it around the Fiber Tray.
NOTE
g
Fiber connectors are prone to contamination from dirt. To avoid any potential problems, using
standard fiber optical cleaning techniques, clean the fiber end before plugging it into the 
SC/APC connector.
4. Remove the dust cover from the SC/APC Connector and insert the fiber cable. Retain
this plug and insert it in the fiber connection when the fiber cable is not connected. This
will protect the optical portion of the connection.
Figure 2. 424RG Assembled Base and Fiber Connection
Screw
Fiber
Tray
SC/APC
Connector
Fiber
Opening
1
2
2.4
5.0
1
2
3
4
WPS

Physical Installation
20 61287RGONT-29C
Revision C
Figure 3. 434RG Assembled Base and Fiber Connection
2.3.4.2 Step 2: Connect POTS
Insert the RJ-11 connector in the appropriate PHONE 1 or PHONE 2 jack. (Refer to Figure 6
on page 22 for the location of the POTS connector.)
If POTS cables are not available, use Figure 4 and the following procedure to create the POTS
cables:
1. Trim the insulation for the subscriber POTS cables.
2. Refer to Figure 3 and connect the twisted-pair Tip (Green) and Ring (Red) to the RJ-11
connector using an RJ-11 crimper.
3. Insert the RJ-11 connector in the appropriate PHONE 1 or PHONE 2 jack.
Figure 4. POTS (Phone) Connection, RJ-11 Pinouts
Screw
Fiber
Tray
SC/APC
Connector
Fiber
Opening
Screw
