Advantech UBX-310F User manual

User Manual
UBX-310F
Fanless Embedded Box PC

UBX-310F User Manualii
Copyright
The documentation and the software included with this product are copyrighted 2016
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to improve the products described in this manual at any time without notice. No part
of this manual may be reproduced, copied, translated, or transmitted in any form or
by any means without the prior written permission of Advantech Co., Ltd. The infor-
mation provided in this manual is intended to be accurate and reliable. However,
Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements
of the rights of third parties that may result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows is registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Product Warranty (2 years)
Advantech warrants the original purchaser that all of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products that have been repaired or altered by
persons other than repair personnel authorized by Advantech, or products that have
been subject to misuse, abuse, accident, or improper installation. Under the terms of
this warranty, Advantech assumes no liability as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most
customers never need to use our repair service. If an Advantech product is defective,
it will be repaired or replaced free of charge during the warranty period. For out-of-
warranty repairs, customers will be billed the cost of replacement materials, service
time, and freight. Please consult your dealer for more details.
If you suspect your product is defective, follow the steps outlined below.
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages that are displayed when the
problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any relevant information to hand.
3. If your product is diagnosed as defective, obtain a return merchandize authori-
zation (RMA) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a completed Repair and Replacement
Order Card, and a proof of purchase date (such as a photocopy of your sales
receipt) into a shippable container. Products returned without a proof of pur-
chase date are not eligible for warranty service.
5. Write the RMA number clearly on the outside and ship the package prepaid to
your dealer.
Part No. 200K310F10 Edition 1
Printed in China May 2016

iii UBX-310F User Manual
Warnings, Cautions, and Notes
Document Feedback
To assist us in improving this manual, we welcome any comments and constructive
criticisms. Please send all feedback in writing to [e-mail]
Technical Support and Assistance
1. Visit the Advantech website at http://support.advantech.com to obtain the latest
product information.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before calling:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–Comprehensive description of the problem
–The exact wording of any error messages
Packing List
Before setting up the system, check that the items listed below are included in the
shipment and in good condition.
UBX-310F
–Warranty card
–Adaptor
–User manual
–DC-IN interface fixing bracket
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.
Warning! Warnings indicate conditions that if not observed, can cause personal
injury!
Caution! Cautions are included to help prevent hardware damage or data losses.
For example,
“New batteries are at risk of exploding if incorrectly installed. Do not
attempt to recharge, force open, or heat the battery. Replace the battery
only with the same or equivalent type recommended by the manufac-
turer. Discard used batteries according to the manufacturer's instruc-
tions.”
Note! Notes provide additional optional information.

UBX-310F User Manual iv
Safety Instructions
1. Read these safety instructions carefully.
2. Retain this user manual for future reference.
3. Disconnect this equipment from all AC outlets before cleaning. Use only a damp
cloth to clean. Do not use liquid or spray detergents.
4. For pluggable equipment, the power outlet socket must be located near the
equipment and easily accessible.
5. Protect this equipment from humidity.
6. Place this equipment on a reliable surface during installation. Dropping or letting
the device fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. Do not cover the openings.
8. Ensure the voltage is correct before connecting the equipment to a power outlet.
9. Position the power cord away from high-traffic areas. Do not place anything over
the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If unused for a long time, disconnect the equipment from the power source to
avoid damage from transient overvoltage.
12. Never pour liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations occurs, have the equipment checked by service
personnel:
The power cord or plug is damaged.
Liquid has penetrated the equipment.
The equipment has been exposed to moisture.
The equipment is malfunctioning, or does not operate according to the user
manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
15. Do not store this equipment in an environment where the temperature fluctuates
below -20 °C (-4 °F) or above 60 °C (140 °F) as this may cause damage. The
equipment should be stored in a controlled environment.
16. Batteries are at risk of exploding if incorrectly installed. Replace only with the
same or equivalent type recommended by the manufacturer. Discard used bat-
teries according to the manufacturer’s instructions.
The sound pressure level at the operator position does not exceed 70 dB (A) in
accordance with IEC 704-1:1982.
DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.

v UBX-310F User Manual
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.
Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive elec-
tronic components.

UBX-310F User Manual vi

vii UBX-310F User Manual
Contents
Chapter 1 General Information ............................1
1.1 Introduction ............................................................................................... 2
1.2 Specifications ............................................................................................ 2
1.2.1 General Specifications .................................................................. 2
1.2.2 Environmental Specifications........................................................ 2
1.3 Dimensions ............................................................................................... 3
Chapter 2 System Setup.......................................5
2.1 Quick Tour of the Device........................................................................... 6
Figure 2.1 Front view of UBX-310F............................................. 6
Figure 2.2 Rear view of UBX-310F ............................................. 6
2.2 Installation Procedures.............................................................................. 6
2.2.1 Connecting the Power Cord.......................................................... 6
2.2.2 Connecting the Mouse and Keyboard........................................... 6
2.2.3 Activating the Power Source......................................................... 6
2.3 Running the BIOS Setup Program ............................................................ 7
2.4 Installing System Software........................................................................ 7

UBX-310F User Manual viii

Chapter 1
1General Information
This chapter provides basic
information regarding UBX-310F.
Introduction
Specifications
Dimensions

UBX-310F User Manual 2
1.1 Introduction
UBX-310F is an intelligent fanless embedded box PC featuring an Intel®skylake core
i3-6100U/i5-6300U low-power processor and rich I/O. The computing and graphics per-
formance of this processor is three fold higher than that of the last generation Intel®
Atom™ dual-core processor. The Intel® Skylake core i platform provides an
energy-efficient and environmentally friendly solution for diverse applications, such
as factory automation, machine automation, and self-service kiosk operations.
1.2 Specifications
1.2.1 General Specifications
Dimensions (W x H x D): 245 x 45 x 188 mm
Weight: 1.5 kg
Power supply: +12 VDC @ 60 W (Maximum)
Storage: Supports 1 x internal Mini SATA slot
CPU: Intel®
System chipset:
RAM:
Serial ports:4 x COM ports
USB: Supports up to 7 x USB interfaces, compliant with V 2.0
Battery: 3 V @ 195 mA lithium battery
1.2.2 Environmental Specifications
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Storage Temperature: -20 ~ 60 °C
Relative humidity: 10 ~ 95% @ 40 °C (non-condensing)
Shock: 10 G peak acceleration (11 ms duration)
Vibration: 5 ~ 500 Hz 0.5 Grms, random
Certification: CCC/FCC/CE/BSMI
Skylake-U Core i5-6300U/Core i3-6100U
Skylake-U Core i5-6300U/Core i3-6100U
DDR4-2133 MHz SO-DIMM memory
Up to 16GB

3 UBX-310F User Manual
Chapter 1 General Information
1.3 Dimensions

UBX-310F User Manual 4

Chapter 2
2System Setup
This chapter details the system
setup process for UBX-310F.
Quick Tour of the Device
Installation Procedures
Running the BIOS Setup
Installing System Software

UBX-310F User Manual 6
2.1 Quick Tour of the Device
Before setting up the device, take a moment to familiarize yourself with the functions
of the controls, drivers, connectors, and ports located on the front panel, as illustrated
in Figure 2.1.
Figure 2.1 Front view of UBX-310F
Turn the computer to view the I/O, as shown in Figure 2.2.
(The I/O interfaces include serial ports, USB slots, audio-in jack, etc.)
Figure 2.2 Rear view of UBX-310F
2.2 Installation Procedures
2.2.1 Connecting the Power Cord
This product only supports DC power (12 VDC, max. 60 W). Be sure to hold the plug
end when plugging or unplugging the power cord.
2.2.2 Connecting the Mouse and Keyboard
Connect the mouse and keyboard via the USB ports located in the I/O section at the
rear of the computer.
2.2.3 Activating the Power Source
Verify that the power cord is connected to the power input port of the device. Then
connect the plug end of the power cord to the wall power outlet.
A.USB G. VGA M. RJ11
B.HDD LED H.LAN N. POWER BUTTON
C.Power LED I. COM O.DC IN
D. Power Switch J.HDMI
E. MIC K.USB3.0
F. LINE OUT L.USB 2.0

7 UBX-310F User Manual
Chapter 2 System Setup

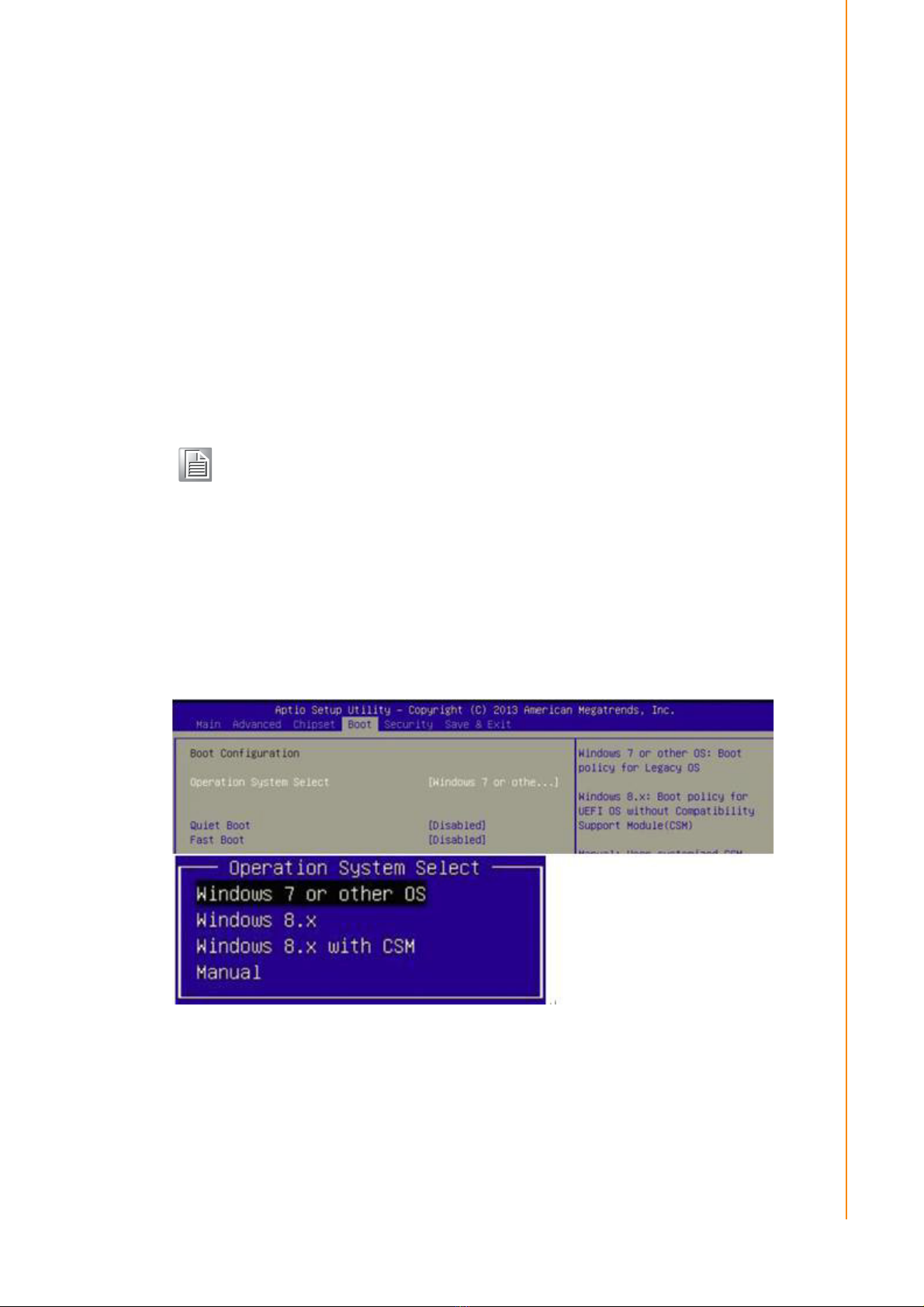

2.3 Running the BIOS Setup Program
In most cases, the computer will have been setup and configured by the dealer or SI
prior to delivery. However, some of the computer's BIOS (Basic Input-Output System)
setup programs may need adjustment to set the system configuration data, such as
the current date and time, or type of hard drive installed. The setup program is stored
in read-only memory (ROM) and can be accessed when activating or resetting the
computer, or by pressing “Delete” immediately after powering up the computer.
2.4 Installing System Software
Recent releases of operating systems by major vendors include setup programs that
load automatically and guide users through the entire installation process. The steps
necessary to install an operating system on the computer hard drive are explained
below.
If necessary, insert the OS CD into the diskette until the release button pops up.
The system BIOS supports bootup directly from the USB-CDROM drive. Users can
insert the OS CD directly into the USB-CDROM drive.
Power on the computer, or reset the system by pressing “Ctrl” + “Alt” + “Del” simulta-
neously.
Select Boot->Boot Configuration->Operation System Select to install the correct
OS.
After clicking “Save & Exit”, the computer will automatically load the operating system
from the diskette or USB-CDROM drive.
Note! Some distributors and system integrators may have preinstalled system
software before shipping the computer.

UBX-310F User Manual 8
When presented with the opening screen of a setup/installation program, simply fol-
low the onscreen instructions. The setup program guides users through configuring
and installing the hard drive and operating system.
Note! The drivers and utilities of UBX-310F are subject to change without
notice. If in doubt, check Advantech’s website or contact our application
engineers for the latest information regarding drivers and utilities.

9 UBX-310F User Manual
Chapter 2 System Setup

www.advantech.com
Please verify specifications before quoting. This guide is intended for reference
purposes only.
All product specifications are subject to change without notice.
No part of this publication may be reproduced in any form or by any means,
such as electronically, by photocopying, recording, or otherwise, without prior
written permission from the publisher.
All brand and product names are trademarks or registered trademarks of their
respective companies.
© Advantech Co., Ltd. 2016
