AEC IST9 User manual

UPS IST9
10 - 20 kVA
User Manual


Foreword
i
Foreword
Summaries
Thank you for choosing the Uninterruptible Power System (here in after referred to as the
"UPS") product!
This document gives a description of the UPS, including the features, performance,
appearance, structure, working principles, installation, operation and maintenance etc.
Please save the manual after reading in order to consult in the future.
The figures in this manual are just for reference, for details please see the actual product.
Suitable Model
10kVA, 15kVA, 20kVA
30kVA, 40kVA
Symbol Conventions
The manual quotes the safety symbols, these symbols used to prompt users to comply with
safety matters during installation, operation and maintenance. Safety symbol meaning as
follows.
Symbol Description
Alerts you to a high risk hazard that could, if not avoided,
result in serious injury or death.
Alerts you to a medium or low risk hazard that could, if not
avoided, result in moderate or minor injury.
Alerts you to a potentially hazardous situation that could, if not
avoided, result in equipment damage, data loss, performance
deterioration, or unanticipated results.

Foreword
ii
Symbol Description
Anti-static prompting.
Be care electric shock prompting.
Provides a tip that may help you solve a problem or save time.
Provides additional information to emphasize or supplement
important points in the main text.

Contents
iii
Contents
1 Safety Description......................................................................................................................... 1
1.1 Safety Announcements ..................................................................................................................................... 1
1.1.1 Safety Instructions .................................................................................................................................. 1
1.1.2 Use Announcements for Battery ............................................................................................................. 2
1.1.3 Anti-Static Protection .............................................................................................................................. 3
1.2 Operation and Maintenance Requirements ...................................................................................................... 3
1.3 Environment Requirements .............................................................................................................................. 3
2 Overview ......................................................................................................................................... 5
2.1 Product Intro..................................................................................................................................................... 5
2.1.1 Features ................................................................................................................................................... 5
2.1.2 Appearance .............................................................................................................................................. 6
2.1.3 Fittings Illustration .................................................................................................................................. 9
2.2 Work Principle ................................................................................................................................................ 12
2.2.1 Work Principle Diagram........................................................................................................................ 12
2.2.2 Work Mode ........................................................................................................................................... 13
2.3 Optionals ........................................................................................................................................................ 16
2.3.1 Distribution Module .............................................................................................................................. 16
2.3.2 Battery Box ........................................................................................................................................... 19
3 Installation.................................................................................................................................... 20
3.1 Unpacking and Checking ............................................................................................................................... 20
3.2 Installation Preparation .................................................................................................................................. 20
3.2.1 Tools ...................................................................................................................................................... 20
3.2.2 SelectBreaker&Wires ............................................................................................................................ 21
3.2.3 Select Input Breaker .............................................................................................................................. 22

Contents
iv
3.2.4 Select Wires .......................................................................................................................................... 23
3.3 Mechanical Installation .................................................................................................................................. 26
3.3.1 Tower-mounting .................................................................................................................................... 27
3.3.2 Rack-mounting ...................................................................................................................................... 29
3.4 Electrical Connection ..................................................................................................................................... 31
3.4.1 Wiring Operation of 10kVA-20kVA UPS ............................................................................................. 31
3.4.2 Wiring Operation of 30kVA-40kVA UPS ............................................................................................. 32
3.4.3 Wiring Between UPS and Battery Box ................................................................................................. 34
3.4.4 Wiring Between UPS and Battery Box of 10kVA-20kVA UPS ............................................................ 34
3.4.5 Wiring Between UPS and Battery Box of 30kVA-40kVA UPS ............................................................ 36
3.4.6 Wiring Between UPS and Distribution Module of 10kVA-20kVA UPS ............................................... 37
3.4.7 Wiring Between UPS and Distribution Module of 30kVA-40kVA UPS ............................................... 39
3.4.8 Wiring of Parallel System ..................................................................................................................... 42
4 Screen Operation ......................................................................................................................... 48
4.1 Menu Hierarchy ............................................................................................................................................. 48
4.2 Power On for The First time ........................................................................................................................... 49
4.3 Main Page ...................................................................................................................................................... 49
4.4 System Working Status Display ..................................................................................................................... 50
4.5 Monitoring Page ............................................................................................................................................. 52
4.6 Setting Page .................................................................................................................................................... 52
4.7 Management Setting ....................................................................................................................................... 53
4.7.1 Parameter Setting .................................................................................................................................. 54
4.7.2 Function Setting .................................................................................................................................... 55
4.7.3 Screen Setting ....................................................................................................................................... 57
4.7.4 Permission Setting ................................................................................................................................ 58
5 Use and Operation ...................................................................................................................... 60
5.1 Check Before Startup ..................................................................................................................................... 60
5.2 Startup Operation ........................................................................................................................................... 60
5.3 Shutdown Operation ....................................................................................................................................... 61
5.4 Parallel SystemOperation ............................................................................................................................... 61

Contents
v
5.4.1 Start Parallel System ............................................................................................................................. 61
5.4.2 Shut Down Parallel System ................................................................................................................... 62
5.4.3 Exit Parallel System Online .................................................................................................................. 62
5.4.4 Add New UPS into Parallel System Online .......................................................................................... 62
5.4.5 Redundance Function of Parallel System.............................................................................................. 63
5.5 Periodic Preventative Maintenance ................................................................................................................ 63
5.6 Battery Maintenance ...................................................................................................................................... 63
5.7 Troubleshooting .............................................................................................................................................. 64
5.7.1 Common Fault ...................................................................................................................................... 64
6 Package, Transportation and Storage ...................................................................................... 69
6.1 Package .......................................................................................................................................................... 69
6.2 Transportation ................................................................................................................................................ 69
6.3 Storage ........................................................................................................................................................... 69
A Technical Specifications ........................................................................................................... 70


1 Safety Description
1
1 Safety Description
This chapter introduces the safety announcements. Prior to performing any work on the UPS,
please read the user manual carefully to avoid human injury and device damage by irregular
operations.
1.1 Safety Announcements
This section introduces the safety announcements that must be complied with and pay
special attention while installing, using, maintenance and other relative operations.
Before operating, please read the announcements and operation instructions in this section
carefully to avoid accident.
The DANGER, WARNING, CAUTION, etc. in the manual are not all the safety
announcements that you must abide by, they are just the supplements for the safety
announcements during operating.
Our Company does not undertake the responsibility caused by violating common safety operation
requirements or the safety standard of design, manufacture and use.
1.1.1 Safety Instructions
There exists high temperature and high voltage inside the UPS. During using, please strictly
comply with all warnings and operation instruments on the UPS and in the user manual.

1 Safety Description
2
The UPS is class C3 device. If it is used in residential purpose, it may cause wireless
interference. User should take actions to avoid the interference.
No liquid or other objects are allowed to enter the UPS.
UPS must be well grounded.
In case of fire, please use dry power fire extinguisher. If using liquid fire extinguisher, it
may cause electric shock.
1.1.2 Use Announcements for Battery
Please use specified battery. Non-specified battery will damage the UPS.
Only authorized professional can replace battery. Do not wear conductive objects, such
as watches, bracelets and rings during operating. Wear rubber shoes and gloves and use
tools with insulated handle.
Don't put tools or other conductive objects on the battery.
It is prohibited to short the positive pole and negative pole of the battery or connect them
reversely, which is to avoid fire or electric shock.
Before connecting or disconnecting the battery terminals, disconnect charger first.
The battery must be with the same type, model and manufacturer.
Battery should be kept away from fire source or other electrical equipments that may
easily cause spark to avoid human injury.
Don't open or destroy the battery. The electrolyte in the battery includes some dangerous
objects, such as strong acid, which will be harmful to skin and eyes. If it is careless to
touch the electrolyte, clean it by a lot of water immediately and then check it in the
hospital.
The waste battery should be disposed according to the local regulations.

1 Safety Description
3
1.1.3 Anti-Static Protection
The static generated by human bodies may damage the electrostatic-sensitive components
on PCB. Before touching the sensitive component, please wear anti-static rings and well
connect the other end of the anti-static rings to ground.
1.2 Operation and Maintenance Requirements
Only authorized professionals are allowed to open the UPS chassis, or it may cause electric
shock and the caused UPS fault is out of the guarantee range.
If UPS needs to be moved, rewired or maintained, disconnect all electrical connection,
such as AC power, battery power, etc. to isolate power input. Do not do any work on the
UPS until it is powered off completely (≥10min). Otherwise, the output may exist
electricity, which may cause electric shock.
When dismantling fan, do not put fingers or tools into the rotating fan to avoid device
damage or human injury.
1.3 Environment Requirements
Do not put the UPS in the environment where has inflammable, explosive gas or smog, do
not do any operation in this environment.
Do not use the UPS in the place where has direct sunshine, rain or wet.
The normal work temperature of UPS is -5℃~40℃, relative humidity: 0%-95%, with no
condensation (recommended work temperature is 20℃~25℃, humidity is about 50%).
Put the UPS in the flat floor without vibration and the vertical gradient is less than 5°.
Keep good ventilation around the UPS. The clearance between the rear or the side of
UPS and adjacent devices or wall should be at least 300mm~500mm. Poor ventilation

1 Safety Description
4
will rise temperature inside UPS, which will reduce the service life of inner components
and even affect the life span of the UPS.
The UPS must be used below 2000m. If the altitude exceeds 2000m, it needs to
decrease the rated power according to IEC62040-3:2011 to use.

2 Overview
5
2 Overview
This chapter mainly introduces the UPS's model meaning, features, structure, work principle, etc.
2.1 Product Intro
UPS is whole high frequency, pure online, double-conversion, smart product. The system is
perfect power security for file server, enterprise server, center server, micro-computer,
concentrator, telecom system, data center and others that require high quality power
protection. They are widely used in many key business areas, such as post, finance, network,
stock, railway, etc.
2.1.1 Features
Completely digitalized smart control
10kVA-20kVA UPS support three-in and three-out mode UPS, three-in and one-out mode
UPS, one-in and one-out mode UPS.
30kVA-40kVA UPS support three-in and three-out mode UPS, three-in and one-out mode
UPS.
The UPS can monitor the grid frequency (50Hz/60Hz) and self-adapt the frequency. The
output voltage can be set to 208V/220V/230V/240V, which makes the use more flexible.
Energy conservation and high efficiency
Adopts three-level inverter technology and PFC control technology, the output voltage wave
is perfect and the whole efficiency can be 96%, the input power factor is greater than 0.99,
which greatly improves the use ratio of electric energy and reduces the load of power grid.
Smart fan speed control
The fan speed is adjusted automatically in accordance with the load status, which prolong
fan life and reduce noise.

2 Overview
6
ECO energy conservation mode design
The UPS is designed with ECO energy conservation mode. When the grid is good, if the
UPS operating in this mode, the bypass prior to output, and the efficiency can be 99%.When
the bypass voltage or frequency out of normal range and cannot satisfy the user’s power
supply requirement, it will switch to inverter output, which guarantee the reliability of power
supply and also, save energy.
Low mains input voltage
Adopt the independent rapid detection technology. When output load is small, even the
battery voltage is 80V, which is the main slow limit, the battery still doesn't discharge.
Therefore, in the mains mode, all output power gets from the grid, which is to ensure the
battery in 100% energy storage status, and at the same time, reduce the battery discharge
times and prolong the service life.
Tower-mounting and rack-mounting
User can select tower-mounting or rack-mounting the UPS according to use space, the LCD
also can display corresponding direction on the basis of placement mode.
2.1.2 Appearance

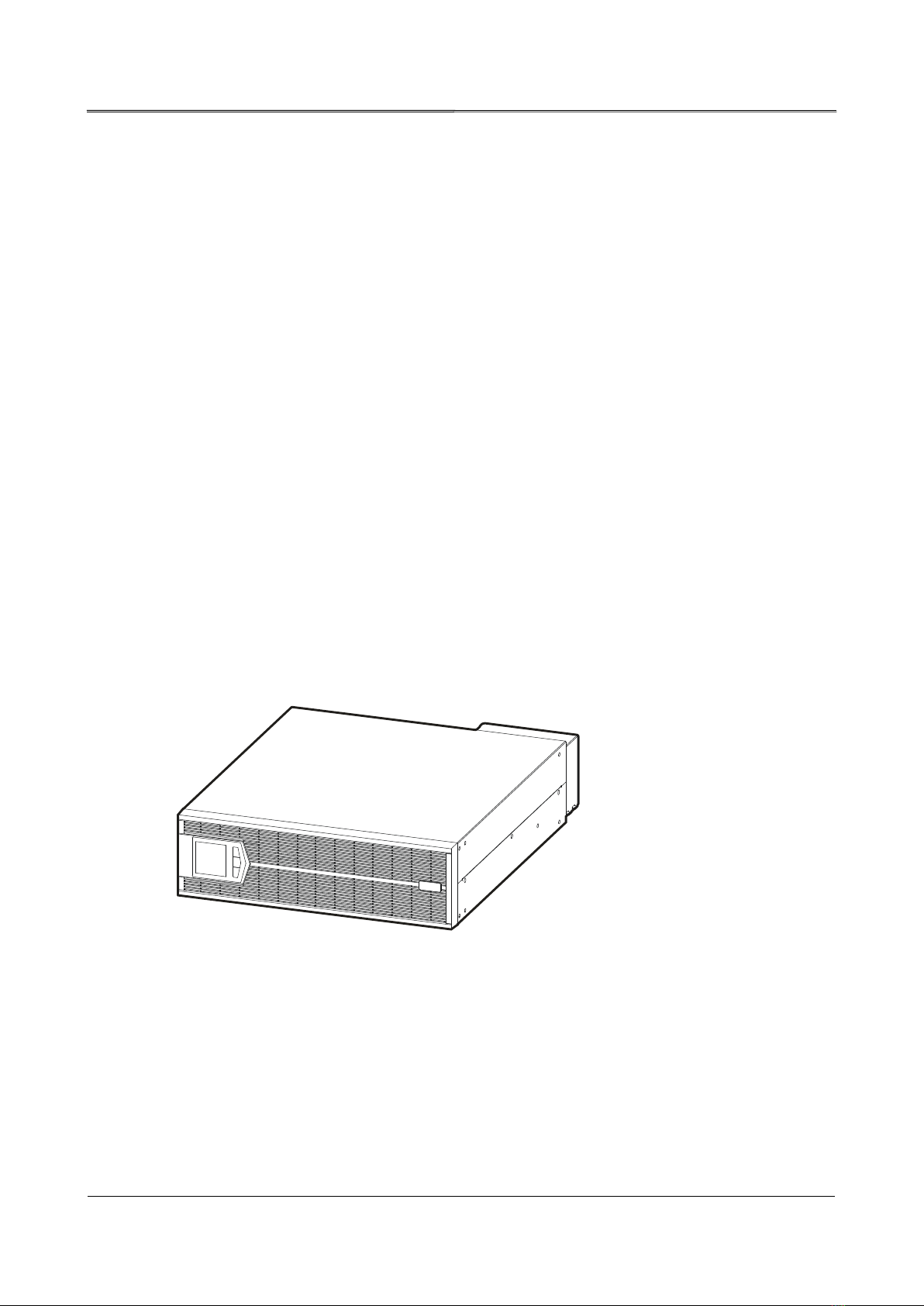

Figure2-1 Appearance

2 Overview
7
Operation panel

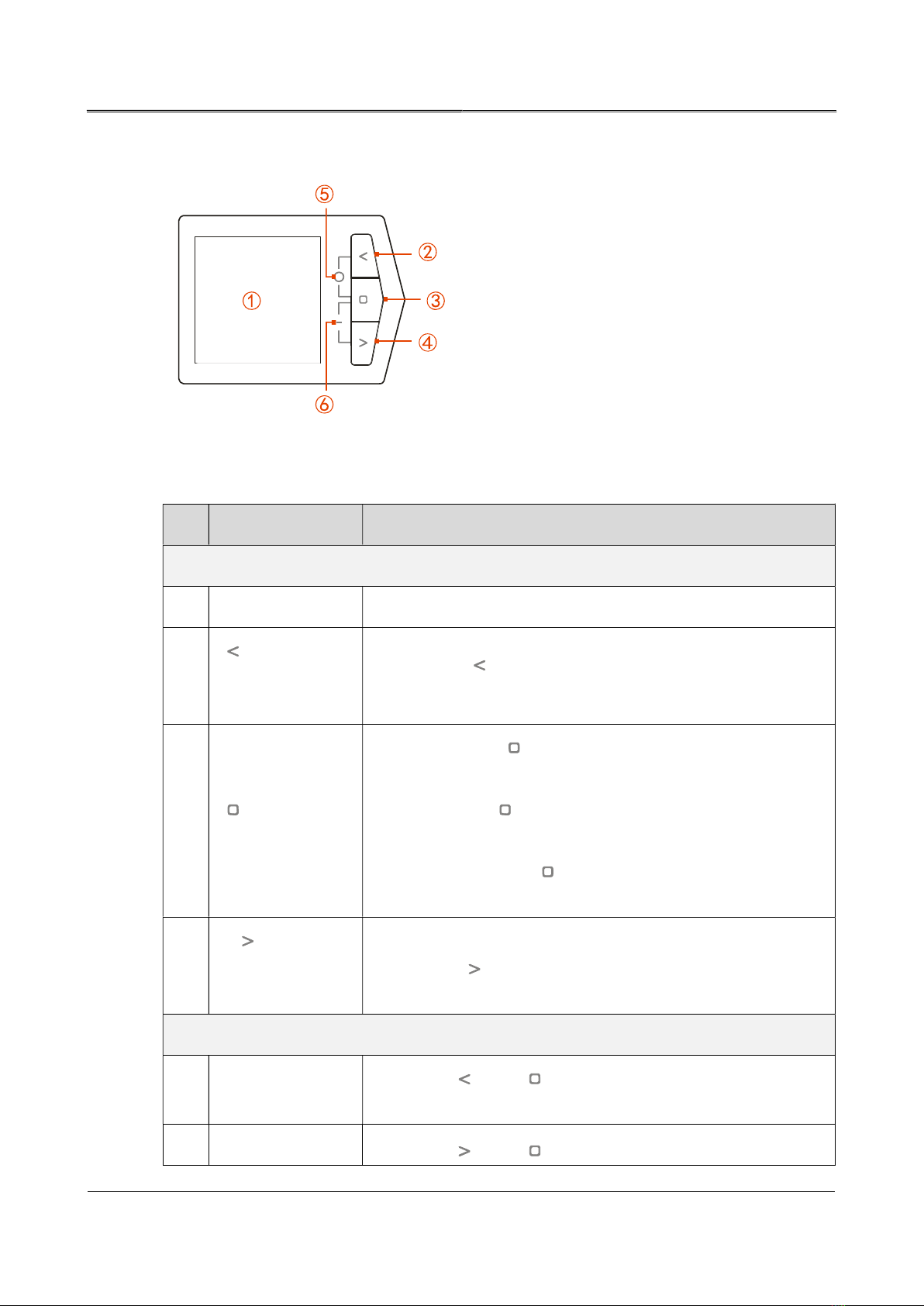

Figure2-2 Operation panel
Table2-1 Illustration for operation panel
No. Name Illustration
Illustration for operation panel
○,1
LCD display Shows the working status and system setting.
○,2
" "page up
button and power
off LED indicator
Short press " " button, the LCD will enter previous page or
previous option.
○,3
" "function button
and breathing light
Short press " " button to confirm the command of the
current LCD page.
Long press " " button for 3s, will entry the parameter and
function setting page.
When UPS is on, " " button will be in a cycle of light up to
fade out.
○,4
" "page up
button and power
on LED indicator
Short press " " button, the LCD will enter next setting page.
Combination buttons operation instructions
○,5
Power off Press the " ” and " "button at the same time, the UPS off
and the corresponding indicate LED is on.
○,6
Power on Press the " ” and " "button at the same time, the UPS on

2 Overview
8
No. Name Illustration
and the corresponding indicate LED is on.

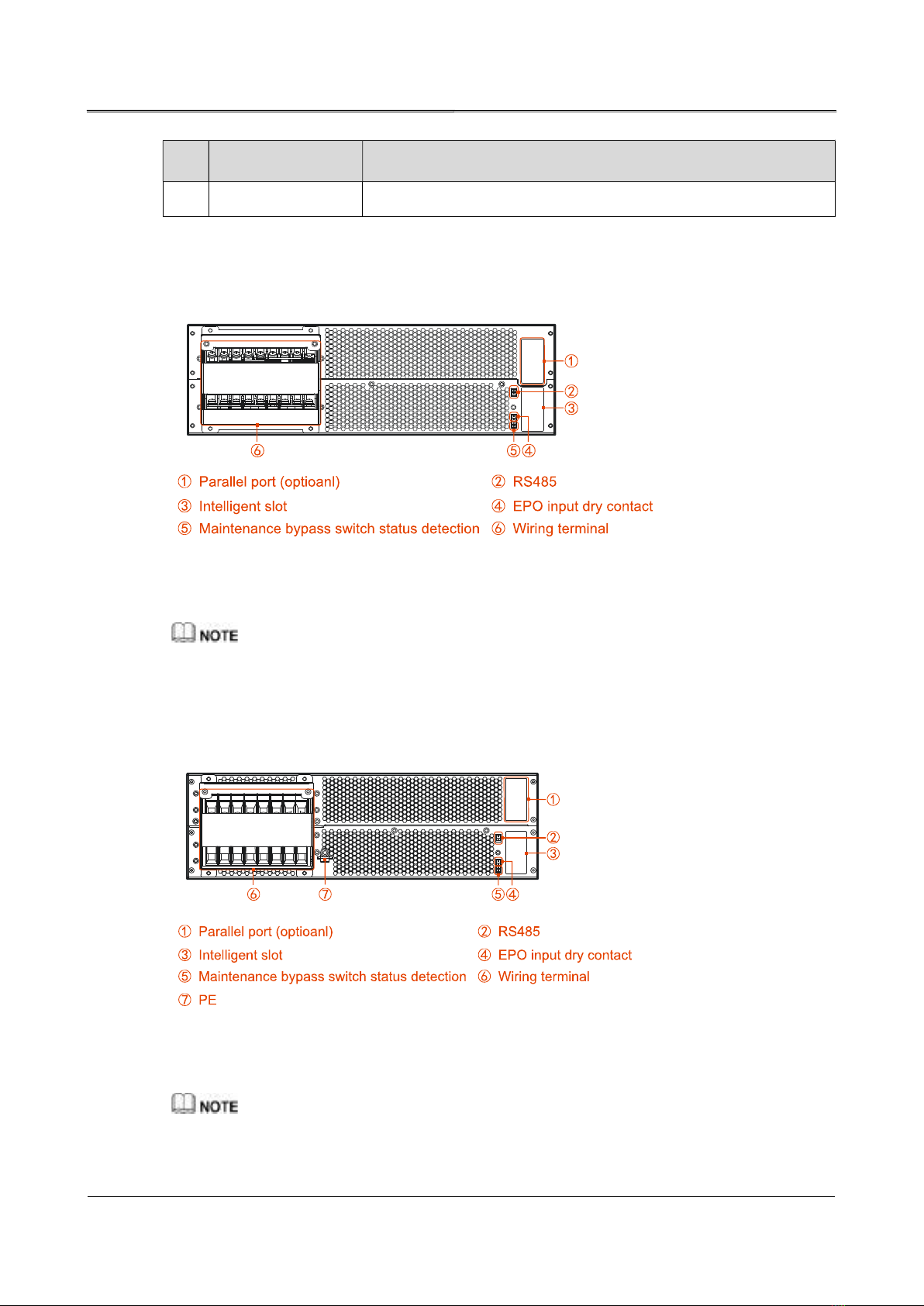

Rear panel
10kVA-20kVA
Figure2-3 Rear panel of 10kVA-20kVA
1. The wiring terminal of 33 mode and 31 mode have a little different. For the detail of the wiring
terminal of each mode please see 3.4.1 Wiring Operation.
2. The intelligent slot is optional: Built-in SNMP card, RS485+dry contact card and communication
protocol transfer card.
30kVA-40kVA
Figure2-4 Rear panel of 30kVA-40kVA
1. The wiring terminal of 33 mode and 31 mode have a little different. For the detail of the wiring
terminal of each mode please see3.4.1 Wiring Operation.

2 Overview
9
2. The intelligent slot is optional: Built-in SNMP card, RS485+dry contact card and communication
protocol transfer card.
3. If the BMD and EPO detection function won't be used, please short the port by equipped 4P
terminal. When the function needs to be used, dismantle the short wire of BMD or EPO port and
connect it with corresponding status signal input of maintenance bypass breaker or EPO.
Only when the bypass maintain switch state detection (BMD) and EPO port are all shorted
respectively, the UPS can work normally.
If BMD port is disconnected, the UPS will turn to bypass power supply, and at the same
time, the LCD shows BMD fault. Once the port recovers short connection, the fault will
be removed automatically.
If the EPO port is disconnected, the UPS will shut down all inverter and bypass output
and at the same time, the LCD shows EPO fault. The UPS needs to be power down
completely and short connect the EPO port, the fault will be removed automatically.
2.1.3 Fittings Illustration
10kVA-20kVA
(10kVA-20kVA) UPS and distribution module has 4 kinds of copper bar, as shown
inTable2-2.Users can connect the copper bar to the corresponding wiring arrangement after
UPS or distribution module according to their needs, and set them to 33 mode or 31 mode.

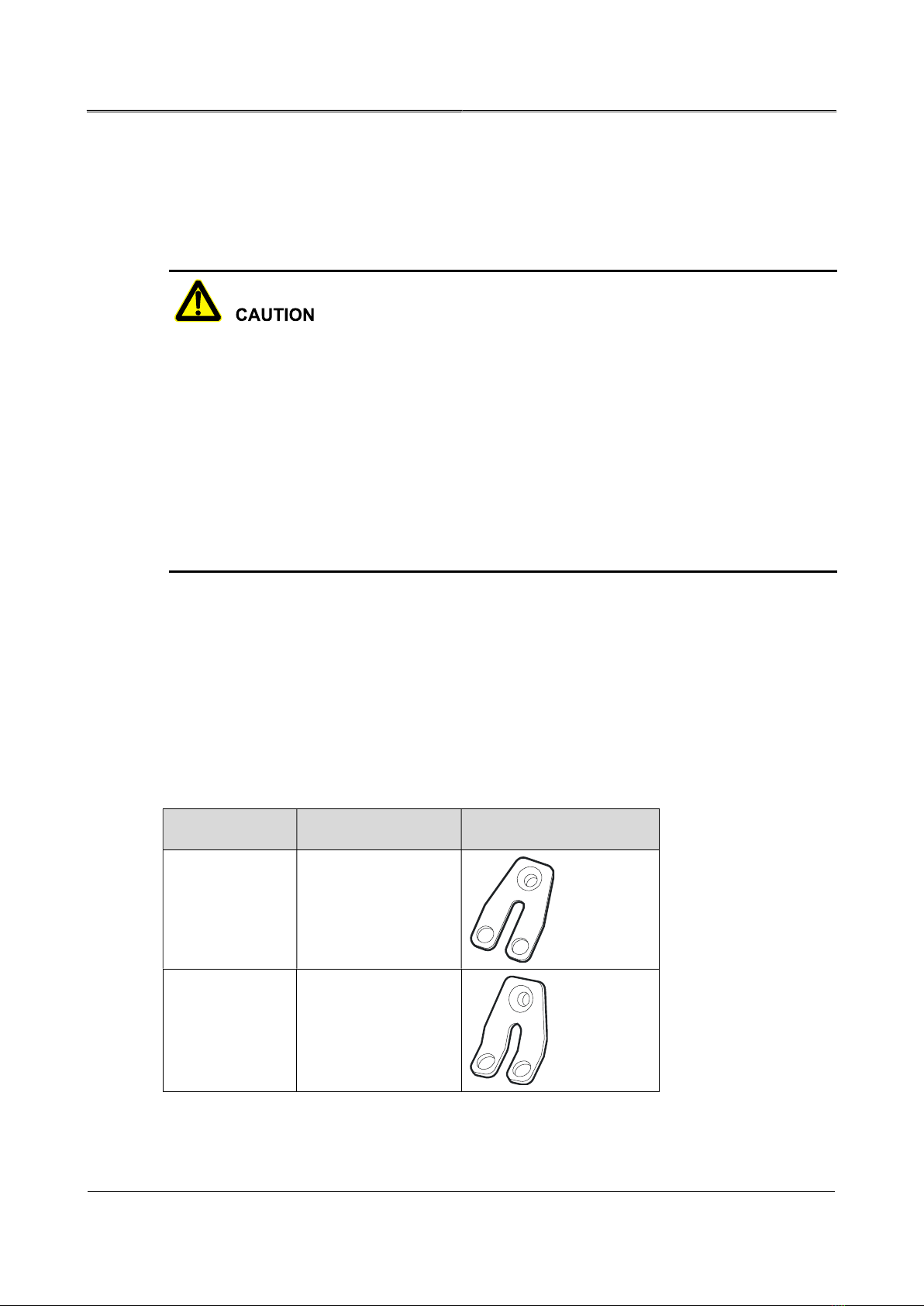

Table2-2 Copper bar illustration
Copper bar No. Illustration Sketch map
1# 2PIN copper bar
2# 2PIN copper bar

2 Overview
10
Copper bar No. Illustration Sketch map
3# 3PIN copper bar
4# 3PIN copper bar
The installation position of the UPS main and power distribution module is as shown
inFigure2-5, Figure2-6.

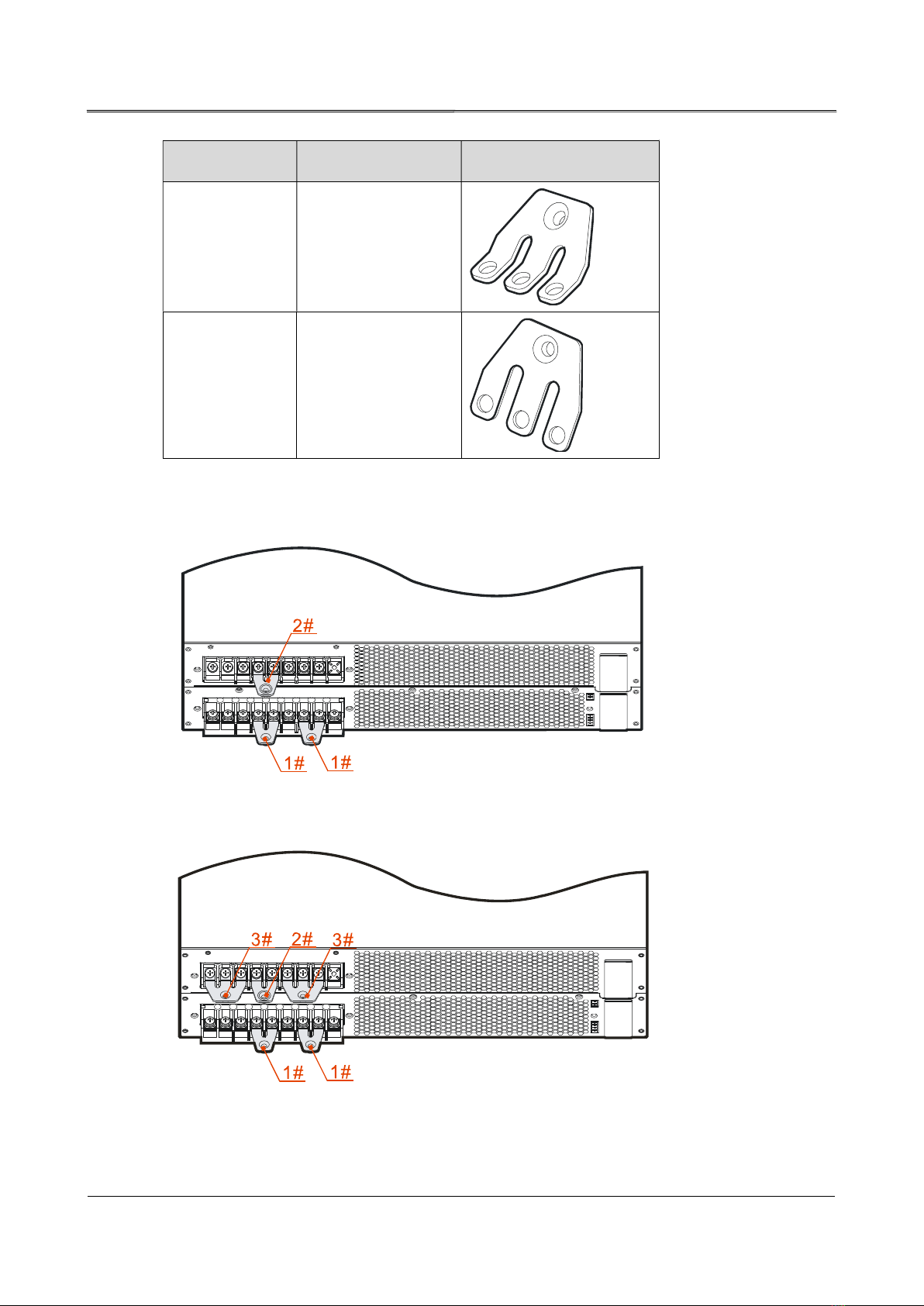

Figure2-5 Installation 33 mode copper bar position of 10kVA-20kVA UPS
Figure2-6 Installation31 mode copper bar position of 10kVA-20kVA UPS

2 Overview
11
30kVA-40kVA
(30kVA-40kVA) UPS and distribution module has 2 kinds of copper bar, as shown inTable2-3.
Connect the wiring terminal of the UPS or distribution module with the copper bar according
to needs. The copper bar for short connect with the three phase bypass input terminal and
three phase output terminal only for 31 mode UPS.
Table2-3 Copper bar illustration
Copper bar No. Illustration Sketch map
1# 3PIN copper bar
2# 3PIN copper bar
The installation position of the UPS main and power distribution module is as shown
inFigure2-7, Figure2-8.

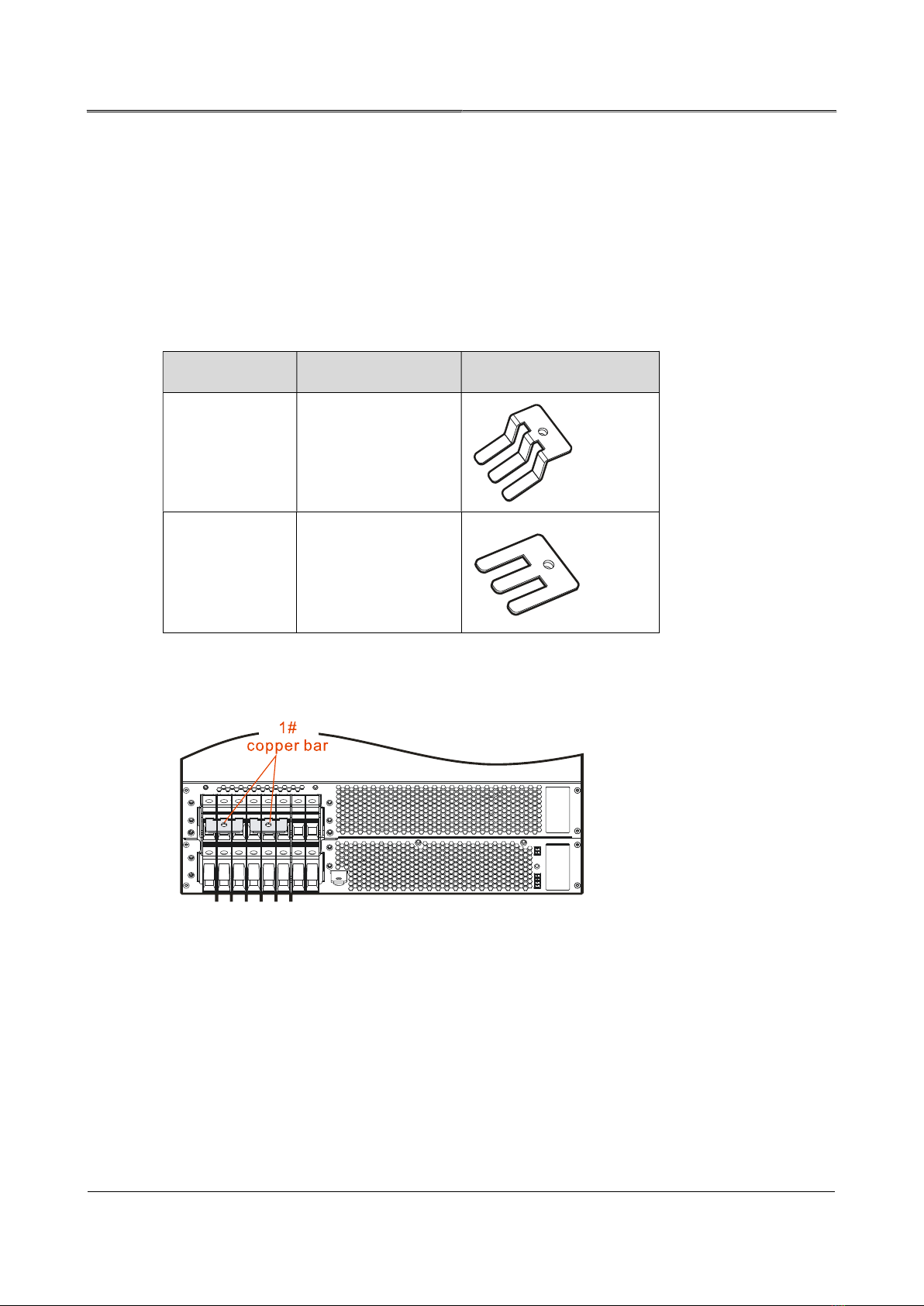

Figure2-7 Installation 31 mode copper bar position of 30kVA-40kVA UPS

2 Overview
12
Figure2-8 Copper bar 2# installation position of 31 mode power distribution module
2.2 Work Principle
2.2.1 Work Principle Diagram
Work principle diagram of the UPS is as shown in Figure2-9.

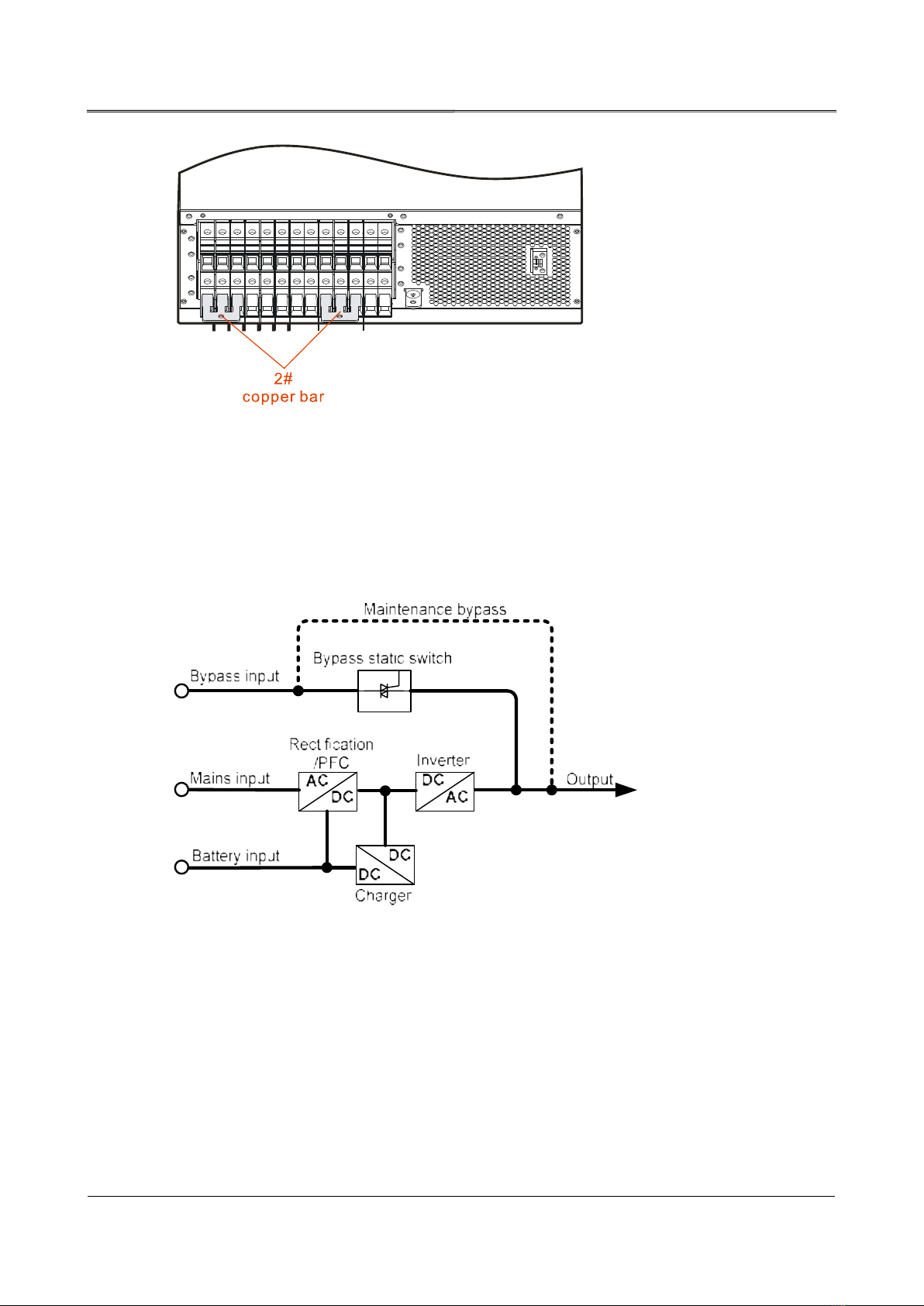

Figure2-9 Work principle diagram
The UPS includes rectification/PFC, inverter, charger, bypass static switch etc function
module, the input power includes mains input, bypass input, battery input, the output mode
includes inverter output, bypass output and maintenance bypass output (if equipped).
When mains normal, the rectifier starts and the charger charges the battery at the same time.
When UPS off, if bypass normal, the system turns to bypass output; when UPS on, the
mains boosts by rectification/PFC and output DC bus voltage, and then go through inverter
Table of contents
Other AEC UPS manuals
