AEG WS 9-100 User manual

WS 9-100, WS 9-115, WS 9-125,
WS 11-115, WS 11-125, WS 12-125 XE

117105101979389858177736965615749 534541373329252117
13 109 113
Òåõíè÷åñêèå äàííûå, Ðåêîìåíäàöèè ïî òåõíèêå áåçîïàñíîñòè,
Èñïîëüçî- âàíèå, Ïîäêëþ÷åíèå ê ýëåêòðîñåòè, Îáñëóæèâàíèå, Ñèìâîëû
Òåõíè÷åñêè äàííè, Ñïåöèàëíè óêàçàíèÿ çà áåçîïàñíîñò, Èçïîëçâàíå ïî
ïðåäíàçíà÷åíèå, ÑÅ-Äåêëàðàöèÿ çà ñúîòâåòñòâèå, Ñâúðçâàíå êúì
ìðåæàòà, Ïîääðúæêà, Ñèìâîëè
Òåõíè÷êè Ïîäàòîöè, Óïàòñòâî Çà Óïîòðåáà, Ñïåöèôèöèðàíè Óñëîâè Íà
Óïîòðåáà, Åó-äåêëàðàöè¼à Çà Ñîîáðàçíîñò, Ãëàâíè Âðñêè, Îäðæóâàå, Ñèìáîëè
Dansk
Français
Italiano
Español
Português
Nederlands
Deutsch
English
Vær venlig at læse og
opbevare!
Lees en let goed op
deze adviezen!
Por favor leia e conserve em
seu poder!
Lea y conserve estas
instrucciones por favor!
Si prega di leggere le
istruzioni e di conservarle!
Prière de lire et de
conserver!
Bitte lesen und
aufbewahren!
Please read and save
these instructions!
Norsk
Svenska
Suomi
Slovensky
Polski
Magyar
Slovensko
Hvratski
Latviski
Eesti
Мake
ä
ohc
êè
БЪЛГАРСКИ
Lietuvi
š
kai
中文
Romănia
Türkçe
Česky

TIP
II
VII
IV
IX
I III
VIII
řílšetí
Äîïîëíèòåëü
配件
VVI
WS ...-... ...E

2
I

3
II
1.
2.
3.
1
2
For cutting-o
operations!
Für Trennarbeiten!
Pour les travaux de
tronçonnage!
Per lavori di separazione!
¡Para trabajos de
tronzado!
Para trabalhos de corte!
Voor
doorslijpwerkzaamheden!
Til skærearbejder!
For kutting!
För kapningsarbeten!
Katkaisutöihin!
Για εργασίες κοπής!
Ayırma işleri için!
Pro řezací práce!
Pre rezacie práce!
Do robót związanych z
rozcinaniem!
Vágási munkálatokhoz!
Za razdvajalna dela!
Za odvajačke radove!
Griešanai!
Pjovimo darbams!
Lõiketöödeks!
Для работ по
разделению!
За рязане (разделяне)!
Pentru lucrri de retezare!
За работи со делење!
为了切割工作!

4
III
0°
30° 30°
60° 60°
30
°
60
°
30
°
60
°
0
°
click

5
IV
< 6 mm
> 6 mm
1. 2.
3. 4.
1. 2.

6
IV
1. 2.
1. 2.
3.
1.
WS ...-... X...

7
V
unlock
lock
Start
Stop
unlock
unlock
unlock
unlock
unlock
1. 2.
1. 2.

8
VI
WS ...-... ...E

9
TIP
< 30°
TIP
VII
TIP

10
1. 2.
1. 2.
VIII

11
VIII
1. 2.
1. 2.

13
GB
English
TECHNICAL DATA Angle Grinder
WS 9-100 WS 9-115 WS 9-125
220 - 240 V 110 V
Rated input .............................................................................. 900 W ......................... 900 W ............. 900 W ........................900 W
Rated speed ........................................................................ 11000 min -1 ............... 11000 min -1 ... 11000 min -1 ..............11000 min -1
Grinding disk diameter............................................................. 100 mm ...................... 115 mm ..........115 mm .....................125 mm
Thread of work spindle ............................................................... M 10 .......................... M 14 ...............M 14 ......................... M 14
Weight according EPTA-Procedure 01/2003 .............................. 2,0 kg ......................... 2,0 kg .............2,0 kg .........................2,0 kg
Noise/Vibration Information
Measured values determined according to EN 60 745.
Typically, the A-weighted noise levels of the tool are:
Sound pressure level (K=3 dB(A)) ........................................... 90,5 dB (A).................. 90,5 dB (A) ..... 89,0 dB (A) .................90,5 dB (A)
Sound power level(K=3 dB(A)) ............................................. 101,5 dB (A)................ 101,5 dB (A) ... 100,0 dB (A) ...............101,5 dB (A)
Wear ear protectors!
Total vibration values (vector sum in the three axes) determined according to EN 60745.
Surface grinding: vibration emission value ah ........................... 5,8 m/s2 ...................... 5,8 m/s2 .......... 5,6 m/s2 .....................5,8 m/s2
Uncertainty K ............................................................................ 1,5 m/s2 ...................... 1,5 m/s2 ..........1,5 m/s2 .....................1,5 m/s2
Disk sanding: vibration emission level ah ................................... 1,9 m/s2 ...................... 1,9 m/s2 ..........2,9 m/s2 .....................1,9 m/s2
Uncertainty K ............................................................................ 1,5 m/s2 ...................... 1,5 m/s2 ..........1,5 m/s2 .....................1,5 m/s2
WS 11-115 WS 11-125 WS 12-125 XE
Rated input ............................................................................ 1100 W .....................................1100 W ..................................1200 W
Rated speed ........................................................................ 11000 min -1..............................11000 min -1 ...............2800 - 11000 min -1
Grinding disk diameter............................................................. 115 mm ....................................125 mm .................................125 mm
Thread of work spindle ............................................................... M 14 ......................................... M 14 ..................................... M 14
Weight according EPTA-Procedure 01/2003 .............................. 2,3 kg ........................................2,3 kg .....................................2,4 kg
Noise/Vibration Information
Measured values determined according to EN 60 745.
Typically, the A-weighted noise levels of the tool are:
Sound pressure level (K=3 dB(A)) ........................................... 90,5 dB (A) ................................90,5 dB (A) .............................90,0 dB (A)
Sound power level(K=3 dB(A)) ............................................. 101,5 dB (A) ..............................101,5 dB (A) ...........................101,0 dB (A)
Wear ear protectors!
Total vibration values (vector sum in the three axes) determined according to EN 60745.
Surface grinding: vibration emission value ah ........................... 5,8 m/s2 ....................................5,8 m/s2 .................................6,4 m/s2
Uncertainty K ............................................................................ 1,5 m/s2 ....................................1,5 m/s2 .................................1,5 m/s2
Disk sanding: vibration emission level ah ................................... 1,9 m/s2 ....................................1,9 m/s2 .................................1,9 m/s2
Uncertainty K ............................................................................ 1,5 m/s2 ....................................1,5 m/s2 .................................1,5 m/s2
For other applications, e.g. Abrasive Cutting-O Operations or Wire Brushing other vibration values could occur.
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and
may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for dierent applications, with
dierent accessories or poorly maintained, the vibration emission may dier. This may signicantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched o or when it is running
but not actually doing the job. This may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories, keep
the hands warm, organisation of work patterns.

14
English
GB
WARNING!
Read all safety warnings and all instructions, including
those given in the accompanying brochure. Failure to follow
the warnings and instructions may result in electric shock, re and/
or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
Safety Warnings Common for Grinding, Sanding, Wire
Brushing or Abrasive Cutting-O Operations:
a) This power tool is intended to function as a grinder,
sander, wire brush, or cut-o tool. Read all safety warnings,
instructions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
b) Operations such as polishing are not recommended to be
performed with this power tool. Operations for which the power
tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specically designed
and recommended by the tool manufacturer. Just because the
accessory can be attached to your power tool, it does not assure safe
operation.
d )The rated speed of the accessory must be at least equal to
the maximum speed marked on the power tool. Accessories
running faster than their rated speed can break and y apart.
e) The outside diameter and the thickness of your accessory
must be within the capacity rating of your power tool.
Incorrectly sized accessories cannot be adequately guarded or
controlled.
f) The arbour size of wheels, anges, backing pads or any
other accessory must properly t the spindle of the power
tool. Accessories with arbour holes that do not match the mounting
hardware of the power tool will run out of balance, vibrate excessively
and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect
the accessory such as abrasive wheels for chips and cracks,
backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped,
inspect for damage or install an undamaged accessory. After
inspecting and installing an accessory, position yourself and
bystanders away from the plane of the rotating accessory
and run the power tool at maximum noload speed for one
minute. Damaged accessories will normally break apart during this
test time.
h) Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety glasses.
As appropriate, wear dust mask, hearing protectors, gloves
and shop apron capable of stopping small abrasive or
workpiece fragments. The eye protection must be capable of
stopping ying debris generated by various operations. The dust
mask or respirator must be capable of ltrating particles generated
by your operation. Prolonged exposure to high intensity noise may
cause hearing loss.
i) Keep bystanders a safe distance away from work area.
Anyone entering the work area must wear personal
protective equipment. Fragments of workpiece or of a broken
accessory may y away and cause injury beyond immediate area of
operation.
j) Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory
contacting a „live“ wire may make exposed metal parts of the power
tool „live“ and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose
control, the cord may be cut or snagged and your hand or arm may be
pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come
to a complete stop. The spinning accessory may grab the surface
and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan
will draw the dust inside the housing and excessive accumulation of
powdered metal may cause electrical hazards.
o) Do not operate the power tool near ammable materials.
Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using
water or other liquid coolants may result in electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel.
Pinching or snagging causes rapid stalling of the rotating wheel
which in turn causes the uncontrolled power tool to be forced in the
direction opposite of the wheel‘s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the
workpiece, the edge of the wheel that is entering into the pinch point
can dig into the surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward or away from
the operator, depending on direction of the wheel’s movement at
the point of pinching. Abrasive wheels may also break under these
conditions.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below.
a) Maintain a rm grip on the power tool and position your
body and arm to allow you to resist kickback forces. Always
use auxiliary handle, if provided, for maximum control over
kickback or torque reaction during start-up. The operator can
control torque reactions or kickback forces, if proper precautions are
taken.
b) Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will
move if kickback occurs. Kickback will propel the tool in direction
opposite to the wheel’s movement at the point of snagging.

15
English
GB
d) Use special care when working corners, sharp edges, etc.
Avoid bouncing and snagging the accessory. Corners, sharp
edges or bouncing have a tendency to snag the rotating accessory
and cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving blade or toothed
saw blade. Such blades create frequent kickback and loss of control.
Safety Warnings Specic for Grinding and Abrasive Cutting-
O Operations:
a) Use only wheel types that are recommended for your
power tool and the specic guard designed for the selected
wheel. Wheels for which the power tool was not designed cannot be
adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool
and positioned for maximum safety, so the least amount
of wheel is exposed towards the operator. The guard helps to
protect operator from broken wheel fragments and accidental contact
with wheel.
c) Wheels must be used only for recommended applications.
For example: do not grind with the side of cut-o wheel.
Abrasive cut-o wheels are intended for peripheral grinding, side
forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel anges that are of correct
size and shape for your selected wheel. Proper wheel anges
support the wheel thus reducing the possibility of wheel breakage.
Flanges for cut-o wheels may be dierent from grinding wheel
anges.
e) Do not use worn down wheels from larger power tools.
Wheel intended for larger power tool is not suitable for the higher
speed of a smaller tool and may burst.
Additional Safety Warnings Specic for Abrasive Cutting-O
Operations:
a) Do not “jam” the cut-o wheel or apply excessive
pressure. Do not attempt to make an excessive depth of cut.
Overstressing the wheel increases the loading and susceptibility
to twisting or binding of the wheel in the cut and the possibility of
kickback or wheel breakage.
b) Do not position your body in line with and behind the
rotating wheel. When the wheel, at the point of operation, is
moving away from your body, the possible kickback may propel the
spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any
reason, switch o the power tool and hold the power tool
motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-o wheel from the cut while the
wheel is in motion otherwise kickback may occur. Investigate
and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let
the wheel reach full speed and carefully reenter the cut. The
wheel may bind, walk up or kickback if the power tool is restarted in
the workpiece.
e) Support panels or any oversized workpiece to minimize
the risk of wheel pinching and kickback. Large workpieces tend
to sag under their own weight. Supports must be placed under the
workpiece near the line of cut and near the edge of the workpiece on
both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing
walls or other blind areas. The protruding wheel may cut gas or
water pipes, electrical wiring or objects that can cause kickback.
Safety Warnings Specic for Sanding Operations:
a) Do not use excessively oversized sanding disc paper. Follow
manufacturers recommendations, when selecting sanding
paper. Larger sanding paper extending beyond the sanding pad
presents a laceration hazard and may cause snagging, tearing of the
disc or kickback.
Safety Warnings Specic for Wire Brushing Operations:
a) Be aware that wire bristles are thrown by the brush even
during ordinary operation. Do not overstress the wires by
applying excessive load to the brush. The wire bristles can easily
penetrate light clothing and/or skin.
b) If the use of a guard is recommended for wire brushing, do
not allow any interference of the wire wheel or brush with
the guard. Wire wheel or brush may expand in diameter due to
work load and centrifugal forces.
Appliances used at many dierent locations including open air should
be connected via a residual current device (FI, RCD, PRCD) of 30mA
or less.
Sawdust and splinters must not be removed while the machine is
running.
Only plug-in when machine is switched o.
Never reach into the danger area of the plane when it is running.
Always use the auxiliary handle.
Always use the protecting cap when roughing-down and separating.
Immediately switch o the machine in case of considerable vibrations
or if other malfunctions occur. Check the machine in order to nd out
the cause.
Always use and store the grinding disks according to the
manufacturer’s instructions.
When grinding metal, ying sparks are produced. Take care that
no persons are endangered. Because of the danger of re, no
combustible materials should be located in the vicinity (spark ight
zone). Do not use dust extraction.
Due care should be taken that no sparks or sanding dust ying from
the workpiece come into contact with you.
When separating stone the guide shoe must be used!
The adjusting nut must be tightened before starting to work with
the machine.
The workpiece must be xed if it is not heavy enough to be steady.

16
English
GB
Never lead the workpiece to the grinding disk with your hand.
Under extreme conditions (e.g. smooth-grinding metals with the arbour
and vulcanized bre grinding wheel), signi cant contamination can build
up on the inside of the angle grinder. For safety reasons, in such conditions
the inside should be cleaned thoroughly of metal deposits and a residual
current device (FI, RCD, PRCD) must be connected in series. If the residual
current device responds, the machine must be sent for repair.
For accessories intended to be tted with threaded hole wheel,
ensure that the thread in the wheel is long enough to accept the
spindle length.
When cutting-o material, use the closed safety guard from the
accessories range.
SPECIFIED CONDITIONS OF USE
The angle grinder may be used for cutting, grinding, sanding and
wire brushing a wide range of materials, such as metal or stone. If
you have any doubts, please refer to the instructions supplied by the
accessory manufacturer.
Do not use this product in any other way as stated for normal use.
MAINS CONNECTION
Connect only to single-phase AC current and only to the system
voltage indicated on the rating plate. It is also possible to connect
to sockets without an earthing contact as the design conforms to
safety class II.
ECDECLARATION OF CONFORMITY
We declare under our sole responsibility that this product is in
conformity with the following standards or standardized documents.
EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, in
accordance with the regulations 2006/42/EC, 2004/108/EC
Rainer Kumpf
Manager Product Development
Authorized to compile the technical le
Winnenden, 2010-12-09
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
Do not let any metal parts enter the airing slots - danger of short
circuit!
Use only AEG accessories and spare parts. Should components need to
be replaced which have not been described, please contact one of our
AEG service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label
and order the drawing at your local service agents or directly at:
AEG Elektrowerkzeuge, Max-Eyth-Straße10, D-71364Winnenden,
Germany.
ELECTRONICS WS 12125 XE
The built-in electronic will keep a constant speed even under
increased load.
Should the machine be overloaded, the rotational speed is being
reduced to standstill.
SYMBOLS
Please read the instructions carefully before
starting the machine.
CAUTION! WARNING! DANGER!
Always wear goggles when using the machine.
Always disconnect the plug from the socket before
carrying out any work on the machine.
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste electrical
and electronic equipment and its implementation
in accordance with national law, electric tools that
have reached the end of their life must be collected
separately and returned to an environmentally
compatible recycling facility.

17
D
Deutsch
TECHNISCHE DATEN Winkelschleifer
WS 9-100 WS 9-115 WS 9-125
220 - 240 V 110 V
Nennaufnahmeleistung ........................................................... 900 W ......................... 900 W .............900 W ....................... 900 W
Nenndrehzahl ...................................................................... 11000 min -1 ............... 11000 min -1 ...11000 min -1 ............. 11000 min -1
Schleifscheiben-ø..................................................................... 100 mm ...................... 115 mm ..........115 mm .................... 125 mm
Spindelgewinde ......................................................................... M 10 .......................... M 14 ...............M 14 ........................ M 14
Gewicht nach EPTA-Prozedur 01/2003 ...................................... 2,0 kg ......................... 2,0 kg .............2,0 kg ........................2,0 kg
Geräusch/Vibrationsinformation
Messwerte ermittelt entsprechend EN 60 745.
Der A-bewertete Geräuschpegel des Gerätes beträgt typischerweise:
Schalldruckpegel (K=3 dB(A)) ................................................ 90,5 dB (A).................. 90,5 dB (A) .....89,0 dB (A) ................ 90,5 dB (A)
Schallleistungspegel(K=3 dB(A)).......................................... 101,5 dB (A)................ 101,5 dB (A) ...100,0 dB (A) .............. 101,5 dB (A)
Gehörschutz tragen!
Schwingungsgesamtwerte (Vektorsumme dreier Richtungen) ermittelt entsprechend EN 60745.
Schruppschleifen: Schwingungsemissionswert ah ..................... 5,8 m/s2 ...................... 5,8 m/s2 ..........5,6 m/s2 .................... 5,8 m/s2
Unsicherheit K ........................................................................... 1,5 m/s2 ...................... 1,5 m/s2 ..........1,5 m/s2 .................... 1,5 m/s2
Sandpapierschleifen: Schwingungsemissionswert ah ................ 1,9 m/s2 ...................... 1,9 m/s2 ..........2,9 m/s2 .................... 1,9 m/s2
Unsicherheit K ........................................................................... 1,5 m/s2 ...................... 1,5 m/s2 ..........1,5 m/s2 .................... 1,5 m/s2
WS 11-115 WS 11-125 WS 12-125 XE
Nennaufnahmeleistung ......................................................... 1100 W .....................................1100 W .................................1200 W
Nenndrehzahl ...................................................................... 11000 min -1..............................11000 min -1 ..............2800 - 11000 min -1
Schleifscheiben-ø..................................................................... 115 mm ....................................125 mm ................................125 mm
Spindelgewinde ......................................................................... M 14 ......................................... M 14 .................................... M 14
Gewicht nach EPTA-Prozedur 01/2003 ...................................... 2,3 kg ........................................2,3 kg ....................................2,4 kg
Geräusch/Vibrationsinformation
Messwerte ermittelt entsprechend EN 60 745.
Der A-bewertete Geräuschpegel des Gerätes beträgt typischerweise:
Schalldruckpegel (K=3 dB(A)) ................................................ 90,5 dB (A) ................................90,5 dB (A) ............................90,0 dB (A)
Schallleistungspegel(K=3 dB(A)).......................................... 101,5 dB (A) ..............................101,5 dB (A) ..........................101,0 dB (A)
Gehörschutz tragen!
Schwingungsgesamtwerte (Vektorsumme dreier Richtungen) ermittelt entsprechend EN 60745.
Schruppschleifen: Schwingungsemissionswert ah ..................... 5,8 m/s2 ....................................5,8 m/s2 ................................6,4 m/s2
Unsicherheit K ........................................................................... 1,5 m/s2 ....................................1,5 m/s2 ................................1,5 m/s2
Sandpapierschleifen: Schwingungsemissionswert ah ................ 1,9 m/s2 ....................................1,9 m/s2 ................................1,9 m/s2
Unsicherheit K ........................................................................... 1,5 m/s2 ....................................1,5 m/s2 ................................1,5 m/s2
Bei anderen Anwendungen, wie z.B. Trennschleifen oder Schleifen mit der Stahldrahtbürste können sich andere Vibrationswerte ergeben!
WARNUNG
Der in diesen Anweisungen angegebene Schwingungspegel ist entsprechend einem in EN 60745 genormten Messverfahren gemessen
worden und kann für den Vergleich von Elektrowerkzeugen miteinander verwendet werden. Er eignet sich auch für eine vorläuge
Einschätzung der Schwingungsbelastung.
Der angegebene Schwingungspegel repräsentiert die hauptsächlichen Anwendungen des Elektrowerkzeugs. Wenn allerdings das
Elektrowerkzeug für andere Anwendungen, mit abweichenden Einsatzwerkzeugen oder ungenügender Wartung eingesetzt wird, kann der
Schwingungspegel abweichen. Dies kann die Schwingungsbelastung über den gesamten Arbeitszeitraum deutlich erhöhen.
Für eine genaue Abschätzung der Schwingungsbelastung sollten auch die Zeiten berücksichtigt werden, in denen das Gerät abgeschaltet
ist oder zwar läuft, aber nicht tatsächlich im Einsatz ist. Dies kann die Schwingungsbelastung über den gesamten Arbeitszeitraum deutlich
reduzieren.
Legen Sie zusätzliche Sicherheitsmaßnahmen zum Schutz des Bedieners vor der Wirkung von Schwingungen fest wie zum Beispiel: Wartung
von Elektrowerkzeug und Einsatzwerkzeugen, Warmhalten der Hände, Organisation der Arbeitsabläufe.

18
Deutsch
D
WARNUNG!
Lesen Sie alle Sicherheitshinweise und Anweisungen,
auch die in der beiliegenden Broschüre.Versäumnisse bei
der Einhaltung der Sicherheitshinweise und Anweisungen können
elektrischen Schlag, Brand und/oder schwere Verletzungen
verursachen.
Bewahren Sie alle Sicherheitshinweise und Anweisungen für
die Zukunft auf.
SPEZIELLE SICHERHEITSHINWEISE
Gemeinsame Sicherheitshinweise zum Schleifen,
Sandpapierschleifen, Arbeiten mit Drahtbürsten und
Trennschleifen
a) Dieses Elektrowerkzeug ist zu verwenden als Schleifer,
Sandpapierschleifer, Drahtbürste und Trennschleifmaschine.
Beachten Sie alle Sicherheitshinweise, Anweisungen,
Darstellungen und Daten, die Sie mit dem Elektrowerkzeug
erhalten. Wenn Sie die folgenden Anweisungen nicht beachten,
kann es zu elektrischem Schlag, Feuer und/oder schweren
Verletzungen kommen.
b) Dieses Elektrowerkzeug ist nicht geeignet zum Polieren.
Verwendungen, für die das Elektrowerkzeug nicht vorgesehen ist,
können Gefährdungen und Verletzungen verursachen.
c) Verwenden Sie kein Zubehör, das vom Hersteller
nicht speziell für dieses Elektrowerkzeug vorgesehen
und empfohlen wurde. Nur weil Sie das Zubehör an Ihrem
Elektrowerkzeug befestigen können, garantiert das keine sichere
Verwendung.
d )Die zulässige Drehzahl des Einsatzwerkzeugs muss
mindestens so hoch sein wie die auf dem Elektrowerkzeug
angegebene Höchstdrehzahl. Zubehör, das sich schneller als
zulässig dreht, kann zerbrechen und umheriegen.
e) Außendurchmesser und Dicke des Einsatzwerkzeugs
müssen den Maßangaben Ihres Elektrowerkzeugs
entsprechen. Falsch bemessene Einsatzwerkzeuge können nicht
ausreichend abgeschirmt oder kontrolliert werden.
f) Schleifscheiben, Flansche, Schleifteller oder anderes
Zubehör müssen genau auf die Schleifspindel Ihres
Elektrowerkzeugs passen. Einsatzwerkzeuge, die nicht genau
auf die Schleifspindel des Elektrowerkzeugs passen, drehen sich
ungleichmäßig, vibrieren sehr stark und können zum Verlust der
Kontrolle führen.
g) Verwenden Sie keine beschädigten Einsatzwerkzeuge.
Kontrollieren Sie vor jeder Verwendung Einsatzwerkzeuge
wie Schleifscheiben auf Absplitterungen und Risse,
Schleifteller auf Risse, Verschleiß oder starke Abnutzung,
Drahtbürsten auf lose oder gebrochene Drähte. Wenn das
Elektrowerkzeug oder das Einsatzwerkzeug herunterfällt,
überprüfen Sie, ob es beschädigt ist, oder verwenden
Sie ein unbeschädigtes Einsatzwerkzeug. Wenn Sie das
Einsatzwerkzeug kontrolliert und eingesetzt haben, halten Sie
und in der Nähe bendliche Personen sich außerhalb der Ebene
des rotierenden Einsatzwerkzeugs auf und lassen Sie das
Elektrowerkzeug eine Minute lang mit Höchstdrehzahl laufen.
Beschädigte Einsatzwerkzeuge brechen meist in dieser Testzeit.
h) Tragen Sie persönliche Schutzausrüstung. Verwenden Sie
je nach Anwendung Vollgesichtsschutz, Augenschutz oder
Schutzbrille. Soweit angemessen, tragen Sie Staubmaske,
Gehörschutz, Schutzhandschuhe oder Spezialschürze, die
kleine Schleif und Materialpartikel von Ihnen fernhält.
Die Augen sollen vor herumiegenden Fremdkörpern geschützt
werden, die bei verschiedenen Anwendungen entstehen. Staub oder
Atemschutzmaske müssen den bei der Anwendung entstehenden
Staub ltern. Wenn Sie lange lautem Lärm ausgesetzt sind, können Sie
einen Hörverlust erleiden.
i) Achten Sie bei anderen Personen auf sicheren Abstand zu
Ihrem Arbeitsbereich. Jeder, der den Arbeitsbereich betritt,
muss persönliche Schutzausrüstung tragen. Bruchstücke des
Werkstücks oder gebrochener Einsatzwerkzeuge können wegiegen
und Verletzungen auch außerhalb des direkten Arbeitsbereichs
verursachen.
j) Halten Sie das Gerät nur an den isolierten Griächen,
wenn Sie Arbeiten ausführen, bei denen das Einsatzwerkzeug
verborgene Stromleitungen oder das eigene Kabel
treen kann. Der Kontakt des Schneidwerkzeugs mit einer
spannungsführenden Leitung kann metallene Geräteteile unter
Spannung setzen und zu einem elektrischen Schlag führen.
k) Halten Sie das Netzkabel von sich drehenden
Einsatzwerkzeugen fern. Wenn Sie die Kontrolle über das
Elektrowerkzeug verlieren, kann das Netzkabel durchtrennt oder
erfasst werden und Ihre Hand oder Ihr Arm in das sich drehende
Einsatzwerkzeug geraten.
l) Legen Sie das Elektrowerkzeug niemals ab, bevor das
Einsatzwerkzeug völlig zum Stillstand gekommen ist. Das sich
drehende Einsatzwerkzeug kann in Kontakt mit der Ablageäche
geraten, wodurch Sie die Kontrolle über das Elektrowerkzeug verlieren
können.
m) Lassen Sie das Elektrowerkzeug nicht laufen, während Sie
es tragen. Ihre Kleidung kann durch zufälligen Kontakt mit dem sich
drehenden Einsatzwerkzeug erfasst werden, und das Einsatzwerkzeug
sich in Ihren Körper bohren.
n) Reinigen Sie regelmäßig die Lüftungsschlitze Ihres
Elektrowerkzeugs. Das Motorgebläse zieht Staub in das Gehäuse,
und eine starke Ansammlung von Metallstaub kann elektrische
Gefahren verursachen.
o) Verwenden Sie das Elektrowerkzeug nicht in der Nähe
brennbarer Materialien. Funken können diese Materialien
entzünden.
p) Verwenden Sie keine Einsatzwerkzeuge, die üssige
Kühlmittel erfordern. Die Verwendung von Wasser oder anderen
üssigen Kühlmitteln kann zu einem elektrischen Schlag führen.
Rückschlag und entsprechende Sicherheitshinweise
Rückschlag ist die plötzliche Reaktion infolge eines hakenden oder
blockierten drehenden Einsatzwerkzeugs, wie Schleifscheibe,
Schleifteller, Drahtbürste usw. Verhaken oder Blockieren führt zu
einem abrupten Stopp des rotierenden Einsatzwerkzeugs. Dadurch
wird ein unkontrolliertes Elektrowerkzeug gegen die Drehrichtung des
Einsatzwerkzeugs an der Blockierstelle beschleunigt.
Wenn z. B. eine Schleifscheibe im Werkstück hakt oder blockiert, kann
sich die Kante der Schleifscheibe, die in das Werkstück eintaucht,
verfangen und dadurch die Schleifscheibe ausbrechen oder einen

19
Deutsch
D
Rückschlag verursachen. Die Schleifscheibe bewegt sich dann auf die
Bedienperson zu oder von ihr weg, je nach Drehrichtung der Scheibe an
der Blockierstelle. Hierbei können Schleifscheiben auch brechen.
Ein Rückschlag ist die Folge eines falschen oder fehlerhaften Gebrauchs
der Säge. Er kann durch geeignete Vorsichtsmaßnahmen, wie
nachfolgend beschrieben, verhindert werden.
a) Halten Sie das Elektrowerkzeug gut fest und bringen Sie
Ihren Körper und Ihre Arme in eine Position, in der Sie die
Rückschlagkräfte abfangen können. Verwenden Sie immer
den Zusatzgri, falls vorhanden, um die größtmögliche
Kontrolle über Rückschlagkräfte oder Reaktionsmomente
beim Hochlauf zu haben. Die Bedienperson kann durch geeignete
Vorsichtsmaßnahmen die Rückschlag- und Reaktionskräfte
beherrschen.
b) Bringen Sie Ihre Hand nie in die Nähe sich drehender
Einsatzwerkzeuge. Das Einsatzwerkzeug kann sich beim Rückschlag
über Ihre Hand bewegen.
c) Meiden Sie mit Ihrem Körper den Bereich, in den das
Elektrowerkzeug bei einem Rückschlag bewegt wird. Der
Rückschlag treibt das Elektrowerkzeug in die Richtung entgegengesetzt
zur Bewegung der Schleifscheibe an der Blockierstelle.
d) Arbeiten Sie besonders vorsichtig im Bereich von Ecken,
scharfen Kanten usw. Verhindern Sie, dass Einsatzwerkzeuge
vom Werkstück zurückprallen und verklemmen. Das
rotierende Einsatzwerkzeug neigt bei Ecken, scharfen Kanten oder
wenn es abprallt, dazu, sich zu verklemmen. Dies verursacht einen
Kontrollverlust oder Rückschlag.
e) Verwenden Sie kein Ketten- oder gezähntes Sägeblatt.
Solche Einsatzwerkzeuge verursachen häug einen Rückschlag oder
den Verlust der Kontrolle über das Elektrowerkzeug.
Besondere Sicherheitshinweise zum Schleifen und
Trennschleifen
a) Verwenden Sie ausschließlich die für Ihr Elektrowerkzeug
zugelassenen Schleifkörper und die für diese Schleifkörper
vorgesehene Schutzhaube. Schleifkörper, die nicht für das
Elektrowerkzeug vorgesehen sind, können nicht ausreichend
abgeschirmt werden und sind unsicher.
b) Die Schutzhaube muss sicher am Elektrowerkzeug
angebracht und so eingestellt sein, dass ein Höchstmaß an
Sicherheit erreicht wird, d. h. der kleinstmögliche Teil des
Schleifkörpers zeigt oen zur Bedienperson. Die Schutzhaube
soll die Bedienperson vor Bruchstücken und zufälligem Kontakt mit
dem Schleifkörper schützen.
c) Schleifkörper dürfen nur für die empfohlenen
Einsatzmöglichkeiten verwendet werden. Z.B.: Schleifen Sie
nie mit der Seitenäche einer Trennscheibe. Trennscheiben sind
zum Materialabtrag mit der Kante der Scheibe bestimmt. Seitliche
Krafteinwirkung auf diese Schleifkörper kann sie zerbrechen.
d) Verwenden Sie immer unbeschädigte Spannansche in
der richtigen Größe und Form für die von Ihnen gewählte
Schleifscheibe. Geeignete Flansche stützen die Schleifscheibe
und verringern so die Gefahr eines Schleifscheibenbruchs. Flansche
für Trennscheiben können sich von den Flanschen für andere
Schleifscheiben unterscheiden.
e) Verwenden Sie keine abgenutzten Schleifscheiben von
größeren Elektrowerkzeugen. Schleifscheiben für größere
Elektrowerkzeuge sind nicht für die höheren Drehzahlen von kleineren
Elektrowerkzeugen ausgelegt und können brechen.
Weitere besondere Sicherheitshinweise zum Trennschleifen
a) Vermeiden Sie ein Blockieren der Trennscheibe oder zu
hohen Anpressdruck. Führen Sie keine übermäßig tiefen
Schnitte aus. Eine Überlastung der Trennscheibe erhöht deren
Beanspruchung und die Anfälligkeit zum Verkanten oder Blockieren
und damit die Möglichkeit eines Rückschlags oder Schleifkörperbruchs.
b) Meiden Sie den Bereich vor und hinter der rotierenden
Trennscheibe. Wenn Sie die Trennscheibe im Werkstück von sich
wegbewegen, kann im Falle eines Rückschlags das Elektrowerkzeug mit
der sich drehenden Scheibe direkt auf Sie zugeschleudert werden.
c) Falls die Trennscheibe verklemmt oder Sie die Arbeit
unterbrechen, schalten Sie das Gerät aus und halten Sie es
ruhig, bis die Scheibe zum Stillstand gekommen ist. Versuchen
Sie nie, die noch laufende Trennscheibe aus dem Schnitt zu
ziehen, sonst kann ein Rückschlag erfolgen. Ermitteln und
beheben Sie die Ursache für das Verklemmen.
d) Schalten Sie das Elektrowerkzeug nicht wieder ein, solange
es sich im Werkstück bendet. Lassen Sie die Trennscheibe erst
ihre volle Drehzahl erreichen, bevor Sie den Schnitt vorsichtig
fortsetzen. Anderenfalls kann die Scheibe verhaken, aus dem
Werkstück springen oder einen Rückschlag verursachen.
e) Stützen Sie Platten oder große Werkstücke ab, um das Risiko
eines Rückschlags durch eine eingeklemmte Trennscheibe zu
vermindern. Große Werkstücke können sich unter ihrem eigenen
Gewicht durchbiegen. DasWerkstück muss auf beiden Seiten abgestützt
werden, und zwar sowohl in der Nähe des Trennschnitts als auch an
der Kante.
f) Seien Sie besonders vorsichtig bei „Taschenschnitten“ in
bestehende Wände oder andere nicht einsehbare Bereiche.
Die eintauchende Trennscheibe kann beim Schneiden in Gas- oder
Wasserleitungen, elektrische Leitungen oder andereObjekte einen
Rückschlag verursachen.
Besondere Sicherheitshinweise zum Sandpapierschleifen
a) Benutzen Sie keine überdimensionierten Schleifblätter,
sondern befolgen Sie die Herstellerangaben zur
Schleifblattgröße. Schleifblätter, die über den Schleifteller
hinausragen, können Verletzungen verursachen sowie zum
Blockieren, Zerreißen der Schleifblätter oder zum Rückschlag führen.
Besondere Sicherheitshinweise zum Arbeiten mit
Drahtbürsten
a) Beachten Sie, dass die Drahtbürste auch während des
üblichen Gebrauchs Drahtstücke verliert. Überlasten Sie
die Drähte nicht durch zu hohen Anpressdruck. Wegiegende
Drahtstücke können sehr leicht durch dünne Kleidung und/oder die
Haut dringen.
b) Wird eine Schutzhaube empfohlen, verhindern Sie, dass
sich Schutzhaube und Drahtbürste berühren können. Teller
und Topfbürsten können durch Anpressdruck und Zentrifugalkräfte
ihren Durchmesser vergrößern.
This manual suits for next models
5
Table of contents
Languages:
Other AEG Power Tools manuals
Popular Power Tools manuals by other brands

EARTHQUAKE XT
EARTHQUAKE XT EQ34XT-20V Owner's manual & safety instructions

laguna
laguna Quadtec:I JX6 owner's manual

Makita
Makita DTW450ZJ instruction manual

Hilti
Hilti TE 80-ATC operating instructions

Bosch
Bosch GST Professional 65 Original instructions

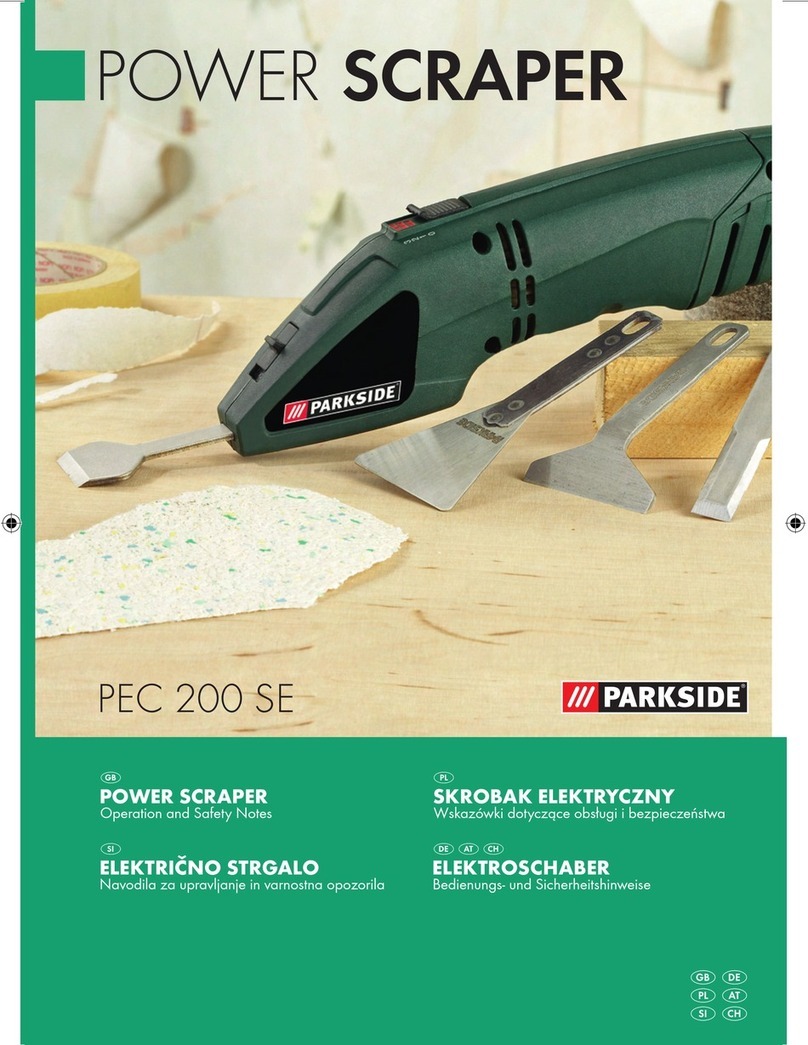

Parkside
Parkside PEC 200 SE - 4 Operation and safety notes
