S E R V I C E M A N U A L

SIMPLE MANUAL

• Replace this Service Manual with ”Revision Publishing” when it is issued.

HS-PX497

 TYPE: AH

S/M Code No. 099934107T2

STEREO CASSETTE PLAYER

ELECTRICAL MAIN PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 109 87-010-828-080 CHIP CAPACITOR,U 0.033-25F ABC.................

C 101 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 102 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 103 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 104 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 108 87-016-114-080 C-CAP,U0.01-25B ABC.................

C 107 87-016-114-080 C-CAP,U0.01-25B ABC.................

C 106 87-016-286-080 C-CAP,TN 2.2-6.3 F93 ABC.................

C 105 87-016-286-080 C-CAP,TN 2.2-6.3 F93 ABC.................

C 110 87-010-828-080 CHIP CAPACITOR,U 0.033-25F ABC.................

C 113 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................

C 114 87-010-987-080 C-CAP,S 1500P-50 CH ABC.................

C 115 87-012-285-080 C-CAP,U 8200P-50 B ABC.................

C 116 87-012-285-080 C-CAP,U 8200P-50 B ABC.................

C 118 87-012-286-080 CAP, U 0.01-25 ABC.................

C 117 87-012-286-080 CAP, U 0.01-25 ABC.................

C 119 87-A10-828-080 C-CAP,U 0.33-6.3 K B ABC.................

C 111 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 112 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 127 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 128 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 129 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 121 87-A10-827-080 C-CAP,U 0.47-6.3 K B ABC.................

C 122 87-A10-827-080 C-CAP,U 0.47-6.3 K B ABC.................

C 120 87-A10-828-080 C-CAP,U 0.33-6.3 K B ABC.................

C 124 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 123 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 125 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 126 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 134 87-010-746-080 CAP, TANTAL 10-4 ABC.................

C 136 87-016-288-080 C-CAP,TN 4.7-6.3 F93 ABC.................

C 132 87-016-429-080 C-CAP,E 100-4 5.5N ABC.................

C 131 87-016-429-080 C-CAP,E 100-4 5.5N ABC.................

C 139 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 138 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 130 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 137 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 135 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 133 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 149 87-016-286-080 C-CAP,TN 2.2-6.3 F93 ABC.................

C 140 87-016-288-080 C-CAP,TN 4.7-6.3 F93 ABC.................

C 148 87-016-288-080 C-CAP,TN 4.7-6.3 F93 ABC.................

C 142 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 143 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 141 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 147 87-A10-708-080 C-CAP,U 0.68U-10 F Z ABC.................

C 144 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 146 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 145 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 152 87-010-784-080 C-CAP,U 0.012-25 B ABC.................

C 151 87-010-784-080 C-CAP,U 0.012-25 B ABC.................

C 150 87-016-288-080 C-CAP,TN 4.7-6.3 F93 ABC.................

C 153 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 154 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 183 87-012-284-080 CAP, U 6800P-50 ABC.................

C 184 87-012-284-080 CAP, U 6800P-50 ABC.................

C 181 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 182 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 185 87-A11-062-080 C-CAP,S 2.2-16 Z F ABC.................

IC 101 87-A21-174-010 C-IC,TA2103F ABC.................

J 101 87-099-575-010 JACK,3.5ST BLK 5P ABC.................

Q 105 87-026-331-080 CHIP TRANSISTOR DTA114YU ABC.................

Q 106 87-026-331-080 CHIP TRANSISTOR DTA114YU ABC.................

Q 107 87-026-350-080 CHIP TRANSISTOR DTC114TU ABC.................

Q 102 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 104 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 101 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 183 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 184 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 182 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABC.................

Q 181 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABC.................

R 108 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

R 107 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

R 102 87-022-279-080 C-RES,U 470-1/16W F ABC.................

R 101 87-022-279-080 C-RES,U 470-1/16W F ABC.................

R 109 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 119 87-022-216-080 C-RES,U 1.1K-1/16W F ABC.................

R 117 87-022-251-080 C-RES,U 33K-1/16W F ABC.................

R 115 87-022-251-080 C-RES,U 33K-1/16W F ABC.................

R 116 87-022-251-080 C-RES,U 33K-1/16W F ABC.................

R 118 87-022-251-080 C-RES,U 33K-1/16W F ABC.................

R 110 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 120 87-022-216-080 C-RES,U 1.1K-1/16W F ABC.................

R 121 87-022-241-080 CHIP RESTOR 12K 1/16W F ABC.................

R 122 87-022-241-080 CHIP RESTOR 12K 1/16W F ABC.................

R 129 87-022-254-080 C-RES,U 43K-1/16 WF ABC.................

ELECTRICAL MAIN PARTS LIST - 2/2

R 124 87-022-293-080 CHIP RES U 390K-1/16W F ABC.................

R 123 87-022-293-080 CHIP RES U 390K-1/16W F ABC.................

R 137 87-022-223-080 CHIP RES 2.2K 1/16W F ABC.................

S 102 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABC.................

S 101 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABC.................

S 103 87-A90-400-080 C-SW,SL 1-1-4 SSSS81 ABC.................

VR 101 87-A90-116-080 C-VR,RTRY20KCX2V0103 ABC.................

C 402 87-012-286-080 CAP, U 0.01-25 ABC.................

C 401 87-012-286-080 CAP, U 0.01-25 ABC.................

C 403 87-012-286-080 CAP, U 0.01-25 ABC.................

C 406 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 409 87-A10-260-080 C-CAP,U 0.1-16 K B ABC.................

C 407 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 405 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 408 87-A10-950-080 C-CAP,S 4.7-10 Z F ABC.................

IC 401 87-A20-961-040 C-IC,MM1279XV ABC.................

Q 401 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 402 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 403 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 405 89-333-266-080 CHIP TR,2SC3326B ABC.................

Q 404 89-333-266-080 CHIP TR,2SC3326B ABC.................

SFR 401 87-024-406-080 C-SFR,6.8K RH03A3A ABC.................

TH 401 87-A90-855-080 C-THMS,SC20-3K102K ABC.................

PS 501 87-A90-526-010 SNSR,NJL 5163-F1-B ABC.................

Q 502 87-026-350-080 CHIP TRANSISTOR DTC114TU ABC.................

Q 501 89-333-266-080 CHIP TR,2SC3326B ABC.................

D 601 87-A40-643-040 C-LED,SML-211UT ABC.................

Q 601 87-026-352-080 CHIP-TR,DTC144TU ABC.................

C 701 87-010-746-080 CAP, TANTAL 10-4 ABC.................

C 702 87-010-746-080 CAP, TANTAL 10-4 ABC.................

C 703 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

D 701 87-A40-642-040 C-DIODE,1SS367 ABC.................

IC 701 87-A20-785-080 C-IC,S-81215SG-QK-T1 ABC.................

Q 704 87-026-334-080 CHIP TRANSISTOR DTA143TU ABC.................

Q 705 87-026-334-080 CHIP TRANSISTOR DTA143TU ABC.................

Q 703 87-026-350-080 CHIP TRANSISTOR DTC114TU ABC.................

Q 706 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 707 87-026-352-080 CHIP-TR,DTC144TU ABC.................

Q 702 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 701 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

C 805 87-010-274-080 C-CAP,TN 3.3-4 ABC.................

C 807 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 808 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 802 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 803 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 801 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

D 801 87-A40-642-040 C-DIODE,1SS367 ABC.................

IC 801 8Z-HK6-605-010 C-IC,MSM6576-99-GS-K ABC.................

Q 801 87-026-337-080 C-TR,DTA144TU ABC.................

Q 803 87-026-349-080 CHIP TRANSISTOR DTC143TU ABC.................

Q 802 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

R 804 87-022-255-080 C-RES,U 47K-1/16W F ABC.................

R 807 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 810 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 814 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 811 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 821 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

S 807 87-036-373-080 C-SW,SLIDE 1-1-2(E) ABC.................

S 808 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABC.................

S 802 87-A90-356-210 SW,LEAF 6ZM-2 ABC.................

S 801 87-A90-455-010 SW,PUSH HXW4001 ABC.................

S 806 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 803 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 804 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 805 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 809 87-A91-335-080 C-SW,PUSH 1-1-1 SPVG11 ABC.................

X 801 87-A70-079-110 VIB,XTAL 32.768KHZ M VT-200 ABC.................

C 901 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

J 901 87-A60-319-010 JACK,DC DIA 2.75 ABC.................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HK6-001-010 LID,ASSY CASS N ABC.................

8Z-HK6-008-010 WINDOW,CASS N ABC.................

87-067-738-010 HINGE SCREW 1.4-1 BLK N ABC.................

87-HK5-237-010 S-SCREW,1.4-2 CR NL ABC.................

* 8Z-HK6-223-010 S-SCREW,+1.4-0.7-1 CR NL ABC.................

8Z-HK6-202-010 HLDR,CASS R ABC.................

8Z-HK6-203-010 HLDR,CASS L ABC.................

8Z-HK6-207-010 SPR-P,CLIK ABC.................

8Z-HK6-003-010 CABI,REAR 497 N AB..................

8Z-HK6-004-010 FRAME,CENTER N ABC.................

8Z-HK6-005-010 LID,BATT 497 N ABC.................

8Z-HK6-009-010 LENS,LED ABC.................

8Z-HK6-021-010 CABI,REAR 497H N ..C.................

8Z-HK6-006-010 KEY,MSP ABC.................

8Z-HK6-007-010 KEY,CONT ABC.................

8Z-HK6-010-010 KNOB,SL OPEN ABC.................

8Z-HK6-011-010 KNOB,SL HOLD ABC.................

8Z-HK6-012-010 KNOB,SL A ABC.................

8Z-HK6-013-010 KNOB,SL B ABC.................

87-067-384-010 SCREWVT1.4-3.5HL ABC.................

87-067-430-010 VT1.4-5 BLK ABC.................

87-067-535-010 SCREW VT+1.4-3.5 ABC.................

87-067-732-010 TAPPING SCREW, VT1.4-3 ABC.................

87-067-746-010 SCREW,M 1.4-2(H0.5) ABC.................

87-078-113-010 S-SCRW,+1.4-3.5 HL(B ABC.................

87-263-500-310 SCREW V+1.4-1.4 ABC.................

87-HK5-235-010 S-SCREW,1.4-0.6-2.5 ABC.................

88-HK5-228-010 S-SCREW,+1.4-2 CR ABC.................

* 8Z-HK6-224-010 S-SCREW,SERR+1.4-3 CR ABC.................

87-HK6-203-010 SPR-P,POP UP ABC.................

8Z-HK6-205-010 HLDR,JACK ABC.................

8Z-HK6-206-010 SPR-P,CASS ABC.................

8Z-HK6-208-010 HLDR,BATT ABC.................

8Z-HK6-210-010 GEAR,MSP ABC.................

8Z-HK6-211-010 SPR,CLICK MSP ABC.................

8Z-HK6-213-010 SPR-C,BATT M ABC.................

8Z-HK6-225-010 SPR-E,EJECT L ABC.................

* 8Z-HK6-201-010 PLATE,HINGE ABC.................

* 8Z-HK6-204-010 PLATE,EJECT ABC.................

* 8Z-HK6-209-010 PLATE,IND ABC.................

* 8Z-HK6-212-010 PLATE,BATT P ABC.................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HK6-905-010 IB,H(ECK)S ..C.................

8Z-HK6-907-010 IB,EZ(EGFSI) S AB..................

8Z-HK6-908-010 IB,EZ(DPHMCZ) S .B..................

87-047-153-110 BAT,NB-3A PH ABC.................

87-B30-134-010 CHARGER,RB-N01ENC .B..................

87-B30-135-010 CHARGER,RB-N01HNC ..C.................

87-B30-153-010 CHARGER,RB-N01KNC A...................

87-B30-253-010 HEADPHONE,HP-M041 ABC.................

8Z-HK6-951-010 RC UNIT,RC497 ABC.................

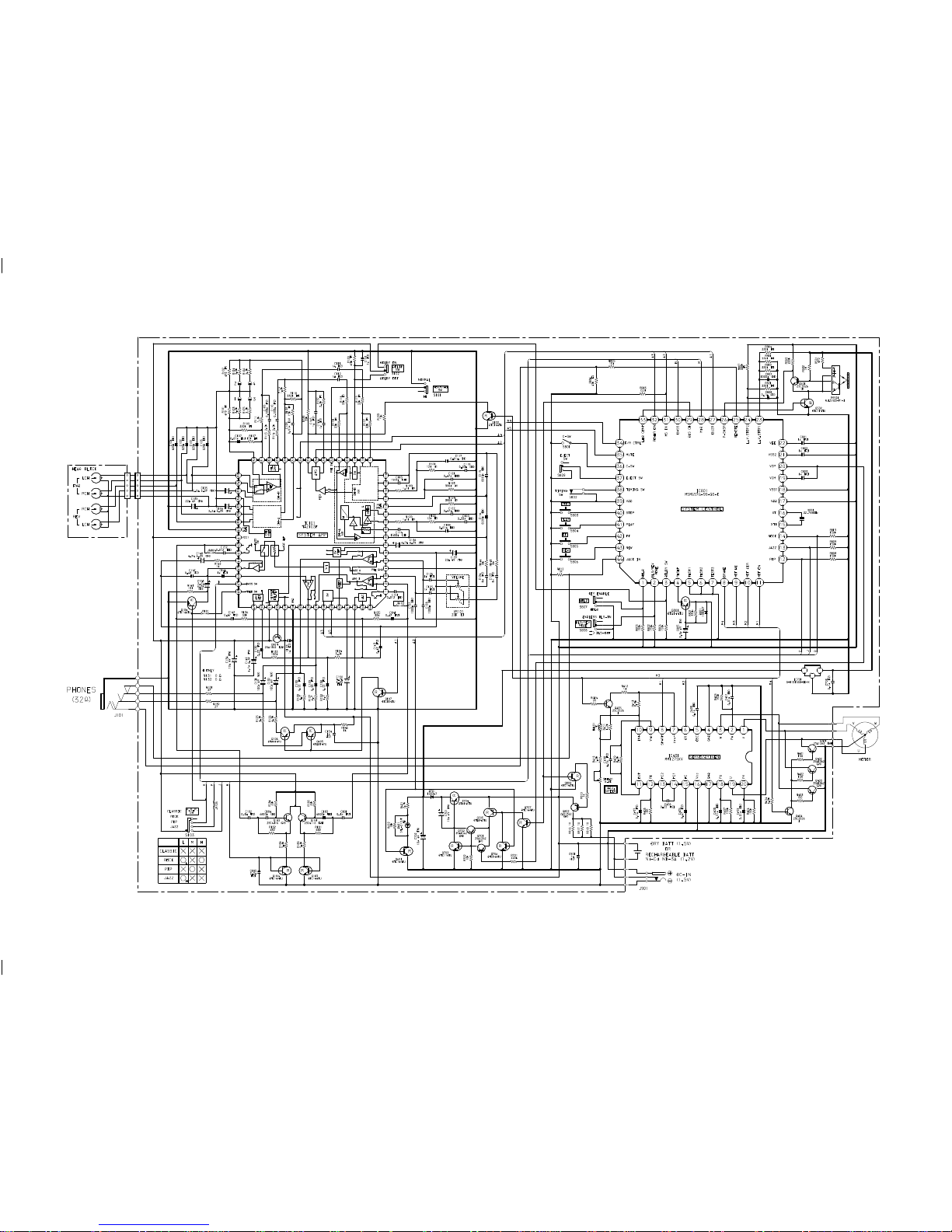

SCHEMATIC DIAGRAM - 1 (MAIN)

Printed in Singapore

Tokyo Japan

9630469

Other manuals for HS-PX497

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa HS-PX497 User manual

Popular Cassette Player manuals by other brands
