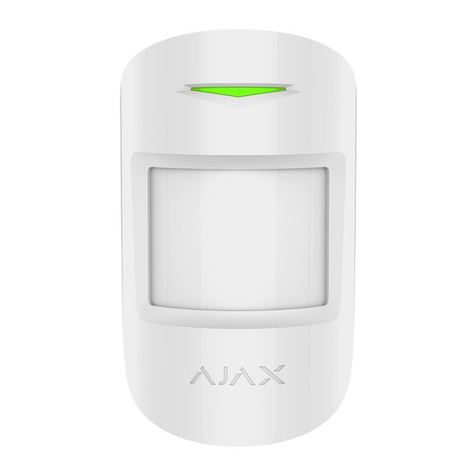

MotionProtect / MotionProtect Plus User Manual
MotionProtect is a wireless motion detector designed for use inside premises. It can operate
up to 7 years from a pre-installed battery, and tracks the area with the radius of 12 meters, is
able to ignore animals, however, can recognize a man from the first step.
MotionProtect Plus together with a thermal detector uses radio frequency scanning, filtering
interferences from thermal radiation. Can operate up to 5 years from a pre-installed battery.
👉Buy motion detector with microwave sensor MotionProtect Plus
MotionProtect (MotionProtect Plus) operates within the Ajax security system, by connecting
via the protected Jeweller protocol to the Hub. The communication range is up to 1700
(MotionProtect Plus up to 1200)meters if there are no obstacles. In addition, the detector can
be used as part of third-party security central units due to the Ajax uartBridge or Ajax ocBridge
Plus integration module.
The detector is set up via a mobile application for iOS and Android-based smartphones. The
user is notified of all events through push notifications, SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a private security company.
👉Buy motion detector MotionProtect
Functional Elements

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
1. LED indicator
2. Motion detector lens
3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case
of any attempt to tear off the detector from the surface)
4. Tamper button
5. Device switch
6. QR code
MotionProtect Operating Principle
Thermal PIR sensor of MotionProtect detects intrusion into a protected room by detecting
moving objects whose temperature is close to the temperature of the human body. At that, the
detector can ignore domestic animals - you only need to set up the suitable sensitivity in the
settings.
When the MotionProtect Plus detects motion, it will additionally carry out radio frequency
scanning of the room, preventing false actuation from thermal interferences: air flows
from sun-heated curtains and louvre shutters, operating thermal air fans, fireplaces, air
conditioning units, etc.
After actuation, the armed immediately transmits an alarm signal to the Hub, activating the
sirens connected to the hub and notifying the user and private security company.
If before arming system the detector has detected motion, it will not set in the armed mode
immediately, but during the next inquiry by the hub.
Connecting the Detector to the Ajax security system
Before starting connection:

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
1. Following the Hub instruction recommendations, install the Ajax application on your
smartphone. Create an account, add the Hub to the application, and create at least one
room.
2. Go to the Ajax application.
3. Switch on the Hub and check the internet connection (via Ethernet cable and/or GSM
network).
4. Ensure that the Hub is disarmed and does not start updates by checking its status in the
mobile application.
⚠️Only users with administrative privileges can add the device to the Hub
How to connect the detector to the Hub:
1. Select the Add Device option in the Ajax application.
2. Name the device, scan/write manually the QR Code (located on the body and packaging),
and select the location room.
Select Add —the countdown will begin.

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
3. Switch on the device.
For the detection and interfacing to occur, the detector should be located within the
coverage area of the wireless network of the hub (at a single protected object).
Request for connection to the hub is transmitted for a short time at the time of switching on
the device.
If the connection to the Ajax Hub failed, switch off the detector for 5 seconds and repeat the
attempt.
The detector connected to the hub will appear in the list of devices of the hub in the
application. Update of the detector statuses in the list depends on the device inquiry time set
in the hub settings, with the default value - 36 seconds.
Connecting the Detector to Third Party security systems
To connect the detector to a third party security central unit using the Ajax uartBridge or Ajax
ocBridge Plus integration module, follow the recommendations in the manual of the respective
device.
States
Devices → MotionProtect (MotionProtect Plus)

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
Parameter
Value
Temperature
Temperature of the Detector. Measured on the
processor and changes gradually
Signal Strength
Signal strength between the Hub and the
detector
Battery Charge
Battery level of the detector, displayed in
increments of 25%
Lid
The tamper mode of the detector, which reacts
to the detachment of or damage to the body
Delay when entering, sec
Delay time when entering
Delay when leaving, sec
Delay time when exiting
Connection
Connection status between the Hub and the
detector

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
Sensitivity
Sensitivity level of the motion sensor
Always Active
If active, the motion detector is always in the
armed mode
Firmware
Detector firmware version
Device ID
Device identifier
Settings
Devices → MotionProtect (MotionProtect Plus) → ⚙️
Setting
Value
First field
Detector name, can be edited
Room
Selecting the virtual room to which the device is assigned

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
Sensitivity
Choosing the sensitivity level of the motion sensor:
For Motion Protect:
High - for premises with a minimum amount of obstacles,
motion is detected as quickly as possible
Normal - for premises with potential obstacles (windows, air
conditioner, heating element, etc)
Low - ignore pets weighing up to 20 kg and up to 50 cm tall
For MotionProtect Plus:
High: The detector disregards cats (under 25 cm).
Medium: Disregards small dogs (under 35 cm).
Low: Disregards animals under 50 cm.
Always active
If active, the detector always registers motion
Delay when entering, sec
Selecting delay time when entering
Delay when leaving, sec
Selecting delay time on exit
Delays in night mode
Delay turned on when using night mode
Arm in night mode
If active, the detector will switch to armed mode when using
night mode
Alert with a siren if motion
detected
If active, HomeSiren and StreetSiren are activated when the
motion detected
Signal Strength Test
Switches the detector to the signal strength test mode
Detection Zone Test
Switches the detector to the detection area test
Attenuation test
Switches the detector to the signal fade test mode (available in
detectors with firmware version 3.50 and later)
User Guide
Opens the detector User Guide
Unpair device
Disconnects the detector from the hub and deletes its settings
Before using the detector as a security system element, set up the suitable sensitivity level of
the sensor.
The "Always Active" mode is worth switching on if the detector is located in a room requiring
24-hour control. Regardless of whether the system is set in the armed mode, you will receive
notices of any detected motion.

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
If any motion is detected, the detector activates the LED for 1 second and transmits an alarm
signal to the hub and then to the user and central monitoring station (if it is connected).
Detector operation indication
Event
Indication
Note
Turning on the
detector
Lights up green for about one
second
Detector
connection to the
Hub, ocBridge,
and uartBridge
Lights up continuously for a
few seconds
Alarm / tamper
activation
Lights up green for about one
second
Alarm is sent once in 5 seconds
Battery needs
replacing
During the alarm, it slowly
lights up green and slowly
goes out
Replacement of the detector battery is
described in the Battery
Replacementparagraph
Detector Testing
The Ajax security system allows conducting tests for checking the functionality of connected
devices.
The tests do not start straight away but within a period of 36 seconds when using the standard
settings. The test time start depends on the settings of the detector scanning period (the
paragraph on “Jeweller” settings in Hub settings).
Signal Strength Test
Detection Zone Test
Attenuation test
Selection of the Detector Location
The area of the controlled territory and, consequently, the efficiency of the security system
depends on the location of the detector.
Location of the Ajax MotionProtect detector determines its remoteness from the hub and
presence of any obstacles between the devices hindering the radio signal transmission: walls,
inserted floors, large-size objects located within the room.
⚠️Check the signal level at the installation location
If the signal level is one division, we cannot guarantee stable operation of the security system.
Take possible measures to improve the quality of the signal! As a minimum, move the device -
even 20 cm shift can significantly improve the quality of reception.

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
If, after moving, the device still has a low or unstable signal strength, use a radio signal range
extender ReX.
It is advisable that the direction of the detector lens sight is perpendicular to the probable way of
intrusion into the room.
Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block
the field of view of the detector.
We recommend installing the detector at the height of 2.4 meters.

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
If the detector is not installed at the recommended height, this will reduce the area of the motion
detection zone and impair the operation of the function of ignoring animals.
Installation of the Detector
Before installing the detector, make sure that you have selected the optimal location and it is in
compliance with the guidelines contained in this manual!

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
The Ajax MotionProtect detector should be attached to a vertical surface.
1. Attach the SmartBracket panel to the surface using bundled screws, using at least two fixing
points (one of them - above the tamper). After selecting other attachment hardware, make
sure that they do not damage or deform the panel.
The double-sided adhesive tape may only be used for temporary attachment of the detector.
The tape will run dry in the course of time, which may result in the falling of the detector and
actuation of the security system. Furthermore, the device may fail from a hit.
2. Put the detector on the attachment panel. As soon as the detector is fixed in SmartBracket, it
will blink with an LED - this will be a signal that the tamper on the detector is closed.
If the LED indicator of the detector is not actuated after installation in SmartBracket, check
the status of the tamper in the Ajax Security System application and then the fixing tightness
of the panel.

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
If the detector is torn off from the surface or removed from the attachment panel, you will
receive the notification.
Do not install the detector:
outside the premises (outdoors);
in the direction of the window, when the detector lens is exposed to direct
sunlight (you can install MotionProtect Plus)
opposite any object with the rapidly changing temperature (e.g., electrical and gas
heaters) (you can install MotionProtect Plus)
opposite any moving objects with the temperature close to that of the human body
(oscillating curtains above the radiator) (you can install MotionProtect Plus)
at any places with fast air circulation (air fans, open windows or doors) (you can
install MotionProtect Plus)
nearby any metal objects or mirrors causing attenuation and screening of the signal;
within any premises with the temperature and humidity beyond the range of
permissible limits.
Detector Maintenance
Check the operational capability of the Ajax MotionProtect detector on a regular basis.
Clean the detector body from dust, spider web and other contaminants as they appear. Use soft
dry napkin suitable for equipment maintenance.
Do not use for cleaning the detector any substances containing alcohol, acetone, gasoline and
other active solvents. Wipe the lens very carefully and gently - any scratches on the plastic may
cause reduction of the detector sensitivity.
The pre-installed battery ensures up to 7 years of autonomous operation (with the inquiry
frequency by the hub of 3 minutes). If the detector battery is discharged, the security system will
send respective notices and the LED will smoothly lights up and goes out, if the detector detects
any motion or if the tamper is actuated.
󱃤Battery Replacement
Tech specs
Sensitive element
PIR sensor
(Motion Protect Plus: PIR and microwave sensor)
Motion detection distance
Up to 12 m
Motion detector viewing angles (H/V)
88.5° / 80°
Animal ignoring option
Yes, height up to 50 cm, weight up to 20 kg
Tamper protection
Yes

TH COMMUNICATION SDN BHD www.thcomm.com.my [e-mail]
Frequency band
868.0 –868.6 MHz or 868.7 –869.2 MHz,
depending on the sales region
Maximum RF output power
Up to 20 mW
Modulation of the radio signal
GFSK
Radio signal range
Up to 1700 m (any obstacles absent)
(Motion Protect Plus up to 1200 m)
Power supply
1 battery CR123A, 3 V
Battery life
Up to 7 years
(Motion Protect Plus up to 5 years)
Operating temperature range
From -10°С to +40°С
Operating humidity
Up to 75%
Overall dimensions
110 х 65 x 50 mm
Weight
86 g (Motion Protect Plus 96 g)
Complete Set
1. MotionProtect (MotionProtect Plus)
2. Battery CR123A (pre-installed)
3. Installation kit
4. Quick Start Guide
Warranty
Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY
products is valid for 2 years after the purchase and does not apply to the pre-installed battery.
If the device does not work correctly, you should first contact the support service—in half of the
cases, technical issues can be solved remotely!
