ALIGATOR S5710 Duo User manual

S5710 Duo 4-core IPS
Quick Guide

Google, Android, Google Play and other brands are trademarks of
Google LLC.
Contents
Before you start...............................................................2
DUAL S M function...........................................................3
mportant instructions.....................................................3
Mobile controls................................................................5
nsert battery and S M cards............................................6
Switch On / Off.................................................................6
First launch of the phone.................................................7
Activation and screen unlock...........................................7
Operating system Android...............................................7
Basic control.....................................................................8
Fingerprint reader..........................................................11
Making calls....................................................................11
Messages........................................................................13
Selection of network......................................................13
Photography...................................................................13
PC connection................................................................14
Selection of S M for calls, SMS and internet..................15
Safety and Ecology.........................................................15
Declaration of conformity..............................................16
Before you Start
Thank you for buying of our ALIGATOR mobile hone.
Before you start please read carefully this instruction manual
2

Please visit the following website for more information,
instructions, advice, etc.
https://support.google.com/android.
DUAL SIM function
Your mobile phone can be operated with 1 or 2 S M cards.
(1x „Nano S M“ and 1x „Micro S M“). f you insert only one
S M card the mobile phone works as an ordinary mobile
phone.
n case you insert 2 S M cards at the mobile phone both are
active at the same time. t means you can be called on both
S M cards at the same time without any switch between
them. Both cards are on line.
Im ortant Instructions
Do not use the mobile phone at the prohibited areas . Do
not use the mobile phone while driving the car
Do not use the mobile phone near the medical appliances
without having the confirmation that the radio waves do not
influence its function
3

Mobile phone can influence the function of the cardiac
pacemakers or other implanted appliances – please consult
your medical doctor
Switch off the mobile phone always in the aircraft
Do not use mobile phone near the petrol station. Always
switch off the mobile phone near explosives
Do not throw the battery in the fire nor expose it to the
temperatures over +60°C. Danger of explosion or fire
SAR – mobile phone meets all prescriptions for maximal
emision of electromagnetic radiation
Please keep the mobile phone 2.5 cm away from the body
while calling. You lower by that the quantity of
electromagnetic radiation absorbed by your body
Handle the mobile phone with care, protect it from falling on
the ground, from mechanical damages, impurity or high
temperatures. Never pick it to pieces !
Do not place the mobile phone or its holder in the area
above the airbag in the car. Keep it out of reach of children!
4

t contains small parts that could be swollowed or they may
hurt
Software and hardware of the mobile phone are
continuously innovated. The importer reserves the right to
alter the instruction manual or particular functions of the
mobile phone without a prior notice

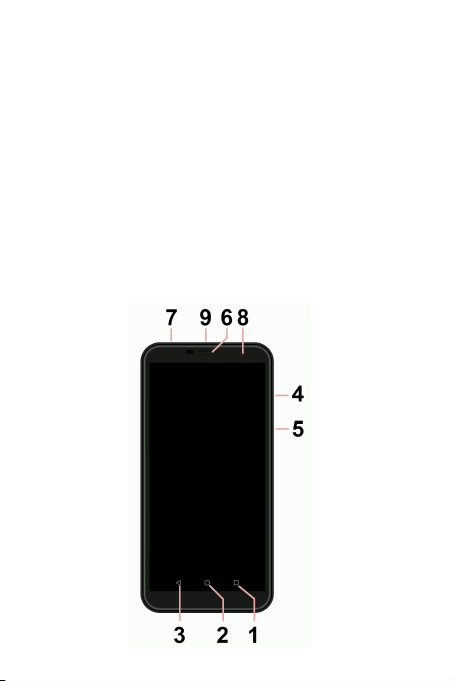

Mobile Controls
5

1. Virtual button : APK
2. Virtual button : Main screen
3. Virtual button : Backwards
4. Volume
5. Button : Switch On / Off
6. Earphones
7. Headset connector
8. Front camera
9. Micro USB connector
lnsert Battery and SIM card
Slip your nail at the slot under the battery cover on the back
side of the mobile phone and carefully pull down the cover.
nsert firstly one or two S M cards at the prepared slots.
6

nsert S M cards and a memory MicroSD card (if you have) as
per the picture instruction.
Finally insert the battery. Put the battery cover back. Place
the cover on the back side of the mobile phone and press
gently around the circuit untill the cover clicks properly on
its place.
Switch On / Off
To Switch On - press the On/Off button (5). Starting of the
mobile phone can last few seconds.
To Switch Off – press and hold the button (5) untill the
indicator window of a switch off appears on display.
Confirm it and the mobile phone will turn off.
First Launch of the Phone
The first time you turn on the phone, a wizard starts,
allowing you to make basic phone, network, user account
settings, etc. Follow the instructions on the screen.
7

Activation and Screen Unlock
The screen turns off automatically after a certain time of
inactivity. Turn on / off the screen by a short press of the
button (5). t is necessary to unlock the screen after its
activation.
Put your finger on a „Lock“ symbol on the screen and move
it in the upwards direction. The screen will be unlocked. You
can also unlock the screen by placing your finger on the
fingerprint reader on the back side of the phone.
O erating system Android
Your mobile phone is provided with the operating system
Android .
The device is in reality a small personal computer that can
be connected with internet from which you can download
many useful applications (via Google Play store).
8

Basic Control
Meaning of the contact buttons (1) to (3)
(1) Launched a lications/APK – serves to display a list of
recently launched applications.
(2) Main screen – short press serves to return to the main
screen. Long press displays the Google search
(3) Backwards – serves to return by one level back. (Jump
on the preceding screen, closing of offers or dialog
windows on the screen, etc.)
System control
Your phone is operated by using of the buttons above, but
mainly using the touch screen. Selection of items on the
screen, confirming dialogs and graphical buttons on the
screen are done by tapping on them.
Main screen
The main touchscreen is divided into multiple pages that you
can display by scrolling by the finger to the sides.
9

You can place application and link shortcut icons or so-called
widgets on the main screen. Widgets are gadgets that allow
to display some data or controls - such as clocks, weather,
power control, etc.
A lications
Swipe up the finger in the middle of the bottom of the main
screen to display the apps installed on your phone.The
phone's basic features include the apps enabling to make
calls, send SMS or e-mail, and many other useful and fun
applications.
There are thousands of applications for the operating
system, but not all of them can work properly. Before
buying of any app, always check out its free version to see if
your phone is working properly.
Information and status dis lay
So called „status bar“ is placed in the upper part of the
screen. You may find here the information about time,
battery level and signal strength but also other useful
information. For example the information about new SMS,
information about the system or applications. Status bar can
10

be moved down by your finger and rolled. You will get a
detailed overview about all announcements and information
including the possibility of a quick control of some mobile
functions.
Google (user) account
Google Account must be set up for a proper use of the
system. Set up your account in the setup wizard, which
starts after you turn on your phone for the first time. Google
account can be set up later as well :
1. Open the application menu by dragging the arrow up
on the main screen.
2. Press the button Settgins.
3. Select item Accounts in menu and choose Add Account
4. Further follow instructions on the screen
Mobile hone set u
All individual items of the telephone set up are clearly
arranged at the settings menu.
11

Press the button Menu - select Set u and make required
changes.
Other information and guides
For more information on controlling your phone, visit:
https://support.google.com/android
Finger rint Reader
A fingerprint sensor is located on the back side of the phone
under the camera lenses. You can unlock the phone and
control some security features by placing your finger on the
sensor. The behavior of the sensor and the fingerprints that
the phone recognizes can be set in the first start-up wizard
or at any time in the Settings menu, Security.
Making Calls
Dialling
Click on the earphone icon on the main screen. A screen
with keypad for number dialling will be displayed. You can
enter the tel.number with the use of the keypad buttons.
Similarly as on the common telephone there are the letters
12

placed on the buttons so you can directly enter also the
name. The dialled number and all corresponding items of
the telephone directory will be displayed after entering of
the letters on keys of the screen.
At the bottom part of the screen you can find the calling
button with a symbol of the head-phone. You can dial the
number by its pressing and make your call.
Answer and Reject the Call
f somebody is calling you the information about his
telephone number (if available) and a button with the
receiver is displayed on the screen
to answer the call : move the button upwards
to reject the call : move the button downwards
Call flow / Finish of the call
The Screen shuts down automatically when you hold the
mobile near the ear. The screen is activated in a few
moments after delaying the phone away from the ear. Press
the red button on the screen to finish the call .
13

Volume
During a call, you can adjust the volume by using the (4)
button on the side of the phone.
ATTENTION! The handset can be very oud. Therefore, do
not set the vo ume unnecessari y to the highest eve to
avoid hearing damage. In addition, when the headset is set
to high, the other party may hear the echo of his voice. In
this case, ower the vo ume to the eve at which this
phenomenon disappears.
Messages
1. Click on the icon of Messages on the lower part of the
main screen or open the screen with applications and
select the item Messages
2. A list of conversations containing received and sent
SMS and MMS messages will be displayed.
3. Select the icon on the right bottom part of the screen
4. Now you can insert the recipient and the text of the
message
14

5. To send the message – press the arrow button placed
on the right side of the text
Selection of Network
You can choose whether your phone will use 2G , 3G or 4G
networks. Select Settings and choose Network and internet.
Further select Mobile network and select Preferred
network ty e for each S M card. Now select item 2G, 3G or
4G.
Photogra hy
Start the camera by tapping on the camera icon or press the
camera button (10) on the side of the phone.
Point the camera at the scene that you need to focus and
tap your finger on display at the place that you focus or wait
a moment untill the camera automatically focuses on the
centre. Press the shutter button on the display to take a
picture of the scene. Every once in a few seconds, if the
scene is changed, the camera automatically focuses on the
center of the image. To speed up the focus or focus on
another part of the image, tap on the desired position on the
display.
15

Attention! Always focus first or wait for focus, then ress
the shutter button, otherwise the images can become
blurred.
PC Connection
You do not need any special drivers for connection to the
common PC (valid for OS Windows Vista, 7, event. newer).
Follow these steps :
1. Connect the mobile phone with PC with the enclosed
cabel
2. Download the status bar and tap the line at the bottom
part of the expanded menu
3. A connection mode offer is opened. We recommend to
use the device mode „File transfer“
4. The phone connects to the PC as a „Media device“
After that the phone's nternal storage and an inserted
MicroSD card are connected with your computer in the
section Computer – section Portable Devices, under the
name S5710.
The connection can be cancelled by disconnecting of the
cable.
16

Selection of SIM card for calls, SMS and
Internet
Start Settings and select Network and Internet. Next, select
the SIM card entry. You can now set which S M card to use
for calls, SMS and nternet connections.
Safety and Ecology
Used electric device
Mobile phone is an electronic appliance. t
means it must not be manipulated as a
common residential waste. Never throw the
used devices away at the common munici al waste!!! They
may contain the substances dangerous to the environment.
Hand over the product to the respective collection point
which provides the ecological liquidation. Please contact
your dealer to get more information how to deal with the
used products.
Battery Liquidation
Never throw the used batteries away at the
common munici al waste!!
17

They may contain the substances dangerous to the
environment. Hand over the product to the respective
collection point which provides the ecological liquidation.
Please contact your dealer to get more information how to
deal with the used products. Do not throw the battery in the
fire nor expose it to the temperatures over +60°C. Danger of
explosion or fire.
Handling with the used batteries in contradiction with
given instructions is illegal!
Declaration of Conformity
ADART COMPUTERS s.r.o. hereby declares that the type of
the radio device AL GATOR S5710 is in compliance with the
Directive 2014/53/EU.
www.aligator.cz
Copyright ©
ADART COMPUTERS s.r.o., Čimická 717/34, CZ - Prague
18
