Allen + Roth P0217-09A User manual

1
welcoming • sophisticated • inspiring
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
ITEM # 2550862 & 0903223
MODEL# SP0217-09A & SP2017-09B
Français p. 10
Español p. 19
MEDICINE CABINET WITH DECORATIVE FRAME
allen + roth®is a registered trademark
of LF, LLC. All Rights Reserved.
Lowes.com/allenandroth

2

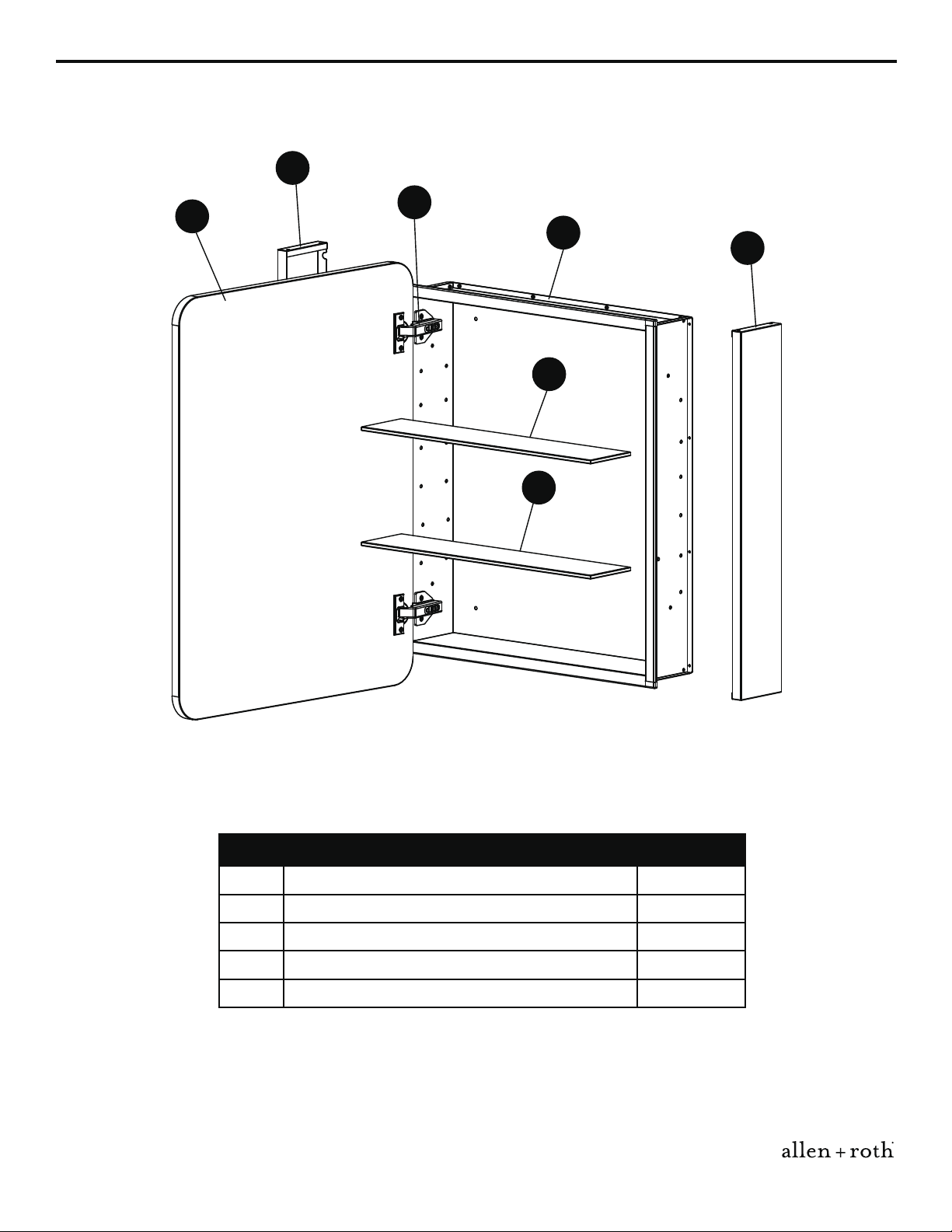

PACKAGE CONTENTS
Lowes.com/allenandroth
D
2
Shelf Glass
E
1Door (preassembled to Cabinet (C))
D
1
Cabinet
C
2
Decorative panel
B
2
Hinge (preassembled to Cabinet (C))
A
QUANTITY
DESCRIPTION
PART
B
A
B
C
E
E

3

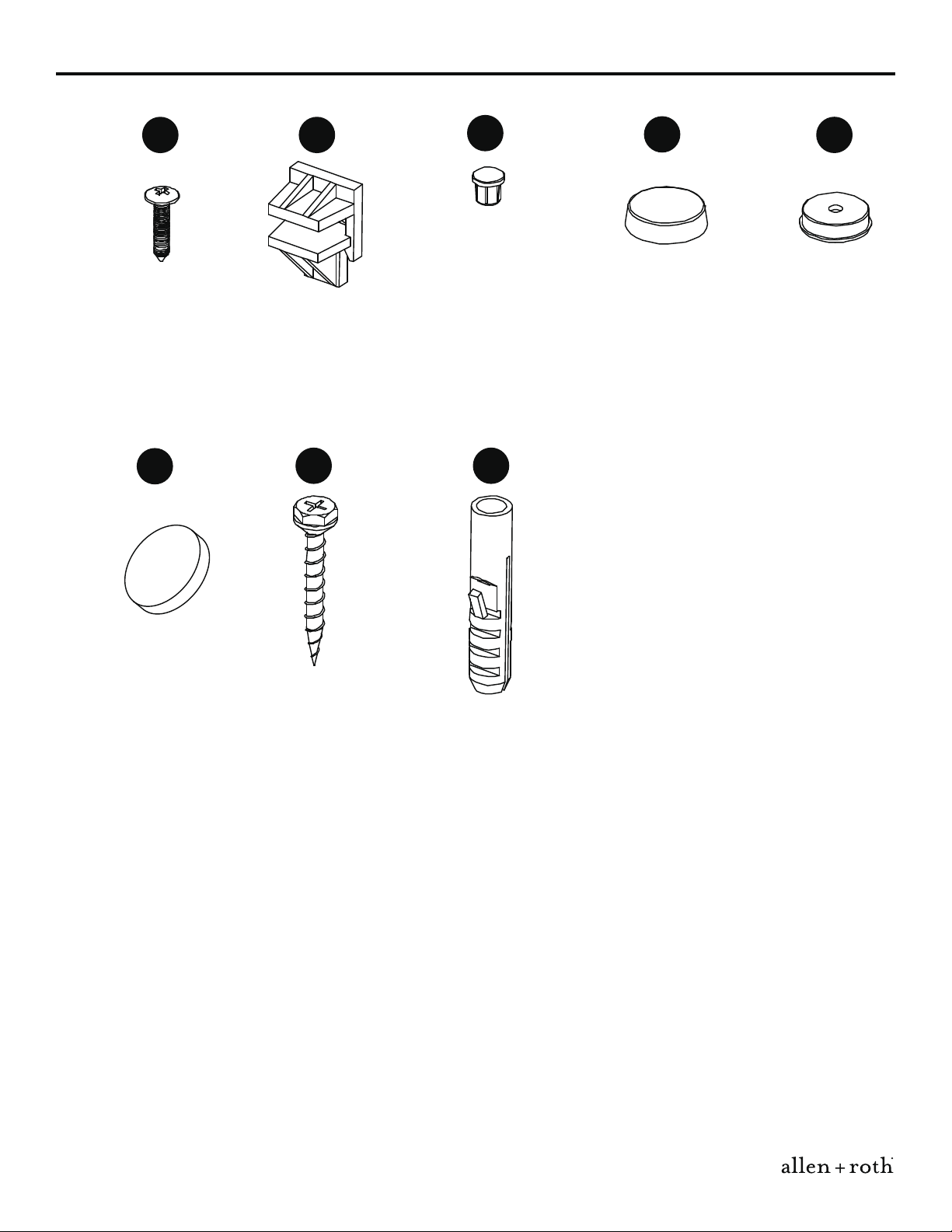

HARDWARE CONTENTS
Lowes.com/allenandroth
HHGG
FF
EE
DD
Qty. 4
Wall Anchor
Qty. 4
Long Screw
Qty. 2
Bumper
Qty. 4
Washer
Qty. 4
Snap Cap
Qty. 20
Plug
Shelf Hole
Qty. 8
Shelf Clip
Qty. 8
Short Screw
AA BB CC

4
PREPARATION
SAFETY INFORMATION
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble or install the
product.
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 30 minutes (with recommended two-person installation).
Tools Required for Assembly (not included): Measuring tape, Level, Phillips screwdriver, Stud
finder, Reciprocating saw and Wood shims.
This product can be installed in one of two mounting options: SURFACE MOUNT (continue to
page 5) or RECESS MOUNT (skip to page 7).
· Safety discard all packing material.
· Keep plastic bags and small parts away from children.
· Safety glasses should be worn at all times.
· Do not load this cabinet with more than 50 lbs.
· Do not load each shelf with more than 25 lbs.
· The included plastic wall anchors are intended for use with solid wall applications
only (tile or concrete).
· For recess mount, do not install side panels.
MOUNTING OPTIONS
Lowes.com/allenandroth
Select the hardware appropriate for wall installation.
STUD WALL: Secure to wall using long screws (GG) and a washer
(not included) at marked stud locations.
DRYWALL: Drill holes at marked locations and secure to the wall with
toggle bolts and washers (not included).
CONCRETE WALL: Drill 5/16-inch holes at marked locations, then
insert wall anchors (HH) into holes. Secure cabinet (C) to wall using
long screws (GG).

5
Lowes.com/allenandroth
SURFACE-MOUNT INSTALLATION INSTRUCTIONS
2
3
3. Drill four 1/8-inch diamiter holes through back panel of
cabinet (C) as illustrated.
2. Determine and mark desired location for cabinet (C) a
minimum of 3 inches above your existing faucet/vanity.
Note: Ensure the marks are level before proceeding.
1
Short Screw
AA

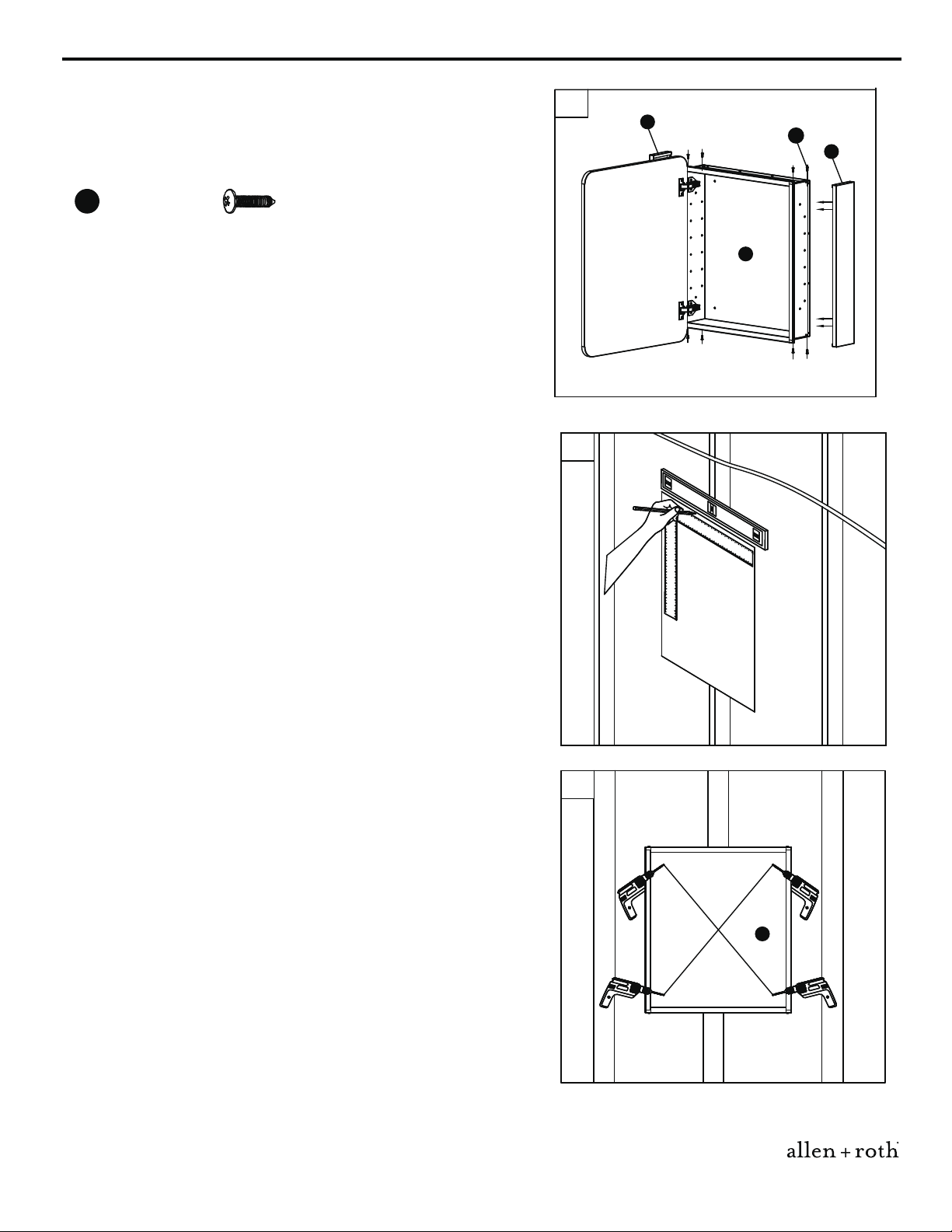

1. Carefully attach Decorative panels (B) with short screw
(AA) to each side of cabinet (C).
x 8
BAA
B
C
C

6
Lowes.com/allenandroth
4
x 4
x 4
x 4
Long Screw
Snap Cap
Washer
4. Select hardware best suitedd for wall type and secure
the cabinet (C) to the wall. Please refer to MOUNTING
OPTIONS on page 4
SURFACE-MOUNT INSTALLATION INSTRUCTIONS
GG
DD
EE DD
GG
EE
C

7
RECESS-MOUNT INSTALLATION INSTRUCTIONS
Lowes.com/allenandroth
Proceed to ASSEMBLY INSTRUCTIONS on page 8 to
complete assembly.
Hardware Used
1. Determine desired location for cabinet (C), making
sure to place it where the door can swing freely without
obstruction and where no electrical or plumbling
obstacles would be behind the wall. Note: The height
of the cabinet (C) should be a minimum of 3 in. above
the faucet/vanity.
2. Mark the opening size of the framing. Once the
drywall is cut, remove any framing in the rough
opening for the item, then frame the cutout opening as
illustrated.
3. Insert cabinet (C) into rough opening and make
sure it is level and plumb; use wood shims (not
included) as required. Then, secure both sides of
cabinet (C) to the studs from the inside using long
screws (GG) and washers (EE). Cover screw heads
with snap caps (DD).
Long Screw x 4
GG
Snap Cap
Washer
x 4
x 4
DD
EE
CAUTION: This installation type is NOT applicable for solid-wall applications.
1
2
3
19-1/2 in.
22-1/5 in.
Using a reciprocating saw (not included), cut away a
rough opening of 19-1/2 in. x 22-1/5 in. x 4-1/10 in. into
the drywall.
EE GG DD

8
Hardware Used
Hardware Used
Hardware Used

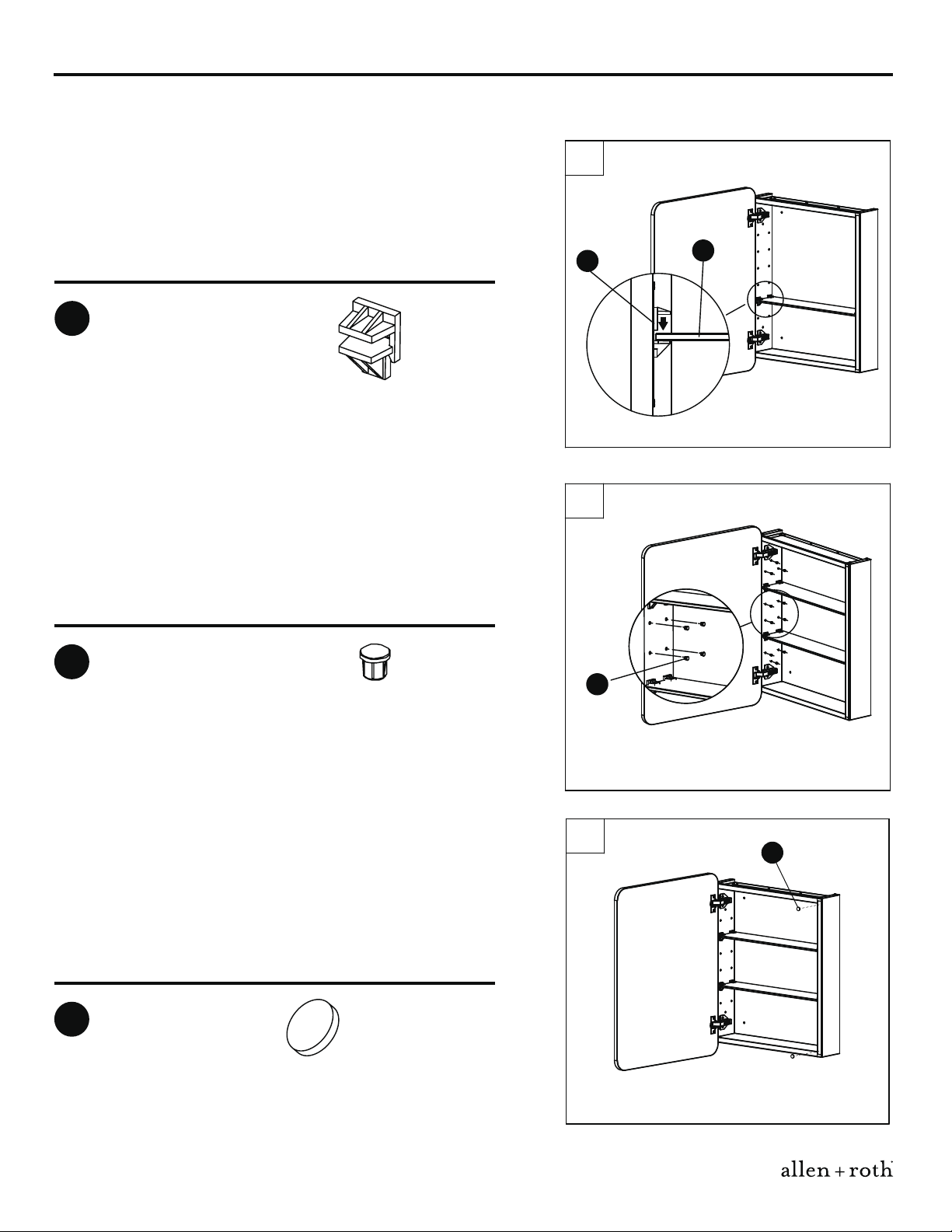

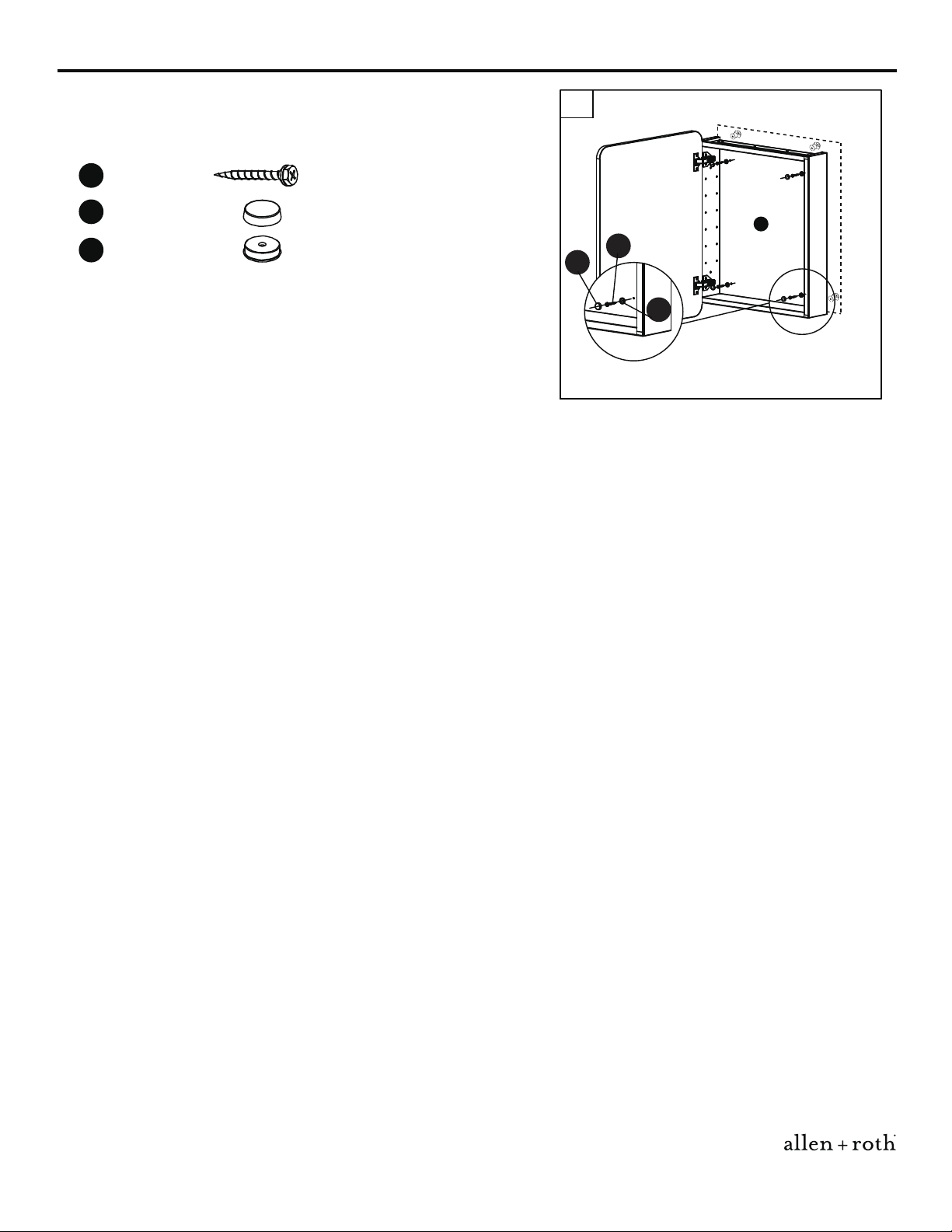

1. Install the glass shelves (E) to the desired positions
with shelf clips (BB), making sure they are level.
2. Use the shelf hole plugs (CC) to seal the empty
holes.
3. Stick the bumpers (FF) on the surface of cabinet
body. As shown drawing.
Shelf Clip
Shelf Hole Plug
Bumper
x 8
x 20
x 2
AA
CC
FF
Note: These steps are applicable to both surface-mount installations and recess-mount installations.
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
CC
1
2
3FF
BB E

9
CARE AND MAINTENANCE
Printed in Cambodia
allen + roth ® is a registered trademark
of LF, LLC. All Rights Reserved.
WARRANTY
This item is warranted to be free of defects in material and workmanship for one year from date
of installation. This warranty is offered only to the original consumer purchaser and may not be
transferred. This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state. This warranty does not cover defects or damage caused by normal wear
and tear, alterations, environmental conditions, humidity absorption, or mold. This warranty is
considered void if the product fails from accident, misuse, or modified, improper installation or
by affixing accessories not produced by the manufacturer. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. If you would like to make a warranty claim, please contact customer service. All
warranty claims must include the model number of the product, copy of the original receipt and
the nature of the problem. THE MANUFACTURER DISCLAIMS ANY IMPLIED WARRANTY INCLUDING,
WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY, AND THERE ARE NO
WARRANTIES THAT EXTEND BEYOND THE DESCRIPTIONS ON THE FACE HEREOF. TO THE EXTENT
THAT SUCH DISCLAIMER IS NOT VALID UNDER APPLICABLE LAW, ANY IMPLIED WARRANTY SHALL
BE COEXTENSIVE IN DURATION WITH THIS WARRANTY.
TROUBLESHOOTING
Lowes.com/allenandroth
Use of a residential glass cleaner such as Windex, Zep Streak-Free Cleaner or Sprayway or other spray
on glass cleaner. Follow the directions on your selected cleaning product. Using a lint free or microfiber
cloth and remove the cleaning solution in a gentle circular motion.
•Do not clean with a scouring pad, rough cloth, abrasive paper towel or window scraper.

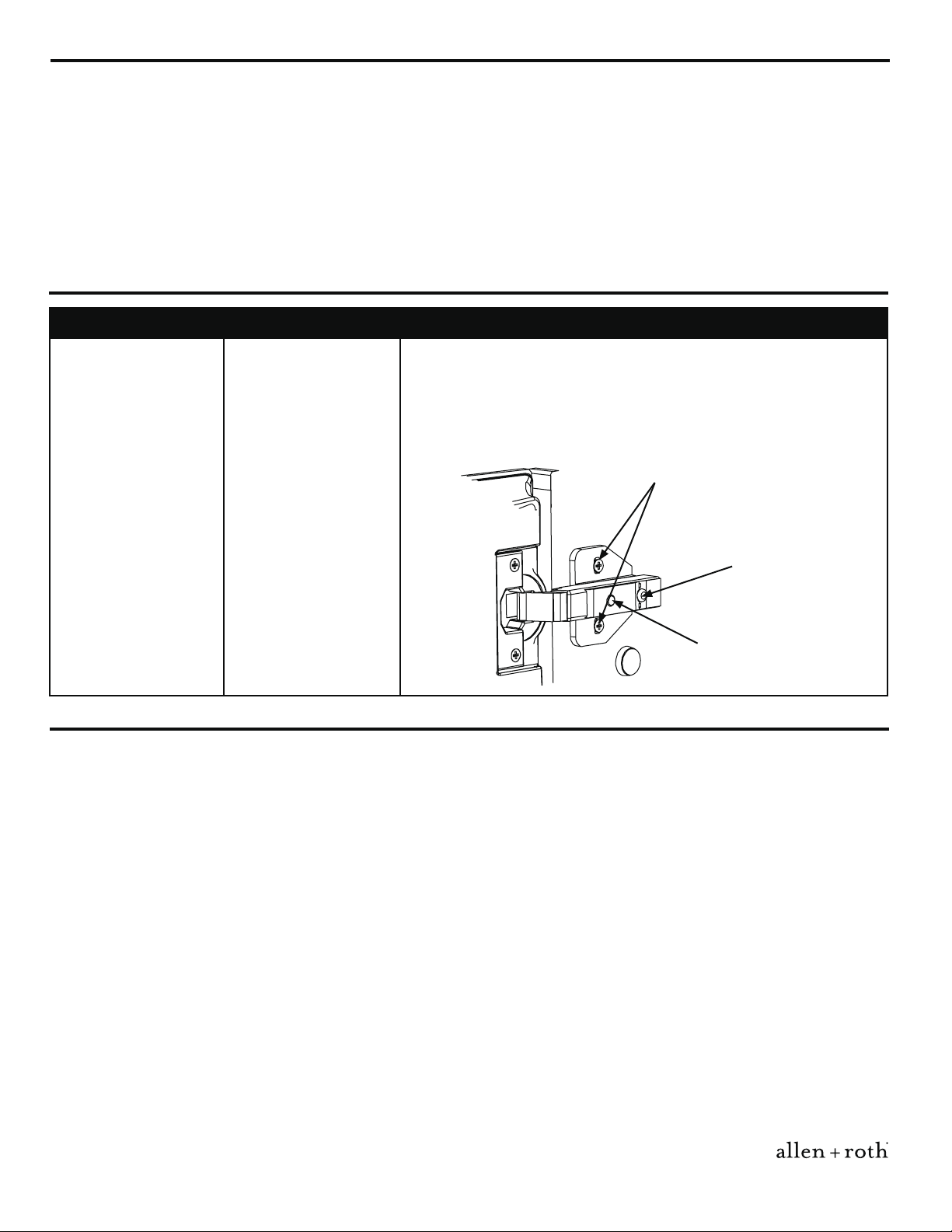

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The doors are not
aligned.
The hinges are
misaligned.
To adjust the doors right or left, loosen/tighten the
screw as in (a). To adjust the doors in or out, loosen/
tighten the screw as in (b). To adjust the doors up or
down, loosen/tighten the screws as in (c).
c
b
a

10
