Allen + Roth Roveland 2026VA-60-242-926 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
welcoming • sophisticated • inspiring
60-IN VANITY WITH TOP
ITEM #4767978; 4767979; 4767976; 4767977; 1028465; 864226; 3839348; 864227; 3839347;
4767974; 4767975; 4767972; 4767973; 864229; 864228; 3839346; 864230; 3839345;
1028462; 864231; 864232
MODEL #2026VA-60-242-926; 2026VA-60-242-926-SR; 2026VA-60-242-925; 2026VA-60-242-925-SR;
2026VA-60-242-906; 2026VA-60-242-901; 2026VA-60-242-901-SR; 2026VA-60-242-900;
2026VA-60-242-900-SR;
2026VA-60-201-926; 2026VA-60-201-926-SR; 2026VA-60-201-925;
2026VA-60-201-925-SR;
2026VA-60-201-906; 2026VA-60-201-901; 2026VA-60-201-901-SR;
2026VA-60-201-900; 2026VA-60-201-900-SR; 2026VA-60-200-906; 2026VA-60-200-901;
2026VA-60-200-900
OR
OPTION 1
(Semi-Recessed Sink)
OPTION 2
(Undermount Sink)

2
2026VA-60-242-901 RVLND 60-IN VTY LGRY WH TOP
2026VA-60-242-906 RVLND 60-IN VTY LGRY DK GY TOP
2026VA-60-242-925-SR RVLND 60-IN VTY LGRY EC SR
2026VA-60-242-925 RVLND 60-IN VTY LGRY EC TOP
2026VA-60-242-926-SR RVLND 60-IN VTY LGRY ECLT SR
2026VA-60-242-926 RVLND 60-IN VTY LGRY ECLT TOP
2026VA-60-242-900 RVLND 60-IN VTY LGRY CAR TOP
2026VA-60-242-901-SR RVLND 60-IN VTY LGRY WH SR
2026VA-60-242-900-SR RVLND 60-IN VTY LGRY CAR SR
2026VA-60-201-906 RVLND 60-IN VTY WHT DK GY TOP
2026VA-60-201-925-SR RVLND 60-IN VTY WHT EC SR
2026VA-60-201-925 RVLND 60-IN VTY WHT EC TOP
2026VA-60-201-926-SR RVLND 60-IN VTY WHT ECLT SR
2026VA-60-201-926 RVLND 60-IN VTY WHT ECLT TOP
2026VA-60-201-901 RVLND 60-IN VTY WHT WH TOP
2026VA-60-200-901 RVLND 60-IN VTY DGRY WH TOP
2026VA-60-200-906 RVLND 60-IN VTY DGRY DK GY TOP
2026VA-60-201-900 RVLND 60-IN VTY WHT CAR TOP
2026VA-60-201-901-SR RVLND 60-IN VTY WHT WH SR
2026VA-60-201-900-SR RVLND 60-IN VTY WHT CAR SR
2026VA-60-200-900 RVLND 60-IN VTY DGRY CAR TOP
MODEL NUMBER DESCRIPTION

3
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink)
Package Contents...........................................................................................................................4
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................4
Preparation......................................................................................................................................5
Assembly or Installation Instructions...............................................................................................5
Care and Maintenance...................................................................................................................11
Warranty........................................................................................................................................11
Replacement Parts List..................................................................................................................12
TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink)
Package Contents.........................................................................................................................14
Hardware Contents........................................................................................................................14
Safety Information..........................................................................................................................14
Preparation....................................................................................................................................15
Assembly or Installation Instructions.............................................................................................15
Care and Maintenance...................................................................................................................21
Warranty........................................................................................................................................21
Replacement Parts List..................................................................................................................22

4

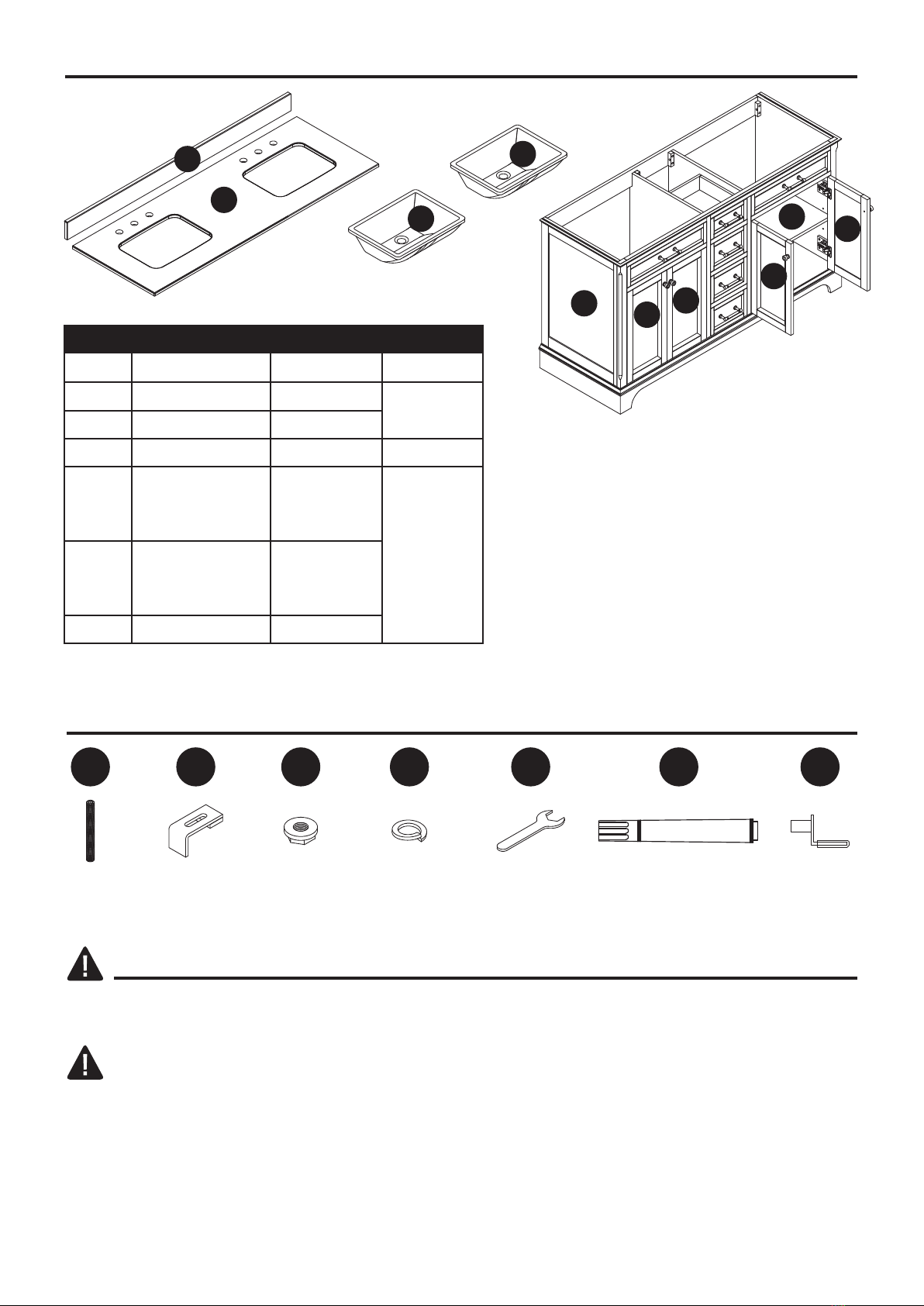

PACKAGE CONTENTS (Semi-Recessed Sink)
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Use care when assembling the vanity, take your time and follow the assembly instructions closely.
• Weight capacity for shelf is 10 lb.
SAFETY INFORMATION
• Some steps are more easily handled with two adults.
Shelf Pin
Qty. 8
GG
Touch-up Pen
Qty. 1
FF
PART DESCRIPTION QUANTITY
BTop 1
AVanity 1
C Backsplash 1
DSink 2
G Shelf 2
LSink Template 2
E 2
F
Right Door
(preassembled
to vanity (A))
2
CARTON
box 1 of 3
box 3 of 3
box 2 of 3
box 2 of 3
box 1 of 3
Left Door
(preassembled
to vanity (A))
AE
E
G
F
F
D
D
B
C
L
L

5
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

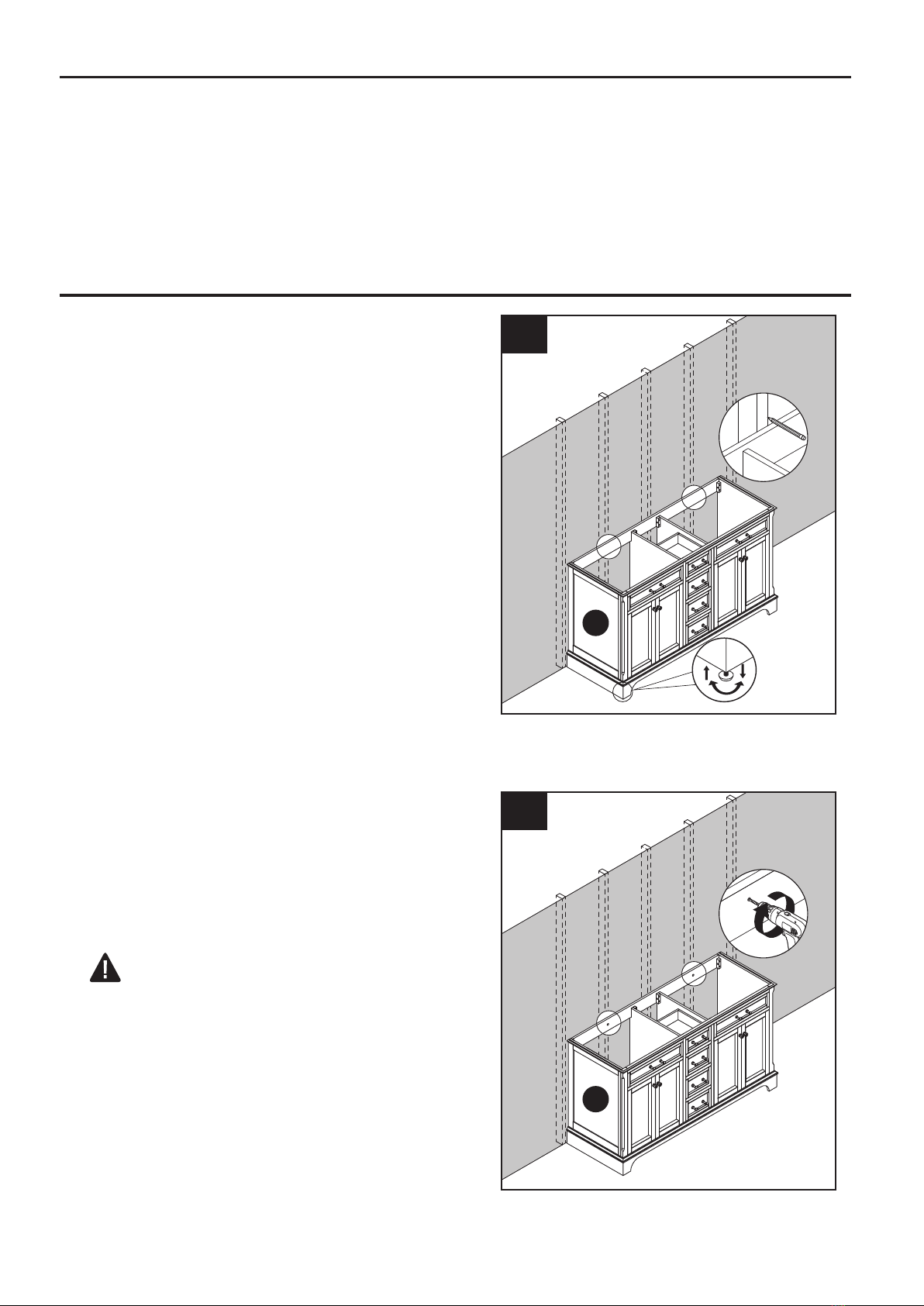

2. Using hardware appropriate for your wall type
(not included), secure vanity cabinet (A) to
two wall studs anywhere through the vanity
mounting plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
1. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed vanity
cabinet assembly in its final location. Adjust
the height of the vanity cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
1
A
2
Mounting Plate
A
WARNING
Vanity (A) MUST be secured to the wall.

6
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

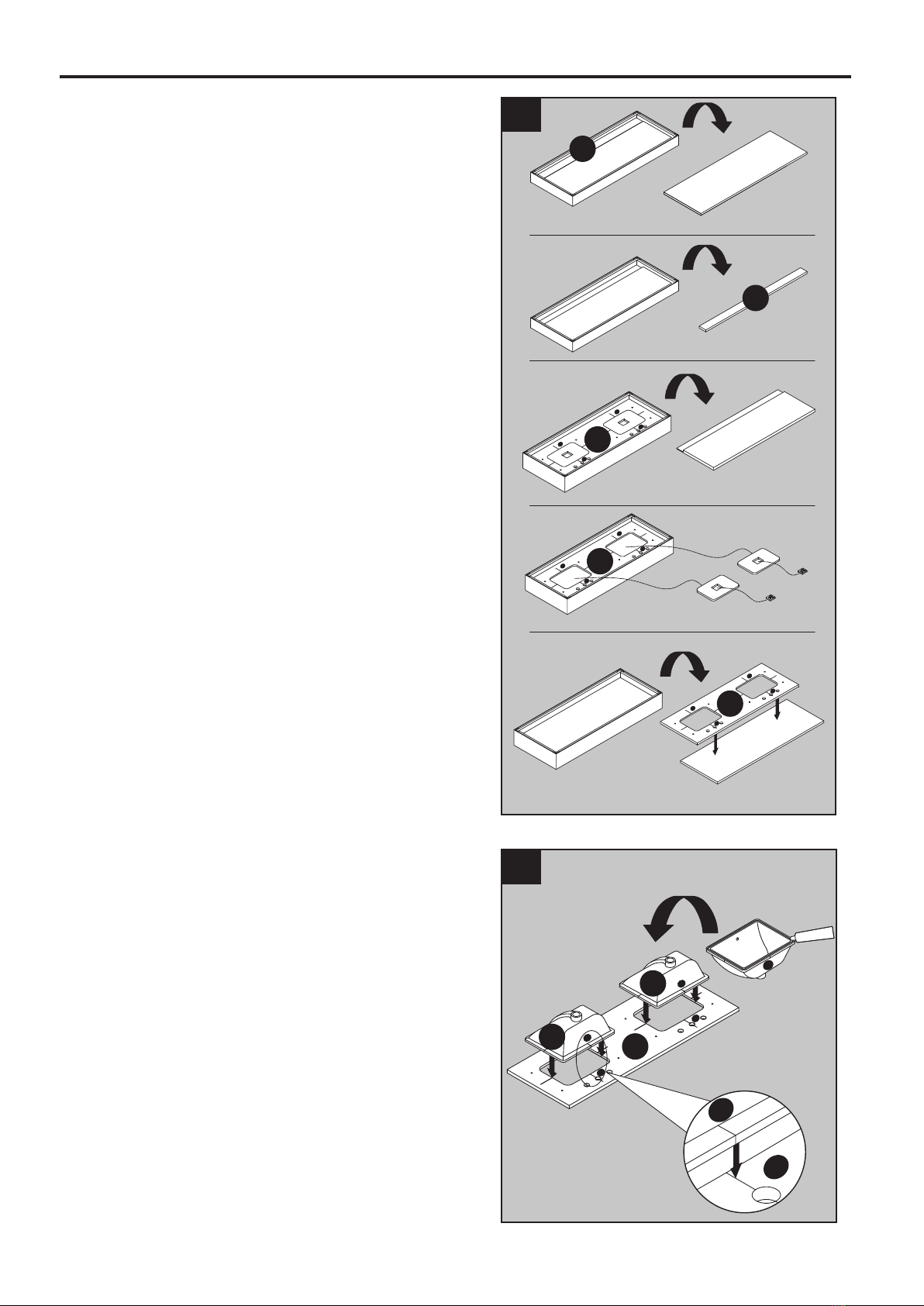

3. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
up onto a scratch free surface such as a
foam sheet that came in the packaging.
3
Remove the top foam sheet
Foam sheet
C
C
Remove the backsplash and place
it on a scratch free surface
Remove the foam sheet
B
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 4.
4.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
1
4
A
B
2
2

7
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
5. Put the sink template (L) on the top (B).
The holes in the cardboard needs to be
aligned with the hole in the stone top.
Make sure the sink template and stone top are
flush along the back edge.
Repeat for the remaining sink template.
6. Apply a thin bead of silicone caulk (not included)
onto the stone top close to the edge of the sink
cut out as pictured.
Repeat for the remaining stone top.
5
B
L
L
6
B
L
L

8
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

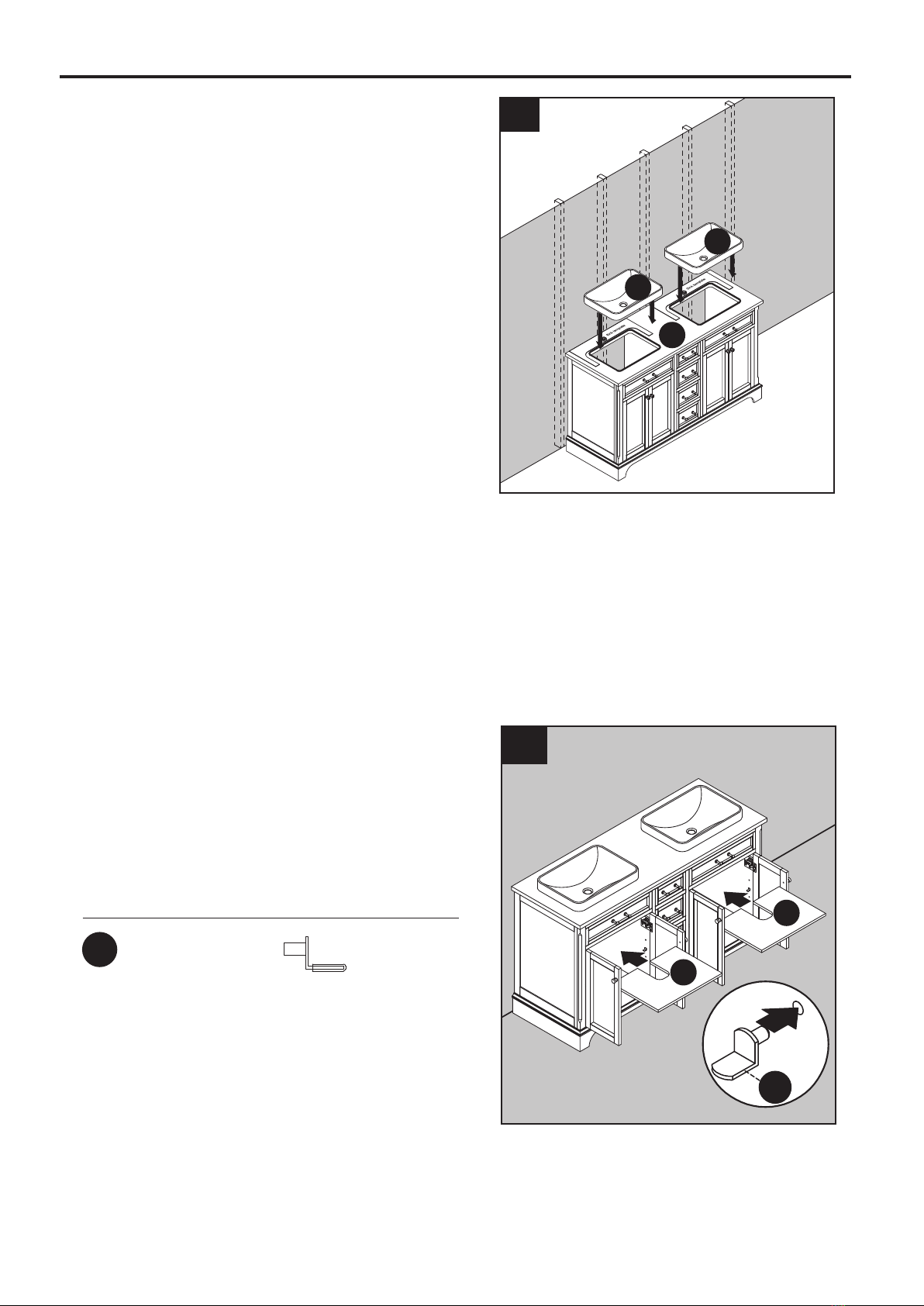

8. Insert shelf pins (GG) at desired height,
ensuring they are level. Place shelf (G) on
top of shelf pins (GG).
Repeat for the remaining shelf (G).
Hardware Used
GG Shelf Pin x 8
7. With the help of another adult, Gently lower
the sink onto the stone top using even
pressure to set the sink properly.
Make sure the sink over-flow hole is at the
front of wood cabinet.
If some silicone caulk has over-flowed please
clean it up at that time with water.
Repeat for the remaining sink.
7
B
D
D
8
1
GG
2
G
2
G

9
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

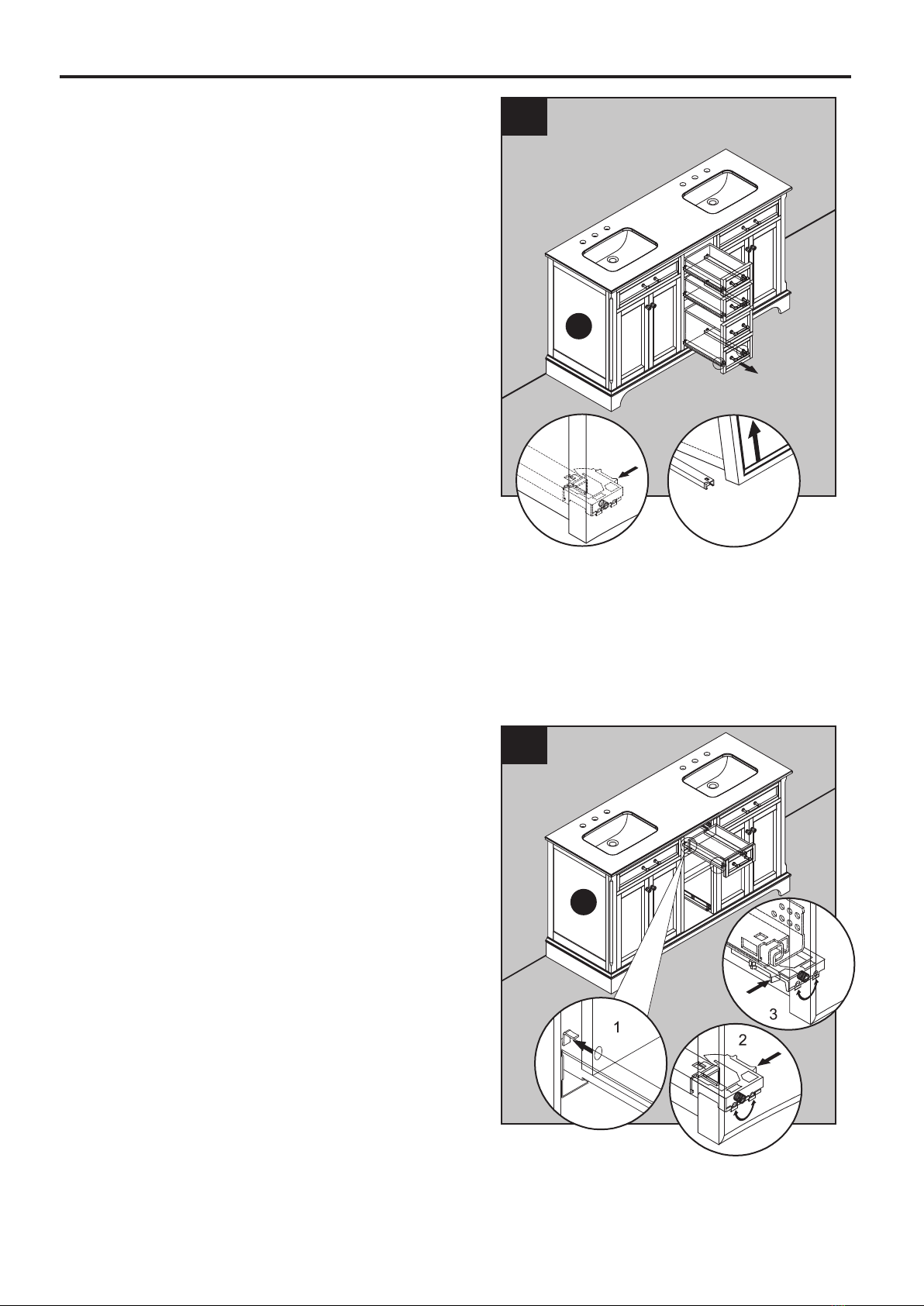

10. To re-install drawers into vanity (A). Please fully
extend metal glide tracks, gently lower and slide
drawer box into rear glide catch, then, lower
drawer box down to completely rest on
extended glides, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height. Please
spin the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
9. To remove drawers from vanity base (A),
fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
9
12
A
10
A

10
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
11. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
12. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
11
a
3
a
1
b
1
1
c
1
c
3
2
2
2
2
22
12
A
C
B
22
1

11
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard marble cleaning agents available at your local
supplier.
• Tips for using touch-up pen (FF): For scratches, stroke in direction of scratch. Rub off excess
colorant promptly with a soft cloth.
IMPORTANT
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
WARRANTY
The manufacturer warrants this item against defects in materials and workmanship for a period
of one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer is not accountable whatsoever for product installation during the warranty period.
There is no further expressed warranty. The manufacturer shall not be legally responsible for
incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. The manufacturer disclaims any and
all implied warranties.
CARE AND MAINTENANCE

12
GG
FF HH II JJ LLKK
REPLACEMENT PARTS LIST FOR 2026VA-60-201-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART#
G Shelf 2026VB-60-201-003
D Sink SN047B
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered White Top 3500VT-60-901
60" Engineered Carrara Backsplash PUBS-25-925-60
Complete Set 60" Engineered Carrara Top 3500VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3500VT-60-926
Complete Set 60" Carrara Marble Top 3500VT-60-900
H Small Drawer Front 2026VB-60-201-004
I Middle Drawer Front 2026VB-60-201-005
J Large Drawer Front 2026VB-60-201-006
OF-0010
FF Touch-up Pen
B1044
GG Shelf pin
HH
L Sink Template SN047B-TEMPLATE
II
JJ
KK
LL
Glide Track Set PUDTC-12X3-HANDLE
Pull (with screw) CF-96-004-BN
Knob (with screw) CF-D25-005-BN
Hinge C-90-107
Leveler T-1007
2026VB-60-201-
001/002
E
Right Door
Left Door
F
GG
FF HH II JJ LLKK
C
L
B
B
E
D
F
I
G
H
J

13
REPLACEMENT PARTS LIST FOR 2026VA-60-242-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART#
G Shelf 2026VB-60-242-003
D Sink SN047B
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered White Top 3500VT-60-901
60" Engineered Carrara Backsplash PUBS-25-925-60
Complete Set 60" Engineered Carrara Top 3500VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3500VT-60-926
Complete Set 60" Carrara Marble Top 3500VT-60-900
H Small Drawer Front 2026VB-60-242-004
I Middle Drawer Front 2026VB-60-242-005
L Sink Template SN047B-TEMPLATE
J Large Drawer Front 2026VB-60-242-006
OF-0120R
FF Touch-up Pen
B1044
GG Shelf pin
HH
II
JJ
KK
LL
Glide Track Set PUDTC-12X3-HANDLE
Pull (with screw) CF-96-004-BN
Knob (with screw) CF-D25-005-BN
Hinge C-90-107
Leveler T-1007
2026VB-60-242-
001/002
E
Right Door
Left Door
F
GG
FF HH II JJ LLKK
C
L
B
B
E
D
F
I
G
H
J

14
PACKAGE CONTENTS (Undermount Sink)
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Use care when assembling the vanity, take your time and follow the assembly instructions closely.
• Weight capacity for shelf is 10 lb.
SAFETY INFORMATION
• Some steps are more easily handled with two adults.
AE
E
G
F
F
D
D
B
C
Shelf Pin
Qty. 8
GG
Touch-up Pen
Qty. 1
FFAA BB CC DD EE
Lock Washer
Qty. 8
Nut
Qty. 8
Wrench
Qty. 1
Bolt
Qty. 8
Sink Bracket
Qty. 8
PART DESCRIPTION QUANTITY
BTop 1
AVanity 1
C Backsplash 1
DSink 2
G Shelf 2
E 2
F
Right Door
(preassembled
to vanity (A))
2
CARTON
box 1 of 3
box 3 of 3
box 2 of 3
box 2 of 3
Left Door
(preassembled
to vanity (A))

15
INSTALLATION INSTRUCTIONS (Undermount Sink)
2. Using hardware appropriate for your wall type
(not included), secure vanity cabinet (A) to
two wall studs anywhere through the vanity
mounting plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
1. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed vanity
cabinet assembly in its final location. Adjust
the height of the vanity cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
2
Mounting Plate
A
WARNING
Vanity (A) MUST be secured to the wall.
1
A

16
3
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
Foam sheet
C
B
BACK
FRONT
BACK
FRONT
B
BACK
FRONT
BACK
FRONT
Foam sheet
1
2
1
2
B
BACK
FRONT
BACK
FRONT
Hardware
Pack
Hardware
Pack
4
BACK
1
2
2
2
2
BACK
BACK
BACK
BACK
D
D
B
Sink Lip
Top
BACK
BACK
3. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
4. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Repeat for the remaining sink.
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.
INSTALLATION INSTRUCTIONS (Undermount Sink)

17
INSTALLATION INSTRUCTIONS (Undermount Sink)
Hardware Used
Bolt x 8

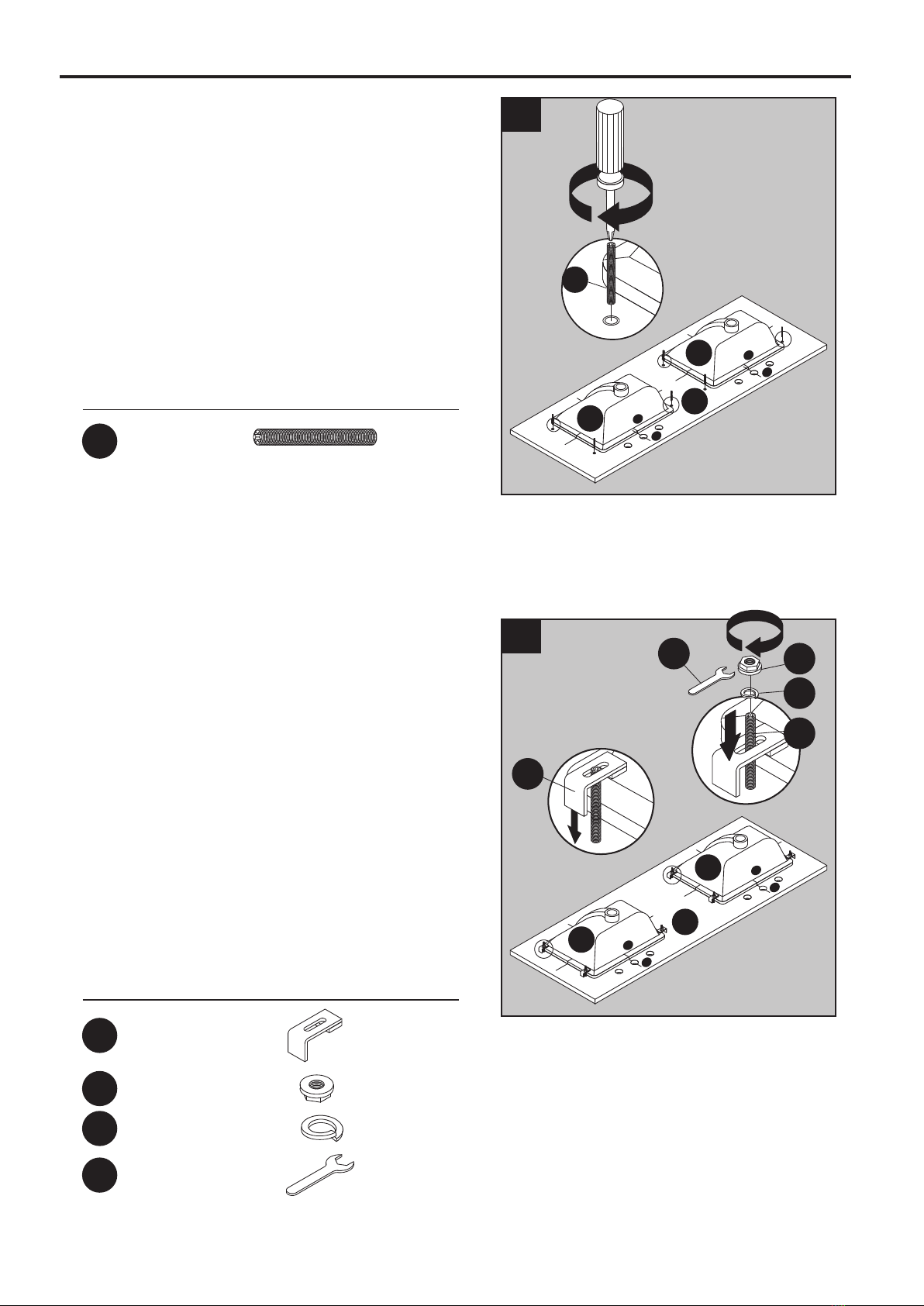

5. Screw bolts (AA) into the threaded holes of
stone top (B).
Hardware Used
Sink bracket x 8
Nut x 8
x 8Lock Washer
Wrench x 1
6. Lower the sink brackets (BB) over the bolts
(AA) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (DD) over bolts (AA) and
secure with nuts (CC). Hand tighten nuts (CC)
with included wrench (EE).
DO NOT OVER TIGHTEN!
Repeat for the remaining sink.
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
5
AA
D
D
B
BACK
BACK
BACK
BACK
6
3
CC
DD
AA
EE
2
BB
1
D
D
B
BACK
BACK
BACK
BACK
AA
BB
CC
DD
EE

18
INSTALLATION INSTRUCTIONS (Undermount Sink)
8
1
GG
22
G
G
8. Insert shelf pins (GG) at desired height,
ensuring they are level. Place shelf (G) on
top of shelf pins (GG).
Repeat for the remaining shelf (G).
Hardware Used
GG Shelf Pin x 8

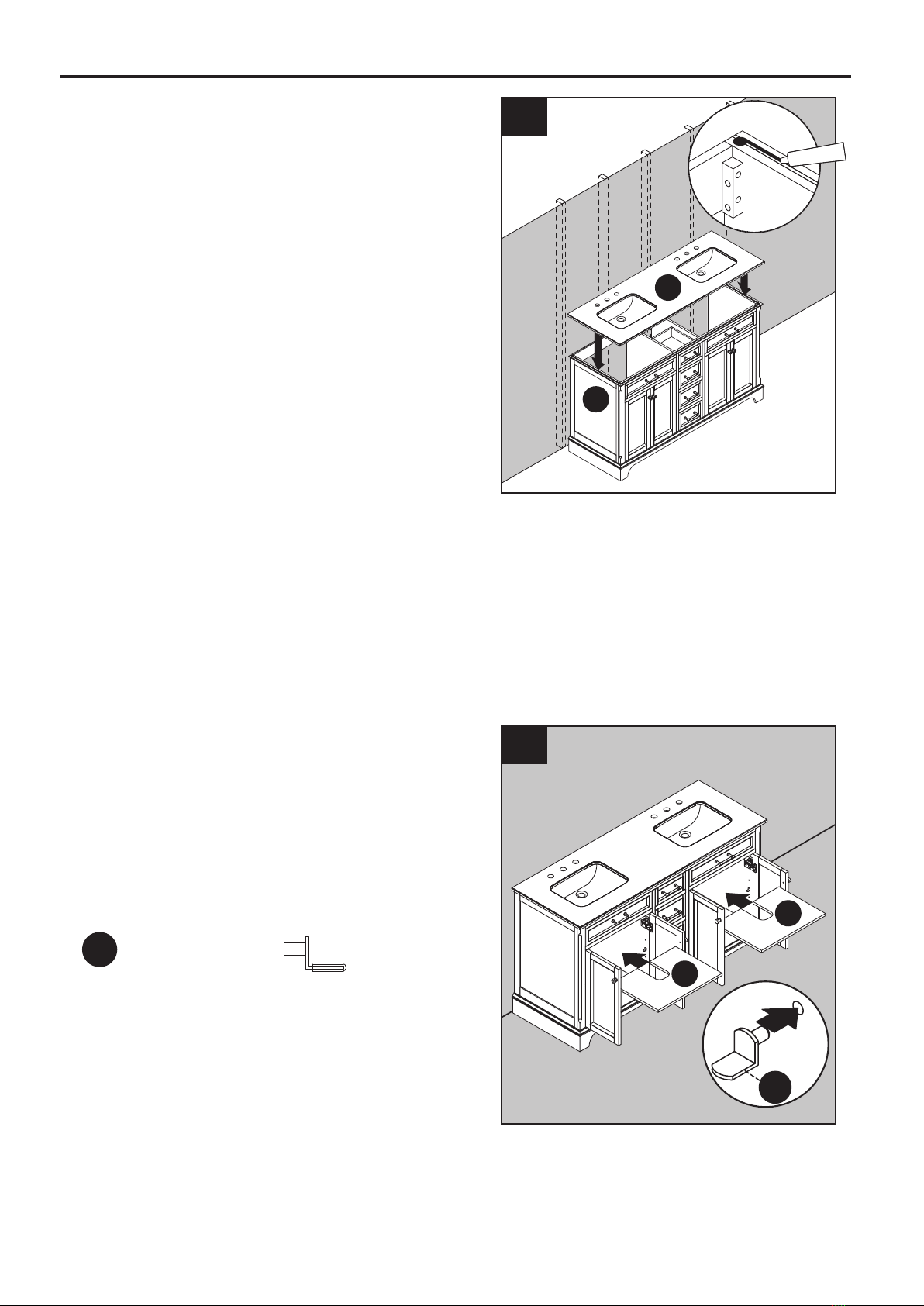

7. To install the top (B) to the vanity (A).
Apply silicone caulk to the top edge of the
wood cabinet. With the help of another adult,
gently lower the stone top with assembled sink
onto the cabinet. Make sure the stone top is flush
with the back side of the wood cabinet and the
stone overhang is equal on both sides over the
wood cabinet left and right side walls. Remove
any excess caulk before allowing to dry.
Helpful tip: it may be easier to install your
choice of faucet (not included) before securing
the vanity top (B) to vanity base (A).
A
B
2
2
7
1

19
INSTALLATION INSTRUCTIONS (Undermount Sink)
10. To re-install drawers into vanity (A). Please fully
extend metal glide tracks, gently lower and slide
drawer box into rear glide catch, then, lower
drawer box down to completely rest on
extended glides, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height. Please
spin the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
9. To remove drawers from vanity base (A),
fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
9
12
A
10
A

20
INSTALLATION INSTRUCTIONS (Undermount Sink)
11. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
12. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
11
a
3
a
1
b
1
1
c
1
c
3
2
2
2
2
22
12
A
C
B
22
1
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
