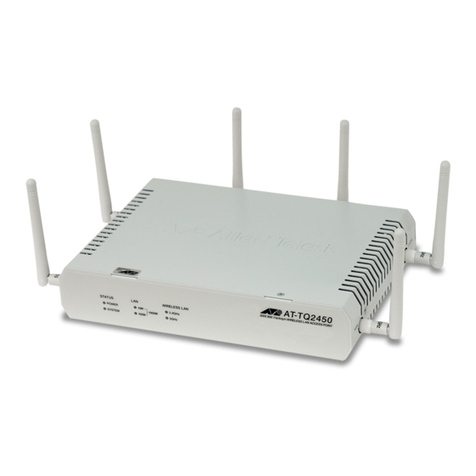

Allied Telesis AT-TQ2450 User manual

Installation and User’s Guides
This document contains an abbreviated version of the installation instructions for the AT-
TQ2450 Wireless Access Point. For complete installation and management instructions,
refer to the AT-TQ2450 installation Guide (613-001820) and AT-TQ2450 User’s Guide
(613-001821) on the Allied Telesis web site at www.alliedtelesis.com/support.
Safety and Electromagnetic Emissions Certificates
Installation Options
Table or desktop
Wall or ceiling with the optional AT-BRKT-J26 Bracket
Note:
The non-US model of this product has a country code setting that must be set during the
initial management session of the unit. The setting ensures that the unit operates in
compliance with the laws and regulations of your country or region.
For the US model the country code is preset and cannot be changed. Per FCC regulations,
the country code setting for all WiFi products marketed in the US must be fixed to US
operational channels only.
Physical Description
The front panel of the access point is shown in this figure.
The LEDs on the front panel of the access port are described in this table.
This figure shows the back panel of the access point.
The components on the back panel are described in this table.
You should review the safety precautions in the AT-TQ2450 Wireless Access Point
Installation Guide before installing the product.
The cable specifications for the LAN port are detailed in the AT-TQ2450 Wireless Access
Point Installation Guide.
Package Contents
The following items should be in the shipping container:
One AT-TQ2450 Wireless Access Point
Three 2.4 GHz antennas
Three 5 GHz antennas
Four rubber feet
The access point may or may not come with an AC/DC power adapter, depending on how
you ordered it. (You may have ordered it without the power adapter if you plan to use the
PoE feature.) If you did order the access point with the power adapter, the shipping
container should also contain the following items:
One power adapter
One tie wrap
Either one North American power cord or four regional power cords
If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance. You should retain the original shipping material in case you need to return the
unit to Allied Telesis.
For instructions on how to install the device on a wall or ceiling with the optional AT-
BRKT-J26 Bracket, refer to the AT-TQ2450 Wireless Access Point Installation Guide.
To install the access point on a table or desktop, perform the following procedure:
1. Place the access point upside down on a table.
Standard
Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of the European
Parliament and of the Council of 8 June 2011 on the restriction of
the use of certain hazardous substances in electrical and
electronic equipment.)
Electromagnetic
Compatibility (EMC)
EN55022/24
FCC Part15B
CISPR22
ICES-003
Medical (EMC) ETSI EN 60601-1-2:2007
Radio Equipment AS/NZS 4269
EN300328
EN391893
EN301489-1/-17
FCC Part 15C
FCC Part 15E
RSS-210
Safety UL UL60950-1 2nd edition
UL UL2043
CB IEC60950-1:2005+Am1:2009
LVD EN60950-1:2006+A11:2009+A1:2010+
A12:2011
TUV-T mark EN60950-1:2006+A11:2009+
A1:2010+A12:2011
Quick Installation Guide
AT-TQ2450
Wireless Access Point
*613-001831 Rev A*
613-001831 Rev. A
Table 1. LEDs
LED State Description
Power Solid
Green
The unit is receiving DC power that is within the normal
operating range.
Off The power supply is not receiving power from either the
AC/DC power adapter or a PoE Ethernet switch.
System Amber The access point is loading its firmware.
Off The unit is operating normally.
10M and
100M
10M: On
100M: Off
The Ethernet port is operating at 10 Mbps.
10M: Off
100M: On
The Ethernet port is operating at 100 Mbps.
10M: On
100M: On
The Ethernet port is operating at 1000 Mbps.
Radio1 Green The 2.4GHz radio and antennas are sending and
receiving radio waves.
Radio2 Green The 5GHz radio and antennas are sending and receiving
radio waves.
LEDs
2889
Table 2. Back Panel Components
Component Description
1 Console Port The Console Port is for manufacturing purposes only.
2 Rest Button The Reset button returns the parameter settings on the access
point to their default settings.
3 LAN Port The LAN port connects the access port to your wired network. It
supports PoE. If you connect the port to an Ethernet switch that
supports PoE, you do not have to use the AC/DC adapter to
power the device.
4 DC Power
Connector
The DC Power Connector connects to the AC/DC power adapter
included with the access point. You have to use the adapter if
you do not connect the LAN port to an Ethernet switch that
supports PoE.
CONSOLE PORT
RESET
5GHz
RESET
2.4GHz
LAN
10BASE-T/100BASE-TX/1000BASE-T
(AUTOMDI/MDI-X)
PoEIN
12VDC
2890
1 2 3 4
1 2 3
2. Affix the four rubber feet included with the access point to the four corners of the
bottom panel of the unit.
3. Turn the access point right side up on the table.
4. Install the three 2.4 GHz and three 5 GHz antennas to the corresponding connectors
on the sides of the unit. The connectors are labelled.
Note:
Do not attach the antennas when the access point is power on. Doing so may damage the
unit.
5. Attach a network cable to the LAN port.
6. Connect the other end of the network cable to a port on an Ethernet switch.
If you are not using the PoE feature on the Ethernet LAN Port to power the unit,
continue with this procedure to attach the AC/DC power adapter.
If you are using the PoE feature on the LAN Port to power the access point, the
installation procedure is complete.
7. Connect the power cord to the AC/DC adapter.
8. Connect the DC cable on the AC/DC adapter to the 12VDC connector on the access
point.
9. Secure the DC cable to the anchor on the unit with the tie wrap that comes with the
access point.
10. Connect the AC plug on the power cord to an appropriate AC power source.
Starting the Initial Management Session
This section contains an abbreviated version of the procedure for starting the initial
management session. For complete instructions, refer to the AT-TQ2450 installation Guide
or AT-TQ2450 User’s Guide.
The wireless access point has a DHCP client. The default setting for the client is enabled.
When you power on the access point for the first time, it queries the subnet on the LAN port
for a DHCP server. If a DHCP server responds to its query, the unit uses the IP address the
server assigns to it. If there is no DHCP server, the access point uses the default IP
address 192.168.1.230.
To start the initial management session, perform the following procedure:
1. Start the web browser on your management workstation.
2. Enter in the URL field of the web browser the IP address of the wireless access
point. The address is one of the following:
If your network does not have a DHCP server, enter the default address
192.168.1.230.
If your network has a DHCP server, enter the IP address the DHCP server assigned to
the access point.
The wireless access point displays the logon prompt.
3. Enter “manager” for the username and “friend” for the password. The username and
password are case-sensitive.
Setting the Country Setting
You should set the country setting during the initial management session to ensure that the
device operates in compliance with the codes and regulations of your region or country.
To set the country setting, perform the following procedure:
1. Select Wireless Settings from the Manage menu.
The access point displays the “Modify wireless settings” window.
2. Select the Country pull-down menu and select your country or region.
Note:
If the Country pull-down menu is deactivated and cannot be changed, the country
parameter was set when the unit was manufactured and cannot be changed. If the setting
is not correct for your country or region, contact your Allied Telesis sales representative for
assistance.
The access point displays a confirmation prompt.
3. Click OK to change the country setting or Cancel to cancel the procedure.
If you click OK, the access point changes the country setting and disables both radios
on the access point. (The default setting for the radios is disabled.)
This procedure does not require clicking the Update button.
You must now reboot the access point. The new country setting is not active until the
unit is rebooted. To reboot the unit, either power off and on the unit or continue with
these steps:
4. From the Maintenance menu, select Configuration.
5. Click the Reboot button in the To Reboot the Access Point section of the “Manage
the Access Point’s Configuration” window.
6. When the access point displays a confirmation prompt, click OK to reboot the unit or
Cancel to cancel the procedure.
7. To resume managing the unit, wait for it to complete initializing its management
software and then start a new management session.
For more instructions on how to configure the features of the access point, refer to the
AT-TQ2450 Access Point User’s Guide.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
2894
CONSOLEPORT
RESET
5GHz
RESET
2.4GHz
LAN
10BASE-T/100BASE-TX/1000BASE-T
(AUTOMDI/MDI-X)
PoEIN
12VDC
2.4GHz
5GHz
2895
CONSOLEPORT
RESET
5GHz
RESET
2.4GHz
LAN
10BASE-T/100BASE-TX/1000BASE-T
(AUTOMDI/MDI-X)
PoEIN
12VDC
2.4GHz
5GHz
2896
1577
CONSOLEPORT
RESET
5GHz
RESET
2.4GHz
LAN
10BASE-T/100BASE-TX/1000BASE-T
(AUTOMDI/MDI-X)
PoEIN
12VDC
2.4GHz
5GHz
2897
CONSOLEPORT
RESET
5GHz
RESET
2.4GHz
LAN
10BASE-T/100BASE-TX/1000BASE-T
(AUTOMDI/MDI-X)
PoEIN
2.4GHz
5GHz
12VDC
2898
4 5 6
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to
indoor environment. The band from 5600-5650MHz will be disabled by the software during
the manufacturing and cannot be changed by the end user. This device meets all the other
requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and
5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall
comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as
appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary users
(i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars
could cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions
précises sur les restrictions susmentionnées, notamment:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350
MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825
MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non
point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les
bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
European Union Restriction of the Use of Certain Hazardous
Substances
(RoHS) in Electrical and Electronic Equipment
This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of
the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment.
Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity,
monitoring incoming materials, and maintaining manufacturing process controls.
Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to prove presumption of conformity
with the essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1
Safety of Information Technology Equipment
EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus
with the basic restrictions related to human exposure to electromagnetic fields (0 Hz -
300 GHz).
EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive,
EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN;
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements.
EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment
This device is a 5GHz wideband transmission system (transceiver), intended for use in all
EU member states and EFTA countries, except in France and Italy where restrictive use
applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order
to obtain authorization to use the device for setting up outdoor radio links and/or for
supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas
the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 -
2483.5 MHz. For detailed information the end-user should contact the national spectrum
authority in France.
Česky [Czech] Allied Telesis tímto prohlašuje, že tento wireless access point je ve shodě
se základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk [Danish] Undertegnede Allied Telesis erklærer herved, at følgende udstyr wireless
access point overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Allied Telesis, dass sich das Gerät wireless access point in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab Allied Telesis seadme wireless access point
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, Allied Telesis, declares that this wireless access point is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Allied Telesis declara que el wireless access
point cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Allied Telesis ΔΗΛΩΝΕΙ ΟΤΙ wireless access point
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Allied Telesis déclare que l'appareil wireless access point
est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente Allied Telesis dichiara che questo wireless access point è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo Allied Telesis deklarē, ka wireless access point atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Allied Telesis deklaruoja, kad šis wireless access point atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Allied Telesis dat het toestel wireless access point in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, Allied Telesis, jiddikjara li dan wireless access point
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Allied Telesis nyilatkozom, hogy a wireless access point megfelel
a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
7 8 9
Copyright 2013 Allied Telesis, Inc.
All rights reserved.
No part of this publication may be reproduced without prior written permission from Allied
Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All
other product names, company names, logos or other designations mentioned herein are
trademarks or registered trademarks of their respective owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other
information contained in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be
liable for any incidental, special, indirect, or consequential damages whatsoever, including
but not limited to lost profits, arising out of or related to this manual or the information
contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have
known, the possibility of such damages.
Polski [Polish] Niniejszym Allied Telesis oświadcza, że wireless access point jest zgodny
z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
Allied Telesis declara que este wireless access point está conforme com
os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Allied Telesis izjavlja, da je ta wireless access point v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
Allied Telesis týmto vyhlasuje, že wireless access point spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] Allied Telesis vakuuttaa täten että wireless access point tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Allied Telesis att denna wireless access point står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
10 11 12

Other manuals for AT-TQ2450

1

Other Allied Telesis Wireless Access Point manuals

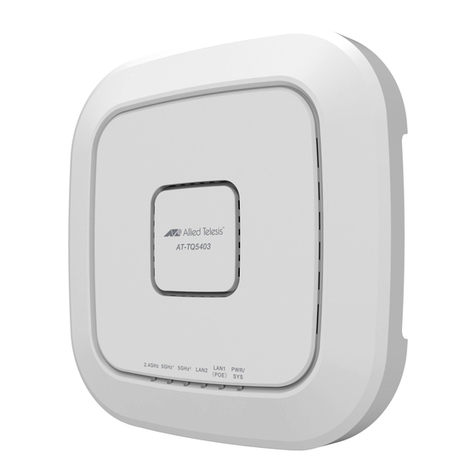

Allied Telesis AT-TQ5403 Series User manual

Allied Telesis

Allied Telesis AT-TQ5403 Series User manual

Allied Telesis TQ6702e GEN2 User manual

Allied Telesis

Allied Telesis TQ6702e GEN2 User manual

Allied Telesis AT-TQ5403e User manual

Allied Telesis

Allied Telesis AT-TQ5403e User manual

Allied Telesis AT-TQ4400e User manual

Allied Telesis

Allied Telesis AT-TQ4400e User manual

Allied Telesis TQ6702e GEN2 User manual

Allied Telesis

Allied Telesis TQ6702e GEN2 User manual

Allied Telesis TQ6602 GEN2 User manual

Allied Telesis

Allied Telesis TQ6602 GEN2 User manual

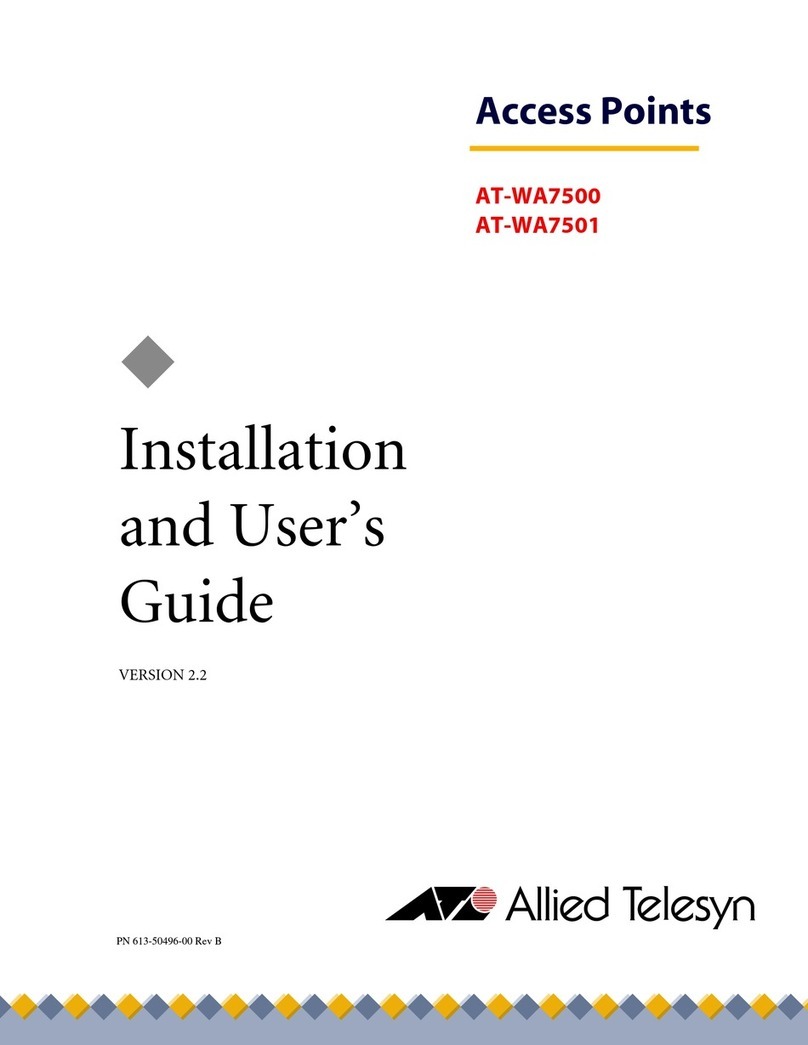

Allied Telesis AT-WA7500 User guide

Allied Telesis

Allied Telesis AT-WA7500 User guide

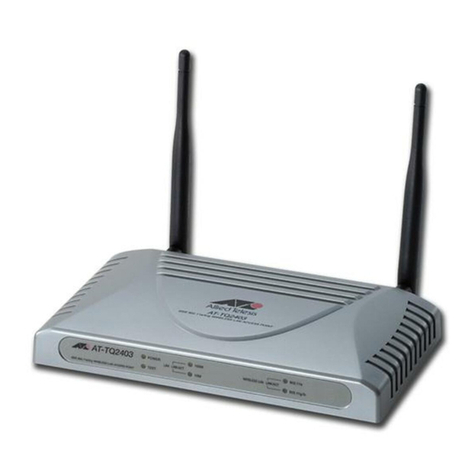

Allied Telesis AT-TQ2403 User manual

Allied Telesis

Allied Telesis AT-TQ2403 User manual

Allied Telesis AT-TQ2450 User manual

Allied Telesis

Allied Telesis AT-TQ2450 User manual

Allied Telesis AT-WA7500 User manual

Allied Telesis

Allied Telesis AT-WA7500 User manual

Allied Telesis AT-AP500 User manual

Allied Telesis

Allied Telesis AT-AP500 User manual

Allied Telesis AT-TQ4400e User manual

Allied Telesis

Allied Telesis AT-TQ4400e User manual

Allied Telesis AT-TQ6602 GEN2 User manual

Allied Telesis

Allied Telesis AT-TQ6602 GEN2 User manual

Allied Telesis AT-WL2411 User manual

Allied Telesis

Allied Telesis AT-WL2411 User manual

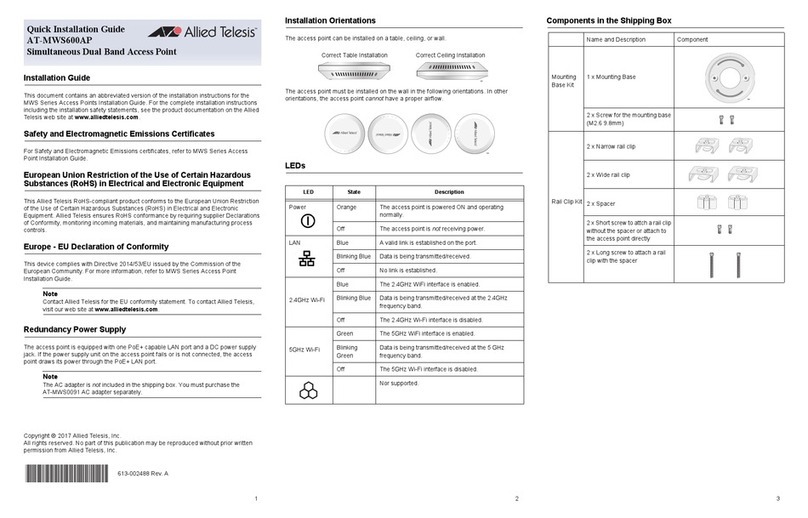

Allied Telesis AT-MWS600AP User manual

Allied Telesis

Allied Telesis AT-MWS600AP User manual

Allied Telesis AT-WA7400 User manual

Allied Telesis

Allied Telesis AT-WA7400 User manual

Allied Telesis AT-TQ4600-OF13 User manual

Allied Telesis

Allied Telesis AT-TQ4600-OF13 User manual

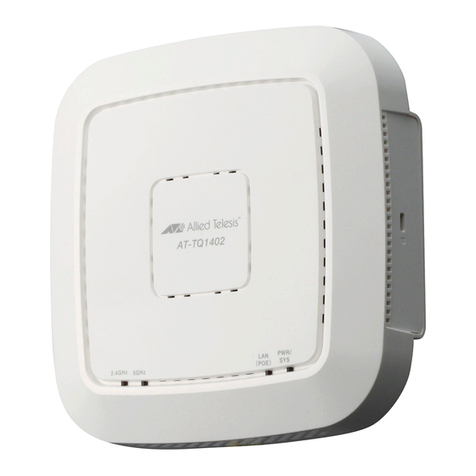

Allied Telesis TQ1402 User manual

Allied Telesis

Allied Telesis TQ1402 User manual

Allied Telesis AT-TQ5403e User manual

Allied Telesis

Allied Telesis AT-TQ5403e User manual

Allied Telesis AT-TQ3600 User manual

Allied Telesis

Allied Telesis AT-TQ3600 User manual

Allied Telesis AT-MWS600AP User manual

Allied Telesis

Allied Telesis AT-MWS600AP User manual

Allied Telesis AT-TQ6602 User manual

Allied Telesis

Allied Telesis AT-TQ6602 User manual

Allied Telesis AT-TQ4600 User manual

Allied Telesis

Allied Telesis AT-TQ4600 User manual

Allied Telesis AT-WA7400 User manual

Allied Telesis

Allied Telesis AT-WA7400 User manual

Popular Wireless Access Point manuals by other brands

Cisco Linksys WET610N Configuring

Cisco

Cisco Linksys WET610N Configuring

Auerswald COMpact 3000 ISDN Quick start instructions

Auerswald

Auerswald COMpact 3000 ISDN Quick start instructions

HP Aruba AP-587 Disassembly instructions

HP

HP Aruba AP-587 Disassembly instructions

Edge-Core EAP104 quick start guide

Edge-Core

Edge-Core EAP104 quick start guide

Aphelion 600AG user manual

Aphelion

Aphelion 600AG user manual

HP Enterprise Aruba 340 Series Startup guide

HP Enterprise

HP Enterprise Aruba 340 Series Startup guide

Brite View BVH-H5101C user manual

Brite View

Brite View BVH-H5101C user manual

TP-Link Deco BE85 Quick installation guide

TP-Link

TP-Link Deco BE85 Quick installation guide

Ruckus Wireless Unleashed R600 Quick setup guide

Ruckus Wireless

Ruckus Wireless Unleashed R600 Quick setup guide

Ubiquiti NanoStation loco manual

Ubiquiti

Ubiquiti NanoStation loco manual

D-Link DAP-3315 user manual

D-Link

D-Link DAP-3315 user manual

ZyXEL Communications NWA5301-NJ quick start guide

ZyXEL Communications

ZyXEL Communications NWA5301-NJ quick start guide

LevelOne WAP-6002 Quick installation guide

LevelOne

LevelOne WAP-6002 Quick installation guide

Acrowave AcroLAN AAP-1100E Series user guide

Acrowave

Acrowave AcroLAN AAP-1100E Series user guide

Askey EAO2001S Quick installation guide

Askey

Askey EAO2001S Quick installation guide

Gateway Orinoco Peer-to-peer Setup instructions

Gateway

Gateway Orinoco Peer-to-peer Setup instructions

Aruba Instant On AP12 installation guide

Aruba

Aruba Instant On AP12 installation guide

D-Link DWL_7100 manual

D-Link

D-Link DWL_7100 manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
