Amadas 2110A User manual

Model 2110A Pull-Type
Peanut Combine
MAN143
1st Edition, Beg. S/N 540000
December 2015
©2015
Read this manual before
using this product. Failure
to follow the instructions
and safety precautions in
this manual can result in
serious injury or death.

Model 2110A Pull-Type Peanut Combines are manufactured
by Amadas Industries:
You can find us on the Web at:
www.amadas.com
or e-mail us at:
[email protected]
or call us at:
757-539-0231
Mailing Addresses
P.O. Box 1833
Suffolk, VA 23439
P.O. Box 3687
Albany, GA 31701
Shipping Addresses
1100 Holland Road
Suffolk, VA 23434
1701 South Slappey Blvd.
Albany, GA 31706

2110A PT Peanut Combine Introduction
Table of
Contents
Welcome..................................................iii
Specifications........................................v
Dimensions .......................................... vi
1. Safety...................................................1
Safety At All Times!...............................2
Safety Practices ....................................3
Additional Safety for this Machine .......10
Safety Decals......................................11
2. Preparation........................................17
Overview.............................................18
Safety Strut.....................................18
Pre-Delivery Check .............................19
3. Operation...........................................23
Combine Process...............................24
Hitching Combine to Tractor...............27
Attaching and Checking Driveline.......28
Daily Pre-Start Check.........................30
Operating Procedure..........................33
Proper Operation................................36
Hydraulic Bin Lip/Dirt Trap .................37
Road Towing Combine with Side
Shift Tongue...................................38
4. Unloading Conveyor ........................39
Before Using the Conveyor................40
Conveyor Safety.............................40
Using the Conveyor............................41
Conveyor Tracking.............................42
Conveyor Maintenance ......................43
Conveyor Troubleshooting.................45
5. Controls and Adjustments................47
Overview............................................48
Control Locations...............................49
Controls and Adjustments..................50
MAN143 12/18/15 i

Introduction 2110A PT Peanut Combine
5.Controls and Adjustments (Continued)
Adjustable Overhead Teeth and
Concave Teeth Controls...............50
Retention Board Adjustment...........51
Cleaning Air Control........................52
Tailboard Adjustment......................53
Elevator Air Control.........................54
Standard Pickup Header Speed
Control........................................55
Remote Auger Reverse ..................55
Pickup Header Speed Control
With Combine Hydraulics............56
PTO Speed Adjustment..................57
Pickup Header Height Adjustment ..59
Header Auger Adjustment...............60
Optional Dual Speed Cylinder Drives61
Variable Pitch Vine Spreaders........62
6. Performance......................................63
Fine Tuning Operation........................64
Achieving Maximum Ground Speed...65
Increasing Separating Capacity..........66
Harvesting Under Wet Conditions ......67
7. Maintenance......................................69
Belt Adjustment..................................70
Chain Adjustment...............................71
Lubrication .........................................73
PTO................................................74
Schedule.........................................75
Lubrication Locations .................. 76
Post Season Maintenance................. 77
Troubleshooting................................. 78
8. “Peanut Tech” Monitoring and
Control ................................................... 83
Key Features..................................... 84
“Peanut Tech” Home Screen Functions
and Controls...................................... 85
“Peanut Tech” Help/Basic Instructions
Screens ............................................. 86
“Peanut Tech” All Information Screen
Function and Controls........................ 87
Warranty................................................. 89
ii 12/18/15 MAN143

2110A PT Peanut Combine Introduction
Welcome
To
Amadas
Industries
With origins dating back to 1963,
AMADAS Industries and its predecessors
have a long history of providing high
quality, reliable, and innovative equipment
for the farming industry. AMADAS
equipment is currently at work throughout
the United States and in many other
countries. This equipment ranges from
the Magnum Fource Peanut Combine,
Tree Bark Processing and Packaging
Machinery, Hi-Speed Cotton Stalk
Puller/Chopper, Reel Rain Traveler
Irrigation Systems, to the 2110A Pull-Type
Peanut Combines.
Thank you for choosing AMADAS
Industries. We are strongly committed to
your satisfaction and safety. Our goal is
for you to be satisfied with our machinery
for many years and it is our hope that you
will choose AMADAS again for your
equipment needs.
We are confident you will experience
many good years of service with your
AMADAS combine. If any need should
arise, we pledge the best efforts of our
people and dealers to assist you.
One of the most important factors to both
safety and maximum performance is for
every machine operator to understand
thoroughly the safe operation of this
equipment. Please invest the time to read
this manual to ensure that injuries are
prevented and to receive the maximum
productivity from your AMADAS machine.
MAN143 12/18/15 iii

Introduction 2110A PT Peanut Combine
2110A Pull-
Type
Peanut
Combine
Congratulations on your purchase of an
AMADAS 2110A Pull-Type Peanut
Combine! At AMADAS Industries, we are
proud of our equipment and our more than
fifty years of service to peanut farmers.
AMADAS pull-type peanut combines are
the culmination of our years of
development, field testing, and continuous
improvement. In response to our
customers’ needs and industry demands,
the AMADAS peanut combine has evolved
to the model 2110A, the most technically
advanced pull-type peanut combine
available. The combination of innovative
technology, low yearly maintenance, and
the industry’s largest threshing and
separation capacity makes this machine
the world leader in pull-type combines.
Benefits
The proven performance of the advanced
picking and separating technology of the
AMADAS 2110A provides the following
benefits:
•Increased harvesting capacity
•Increased harvesting efficiency
•Reduced harvesting costs
•Improved performance in tough
harvest conditions
•Reduced field loss, foreign material,
LSKs.
iv 12/18/15 MAN143

2110A PT Peanut Combine Introduction
Specifications
Length overall:
25’-6”
Width:
16’-6” (outside wheel base)
14’-4” (centerline wheel base)
Height (bin lip in): 13’-10”
Height (bin lip out): 15’-8”
Dump height: 11’-8”
Height (bin raised): 24’
Weight (empty) 20,000 lbs
Header widths: 18’, 19’, 15’-3”
Inside working width: 96-¼”
Bin capacity: 7500 lbs (standard)
Tire size (std): 24.5 x 32 12 ply R1 high flotation cleated
Tire size (opt): 30.5 x 32 12 ply R1 high flotation cleated
Operation/warning light kit: Standard
Remote auger reverse: Standard
Vine spreader:
Optional
PTO input: 1000 PTO @ 850 RPM input (2-speed option)
1000 PTO @ 790 RPM input (standard)
Tongue: Side shift/ hydraulic height adjustable with pin hitch
Hitch type: 2-5/16” ball, ball & pin type option
Picking:
Four 30” dia. spring-tooth picking cylinders
Dual speed cylinder drives
Adjustable retention board
Two sets adj. overhead teeth (standard)
Five sets adj. concave teeth (option)
Separation system:
Five retractable spring tooth walker cylinders
Two beater cylinders
15-roll disc separator
14” dia. 24-blade cross induction cleaning fan
Elevator system: 12” dia. collection auger to 9-½” square duct
28” dia. 12-blade centrifugal fan
NOTE! The above specifications are for a 7500-pound Bin Dump Equipped combine.
MAN143 12/18/15 v

Introduction 2110A PT Peanut Combine
Dimensions
6-Row
25’ 6”
19’ 6”
13’10”
15’ 8”
with bin lip
extended
vi 12/18/15 MAN143

2110A PT Peanut Combine Safety
1.
Safety
Safety at All Times! ...............................2
Safety Practices....................................3
Additional Safety for this Machine .......10
Safety Decals......................................11
This symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
MAN143 12/18/15 1

Safety 2110A PT Peanut Combine
Safety at All Times!
You, the operator, can help avoid accidents
or injury by observing the precautions in
this section and insisting that others
working for or with you also follow them.
•Do NOT attempt to operate this
equipment under the influence of drugs
or alcohol, or prescription/over-the-
counter drugs that may cause
impairment.
•This equipment is dangerous to
children and persons unfamiliar with its
operation. They should never be
allowed to operate this machinery or
remain in its vicinity while in operation.
•Only a trained operator familiar with this
machinery and trained in its operation
should be allowed to operate this
machine. Do NOT allow any person to
operate or perform maintenance on this
machine until he or she has read this
manual and understands the safety
precautions.
•To prevent injury or death, use a tractor
equipped with a Rollover Protective
System (ROPS).
•NEVER exceed the limits of a piece of
machinery. If its ability to perform a job
safely is in question, DO NOT TRY TO
DO THAT JOB.
Look for the Safety Alert Symbol!
The Safety Alert Symbol indicates a potential
safety hazard to personnel and that extra
precaution must be taken. When you see this
symbol on the machine, remain alert and
carefully read the message that follows it.
ALWAYS follow the recommended
precautions and safe operating procedures
accompanying this symbol. If you have any
questions, please contact your dealer or the
manufacturer.
Safety Signal Words Used
Three safety signal words are used on the
machine and in this manual to indicate the
degree or level of hazard seriousness. These
three words are:
DANGER
Indicates an imminently hazardous situation
that, if not avoided, will result in death or
serious injury. This signal word is to be
limited to the most extreme situations,
typically for machine components that, for
functional purposes, cannot be guarded.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious injury, and includes hazards that are
exposed when guards are removed. It may
also be used to alert against unsafe practices.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
Safety Decals
•Replace any CAUTION, WARNING,
DANGER, or instruction safety decal
that is not readable or is missing.
•Do NOT paint over, remove, or deface
any safety sign or warning decals.
Shields
•Certain photographs or illustrations in
this manual may show a safety shield
removed. However, NEVER operate
this machine without all shields
correctly in place!
•If a shield must be removed to make a
repair or adjustment, replace the shield
prior to use.
2 12/18/15 MAN143

2110A PT Peanut Combine Safety
Safety Practices
Transport Machine Safely
•Comply with state and local laws.
•Be familiar with tractor operations and
follow all safety instructions in the tractor’s
manual.
•Before moving away, always check
immediate vicinity (e.g., for children).
•NEVER exceed a maximum speed of 20
MPH.
•Always adapt ground speed to road or
field conditions, making sure you have
adequate control of steering and stopping.
•Avoid sharp turns, holes, ditches, and
obstructions which may cause the tractor
to tip, particularly on hillsides.
•Use following tow load weight ratios as
guidelines:
20 MPH when weight is less than or
equal to the weight of the tractor
10 MPH when weight is more than
weight of the tractor
•NEVER tow a load more than double the
weight of the tractor!
•Sudden braking can cause a towed load
to swerve and upset. Reduce speed if
towed load is not equipped with brakes.

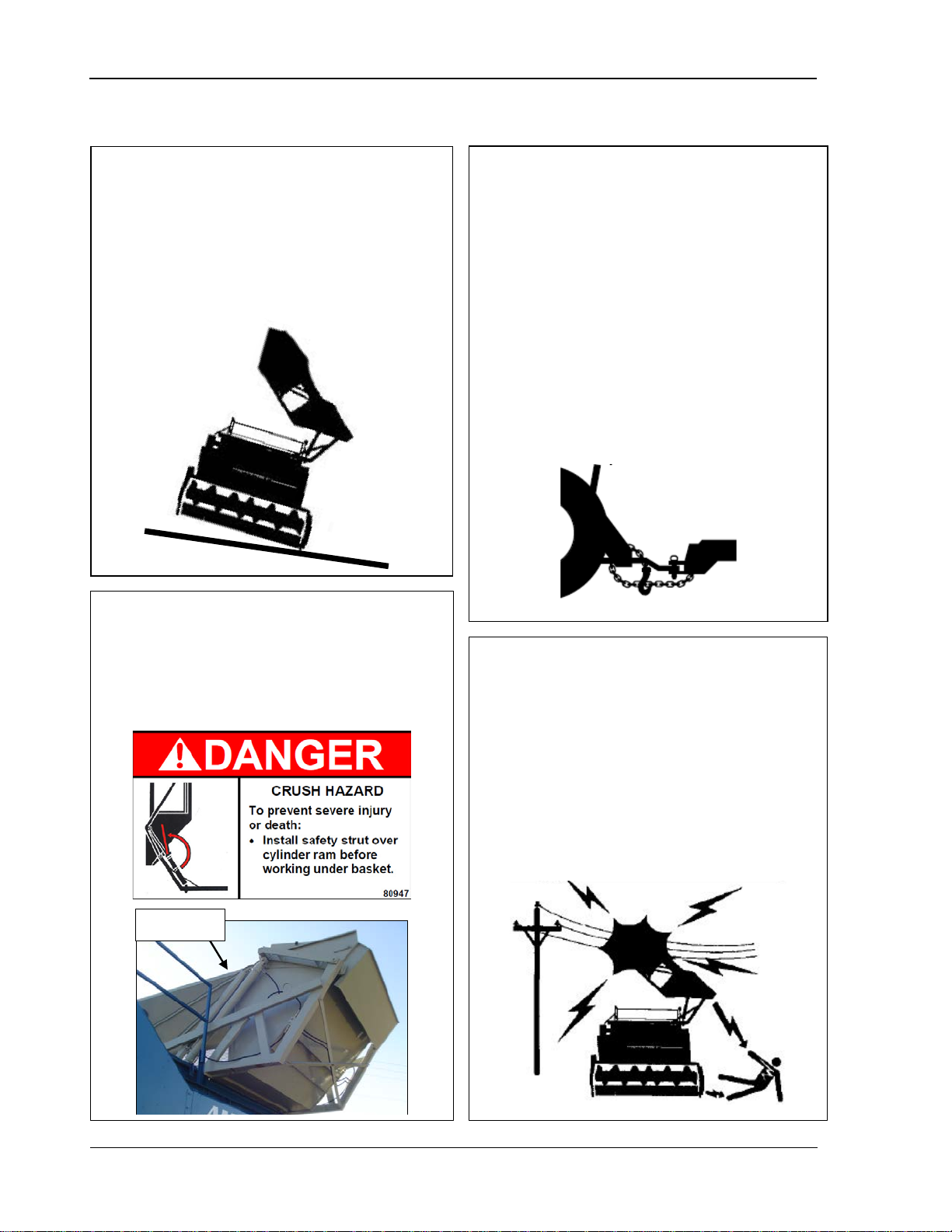

Avoid Electrical Power Lines
•Make sure all components are secured in
the proper position before transporting
machine (for example: basket bin lip
extension, mower deck, off-loading
conveyor, etc.).
•AVOID all lines, particularly low-hanging
electrical cables, during transport.
DANGER
Contact with electrical lines will cause the
operator to suffer severe electrical shock
or possibly death.
Use a Safety Chain
•Use a safety chain to help control
machinery if it separates from the tractor
drawbar.
•Use a chain with strength rating equal to
greater than the gross weight of the
towed machine.
•Attach the chain to the tractor drawbar
support, allowing only enough slack in
the chain for turning.
•Do NOT use a safety chain for towing.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
MAN143 12/18/15 3

Safety 2110A PT Peanut Combine
NOTE! This section covers general safety. Some items may not apply to this type of machine.

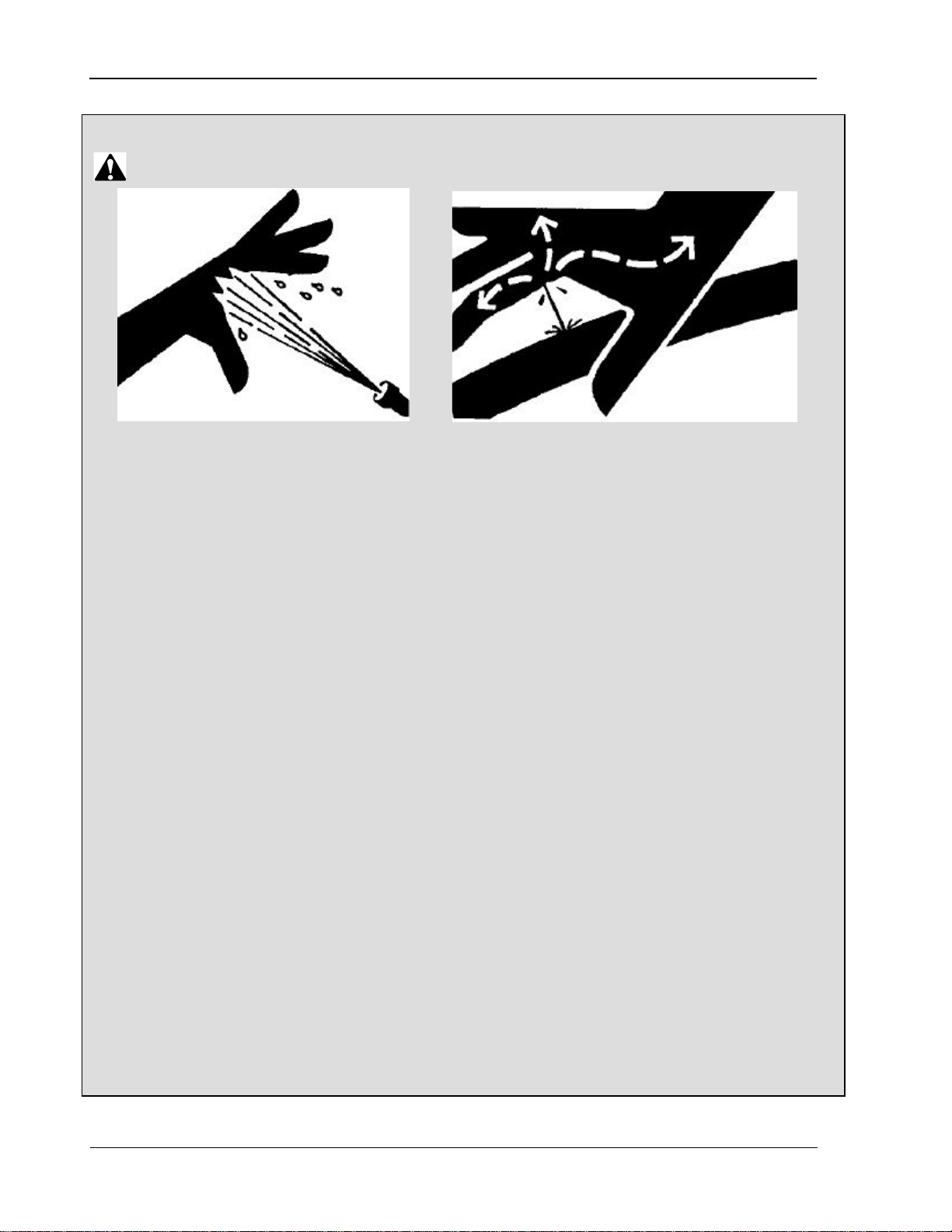

Avoid High Pressure Fluids
CAUTION
•Use extreme care when working with
hydraulic components and high pressure
sprays.
•Escaping fluid or spray under pressure can
penetrate the skin, causing serious injury.
•To avoid injury, relieve pressure before
disconnecting hydraulic or other lines.
•Tighten all connections before applying
hydraulic or spray pressure.
•Search hoses/connections for leaks with a
piece of cardboard.
•Take appropriate safety measures to
protect hands, body, and face from high
pressure fluids.
•Always wear appropriate safety gear to
protect hands, body and face from
exposure to high pressure fluids.
•Never try to block the flow or search for
leaks of high pressure fluids with your
hands even if wearing gloves. High
pressure fluids can penetrate gloves as well
as your skin.
•Always avoid direct contact of any high
pressure fluid flow.
•If an accident occurs, respond as follows:
oSeek medical treatment
immediately. Any fluid injected into
the skin must be surgically removed
within a few hours or gangrene may
result.
oAlert the medical professionals that
a fluid injection or high pressure
spray injury has occurred.
oGive information on the type of fluid
or spray and time the accident
occurred. If known, include the
amount of fluid injected and/or the
system injection pressure.
oSurgery will most likely be required,
so no food or drink for the affected
person.
Doctors unfamiliar with this type of injury
should reference a knowledgeable medical
source. Such information is available in
English from Deere & Company Medical
Department in Moline, Illinois, U.S.A., by
calling 1-800-822-8262 or +1 309-748-
5636.
VERY IMPORTANT!! Although in some
cases there is little or no pain from an
injection or high pressure spray accident,
THIS IS A SERIOUS EVENT THAT MUST
BE TREATED BY MEDICAL
PROFESSIONALS!!!
4 12/18/15 MAN143

2110A PT Peanut Combine Safety
Work in Ventilated Area
Engine exhaust fumes can cause sickness or
death.
•If it is necessary to run an engine in an
enclosed area, remove the exhaust fumes
from the area with an exhaust pipe
extension.
•If you do not have an exhaust pipe
extension, open the doors and get outside
air into the area.
AMADAS DOES NOT RECOMMEND
RUNNING ANY ENGINE IN AN ENCLOSED
AREA EVEN WITH VENTILATION.
Prepare for Emergencies
•Be prepared if a fire starts.
•Keep a first aid kit and fire extinguisher
handy.
•Keep emergency numbers for doctors,
ambulance service, hospital, and fire
department near your telephone.
Handle Fuel Safety – Avoid
Fires
•Handle fuel with care; it is highly
flammable.
•Do NOT refuel the machine while
smoking or when near open flame or
sparks.
•Always stop engine before refueling
machine.
•Fill fuel tank outdoors.
•Prevent fires by keeping machine clean
of accumulated trash, grease, and
debris.
•Always clean up spilled fuel.
Wear Protective Clothing
•Wear close-fitting clothing and safety
equipment appropriate to the job.
•Operating equipment safely requires
the full attention of the operator. Do
NOT wear radio or music headphones
while operating machine.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
MAN143 12/18/15 5

Safety 2110A PT Peanut Combine
Practice Safe Maintenance
•Understand the service procedure before
doing work. Use proper tools and refer to
the User Manual.
•Keep service area clean and dry.
•Lower machine to ground, engage parking
brake, turn off engine, and remove key
before performing maintenance.
•Allow time for the machine to cool
completely.
•Never lubricate, service, or adjust machine
while it is moving.
•Keep hands, feet, and clothing from power-
driven parts.
•Securely support any machine elements
that must be raised for service work.
•Keep all parts in good condition and
properly installed.
•Fix any damage immediately; replace worn
or broken parts.
•Keep the machine free of any buildup of
grease, oil, or debris.
Handle Chemical Products
Safely
•Direct exposure to hazardous chemicals
can cause serious injury. Potentially
hazardous chemicals used with AMADAS
equipment include such items as
lubricants, coolants, paints, and
adhesives.
•Before you start any job using a
hazardous chemical, check the MSDS so
that you are aware of the risks and know
how to proceed safely. Carefully follow
all procedures, using only recommended
equipment.
•See your AMADAS dealer for MSDS on
chemical products used with AMADAS
equipment.
Avoid Contact with Moving Parts
•Wear close-fitting clothing to avoid
entanglement with moving parts.
•Keep hands, feet, and clothing away
from power-driven parts.
•Never clean, lubricate or adjust machine
when it is running.
Remove Accumulated Crop
Debris
•The buildup of chaff and crop debris near
moving parts or heat sources is a
hazard.
•Check and clean these areas frequently.
•Before performing any inspection or
service, engage parking brake, turn off
engine, and remove key.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
6 12/18/15 MAN143

2110A PT Peanut Combine Safety
Remove Paint/Protective Coating
Before Welding Or Heating
•Avoid potentially toxic fumes and dust.
•Hazardous fumes can be generated when
paint or coatings are heated by welding,
soldering, or by using a torch.
•Do all work outside or in a well-ventilated
area.
•Remove paint/coatings before welding or
heating:
oIf you sand or grind paint, avoid
breathing the dust. Wear an approved
respirator.
oIf you use solvent or paint stripper,
remove stripper with soap and water
before welding.
oRemove solvent or paint stripper
containers and other flammable
material from the area.
oAllow any fumes to disperse for at least
15 minutes before welding or heating.
•Do NOT use a chlorinated solvent in areas
where welding will take place.
•Do all work in an area that is well-
ventilated to carry toxic fumes and dust
away.
•Dispose of paint/coatings and solvent
properly.
Avoid Using Heat Near
Pressurized Fluid Lines
•Flammable spray can be generated by
heating near pressurized fluid lines,
resulting in severe burns to yourself and
bystanders.
•Do NOT heat by welding, soldering, or
using a torch near pressurized fluid lines
or other flammable materials.
Pressurized lines can accidentally burst
when heat goes beyond the immediate
flame area.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
Keep Riders off of Machine
•Only allow the operator on the machine.
Riders obstruct the operator’s view,
which results in the machine being
operated in an unsafe manner.
•
Riders are subject to injury such as
being thrown off of the machine.
•Children should NEVER be allowed on
the machine.
MAN143 12/18/15 7

Safety 2110A PT Peanut Combine

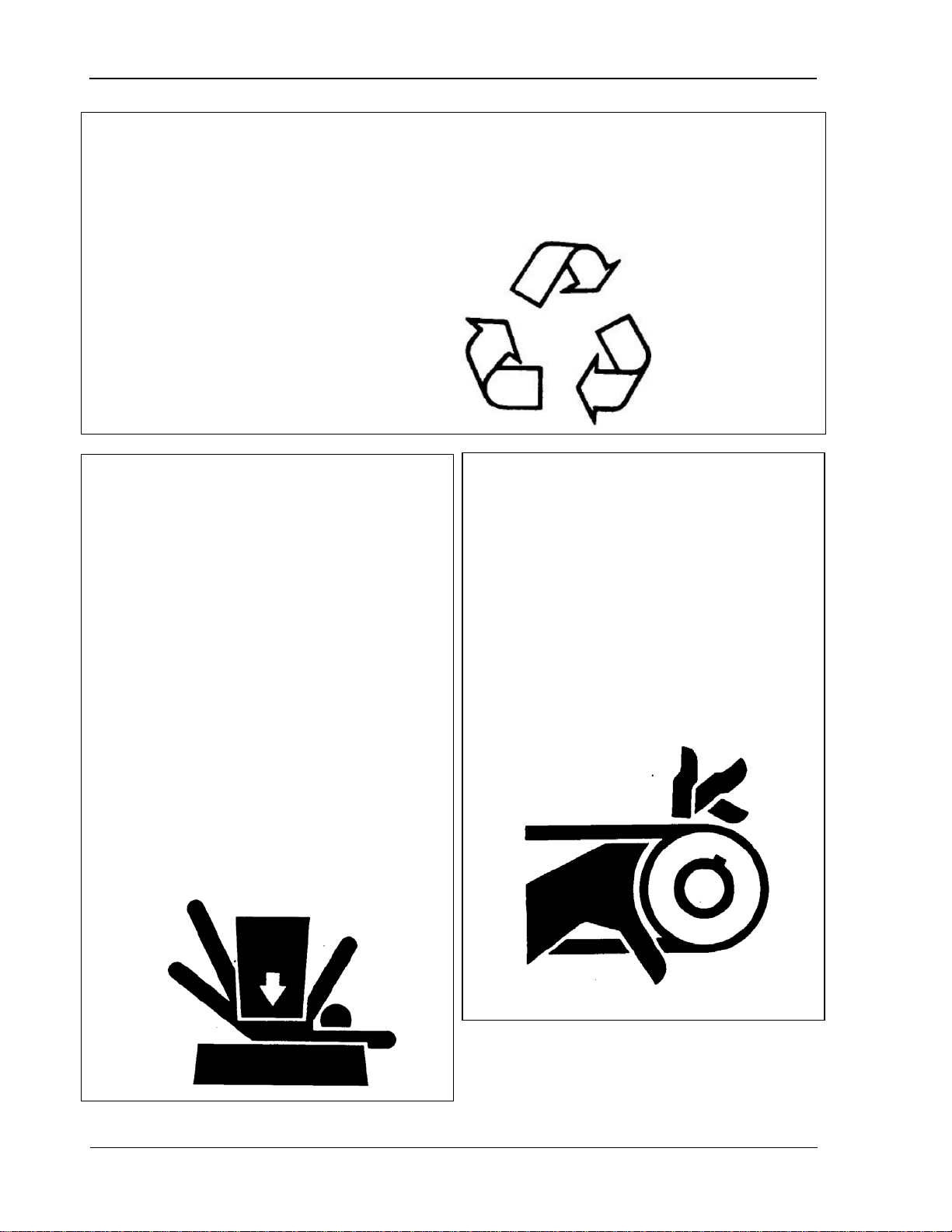

Dispose Of Waste Properly
Improperly disposing of waste can threaten the
environment and ecology. Potentially harmful
waste includes items such as oil, fuel, coolant,
brake fluid, filters, and batteries.
•Use leak-proof containers when draining
fluids.
•Do NOT use food or beverage containers
that may mislead someone into drinking
from them.
•Do NOT pour waste onto the ground, down
a drain or into a water source.
•Inquire about the proper way to recycle or
dispose of waste from your local
environmental or recycling center, EPA, or
from your AMADAS dealer.
Support Machine Properly
•Always lower the attachment or implement
to the ground before you work on the
machine. If the work requires that the
machine or attachment be lifted, provide
secure support for them. If left in a raised
position, hydraulically supported devices
can settle or leak down.
•Do NOT support the machine on cinder
blocks, hollow tiles, or props that may
crumble under continuous load.
•Do NOT work under a machine that is
supported solely by a jack.
•Follow all safety procedures in this manual
for supporting the machine.
•When implements or attachments are used
with a machine, always follow safety
precautions listed in the implement or
attachment operator’s manual.
Service Drive Belts Safely
When servicing drive belts, always observe
these precautions:
•Avoid serious injury from hand or arm
entanglement. Never attempt to clean,
check, or adjust belts while the machine
is running. Always shut off the engine,
set the parking brake and remove the
key.
•Do NOT attempt to clean belts with
flammable cleaning solvents.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
8 12/18/15 MAN143

2110A PT Peanut Combine Safety
Service Tires Safely
Explosive separation of a tire and rim parts
can cause serious injury or death.
•Do NOT attempt to mount a tire unless you
have the proper equipment and experience
to perform the job.
•Always maintain the correct tire pressure.
•Do NOT inflate the tires above the
recommended pressure.
•Never weld or heat a wheel and tire
assembly. The heat can cause an
increase in air pressure resulting in a tire
explosion. Welding can structurally
weaken or deform the wheel.
•When inflating the tires, use a clip-on
chuck and extension hose long enough to
allow you to stand to one side and NOT in
front of over the tire assembly. Use a
safety cage if available.
•Check wheels for low pressure, cuts,
bubbles, damaged rims, or missing lug
bolts and nuts. NEVER fill a damaged tire
or one that is missing lug bolts or nuts.
NOTE! This section covers general safety. Some items may not apply to this type of machine.
Pay Close Attention to Notes
•Throughout the manual, information that
needs to be emphasized is set apart with
either a "NOTE!" or "IMPORTANT!"
heading.
•
Please be sure to carefully read this
information, as
it usually indicates a
situation that could cause machine
damage.
Maintain Your Machine
•It is crucial you maintain your machine in
proper working condition.
•Perform all scheduled maintenance and
repairs in a timely manner.
•Do NOT perform unauthorized
modifications to the machine as these
could impair the function and/or safety of
the machine and affect machine life.
Use Safety Lights and Devices
Slow moving tractors, self-propelled
equipment and towed implements or
attachments can create hazards when
driven on public roads. They are difficult to
see, especially at night.
•Whenever you drive on public roads, use
flashing lights and turn signals according
to local regulations.
•To increase visibility, use the lights and
devices provided with your machine.
•Keep safety items in good condition.
•Replace missing or damaged items.
MAN143 12/18/15 9

Safety 2110A PT Peanut Combine
Additional Safety for this Machine
Operate PT Combine Safely
•ALWAYS stay clear of the header pickup
and header auger at all times.
•ALWAYS be sure that the combine is on
solid, level ground before you dump the
bin.
Be Aware of Machine Height
with Raised Bin
•The combine height with the bin lowered
ranges from 13’-9” to 15’-8”. With the
bin raised, the height ranges from 23’-6”
to 27’-0”.
•Contact with an obstruction or overhead
electrical line could cause electrocution,
death, or serious personal injury.
Tow Combine Safely
•
NEVER exceed the maximum towing
speed of 10 MPH loaded and 20 MPH
empty.
•NEVER tow the combin
e without
attaching safety chains from the towing
vehicle to the combine.
•These chains should have a minimum
combined breaking strength of at least
40,000 pounds.
•If the combine were to separate from
the towing vehicle, serious personal
injury or death could result.
Service Combine Safely
•ALWAYS install the safety strut before
working under the raised bin.
•Failure to do so can result in serious
injury or death.
Safety Strut
10 12/21/15 MAN143
