Amadas 2110A CS User manual

PART 1
HEADERS
CAT653CS
PART 2
BASICCOMBINE
CAT679CS
PART 3
OFF-LOADCONVEYINGSYSTEM
CAT626CS
WARRANTY
MODEL 2110A CS
6-ROW PULL-TYPE
PEANUT COMBINES
CAT678CS 3rd EDITION
Beginning Serial # 560000
November1,2017
Owner's Name
Dealer's Name
Serial Number
Date Purchased Model No.
1100HollandRd
Suffolk, VA 23434
[phone]
1701S. Slappey Blvd.
Albany,GA31701
[phone]

M9718-L
6-ROW HEADER
FOR 2110A CS COMBINE
CAT653CS 2nd Edition
Beginning Serial # 550000
November1,2016
Owner's Name
Dealer's Name
Serial Number
Date Purchased Model No.

TABLE OF CONTENTS
Description Page
3
5
7
9
11
12
M9718-L18'HeaderPickupAssembly(Standard)........................................................
M9718-L18'HeaderAuger(Standard).........................................................................
M97SeriesHeaderDrives&Shields.............................................................................
M97SeriesTractorPoweredHydraulicsforReversibleAuger........................................
M97Series"CoolerType"HydraulicsforReversibleAuger-Optional............................
NumericalPartsIndex....................................................................................................
CAT653CS
2ndEdition
November1,2016
6-RowHeader
for Model 2110A CS
PT Peanut Combine
(Beginning Serial # 550000)
1701 S. Slappey Blvd./P.O. Box 3687 Albany, GA 31706
[phone] / Fax [phone]
1100 Holland Road Suffolk, VA 23434 U.S.A.
[phone] / Fax - [phone]
The Terms "Left" and "Right" used in the description of parts are determined
by facing the direction of travel of the machine.
"A/R" found in the "No. Req'd" column denotes "As Required".
"OPT" found in the "No. Req'd" column denotes "Optional".
NOTES

2
3
4
5
6
7
12
13
14
16
18
19
21
24
29
31
11
20
4
3
14
32
32
8
14
14
14
14
14
14
30
30
30
30
8
32
32
29
3
3
5
4
4
2
2
31
3131
31
31
31
31
16
24
24
1
15
28
33
34
28
28
28
34
34
34
15
15
15
15
15
15
15
33
33
33
1
1
1
1
1
1
1
10
10
9
9
8
32
32
30
30
3030
8
32
32
17
17
PAGE 2
FOR A LISTING OF FREQUENTLY REPLACED FASTENERS,
REFER TO "QUICK REFERENCE: FASTENERS."
SEE TABLE OF CONTENTS IN BASIC COMBINE SECTION
FOR LOCATION.
22
23
26
27
25
HEADERS

(7459 18' VINE HOLD-DOWN KIT)
ITEM PART NUMBER DESCRIPTION QTY SHOWN QTY REQ'D COMMENTS
1 1641 WASHER, 1-3/8 X 13/32 X 14GA. 8 40
2 3005 COLLAR, 1.3/16 ECC. LOCKING 3 A/R (INCLUDED W/BEARING)
3 3010 BEARING, 5/8 CAM FOLLOWER RADIAL 4 20
4 3093 FLANGETTE, 62MS FOR 1.3/16 BEARING 4 4
5 3096 INSERT, 1.3/16 REPLACEMENT BEARING 2 2
6 3171 BEARING, 1.3/16 PILLOW BLOCK 1 1
7 4480 CHAIN, COUPLING ROLLER 1 1
8 6303 TIGHTENER, SPRING 4 120
9 7079 SPRING, TORSION BENT; LONG 2 80
10 7080 SPRING, TORSION STRAIGHT; LONG 2 40
11 7420 SPRING,VINE HOLD-DOWN 1 47 (7459 18' VINE HOLD-DOWN KIT)
12 10736 ROTOR, 18' HEADER; RIGHT 1 1
13 10737 ROTOR, 18' HEADER; LEFT 1 1
14 20178 BUSHING, POLY. (STRIP./HEADER); 7/8 LONG 8 40
15 20179 BUSHING, 1.063 OD X .406 ID X .948 AST 8 40
16 20571 SCREW, 5/8-18 X 2-1/2; 1/4 HEAD 2 10
17 51915 COUPLING, C4016; 1-3/16; LARGE HUB 2
18 61465 BAR, 18' HEADER; RIGHT 1 5
19 61466 BAR, 18' HEADER; LEFT 1 5
20 92089 FRAME, VINE HOLD-DOWN; 5.5M 1 1
21 92802 FRAME, HEADER PICKUP; 18' 1 1
22 95124 CAM, HEADER; LEFT 1
23 95125 CAM, HEADER; RIGIHT 1
24 122618 SPACER, BEARING 3 3
25 124304 BAND, HEADER 13 49
26 129389 PANEL, LEFT HEADER PICKUP 1
27 129390 PANEL, RIGHT HEADER PICKUP 1
28 G120377 NUT, 3/8-16 USS; GRADE 5 4 20
29 G124944 NUT, 5/8-18 SAE JAM 2 10
30 G126178 NUT,1/4-20 SERRATED FLANGE 8 240
31 G131016 WASHER, 5/8 SAE FLAT 8 40
32 G180044 SCREW, 1/4-20 X 2 USS CAP 8 240
33 G189306 SCREW, 3/8-16 X 3-1/2 USS CAP; GRADE 8 4 20
34 G431799 LOCKNUT, 3/8-16 USS NYLOCK HEX 4 20
M9718-L

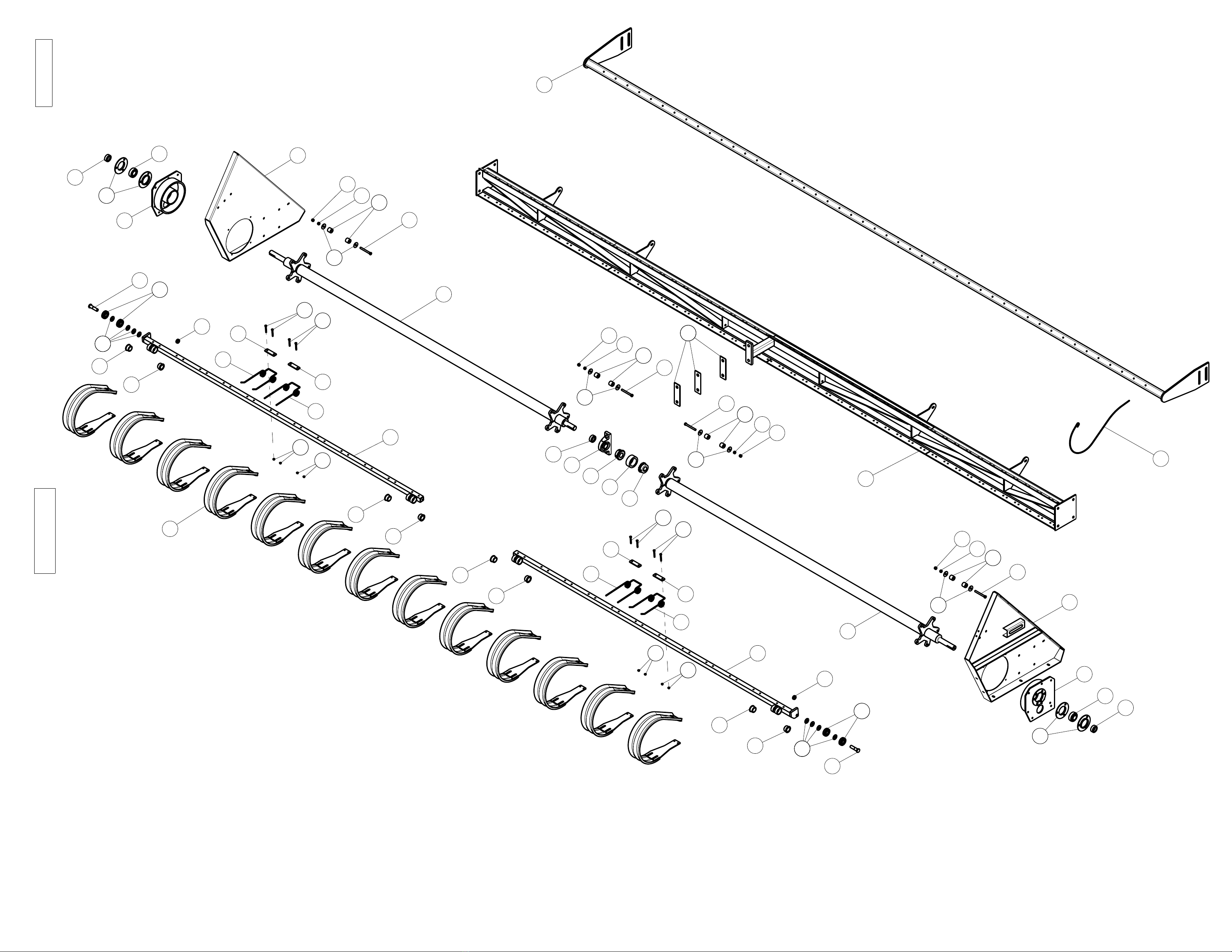

18' HEADER PICKUP ASSEMBLY
PAGE 3 HEADERS
NOTE:
ADD "_CS" SUFFIX TO ALL PART NUMBERS.

1
2
3
4
5
8
9
11
10
12
13
14
15
16
17
18
19
20
21
22
30
23
24
25
26 3
1
2
2
2
4
6
9
8
15
15
15
18
20
27
29
28
PAGE 4
DIRECTION
OF
TRAVEL
7
HEADERS

5/16 X 3 SLOTS - SEE NOTE 1
5/16 X 3 SLOTS - SEE NOTE 1
ITEM PART NUMBER DESCRIPTION QTY SHOWN QTY REQ'D COMMENTS
1 3029 COLLAR, 1-11/16 ECCENTRIC LOCKING 2 A/R (INCLUDED W/ BEARING)
2 3092 FLANGETTE, 85MS FOR 1-11/16 BEARING 4
3 3099 INSERT, 1-11/16 REPL. BEAR'G;NONRELUB 2
4 5738 BUSHING, Q2 1-11/16 2
5 5948 AUGER, 18' HEADER 1
6 10387 SHAFT, AUGER STUB 1
7 10421 SHAFT, AUGER STUB 1
8 15928 LIGHT, AMBER,FRONT;RIGHT AND LEFT 2
9 61470 PLATE, AUGER ADJUSTING 2
10 93910 FRAME, AUGER SUPPORT; 18' 1
11 96238 BRACE, CROSS; AUGER FRAME LOWER;18' HEADER 1
12 123651 BRACKET, FLASHER LIGHT; RIGHT 1
13 123652 BRACKET, FLASHER LIGHT; LEFT 1
14 124587 PLATE, CENTER AUGER; 22-3/8 1
15 124588 PLATE, CENTER AUGER; 17-3/8 4
16 124591 PANEL, AUGER REAR; RIGHT 1
17 124592 PANEL, AUGER PANEL; LEFT 1
18 124596 BRACE, HEADER 2
19 124597 TRANSITION, CENTER AUGER/PICK-UP 1
20 124598 TRANSITION, LEFT AUGER/PICK-UP 2
21 124618 STRIPPER, VINE; LEFT 1
22 124619 STRIPPER, VINE; RIGHT 1
23 124768 TRANSITION, RIGHT FRAME - AUGER 1
24 124769 TRANSITION, LEFT FRAME; AUGER 1
25 127625 PANEL, RIGHT AUGER MOUNTING 1
26 127626 PANEL, LEFT AUGER MOUNTING 1
27 1200550 CONCAVE, RT. AUGER 1
28 1200551 CONCAVE, LEFT; AUGER 1
29 1200554 CONCAVE, AUGER;CENTER 1
30 1200587 PLATE, AUGER CYLINDER RETAINER 1
M9718-L

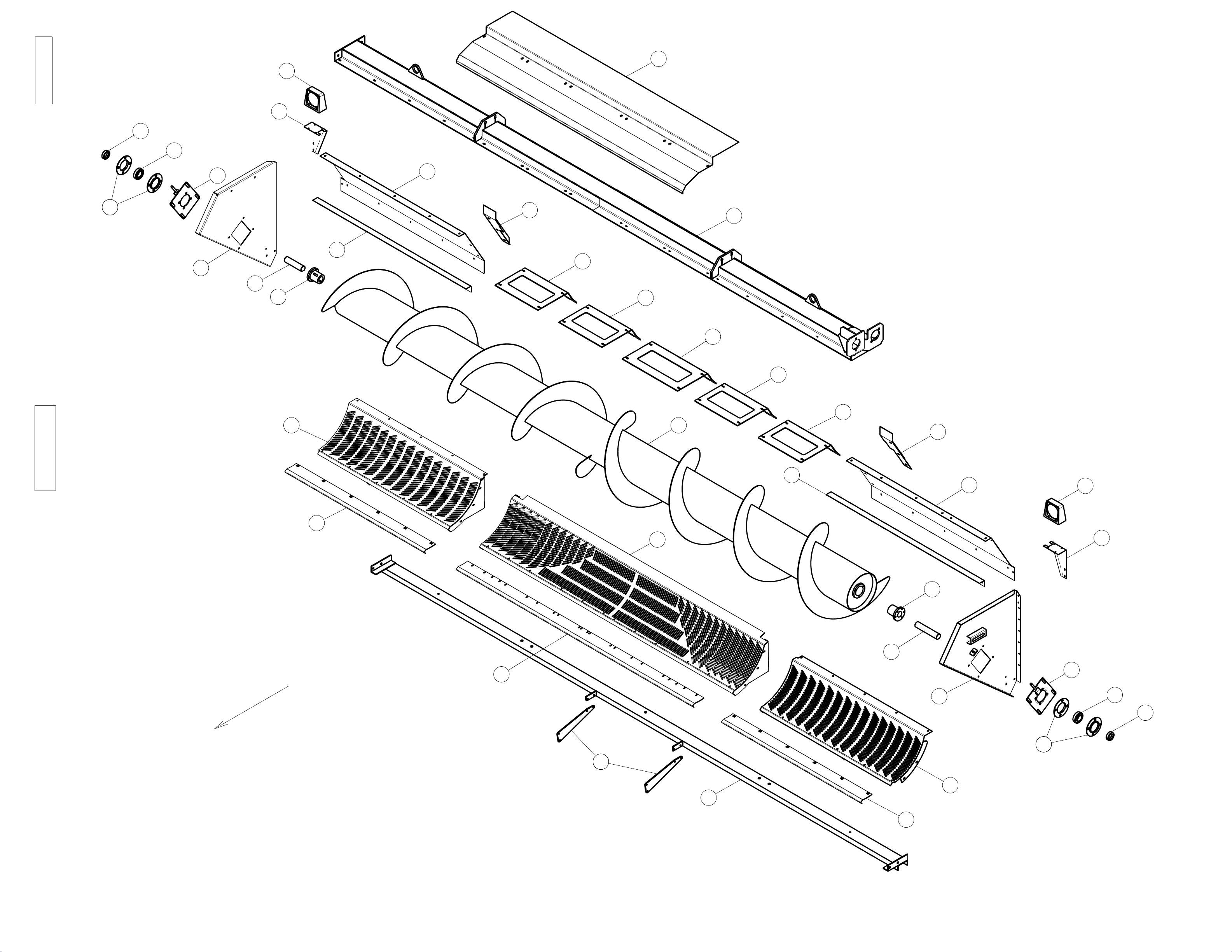

18' HEADER AUGER ASSEMBLY
PAGE 5
5/16 X 3 SLOTS - SEE NOTE 1
HEADERS
ITEM PART NUMBER DESCRIPTION QTY SHOWNQTY REQ'D COMMENTS
124594 CONCAVE, 18' AUGER; RIGHT 1 1/4 X 3 SLOTS
124595 CONCAVE, 18' AUGER; LEFT 1 1/4 X 3 SLOTS
124593 CONCAVE, AUGER; CENTER 1 1/4 X 3 SLOTS
NOTE:
ADD "_CS" SUFFIX TO ALL PART NUMBERS.

3
4
8
9
10
13
1
5
6
7
14
15
5
1
2
12
2
PAGE 6
11
HEADERS

ITEM PART NUMBER DESCRIPTION QTY SHOWN QTY REQ'D COMMENTS
1 2020 NUT, 5/8-11,2X1-3/4 IDLER ADJ 2
2 5122 IDLER, NO.60 CHAIN SPROCKET 2
3 7023 CATCH,HOOK 1
4 7024 HOOK, SPRING LOADED; 90 DEGREE 1
5 15936 MOTOR, HYD 9.9/CU.IN BI-ROTATION 2
6 51078 SPROCKET, 60B40 F1-3/16 W/2 SET SCREWS 1
7 51485 SPROCKET, 60B18 F1; MACHINED 1
8 124870 STOP, HEADER SHIELD 1
9 127629 SHIELD, UPPER DRIVE 1
10 127630 SHIELD, LOWER DRIVE 1
11 4043D-132 CHAIN, NO.60, 131 PITCHES+CONNECTOR 1
12 4043D-94 CHAIN, NO.60, 93 PITCHES+CONNECTOR 1
13 60778 HINGE, 22 X 1/4 PIN ZINC PLATED 1
14 60B481-11 SPROCKET, 60B48 F1-11/16 1
15 60B9-1 SPROCKET, 60B9-1 1
M97 SERIES

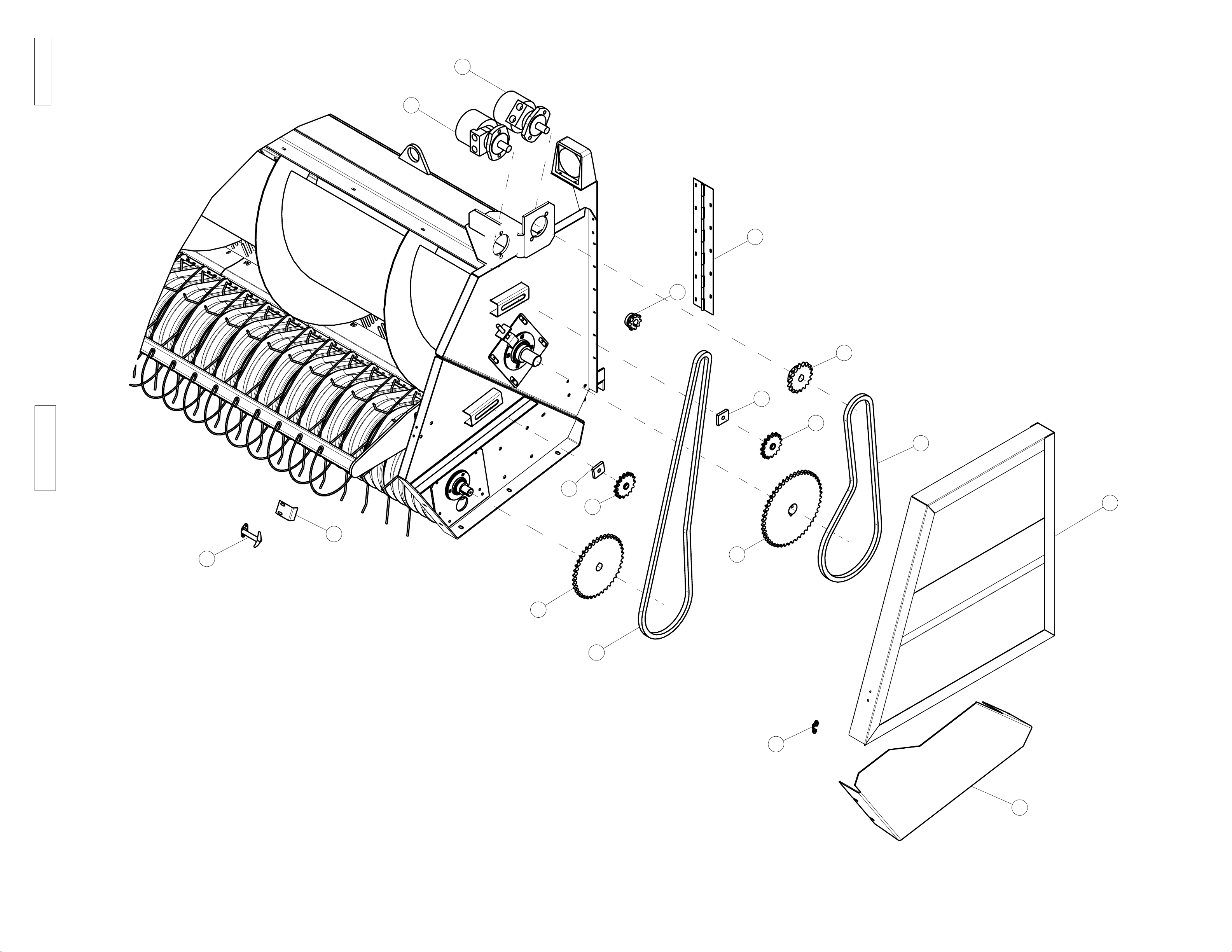

HEADER DRIVES AND SHIELDS
PAGE 7 HEADERS
NOTE:
ADD "_CS" SUFFIX TO ALL PART NUMBERS.

1
2
3
4
5
6
7
8
10
11
12
13
12
12
3
13
14
14
9
PAGE 8
M1
M2
M2
M1
M4
M4
M3
M3
PRESSURE
RETURN
A
B
A
B
AUGER SUPPORT FRAME
SEE DETAIL A
DETAIL A
SCALE 0.188
M1
M4
M2 M3
PRESSURE
RETURN
DIRECTION
OF
TRAVEL
HEADERS

ITEM PART NUMBER DESCRIPTION QTY SHOWN QTY REQ'D COMMENTS
1 14045 HYDF, 10 ORB X 12 JIC M 90 DEGREE 1
2 14046 HYDF, -10 ORB X 12 JIC ADAPTER; MALE 1
3 15936 MOTOR, HYD 9.9/CU.IN BI-ROTATION 2
4 16822 HYDF, -10 ORB, -12 JIC M 90 1
5 20289 CLAMP, DUAL 1.3/16 OD HOSE 1 2
6 80331 GAUGE, 0-5000 PSI 1/4 NPT MALE 1
7 124621 MOUNT, HYD. VALVE 1
8 124999 MOUNT, HYDRAULIC HOSE 1 2
9 140264 HYDF., -10 ORB PLUG HEX 1
10 140688 MANIFOLD, PT FOR REV. HEADER 1
11 140554 HOSE, 3/4 X 40, 3000PSI; 90 DEGREE 1
12 14979 HOSE, 3/4 X 36-3/4, 3000PSI 3
13 14982 HOSE, 3/4 X 204, 3000PSI 2
14 JC14618 HYDF, -1/2 NPT X 1/2 QD F 2
M97 SERIES
TRACTOR POWERED HYDRAULICS FOR REVERSING AUGER
PAGE 9 HEADERS

1
2
3
4
5
6
7
8
9
11
13
14
15
16
17
19
20
21
22
23
24
26
27
28
9
28
28
27
10
12
18
25
22
24
23
PAGE 10
COMBINE FRAME
ASSEMBLED VIEW
HEADERS

JT77932 O-RING,-10 ORS / JR26906 O-RING, -10 ORB
ITEM PART NUMBER DESCRIPTION QTY SHOWN QTY REQ'D COMMENTS
1 2020 NUT, 5/8-11,2X1-3/4 IDLER ADJ 1
2 5437 IDLER, 5 DIA. X 2 WIDE DRB; 5/8 BORE 1
3 5663 BUSHING, Q1 2-7/16 1
4 5841 BUSHING, H 3/4 1
5 5920 SHEAVE, 2TB160 (B16.0,A15.6, Q1) 1
6 5925 SHEAVE, 2BK80H (B7.4,A7.0) 1
7 7022 HOOK, SPRING LOADED 1
8 7023 CATCH,HOOK 1
9 15936 MOTOR, HYD 9.9/CU.IN BI-ROTATION 2
10 16795 PENDANT, SPEED CONTROL/REVERSING 1
11 16797 HYDF,-10 ORF 90 DEG.SWIVEL 1
12 20289 CLAMP, DUAL 1.3/16 OD HOSE 1 2
13 91221 ANGLE, HYD. TANK IDLER 1
14 122667 SHIELD, HYD. TANK BELT 1
15 122846 COVER, HYDRAULIC BELT 1
16 122872 SHIELD, HYDRAULIC TANK 1
17 123831 PANEL, MAIN DRIVE SHIELD 1
18 124999 MOUNT, HYDRAULIC HOSE 1
19 140288 UNIT, AIR. COOLER POWER REV/REMOTE 1
20 140290 HOSE, 3/4 X 29"; 3000PSI 1
21 140300 HYDF, 10 R5OLO STRAIGHT THREAD RUN TEE 1 JT77932 O-RING, -10 ORS
22 140552 HOSE, 3/4 X 17' 5"; 3000PSI 1
23 140553 HOSE, 3/4 X 16' 3"; 3000PSI 1
24 140553 HOSE, 3/4 X 16' 3"; 3000PSI 1
25 1200590 BRACKET, SHIELD MOUNT 1
26 60779 HINGE, 22 LONG X 4 X 1/4 PIN; ZINC PLATED 1
27 B105 BELT, B105 2
"COOLER TYPE" HYDRAULICS FOR REVERSIBLE AUGER - OPTIONAL
FOR M9718-L & M9719-L HEADERS
PAGE 11
28 J38H1162 HYDF, -10 ORFS TO -10 ORB STRT 3
HEADERS

NUMERICAL PARTS INDEX
PART NO. PAGE PART NO. PAGE PART NO. PAGE
B105 11 140554 9 96238 5
G120377 3 140688 9
G124944 3 14979 9
G126178 3 14982 9
G131016 3 15928 5
G180044 3 15936 7, 9, 11
G189306 3 1641 3
G431799 3 16795 11
JC14618 9 16797 11
J38H1162 11 16822 9
10387 5 20178 3
10421 5 20179 3
10736 3 2020 7, 11
10737 3 20289 9, 11
1200550 5 20571 3
1200551 5 3005 3
1200554 5 3010 3
1200587 5 3029 5
1200590 11 3092 5
122618 3 3093 3
122667 11 3096 3
122846 11 3099 5
122872 11 3171 3
123651 5 4043D-132 7
123652 5 4043D-94 7
123831 11 4480 3
124304 3 51078 7
124587 5 5122 7
124588 5 51485 7
124591 5 51915 3
124592 5 5437 11
124593 5 5663 11
124594 5 5738 5
124595 5 5841 11
124596 5 5920 11
124597 5 5925 11
124598 5 5948 5
124618 5 60B481-11 7
124619 5 60B9-1 7
124621 9 60778 7
124768 5 60779 11
124769 5 61465 3
124870 7 61466 3
124999 9, 11 61470 5
127625 5 6303 3
127626 5 7022 11
127629 7 7023 7, 11
127630 7 7024 7
129389 3 7079 3
129390 3 7080 3
140264 9 7420 3
140288 11 80331 9
140290 11 91221 11
140300 11 92089 3
14045 9 92802 3
14046 9 93910 5
140552 11 95124 3
140553 11 95125 3
PAGE 12 HEADERS

MODEL 2110A CS
PULL-TYPE PEANUT COMBINE
BASIC COMBINE
CAT679CS 3rd Edition
Beginning Serial # 560000
November1,2017
Owner's Name
Dealer's Name
Serial Number
Date Purchased Model No.

TABLEOF CONTENTS
CAT679CS
3rdEdition
November1,2017
1701 S. Slappey Blvd./P.O. Box 3687 Albany, GA 31706
[phone] / Fax [phone]
1100 Holland Road Suffolk, VA 23434 U.S.A.
[phone] / Fax - [phone]
The Terms "Left" and "Right" used in the description of parts are determined
by facing the direction of travel of the machine.
"A/R" found in the "No. Req'd" column denotes "As Required".
"OPT" found in the "No. Req'd" column denotes "Optional".
NOTES
INDUSTRIES
AMADAS
Section Page
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
46
47
48
49
51
53
55
57
59
61
62
63
64
65
Side Shift Tongue.............................................................................................................
Main Frame / Braces / Right Side Drive Idlers........................................................................
Left Side Drive Idlers..........................................................................................................
Wheel & Axle Assembly....................................................................................................
Concaves, Adjustments & Slides.......................................................................................
Breast Springs Bars - Optional...........................................................................................
Picking Cylinders.............................................................................................................
Separator Cylinders..........................................................................................................
Stripper Cylinders & Jack Shaft.........................................................................................
Cleaning Fan...................................................................................................................
Disc Separator................................................................................................................
Stemmer Frames & Disc Separator Supports......................................................................
Stemmer / Shaker Tray.....................................................................................................
Cross Auger....................................................................................................................
Elevator Fan & Ductwork..................................................................................................
Covers & Curtains...........................................................................................................
Ladder & Rails................................................................................................................
Right Side Shields; Front..................................................................................................
Right Side Shields; Rear...................................................................................................
Left Side Shields..............................................................................................................
Lower Left Shields............................................................................................................
Tech. Display & Speed Sensor..........................................................................................
S16664 Tech. Display box Assembly.................................................................................
S16662 Tech. Relay box Assembly...................................................................................
S16566 Air Pressure Assembly.........................................................................................
Miscellaneous Electrical Parts..........................................................................................
Lights.............................................................................................................................
Vine Spreader - Optional..................................................................................................
Left Side Drives................................................................................................................
Right Side Drives..............................................................................................................
Right Side Drives - Disc Separator.....................................................................................
Decals............................................................................................................................
Wiring Harness................................................................................................................
Shaft Speeds...................................................................................................................
Quick Reference: Fasteners..............................................................................................
Numerical Parts Index......................................................................................................
MODEL 2110A CS
6-Row PT Peanut Combine
Beginning Serial # 560000

AFTER COMPLETING DRAWING AND TABLE, MOVE TABLE TO SHEET 2 AND ROTATE (3 TIMES).
PLACE TABLE AT MARKER.
17
2110 ARG. SIDE SHIFT TONGUE SAVED AS:2110A_CS_SS_TONGUE MODEL: 2110A_CS_SS_TONGUE SCALE: 0.063
PAGE 2
SHEET 1 OF 2
DIRECTION
OF
TRAVEL
3
5
7
8
12
22
33
38
28
5
33
1
2
4
6
9
10
11
13
14
15
16
18
19
20
21
23
25
26
27
29
30
31
32
34
35
36
37
39
40
42
43
44
45
46
47
48
49
50
51
6
9
18
25
26
32
34
39
39
39
43 44
50
50
50
24
41
41
52
SECTION TITLE: ARG. 6-ROW SIDE SHIFT TONGUE SIMP. REP: CATALOG DKP;Dec-09-15;9/07/16 CHB
CHB;Dec-20-12
BASIC COMBINE
SUPPLIED BY ARGENTINA
SUPPLIED BY ARGENTINA
