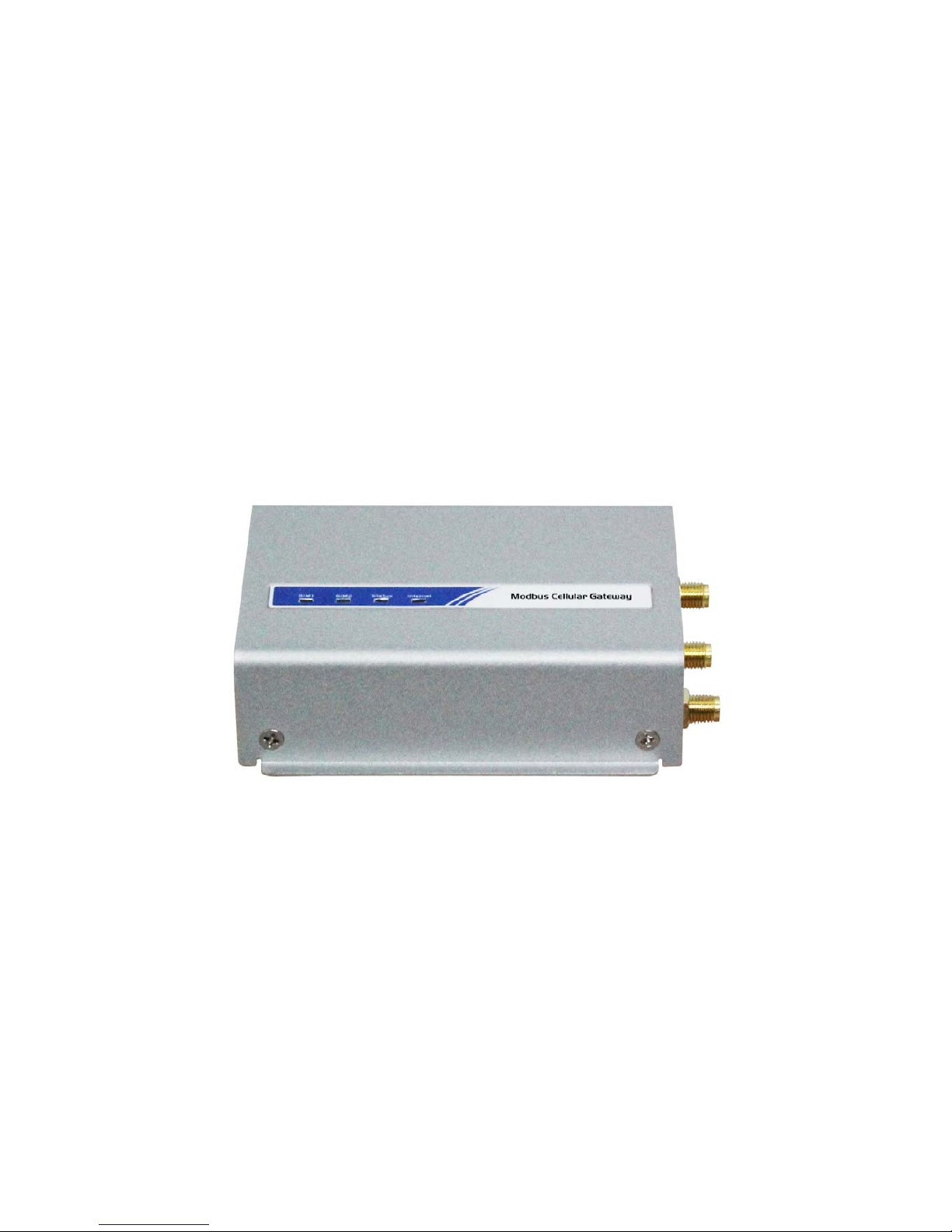

Amit IOG500AM-0T001 User manual


ModbusCellularGateway
IOG500AM‐0T001

UserManual

ModbusCellularGateway

2
Chapter 1 Introduction.............................................................................................................................................................. 7
1.1 Introduction ..................................................................................................................................................................7
1.2Contents List..................................................................................................................................................................7
1.2.1 Package Contents............................................................................................................................................7
1.3 Hardware Configuration...........................................................................................................................................9
1.4LED Indication............................................................................................................................................................ 10
1.5 Installation & Maintenance Notice................................................................................................................... 11
1.5.1 SYSTEM REQUIREMENTS......................................................................................................................... 11
1.5.2 WARNING....................................................................................................................................................... 11
1.5.3 HOT SURFACE CAUTION .......................................................................................................................... 12
1.6Hardware Installation.............................................................................................................................................. 13
1.6.1 Mount the Unit ............................................................................................................................................ 13
1.6.2 Insert the SIM Card .................................................................................................................................... 13
1.6.3 Connecting Power....................................................................................................................................... 14
1.6.4 Connecting Serial Devices....................................................................................................................... 15
1.6.5 Connecting to the Network or a Host ................................................................................................ 15

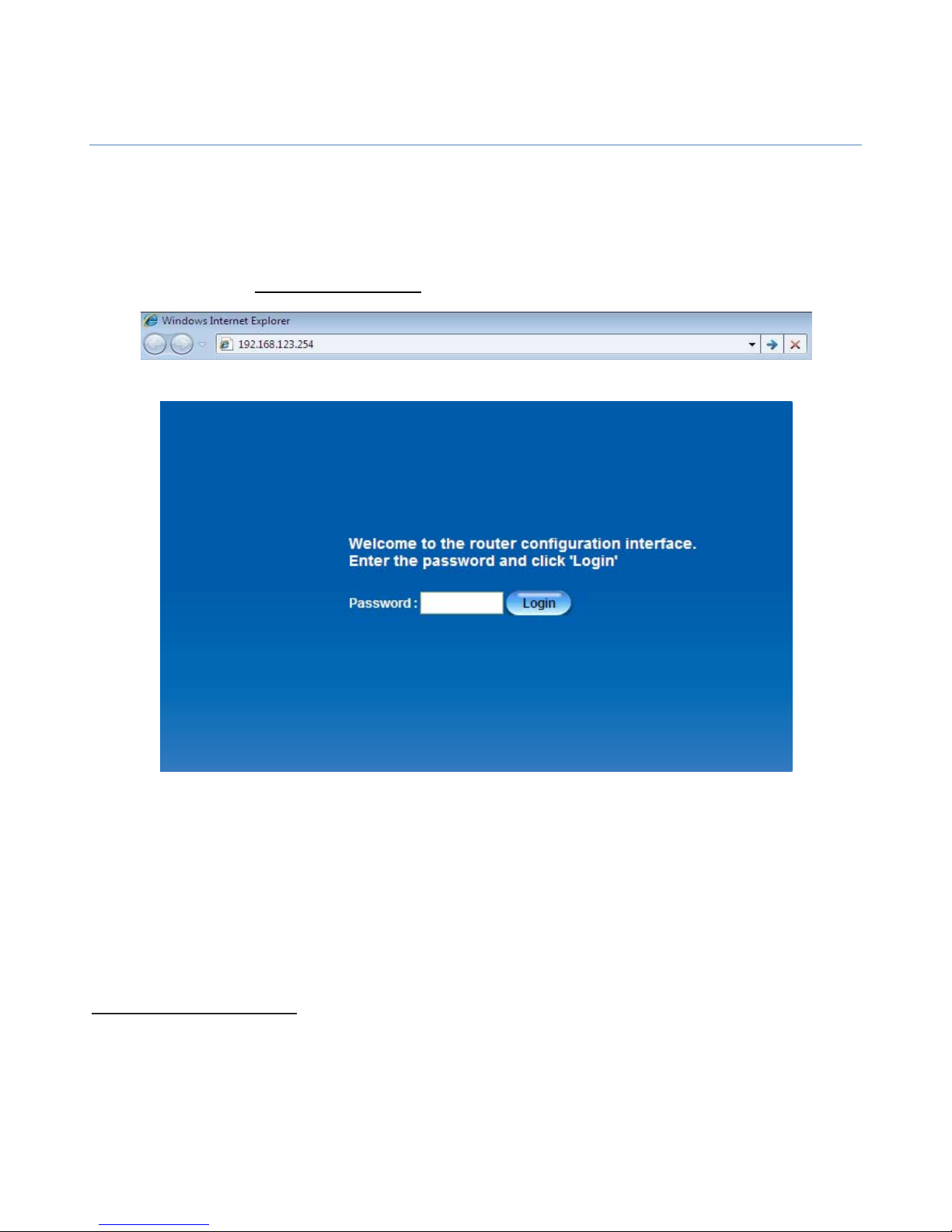

1.6.6 Setup by Configuring WEB UI............................................................................................................... 16
Chapter 2 Basic Network........................................................................................................................................................17

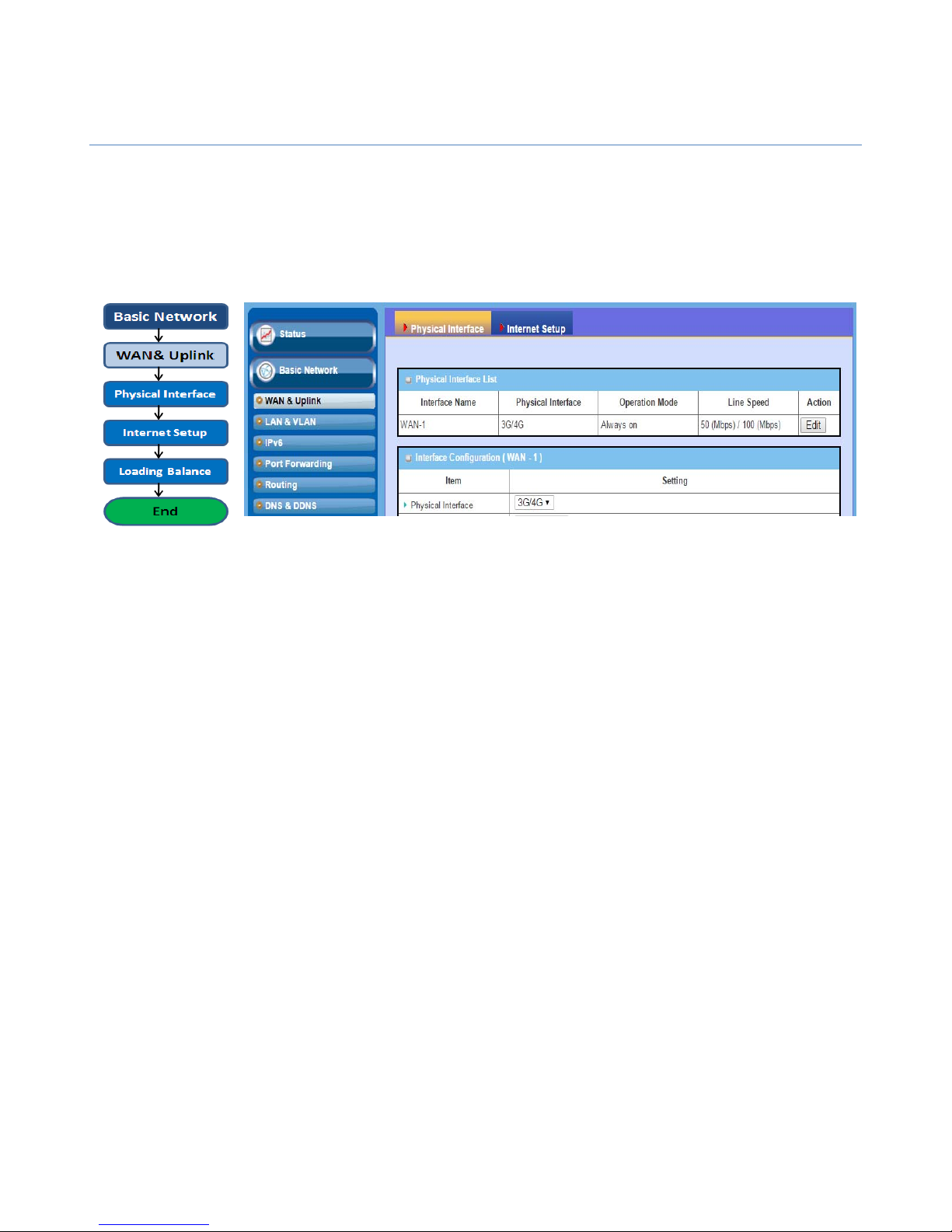

2.1WAN & Uplink ........................................................................................................................................................... 17

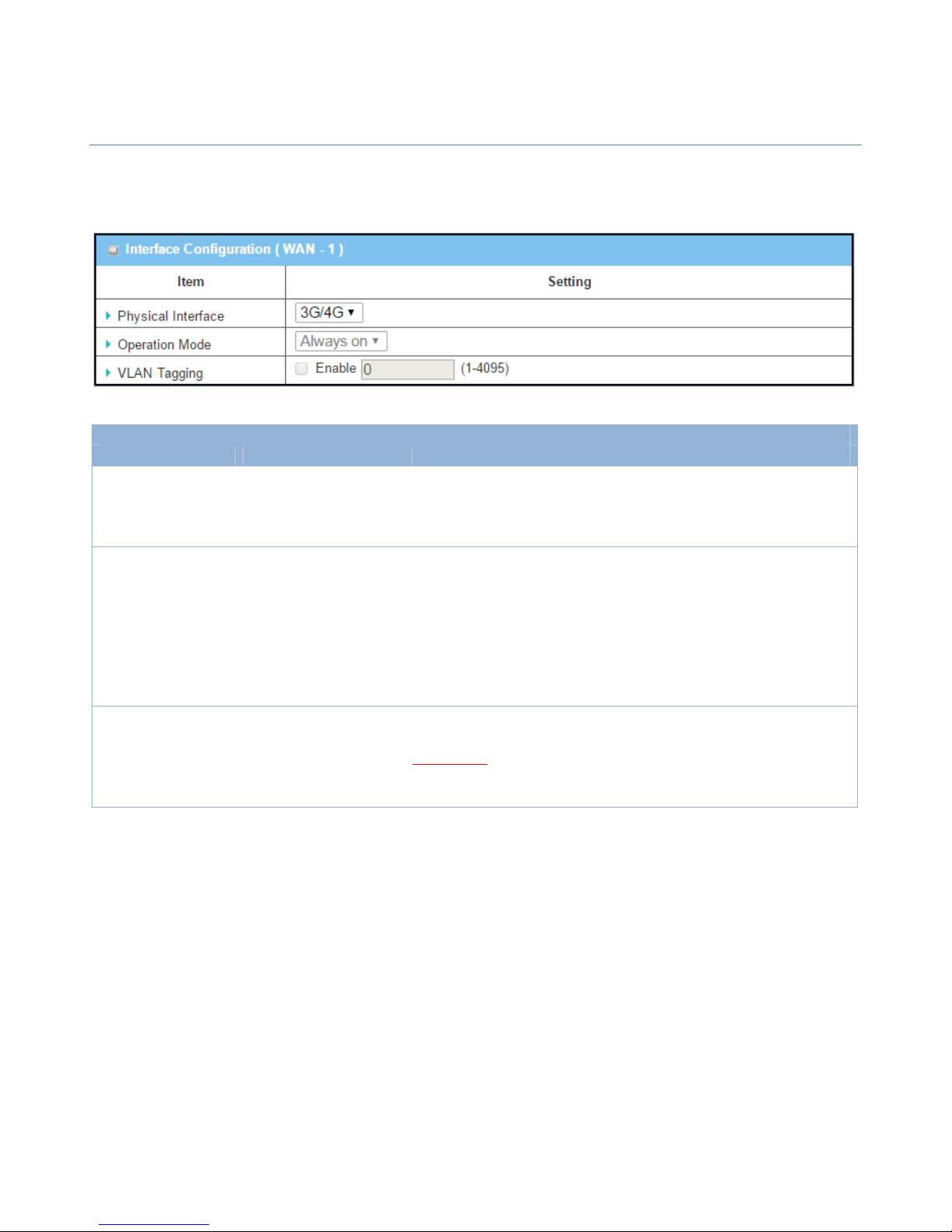

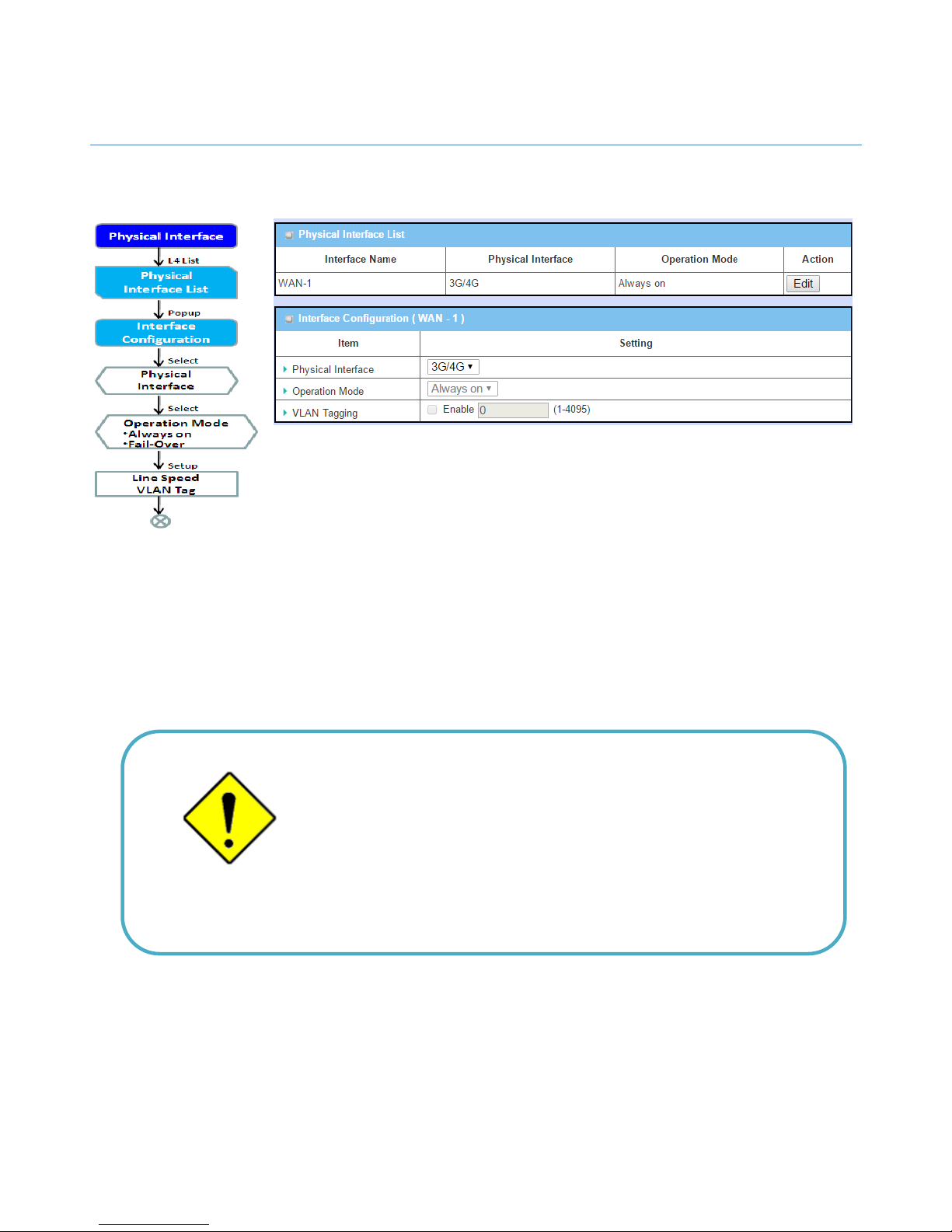

2.1.1 Physical Interface ........................................................................................................................................ 18
2.1.2 Internet Setup............................................................................................................................................... 21
2.2 LAN & VLAN.............................................................................................................................................................. 31
2.2.1 Ethernet LAN.................................................................................................................................................. 31
2.2.2 VLAN (not supported)............................................................................................................................... 33
2.2.3 DHCP Server.................................................................................................................................................. 34
2.3 WiFi (not supported) .............................................................................................................................................. 41
2.4 IPv6 ................................................................................................................................................................................ 42
2.4.1 IPv6 Configuration...................................................................................................................................... 42

ModbusCellularGateway

3
2.5Port Forwarding....................................................................................................................................................... 53
2.5.1 Configuration................................................................................................................................................ 54
2.5.2 Virtual Server & Virtual Computer....................................................................................................... 55
2.5.3 DMZ & Pass Through ................................................................................................................................ 61
2.6 Routing......................................................................................................................................................................... 64
2.6.1 Static Routing ............................................................................................................................................... 65
2.6.2 Dynamic Routing......................................................................................................................................... 68
2.6.3 Routing Information .................................................................................................................................. 76
2.7DNS & DDNS............................................................................................................................................................ 77
2.7.1 DNS & DDNS Configuration .................................................................................................................. 77
Chapter 3 Object Definition ..................................................................................................................................................81
3.1 Scheduling.................................................................................................................................................................. 81
3.1.1 Scheduling Configuration........................................................................................................................ 81
3.2 User (not supported).............................................................................................................................................. 83
3.3 Grouping (not supported).................................................................................................................................... 84
3.4 External Server .......................................................................................................................................................... 85
3.5Certificate .................................................................................................................................................................... 88
3.5.1 Configuration................................................................................................................................................ 88
3.5.2 My Certificate ............................................................................................................................................... 91
3.5.3 Trusted Certificate....................................................................................................................................... 98
3.5.4 Issue Certificate..........................................................................................................................................104
Chapter 4 Field Communication ...................................................................................................................................... 107
4.1 Bus & Protocol........................................................................................................................................................107
4.1.1 Port Configuration....................................................................................................................................107
4.1.2 Virtual COM.................................................................................................................................................109
4.1.3 Modbus.........................................................................................................................................................119
Chapter 5 Security..................................................................................................................................................................127
5.1VPN ..............................................................................................................................................................................127

ModbusCellularGateway

4
5.1.1 IPSec...............................................................................................................................................................128
5.1.2 OpenVPN......................................................................................................................................................142
5.1.3 L2TP ................................................................................................................................................................155
5.1.4 PPTP................................................................................................................................................................163
5.1.5 GRE..................................................................................................................................................................170
5.2 Firewall .......................................................................................................................................................................174
5.2.1 Packet Filter .................................................................................................................................................174
5.2.2 URL Blocking (not supported) .............................................................................................................179
5.2.3 MAC Control ...............................................................................................................................................180
5.2.4 Content Filter (not supported).............................................................................................................183
5.2.5 Application Filter (not supported)......................................................................................................184
5.2.6 IPS....................................................................................................................................................................185
5.2.7 Options..........................................................................................................................................................189
Chapter 6 Administration.................................................................................................................................................... 193
6.1 Configure & Manage............................................................................................................................................193
6.1.1 Command Script........................................................................................................................................194
6.1.2 TR-069 ...........................................................................................................................................................197
6.1.3 SNMP .............................................................................................................................................................201
6.1.4 Telnet with CLI ............................................................................................................................................211
6.2 System Operation ..................................................................................................................................................215
6.2.1 Password & MMI.......................................................................................................................................215
6.2.2 System Information..................................................................................................................................217
6.2.3 System Time................................................................................................................................................218
6.2.4 System Log ..................................................................................................................................................220
6.2.5 Backup & Restore .....................................................................................................................................224
6.2.6 Reboot & Reset ........................................................................................................................................225
6.3 FTP (not supported)..............................................................................................................................................226

ModbusCellularGateway

5
6.4 Diagnostic.................................................................................................................................................................227
6.4.1 Diagnostic Tools (not supported).......................................................................................................227
6.4.2 Packet Analyzer..........................................................................................................................................228
Chapter 7 Service ................................................................................................................................................................... 231
7.1Cellular Toolkit .........................................................................................................................................................231
7.1.1 Data Usage ..................................................................................................................................................232
7.1.2 SMS.................................................................................................................................................................235
7.1.3 SIM PIN .........................................................................................................................................................238
7.1.4 USSD ..............................................................................................................................................................242
7.1.5 Network Scan .............................................................................................................................................245
7.2 Event Handling........................................................................................................................................................247
7.2.1 Configuration..............................................................................................................................................249
7.2.2 Managing Events.......................................................................................................................................258
7.2.3 Notifying Events ........................................................................................................................................260
7.3 Location Tracking ....................................................................................................................................................262
7.3.1 GNSS ..............................................................................................................................................................263
Chapter 8 Status......................................................................................................................................................................269
8.1 Dashboard (not supported)...............................................................................................................................269
8.2 Basic Network..........................................................................................................................................................270
8.2.1 WAN & Uplink Status ..............................................................................................................................270
8.2.2 LAN & VLAN Status .................................................................................................................................274
8.2.3 WiFi Status (not supported)..................................................................................................................275
8.2.4 DDNS Status................................................................................................................................................276
8.3 Security ......................................................................................................................................................................277
8.3.1 VPN Status ...................................................................................................................................................277
8.3.2 Firewall Status.............................................................................................................................................281
8.4 Administration ........................................................................................................................................................285
8.4.1 Configure & Manage Status.................................................................................................................285

ModbusCellularGateway

6
8.4.2 Log Storage Status (not supported)..................................................................................................287
8.4.3 GNSS Status.................................................................................................................................................288
8.5 Statistics & Report.................................................................................................................................................289
8.5.1 Connection Session..................................................................................................................................289
8.5.2 Network Traffic (not supported) .........................................................................................................290
8.5.3 Device Administration.............................................................................................................................291
8.5.4 Cellular Usage.............................................................................................................................................292
Appendix A GPL WRITTEN OFFER ...................................................................................................................................293


ModbusCellularGateway

7
Chapter1Introduction
1.1Introduction
Congratulationsonyourpurchaseofthisoutstandingproduct:ModbusCellularGateway.ForM2M(Machine‐
to‐Machine)applications,AMITModbusCellularGatewayisabsolutelytherightchoice.Withbuilt‐inworld‐
class4GLTEmodule,youjustneedtoinsertSIMcardfromlocalmobilecarriertogettoInternet.The
redundantSIMdesignprovidesamorereliableWANconnectionforcriticalapplications.

MainFeatures:
Provide3G/4GWANconnection.
SupportdualSIMsfortheredundantwirelessWANconnection.
ProvideoneEthernetportforcomprehensiveLANconnection.
Designedbysolidandeasy‐to‐mountmetalbodyforbusinessandM2Menvironmenttoworkwitha
varietyM2M(Machine‐to‐Machine)applications.
Beforeyouinstallandusethisproduct,pleasereadthismanualindetailforfullyexploitingthefunctionsof
thisproduct.

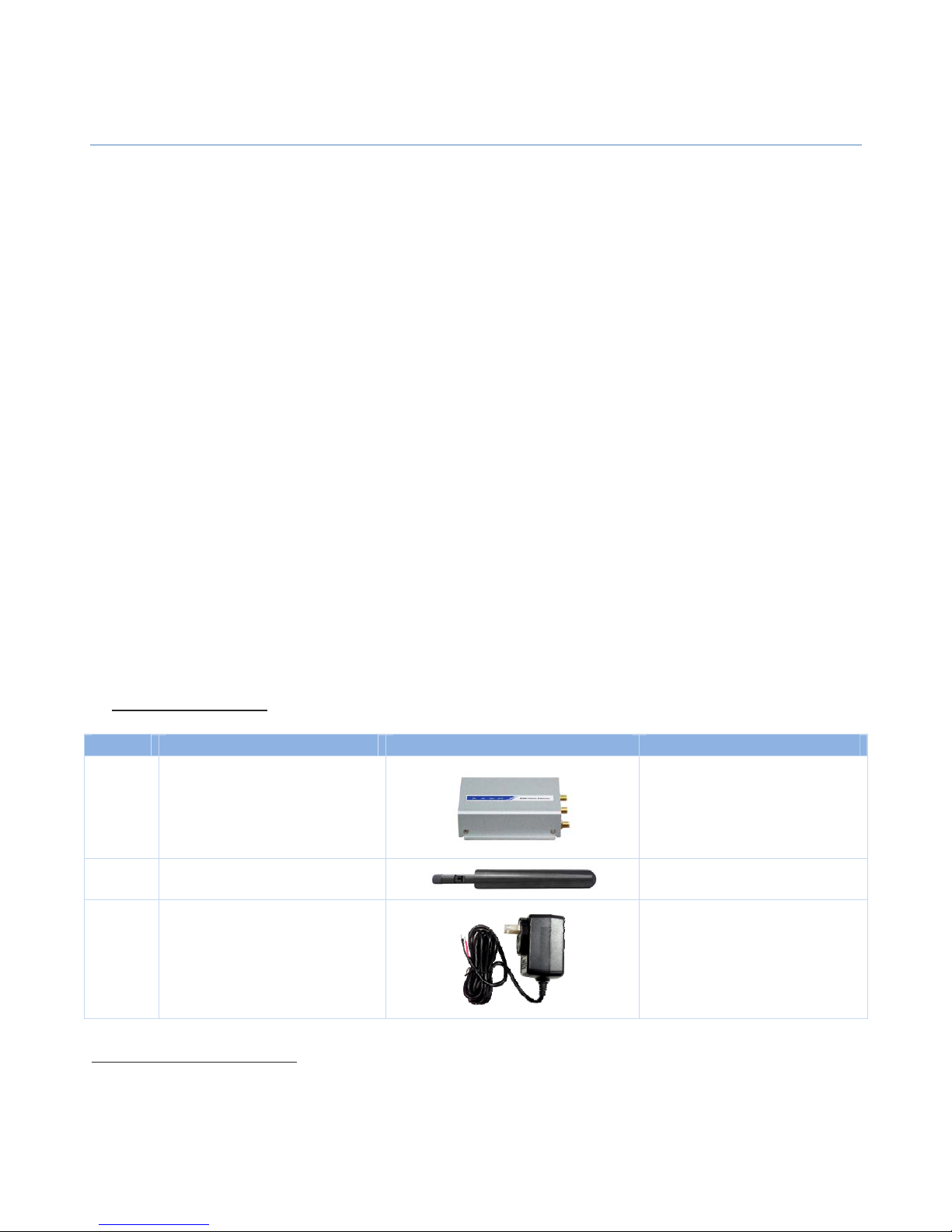

1.2ContentsList

1.2.1PackageContents
#StandardPackage

ItemsDescriptionContentsQuantity
1IOG500AM‐0T001
M2MCellularGateway

1pcs
2CellularAntenna2pcs
3
PowerAdapter
(DC12V/1A)
(*1)

1pcs
1 The maximum power consumption of IOG500-0T001 is 5.5W.

ModbusCellularGateway

8

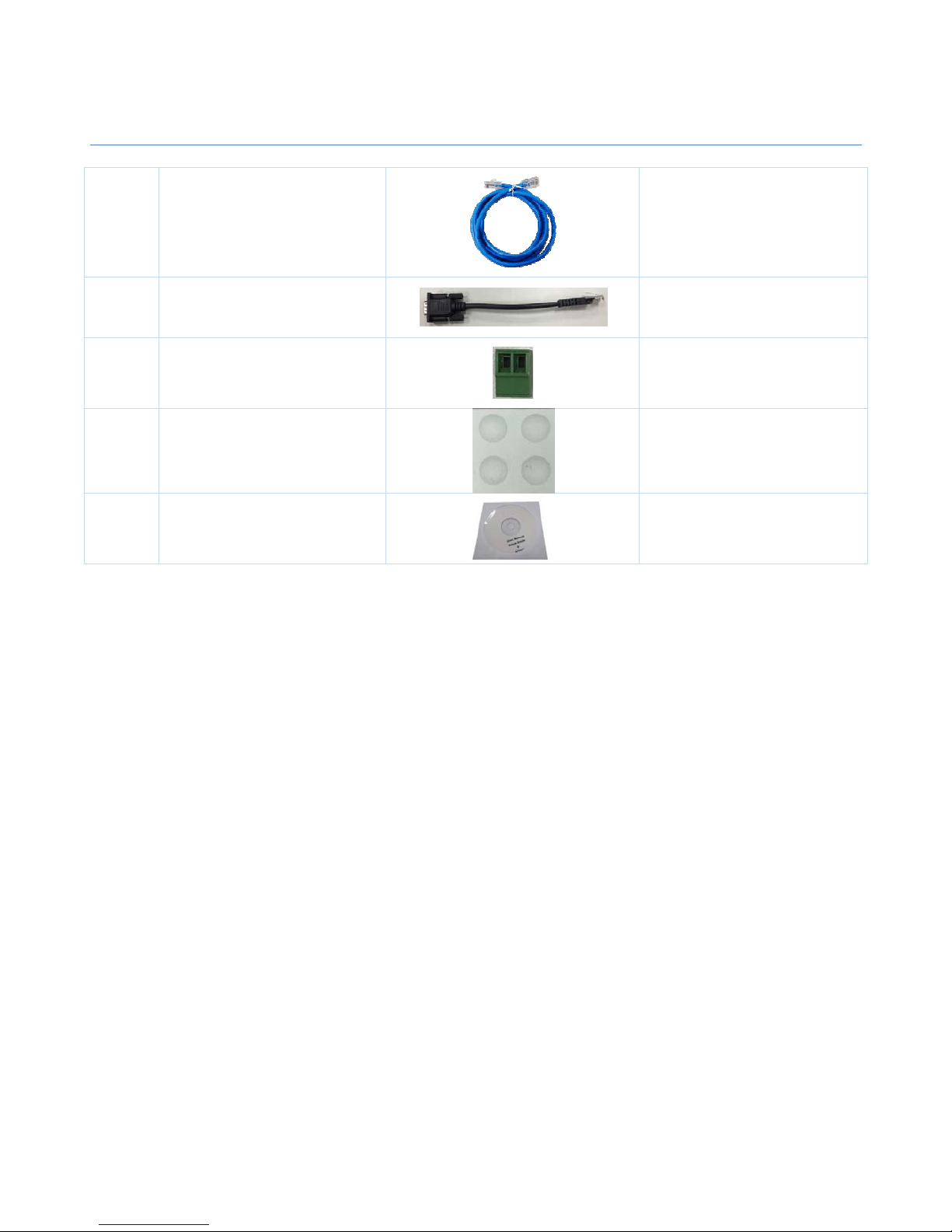

4RJ45Cable

1pcs
5SerialConvertCable

1pcs
62PinTerminalBlock

1
7RubberFeet4pcs
8CD
(Manual)1pcs


ModbusCellularGateway

9

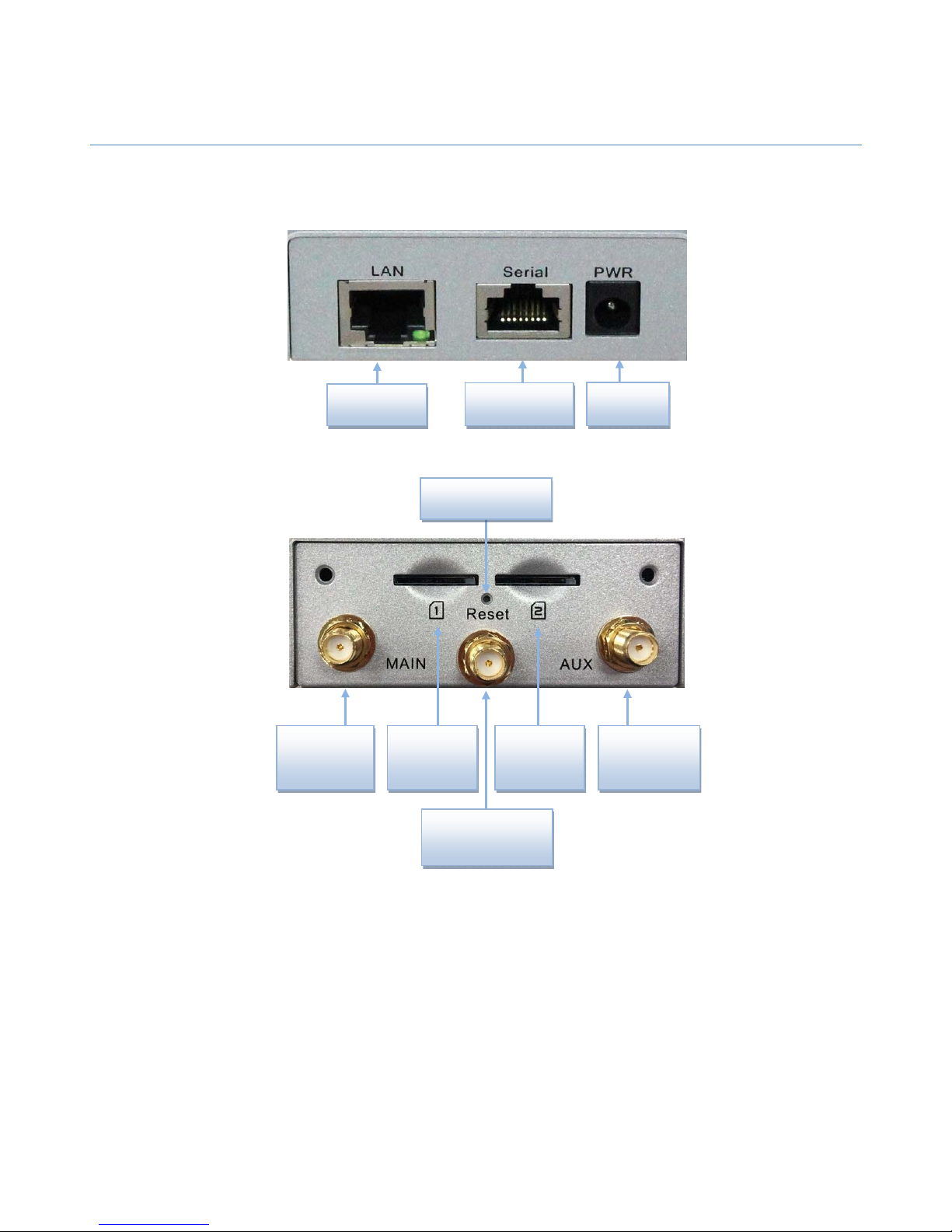

1.3HardwareConfiguration
LeftView



RightView 




※ResetButton
TheRESETbuttonprovidesuserwithaquickandeasywaytoresortthedefaultsetting.PresstheRESETbutton
continuouslyfor6seconds,andthenreleaseit.Thedevicewillrestoretofactorydefaultsettings.

※GPSAntenna
TheGNSSfunctionisnotavailableforsomespecificSKU.EvenfortheSKUwithGNSSenabled,theGPS
Antennaisanoptionalaccessory,andnotincludedinthestandardpackage.Ifyouintendtousetheprovided
GNSSfunction,pleasepurchaseadditionalpassive‐typeGPSantennaandinstallittothecorrespondingSMA
connectorinadvance.
3G/LTE
Antenna
PWR
GPS Antenna
(o
p
tional)
3G/LTE
Antenna
Slot 1
(SIM-A)
Slot 2
(SIM-B)
Serial
Reset Button
LAN

ModbusCellularGateway

10

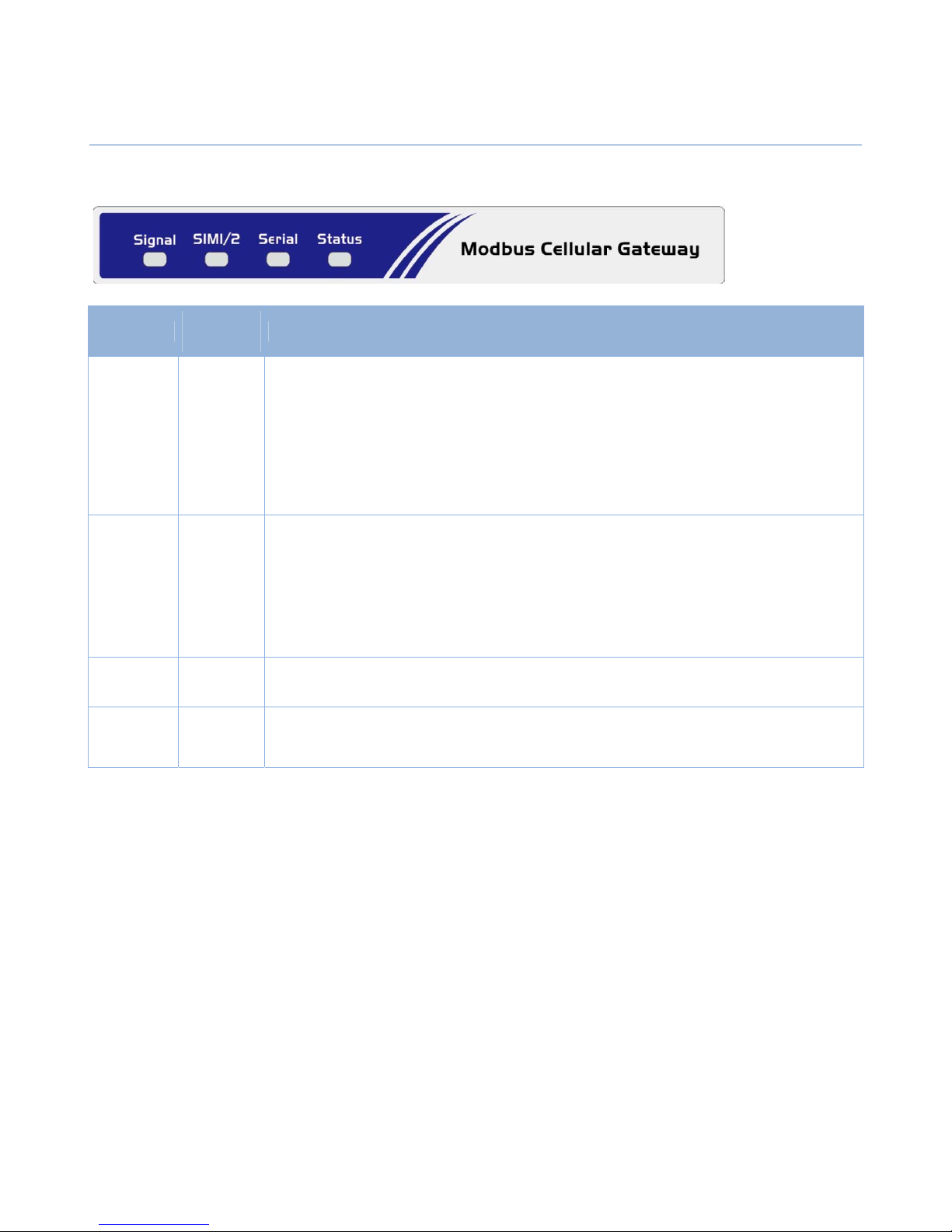

1.4LEDIndication
IndicationLED
ColorDescription
Signal
Blue
Purple
Red
WhentheLEDcolorisshownin:
Blue:CellularmoduleisinLTEMode.
Purple:CellularmoduleisinHSPA/3GMode.
Red:CellularmoduleisinGSM/2GMode.
WhenthebehaviorofLEDis:
Flash(Fast):SignalStrengthis0~30%
Flash(Slow,per1.5~2second):SignalStrengthis31~60%
SteadyOn:SignalStrengthis61~100%
SIM1/2
Blue
Purple
Red
LEDOff:Connectionisnotestablished.
FlashinBlue:Connectionisestablishing/re‐establishingbySIM1(SIM‐A).
BluesteadyOn:UplinkconnectionwasestablishedbySIM1(SIM‐A).
FlashalternatelyinBlueandPurple:DatatransfersviacellularconnectionbySIM1(SIM‐A).
FlashinRed:Connectionisestablishing/re‐establishingbySIM2(SIM‐B).
RedsteadyOn:UplinkconnectionwasestablishedbySIM2(SIM‐B).
FlashalternatelyinRedandPurple:DatatransfersviacellularconnectionbySIM2(SIM‐B).
SerialBlueFlash:DatapackettransferredviaSerialport.
StatusBlueFlash(persecond):Thegatewayworksnormally.
Flash(Fast):ThegatewayisinRecoveryModeorabnormalsituation.


ModbusCellularGateway

11
1.5Installation&MaintenanceNotice
1.5.1SYSTEMREQUIREMENTS
Network Requirements
AfastEthernetRJ45cable
3G/4Gcellularservicesubscription
10/100EthernetadapteronPC
Web-based Configuration Utility
Requirements
Computerwiththefollowing:
Windows®,Macintosh,orLinux‐basedoperating
system
AninstalledEthernetadapter
BrowserRequirements:
InternetExplorer6.0orhigher
Chrome2.0orhigher
Firefox3.0orhigher
Safari3.0orhigher
1.5.2WARNING

Only use the power adapter that comes with the
package. Using a different voltage rating power adaptor
is dangerous and may damage the product.
Do not open or repair the case yourself. If the product is
too hot, turn off the power immediately and have it
repaired at a qualified service center.
 Place the product on a stable surface and avoid using
this product and all accessories outdoors.
Attention

ModbusCellularGateway

12
1.5.3HOTSURFACECAUTION

CAUTION:Thesurfacetemperatureforthemetallicenclosurecanbeveryhigh!
Especiallyafteroperatingforalongtime,installedataclosecabinet
withoutairconditioningsupport,orinahighambienttemperature
space.
DONOTtouchthehotsurfacewithyourfingerswhileservicing!!


ModbusCellularGateway

13
1.6HardwareInstallation

Thischapterdescribeshowtoinstallandconfigurethehardware
1.6.1MounttheUnit

TheIOG500AMseriescanbeplacedonadesktop,ormountedontheDINRail,andwall.

1.6.2InserttheSIMCard
WARNING:BEFOREINSERTINGORCHANGINGTHESIMCARD,PLEASEMAKESURE
THATPOWEROFTHEDEVICEISSWITCHEDOFF.
TheSIMcardslotsarelocatedattherightsideofIOG500 serieshousinginordertoprotecttheSIMcard.You
needtounscrewandremovetheouterSIMcardcoverbeforeinstallingorremovingtheSIMcard.Please
followtheinstructionstoinsertorejectaSIMcard.AfterSIMcardiswellplaced,screwbacktheouterSIM
cardcover.







  

Step 1:
Loosen the screws as
below and remove
the SIM cover.
Step 2:
Push the SIM card
into the slot 1 (SIM-
A
)
or slot 2
(
SIM-B
)
.
Step 3:
Push the inserted SIM
card again to eject it
from the SIM slot.

ModbusCellularGateway

14
1.6.3ConnectingPower
The IOG500 series unit accepts 9-32V DC input power, and can be powered by DC12V or DC24V DC
supply. The IOG500 unit can be powered by connecting a power source to the power terminal block.
Please connect carefully your power source. Make sure the electrodes have been plugged into the
right pins according to their assignments.




ThereisaDC12V/1Apoweradapter2inthepackageforyoutoeasilyconnectDCpoweradaptertothis
terminalblock.



WARNNING:Thiscommercial‐gradepoweradapterismainlyforeaseofpoweringup
thepurchaseddevicewhileinitialconfiguration.It’snotforoperatingatwide
temperaturerangeenvironment.PLEASEPREPAREORPURCHASEOTHERINDUSTRIAL‐
GRADEPOWERSUPPLYFORPOWERINGUPTHEDEVICE.


2 The maximum power consumption of IOG500-0T001 is 5.5W.
GND
PWR

ModbusCellularGateway

15
1.6.4ConnectingSerialDevices

TheIOG500providesoneRJ45typeserialportandoneRJ45toDB9conversioncable.Connecttheserial
devicetotheunitDB9maleportwiththerightpinassignmentsofRS‐232/485areshownasbelow.

Pin1Pin2Pin3Pin4Pin5Pin6Pin7Pin8
RS‐232DCDRXDTXDDTRGNDDSRRTSCTS
RS‐485  DATA+DATA‐ GND


1.6.5ConnectingtotheNetworkoraHost

TheIOG500seriesprovidesoneRJ45porttoconnect10/100MbpsEthernet.Itcanautodetectthe
transmissionspeedonthenetworkandconfigureitselfautomatically.ConnectoneEthernetcabletotheRJ45
port(LAN)ofthedeviceandpluganotherendoftheEthernetcableintoyourcomputer’snetworkport.Inthis
way,youcanusetheRJ45EthernetcabletoconnectthedevicetothehostPC’sEthernetportforconfiguring
thedevice.


ModbusCellularGateway

16
1.6.6SetupbyConfiguringWEBUI

YoucanbrowsewebUItoconfigurethedevice.
TypeintheIPAddress(http://192.168.123.254)3

Whenyouseetheloginpage,enterthepassword‘admin’4andthenclick‘Login’button.



3ThedefaultLANIPaddressofthisgatewayis192.168.123.254.Ifyouchangeit,youneedtologinbyusing
thenewIPaddress.
4It’sstronglyrecommendingyoutochangethisloginpasswordfromdefaultvalue.

ModbusCellularGateway

17
Chapter2BasicNetwork
2.1WAN&Uplink



ThegatewayprovidesoneWANinterfacetoletallclienthostsinIntranetofthegatewayaccesstheInternet
viaISP.ButISPsintheworldapplyvariousconnectionprotocolstoletgatewaysoruser'sdevicesdialinISPs
andthenlinktotheInternetviadifferentkindsoftransmitmedia.
So,theWANConnectionletsyouspecifytheWANPhysicalInterface,WANInternetSetupandWANLoad
BalanceforIntranettoaccessInternet.ForeachWANinterface,youmustspecifyitsphysicalinterfacefirst
andthenitsInternetsetuptoconnecttoISP.



ModbusCellularGateway

18
2.1.1PhysicalInterface



ThefirststeptoconfigureoneWANinterfaceistospecifywhichkindofconnection
mediatobeusedfortheWANconnection,asshownin"PhysicalInterface"page.
In"PhysicalInterface"page,therearetwoconfigurationwindows,"Physical
InterfaceList"and"InterfaceConfiguration"."PhysicalInterfaceList"windowshows
alltheavailablephysicalinterfaces.Afterclickingonthe"Edit"buttonfortheinterfacein"PhysicalInterface
List"windowthe"InterfaceConfiguration"windowwillappeartoletyouconfigureaWANinterface.

PhysicalInterface:
‧ 3G/4GWAN:Thegatewayhasonebuilt‐in3G/4GcellularasWANconnection.ForeachcellularWAN,
thereare1or2SIMcardstobeinsertedforspecialfailoverfunction.


Please MUST POWER OFF the gateway before you
insert or remove SIM card.
The SIM card can be damaged if you insert or
remove SIM card while the gateway is in operation.
Attention

ModbusCellularGateway

19
OperationMode:
Therearethreeoptionitems“Alwayson”,“Failover”,and“Disable”fortheoperationmodesetting.However,
forthesingleWANdevice,only“Alwayson”isavailable.
Alwayson:SetthisWANinterfacetobeactiveallthetime.WhentwoormoreWANareestablishedat
"Alwayson"mode,outgoingdatawillthroughtheseWANconnectionsbaseonloadbalancepolicies.
VLANTagging
Sometimes,yourISPrequiredaVLANtagtobeinsertedintotheWANpacketsfromGatewayforspecific
services.PleaseenableVLANtaggingandspecifytagintheWANphysicalinterface.Pleasebenotedthatonly
EthernetandADSLphysicalinterfacessupportthefeature.Forthedevicewith3G/4GWANonly,itis
disabled.


PhysicalInterfaceSetting
GotoBasicNetwork>WAN>PhysicalInterfacetab.

ThePhysicalInterfaceallowsusertosetupthephysicalWANinterfaceandtoadjustWAN’sbehavior.
Note:NumbersofavailableWANInterfacescanbedifferentforthepurchasedgateway.



WhenEditbuttonisapplied,anInterfaceConfigurationscreenwillappear.WAN‐1interfaceisusedinthis
example.



ModbusCellularGateway

20
InterfaceConfiguration:



InterfaceConfiguration
ItemValuesettingDescription
PhysicalInterface
1.AMustfillsetting
2.WAN‐1istheprimary
interfaceandisfactory
settoAlwayson.
Selectoneexpectedinterfacefromtheavailableinterfacedropdownlist.
Dependingontheroutermodel,DisableandFailoveroptionswillbe
availableonlytomultipleWANgateways.WAN‐2andWAN‐3interfacesare
onlyavailabletomultipleWANgateway.
OperationModeAMustfillsetting
Definetheoperationmodeoftheinterface.
SelectAlwaysontomakethisWANalwaysactive.
SelectDisabletodisablethisWANinterface.
SelectFailovertomakethisWANaFailoverWANwhentheprimaryorthe
secondaryWANlinkfailed.Thenselecttheprimaryortheexisted
secondaryWANinterfacetoswitchFailoverfrom.

(Note:forWAN‐1,onlyAlwaysonoptionisavailable.)
VLANTaggingOptionalsetting
CheckEnableboxtoentertagvalueprovidedbyyourISP.Otherwise
uncheckthebox.
ValueRange:1~4096.

Note:ThisfeatureisNOTavailablefor3G/4GWANconnection.


