Anet E10 User manual

E10-3D Printer Installation Guide

E10 Installation Guide
Attention：
1. Please check if the package is complete
before signing for it.
2. After you unbox the product, please check
if the parts are in accord with Bill of Material.
3. If there is any problem, please contact your
supplier as soon as possible.
4. The Installation Guide is displayed by
modeling Diagrams, please take the object as
the standard.

Precautions for sticking 3M sticker
1. 3M sticker may not be peeled off easily,
please use it carefully.
2. Before sticking, please make sure there is no
foreign matter or dust on the surface of hot
bed.
3. When sticking, please align sticker at the hot
bed.
4. After sticking, if there is bubble, please use
hard card or paper to squeeze it out.
5. If you need to remove it after use, please
heat the hotbed up to 50℃to remove it, and
then use industrial alcohol or glass cleaner to
clean the remaining glue up.

E10 assembly parts list 1

E10 assembly parts list 2
Please check if the parts are in accord with Bill of Material!
You can print the printed parts on E10 by yourself,the stl files are save in file
Print Model STL

Part Name

Step 1
Picture 1 is the chassis, and Picture 2 is the vertical frame.
PIC 2
PIC 1

Step 2
Please insert the vertical frame
correctly into the chassis M4*9 Screws are tightened up already

Step 3
Please mount M6*20 screws from
the bottom and tighten them up
M6*20 Hexagon Socket Screw
Attention: Be aware of the vertical
frame is not attached to the chassis
firmly at this moment, do not turn the
frame around.
Bottom

Step 4
ATTN：The red circle shows
the screw hole position
Mount M4*10 Hexagon
Socket Screw
M4*10
Before

Step 5
Before After
After mounting, please leave the power supply
box alone, you will need it when wiring.

Step 6
1.Loose the M4*9 screws at two sides to
enable “T” nut to turn to landscape and
lock the Aluminum frame.
2.When there is space between screw head
and Aluminum frame, the nut would trun to
landscape to lock the frame automatically.
3.Then tighten up the M4*9 screws at two
sides.
Tighten the black jackscrew up after the
installation of heating tube and thermister.
ATTN：Don't screw out the
screws！！！

Step 7
M3*5 Hexagon Socket Screw
Put the wires into “U” groove Mount M3*4 screws into the screw hole after the
installation of fan cover.

Step 8
1. Please screw out the screw on “R” clip;
2. Put protective cover of wires on the fan cover into the “R” clip, and tighten the
screw up.
Filament tube installation: Please insert filament tube into Extruder motor hole,
and then insert the tube into Extruder hole in the other end.
Screw on “R” clip
Extruder motor hole
Extruder hole
2

Step 9 Please connect wires according to the labels with the
corresponding sockets on the printer
Left Z Axis Motor
Y Axis Limit Switch
Right Z Axis
Motor
E Axis Motor
(Extruder)
X Axis Motor
Hotbed
Y Axis Motor

Step 9
X Axis Limit Switch
Z Axis Limit
Switch
Fan Cover

Step 9
Red Wire Socket
Black Wire Socket
X Axis Limit
Switch
Z Axis Limit
Switch

Step 9
Left Z Axis
Motor
Y Axis Limit Switch
Right Z Axis
Motor
E Axis Motor
(Extruder)
X Axis Motor
Hotbed Y Axis Motor
Please insert the hot
bed wire tightly in
case of burning out.

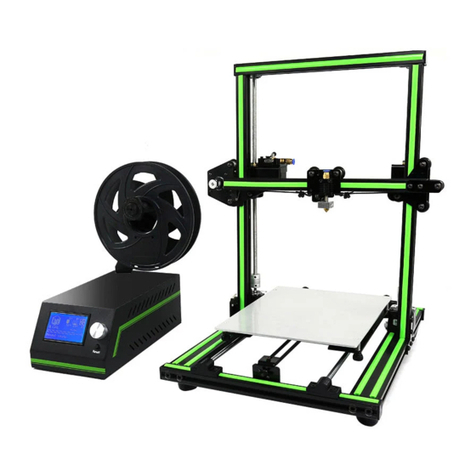

Step 10 Finished Product 1

Step 10 Finished Product 2
