APS IA06SJD4B User manual

For 2004-2008 Ford F-150 SuperCrew Cab (Excl. 04 Heritage Edition)
REV: 20190401
Installation Instructions for IA06SJD4B
by APS Auto Parts Specialist Inc.
Application: For 2004-2008 Ford F-150 SuperCrew Cab (Excl. 04 Heritage Edition)
Estimated Time: 1 to 2 hours
The instruction here is for
your reference only. We
strongly recommend the
professional installer for best
result. We are not
responsible for any damage
caused by the installation.
Thank you for choosing our
product!

For 2004-2008 Ford F-150 SuperCrew Cab (Excl. 04 Heritage Edition)
REV: 20190401
Page 1 of 2

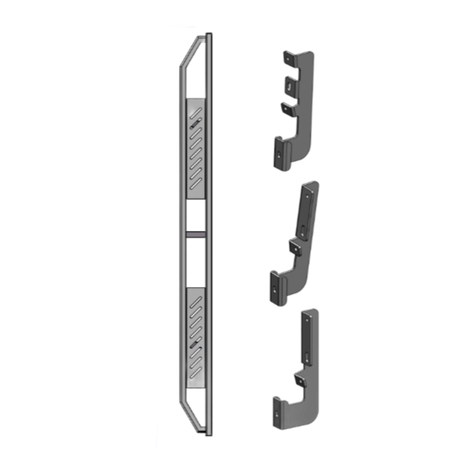

PARTS LIST:
Item
QTY
Description
Item
QTY
Description
#1
2
Driver/ Passenger Side Bar
#8
6
M8 Lock Washers
#2
3
Driver Front Mounting Bracket (DFM)
#9
6
2-Hole Support Bracket
#3
3
Passenger Front Mounting Bracket (PFM)
#10
6
M8X1.25 U-Clip Nuts
#4
6
M8X1.25-25 Hex Bolts
#11
6
M10X1.5-25 Hex Bolts
#5
12
M10X1.5-75 Carriage Bolts
#12
24
M10 Flat Washers
#6
2
ST6x25 Hex Flange Self Tapping Screw
#13
18
M10 Lock Washers
#7
6
M8 Flat Washers
#14
18
M10 Hex Nuts
PROCEDURE:
1. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
2. Locate mounting locations as shown on Fig 1.
3. Install U-Clip nuts as shown (See Fig 2).
4. Attach mounting brackets as shown. Finger tighten(See Fig 3).
5. Select the Passenger Side Bar. Slip (2) M10X1.5-75 Carriage Bolts into each 2-Hole Support
Brackets ,and insert the 2-Hole support bracket into the Driver Side Bar.(Fig 4). Carefully
position the Bar onto the (3) Mounting Brackets. IMPORTANT: Do not slide the Bar on the
Brackets or damage to the finish may result. Attach the Driver Side Bar to the Mounting
Brackets with (2) M10 Hex Nuts,(2)M10 lock washers and (2)M10 flat washers, (Fig 5). Do not
tighten hardware.
6. Level and adjust the Bar properly and tighten all hardware. NOTE: Torque all M10 X1.5-75
Carriage Bolts to 22~25 Ib-ft. Don't over tighten,or the aluminum square bars will be
damaged by the brackets.
7. Repeat Step 2-6 for the other side installation.
8. Installation completed!!! (See Fig 6)
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
Products have a high quality finish that must be cared for like any other exposed finish on the vehicle. Protect
the finish with a non-abrasive automotive wax, (e.g.Pure Carnauba ) on a regular basis. The use of any soap,
2-Hole Support Bracket
DFM
PFM

For 2004-2008 Ford F-150 SuperCrew Cab (Excl. 04 Heritage Edition)
REV: 20190401
Page 2 of 2
polish or wax that contains an abrasive is detrimental, as the compounds scratch the finish and open it to
corrosion.
Driver/Passenger Side Installation Pictured
Fig 6
Complete Installation
Fig 4
Fig 5
